USER MANUAL 10900 N Reber

ACCESSIONE HACHOIR A VIANDE

Read carefully before use and keep for the enre duraon of appliance.

Reber follows a policy of connuous research, evoluon and change of its products in the legislature, technical, ecological and business eld. Any deformities of the product compared to this instrucons booklet are the result of this process.

Safety warnings applicable to all uses

This appliance is only intended for household use.

This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instrucon concerning use of the appliance in a safe way and if they understand the hazards involved.

Children shall not play with the appliance.

For its use, pay aenon the appliance is on a at and stable surface.

Avoid posions that could cause the drop of the appliance.

Every type of intervenon on the appliance, including the cleaning and maintenance operands must be carried out with power switch on the "O" (-0-) posion and the plug cable disconnected from the power socket and using protecon gloves for hands.

The appliance must be connected to a power socket that is always easily accessible and supplied with the same voltage as the one menoned on the nameplate scked on the boom of the device.

Aer use always disconnect the appliance from the supply especially if it is le unaended.

Before any intervenon on the machine, posion the switch on the "O" (-0-) posion and remove the plug from the socket.

In case of defect or malfuncon, don't dissambly the appliance.

Contact the nearest aer-sales service.

If the supply cord is damaged, it must be replaced by an aer service agent or a similarly qualified person by a supply cord of the similar type in order to avoid a hazard.

To replace the accessory follow carefully the provided installaon instrucons.

Before approaching parts that move in use or before changing accessories posion the power switch on the “O” (-0-) posion and disconnect the appliance from the supply

Acousc level under 80 dBA.

Maximum connuous use duraon (all accessories) :

Aer these duraons wait unl appliance has cooled down

Safety warnings applicable to the use as a meat mincer

This appliance shall not be neither used nor handled nor cleaned by children. Keep the appliance and its cord out of reach of children

Safety warnings applicable to the uses as tomato squeezeer and cheese grater

This appliance can be used by children aged from 8 years and above if they have been given supervision or instrucon concerning use of the appliance in a safe way and if they understand the hazards involved.

Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.

MANUFACTURER'S LIABILITY

The manufacturer cannot be held liable for problems, breakages, accidents, etc. due to lack of know-how (or however non-applicaon) of the specicaons contained in this manual. The same can be said for the implementaon of changes, variants and/or installaon of accessories unauthorised in advance.

TECHNICAL DATA

Universal electric brush motor. Reducer with gears in steel and nylon.

TOMATO SQUEEZER ACCESSORY

Body in cast iron or acetyl resin propeller in acetyl resin, towing pin in nylon inserted on n plated steel; Iter cone, funnel and drip pan in stainless steel 18/10 ( 10900 N ) funnel and drip pan in Moplen ( 10902 N)

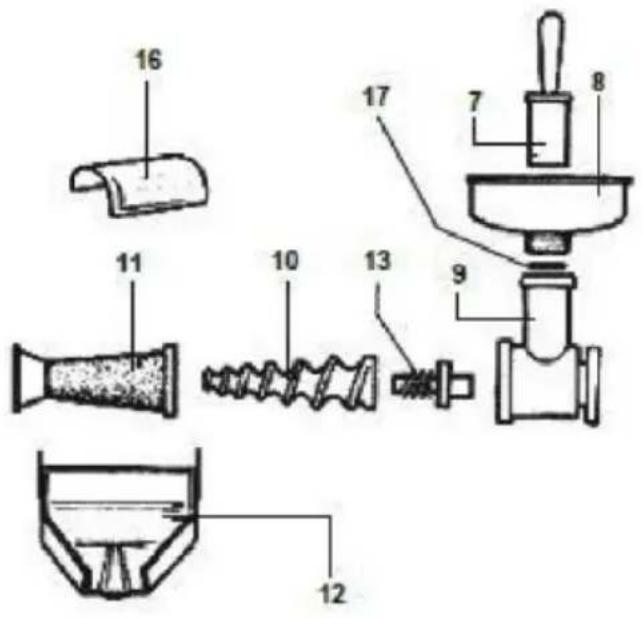

Legend

7-Pestle 8-Funnel 9-Body in cast iron or resin 10-Propeller in resin 11-Filter in stainless steel 12-Drip pan in stainless steel or Moplen 13-Pin with spring 16-Splash guard
Stainless steel (only 10900 N) 17-Funnel Gasket

TOTT

TOMATO SQUEEZER USE

This appliance is intended for household use only and limited quantity production. Assemble the pin with the spring carefully following the assembly diagram; the spring must always be installed between the pin and the propeller.

This appliance can squeeze both cooked or raw tomatoes.

The dierent qualifies, the level and type of ripeness impact on the quantity of residual humidity in tomatoes and, as a result, on appliance funconing and the end result; a biological product is always dierent season aer season.

If the tomato is cooked, leave it to cool slightly and insert it in the machine at a temperature under 50^ , if raw, cut into adequately sized pieces so they can fall into the neck of the casing without having to press them.

You are always advised to leave the tomatoes to drain (both cooked and raw) to remove plant water; this procedure will avoid overly moist peel exing and the risk of liquid leaking from the rear of the body.

The propeller was designed to obtain the best pressing if le to work without forcing; insert the tomato in the funnel, allow it to fall into the casing with the pestle without pressing and leave the machine work without forcing it. The propeller will empty autonomously, the pressed tomato will be correctly consistent and you can avoid excessively wet peel exing (a second pressing can however take place if the tomatoes are very moist)

Pressing the tomato with the pestle when the propeller is already full of tomato can cause the liquid to leak from the rear of the body, damaging the reducer: leaving the propeller to drain autonomously will avoid this problem.

If the tomato is too hot, and/or if you force it using the pestle when the propeller/Iter system is full, you risk clogging the system and damaging the Iter cone and the body.

For dimension related reasons, it is parally dismantled in the packaging; you need to insert the towing pin with the spring in the hole of the body (9), insert the propeller (10) in the body by inserting it on the towing pin, then place the liter cone (11) over the propeller pressing it and rotang it in an an-clockwise direcon to t the ears of the ring nut in the specic grooves in the body.

Screw the funnel (8) onto the threaded neck and ach the drip pan (12) to the liter cone and the body using the specic clips. The machine is then ready for use; it is strictly forbidden to operate the appliance dry (without tomatoes). When the work is complete, unscrew the funnel (8), remove the drip pan (12), turn the liter cone (11) in a clockwise direcon to remove the propeller (10) and the towing pin with the spring. Remove the body (9) from the cover of the reducer (6), then wash and carefully dry all the parts that have come in contact with food.

MEAT MINCER ACCESSORY ART. 8820 N

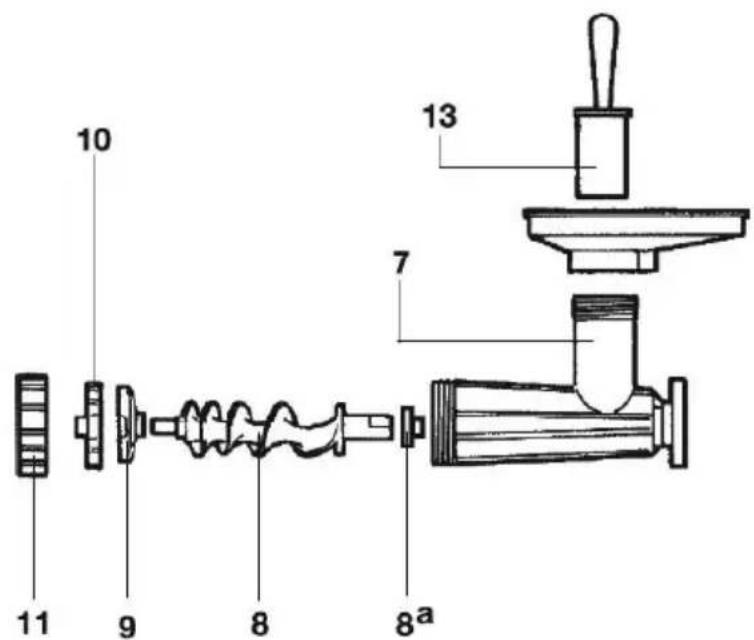

Legend meat mincer

7-Body in cast iron 8-Propeller 8^ -Bushing 9-Plate

10-Knife 11-Ring nut 13- Pestle and Plate

MEAT MINCER ACCESSORY

Body, propeller and ring nut are manufactured in n plated cast iron, plate and self-sharpening knife in hardened steel; pestle in moplen and plate in

stainless steel or moplen, on request support for lling and funnels in moplen. Plates are available on request with various sized holes, according to needs.

MEAT MINCER USE

Before operang the meat mincer, wash with boiling water and dry all the parts carefully that come in contact with the meat. On rst use, to eliminate all working residue, you are advised to operate the meat mincer with waste meat for 5 minutes. Screw in the ring nut without forcing it and strictly avoid unscrewing it when working. At the end of the work, to dismantle the meat mincer turn the ring nut (11) in an an-clockwise direcon, remove the knife (10), the plate (9) and the propeller (8), remove the body in cast iron (7) from the cover of the reducer (6); wash, dry carefully and, if necessary, grease all the parts that come in contact with the meat with oil for foodstu contact. REBER electric meat mincers are prepared to work with plates having holes in diameter from mm. 3 to mm. 12. REBER srl cannot be held in any way liable for damage and accidents due to use of plates with holes in diameter over 12mm .

CHEESEGRATER ACCESSORY ART. 8810 N

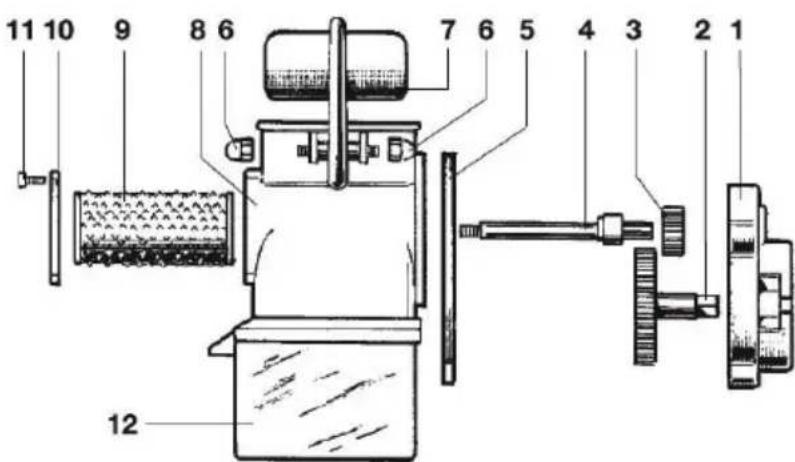

Legend grater

1-Mulplier cover 2-Large gear
3- Small gear mulplier 4- Grater pin
5- Mulplier ange 6- Grater blind nut

7- Grater handle 8- Grater body 9- Toothed roll
10- Nylon covers 11- Nylon cover screw
12- Collecng box

GRATER ACCESSORY

Body and handle in aluminum, roll in n plated steel and collecng box in plasc for contact with foodstus; the oponal grater is connected on the gearmotor unit using a mulplier with geared axial rotaons in nylon supplied in the box.

GRATERUSE

Before use, dismantle the roll as specied and wash and carefully dry all the parts coming in contact with the food.

At the end of the work, unscrew the screws (11) and remove the nylon cover (10) to remove the toothed roll (9) on which the pin is fastened (4) and the small gear (3); wash and carefully dry all the parts that have come in contact with the food.

SUPPORT AND WARRANTY CONDITIONS

The informaon on the support center nearest you can be found on the website www.rebersrl.it in the support item.

PRODUCTS WARRANTY

All the products are covered by warranty against manufacturing defects, with 2 year validity from the me of purchase by the end user (1 year for professional users). The purchase data is confirmed by the receipt or invoice; if these documents are missing, reference can be made to the year of appliance manufacture on the technical data label. The warranty covers manufacturing defects, any defects not clearly ariable to the manufacturer must be viewed by our internal technician or an authorised support center which will cerfy the validity of the warranty.

The warranty does not cover damage caused by improper use and installaon or non-compliance with the intended use of the appliance, treatments also due to incorrect cleaning, damage caused by knocks or falls or consumable materials. The warranty expires if the product was repaired or handled by unauthorised third pares. The warranty does not include replacement of the machine or the extension of the warranty in the event of repairs. Repairs must be directly carried out by Reber or an authorised support center and must arrive carriage free. The warranty does not cover cleaning operands of the machine if necessary.

Disposal of appliances to scrap by private individuals in the European Union. This symbol that appears on the product or the packaging indicates the product must not be disposed of with other domestic waste. Users must dispose of the appliances to scrap by bringing them to the collecon center indicated for recycling of electrical and electronic appliances. Separate collecon and recycling of appliances to scrap during the disposal phase promotes the preservaon of natural resources and guarantees these appliances are scrapped while respecng the environment and safeguarding health. For further informaon on collecon points of the appliances to scrap, contact your local council, the local waste disposal service or the shop where you purchased the product.
