USER MANUAL Kyros MID7033 COBY

 Thank You Page 3 Engli sh  Thank You Congratulations on your purchase of a Coby

Internet Tablet. This guide is provided to help you get started quickly with your player; please read it carefully and save it for future reference. For detailed instructions, up-to-date information, and helpful tips, please visit the Coby website at www.cobyusa.com. Thismanualisavailablefordownloadfromthe CobywebsiteasaPDFle. ToviewPDFdocuments,downloadandinstall thefreeAdobeAcrobatreaderfromtheAdobe websiteatwww.adobe.com. package Contents Please make sure that the items shown below are included in the package. Should an item be missing, please contact the local retailer from which you pur- chased this product. Coby

Internet Tablet Protective pouch USB cable USB host/keyboard adapter Professional stereo Earphones Power adapter Thispackagemaycontainplasticbagsorother materials that pose a hazard to children. Be suretosafelydisposeofallpackingmaterials afteropening.Page 4 Thank You Engli sh features Browse the Web. Visit your favorite websites Check your e-mail Keep in touch with friends and family Watch YouTube™ videos Browse the world’s most popular video-sharing com- munity Read your favorite books Download thousands of books with the included E-book reader * Discover thousands of apps for Android™ Games, applications, and more with the installed marketplace Connect to the Internet wirelessly High-speed Wi-Fi 802.11 b/g/n networking Enjoy your media library anywhere Portable powerhouse plays popular music, video, and photo formats microSDHC memory card reader Increase your storage capacity (up to 32 GB sup- ported) Automatic orientation detection Read any way you want; the display adjusts auto- matically!

• Reading books in the ePub format requires the included E-book reader application.Getting To Know The Internet Tablet Page 5 Engli sh

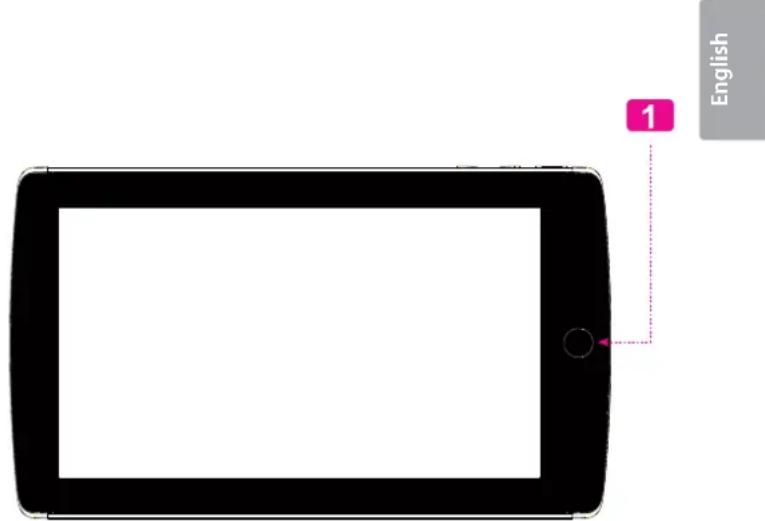

Name Description 1 Back key Press to return to the previous screen. If the keyboard is on the screen, press to close the keyboard.Page 6 Getting To Know The Internet Tablet Engli sh Name Description 2 Power jack (DC input) Charge and power the tablet with the included power adapter. 3 USB 2.0 Hi- speed port Connect to a computer to transfer data (e.g., music, videos, photos, les). 4 Reset key Press to reset the tablet if it freezes or otherwise behaves abnormally. (Use a paperclip or other small object to gen- tly press this key.) 5 Speaker Speaker output is automatically muted when using headphone Jack.

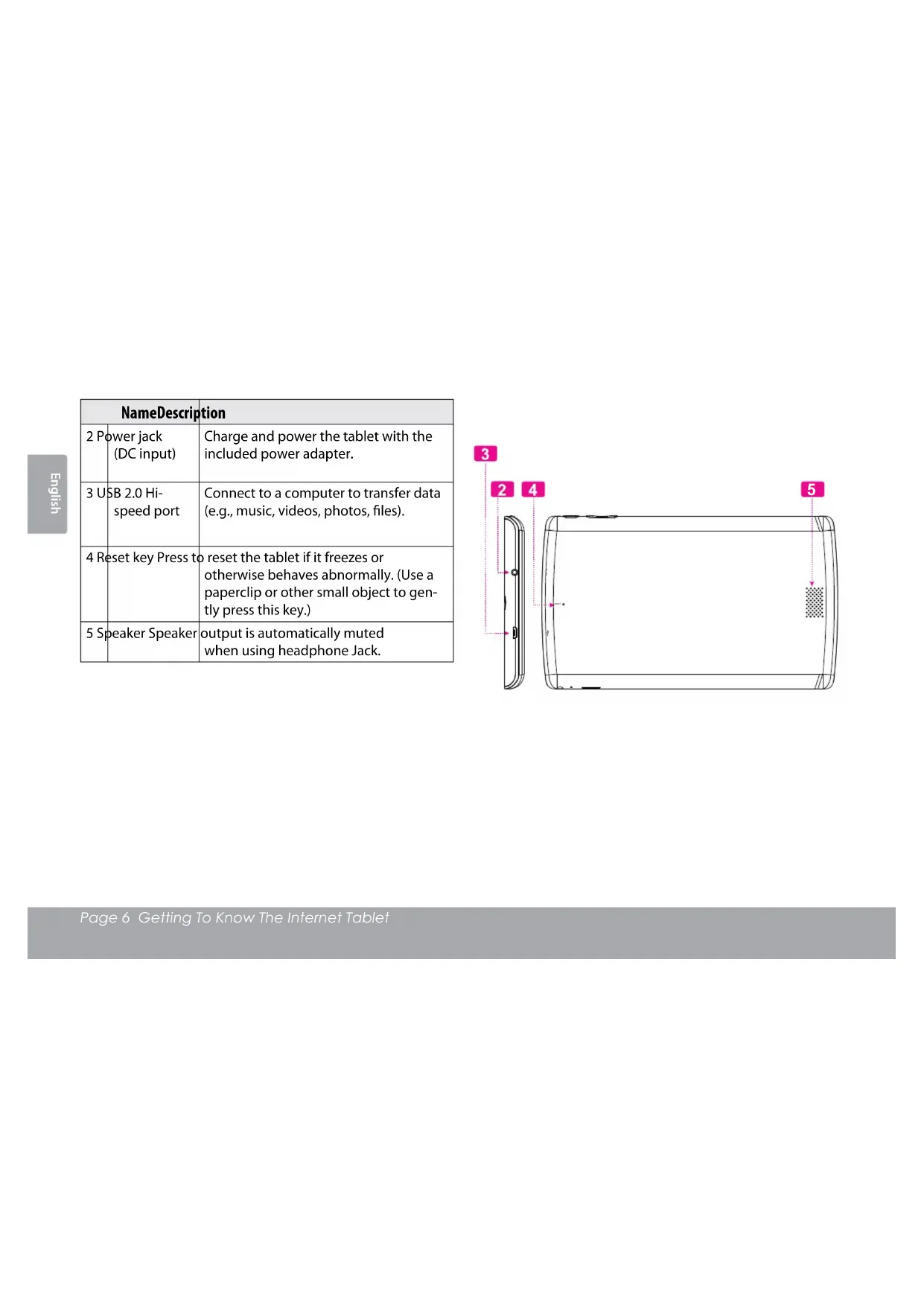

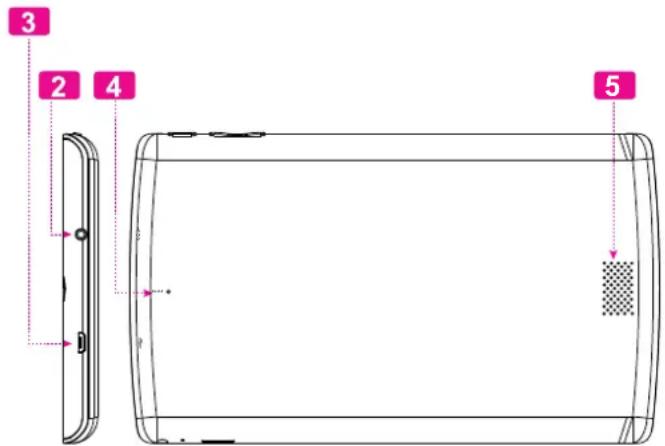

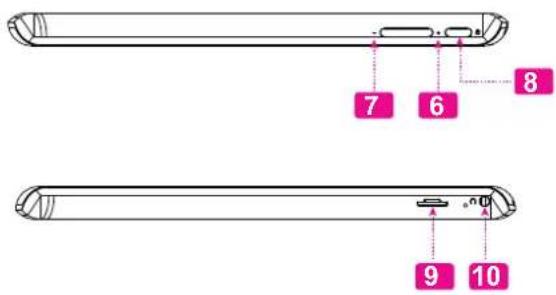

DC 5V RESETGetting To Know The Internet Tablet Page 7 Engli sh Name Description 6 Volume + key Press to increase the volume level. 7 Volume – key Press to decrease the volume level. 8 Power key Press to turn the unit on, or to turn the screen on and o. Press and hold to access the Power O menu. 9 microSDHC card slot Load external microSDHC memory cards here. 10 Headphone jack Audio output connection for head- phones. Note: Speaker output is automatically disabled when headphones are con- nected to the player.

7Page 8 Getting To Know The Internet Tablet Engli sh about the Touchscreen Your tablet comes equipped with an easy-to-use touch- screen. Our MID7033 with resistive touchscreen requires slight pressure on the plastic screen to activate tablet’s func- tions. This may be done with a single nger or plastic stylus. Our MID7035 with capacitive multi-touchscreen requires- gentle ngertip touch on the glass screen to activate tablet’s functions. Multiple ngers may be used to per- form gestures (e.g. 2-nger picture zoom). PleasenoteonMID7035:Yourngertipsmust not be covered. Astylus maybeused. Make sureitisforcapacitivetouchscreens. Protective Film A thin lm has been applied to the touchscreen to protect it during shipping. The protective lm should be removed before use. To remove it, simply take a corner of the lm and peel it away from the screen. Touchscreen Actions You can control the functions of the tablet by using the touchscreen. To control the tablet with the touchscreen, use your ngertip or stylus to manipulate icons, buttons, menu items, the on-screen keyboard, and other items displayed on the screen. You can perform the following actions on the touchscreen using your ngertip or stylus. Note:Youmustusecapacitivestylusonmulti- touchcapacitivescreens. Touch: To activate an on-screen item (e.g., application icons, buttons, menu items, and the letter/symbols of the on-screen keyboard), simply touch them with your ngertip or stylus. Touch and Hold: Some on-screen items have an alternate action if you touch and hold it (e.g., opening an alternate menu, or to activate the drag function). To touch and hold an item, touch the item and do not lift your ngertip/stylus until the action occurs.Getting To Know The Internet Tablet Page 9 Engli sh Drag: Drag an on-screen item to change its position (e.g., an application icon on the home screen). To drag an item, touch and hold it for a moment, then without lifting your ngertip/stylus, move your ngertip/ stylus on the screen until the item reaches its target destination. Swipe: Swipe up/down on the screen to scroll through a list. On some screens, you may be able to swipe left/right to change the view. To swipe, touch the screen and then quickly move your ngertip/stylus across the screen without lifting your ngertip/stylus. Do not pause on the screen with your ngertip/stylus at the initial point of contact or you may accidentally drag an item instead. Double-tap: Quickly tap the screen twice on a webpage or other application screen to zoom (the application must support the double-tap/zoom function). Within the browser, double-tapping a web- page section will cause the browser to zoom and t that section to the width of the screen.

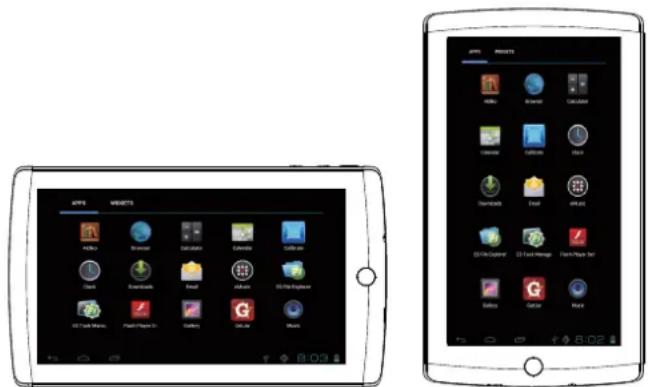

The tablet contains a sensor that will automatically change the orientation of most screens as you rotate the tablet. The sensor works best when the tablet is rotated perpendicular to the ground (i.e., when the tablet is held upright and not fat on its back). The orientation sensor can be turned on and off in the Display settings menu.

The tablet comes with a built-in rechargeable lithium- polymer battery.Page 10 Getting To Know The Internet Tablet Engli sh Before using the tablet, the battery should be charged fully. Press lower right corner settings, next to battery icon is charging percentage. To charge the battery:

1. Plug one end of the included power adapter into an

2. Plug the other end of the included power adapter into

the Power jack on the tablet.

3. Disconnect the power adapter when the tablet is fully

The tablet accepts microSDHC memory cards. Insert a memory card into the microSDHC card slot to: Increase the memory capacity of your tablet Play media les stored on the memory card (e.g., music, video, or photo les). To insert a memory card:

1. Align the memory card with the card slot. The metal

contacts of the memory card should face down away from the LCD screen.

2. Slide the card into the spring-loaded slot. Push the

card in until it clicks into place. Do not attempt to insert objects other than a microSDHC memory card into the card slot. A compatible memory card should t easily into the card slot; if you encounter resistance, check the alignment ofthecard. Do notattempt to forcethe cardin. Avoid touching the gold contacts of the memory card. To release and remove a memory card:

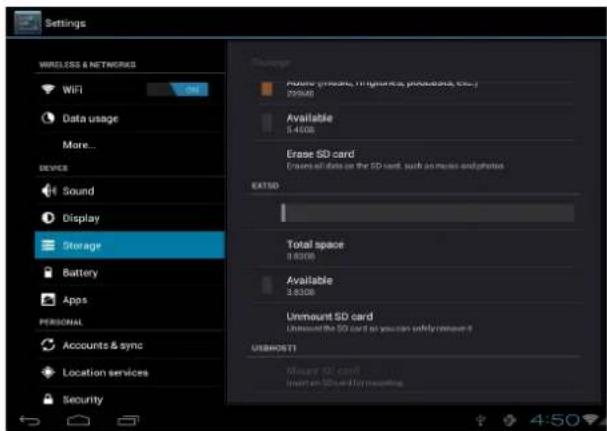

1. UNMOUNT the memory card.

a. From the home screen, tap the Launcher Tab, and then touch Settings to show the settings menu. b. Touch Storage to show the storage settings. c. Touch Unmount SD card to prepare the memory card for safe removal.Getting To Know The Internet Tablet Page 11 English

2. Push the card further into the slot until you hear a

click. The card will spring out of the slot.

3. Grasp the card by its edge to remove it.

To avoid damage and data corruption, do not removeamemorycardwhiledataisbeingwrittento orreadfromthecard.Forexample,donotremovea cardwhileplayingamusiclestoredonthecard. Resetting the Tablet Reset the tablet if it should freeze and not respond or otherwise malfunction.

1. Disconnect your tablet if it is connected to a com-

“Getting to Know your Internet tablet” section for reference.Page 12 Getting Started Engli sh  Getting Started Turning the Tablet on and off To turn the tablet on: Press and hold the Power key until the LCD screen turns on and you see Coby Logo, then wait until you see the Unlock screen. To turn the tablet off:

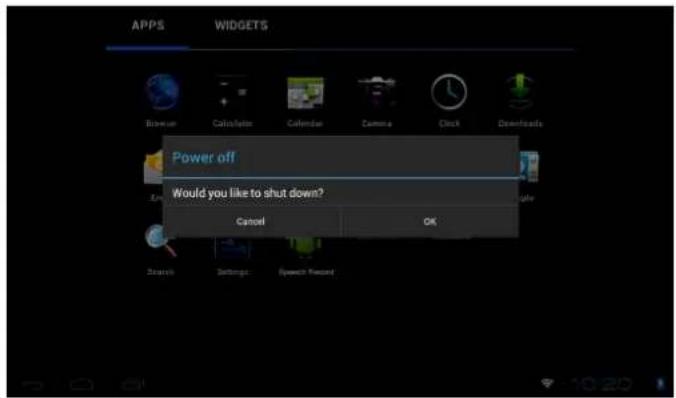

1. Press and hold the Power key until the conrmation

2. Touch OK to turn off the tablet.Getting Started Page 13

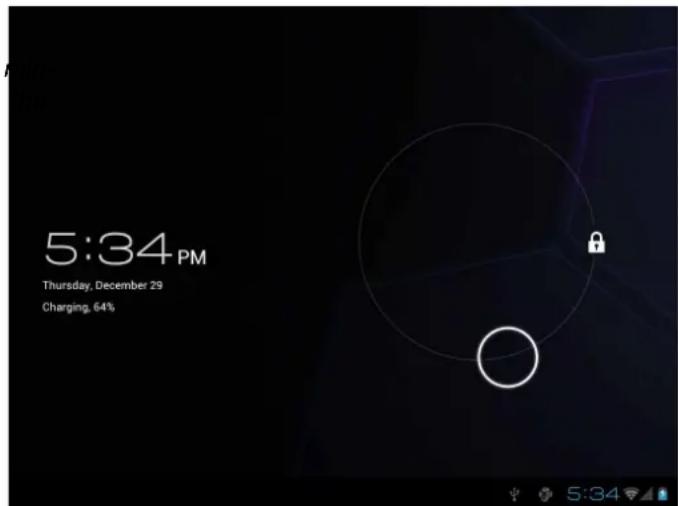

Engli sh Turning the Screen On and Off (Standby) When the tablet is on, you can turn off the screen to conserve battery power. Simply press the Power key once to turn the screen off. Press the Power key again to turn the screen back on. Toconservebatterypower,thescreencanbe settoturnoffautomaticallywhenthetabletis not in use (between 15 seconds and 30 min- utes). This Sleep option can be found in the Displaymenu. Unlocking the Screen When the screen turns off, you will have to unlock the screen when you turn it back on. To unlock the screen, touch and drag the lock icon to the edge of the circle that appears.Page 14 Getting Started Engli sh If a password has been set, enter the password to nish unlocking the screen. The Screen Unlock password can be set in the Security settings menu.

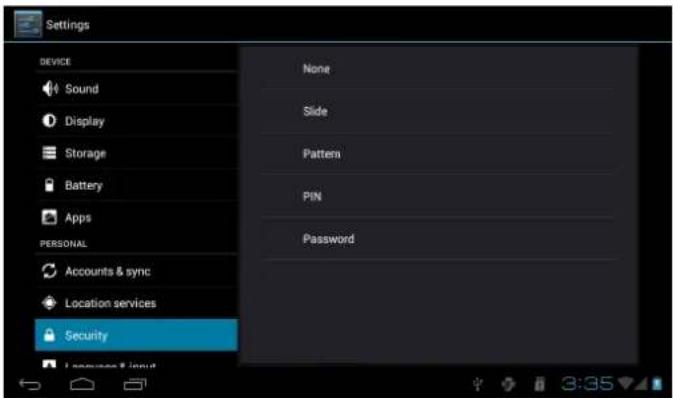

WARNING:Pleasewritedownyourpassword

lock pattern/PIN/Password. Misplacing orfor- gettingthismethodwilllocktheuserout.Re- coveringthe unitwillresetthedevice backto factory defaults. ALL YOUR DATA & PRO- GRAMS WILL BE LOST. home Screen at a Glance The home screen is the starting point for all of the features of your tablet.

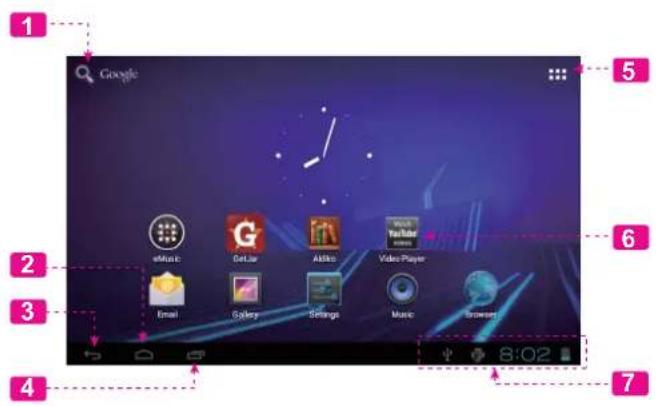

Name Description 1 Google Search Touch to search with Google browser. 2 Home icon Touch to back to the central Home Screen. 3 Back icon Touch to back to the previous screen.Getting Started Page 15 Engli sh Name Description 4 Recent Apps Touch to display the list of thumbnail im- ages of apps you have worked recently. Touch an App to open it. 5 Launcher Tab Open the Launcher to view the list of all Applications and Widgets installed on the tablet. Touch the Launcher tab to open the Launcher. 6 Icons Touch an icon to open an application or folder. 7 Notication bar Shows notication icons such as time, bat- tery level, and the network signal strength; touch the bar to open the full Notications panel. Touch a Notication icon to display more detail.

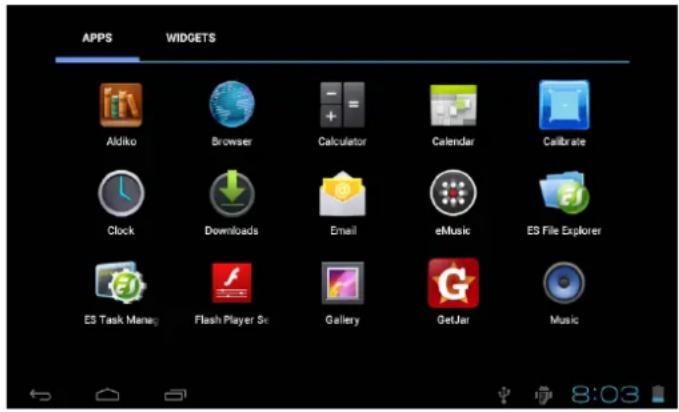

To open an application, touch the application icon on the home screen or in the Launcher. Launcher screen: The screen shown above is for illustrative purposes only. Coby reserves the right to modifyandimprovethenallistofapplications availableonthetablet.Page 16 Getting Started Engli sh Preinstalled Applications Some applications have been installed on your tablet for your convenience. These applications include: Download and read thousands of e-books. Supports the ePub standard. Browse the web. Display the calendar or record events and appointments to manage your schedule. Perform simple mathematical operations. View the current time, or set an alarm. Get $10 of music from eMusic. Check your e-mail. View and manage les stored on the tablet. Visit http://www.estrongs.com/en/products/ le-explorer.html for more information. Turn o background apps to conserve bat- tery power. Visit http://www.estrongs.com/en/products/ task-manager.html for more information. View photos and videos, plus edit photos. Access to thousands of apps with GetJar Marketplace.Getting Started Page 17 Engli sh Play music. Access the Settings menu to adjust the tablet’s options. Launch the mobile YouTube™ browser page to watch internet videos. Installing Applications You can also download an install additional applications from the device’s applications marketplace, the web browser, or other sources. The tablet must be set to allow installation of applications from non-Market sources. The Unknown sources option can be set in the Application settings menu. YourCobyMobileInternetDevicemayinclude accessto,orinformationon,content,products, applications and services from third parties. Youruseofsuchthirdpartycontent,products, applicationsandservicesisatthediscretionof suchthirdpartyandexpresslygovernedbysuch third party’s terms of use, including any such third party’sprivacypolicies, forsuch content, products, applications and services. Coby Electronics Corporation is not responsible for and expressly disclaims all warranties of any kindwithrespecttoallsuchthirdpartycontent, products, applications and services. Coby ElectronicsCorporationwillnotberesponsible foranyloss,costs,ordamagesincurreddueto your access to or use of third party content, products,applicationsorservices.Page 18 Getting Started Engli sh

Widgets are self-contained applications that you can place on the Home screens to access your favorite features. Adding Widgets to a Home Screen

1. Navigate to the Home screen which you want to

place the Widget on.

2. Touch the Launcher Tab.

3. Touch WIDGETS to show all widgets, and then hold

on a widget icon to add it to the Home screen. Removing Widgets Touch and hold the Widget until Remove icon appears at the top side of the screen, then drag the Widget to the Remove icon to remove it.

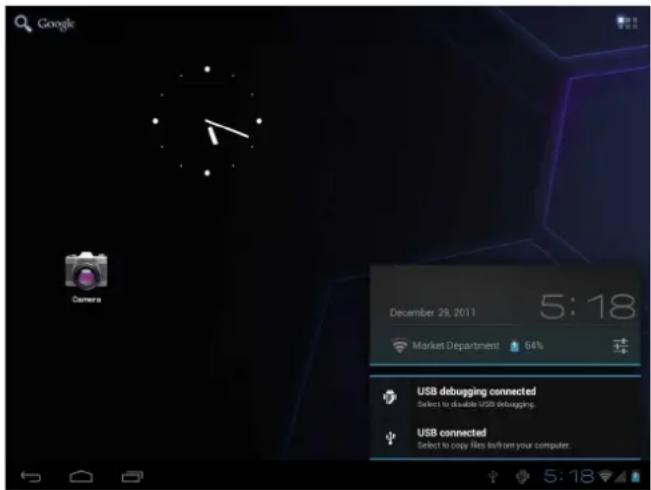

The icons that appear in the Notication bar at the bottom right corner of the screen alerts you when new messages arrive or alarms or other application events occur. View and respond to the notications by opening the full Notications panel. Touch the Notication bar to open the Notications panel. To respond to a notication:Getting Started Page 19 Engli sh Touch a notication in the list; the Notications panel will close and the application associated with the notication will launch. To close the Notications panel: Touch any other area of screen except the Notications panel , or; Touch the Back icon.Page 20 Connecting To The Internet Engli sh

This tablet can utilize Wi-Fi data networks to connect to the Internet. Wireless Wi-Fi technology can provide Internet access at distances of over 300 feet; however, this distance can be af- fected by your surrounding environment and Wi-Fi router.In general, being closer to Wi-Fi router improve performance.

In order to connect to the Internet, you will need either of the following: A wireless router or access point with a broad- band Internet connection The tablet has 802.11 b/g/n Wi-Fi radio. The tablet will also work on wireless routers that only support 802.11 b/g. Aminimumconnectionspeedof64Kbpsisrec- ommended.Fasterspeedswillenableabetter Internetexperience. You will need to know the name of your network (SSID), as well as the password or other credentials if your network is secured. These settings can usually be found on the administration webpage of your wireless router. Please refer to your wireless router’s documentation for help, or ask your network administrator for details. YoumayencounteropenWi-Finetworks,or“hot spots.” These networks areusuallycongured sothatyoucansimplyconnecttothemwithout needingtoknowitssettings;thetabletwillob- tainalltheinformationitneedsfromtherouter automatically.Connecting To The Internet Page 21 Engli sh

The Notication bar displays icons that indicate your tablet’s Wi-Fi status. Connected to a Wi-Fi network (waves indicate connection strength). [no icon] There are no Wi-Fi networks in range, or the Wi-Fi radio is off.

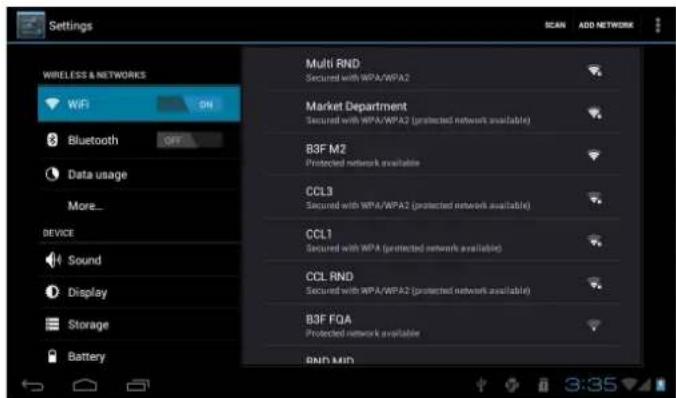

1. Turn on the Wi-Fi radio if it is not already on. To

turn on Wi-Fi: a. Go to the Home screen: Touch the Home icon. b. Open the Launcher screen: Touch the Launcher Tab, then touch Settings. c. Open the Wireless & networks menu: Touch WIRELESS & NETWORKS. d. Open the Wi-Fi settings menu: Touch WiFi. e. Make sure that the Wi-Fi option box is setted to ON: Touch and slide the block right to enable the Wi-Fi connection. When Wi-Fi is on, the tablet will look for and display a list of available Wi-Fi networks. Ifanetworkthatyouhaveconnectedtoprevi- ouslyisfound,thetabletwillconnecttoit. If you don’t see your network in the list, you canforcethetablettore-scan.Toscanfornet- works,taptheSCANiconthatlocatedonthe toprightcornerofthescreen.

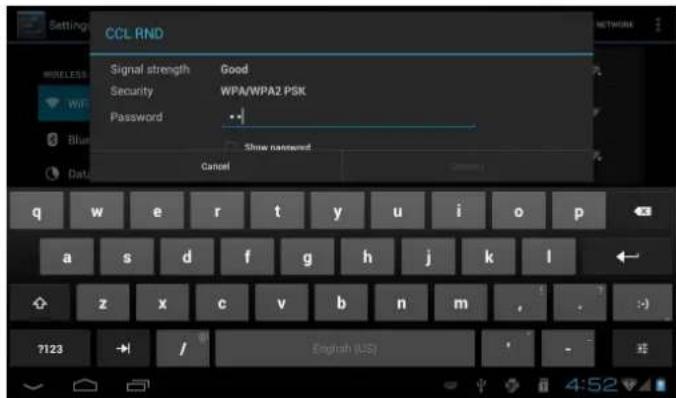

2. Select an available Wi-Fi network to connect to:

In the same Wi-Fi settings menu above, touch a network in the list.Page 22 Connecting To The Internet Engli sh If the network is open, the tablet will prompt you to conrm connection to the network. Touch Connect to conrm. If the network is secured (as indicated by a Lock icon), the tablet will prompt you to enter a password or other credentials. Touch the Wireless password box to show the on-screen keyboard and then use it to enter the password. Touch Connect to conrm. When you have successfully connected to a Wi-Fi network, the Notications bar at the bottom of the screen will show a Wi-Fi signal indicator. TolearnabouthowtoaddaWi-Finetworkwhen itisnotinrangeorwhentherouterissettoob- scure the network name (SSID); or to cong- ureadvancedWi-Fioptions,pleaserefertothe manual.Browsing The Web Page 23 Engli sh

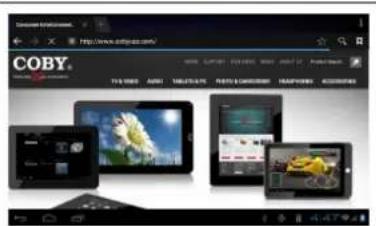

The Browser application lets you visit webpages and nd information on the web. Keep up with the news, your friends, or enjoy video from YouTube™, the world’s most popular video-sharing community. To use Browser, the tablet must be connected to the Internet. Read the section “Connecting to the Internet” to learn how to connect to the Internet. To open Browser, touch the Browser icon on the Home screen or in the Launcher.

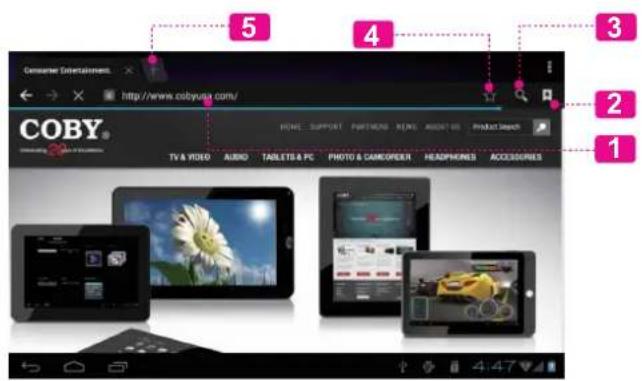

Name Description 1 Address bar Displays the address (URL) of the current page. Touch the bar to enter a new address or to search the web. 2 Goto Bookmarks icon Touch to view bookmarks, to view your most visited sites, or to view your browser history. 3 Search icon Touch to search with Google browser. 4 Add Bookmark icon Touch to add bookmarks. 5 New Window (+) Creates new browser window.Page 24 Browsing The Web Engli sh Some common Browser actions are described below. To go to a webpage.

1. Touch the Address

bar at the top of the Browser screen. The keyboard will open automatically. (If the Address bar is not visible, drag the page down to return to the top of the Browser screen.)

2. Use the keyboard to

enter the ad-dress (URL) of the webpage (e.g., www.cobyusa. com).

3. Touch Enter key to

open the webpage. To bookmark a webpage. Bookmark your favorite webpages in order to visit them quickly without entering a URL.

page that you want to bookmark

modify the name of the bookmark or its location (URL address). Otherwise, touch OK to nish adding the book- mark.Browsing The Web Page 25 Engli sh To go to a bookmarked webpage.

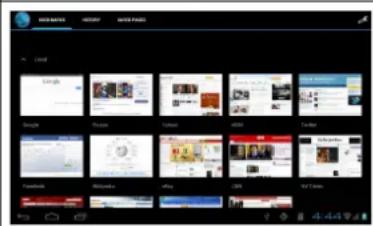

tile to open it. To delete a bookmarked webpage.

4. Touch “OK” to conrm.

browser menu While viewing a webpage, touch the icon show as right to open the Browser Menu, the icon is locate on the top right corner of the screen, the options are: Refresh: Refresh the current webpage. Forward: Go to the next webpage. New tab: Open the webpage in a new window, under a new tab. New incognito tab: Open the webpage in a new win- dow, under a new tab, and the pages you view in the new window will not appear in your browser history or search history. See the on-screen explanation of going incognito. Share page: Use Email to send the webpage URL. Find on page: Search for content on the current page.Page 26 Browsing The Web Engli sh Request desktop site: Save for ofine reading: Save this page onto the in- ternal memory, then you can read it when the internet connection is disable. Page info: View information about the current page, including the URL. Settings: Customize the Browser.Managing Applications Page 27 Engli sh

Downloading and installing new applications to your tablet can extend its functionality in many ways. You can download and install applications from the included Applications store. To open the Applications store:

1. Touch the Launcher icon.

2. Touch the Apps Marketplace icon.

When installing an application, it will tell you what func- tions it needs to control and if it needs access to your data. Make sure you review these access requirements carefully before completing the installation. Be especially cautious with applications that request access to many functions or to a signicant amount of your data. You are responsible for the results of applications installedonyourtablet.Page 28 Managing Applications Engli sh You can learn more about GetJar, and browse for ap- plications by visiting their website at www.getjar.com. Somedevelopersallowyoutodownloadandin- stallapplicationsdirectlyfromtheirwebsite. Your Coby Mobile Internet Device may include accessto,orinformationon,content,products, applicationsandservicesfromthirdparties.Your use of such third party content, products, applicationsandservicesisatthediscretionof suchthirdpartyandexpresslygovernedbysuch thirdparty’stermsofuse,includinganysuchthird party’s privacy policies, for such content, products, applications and services. Coby ElectronicsCorporationisnotresponsibleforand expresslydisclaimsallwarrantiesofanykindwith respecttoallsuchthirdpartycontent,products, applications and services. Coby Electronics Corporationwillnotberesponsibleforanyloss, costs,ordamagesincurredduetoyouraccessto oruseofthirdpartycontent,products,applications orservices. To uninstall an application:

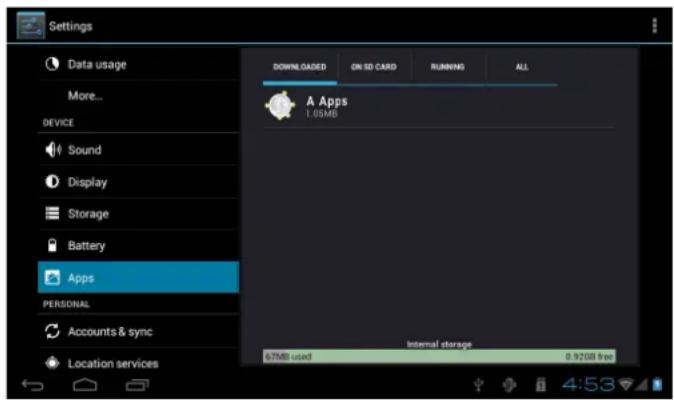

1. From the Home screen, touch the Launcher Tab.

2. Touch Settings to open the Settings menu.

3. Touch Apps, a list of all applications installed on the

tablet will display on screen.Managing Applications Page 29 Engli sh

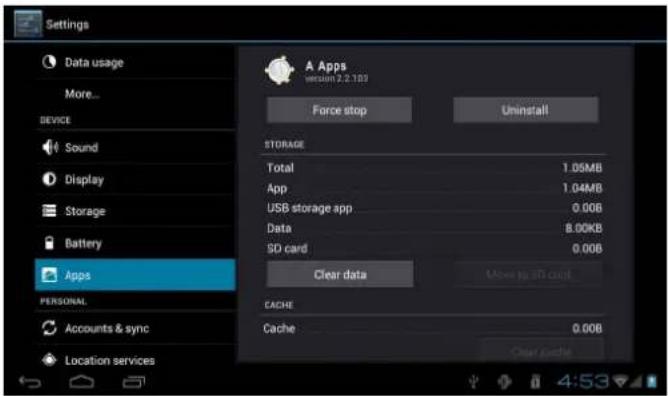

4. Touch the name of the application you want to

uninstall; the Application Info screen will open.

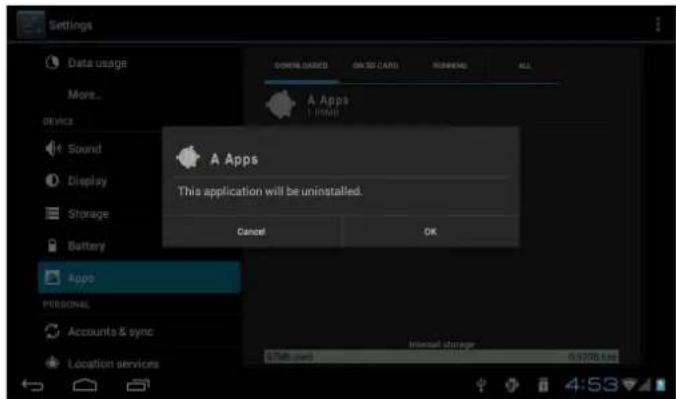

5. Touch Uninstall. The tablet will prompt you to

6. Touch OK to uninstall the application.

Or you can uninstall an application from the Launcherscreendirectly.Touchandholdanap- plicationiconuntiltheUninstallicon appears,dragetheapplicationicontotheUnin- stallicontouninstalltheapplication.Page 30 Optional Connections Engli sh

Connect the tablet to a computer to transfer les.

1. Connect your tablet to the computer.

With the included USB cable: Plug the small end of the cable into the USB 2.0 Hi- speed connector of the tablet. Plug the large end of the cable into an available USB

2.0 Hi-speed port on the computer.

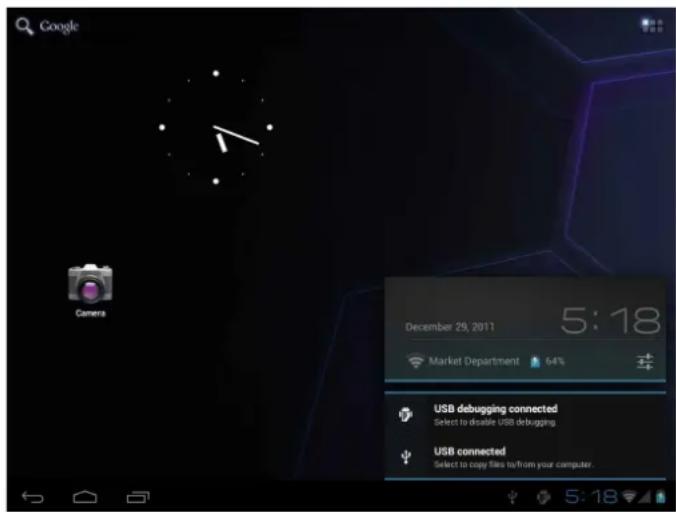

When your tablet is connected, a USB icon will appear in the Notication bar. Touch the Notication bar to open the notications panel. TheTablet’s“massstoragemode”iscompatible with many operating systems including: Microsoft

2. Mount the storage drive.

Touch USB connected to mount the tablet’s built-in storage, then touch “Turn on USB storage” and “OK” when prompted to conrm. When mounted, you can copy les to/from your computer to it. Your tablet will be recognized by the computer as a Removable Storage drive. Drag and drop les between your tablet and the computer. To learn more about copy- ing les, please refer to the documentation included with your computer or operating system.

Connect a pair of headphones (or earphones) to the tablet to enjoy media in private. Lower the volume level of the tablet before connecting headphones, and then slowly raise the volume to a comfortable listening level. The headphones must have a 3.5 mm (1/8 in) plug. When headphones are connected, speaker output will be disabled automatically. Hearing experts advise against the constant useofpersonalstereosplayedathighvolume. Constantexposuretohighvolumescanleadto hearingloss.Ifyoushouldexperienceringing intheearsorhearingloss,discontinueuseand seekmedicaladvice.Page 32 Optional Connections Engli sh

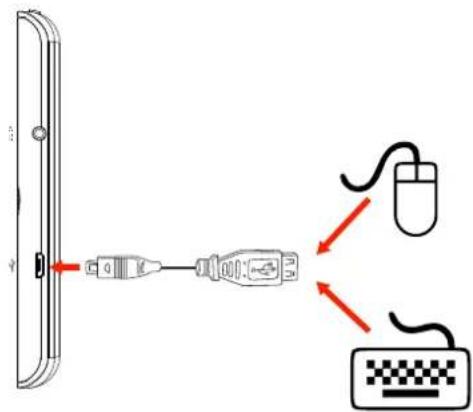

The USB full-size adapter can be used to connect and use USB devices with the tablet. The adapter converts the mini USB port on the tablet into a USB On-the-Go (OTG) connector. DC 5V Connecting a Keyboard For times when you want to type for an extended period of time, you may want to connect a full-size keyboard to the tablet. Use the included USB full-size (Type A) adapter to connect a keyboard to the tablet. You may also use this connection to add a mousetothetablet. Theadaptersupportsoneconnectionatatime. Touseakeyboardandmousesimultaneously, youwillneedtoaddanexternalUSBhub. Connecting a Storage Device Use the included USB full-size (Type A) adapter to connect a storage device to the tablet (e.g., a USB ash memory drive). Thisconnectionsupportsamaximumstorage sizeof16GB.Foradditionalstoragecapacity, amicroSDHCcardcanbeaddedtothetablet.Setting The System Options Page 33 Engli sh

1. From the Home screen, touch the Launcher Tab.

2. Touch Settings to open the Settings menu.

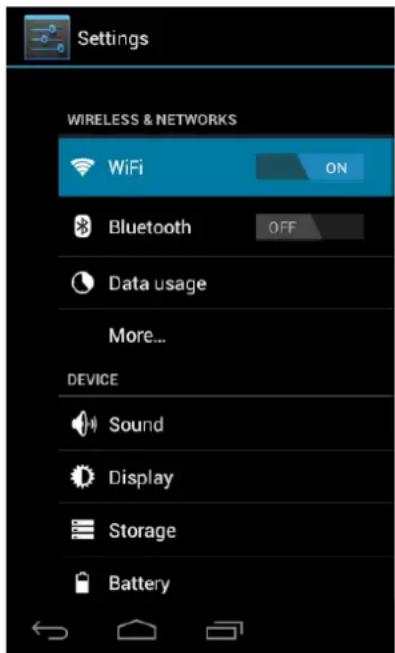

The settings are grouped by category. Touch a category to open and adjust its settings on the right side. Pleaserefertothemanualforadescriptionoftheitemsinthe Settingsmenu.Page 34 Specications Engli sh  Specications Please visit www.cobyusa.com for the latest product information. Design, specications, and manual are subject to change without notice. Processor Cortex A8 (1 GHz) RAM 512 MB Storage 4GB ash built-in

microSDHC card slot (max. 32GB sup- ported) Display MID7033: 7.0” TFT LCD (800 x 480), resistive touchscreen MID7035: 7.0” TFT LCD (800 x 480), capacitive touchscreen Networking Wi-Fi IEEE 802.11 b/g/n Audio Output 3.5 mm headphone PC Interface USB 2.0 Hi-speed Additional Fea- tures Built-in microphone speaker Operating Sys- tem Android™ 4.0 Power Rechargeable Li-poly battery Power Adapter (DC 5V) Playback Time (hours)

MID7033: Up to 11 hours music, 3.5 hours video, 3 hours web browsing MID7035: Up to 11 hours music, 3.5 hours video, 3 hours web browsing

If you have a problem with this device, please check our website at www.cobyusa.com for Frequently Asked Questions (FAQ) and product updates. If these resources do not resolve the problem, please contact Technical Support.

Email: techsupport@cobyusa.com Web: www.cobyusa.com Phone: For US Residents: 877-302-2629, Monday-Friday (9:00AM-9:00PM EST) For Canadian Residents: 855-542-8917, Monday-Friday (8:00AM-8:00PM EST)Page 36 Safety Notices Engli sh  Safety notices The lightning ash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufcient magnitude to constitute a risk of electric shock. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operation and servicing instructions in the literature accompanying the appliance. For recycling or disposal information about this product,pleasecontactyourlocalauthoritiesorthe ElectronicsIndustriesAlliance:www.eiae.org. For Customer Use: Enter below the serial number that is located on the rear of the unit. Retain this information for future reference. Model No. Serial No.

WARNING: To prevent re or shock hazard, do not expose this

device to rain or moisture. Dangerous high voltage is present inside the enclosure. Do not open the cabinet. Protect your hearing: Hearing experts advise against the con- stant use of personal stereos played at high volume. Constant exposure to high volumes can lead to hearing loss. If you should experience ringing in the ears or hearing loss, discontinue use and seek medical advice. Note: If the product suddenly has no response or powers off, an electrostatic discharge may be the cause. In this circumstance, please follow the procedures below for recovery:

• Turn o the unit by pushing and holding the slide button at the right (Power o position) for 15 seconds.

• Turn on the unit againSafety Notices Page 37 Engli sh fCC Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for Class B digital devices, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help Use of shielded cable is required to comply with Class B limits in Subpart B of Part 15 of the FCC rules. Do not make any changes or modications to the equipment unless otherwise specied in the manual. If such changes or modications should be made, you could be required to stop operation of the equipment.Page 38 Safety Notices Engli sh

1. Read Instructions: All the safety and operating instruc-

tions should be read before the product is operated.

2. Retain Instructions: The safety and operating instruc-

tions should be retained for future reference.

3. Heed Warnings: All warnings on the product and in

the operating instructions should be adhered to.

4. Follow Instructions: All operating and usage instruc-

tions should be followed.

5. Cleaning: Unplug this product from the wall outlet be-

fore cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

6. Attachments: Use only attachments recommended by

the manufacturer. Use of other attachments may be hazardous.

7. Water and Moisture: Do not use this product near

water (e.g., near a bath tub, washbowl, kitchen sink, laundry tub, in wet basements, or near a swimming pool and the like).

8. Ventilation: Slots and openings in the cabinet are

provided for ventilation to ensure reliable operation of the product and to protect it from overheating. These openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installa- tion such as a bookcase or rack unless proper ventila- tion is provided or the manufacturer instructions have been adhered to.

9. Power Sources: This product should be operated only

from the type of power source indicated on the rating label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from bat- tery power or other sources, refer to the operating instructions.

10. Overloading: Do not overload wall outlets, extension

cords, or integral convenience receptacles as this can result in a risk of re or electric shock.

11. Object and Liquid Entry: Never push objects of any

kind into this product through openings as they may touch dangerous voltage points or shout-out parts that could result in a re or electric shock. Never spill liquid of any kind on the product.

12. Servicing: Do not attempt to service this product your-

self as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servic- ing to qualied service personnel.

13. Damage Requiring Service: Unplug this product from

the wall outlet and refer servicing to qualied service personnel under the following conditions: a) when the power-supply or plug is damaged; b) if liquid has been spilled or if objects have fallen into the product; c) if the product has been exposed to rain or water; d) ifSafety Notices Page 39 Engli sh the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualied techni- cian to restore the product to its normal operation; e) if the product has been dropped or damaged in any way; f) when the product exhibits a distinct change in performance—this indicates a need for service.

14. Replacement Parts: When replacement parts are re-

quired, be sure that your service technician has used replacement parts specied by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in re, electric shock, or other hazards.

15. Safety Check: Upon completion of any service or

repairs to this product, ask the service technician to perform safety checks to ensure that the product is in proper operating condition.

16. Heat: The product should be situated away from heat

sources such as radiators, heat registers, stoves, or other products (including ampliers) that produce heat.

Coby is trademarks of Coby Electronics Corporation. Android is a trademark of Google Inc. Use of this trademark is subject to Google Permissions. Portions of the artwork used for this package are modications based on work created and shared by Google and used according to terms described in the Creative Commons 3.0 Attribution License. microSDHC Logo is a trademark of SD-3C, LLC. USB is a registered trademark of USB Implementers Forum, Inc. YouTube™ is a trademark of Google, Inc. All other trademarks and logos are property of their respective owners unless indicated otherwise.Espa ñol Page 40 Índice De Contenidos
