59030 - Cooker KORONA - Free user manual and instructions

Product type	Individual hot plate
Brand	Korona
Model	59030
Rated power	1500 W
Plate diameter	18.5 cm
Voltage	220-240 V ~ 50/60 Hz
Protection class	I
Control type	Rotary thermostat (Min to Max)
Indicator light	Yes, indicates heating cycle
Plate material	Metal with protective coating
Power cord	With plug, length approx. 1 m
Weight	Approx. 1 kg
Dimensions (L x W x H)	Approx. 20 x 20 x 8 cm
Safety	Hot surface (burn risk), do not immerse, use on flat, heat-resistant surface
Maintenance	Clean with a damp cloth after complete cooling; do not use abrasive cleaners
Warranty	2 years (subject to conditions stated in the manual)
Usage	Cooking and reheating food (household use only)
Included accessories	None
Specific power	1500 W for rapid heating

Frequently Asked Questions - 59030 KORONA

How to connect the appliance?

Fully unwind the power cord and plug it into a properly installed wall socket (220-240 V). Make sure the mains voltage matches the technical specifications.

Why does the indicator light turn on and off?

The built-in thermostat regulates the temperature: the light turns on when the element heats up and turns off when the temperature is reached. This cycle maintains a constant heat.

Can pots of any diameter be used?

For optimal efficiency, use pots with a diameter matching the plate (18.5 cm) or slightly larger. Avoid pots that are too small or unstable.

How to clean the hot plate?

Unplug the appliance and let it cool completely. Clean the housing and plate with a soft damp cloth. Do not use abrasive cleaners and never immerse the appliance in water.

Does the appliance turn off automatically?

No, the appliance does not have automatic shut-off. To turn off, set the thermostat to the minimum position (Min) then unplug the power cord from the mains socket.

What to do in case of odor or smoke during first use?

This is normal: the protective coating on the hot plates burns off during the first heating. Heat at maximum power for 5 minutes without utensils, in a well-ventilated room.

Can the appliance be used outdoors?

No, the appliance is designed exclusively for indoor use. Do not use it outdoors or in humid environments.

What is the warranty on this appliance?

The warranty is 2 years against material and manufacturing defects, from the date of purchase. It does not cover damage due to improper use.

How to store the appliance after use?

Unplug it, let it cool completely, then store it in a clean, dry place out of reach of children. Do not bend the cord.

Can I leave the appliance unattended while it is operating?

No, never leave the appliance unattended while it is on. Risk of burns or fire, especially with foods rich in oil or fat.

USER MANUAL 59030 KORONA

White KORONA portable electric stove with black lid and control knob, accompanied by fresh vegetables (no text or symbols on main subject)

CE

KORONA electric GmbH, Sundern/Germany

www.korona-electric.de

Durchmesser: ∅18,5 cm

Schutzklasse: I

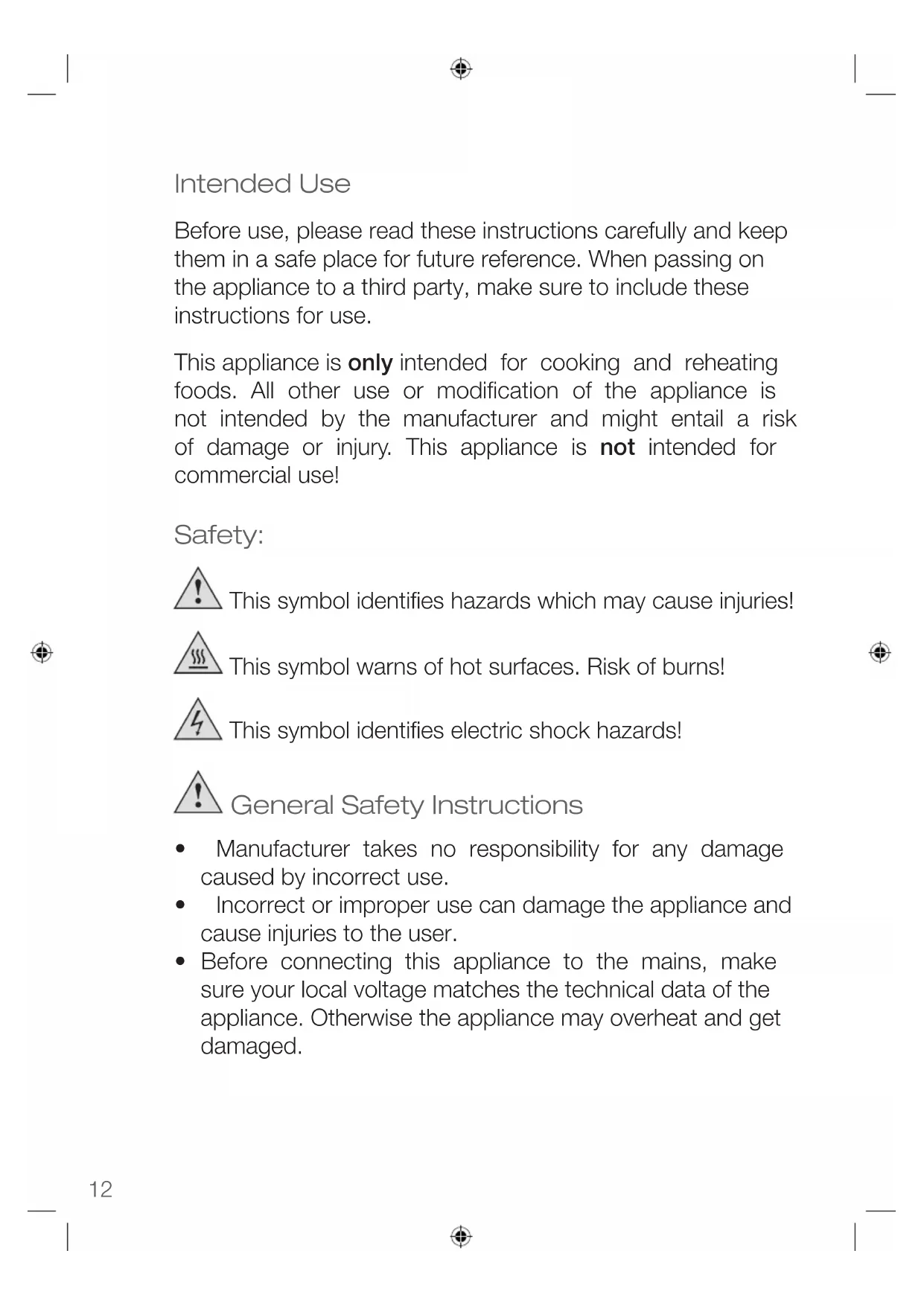

Before use, please read these instructions carefully and keep them in a safe place for future reference. When passing on the appliance to a third party, make sure to include these instructions for use.

This appliance is only intended for cooking and reheating foods. All other use or modification of the appliance is not intended by the manufacturer and might entail a risk of damage or injury. This appliance is not intended for commercial use!

Safety:

This symbol identifies hazards which may cause injuries!

This symbol warns of hot surfaces. Risk of burns!

This symbol identifies electric shock hazards!

General Safety Instructions

• Manufacturer takes no responsibility for any damage caused by incorrect use.
• Incorrect or improper use can damage the appliance and cause injuries to the user.
• Before connecting this appliance to the mains, make sure your local voltage matches the technical data of the appliance. Otherwise the appliance may overheat and get damaged.

Caution! Danger of electric shock!

• Never put the appliance, cord or plug into water or any other liquid.
• Do not use the appliance near a sink or wash basin.
• Do not use the appliance with wet hands.
• Do not use the appliance outdoors.

An electric appliance is not a toy!

• Never leave the appliance unattended during use.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• Always unplug your appliance when it is not in use, and before cleaning.
  • Always pull the plug – not the cord.
• Keep the appliance and the cord well away from any hot surfaces to avoid any damage to the appliance.
• Make sure the cord may not inadvertently be pulled cause anyone to trip when in use. Do not allow the cord to hang over sharp edges.
• Do not bend the cord or wind it round the appliance.

Do not use the appliance,

• if the cord is damaged.
• in case of malfunction.
- if the appliance was dropped or is damaged otherwise.

Have it checked and, if necessary, repaired by a qualified person/Customer Service. Never attempt to make any modifications to or repair the appliance yourself.

- Only use accessories evaluated for use with this appliance.

- Never attempt to drive any objects into the appliance.

• Never attempt to open the housing yourself!

Special Safety Instructions

Warning! To avoid the possibility of injury/damage to the appliance, electric shock, risk of fire and burns!

• Only use the appliance for its intended purpose and as described in this manual.
• Place the appliance on an even and heat-resistant surface. Do not place it on top of a metal surface.

• Attention: The temperature of accessible surfaces may be high during operation. Therefore, do not touch the appliance during and/or immediately after operation. Danger of serious burns!

• Do not move the appliance during operation.

• Always unplug the appliance after use and let it completely cool down before cleaning.
• Do not use the appliance close to or under inflammable objects, e.g. curtains, wall cabinets
• Adhere to a minimum wall distance of 5 cm.
• Attention: Foods with a high oil and fat content might easily ignite and catch fire.

- CAUTION: This appliance must not be supplied through an external switching device, such as an external timer, or connected to a circuit that is regularly switched on and off by the utility.

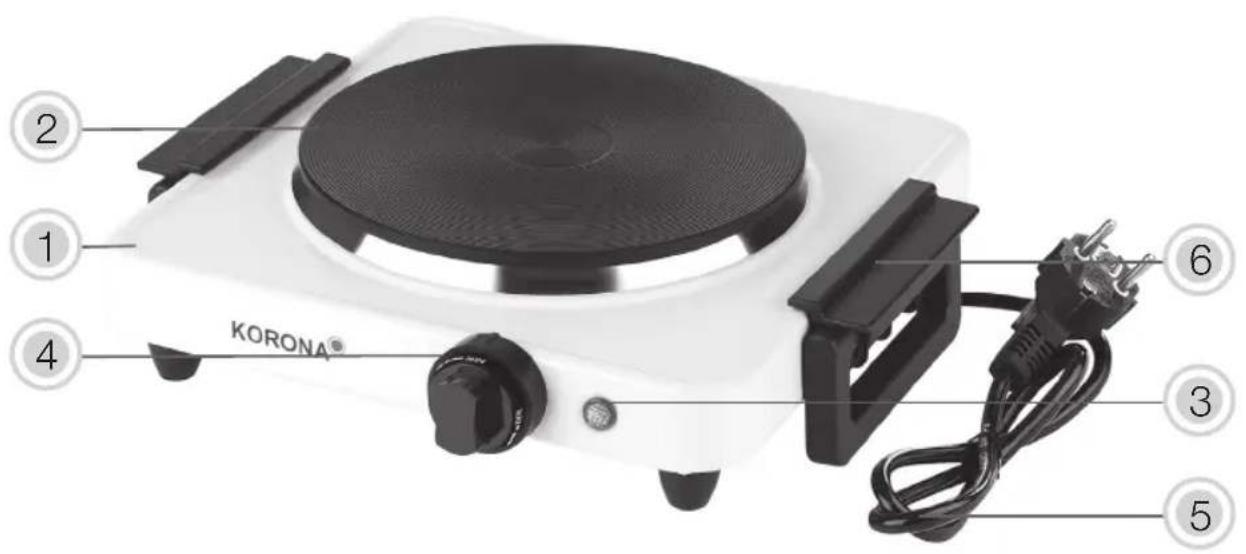

2 1 4 KORONA® 6 3 5

Product Description

1. Housing
2. Hotplate
   (∅ 18.5 cm, 1500W)
3. Indicator light
4. Temperature control knob (Thermostat)
   Min to Max
5. Power cord and plug
6. Handle

Before First Use

Remove all packaging material and check whether the appliance is complete.

Fully unwind the power cord (5) and connect the appliance to a properly installed wall socket.

The hotplates have a protective coating. To remove the protective layers on the heating elements, heat up the hotplates for about 5 minutes on the highest setting without any pot on it. This process seals the hotplates and assures a better protection against corrosion in the future.

This could cause a slight build-up of smoke and odou. This doesn't cause any harm nor does it mean that your appliance does not work properly. Make sure that the room is well ventilated!

After this process your hotplates are ready for operation.

Warning: Plastic bags are a danger to toddlers and es, therefore keep them away to avoid suffocation.

Operation

The temperature of accessible surfaces may high during operation. Therefore, do not touch the chance during and/or immediately after operation.

1. Place the appliance on an even and heat-resistant surface. Do not place it on top of a metal surface.

2. Fill the foods which you wish to reheat in a pot/pan and place it in the middle of the hotplate (2). Make sure that there are no foreign objects on the hotplate (2), e.g. food leftovers, water.

3. Connect the appliance to a properly installed wall socket and turn the hotplate on by turning the temperature control knob (4) to the desired level. The indicator light (3) lights up.

4. Only use pots/pans with the correct diameter.
5. After the appliance is switched off there is still some remaining heat, this heat could be used for keeping the foods warm.

Hot surface, danger of serious burns!

In order to properly switch off the appliance, the power cord must be disconnected from the mains after each use. It is not enough to turn the temperature control knob (4) to the MIN-position.

Temperature control knob/Thermostat:

During operation, an integrated thermostat switches the appliance on and off to ensure a constant temperature. This is indicated by the indicator light (3) cycling on and off.

cleaning and care

Before cleaning, always switch off the appliance, t it from the mains and let it completely cool down.

Never immerse the appliance in water. Danger! Electric Shock!

Clean the housing (1) and the plate (2) with a moistened soft cloth.

Do not use any aggressive cleaning agents and/or other hard objects to clean the appliance.

After using the appliance for a period of time it is recommended to clean the hotplate with a special cleaning agent.

Storage

Disconnect the appliance from the mains after each use and let it completely cool down.

Keep the appliance away from children and store it in a clean and dry place.

Disposal Instructions

Waste electrical devices marked with this sign must not be disposed of with your household waste, but are to be collected separately. Therefore, please return this device at the end of its life cycle to special collection points for disposal or your local dealer.

at the end of its life cycle to special collection points for disposal or your local dealer.

Your single hotplate 59030 is packed in a retail box. Such boxes are recyclable waste, i.e. they are reusable or recyclable.

Technical Data:

Voltage: 220 - 240 V \~ 50 / 60 Hz

Rated Power: 1500 W

Diameter: ∅18.5 cm

Protection Class: I

Changes are subject to change!

CE

Guarantee:

This product is guaranteed against defects in materials and workmanship for a period of 2 years.

This guarantee is not valid:

• if the appliance has not been used in accordance to the instructions
  • for damages due to wear and tear (batteries, etc.)
  • for damages known by customer at time of purchase
  • for damages caused by owner

This guarantee does not affect your statutory right, nor any legal right you may have as a costumer under applicable national legislation governing the purchase of goods.

In order to assert his/her right in a guarantee case during the guaranteed period, the customer must provide evidence of the date of purchase (receipt).

The guarantee is to be asserted against

KORONA electric GmbH, Sundern/Germany.

Service Address:

KORONA Service, Am Steinbach 9, 59872 Meschede, Germany

Telephone Hotline: [phone]

Mail: [e-mail]

web: www.korona-electric.de

within 2 years after the date of purchase. In case of guarantee the customer is given the right to get the appliance repaired at our own or at an authorized shop. Further rights (due to guarantee case) are not given to the customer.

Beoogd gebruik

Abstract geometric shape with curved and angular gray segments, no text or symbols present

Ref: 59030/07-2018.12
