Product Type	Double Plate Hob
Brand	KORONA
Model	59040
Number of Plates	2
Plate 1 Diameter	18,5 cm
Plate 1 Power	1500 W
Plate 2 Diameter	15,5 cm
Plate 2 Power	1000 W
Power Supply	220 - 240 V ~ 50 / 60 Hz
Total Power	2500 W
Protection Class	I
Temperature Control	Rotary thermostat from Min to Max
Indicator Lights	1 per plate (indicates heating cycle)
Plate Material	Metal with protective coating
Carrying Handle	Yes
Cleaning	Soft damp cloth, no harsh products
Safety	Automatic shutdown by thermostat, hot surface indicated
Warranty	2 years
After-Sales Service	KORONA Service, Germany
Usage	Domestic only (cooking and reheating)

Frequently Asked Questions - 59040 KORONA

How to use the cooker for the first time?

Remove all packaging, fully unwind the cord, plug into a suitable socket. Heat the plates empty at maximum setting for 5 minutes to remove the protective coating. Ventilate the room well.
Important: Do not place any utensils on the plates during this operation.

What is the total power of the appliance?

The total power is 2500 W (plate 1: 1500 W, plate 2: 1000 W). Ensure your electrical installation supports this power.

How to clean the heating plates?

Unplug the appliance and let it cool completely. Clean with a soft damp cloth. Never use harsh products or hard objects. For regular maintenance, a special plate cleaning product is recommended.

Can I use the appliance outdoors?

No, the appliance is designed for indoor use only. Do not use it outdoors or near water.

What should I do if the indicator light turns on and off during use?

This is normal: the built-in thermostat regulates the temperature by turning the plate on and off to maintain constant heat. The light follows this cycle.

How to turn off the appliance completely?

Turn the temperature selector to Min, then unplug the power cord from the mains socket. Do not rely solely on the selector.

What types of utensils to use on the plates?

Use pots/pans with a diameter suitable for the plate (18.5 cm or 15.5 cm). Ensure the bottom is flat and stable.

Is the appliance safe for children?

Children under 8 years old must not use the appliance. Children aged 8 and over may use it under adult supervision. Keep the appliance and cord out of reach of children under 8 years old.

What to do in case of malfunction?

Immediately unplug the appliance. Do not attempt to repair it yourself. Contact KORONA customer service at the address or number indicated in the manual.

Where can I download the full manual?

The manual is available for free download in PDF format at notice-facile.com. You can also request a translation in your language.

USER MANUAL 59040 KORONA

Double Plaque Chauffante

59040

Black-and-white photo of a stainless steel pot with fresh tomatoes and herbs in the foreground (no text or symbols visible)

White KORONA portable electric stove with two black burners and control knobs (no visible text or symbols)

CE

KORONA electric GmbH, Sundern/Germany

www.korona-electric.de

Durchmesser: ∅18.5cm, ∅15.5cm

Schutzklasse: I

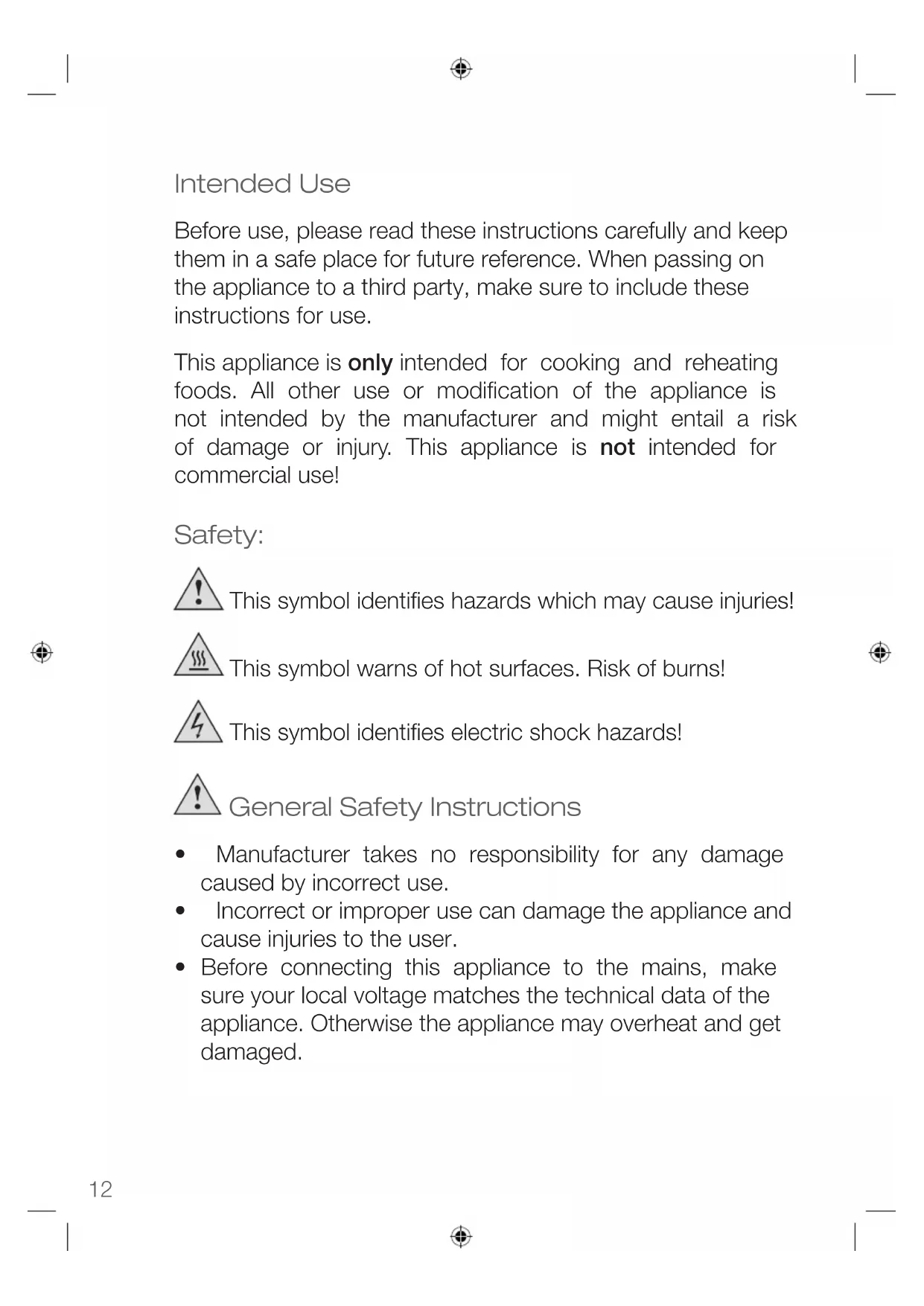

Before use, please read these instructions carefully and keep them in a safe place for future reference. When passing on the appliance to a third party, make sure to include these instructions for use.

This appliance is only intended for cooking and reheating foods. All other use or modification of the appliance is not intended by the manufacturer and might entail a risk of damage or injury. This appliance is not intended for commercial use!

Safety:

This symbol identifies hazards which may cause injuries!

This symbol warns of hot surfaces. Risk of burns!

This symbol identifies electric shock hazards!

General Safety Instructions

• Manufacturer takes no responsibility for any damage caused by incorrect use.
• Incorrect or improper use can damage the appliance and cause injuries to the user.
• Before connecting this appliance to the mains, make sure your local voltage matches the technical data of the appliance. Otherwise the appliance may overheat and get damaged.

Caution! Danger of electric shock!

• Never put the appliance, cord or plug into water or any other liquid.
• Do not use the appliance near a sink or wash basin.
• Do not use the appliance with wet hands.
• Do not use the appliance outdoors.

An electric appliance is not a toy!

• Never leave the appliance unattended during use.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
- Keep the appliance and its cord out of reach of children less than 8 years.
- Always unplug your appliance when it is not in use, and before cleaning.
• Always pull the plug – not the cord.
- Keep the appliance and the cord well away from any hot surfaces to avoid any damage to the appliance.
- Make sure the cord may not inadvertently be pulled cause anyone to trip when in use. Do not allow the cord to hang over sharp edges.
- Do not bend the cord or wind it round the appliance.

Do not use the appliance,

• if the cord is damaged.
• in case of malfunction.
- if the appliance was dropped or is damaged otherwise. Have it checked and, if necessary, repaired by a qualified person/Customer Service. Never attempt to make any modifications to or repair the appliance yourself.
- Only use accessories evaluated for use with this appliance.
• Never attempt to drive any objects into the appliance.
• Never attempt to open the housing yourself!

Special Safety Instructions

Warning! To avoid the possibility of injury/damage to the appliance, electric shock, risk of fire and burns!

• Only use the appliance for its intended purpose and as described in this manual.
• Place the appliance on an even and heat-resistant surface. Do not place it on top of a metal surface.

• Attention: The temperature of accessible surfaces may be high during operation. Therefore, do not touch the appliance during and/or immediately after operation. Danger of serious burns!

• Do not move the appliance during operation.

• Always unplug the appliance after use and let it completely cool down before cleaning.
• Do not use the appliance close to or under inflammable objects, e.g. curtains, wall cabinets
• Adhere to a minimum wall distance of 5 cm.
• Attention: Foods with a high oil and fat content might easily ignite and catch fire.

- CAUTION: This appliance must not be supplied through an external switching device, such as an external timer, or connected to a circuit that is regularly switched on and off by the utility.

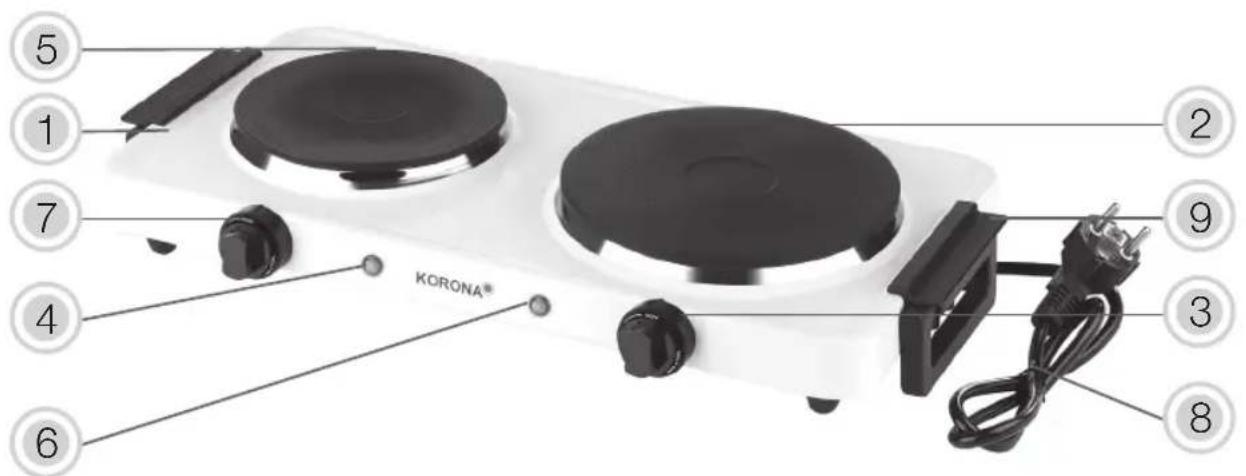

Product Description

1. Housing
2. Hotplate I (∅ 18.5cm, 1500W)
3. Temperature control knob I (Thermostat) Min to Max
4. Indicator light I
5. Hotplate II (∅ 15.5cm, 1000W)
6. Indicator light II
7. Temperature control knob II (Thermostat) Min to Max
8. Power cord and plug
9. Handle

Before First Use

Remove all packaging material and check whether the appliance is complete.

Fully unwind the power cord (8) and connect the appliance to a properly installed wall socket.

The hotplates have a protective coating. To remove the protective layers on the heating elements, heat up the hotplates for about 5 minutes on the highest setting without any pot on it. This process seals the hotplates and assures a better protection against corrosion in the future.

This could cause a slight build-up of smoke and odou. This doesn't cause any harm nor does it mean that your appliance does not work properly. Make sure that the room is well ventilated!

After this process your hotplates are ready for operation.

Warning: Plastic bags are a danger to toddlers and yes, therefore keep them away to avoid suffocation.

Operation

The temperature of accessible surfaces may high during operation. Therefore, do not touch the chance during and/or immediately after operation.

1. Place the appliance on an even and heat-resistant surface. Do not place it on top of a metal surface.

2. Fill the foods which you wish to reheat in a pot/pan and place it in the middle of the hotplate (2/5). Make sure that there are no foreign objects on the hotplate (2/5), food leftovers, water.

3. Connect the appliance to a properly installed wall socket and turn the hotplate (2/5) on by turning the temperature control knob (3/7) to the desired level. The indicator light (4/6) lights up.

4. Only use pots/pans with the correct diameter.
5. After the appliance is switched off there is still some remaining heat, this heat could be used for keeping the foods warm.

Hot surface, danger of serious burns!

In order to properly switch off the appliance, the power cord must be disconnected from the mains after each use. It is not enough to turn the temperature control knob (3/7) to the MIN-Position.

Temperature control knob/Thermostat:

During operation, an integrated thermostat switches the appliance on and off to ensure a constant temperature. This is indicated by the indicator light (4/6) cycling on and off.

cleaning and care

Before cleaning, always switch off the appliance, t it from the mains and let it completely cool down.

Never immerse the appliance in water. Danger! Electric Shock!

Clean the housing (1) and the plate (2/5) with a moistened soft cloth.

Do not use any aggressive cleaning agents and/or other hard objects to clean the appliance.

After using the appliance for a period of time it is recommended to clean the hotplate (2/5) with a special cleaning agent.

Storage

Disconnect the appliance from the mains after each use and let it completely cool down.

Keep the appliance away from children and store it in a clean and dry place.

Disposal Instructions

Waste electrical devices marked with this sign must not be disposed of with your household waste, but are to be collected separately. Therefore, please return this device at the end of its life cycle to special collection points for disposal or your local dealer.

Your double hotplate 59040 is packed in a retail box. Such boxes are recyclable waste, i.e. they are reusable or recyclable.

Technical Data:

Voltage: 220 - 240 ~V 50 / 60 ~Hz

Rated Power: 2500 W (1500 W and 1000 W)

Diameter: ∅18.5cm, ∅15.5cm

Protection Class: I

Changes are subject to change!

CE

Guarantee:

This product is guaranteed against defects in materials and workmanship for a period of 2 years.

This guarantee is not valid:

• if the appliance has not been used in accordance to the instructions
  • for damages due to wear and tear (batteries, etc.)
  • for damages known by customer at time of purchase
  • for damages caused by owner

This guarantee does not affect your statutory right, nor any legal right you may have as a costumer under applicable national legislation governing the purchase of goods.

In order to assert his/her right in a guarantee case during the guaranteed period, the customer must provide evidence of the date of purchase (receipt).

The guarantee is to be asserted against

KORONA electric GmbH, Sundern/Germany.

Service Address:

KORONA Service, Am Steinbach 9, 59872 Meschede, Germany

Telephone Hotline: [phone]

Mail: [e-mail]

web: www.korona-electric.de

within 2 years after the date of purchase. In case of guarantee the customer is given the right to get the appliance repaired at our own or at an authorized shop. Further rights (due to guarantee case) are not given to the customer.
