Product type	Cordless stick vacuum
Brand	Bosch
Model	Athlet BCH625KTGB
Category	Stick
Power supply	Rechargeable lithium-ion battery (cells)
Rated voltage	18 V or 25.2 V depending on version
Battery capacity	1.95 Ah or 2.6 Ah depending on version
Maximum runtime	Up to 60 min (level 1, 2.6 Ah battery)
Recommended charging time	At least 6 hours before first use
Filter type	Filter cartridge with motor protection filter and foam filter
Collection system	Bagless dust collector
Charge indicator	Battery charge status LED
Sensor Control function	Indicator light signaling filter cleaning need
Suction power	3 levels: 1 (quiet, brush off), 2 (standard), Turbo (max)
Included accessories	Floor brush with power brush, upholstery nozzle, crevice tool, cushion nozzle, suction hose with handle, accessory adapter, carrying strap (depending on model)
Usage	Domestic, indoor, up to 2000 m altitude
Safety	Do not vacuum liquids, hot/glowing substances, flammable; do not use without filter; charge only with supplied cable
Maintenance	Regular cleaning of dust collector and filters; foam filter washable at 30°C
Spare parts	Use only genuine Bosch parts
Warranty	According to subsidiary conditions; proof of purchase required

Frequently Asked Questions - Athlet BCH625KTGB BOSCH

How to charge the Bosch Athlet BCH625KTGB vacuum?

Place the vacuum near an outlet. Plug the charging cable into the back of the device and then into the mains socket. The charging indicator flashes during charging and becomes steady blue when the battery is full. Before first use, charge for at least 6 hours.

What is the battery runtime?

Runtime depends on power level and battery capacity. With a 2.6 Ah battery: up to 60 min at level 1, 37 min at level 2, and 12 min at Turbo level. With a 1.95 Ah battery: up to 40 min at level 1.

How to empty the dust collector?

Turn off the appliance. Press the release buttons on the dust collector to remove it. Pull out the filter unit from the dust collector, empty the dirt, then reinsert the filter unit and click the dust collector back into place. Empty after each use or when dust reaches the marker.

What to do when the Sensor Control light flashes red?

The red light indicates the filter needs cleaning. The appliance automatically switches to power level 1. First, clean the outer filter unit by shaking it or wiping with a dry cloth. If the light persists, clean the filter cartridge (tap it, then wash the foam filter at 30°C if necessary).

How to clean the filter?

Turn off the appliance and remove the dust collector. Take out the filter unit. For the outer unit: shake or tap it, or wipe with a dry cloth. For the cartridge: unscrew the cover, tap the cartridge, remove the foam filter and wash it by hand or machine (gentle cycle, max 30°C, slow spin). Let it dry completely (approx. 24 h) before reassembling.

Can I vacuum liquids with this vacuum?

No, the vacuum is designed for dry vacuuming only. Never vacuum liquids, moist substances, or hot/glowing substances. This could damage the appliance and void the warranty.

What accessories are included with the Bosch Athlet BCH625KTGB?

The package includes: a floor brush with power brush, upholstery nozzle, crevice tool, cushion nozzle, suction hose with handle, accessory adapter, carrying strap, and charging cable. Some accessories may vary depending on the version.

How to clean the rotating brush?

Turn off and unplug the vacuum. Press the release button on the rotating brush and remove it laterally. Cut hair and wrapped threads with scissors along the provided notch. Replace the brush by clicking it into place. Never use the floor brush without the rotating brush.

Can children use the vacuum?

Yes, from 8 years under supervision or after receiving instructions on safe use. Children should not play with the appliance. Cleaning and maintenance should not be done by children without supervision.

Where can I find spare parts?

Use only genuine Bosch parts to ensure performance and safety. Contact authorized after-sales service or your dealer. New filters are available from the service center. Visit www.bosch-home.fr or call 0 892 698 009 (paid service).

USER MANUAL Athlet BCH625KTGB BOSCH

Labeled diagram of a vacuum cleaner with numbered parts and exploded view

Table 1. Stock levels and trading data

Robert Bosch Haugorze GmbH

01731 Hockey, GCP

www.boschbana.com

ha sound and utter the

B. 2017年5月1日星期五

1. 2017年1月1日

- 与和神的形

de Sicherheitshinweise....2 Gerätebeschreibung....35
en Safety information ....3 Your vacuum cleaner....38
fr Consignes de sécurité....5 Description de l'appareil....41
it Istruzioni di sicurezza....7 Descrizione dell'apparecchio....44
nl Veiligheidsvoorschriften....8 Beschrijving van het toestel....47
da Sikkerhedsanvisninger....10 Beskrivelse....50
no Sikkerhetshenvisninger....12 Beskrivelse av apparatet....53
SV Säkerhetsanvisningar....13 Produktbeskrivning....55
fi Turvallisuusohjeet....15 Laitteen kuvaus....58
pt Instruções de segurança....16 Descrição do aparelho....60
es Consejos de seguridad ....18 Descripción de los aparatos ....63
el Υποδείξεις ασφαλείας....20 Περιγραφή της συσκευής....66
tr Güvenlik bilgiler....21 Cihaz açıklaması....69
pl Wskazówki dotyczące bezpieczeństwa....23 Opis urządzenia....72
hu Biztonsági útmutató....25 A készülék leírása....75
CS Bezpečnostní pokyny....26 Návod k použití....78
ru Указания по технике безопасности.... 28 Описание прибора.... 80
zf 安全信息....30 您的吸塵機....83

32....اطلاعات ايمنى 88....جارو برقى شما

Please keep this instruction manual for future reference.

When passing the vacuum cleaner on to a third party, please also pass on this instruction manual.

Intended use

This appliance is intended for domestic use only. This appliance is intended for use up to a maximum height of 2000 metres above sea level. Only use this vacuum cleaner in accordance with the instructions in this instruction manual.

In order to prevent injuries and damage, the vacuum cleaner must not be used for:

■ Vacuuming persons or animals.
■ Vacuuming up:
- Hazardous, sharp-edged, hot or red-hot substances.
- Damp or liquid substances.
- Highly flammable or explosive substances and gases.
- Ash, soot from tiled stoves and central heating systems.
- Toner dust from printers and copiers.

Spare parts, accessories

Our original spare parts, original (special) accessories are designed to work with the features and requirements of our vacuum cleaners. We therefore recommend that you only use our original spare parts, original (special) accessories. This will ensure that your vacuum cleaner has a long service life and that the quality of its cleaning performance will remain consistently high throughout.

Please note

Using unsuitable or inferior-quality spare parts, (special) accessories can damage your vacuum cleaner. Damage caused by the use of such products is not covered by our guarantee.

Safety information

This vacuum cleaner complies with the recognised rules of technology and the relevant safety regulations.

■ The appliance may be used by children over the age of 8 years and by persons with reduced physical, sensory or mental capacity or by persons with a lack of experience or knowledge if they are supervised or have been instructed on the safe use of the appliance and have understood the potential dangers of using the appliance.

■ Children must never play with the appliance.

■ Cleaning and user maintenance must never be carried out by children without supervision.

■ Plastic bags and films must be kept out of the reach of children and disposed of.

= There is a risk of suffocation.

Proper use

■ To charge, only use the charging cable included in the scope of supply.
■ The charging cable must only be connected and operated as specified on the rating plate.
■ The appliance must only be stored and charged indoors.
■ Do not expose the appliance to temperatures below 0 °C or above 40 °C.

■ Never vacuum without the dust bag or dust container, motor protection or exhaust filter.

= This may damage the vacuum cleaner.
- Keep the vacuum cleaner away from your head when using nozzles and tubes. => This could cause injury.
- Do not use a damaged charging cable. Replace it with an original charging cable.
■ When disconnecting the charging cable from the mains, pull the plug itself to remove it; do not pull on the power cord.
■ Do not pull the charging cable over sharp edges or allow it to become trapped.
■ Before carrying out any work on the vacuum cleaner, switch off the appliance and disconnect it from the charging cable and the mains.
■ Do not operate the vacuum cleaner if it is damaged.
If a fault is detected, switch off the appliance and disconnect it from the charging cable and the mains.
■ For safety reasons, only authorised after-sales service personnel are permitted to carry out repairs and fit replacement parts to the vacuum cleaner.
In the following cases, you must stop the appliance immediately and contact the after-sales service:
- If you have accidentally vacuumed up some liquid or liquid has entered the inside of the appliance;
- If the appliance has been dropped and damaged.
■ Protect the vacuum cleaner from outside weather conditions, moisture and sources of heat.
■ Do not pour flammable substances or substances containing alcohol onto the filters (dust bag, motor protection filter, exhaust filter, etc.).
■ The vacuum cleaner is not suitable for use on construction sites. => Vacuuming up building rubble may damage the appliance.
■ Switch off the appliance when it is not in use.
■ The packaging is designed to protect the vacuum cleaner from being damaged during transportation. We therefore recommend keeping the packaging for the purpose of future transportation.

Batteries

Your appliance is fitted with lithium-ion batteries which, for safety reasons, are only accessible to professional repair specialists.

For battery replacement, please contact your nearest after-sales centre or an authorised specialist dealer.

Notes on transport

The lithium-ion batteries in the appliance are subject to the requirements of dangerous goods legislation. The batteries can be transported by the user by road without any further requirements. In the event that they are dispatched by a third party (e.g. transported by air or freight carrier), special requirements regarding packaging and identification must be met. In this case, a dangerous goods expert must be consulted when preparing the goods for dispatch.

Information on disposal

Vacuum cleaners, batteries, accessories and packaging should be recycled in an environmentally friendly manner.

Do not dispose of the vacuum cleaner or the batteries in the household rubbish.

Packaging

The packaging is designed to protect the vacuum cleaner from being damaged during transportation. It is made of environmentally friendly materials and can be recycled. Dispose of packaging that is no longer required at an appropriate recycling point.

■ Old appliances

This appliance contains rechargeable lithium-ion batteries. The appliance must therefore only be disposed of by an authorised after-sales service or dealer.

Batteries

Please follow the notes on transport.

Integrated batteries may only be removed by specialist personnel for the purpose of disposal. Opening the housing shell may damage the vacuum cleaner.

To remove the battery from the vacuum cleaner, press the on/off switch (Fig. 10) until the battery is fully discharged. Unscrew the screws on the housing and take off the housing shell to remove the battery.

To prevent a short circuit, disconnect the battery connections individually one after the other and then insulate the terminals.

Even in the case of complete discharge, the battery still contains a residual capacity that may be released in the event of a short circuit.

fr

= Fare for kvelning!

Tiltenkt bruk

Simple line drawing of an open book with a right-pointing arrow on the page (no text or symbols)

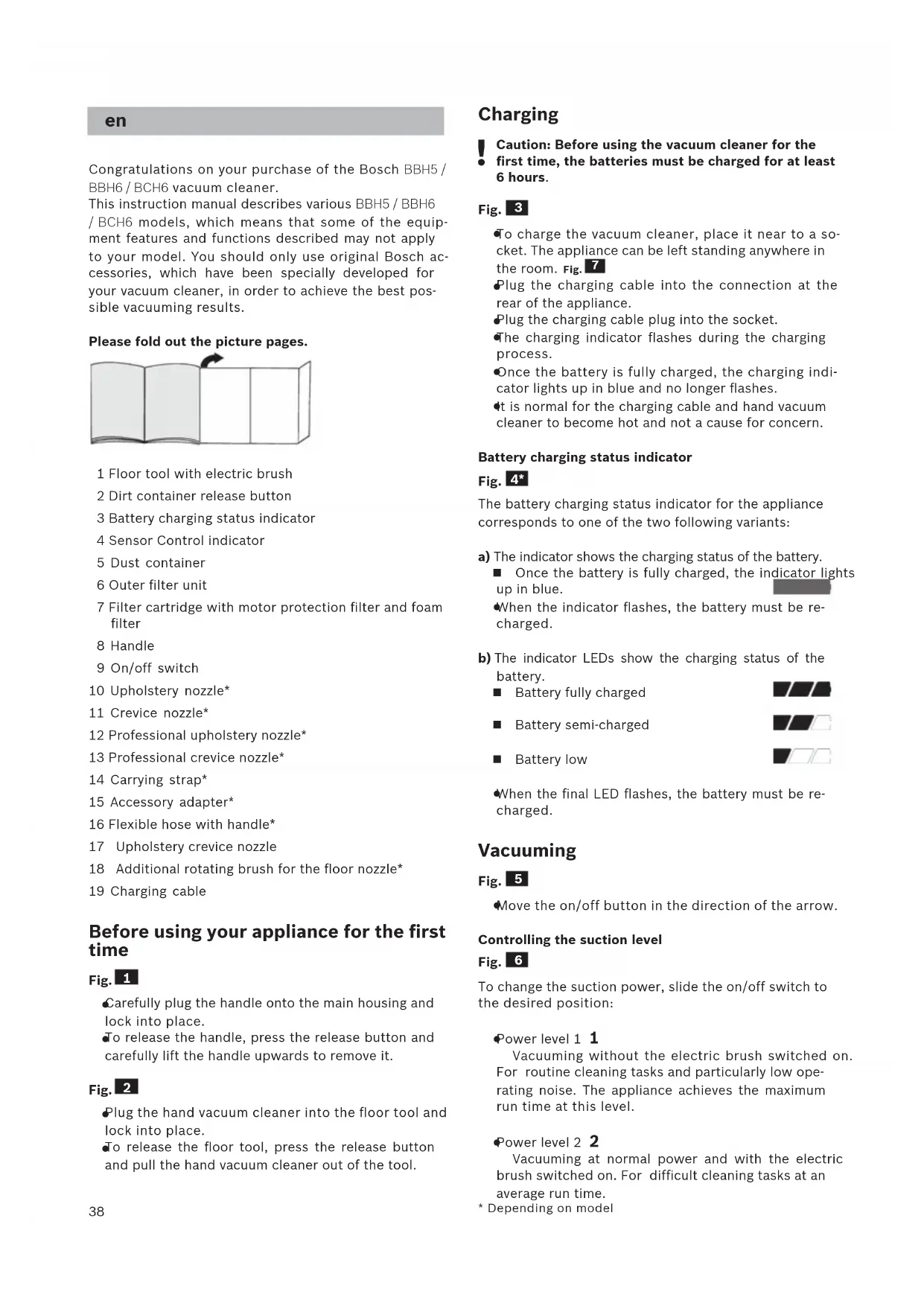

Congratulations on your purchase of the Bosch BBH5 / BBH6 / BCH6 vacuum cleaner.

This instruction manual describes various BBH5 / BBH6 / BCH6 models, which means that some of the equipment features and functions described may not apply to your model. You should only use original Bosch accessories, which have been specially developed for your vacuum cleaner, in order to achieve the best possible vacuuming results.

Please fold out the picture pages.

Simple line drawing of an open book with a right-pointing arrow on the page (no text or symbols)

1 Floor tool with electric brush
2 Dirt container release button
3 Battery charging status indicator
4 Sensor Control indicator
5 Dust container
6 Outer filter unit
7 Filter cartridge with motor protection filter and foam filter
8 Handle
9 On/off switch
10 Upholstery nozzle*
11 Crevice nozzle*
12 Professional upholstery nozzle*
13 Professional crevice nozzle*
14 Carrying strap*
15 Accessory adapter*
16 Flexible hose with handle*
17 Upholstery crevice nozzle
18 Additional rotating brush for the floor nozzle*
19 Charging cable

Before using your appliance for the first time

Fig. 1

Carefully plug the handle onto the main housing and lock into place.
To release the handle, press the release button and carefully lift the handle upwards to remove it.

Fig. 2

Plug the hand vacuum cleaner into the floor tool and lock into place.
To release the floor tool, press the release button and pull the hand vacuum cleaner out of the tool.

Charging

Caution: Before using the vacuum cleaner for the
first time, the batteries must be charged for at least 6 hours.

Fig. 3

To charge the vacuum cleaner, place it near to a socket. The appliance can be left standing anywhere in the room. Fig. 7
Plug the charging cable into the connection at the rear of the appliance.
Plug the charging cable plug into the socket.
The charging indicator flashes during the charging process.
- Once the battery is fully charged, the charging indicator lights up in blue and no longer flashes.
- it is normal for the charging cable and hand vacuum cleaner to become hot and not a cause for concern.

Battery charging status indicator

Fig. 4\*

The battery charging status indicator for the appliance corresponds to one of the two following variants:

a) The indicator shows the charging status of the battery.

■ Once the battery is fully charged, the indicator lights up in blue.
When the indicator flashes, the battery must be re-charged.

b) The indicator LEDs show the charging status of the battery.

■ Battery fully charged

■ Battery semi-charged

Battery low

When the final LED flashes, the battery must be re-charged.

Vacuuming

Fig. 5

- Move the on/off button in the direction of the arrow.

Controlling the suction level

Fig. 6

To change the suction power, slide the on/off switch to the desired position:

Power level 1 1

Vacuuming without the electric brush switched on. For routine cleaning tasks and particularly low operating noise. The appliance achieves the maximum run time at this level.

Power level 2 2

Vacuuming at normal power and with the electric brush switched on. For difficult cleaning tasks at an average run time.

* Depending on model

Power Level 3 / Turbo Mode 3 / Turbo

Vacuuming at full power and with the electric brush switched on. For stubborn cleaning tasks on all surfaces (carpets, in particular) and when using an optional accessory. The appliance achieves a shorter run time at this level.

Runtime

The runtime time stated here may vary due to charge status, battery temperature and battery age etc.

	For 1,95Ah battery For 2,6Ah battery
Runtime Athlet 18V		Athlet 25,2V	Athlet Runtime Plus 25,2V
Level1:	Up to 40 min.	Up to 60 min.	Up to 75 min.
Level 2: Up to 30 min.		Up to 30 min.	Up to 37 min.
Level 3 / Turbo mode:	Up to 10 min.	Up to 12 min.	Up to 12 min.

Fig. 7

During short pauses in vacuuming, the appliance can be left standing anywhere in the room. To do this, tilt the vacuum cleaner forwards slightly in the direction of the nozzle.

Caution: When the appliance is left standing, it must be switched off, because if the brush is turning while the appliance is standing still, it could cause damage to the floor covering.

Vacuuming with accessories

Fig. 8\*

a) Fasten the carrying strap to the short handle provided.
b) Remove the long handle from the main housing.
c) Insert the short handle and lock it in place.
d) Remove the hand-held vacuum cleaner from the floor nozzle. Fig. 2
e) Plug the accessory adapter into the hand-held vacuum cleaner and lock it in place.

Fig. 9\*

Fit nozzles as required to the flexible hose with the accessory adapter handle:

Upholstery nozzle for vacuuming upholstered furniture, curtains, etc.
- Crevice nozzle for vacuuming crevices and corners, etc.
Upholstery crevice nozzle for vacuuming upholstery, ideal for cleaning car seats in particular

After using the appliance

Fig. 10

- Switch off the appliance after vacuuming.

Emptying the dust container

Fig. 11

In order to achieve the best possible vacuuming results, the dust container should be emptied after every use or, at the latest, when dust at one point in the dust container has reached the marking.

We recommend that you not fill the dust container beyond the marking, as this leads to considerable soiling of the filter.

When emptying the dust container, always check how dirty the outer filter unit is and, if necessary, clean it as detailed in the "Cleaning the outer filter unit" instructions. Fig. 16

! Caution: The filter can only be cleaned if the appliance is switched off.
Never vacuum without the outer filter unit and its fitted filter cartridge.

Fig. 12

- Using the release button, unlock the dust container and remove it from the appliance.

Fig. 13

●Take the filter unit out of the dust container.
●Empty the dust container.

Fig. 14

• Remove any dirt which may have been lodged underneath the container ejector opening.
• Insert the filter unit into the dust container, making sure it is correctly seated.
• Insert the dust container in the appliance, so that it 'clicks' audibly into place.

Caution: If you notice any resistance when inserting
- the dust container, check that the filter is complete and that the filter unit and dust container are correctly seated.

Filter care

Caution: The filter can only be cleaned if the appli-
ance is switched off.

Your appliance is equipped with a "Sensor Control" function.

This function constantly monitors whether your vacuum cleaner is working at its optimum power level. The indicator light lets you know when you need to clean the filter cartridge, so that the appliance can reach its optimum power level once more.

Fig. 15 Sensor Control

The indicator lights up blue or is off when the ance is working at its optimum level. Once the indicator turns red and flashes, the outer filter unit and filter cartridge must be cleaned.

The appliance is automatically adjusted to power level 1.

Fig. 16 Cleaning the outer filter unit

The outer filter unit should be cleaned at regular intervals in order to ensure optimum operation of the vacuum cleaner.

Please switch off the appliance to clean the outer filter unit.

- Remove the dust container from the appliance.

Fig. 12

Take the filter unit out of the dust container. Fig. 13

Clean the outer filter unit.

a) It is usually sufficient to lightly shake or tap out the whole filter unit when the dust container is emptied in order to dislodge any particles of dirt.
b) If this is not sufficient, you can use a dry cloth to remove dirt particles from the surface.

Fig. 17 Cleaning the filter cartridge

Switch off the appliance.

- Remove the dust container from the appliance.

Fig. 12

Take the filter unit out of the dust container. Fig. 13

a) Turn the filter cartridge lid anti-clockwise and remove the filter cartridge from the filter unit.
b) Firstly, clean the filter cartridge by tapping out the dirt.
c) Pull out the foam filter from the motor protection and rinse separately.

Allow the foam filter and motor protection filter to dry completely (approx. 24 hours)

d) After fitting the foam filter, insert the filter cartridge into the dust container.
e) Insert the filter cartridge into the filter unit and lock it by turning the lid clockwise.

If, after hand-washing the filter cartridge, the "Sensor Control" indicator flashes red again, the filter cartridge is so heavily soiled that it must be washed in a washing machine. Use a gentle programme at max. 30 °C and the lowest spin speed.

New filters can be obtained from our after-sales service, if required.

Cleaning the floor tool

Before carrying out any maintenance, switch off the vacuum cleaner and disconnect it from the charging cable.

Fig. 18

a) Release the brush roller using the release button and pull it sideways out of the floor tool.
b) Using the groove provided, cut through threads and hairs wound round the rollers with scissors and then remove them.
c) Push the brush roller in sideways along the guide rod in the floor tool and lock in place using the release button.

! Caution: The floor tool must only be put into operation with the brush roller fitted.

Care

Before cleaning the hand vacuum cleaner, it must be switched off and disconnected from the charging cable. The vacuum cleaner and plastic accessories can be cleaned with an ordinary plastic cleaner.

! Caution: Do not use abrasive materials, glass-cleaning agents or all-purpose cleaning products. Never immerse the vacuum cleaner in water.

Subject to technical modifications.

fr

Simple line drawing of an open book with a right-pointing arrow on the page (no text or symbols)

Simple line drawing of an open book with a curved arrow indicating rotation (no text or symbols)

Simple line drawing of an open book with a right-pointing arrow on the page (no text or symbols)

Simple line drawing of an open book with a right-pointing arrow on the page (no text or symbols)

Simple line drawing of an open book with a right-pointing arrow on the page (no text or symbols)

Simple line drawing of an open book with a right-pointing arrow indicating the page (no text or symbols present)

Simple line drawing of an open book with a right-pointing arrow indicating the page direction (no text or symbols)

Simple line drawing of an open book with a right-pointing arrow on the page (no text or symbols)

Simple line drawing of an open book with a right-pointing arrow indicating the page (no text or symbols present)

Simple line drawing of an open book with a right-pointing arrow on the page (no text or symbols)

Simple line drawing of an open book with a curved arrow indicating rotation (no text or symbols)

Simple line drawing of an open book with a right-pointing arrow on the page (no text or symbols)

Simple line drawing of an open book with a right-pointing arrow on the page (no text or symbols)

Simple line drawing of an open book with a right-pointing arrow indicating the page (no text or symbols present)

Simple line drawing of an open book with a right-pointing arrow on the page (no text or symbols)

Simple line drawing of an open book with a right-pointing arrow on the page (no text or symbols)

Simple line drawing of an open book with a curved arrow pointing to the right page (no text or symbols)

Simple line drawing of an open book with a curved arrow indicating rotation (no text or symbols)

الكهربائية 1

ميع الأ phosphoryات

الاتثملاي البطائية

BSH Home Appliances FZE Round About 13,

Plot Nr MO-0532A

Jebel Ali Free Zone – Dubai

Tel.: [phone]

mailto:[e-mail]

www.bosch-home.com/ae

AL Republika e Shqiperise, Albania

ELEKTRO-SERVIS sh.p.k Rr. Shkelqim Fusha, Selite, Pallati "Matrix Konstruksion",

Kati 0 dhe +1

1023 Tirane

Tel.: [phone],-131

Fax: [phone]

mailto:[e-mail]

EXPERT SERVIS

Rruga e Kavajes,

Kulla B Nr 223/1 Kati I

1023 Tirane

Tel.: [phone]

Tel.: [phone]

Fax: [phone]

Cel: [phone]

mailto:[e-mail]

Gate 1, 1555 Centre Road

Clayton, Victoria 3168

Tel.: [phone]*

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com.au

*Mo-Fr: 24 hours

BA Bosna i Hercegovina, Bosnia-Herzegovina

"HIGH" d.o.o.

Gradačačka 29b

71000 Sarajevo

Tel.: [phone]

Fax: [phone]

mailto:bosch_siemens_sarajevo@

yahoo.com

European Trade Center Building, 5th floor 1784 Sofia

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch.home.bg

+ 7 snt/min (alv 24%

Grand Union House Old Wolverton Road Wolverton

Milton Keynes MK12 5PT

To arrange an engineer visit, to order spare parts and accessories or for product advice please visit www.bosch-home.co.uk or call Tel.: [phone]*

*Calls are charged at the basic rate, please check with your telephone service provider for exact charges

GR Greece, Ελλάς

BSH Ikiakes Siskeves A.B.E.

Central Branch Service

17 km E.O. Athinon-Lamias & Potamou 20 14564 Kifisia

Unit 1 & 2, 3rd Floor

North Block, Skyway House,

3 Sham Mong Road

Tai Kok Tsui, Kowloon

Hong Kong

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.cn

HR Hrvatska, Croatia

BSH kućni uređaji d.o.o.

Kneza Branimira 22

10000 Zagreb

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com/hr

www.bosch-home.com/hu

IE Republic of Ireland

BSH Home Appliances Ltd.

Unit F4, Ballymount Drive

Ballymount Industrial Estate

Walkinstown

Dublin 12

Service Requests, Spares and Accessories

Tel.: [phone]*

Fax: [phone]

www.bosch-home.co.uk

*0.03 € per minute at peak.

Off peak 0.0088 € per minute.

IL Israel,

C/S/B/ Home Appliance Ltd.

1, Hamasger St.

North Industrial Park

Lod, 7129801

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.co.il

IN India, Bhārat, भारत

BSH Household Appliances Mfg. Pvt. Ltd.

Arena House, Main Bldg, 2nd Floor,

Plot No. 103, Road No. 12,

MIDC, Andheri East

Mumbai 400 093

Toll Free 1800 266 1880*

www.bosch-home.com/in

* Mo-Sa: 8.00am to 8.00pm

(exclude public holidays)

IS Iceland

Smith & Norland hf.

Noatuni 4

105 Reykjavik

Tel.: [phone]

Fax: [phone]

www.sminor.is

IT Italia, Italy

www.bosch-home.com/it

KZ Kazakhstan, Казақстан

IP Anackiy A.N. PTN-Service

Kuyshi Dina str.23/1 N3

Astana

Tel.: [phone]

mailto: [e-mail]

Technodom Service

Utegen Batira Str. 73

480096 Almaty

Tel.: [phone]

mailto: [e-mail]

www.technodom.kz

Kombitechnocentr

Zhambyl st. 117

480096 Almaty

Tel.: [phone]

mailto:[e-mail]

www.cts.kz

TOO Evrika Service

Shimkent, Riskulova 22.

Shimkent 160018

Tel.: [phone]

mailto:[e-mail]

www.evrika.com

AV SERVICE

Abulhair hana Str. 51

Uralsk 090000

Tel.: [phone]

mailto:[e-mail]

www.avservice.kz

LB Lebanon

Teheni, Hana & Co.

Boulevard Dora 4043 Beyrouth

P.O. Box 90449

Jdeideh, 1202 2040

Tel.: [phone]

mailto:[e-mail]

LT Lietuva, Lithuania

Senuku prekybos centras UAB

Jonavos g. 62

44192 Kaunas

Tel.: [phone]

Fax: [phone]

www.senukai.lt

UAB "AG Service"

R. Kalantos g. 32

52494 Kaunas

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.agservice.lt

Baltic Continent Ltd.

Lukšio g. 23

09132 Vilnius

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.balticcontinent.lt

LU Luxembourg

S.R.L. "Rialto-Studio"

ул. Щусева 98

2012 Кишинев

Unit F 2, 4 Orbit Drive

Mairangi Bay

Auckland 0632

Tel.: [phone]*

Fax: [phone]

mailto:[e-mail]

www.bosch-home.co.nz

* Mo-Fr: 8.30 am to 5.00 pm (exclude public holidays)

PL Polska, Poland

and Airconditioning Co. Ltd.

BOSCH Service centre,

Kilo 5 Old Makkah Road

(Next to Toyota), Jamiah Dist.

P.O.Box 7997

Jeddah 21472

Tel.: [phone]

mailto:[e-mail]

www.aljelectronics.com.sa

SE Sverige, Sweden

BSH Home Appliances AB

Landsvägen 32

169 29 Solna

Tel.: [phone] local rate

mailto:[e-mail]

www.bosch-home.se

SG Singapore新加坡

BSH Home Appliances Pte. Ltd.

Block 4012, Ang Mo Kio Avenue 10

01-01 Techplace 1

Singapore 569628

Tel.: [phone]*

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com.sg

* Mo-Fr: 8.30am to 7.00pm, Sa: 8.30am to 5.30pm

(exclude public holidays)

SI Slovenija, Slovenia

BSH Hišni aparati d.o.o.

Litostrojska 48

1000 Ljubljana

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com/si

SK Slovensko, Slovakia

www.bosch-home.com/tr

BSH Home Appliances Private Limited

台北市內湖區洲子街80號11樓

11F., No.80, Zhouzi St., Neihu Dist.

Taipei City 11493

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

Service-General SH.P.K.

Rruga Mag Prishtine-Ferizaj

70000 Ferizaj

Tel.: [phone]

Tel.: [phone]

mailto:a_service@

gama-electronics.com

XS Srbija, Serbia

BSH Kućni aparati d.o.o.

15th Road Randjespark

Private Bag X36, Randjespark

1685 Midrand – Johannesburg

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com/za

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

de

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

fr

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

pt

GB Conditions of guarantee

For this appliance the guarantee conditions as set out by our representatives in the country of sale apply. Details regarding same may be obtained from the dealer from whom the appliance was purchased. For claims under guarantee the sales receipt must be produced.

FR Conditions de garantie

Bandrol ve Seri No. :

BOSCH

[e-mail]
