USER MANUAL DHU662U BOSCH

Black-and-white photo of a hand holding a plate of stir-fried rice with visible vegetable pieces (no text or symbols)

Exterior view of a stainless steel kitchen air purifier with two side panes (no text or symbols visible)

en Operating and installation instructions

Household Appliances

de Seite 3-13

it pagina 47 - 57

en page 14 - 24

es página 58 - 68

fr page 25 - 35

pt página 69 – 79

nl pagina 36 – 46

ru страница 80 – 91

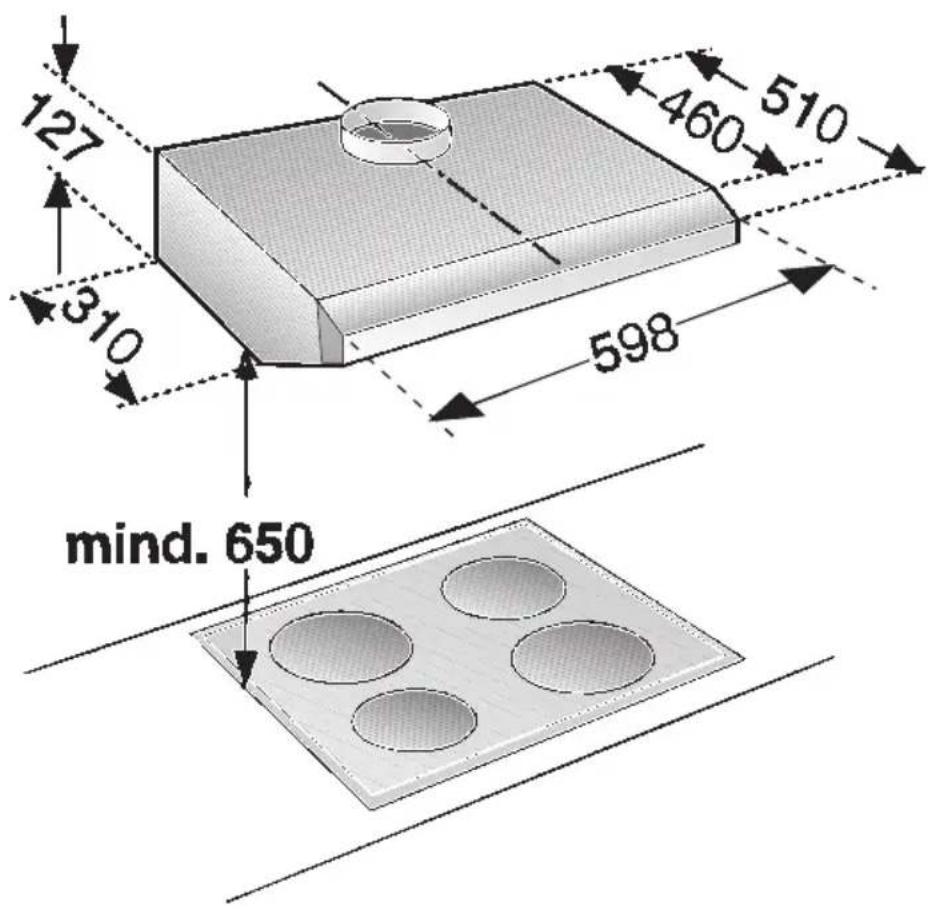

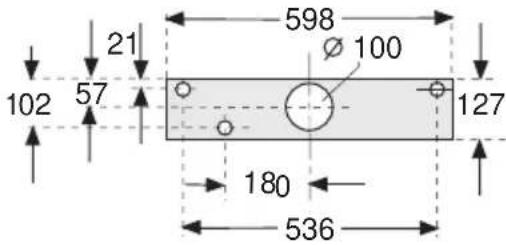

Abb. 1

127 310 598 460 510 mind. 650

Architectural diagram showing roof structure and window with magnified views of structural details (no text or symbols)

Diagram illustrating a rocket launch process with labeled components and directional arrows indicating motion or force.

Diagram of a mechanical device with three circular insets showing internal components and directional arrows (no text or symbols)

Illustration of a hand adjusting a mechanical component with threaded end (no text or symbols)

Diagram of a mechanical component with internal components and directional arrows indicating movement (no text or symbols)

Illustration of a hand using a tool to press or install a mechanical component, no text or symbols present

Illustration of a hand using a tool to cut a circular object, no text or symbols present

Illustration of hands using a screwdriver to adjust a circular component on a rectangular device (no text or symbols)

Illustration of a hand holding a tool near a circular mechanical component (no text or symbols visible)

Illustration of a hand holding a small object through a cylindrical container (no text or symbols visible)

Diagram showing airflow or heat transfer between a rectangular structure and a brick wall (no text or symbols)

Technical diagram showing mechanical assembly with magnified views of components and detail view

Illustration of a computer tower with ventilation slots and a handle, no text or symbols present

Diagram illustrating a mechanical or electrical component with labeled parts and a magnified inset showing a rotating dial.

Operating instructions:

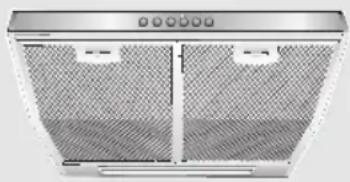

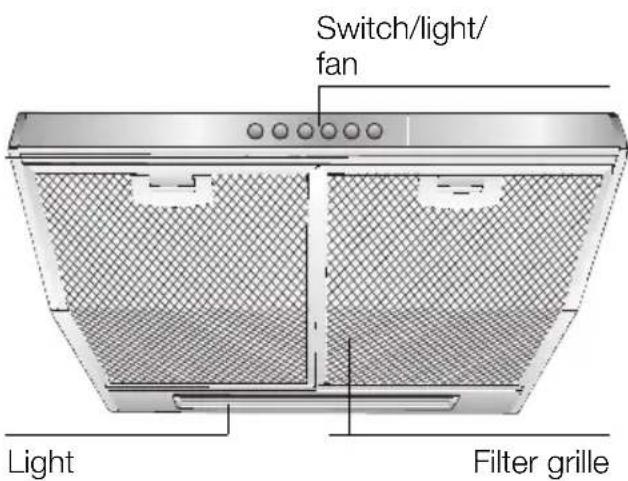

Description of appliance

Switch/light/ fan Light Filter grille

Operating modes

Exhaust-air mode:

☐ The extractor-hood fan extracts the kitchen vapours and conveys them through the grease filter into the atmosphere.
☐ The grease filter absorbs the solid particles in the kitchen vapours.
☐ The kitchen is kept almost free of grease and odours.

If the extractor hood is operated in exhaust-air mode at the same time as a flue-type heater (e.g. gas, oil or solid-fuel heater, instantaneous water heater, boiler), ensure that there is an adequate air supply which the heater requires for combustion.

Safe operation is possible provided that the partial vacuum in the room in which the heater is installed does not exceed 4 Pa (0.04 mbar).

This can be achieved if the combustion air is able to flow through non-lockable openings, e.g. in doors, windows and in conjunction with an air supply/air-intake wall box or by other technical procedures such as reciprocal interlocking.

Operating modes

If the air intake is inadequate, there is a risk of poisoning from combustion gases which are drawn back into the room.

An air-intake/exhaust-air wall box by itself is no guarantee that the limiting value will not be exceeded.

Note: When assessing the overall requirement, the combined ventilation system for the entire household must be taken into consideration. This rule does not apply to the use of cooking appliances, such as hobs and ovens.

Unrestricted operation is possible if the extractor hood is used in recirculating mode – with activated carbon filter.

Circulating-air mode:

☐ An activated carbon filter must be fitted for this operating mode (see Filters and maintenance). The activated carbon filter can be purchased as an optional accessory FROM YOUR DEALER. The corresponding accessory numbers can be found at the end of these operating instructions.
☐ The extractor-hood fan extracts the kitchen vapours which are purified in the grease filter and activated carbon filter and then conveyed back into the kitchen.
☐ The grease filter absorbs the grease particles in the kitchen vapours.
☐ The activated carbon filter binds the odorous substances.

⚠️ If no activated carbon filter is installed, it is not possible to bind the odorous substances in the cooking vapours.

⚠️ If the extractor hood is switched from exhaust-air mode to circulating-air mode, the exhaust-air opening must be sealed to prevent a hazardous situation (see optional accessories in the Instructions for use).

Before using for the first time

Important notes:

☐ The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.
☐ This extractor hood complies with all relevant safety regulations.

Repairs should be carried out by qualified technicians only.

Improper repairs may put the user at considerable risk.

⚠️ Do not use the appliance if damaged.

⚠ The appliance is not intended for use by young children or infirmed persons without supervision.

Young children should be supervised to ensure they do not play with the appliance.

⚠️ If the connecting cable for this appliance is damaged, the cable must be replaced by the manufacturer or his customer service or a similarly qualified person in order to prevent serious injury to the user.

⚠ The appliance may be connected to the mains by a qualified technician only.

⚠ Dispose of packaging materials properly (see Installation instructions).

Light bulbs must always be fitted when the extractor hood is in use.

⚠️ Defective bulbs should be replaced immediately to prevent the remaining bulbs from overloading.

⚠️ Never operate the extractor hood without a grease filter.

⚠️ Overheated fat or oil can easily catch fire.

If you are cooking with fat or oil, e.g. chips, etc., never leave the cooker unattended.

☐ Before using your appliance for the first time, please read these Instructions for Use carefully. They contain important information concerning your personal safety as well as on use and care of the appliance.
☐ Please retain the operating and installation instructions for a subsequent owner.

⚠ Do not flambé food directly under the extractor hood.

! Risk of grease filter catching fire due to flames.

⚠️ Restrictions apply to the use of the extractor hood over a solid-fuel burner (coal, wood, etc.). (See Installation instructions).

Gas hobs / gas cookers

⚠️ Always use gas hobs in a proper and safe manner.

Important:

The flames from the gas hob must always be covered by pots or pans.

The intense heat generated by the gas flames could cause damage to the extractor hood.

Operating the extractor hood

Cooking vapours are best eliminated

□ Switching on the extractor hood when you start cooking.
☐ Only switching off the extractor hood a few minutes after you have finished cooking.

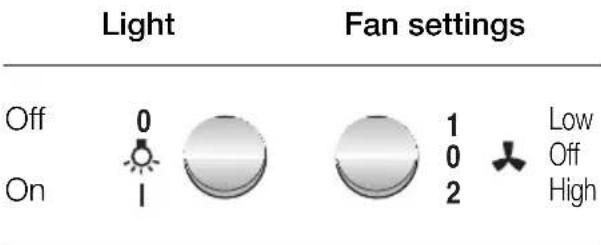

Light Fan settings Off 0 1 Low On 1 0 Off 2 High

Light
Fan settings

OFF
ON

①

1

2

3

Light
Fan settings
ON / OFF
Intensive setting

① 1 2 3 4

Filters and maintenance

Grease filters:

Metal filters are used to trap the greasy element of the vapours that develop during cooking.

The filter mats are made from non-combustible metal.

Caution:

As the filter becomes more and more saturated with grease, not only does the risk of it catching fire increase but the efficiency of the extractor hood can also be adversely affected.

Important:

By cleaning the metal grease filters at appropriate intervals, the possibility of them catching fire as a result of a build-up of heat such as occurs when deep-fat frying or roasting is taking place, is reduced.

Cleaning the metal grease filters:

☐ In normal operation (1 to 2 hours daily), the metal grease filter must be cleaned after 8 to 10 weeks.
☐ The filters can be cleaned in a dish-washer. It is however possible that they will become slightly discoloured.
☐ The filter must be placed loosely, and NOT wedged, in the dishwasher.

Important:

Metal filters that are saturated with grease should not be washed together with other dishes etc.

☐ When cleaning the filters by hand, soak them in hot soapy water first of all.

Then brush the filters clean, rinse them thoroughly and leave the water to drain off.

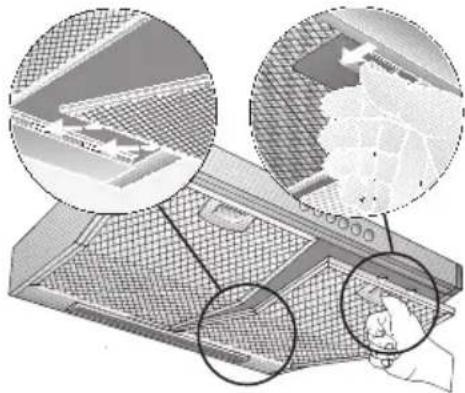

Removing and inserting the metal grease filters:

1. Press the catch on the grease filters inwards and fold the filters down.

Architectural diagram showing structural components and a hand holding a tool, with two circular insets highlighting different views (no text or symbols present)

1. Clean the filters.

2. Insert the clean filters back into the hood.

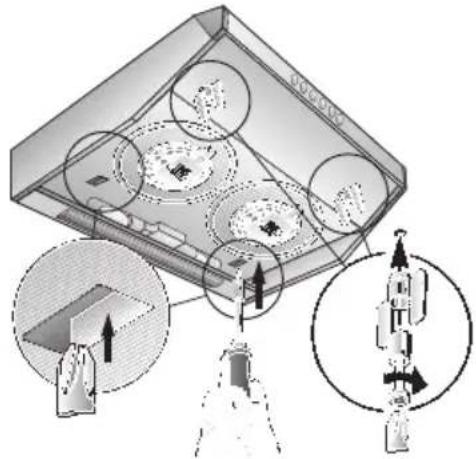

Activated carbon filter:

For binding the odorous substances in circulating-air mode.

Remove the metal filters (see "Removing and inserting the metal grease filters").

1. Insert the screws through the wing nuts and sleeves and screw the screws into the left and right sides of the intermediate base (required only during the initial installation). Screws, wing nuts and sleeves are enclosed with the activated carbon filter –.

2. Using a screwdriver or similar tool, press the two lugs on the housing inwards (required only during the initial installation).

Diagram illustrating a rocket launch process with labeled components and directional arrows indicating motion

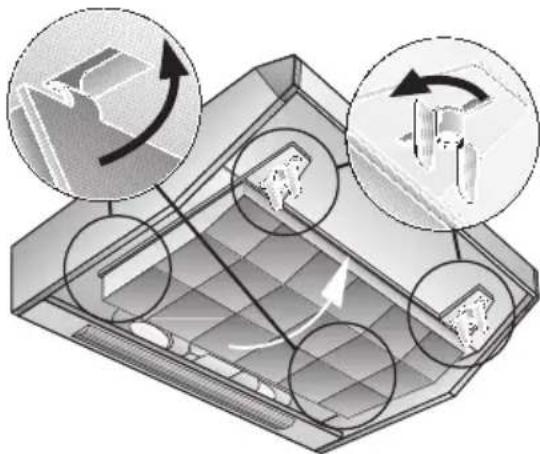

1. Insert the activated carbon filter at the rear, fold up and lock into position on the left and right with the wing nuts.

The lugs on the left and right sides of the activated carbon filter are folded in for the 50 cm wide extractor hood. They must be folded up for the 60 cm and 90 cm wide extractor hoods.

Diagram of a mechanical assembly with three circular insets showing internal components and directional arrows (no text or labels)

Replacing the activated carbon filter:

☐ During normal operation (daily 1 to 2 hours) the activated carbon filter must be replaced approximately 1 x year.

☐ The activated carbon filter can be purchased FROM YOUR DEALER (see Optional accessories).

□ Use only original filters.

These ensure optimum function.

Disposal of the old activated carbon filter:

□ Activated carbon filters do not contain any harmful substances. They can be disposed of as residual waste.

Cleaning and care

Isolate the extractor hood by pulling out the mains plug or switching off the fuse.

☐ When cleaning the grease filters, remove grease deposits from accessible parts of the housing. This prevents the risk of fire and ensures that the extractor hood continues operating at maximum efficiency.
□ Clean the extractor hood with a hot soap solution or a mild window cleaner.
☐ Do not scrape off dried-on dirt but wipe off with a damp cloth.
☐ Do not use scouring agents or abrasive sponges.
☐ Note: Do not use alcohol (spirit) on plastic surfaces, as dull marks may appear.

Caution: Ensure that the kitchen is adequately ventilated. Avoid naked flames!

⚠ Clean the operating buttons with a mild soapy solution and a soft, damp cloth only. Do not use stainless-steel cleaner to clean the operating buttons.

Stainless steel surfaces:

□ Use a mild non-abrasive stainless steel cleaner.
□ Clean the surface in the same direction as it has been ground and polished.
Do not use any of the following to clean stainless steel surfaces: abrasive sponges, cleaning agents containing sand, soda, acid or chloride!

Aluminium and plastic surfaces:

□ Use a soft, non-linting window cloth or micro-fibre cloth.
□ Do not use dry cloths.
□ Use a mild window cleaning agent.
☐ Do not use aggressive, acidic or caustic cleaners.
☐ Do not use abrasive agents.

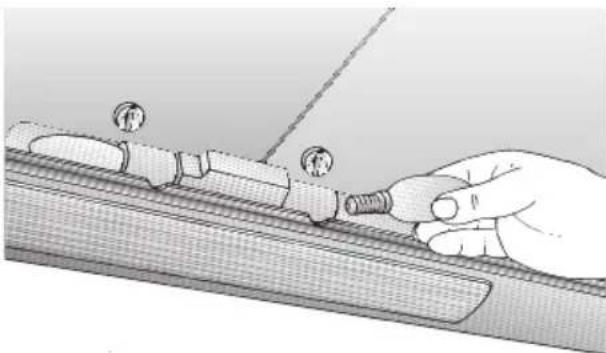

Replacing the light bulbs

1. Switch off the extractor hood and isolate the extractor hood by pulling out the mains plug or switching off the fuse.
2. Remove the grease filter (see Filters and maintenance).
3. Replace the bulb (standard filament bulb, max 40 W, E14 bulb holder).

Illustration of a hand connecting a screwdriver to a surface with circular fasteners (no text or symbols)

1. Re-insert the grease filters.
2. Reconnect the power by inserting the mains plug or by switching on the fuse.

Malfunctions

Please contact customer service regarding any queries or malfunctions.

(See customer-service directory).

When calling, please quote:

E-No.

FD

Enter the numbers in the above box. The numbers can be found on the rating plate – remove the grease filter inside the extractor hood to reveal the rating plate.

Important information

⚠️ Old appliances are not worthless rubbish. Valuable raw materials can be reclaimed by recycling old appliances. Before disposing of your old appliance, render it unusable.

⚠️ You received your new appliance in a protective shipping carton. All packaging materials are environmentally friendly and recyclable. Please contribute to a better environment by disposing of packaging materials in an environmentally-friendly manner.

Please ask your dealer or inquire at your local authority about current means of disposal.

⚠ The extractor hood can be used in exhaust air or circulating air mode.

⚠️ Always mount the extractor hood over the centre of the hob.

⚠️ Minimum distance between electric hob and bottom edge of extractor hood: 650 mm, Fig. 1.

Additional information concerning gas cookers:

⚠ When installing gas hotplates, comply with the relevant national statutory regulations (e.g. in Germany: Technische Regeln Gasinstallation TRGI).

⚠️ Always comply with the currently valid regulations and installation instructions supplied by the gas appliance manufacturer.

⚠️ Only one side of the extractor hood may be installed next to a high-sided unit or high wall. Gap at least 50 mm.

⚠ The installation of the extractor hood above gas cooking devices, at a minimum height of 650 mm – Fig. 1 – is permitted provided that the following nominal heat loads (Hs) are not exceeded:

☐ Gas cookers Load of one hotplate max. 3.0 kW Load of all hotplates max. 8.3 kW Load of the oven max. 3.9 kW

☐ Gas hobs Load of one hotplate max. 3.9 kW Load of all hotplates max. 11.3 kW

☐ Gas ceramic hotplate The nominal heat load specifications do not apply to closed gas ceramic hobs. Always observe the specifications of the hob manufacturer.

☐ Solid-fuel cookers The maximum nominal heat loads and the minimum distance are the same as for gas cookers.

⚠ The extractor hood may only be installed over a fireplace which burns solid fuel (fire hazard due to flying sparks) if the fireplace has a closed, non-detachable cover and national regulations have been observed. This restriction does not apply to gas cookers and gas hobs.

⚠ The smaller the gap between the extractor hood and hotplates, the greater the likelihood that droplets will form on the underside of the extractor hood.

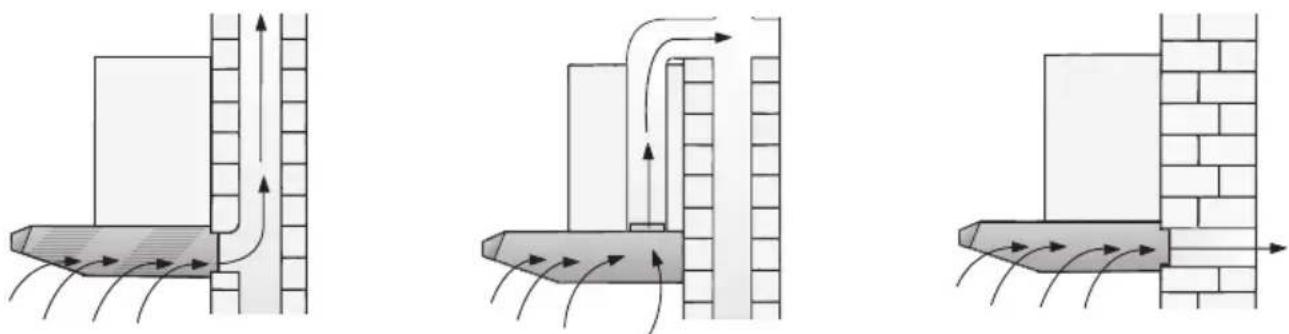

Exhaust-air mode

The exhaust air is discharged upwards through a ventilation shaft or directly through the outside wall into the open.

Exhaust air must not be discharged via a smoke or exhaust gas flue which is already in use or via a shaft which is used for ventilating rooms in which fireplaces are located.

Discharge exhaust air in accordance with official and statutory regulations (e.g. national building regulations).

Discharge of air into smoke or exhaust air flues which are not in use requires the consent of a heating engineer.

If the extractor hood is operated in exhaust-air mode at the same time as a flue-type heater (e.g. gas, oil or solid-fuel heater, instantaneous water heater, boiler), ensure that there is an adequate air supply which the heater requires for combustion.

Safe operation is possible provided that the partial vacuum in the room in which the heater is installed does not exceed 4 Pa (0.04 mbar).

This can be achieved if the combustion air is able to flow through non-lockable openings, e.g. in doors, windows and in conjunction with an air supply/air-intake wall box or by other technical procedures such as reciprocal interlocking.

This can be achieved if the combustion air is able to flow through non-lockable openings, e.g. in doors, windows and in conjunction with an air supply/air-intake wall box or by other technical procedures such as reciprocal interlocking.

If the air intake is inadequate, there is a risk of poisoning from combustion gases which are drawn back into the room.

An air-intake/exhaust-air wall box by itself is no guarantee that the limiting value will not be exceeded.

Note: When assessing the overall requirement, the combined ventilation system for the entire household must be taken into consideration. This rule does not apply to the use of cooking appliances, such as hobs and gas cookers.

The extractor hood can be used without restriction in circulating air mode – with an activated carbon filter.

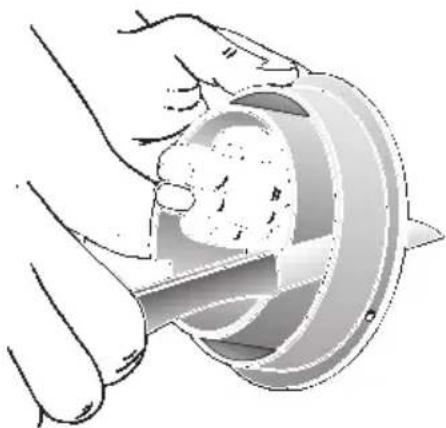

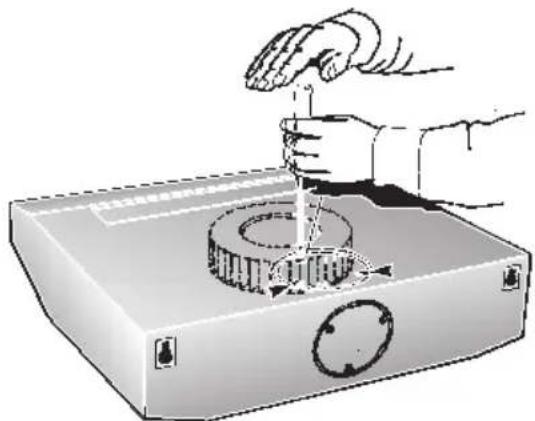

An extractor hood which is operated in exhaust-air mode should be fitted with a one-way flap if there is no one-way flap in the exhaust-air pipe or wall box. If a one-way flap is not supplied with the appliance, you can purchase one from your dealer (see optional accessories in the Instructions for use).

⚠ Do NOT cut out the inner part of the exhaust-air connection.

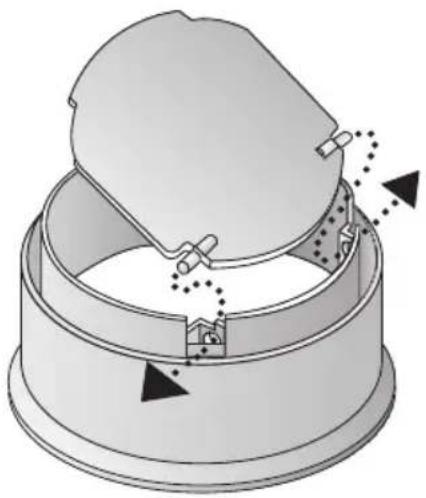

Fitting the one-way flap:

☐ Insert the two lugs on the one-way flap into the holes in the exhaust-air connection.

Before installation

If the exhaust air is conveyed through the exterior wall, a telescopic wall box should be used.

Diagram of a mechanical component with internal components and directional arrows indicating movement or force (no text or symbols)

Optimum performance of the extractor hood:

□ Short, smooth exhaust-air pipe.
☐ Minimum number of pipe bends.
☐ Largest possible pipe diameter (120 mm dia. recommended) and large pipe bends.

If long, rough exhaust-air pipes, many pipe bends or smaller pipe diameters are used, the air extraction rate will no longer be at an optimum level and there will be an increase in noise.

Round pipes:

Short discharge pipe: Inner diameter at least 100 mm, extended discharge pipe: Inner diameter at least 120 mm.

☐ Flat ducts must have an inner cross-section equivalent to round pipes with an inner diameter of 100/120 mm. There should be no sharp bends.

100 m dia approx. 78 cm ^2 125 m dia approx. 113 cm ^2

□ If pipe diameters differ:

Insert sealing strip.

☐ Ensure an adequate air supply for exhaust-air mode.

Exhaust air upwards:

Pipe diameter: 100 or 120 mm

☐ Break off cover on the top of the extractor hood; strike the retaining points with a tool.

Illustration of a hand using a tool to press or install a circular component on a base (no text or symbols present)

⚠️ Toprevent damage to the fan, hold the tool vertically.

☐ Remove the broken off metal part (possibly a noisy and disruptive procedure).
☐ If the pipe diameter is 120 mm, cut out the inner part of the exhaust-air connection.

Illustration of a hand using a tool to cut a circular object with a textured surface (no text or symbols)

☐ Insert the exhaust-air connection and turn as far as possible.

Before installation

Exhaust air towards the rear:

Pipe diameter: 100 mm

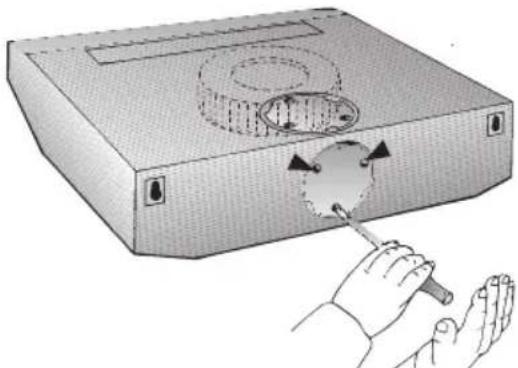

☐ Break off cover on the rear panel of the extractor hood; strike the retaining points with a tool.

Illustration of a hand using a screwdriver to clean or inspect a mechanical component (no text or symbols visible)

⚠️ Toprevent damage to the fan, hold the tool vertically.

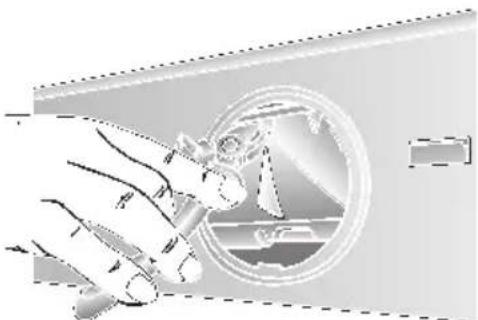

☐ Remove the broken off metal part (possibly a noisy and disruptive procedure).

☐ If the extractor hood has 2 motors, the opening on the plastic part must be made at the rear; cut through the 3 ribs and remove the cut-off part.

Illustration of a hand holding a mechanical component, with no visible text or symbols

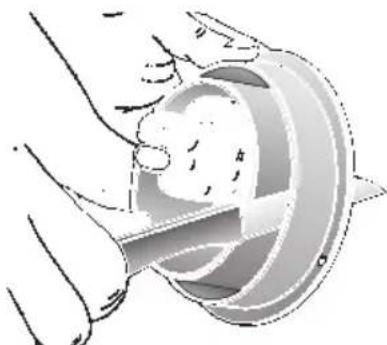

☐ Cut off the outer part of the exhaust-air connection.

Illustration of a hand holding a circular object with a tool, no text or symbols present

☐ Insert the inner part and turn as far as possible.

Circulating-air mode

Diagram showing airflow around a rectangular object with arrows indicating direction, next to a brick wall (no text or symbols)

☐ With activated carbon filter if exhaust-air mode is not possible.
☐ The air purified by an additional activated carbon filter is conveyed back into the room.
☐ For insertion of the activated carbon filter see Instructions for use.
☐ If the extractor hood is switched from exhaust-air mode to circulating-air mode, the exhaust-air opening must be sealed to prevent a hazardous situation (see optional accessories in the Instructions for use).

Electrical connection

WARNING: THIS APPLIANCE MUST BE EARTHED

IMPORTANT: Fitting a Different Plug:

The wires in the power cord are colour-coded as follows:

Green and Yellow – Earth

Blue - Neutral

Brown - Live

If you fit your own plug, the colours of these wires may not correspond with the identifying marks on the plug terminals.

Proceed as follows:

1. Connect the green and yellow (Earth) wire to the terminal in the plug marked 'E' or with the symbol (≡), or coloured green or green and yellow.
2. Connect the blue (Neutral) wire to the terminal in the plug marked 'N' or coloured black.

Electrical connection

1. Connect the brown (Live) wire to the terminal marked 'L', or coloured red.

The extractor hood may be connected to a correctly installed earthed socket only. Attach the earthed socket near the extractor hood in an accessible position.

☐ The earthed socket should be connected via its own power circuit.

⚠️ If appliances do not feature the OFF delay function, the indicator may start flashing when the extractor hood has been switched off for several hours via a separate switch, even though the grease filters are not yet saturated.

(See instructions for use, section on filter and maintenance).

Electrical specifications:

These can be found on the rating plate inside the appliance following removal of the filter frames.

⚠ Before carrying out repairs, always isolate the appliance.

Length of the connection cable: 1.30 m. If permanent connection is required:

The extractor hood may only be connected by an electrician registered with the local electricity board.

A disconnecting device must be provided on the installation side. Switches with a contact opening of more than 3 mm and all-pole disconnection are regarded as disconnecting devices. These include LS switches and contactors.

This extractor hood complies with EU regulations on interference suppression.

Fitting the extractor hood

To the wall

60 cm wide extractor hood: With 3 screws.

21 598 Ø 100 102 57 127 180 536

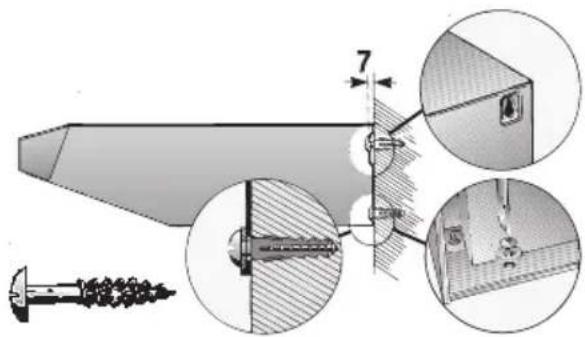

1. Mark mounting boreholes. Dimensions can be found in or use template.
2. Drill 8 mm dia. holes and insert wall plugs flush with the wall.
3. Screw in the upper screws (on left and right) until there is a gap of approx. 7 mm between the screw head and the wall.

Technical diagram showing mechanical assembly with magnified views of components and detail view

1. Remove the filter grille (see Instructions for use)
2. Attach the extractor hood.
3. Tighten the lower screw (with washer) inside the extractor hood.

Fitting the extractor hood

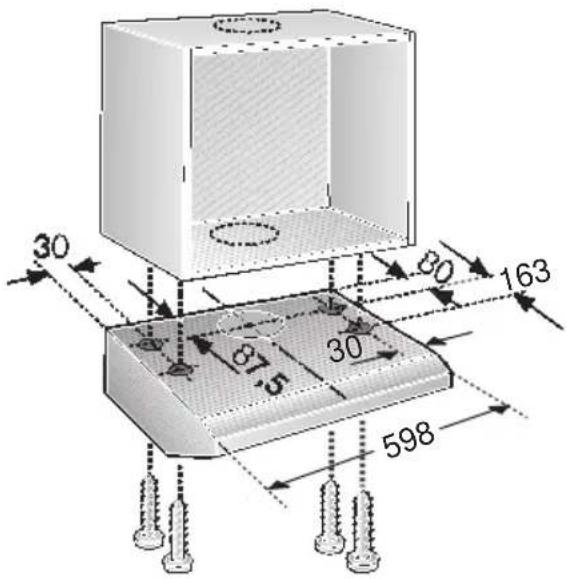

To a wall-hanging cupboard

60 cm wide extractor hood: With 4 screws.

30 Ø7.5 30 598 Ø 163

1. Dimensions for the mounting boreholes can be found in, or place a template on the base of the wall-hanging cupboard.

2. Mark the mounting holes and make pilot holes with a bradawl. In exhaust-air mode (upwards) mark the exhaust-air opening and saw out.

☐ Consider the location of the connection cable; if required, saw out the cupboard.

1. Remove the filter grille (see Instructions for use).

2. Screw the extractor hood to the base of the cupboard.

Weight in kg:

	Exhaust air	Width Circulating air
60 cm2 motors	10,0 11,0

Design changes with respect to technical development shall remain withheld.

Final assembly

Exhaust-air mode:

☐ Stick the enclosed covering foil over the air outlet grille on the top of the extractor hood. Ensure that the surface is clean.

Illustration of a computer monitor with ventilation slots and a handle, no text or symbols present

□ Connect the pipes.

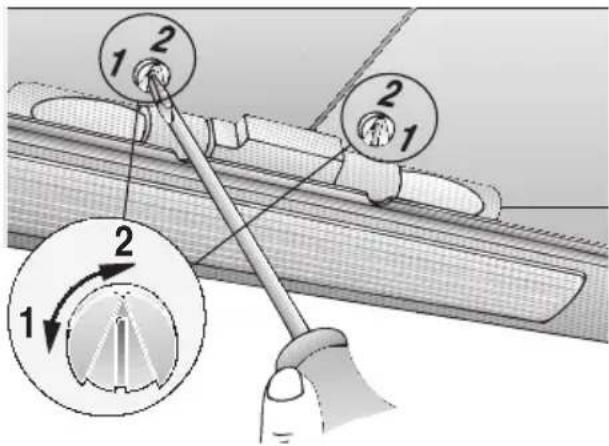

2-motor extractor hood Selecting the operating mode:

☐ Exhaust-air mode: Position 1

□ Circulating-air mode: Position 2

☐ Select the operating mode on the left or right with a screwdriver.

Diagram illustrating a mechanical or electrical component with labeled parts and a magnified view showing rotational direction.

□ Connect to the power supply.

☐ Insert the filter grille (see Instructions for use).

Mode d'emploi:

Aspiration intensive

① 1 2 3 4

0

Filtre et entretien

Filtres à graisse:

Architectural diagram showing roof structure and window detail (no text or symbols)

Diagram illustrating a rocket launch or launch process with labeled components and directional arrows indicating motion.

Diagram of a mechanical assembly with three circular insets showing internal components and directional arrows (no text or labels)

Illustration of a hand holding a tool interacting with a mechanical component (no text or symbols visible)

Diagram of a mechanical device with internal components and directional arrows indicating motion (no text or symbols)

Illustration of a hand using a tool to press or install a mechanical component, no text or symbols present

Illustration of hands using a tool to cut a circular object, no text or symbols present

Illustration of hands using a tool to adjust or install a component on a device (no text or symbols present)

Illustration of a hand holding a pen, with a circular diagram showing a mechanical or electrical component inside (no text or symbols)

Illustration of a hand holding a small object through a cylindrical container (no text or symbols visible)

Diagram showing airflow around a rectangular structure with arrows indicating direction, adjacent to a brick wall (no text or symbols)

Technical diagram showing mechanical assembly with labeled components and magnified views of detail

Illustration of a kitchen tower with ventilation grilles and a handle (no text or symbols)

Diagram illustrating a mechanical or electrical component with labeled parts and a magnified inset showing rotational direction.

Diagram showing two views of a roof structure with mesh patterns and a hand holding a tool, no visible text or symbols.

Diagram illustrating a rocket launch process with labeled components and directional arrows indicating motion or force.

Diagram of a refrigerated storage tray with three circular insets showing internal components (no text or symbols)

Illustration of a hand connecting two threaded fasteners to a surface (no text or symbols)

Diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Illustration of a hand using a tool to press or install a mechanical component, with no visible text or symbols.

Illustration of a hand using a tool to cut a circular object, no text or symbols present

Illustration of hands using a screwdriver to clean or inspect a mechanical component (no text or symbols present)

Illustration of a hand holding a small object with a circular inset showing mechanical components (no text or symbols)

Illustration of a hand holding a circular object with a tool, no text or symbols present

Diagram showing airflow around a rectangular structure with arrows indicating direction, adjacent to a brick wall (no text or symbols)

Technical diagram showing mechanical assembly with magnified views of components and detail view

Illustration of a kitchen tower with ventilation grilles and a handle (no text or symbols)

Diagram illustrating a mechanical or electrical component with labeled parts and a magnified inset showing rotational motion.

Diagram showing numbered items with icons and symbols, likely illustrating a sequence or process with visual indicators.

0

Architectural diagram showing roof structure and window detail (no text or symbols)

Technical diagram showing a 3D mechanical assembly with labeled components and directional arrows indicating motion or assembly.

Diagram illustrating a mechanical or electrical component with three circular insets showing rotational and linear motion (no text or symbols)

Illustration of a hand holding a tool interacting with a component, no text or symbols present

Diagram of a mechanical assembly with a circular component and internal components, showing directional arrows (no text or symbols)

Illustration of a hand using a tool to press or install a mechanical component, no text or symbols present

Illustration of a hand holding a small object through a circular container with a tool (no text or symbols visible)

Illustration of a hand holding a screwdriver inside a device with a circular component on top (no text or symbols)

Illustration of a hand inserting a component into a circular device (no text or symbols visible)

Illustration of a hand using a tool to cut a circular object, no text or symbols present

Diagram showing airflow around a rectangular structure with arrows indicating direction, next to a brick wall (no text or symbols)

Technical diagram showing mechanical assembly with magnified views of components and detail view

Illustration of a computer tower with ventilation slots and a cable inserted (no text or symbols)

□ Collegare i tubi.

Diagram illustrating a mechanical or electrical component with labeled parts and an inset showing a pin mechanism.

Diagram showing numbered items with icons and symbols, likely illustrating a sequence or sequence of items.

Architectural diagram showing roof structure with two circular insets highlighting details (no text or symbols)

Diagram of a mechanical device with internal components and directional arrows, no visible text or symbols

Diagram of a mechanical assembly with three circular insets showing internal components and directional arrows (no text or symbols)

Illustration of a hand connecting two cable connectors to a textured surface (no text or symbols)

Diagram of a mechanical assembly with arrows indicating motion or force direction (no text or symbols)

Illustration of a hand using a tool to press or install a circular component on a base (no text or symbols visible)

Illustration of a hand using a tool to cut a circular object into a mechanical component (no text or symbols visible)

Illustration of a hand holding a screwdriver next to a device with a circular component and arrow indicating rotation (no text or symbols)

Illustration of a hand holding a pen, with a circular diagram showing mechanical components inside (no text or symbols)

Illustration of a hand using a tool to cut a circular object (no text or symbols visible)

Diagram showing airflow or heat transfer between a rectangular block and a brick wall (no text or symbols)

Technical diagram showing screw fastening process with magnified views of mechanical components and detail view

Illustration of a desktop kitchen with a handle and ventilation slots (no text or symbols)

Diagram illustrating a mechanical or electrical component with labeled parts and a magnified inset showing a pin mechanism.

Architectural diagram showing structural components and a hand holding a device (no text or labels)

Diagram illustrating rocket launch process with labeled components and directional arrows indicating movement

Diagram of a mechanical assembly with three circular insets showing internal components and directional arrows (no text or labels)

Illustration of a hand holding a tool interacting with a component, no text or symbols present

Diagram of a mechanical device with a circular housing and internal components, showing motion arrows (no text or symbols)

Illustration of a hand using a tool to press or install a mechanical component, with no visible text or symbols.

Illustration of hands using a tool to cut a circular object, no text or symbols present

Illustration of a hand using a screwdriver to clean or inspect a circular component on a rectangular device (no text or symbols present)

Illustration of a hand holding a small mechanical component, with no visible text or symbols

Illustration of a hand holding a circular object with a tool, no text or symbols present

Diagram showing airflow around a pipe with directional arrows, next to a brick wall (no text or symbols)

Technical diagram showing screw fastening process with magnified views of mechanical components and detail view

Illustration of a kitchen fan with a handle and ventilation grille (no text or symbols)

Diagram illustrating a mechanical or electrical component with labeled parts and a magnified inset showing a circular component with directional arrows.

Diagram of a window with mesh patterns and magnified views of the interior (no text or symbols)

Diagram illustrating a mechanical or electrical system with circular arrows indicating rotation and movement, showing components inside a container (no text or symbols present)

Illustration of a hand adjusting a cable or pipe component with a screw, no text or symbols present

Diagram of fluid flow around a rectangular object with directional arrows indicating flow direction (no text or symbols)

Diagram of airflow around a mechanical component with no visible text or symbols

Diagram showing airflow or heat transfer between a brick wall and a rectangular structure (no text or symbols)

Diagram of a mechanical component with internal components and directional arrows indicating motion (no text or symbols)

Illustration of a hand using a tool to press or install a circular component on a base (no text or symbols visible)

Illustration of hands using a tool to cut a circular object (no text or symbols visible)

Illustration of a hand holding a screwdriver inside a device with a circular component on top (no text or symbols)

Illustration of a hand holding a pen, with a circular inset showing a mechanical component (no text or symbols)

Illustration of a hand holding a mechanical component, possibly a tool or device, with no visible text or symbols.

Diagram showing airflow around a rectangular structure with arrows indicating direction, next to a brick wall (no text or symbols)

Technical diagram showing screw fastening process with magnified views of mechanical components and detail view

Illustration of a desktop computer tower with ventilation grilles and a handle (no text or symbols)
