| Product Type | Milk Frother |
| Brand | Caso |
| Model | Crema Grande Jet 1658 |
| Article Number | 1658 (D065) |
| Power Supply | 220-240 V, 50-60 Hz |
| Power Consumption | 420-500 W |
| Frothing Capacity | Min 100 ml, Max 150 ml |
| Heating Capacity | Min 100 ml, Max 250 ml |
| Dimensions (diameter x height) | 10,9 x 21,3 cm |
| Width with handle | 14,9 cm |
| Net Weight | 0,86 kg |
| Main Functions | Hot milk froth, cold milk froth, milk heating |
| Number of Settings | 3 (steady red, blinking red, steady blue) |
| Automatic Shut-off | Yes (for hot froth) |
| Carafe Material | Stainless steel with inner coating |
| Included Accessories | Magnetic whisk, whisk holder, lid |
| Care and Cleaning | Manual cleaning, do not immerse in water, do not put in dishwasher |
| Safety | Automatic shut-off, overheating protection, burn instructions |
| Warranty | 24 months |
| Intended Use | Indoor household use |
Frequently Asked Questions - Crema Grande Jet 1658 CASO
User questions about Crema Grande Jet 1658 CASO
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Milk frother in PDF format for free! Find your manual Crema Grande Jet 1658 - CASO and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Crema Grande Jet 1658 by CASO.
USER MANUAL Crema Grande Jet 1658 CASO
Raiffeisenstraße 9
D-59757 Arnsberg
Service-Hotline International:
Tel.: +49 (0) 29 32 / 80 55 4 - 99
Fax: +49 (0) 29 32 / 80 55 4 - 77
eMail: kundenservice@caso-germany.de
Internet: www.caso-germany.de
14 Operating Manual....22
15 Warning notices....22
16 Safety 22
16.1 Intended use....22
16.2 General Safety information....23
16.3 Danger of burns 24
16.4 Dangers due to electrical power....24
17 General....25
17.1 Information on this manual 25
18 Limitation of liability....25
18.1 Copyright protection....26
19 Commissioning....26
19.1 Safety information....26
19.2 Delivery scope and transport inspection....26
19.3 Unpacking....27
19.4 Disposal of the packaging....27
19.5 Setup location requirements: 27
19.6 Electrical connection....28
20 Function....28
20.1 Overview: 28
20.2 Rating plate 28
21 Operation and Handing 29
21.1 Operation....29
22 Cleaning and Maintenance....30
22.1 Safety information....30
22.2 Cleaning 30
23 Troubleshooting....31
23.1 Security advices....31
23.2 Troubleshooting....31
24 Disposal of the Old Device....31
25 Guarantee 32
26 Technical Data....32
Technical line drawing of a mechanical device with a circular top and base mount (no text or symbols)


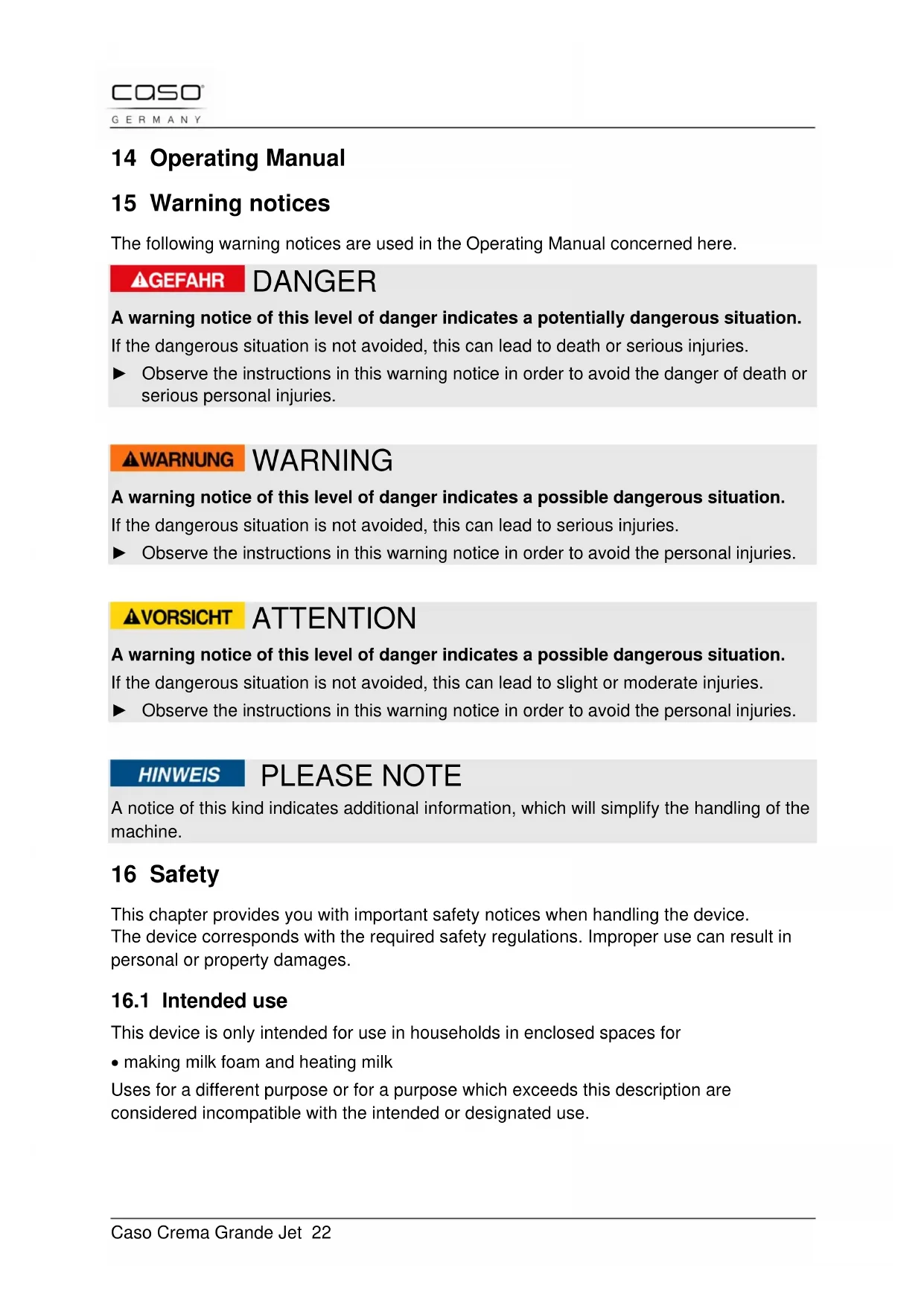

15 Warning notices
The following warning notices are used in the Operating Manual concerned here.
AGEFAHR DANGER
A warning notice of this level of danger indicates a potentially dangerous situation.
If the dangerous situation is not avoided, this can lead to death or serious injuries.
▶ Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.
▲WARNUNG WARNING
A warning notice of this level of danger indicates a possible dangerous situation.
If the dangerous situation is not avoided, this can lead to serious injuries.
▶ Observe the instructions in this warning notice in order to avoid the personal injuries.
▲VORSICHT ATTENTION
A warning notice of this level of danger indicates a possible dangerous situation.
If the dangerous situation is not avoided, this can lead to slight or moderate injuries.
▶ Observe the instructions in this warning notice in order to avoid the personal injuries.
HINWEIS PLEASE NOTE
A notice of this kind indicates additional information, which will simplify the handling of the machine.
16 Safety
This chapter provides you with important safety notices when handling the device.
The device corresponds with the required safety regulations. Improper use can result in personal or property damages.
16.1 Intended use
This device is only intended for use in households in enclosed spaces for
- making milk foam and heating milk
Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.
▲WARNUNG WARNING
Danger due to unintended use!
Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use.
▶ Use the device exclusively for its intended use.
▶ Observe the procedural methods described in this Operating Manual.
Claims of all kinds due to damages resulting from unintended uses are excluded.
The User bears the sole risk.
16.2 General Safety information
HINWEIS PLEASE NOTE
Please observe the following general safety notices with regard to the safe handling of the device.
▶ Examine the device for any visible external damages prior to using it. Never put a damaged device into operation.
▶ If the connection lead is damaged, you will need to have a new connection lead installed by an authorized electrician.
This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
▶ Children shall not play with the appliance.
▶ Cleaning and user maintenance shall not be made by children without supervision.
▶ Keep the appliance and its cord out of reach of children less than 8 years.
▶ Do not leave the device unsupervised when it is in operation.
▶ Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs that may be needed. Improperly performed repairs can cause considerable dangers for the user.
HINWEIS PLEASE NOTE
▶ Only customer service departments authorized by the manufacturer may carry out repairs on the device during the guarantee period, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages.
▶ Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.
▶ Do not use other liquids than milk.
16.3 Danger of burns
AGEFAHR DANGER
The heated milk in the milk frother and the interior of the jug can get very hot.
Observe the following safety instructions and be careful not to burn or scald yourself or others:
▶ When the milk is heated, the interior of the jug gets very hot!
▶ Always check the temperature of the milk, before drinking it.
▶ When you are heating the milk, keep the lid closed.
16.4 Dangers due to electrical power
AGEFAHR DANGER
Mortal danger due to electrical power!
Mortal danger exists when coming into contact with live wires or subassemblies!
Observe the following safety notices to avoid dangers due to electrical power:
▶ If the connection lead is damaged, you will need to have a special connection lead installed by an authorized electrician.
AGEFAHR DANGER
▶ Do not operate this device if its power cable or plug is damaged, if it does not work properly or if it is damaged or has been dropped. If the power cable is damaged, it will need to be replaced by the manufacturer or his service agency or a similar qualified person, to avoid any dangers.
▶ Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.
17 General
Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions.
Your Crema Grande Jet will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it!
17.1 Information on this manual
These Operating Instructions are a component of the Crema Grande Jet (referred to hereafter as the device) and provide you with important information for the initial commissioning, safety, intended use and care of the device.
The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device:
- Commissioning
- Operation
- Troubleshooting and/or
- Cleaning
Keep the Operating Manual in a safe place and pass it on to the other along with the device.
18 Limitation of liability
All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration.
No claims can be derived from the information provided, the illustrations or descriptions in this manual.
The manufacturer does not assume any liability for damages arising as a result of the following:
• Non-observance of the manual
• Uses for non-intended purposes
- Improper repairs
- Technical alterations, modifications of the device
- Use of unauthorized spare parts
Modifications of the device are not recommended and are not covered by the guarantee. All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.
18.1 Copyright protection
This document is copyright protected.
Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially.
Subject to content and technical changes.
19 Commissioning
This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:
19.1 Safety information
⚠️WARNUNG
WARNING
Personal and property damages can occur during commissioning of the device!
Observe the following safety notices to avoid such dangers:
▶ Packaging materials may not be used for playing. There is a danger of suffocation.
19.2 Delivery scope and transport inspection
As a rule, the Crema Grande Jet is delivered with the following components:
- Crema Grande Jet
- Whisk for frothing
- Operating Instructions
HINWEIS
PLEASE NOTE
▶ Examine the shipment for its completeness and for any visible damages.
▶ Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.
19.3 Unpacking
Unpack your device as follows:
• Take out the device from the box and remove the interior and exterior packaging.
- Clean the appliance thoroughly before the first use. (see chapter Cleaning and maintenance)
19.4 Disposal of the packaging
The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled.
Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste.
Take any packaging materials that are no longer required to "Green Dot" recycling collection points for disposal.
HINWEIS PLEASE NOTE
If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.
19.5 Setup location requirements:
- In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:
- The device must be set up on a firm, flat, horizontal surface with sufficient load-bearing capacity.
- Choose the setup location in such a way that children cannot reach the device.
- The device is not intended to be installed in a wall or a built-in cupboard.
- Do not set up the device in a hot, wet or extremely damp environment or near flammable material.
- The electrical socket must be easily accessible so that the power lead can be disconnected easily, in the case of an emergency.
- The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.
19.6 Electrical connection
In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:
- Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device If in doubt, ask your qualified electrician.
- The electrical outlet must be protected by a 16A safety cut-out switch.
- The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5 mm ^2 . The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.
- Make sure that the power cable is undamaged and has not been installed under the device or over hot or sharp surfaces.
- The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. Operations using an electrical outlet without a protective conductor are prohibited. If in doubt, have the house installation checked over by a qualified electrician.
The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.
20 Function
In this chapter, you'll find important information on the function of the device.
20.1 Overview:
1 Lid
2 Holder with magnetic whisk
3 Jug
4 Power button
5 Basis (with power cable)
20.2 Rating plate
The rating plate with the connection and performance data can be founded beneath the device.
21 Operation and Handing
This chapter provides you with important notices with regard to operating the device.
Observe the following notices to avoid dangers and damages:
⚠️WARNUNG
WARNING
▶ Do not leave the device unsupervised when it is in operation, so that you can intervene quickly in the event of dangers.
21.1 Operation
MIN: Fill milk at least up to that marking
MAX (bottom): Fill milk up to that maximum marking to make milk froth.
MAX (top): When you want to heat milk but not froth it, you can fill
milk up to that maximum marking.
HINWEIS
PLEASE NOTE
▶ Please note the maximum markings. Please use for milk froth only the bottom MAX-marking. Otherwise so much foam will be made that the lid would lift and milk would overflow.
You can make warm as well as cold milk froth
HINWEIS
PLEASE NOTE
▶ Please touch the power button with your finger in such a manner that you can still see the different settings.
Warm milk froth
Please put the whisk for frothing into holder. Switch on the power button.
The power button lights red. This is the setting for the warm milk froth. The appliance starts to make milk foam and stops automatically as soon as the foam is finished.
Heating milk
Please put the whisk for frothing into holder.
Press the power button twice, it blinks red, the milk is heated.
The whisk rotates with reduced speed in order to ensure even heat distribution and prevent the milk from burning.
Cold milk froth
Please put the whisk for frothing into holder.
Switch on the appliance. Press the power button for approximately 2 seconds until it lights blue. Now cold milk froth is made.
Settings:
| Setting power button: Milk: | |
| Lights red Warm milk froth is made | |
| Blinks red Milk is heated. | |
| Lights blue Cold milk froth is made. |
HINWEIS PLEASE NOTE
▶ Please pour out the milk and the milk froth. By using a metal spoon or another object with sharp edges you risk damaging the coating of the pot.
▶ Only fill milk into the appliance.
22 Cleaning and Maintenance
This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.
22.1 Safety information
▲VORSICHT ATTENTION
Please observe the safety instructions, before cleaning your device:
▶ Before cleaning switch off the unit and take the power plug out of the outlet.
▶ Clean the unit with a soft cloth.
▶ Don't clean the device with inflammable detergents.
▶ Clean the device again thoroughly when the machine hasn't been used for a long time.
▶ Cleaning and user maintenance shall not be made by children without supervision.
22.2 Cleaning
- Take off the lid with the whisk. You can remove the magnetic whisk from the side from its holder.
- Clean the lid and the whisk as well as the jug of the milk frother with diluted detergent, with warm water and a soft sponge or a cloth.
- Do not use any hard or sharp-edged objects or abrasive cleaning agents to clean the jug because the coating could by damaged.
- Clean the lid and the whisk with lukewarm water. Rinse out the interior of the jug with lukewarm water.
- Jug and basis are not suitable for dish washer.
- Never immerse the appliance in water or other liquids.
23 Troubleshooting
This chapter provides you with important notices with regard to operating the device.
Observe the following notices to avoid dangers and damages:
23.1 Security advices
▲VORSICHT ATTENTION
▶ Repairs of electrical appliances must be carried out by qualified personnel who are trained by the manufacturer.
▶ Repairs performed by untrained persons may result in considerable hazards for the user and damage the machine.
23.2 Troubleshooting
| Error | Possible cause | Problem solving |
| The appliance doesn't work. | Mains plug is not connected correctly. | Please check that the mains plug of the applicance is connected correctly. |
| Electronic defect. | Please contact customer support. |
▲VORSICHT ATTENTION
If above mentioned steps don't solve the problem, please contact your customer service.
24 Disposal of the Old Device
Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety. If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment.
Therefore, do not put your old device into the non-recyclable waste under any circumstances.
HINWEIS PLEASE NOTE
▶ Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information.
▶ Ensure that your old device is stored safely away from children until it is taken away.
25 Guarantee
We provide a 24 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults. Your legal guarantee entitlements in accordance with § 439 ff. BGB-E remain unaffected by this.
The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements.
This device is designed for use in domestic situations and has the appropriate performance levels. Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use.
In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device. Any pending faults must be reported within 14 days of delivery. All further claims are excluded. To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase).
26 Technical Data
| Device Milkfrother | |
| Name Crema Grande Jet | |
| Model D065 | |
| Item No.: 1658 | |
| Mains data | 220-240 V, 50 - 60Hz |
| Power consumption | 420-500 W |
| Capacity frothing Min: 100 ml, Max: 150 ml | |
| Capacity warming | Min. 100 ml, Max: 250 ml |
| External measurements (H x W x D): | Diameter: 10.9 cm, Height: 21.3 cmWidth with handle: 14.9 cm |
| Net weight | 0,86 kg |
Mode d'emploi
N°. d'article 1658
27 Mode d'emploi
Technical line drawing of a mechanical component with a circular top and base (no text or symbols)
Exterior view of a black and silver Bosch 500ml water filtration maker with a power button (no text or symbols on the device itself)
Articolo-N. 1658
40 Istruzione d'uso
Technical line drawings of mechanical components including a circular component, three vertical supports, and a separate circular base (no text or symbols)natural_image
Exterior view of a black and silver Coso milk tea maker with a blue power button (no text or symbols on the device itself)
Ref. 1658
Technical line drawings of mechanical components including a circular component, three supporting legs, and a separate gear-like component (no text or symbols)natural_image
Exterior view of a black and silver Coso coffee maker with a blue power button (no text or symbols on the device itself)
Artikelnummer 1658
