USER MANUAL Crema Glas 1657 CASO

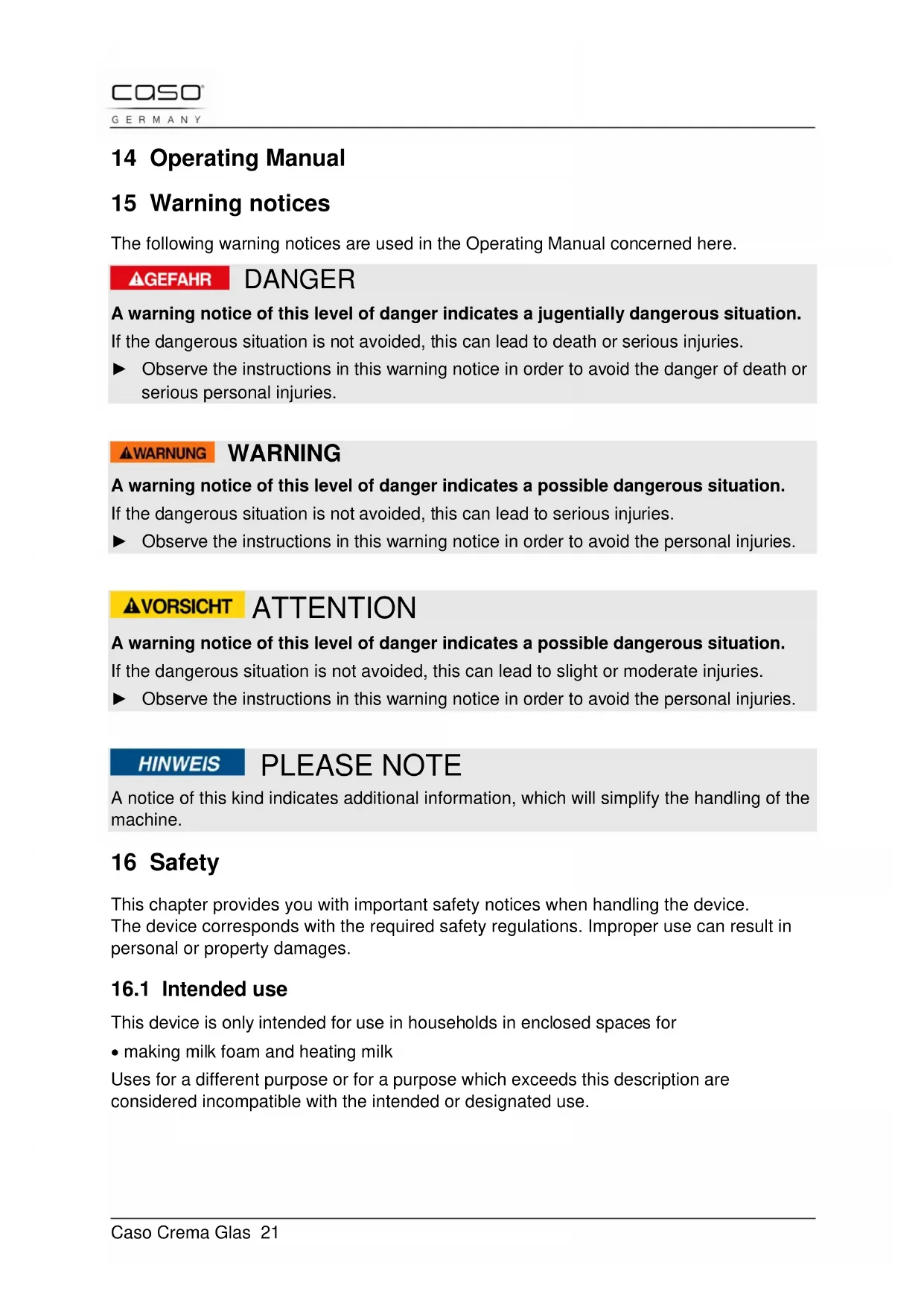

This device is only intended for use in households in enclosed spaces for

• making milk foam and heating milk Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.Caso Crema Glas 22 WARNING Danger due to unintended use! Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use. ► Use the device exclusively for its intended use. ► Observe the procedural methods described in this Operating Manual. Claims of all kinds due to damages resulting from unintended uses are excluded. The User bears the sole risk.

16.2 General Safety information

PLEASE NOTE Please observe the following general safety notices with regard to the safe handling of the device. ► Examine the device for any visible external damages prior to using it. Never put a damaged device into operation. ► If the connection lead is damaged, you will need to have a new connection lead installed by an authorized electrician. ► This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. ► Children shall not play with the appliance. ► Cleaning and user maintenance shall not be made by children without supervision. ► Keep the appliance and its cord out of reach of children less than 8 years. ► Do not leave the device unsupervised when it is in operation. ► Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs that may be needed. Improperly performed repairs can cause considerable dangers for the user. ► Only customer service departments authorized by the manufacturer may carry out repairs on the device during the guarantee period, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages. ► Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled. ► Do not use other liquids than milk.Caso Crema Glas 23

16.3 Danger of burns

DANGER The heated milk in the milk frother and the interior and exterior of the jug can get very hot. Observe the following safety instructions and be careful not to burn or scald yourself or others: ► When the milk is heated, the interior and exteriror of the jug get very hot! ► Always check the temperature of the milk, before drinking it. ► When you are heating the milk, keep the lid closed.

16.4 Dangers due to electrical power

DANGER Mortal danger due to electrical power! Mortal danger exists when coming into contact with live wires or subassemblies! Observe the following safety notices to avoid dangers due to electrical power: ► If the connection lead is damaged, you will need to have a special connection lead installed by an authorized electrician. ► Do not operate this device if its power cable or plug is damaged, if it does not work properly or if it is damaged or has been dropped. If the power cable is damaged, it will need to be replaced by the manufacturer or his service agency or a similar qualified person, to avoid any dangers. ► Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur. 17 General Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions. Your Crema Glas will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it!

17.1 Information on this manual

These Operating Instructions are a component of the Crema Glas (referred to hereafter as the device) and provide you with important information for the initial commissioning, safety, intended use and care of the device. The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device:

• Commissioning • Operation • Troubleshooting and/orCaso Crema Glas 24

• Cleaning Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device. 18 Limitation of liability All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration. No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following:

• Non-observance of the manual • Uses for non-intended purposes

• Improper repairs • Technical alterations, modifications of the device

• Use of unauthorized spare parts Modifications of the device are not recommended and are not covered by the guarantee. All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

18.1 Copyright protection

This document is copyright protected. Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially. Subject to content and technical changes. 19 Commissioning This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

19.1 Safety information

WARNING Personal and property damages can occur during commissioning of the device! Observe the following safety notices to avoid such dangers: ► Packaging materials may not be used for playing. There is a danger of suffocation.Caso Crema Glas 25

19.2 Delivery scope and transport

inspection As a rule, the Crema Glas is delivered with the following components:

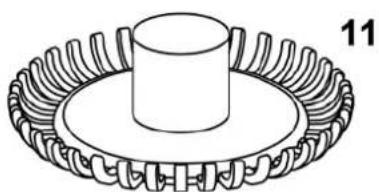

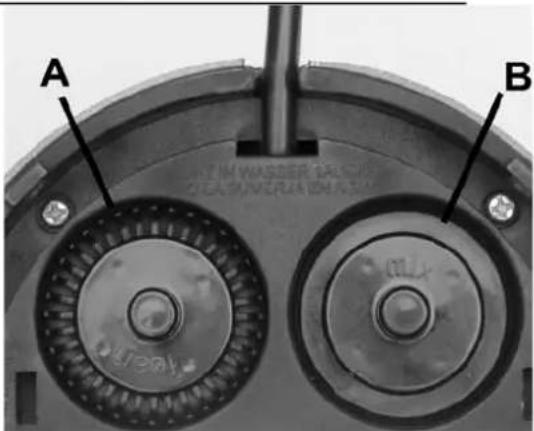

• 2 whisks for frothing (one at the bottom side of the base unit (A))

• 1 whisk for heating (at the bottom side of the base unit (B)) • Operating Instructions PLEASE NOTE ► Examine the shipment for its completeness and for any visible damages. ► Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

Unpack your device as follows:

• Take out the device from the box and remove the interior and exterior packaging.

• Clean the appliance thoroughly before the first use. (see chapter Cleaning and maintenance)

19.4 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled. Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to “Green Dot” recycling collection points for disposal. PLEASE NOTE ► If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.

19.5 Setup location requirements:

• In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:

• The device must be set up on a firm, flat, horizontal surface with sufficient load-bearing capacity.Caso Crema Glas 26

• Choose the setup location in such a way that children cannot reach the device.

• The device is not intended to be installed in a wall or a built-in cupboard.

• Do not set up the device in a hot, wet or extremely damp environment or near flammable material.

• The electrical socket must be easily accessible so that the power lead can be disconnected easily, in the case of an emergency.

• The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.

19.6 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

• Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device If in doubt, ask your qualified electrician.

• The electrical outlet must be protected by a 16A safety cut-out switch.

• The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5 mm². The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.

• Make sure that the power cable is undamaged and has not been installed under the device or over hot or sharp surfaces.

• The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. Operations using an electrical outlet without a protective conductor are prohibited. If in doubt, have the house installation checked over by a qualified electrician. The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.Caso Crema Glas 27 20 Function In this chapter, you'll find important information on the function of the device.

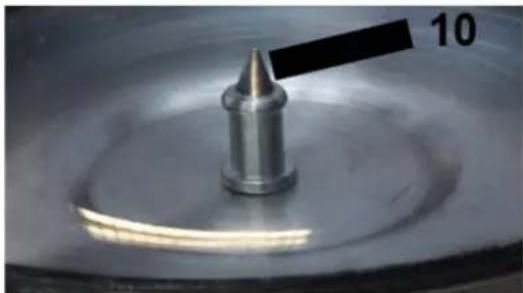

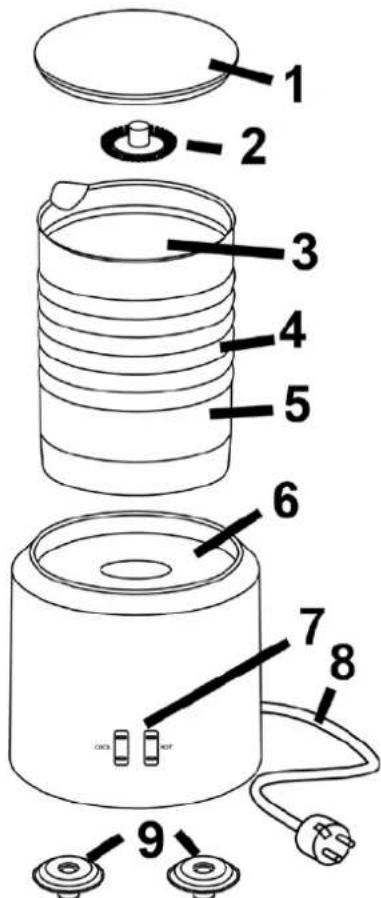

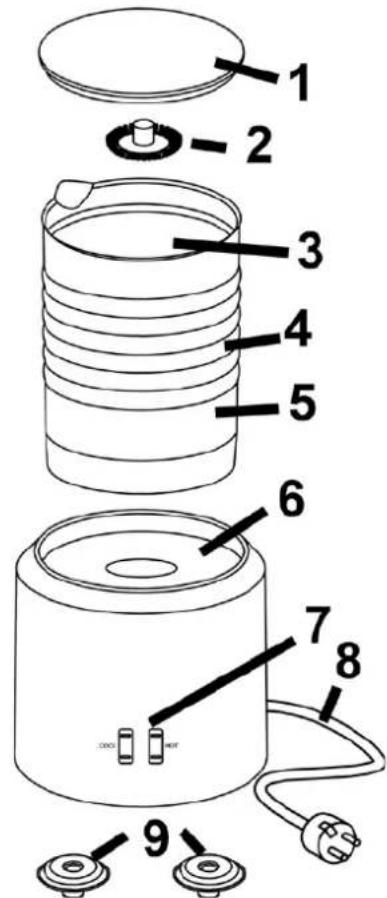

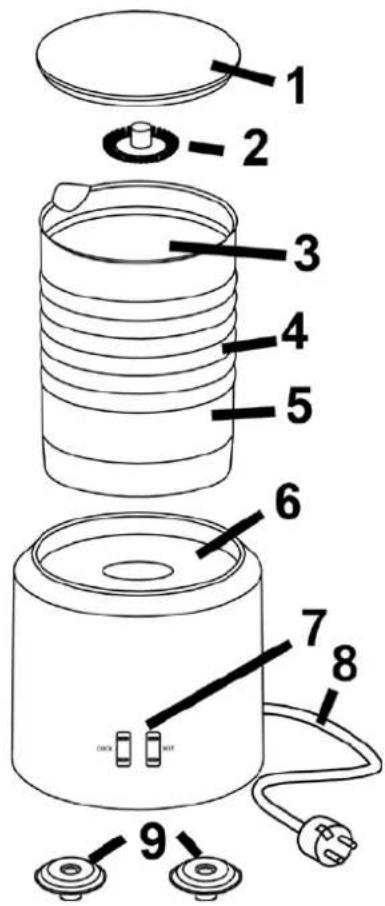

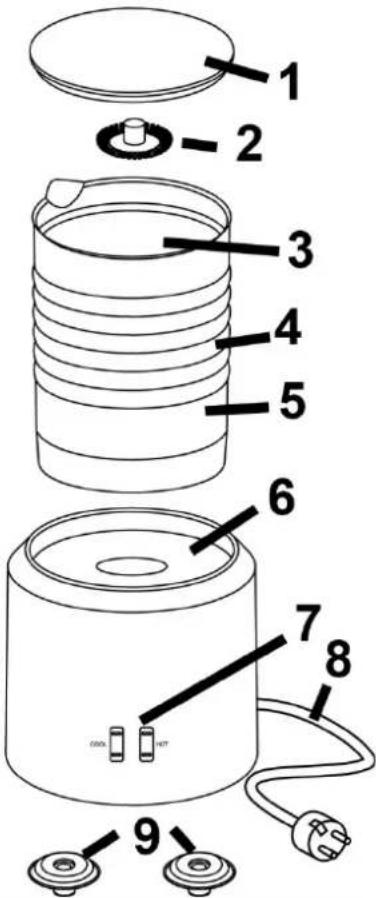

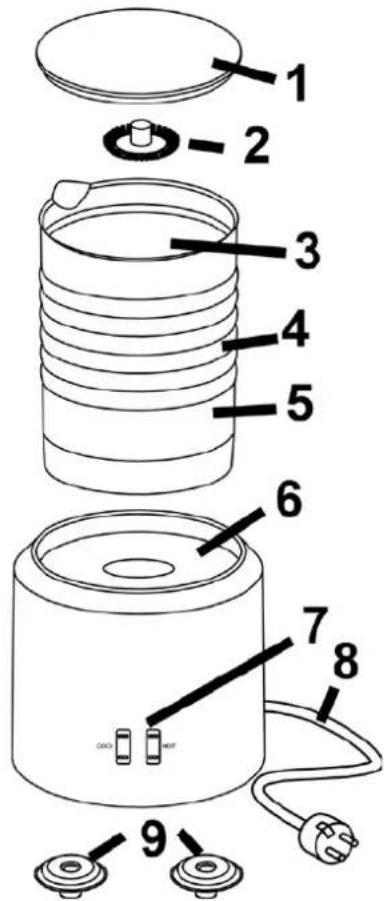

1 Lid 2 Whisk 3 Max-Marking 4 Rubber-Cuff 5 Jug 6 Base unit 7 Buttons hot and cold 8 Supply Cord 9 Spare blenders 10 Holder for the whisk (at the bottom of the jug) WARNING ► Do not touch the holder of the whisk at the bottom of the jug. It is sharp. Risk of injury.

The rating plate with the connection and performance data can be founded beneath the device. 21 Operation and Handing This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages: WARNING ► Do not leave the device unsupervised when it is in operation, so that you can intervene quickly in the event of dangers.

With the Crema Glas you can heat cold as well as warm milk froth. The appliance has got three markings for the filling: ► MAX-Marking: Fill in cold milk only up to the mark or hot milk or milk foam could overflow. ► MIN-Marking: Fill at least 100 ml milk. Warm milk froth Put the whisk for frothing on the holder at the bottom of the jug and softly press the whisk to fix it. Select the button “hot” for hot. The button lights red. The device stops automatically when the process is complete. Heating milk Put the whisk for heating on the holder at the bottom of the jug and softly press the whisk to fix it. Select the button “hot” for hot. The button lights red. The device stops automatically when the process is complete. Cold milk froth Put the whisk for frothing on the holder at the bottom of the jug and softly press the whisk to fix it. Select the button “cold” for cold. The button lights blue. The device stops automatically when the process is complete. PLEASE NOTE ► Please pour out the milk and the milk froth. By using a metal spoon or another object with sharp edges you risk damaging the jug. ► Only fill milk into the appliance.Caso Crema Glas 29 22 Cleaning and Maintenance This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

22.1 Safety information

ATTENTION Please observe the safety instructions, before cleaning your device: ► Before cleaning switch off the unit and take the power plug out of the outlet. ► Clean the unit with a soft cloth. ► Don't clean the device with inflammable detergents. ► Clean the device again thoroughly when the machine hasn't been used for a long time. ► Cleaning and user maintenance shall not be made by children without supervision.

Clean the lid, whisks and the jug with rubber-cuff in warm water with detergent and a soft cloth. Do not use cold water for cleaning, because the heated glass jug could crack. Remove the whisk from the jug. Now you can clean the jug in the dishwasher Lid, whisks and base unit are not suitable for the dishwasher. Do not use any hard or sharp-edged objects or abrasive cleaning agents to clean the jug. Never immerse the appliance in water or other liquids. 23 Troubleshooting This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

23.1 Security advices

ATTENTION ► Repairs of electrical appliances must be carried out by qualified personnel who are trained by the manufacturer. ► Repairs performed by untrained persons may result in considerable hazards for the user and damage the machine.Caso Crema Glas 30
