USER MANUAL HB800 CASO

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions.

Your Hand Blender HB800 will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it!

11.2 Information on this manual

These Operating Instructions are a component of the Hand Blender HB800 (referred to hereafter as the device) and provide you with important information for the initial commissioning, safety, intended use and care of the device.

The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device:

Commissioning

Operation

• Troubleshooting and/or

• Cleaning

Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

11.3 Warning notices

The following warning notices are used in the Operating Manual concerned here.

▲GEFAHR

DANGER

A warning notice of this level of danger indicates a potentially dangerous situation.

If the dangerous situation is not avoided, this can lead to death or serious injuries.

Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.

WARNING

WARNING

A warning notice of this level of danger indicates a possible dangerous situation.

If the dangerous situation is not avoided, this can lead to serious injuries.

Observe the instructions in this warning notice in order to avoid the personal injuries.

AVORSICHT

ATTENTION

A warning notice of this level of danger indicates a possible dangerous situation.

If the dangerous situation is not avoided, this can lead to slight or moderate injuries.

Observe the instructions in this warning notice in order to avoid the personal injuries.

HINWEIS

PLEASE NOTE

A notice of this kind indicates additional information, which will simplify the handling of the machine.

11.4 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration.

No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following:

• Non-observance of the manual - Uses for non-intended purposes
• Improper repairs
• Technical alterations, modifications of the device
• Use of unauthorized spare parts

Modifications of the device are not recommended and are not covered by the guarantee.

All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

11.5 Copyright protection

This document is copyright protected. Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially.

Subject to content and technical changes.

12 Safety

This chapter provides you with important safety notices when handling the device.

The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

12.1 Intended use

This device is only intended for use in households in enclosed spaces for

• Shredding, slicing, chopping and grinding food
• Blending liquids and soft food
• Mashing up cooked food

This device is intended for use in the household and for similar applications such as:

• in kitchens for employees in shops, offices, and other commercial areas; - in B&Bs,

• in agricultural estates;

• by customers in hotels, motels and other residential establishments.

Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.

WARNING Warning

Danger due to unintended use!

Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use.

• Use the device exclusively for its intended use.
  Observe the procedural methods described in this Operating Manual.

Claims of all kinds due to damages resulting from unintended uses are excluded.

The User bears the sole risk.

12.2 General Safety information

HINWEIS

Please note

Please observe the following general safety notices with regard to the safe handling of the device.

Examine the device for any visible external damages prior to using it. Never put a damaged device into operation.
This appliance is not allowed to be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
Children shall not use this device. Keep the device and its cord out of children's reach.
Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children.
Do not leave the device unsupervised when it is in operation.
- Only customer service departments authorized by the manufacturer may carry out repairs on the device, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages. Improperly performed repairs can cause considerable dangers for the user.

HINWEIS

Please note

Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.
- Do not touch the blades, especially when the appliance is plugged in. The blades are very sharp.
If the blades get stuck, unplug the appliance before you remove the ingredients that block the blades.
- Be sure the parts are properly assembled to original base and in place.
Unplug from the outlet when not in use and before cleaning and before putting on or taking of parts. Allow to cool before putting on or taking off parts and before cleaning or storing the appliance.
Do not use the appliance to process superhard food, such as for example rock candy, brown sugar, myristica fragrans or coffee bean.
After 1 minute operation: Let the device cool down for 5 minutes. Stop for half an hour after 5 cycles.

12.3 Sources of danger

12.3.1 Danger of injury

GEFAHR

Danger

Careless use of the appliance may result in injury.

Observe the following warnings to avoid injury

• Keep fingers, hair, clothing and kitchen utensils well away from moving parts.
• Do not touch the blades, especially when the appliance is plugged in. The blades are very sharp.
  If the blades get stuck, unplug the appliance before you remove the ingredients that block the blades.

GEFAHR

Danger

Unplug from the outlet when not in use and before cleaning and before putting on or taking of parts. Allow to cool before putting on or taking off parts and before cleaning or storing the appliance.

12.3.2 Dangers due to electrical power

GEFAHR

Danger

Mortal danger due to electrical power!

Mortal danger exists when coming into contact with live wires or subassemblies! Observe the following safety notices to avoid dangers due to electrical power:

• Do not operate this device if it has a damaged cable or plug, if it is not working properly or if it has been damaged or dropped. If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard.
• Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.
• Never immerse the motor unit, cord or plug in water or other liquids and do not place in the dishwasher.

12.4 Commissioning

This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

12.5 Safety information

WARNING

Warning

• Packaging materials may not be used for playing. There is a danger of suffocation.

12.6 Delivery scope and transport inspection

As a rule, the Hand Blender HB800 is delivered with the following components:

• Motor unit

• Blender bar

• Chopper bowl

• Lid of chopper bowl

• Blade unit

• Masher

• Operating Instructions

HINWEIS Please note

Examine the shipment for its completeness and for any visible damages.
- Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

12.7 Unpacking

To unpack the device, proceed as follows:

• Remove the device out of the carton and remove the packaging material.

12.8 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled.

Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste.

Take any packaging materials that are no longer required to "Green Dot" recycling collection points for disposal.

HINWEIS Please note

If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.

12.9 Setup location requirements:

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:

• Place the device on a firm and even work surface.
• Do not use the device outdoors.
• Choose the setup location in such a way that children cannot reach the device.
• The device is not intended to be installed in a wall or a built-in cupboard.
• Do not set up the device in a hot, wet or extremely damp environment or near flammable material.
• The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.

12.10 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

• Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device If in doubt, ask your qualified electrician.
• The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5mm^2 . The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.
• Make sure that the power cable is undamaged and has not been installed under the ice maker or over hot or sharp surfaces.
• The electrical outlet must be protected by a 16A safety cut-out switch.
• The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. If in doubt, have the house installation checked over by a qualified electrician.

The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.

13 Design and Function

In this chapter, you'll find important information on the design and function of the device.

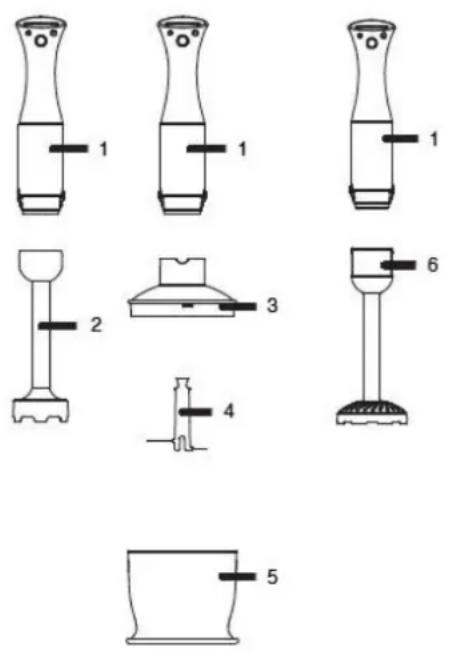

13.1 Overview and assembly

1. Motor unit
2. Blender bar
3. Chopper bowl lid
4. Blade unit
5. Chopper bowl
6. Masher

13.2 Touch-Operation

a) "display" shows stages 1-5
b) - button
c) On/Off-button
d) + -button

13.3 Rating plate

The rating plate with the connection and performance data can be founded on the back of the device.

14 Operation and Handing

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

WARNING

Warning

• Do not leave the device unsupervised when it is in operation, so that you can intervene quickly in the event of dangers.

14.1 Before initial use

1. Thoroughly clean the parts that come into contact with food before you use appliance for the first time (see chapter 'cleaning').

14.2 Preparing for use

1. Let hot ingredients cool down before you chop them, blend them or pour them into the beaker (max. temperature 80^ ).
2. Cut large ingredients into pieces of approx. About 2 cm.
3. Assemble the appliance properly before you put the plug in the wall socket.

14.3 How to use

HINWEIS

Please note

Please keep your hands dry to ensure the touch function works well.
The higher the speed, the shorter the processing time required.

14.3.1 Chopper

Functions:

• Chopping ingredients such as nuts, meat, onions, hard cheese, boiled eggs, garlic, herbs, dry bread etc.

AVORSICHT Attention

• Be very careful when you handle the blade unit, the blades are very sharp. Be particularly careful when you remove the blade unit from the chopper bowl, when you empty the chopper bowl and during cleaning.

Assembly and use:

1. Put the blade unit in the chopper bowl.
2. Put the ingredients in the chopper bowl. See the table for the recommended quantities and processing times.
3. Put the lid on the chopper bowl and turn the lid clockwise until fasten it tightly.
4. Fasten the motor unit onto the lid.
5. Put the plug in the wall socket.
6. Touch the "+" " -" button to choose the speed and then press the ON/OFF button.

Ingredients	Amount	Time	Speed level
Onions, eggs	100 g	10 sec	4-5
Meat	300 g	15 sec	4-5
Herbs	50 g	15 sec	4-5
Cheese	100 g	10 sec	4-5
Nuts	80 g	10 sec	4-5
Garlic	200 g	10 sec	4-5

AVORSICHT Attention

• Do not process more than 1 batch without interruption. Let the appliance cool down for 5 minutes before you continue processing.

14.3.2 Hand blender

Functions:

• blending liquids, e.g. dairy products, sauces, fruit juices, soups, mixed drinks and shakes.
• mixing soft ingredients, e.g. pancake batter or mayonnaise.
• pureeing cooked ingredients, e.g. for making baby food.

Assembly and use:

1. Put the ingredients in the jar. See the table for the recommended quantities and processing times.

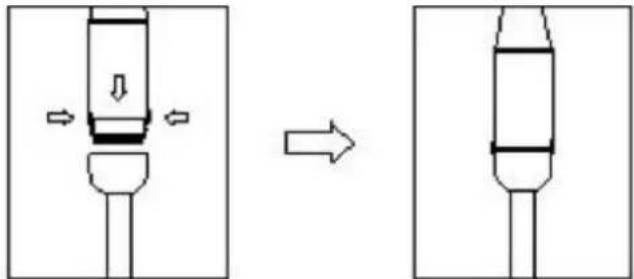

1. Attach the blender bar to the motor unit.

1. Put the plug in the wall socket.

2. Immerse the blade guard completely in the ingredients.

1. Before press the ON/OFF button, touch the "+" " -" button to choose the speed base on your own need.

2. Move the appliance slowly up and down and in circles to blend the ingredients.

Ingredients	Amount	Time	Speed level
Fruits, vegetables	100-120 g (0.22-0.26 lbs)	15 sec	5
Baby food, soups, sauces	100-400 ml (3.38-13.52 fl oz)	15 sec	5
Shakes, mixed drinks	100-600 ml (3.38-20.28 fl oz)	10 sec	5

14.3.3 Masher

Functions:

Pureeing soft cooked food for example potatoes or carrots

Assembly and use:

1. Give the cooked food into the bowl. Before that, let them cool down a bit (max. 80^ ).
2. Attach the masher to the motor unit.
3. Put the plug in the wall socket.
4. Immerse the blade guard completely in the ingredients.
5. Before press the ON/OFF button, touch the "+" " -" button to choose the speed base on your own need.
6. Move the appliance slowly up and down and in circles to blend the ingredients.

15 Cleaning and Maintenance

This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

15.1 Safety information

A VORSICHT Attention

Please observe the safety instructions, before cleaning your device

The blades are really sharp. Handle them with care.
- Do not immerse the motor unit, the whisk coupling unit or the coupling unit of the mini chopper in water.

15.2 Cleaning

1. Unplug the appliance.
2. Press the release buttons on the motor unit to remove the accessory you used.
3. Disassemble the accessory and clean it.

HINWEIS Please note

You can also remove the rubber ring from the chopper bowl for extra thorough cleaning.
For quick cleaning, pour warm water with some dish soop in the beaker, insert the blender bar and let the appliance operate for approx. 10 seconds.

16 Troubleshooting

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

16.1 Security advices

AVORSICHT Attention

Repairs of electrical appliances must be carried out by qualified personnel who are trained by the manufacturer.
Repairs performed by untrained persons may result in considerable hazards for the user and damage the machine.

16.2 Troubleshooting

Fault	To Rectify
The device does not start.	Please check whether the power plug is properly plugged.Please check whether the assembly is done according to assembly methods.
The device has shut down.	The overheat protection was activated. Pull out power supply plug and wait for the motor to cool (about 20 to 30 minutes), then use again.

HINWEIS Please note

If above mentioned steps don't solve the problem, please contact your customer service.
Please clean the device before sending it to customer service.

17 Disposal of the Old Device

Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety.

If these were put in the non-recyclable waste or were handled incorrectly,

they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances.

HINWEIS Please note

• Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information.
• Ensure that your old device is stored safely away from children until it is taken away.

18 Guarantee

We provide a 24 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults.

Your legal guarantee entitlements in accordance with § 439 ff. BGB-E remain unaffected by this. The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements.

This device is designed for use in domestic situations and has the appropriate performance levels. Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use.

In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device. Any pending faults must be reported within 14 days of delivery. All further claims are excluded. To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase).

19 Technical Data

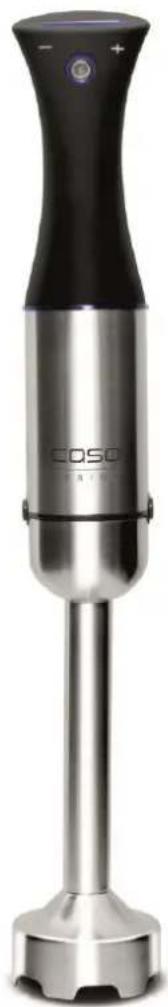

Device	Hand Blender HB800
Item No.:	3600
Mains data	220 -240 V, 50-60 Hz
Power consumption	800 W
External measurements (W x H x D):	6,5 x 44 x 6,5 cm
Net weight	940 g

Mode d'emploi

Batteur HB800

N^ d'article 3600

20 Mode d'emploi

20.1 Généralités

53.2 Touch-bediening
