USER MANUAL CQDPX153U PANASONIC

Removable Front Panel CD Player/Receiver

Operating Instructions

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK OR PRODUCT DAMAGE,DO NOT EXPOSE THIS APPLIANCE TO RAIN,SPLASHING,DRIPPING OR MOISTURE.

CAUTION!

THIS PRODUCT UTILZIES A LASER.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

Laser products:

Wave length: 780 nm

Laser power: No hazardous radiation is emitted with safety protection.

CAUTION:

PLEASE FOLLOW THE LAWS AND REGULATIONS OF YOUR STATE,PROVINCE OR COUNTRY FOR INSTALLATION OF THE UNIT.

The following applies only in the U.S.A.

Part 15 of the FCC Rules

FCC Warning:

Any unauthorized changes or modifications to this equipment would void the user's authority to operate this device.

Label indication and location

NOTICE:

This product contains lead in some components. Disposal of these materials may be regulated in your community due to environmental considerations.

For disposal or recycling Information please contact your local authorities, or the Electronics Industries Alliance: http://www.eise.org.>

Find the model number and serial number on either the back or bottom of the unit. Please record them in the space below and retain this booklet as a permanent record of your purchase to help with identification in case of theft.

MODEL NUMBER

CQ-DP133U:DP103U:DPX153U

SERIAL NUMBER

DATE PURCHASED FROM

CG-DP133U/DP103U/DPX153U

Panasonic welcomes you to our ever growing family of electronic product owners. We know that this product will bring you many hours of enjoyment. Our reputation is built on precise electronic and mechanical engineering, manufactured with carefully selected components and assembled by people who take pride in their work. Once you discover the quality, reliability, and value we have built into this product, you too will be proud to be a member of our family.

Use this Product Safely

When Driving

Keep the volume level low enough to be aware of road and traffic conditions.

When Washing Your Car

Do not expose the product, including the speakers and CDs, to water or excessive moisture. This could cause electrical shorts, fire, or other damage.

When Parked

Parking in direct sunlight can produce very high temperatures inside your car. Give the interior a chance to cool down before switching the unit on.

Use the Proper Power Supply

This product is designed to operate with a 12 DC, negative ground battery system (the normal system in a North American car).

Disc Mechanism

Do not insert coins or any small objects. Keep screwdrivers and other metallic objects away from the disc mechanism and disc.

Use Authorized Servicemembers

Do not attempt to disassemble or adjust this precision product. Please refer to the Servicenter list included with this product for service assistance.

For Installation

The product should be installed in a horizontal position with the front end up at a convenient angle, but not more than 30^ .

□ Accessories

The numbers in parentheses indicate the accessory quantities.

-Operating Instructions 1
Supplied Hardware 1 set ( page 22)
Remote Control Unit (Only for CQ-DP133U/DPX153U)
Lithium Battery (CR2025) Only for CQ-DP133U/DPX153U
Warranty Card. 1

Note: This operating Instruction manual is for 3 models CQ-DP133U, CQ-DP103U and CQ-DPX153U. All illustrations throughout this manual represent model CQ-DP133U unless otherwise specified. The following table describes the differences among 3 models.

Features\Models	CO-DP133U	CO-DP103U	CO-DPX153U
Preamp output connector Rear (L,R); Front (L,R) Rear (L,R) Rear (L,R), Front (L,R)
Remote control unit Included Not available Included
Sub-Woofer-Out No No Yes

Use this product safely 4

Accessories 4

Power and Sound Controls. 10

Power, volume, mute, loudness, display change, audio mode

(BassiTreble;Balance/Fader)

Clock Setting 11

Initial time, time reset

□ Radio 12

Radio mode, band, manual tuning, seek tuning, preset station setting.

preset station calling, display change,diret memory

CD Player 14

Disc insert and playback, stop and disc eject, listening to a CD, CD player

mode, display change, track selection, track search, direct track selection,

random play, scan play, repeat play, pause

Remote Control Unit Preparation 16

Only for CQ-DP133U/DPX153U

Battery installation, battery notes, control reference guide

Troubleshooting 17

Preliminary steps, if you suspect something wrong, troubleshooting tips.

error display messages, product servicing, replace the fuse

□ Maintenance 21

Care of the unit, notes on discs, notes on CD-Rs/RWs

□ Installation Guide 22

Installation hardware, overview, required tools dashboard specific

identify all leads, connect all leads, final installation, final checks

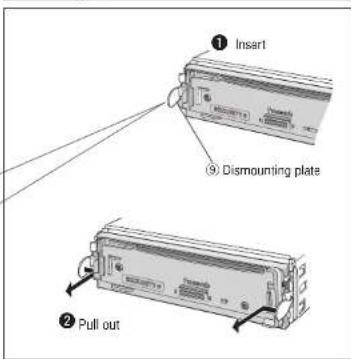

preparation, to remove

Anti-Theft System 27

Place the removable face plate into case, install removable face plate

Electrical Connections 28

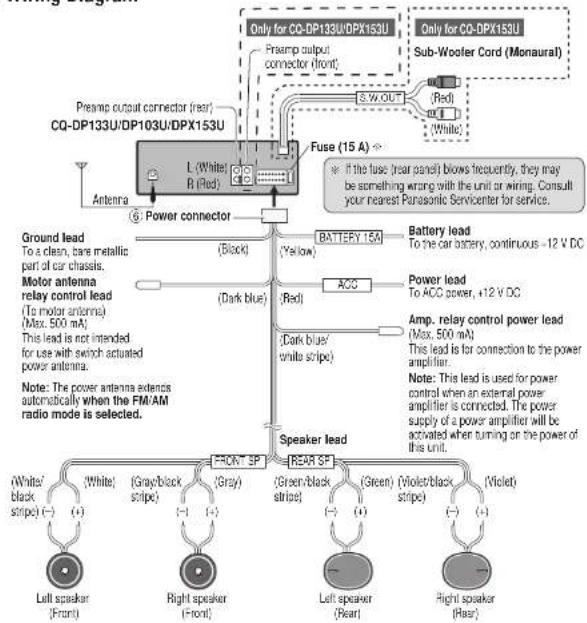

Cautions, wiring diagram
□ Specifications 29

Table des matieres

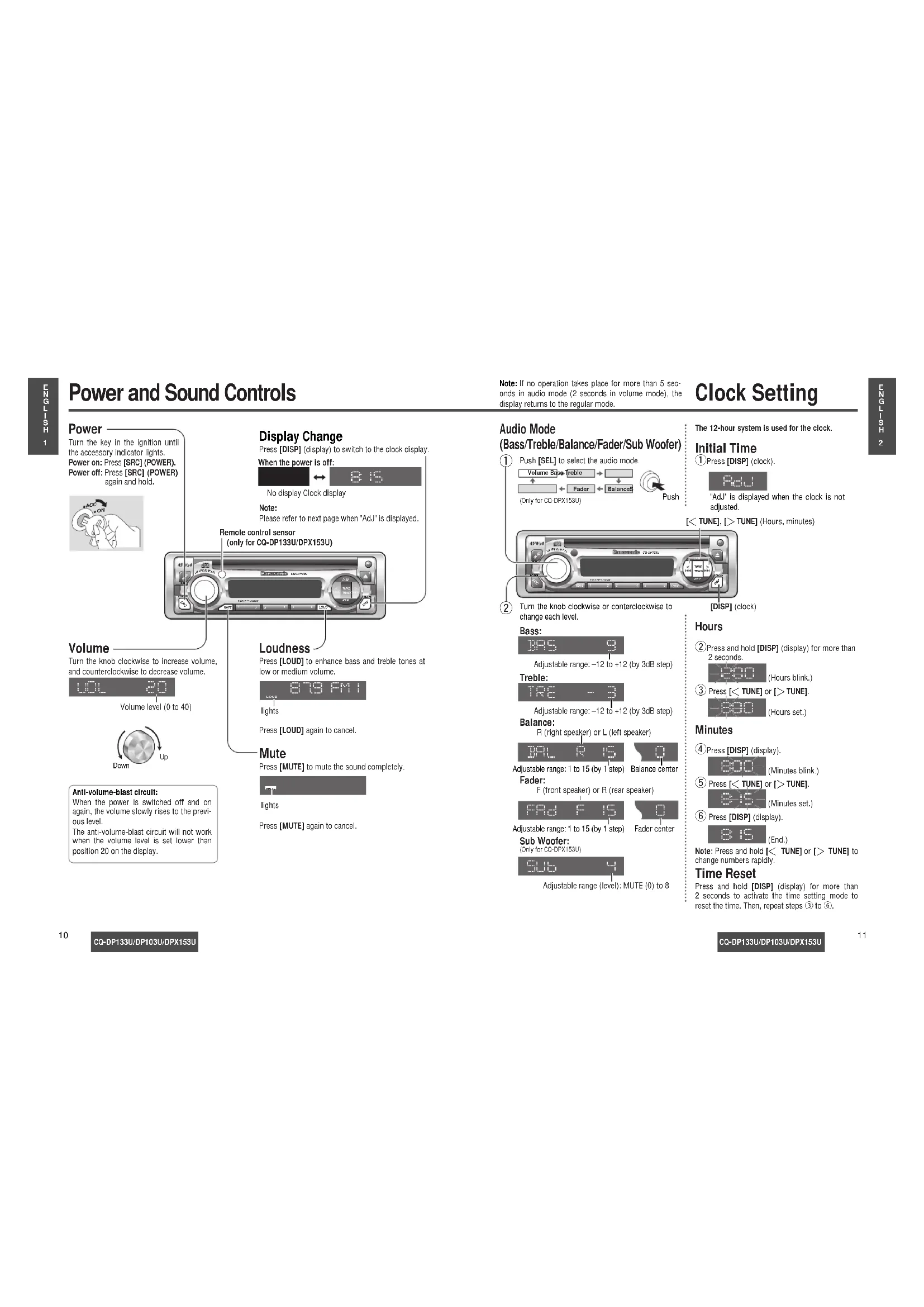

Power and Sound Controls

Power

Turn the key in the ignition until the accessory indicator lights.
Power on: Press [SRC] (POWER).
Power off: Press [SRC] (POWER) again and hold.

Display Change

Press [DISP] (display) to switch to the clock display. When the power is off:

No display Clock display

Note:

Please refer to next page when 'AdJ' is displayed.

Remote control sensor

only for CQ-DP133U/DPX153U

Volume

Turn the kno clockwise to increase volume, and counterclockwise to decrease volume.

Down

Anti-volume-blast circuit:

When the power is switched off and on again, the volume slowly rises to the previous level.

The anti-volume-blast circuit will not work when the volume level is set lower than position 20 on the display.

Loudness

Press [LOUD] to enhance bass and treble tones at low or medium volume.

Press [LOUD] again to cancel.

Mute

Press [MUTE] to mute the sound completely.

lights

Press [MUTE] again to cancel.

Note: If no operation takes place for more than 5 seconds in audio mode (2 seconds in volume mode), the display returns to the regular mode.

Clock Setting

Audio Mode

(Bass/Treble/Balance/Fader/Sub Woofer)

1 Push [SEL] to select the audio mode.

The 12-hour system is used for the clock.

Initial Time

①Press [DISP] (clock).

'AdJ' is displayed when the clock is not adjusted.

[DISP] (clock)

② Turn the knob clockwise or counterclockwise to change each level.

Bass:

Treble:

Adjustable range: -12 to +12 (by 3dB step) Balance:

R (right speaker) or L (left speaker)

Fade

(front speaker) or R (rear speaker)

Adjustable range: 1 to 15 (by 1 step) Sub Wooper:

Only for DGDP15SU

Adjustable range (level): MUTE (0) to 8

Hours

(2) Press and hold [DISP] (display) for more than 2 seconds.

3PressTUNELorTUNEL

(Hours set.)

Minutes

(4)Press [DISP] (display).
5:Press[TUNE]

2018年1月26日

(Minutes set.)

6 Press [DISP] (display)

Note: Press and hold [<TUNE] or [>TUNE] to change numbers rapidly.

Time Reset

Press and hold [DISP] (display) for more than 2 seconds to activate the time setting mode to reset the time. Then, repeat steps ③ to ⑥.

Radio

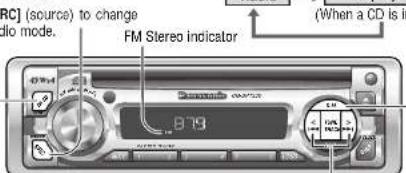

Radio Mode

Press [SRC] (source) to change to the radio mode. EM Stegren i

Band

Press [BAND] to change the band.

Manual Tuning

[TUNE]:Higher frequency

:Lower frequency

Seek Tuning

Press and hold.

[Tune]:Higher frequency

: Lower frequency

Tuning will automatically stop when the signals of the next

broadcast station are received.

Direct Memory(D·M)

Your favorite FM/AM radio station can be memorized in the [D-M] button and you can call back radio stations just by pressing the button whatever the current sound source is, even if the power is off.

Recalling the Direct Memory

Press [D·M]. (Press again to cancel)

The direct memoried station is received.

Default: FM 87.9 MHz

Memorize

1 Select the station in Radio mode (above)

Press and hold [D-M] until D-M indicator blinks.

blinks

Release [D-M] button. Then, frequency display will blink and new station will be overwritten on existing saved station.

CQ-DP133U/DP103U/DPX153U

Preset Station Setting

Up to 6 stations each can be saved in the FM1, FM2, FM3 and AM preset station memories.

Note: Existing saved stations are overwritten with new stations after following this procedure.

Display Change

Press [DISP] (display) to switch to the clock display.

Frequency Clock display

Band

Press [BAND] to select a desired band.
(= page 12)

Preset buttons from [1] to [6]

Auto Preset Memory (APM)

Press and hold [BAND] (APM: auto preset memory) for more than 2 seconds.

The 6 stations with good reception will be automatically saved in the memory under preset buttons

from [1] to [6].

• Once set, the preset stations are sequentially scanned for 5 seconds each.

Manual Preset Memory

1 Use manual or seek tuning to find a station. (→page 12)

Press and hold one of the preset buttons from [1] to [6] until the display blinks once.

blinks once

Preset Station Calling

Press the corresponding preset button from [1] to [6] to tune in a preset station.

Caution: To ensure safety, never attempt to preset stations while you are driving.

CQ-DP133U/DP103U/DPX153U

CD Player

Disc Insert and Playback

Disc insert

Playback will start automatically after the player recognized the loaded disc as an ordinary music CD. (When a CD-R or CD-RW which has CD-DA formatted data as the same as an ordinary music CD is loaded, this player recognizes it as an ordinary music CD.)

"LOAd" will be displayed until the disc is loaded.

LOR

Notes:
- Do not insert a disc when "DISC" indicator lights.
- The power will be turned on automatically when a disc is loaded.

Stop and Disc Eject

Press [▲] (eject) to stop CD play and eject the disc. During disc eruption, "E" (eject) will be displayed.

Listening to a CD

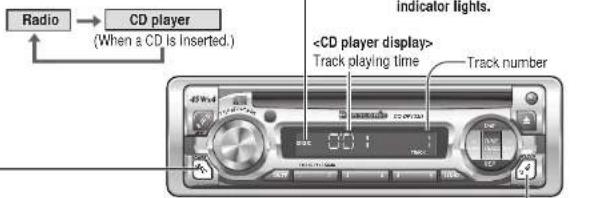

CD Player Mode (When a CD is in the player.)

Press [SRC] (source) to change to the CD play mode. Playback will start automatically.

Display Change

Press [DISP] (display) to switch to the clock display.

DISC

• lights when the disc is loaded

• Do not insert a disc when "DISC"

indicator lights.

Track playing time

Track number

Clark display

- ba + b = - dc + d

Cautions:

• Only 5" (12 cm) CD, CD-DA data recorded CD-R and CD-RW discs are available for this unit.
  This unit does not support CD text display.
  This unit does not support MP3 and WMA disc playback.
  Refer to page 21 about notes on CD-Rs/RWs.
  This unit is not designed for any 3^ (8 cm) disc.
• If you insert an 3^ (8 cm) disc and can not eject it, turn ACC of your car off once and turn it on again, then press [A] (eject).
• Do not use irregular shaped discs.
• Do not use discs that have a seal or label attached
• Do not insert foreign matter into the disc slot.

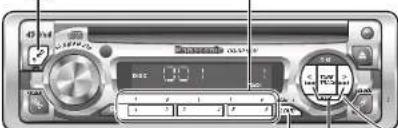

Pause

Press [BAND] (11 / 2) to pause.
Press [BAND] (■ /▶) again to resume the playback.

Scan Play

Track Selection

Press▶TRACK]: Advance to the next track.

Press [TRACK]: Back to the beginning of the current track.

Back to the previous track. (Press)

1

Direct Track Selection

Press a track number button from
[1] to [6].
The corresponding track starts playing.
Press and hold a track number button from [7] to [12] ([1] to [6]) for more than 1 second.
The corresponding track starts playing.

Random play

Press and hold [REP] (RANDOM) for more than 2 seconds.

All the tracks are played in random.
Press and hold [REP] (RANDOM) again to cancel.

Scan play

Repeat play

Press and hold [LOUD] (SCAN), for more than 2 seconds.

The first 10 seconds of each track on the disc are played in sequence.
Press and hold [LOUD] (SCAN) again to cancel.

blinks

Press [REP]

The current track is repeated. Press [REP] again to cancel.
The current track is repeated.
- Press [REP] again to cancel.

lights.

CQ-DP133U/DP103U/DPX153U

Only for CQ-DP133U/CQ-DPX153U

Remote Control Unit Preparation Troubleshooting

Battery Installation

1 Remove the battery holder.

Pull the battery holder by the position B while pushing position A in the direction indicated by the arrow.

Install the battery on the battery holder.

Place a battery in the holder with its "+" side facing up as shown in the figure.

Insert the battery holder.

Push the battery holder back into its original position.

Battery Notes

Remove and dispose of an old battery immediately.
Battery Information:
- Battery type: Panasonic lithium battery (CR2025) (included)
Battery life: Approximately 6 months with normal use (at room temperature)

Caution: Improper use of batteries may cause overheating, an explosion or ignition, resulting in injury or a fire. Battery leakage may damage the unit.

• Do not disassemble or short the battery. Do not throw a battery into a fire.
• Keep batteries away from children to avoid the risk of accidents.
• Be careful to observe proper local disposal rules when you dispose of batteries.

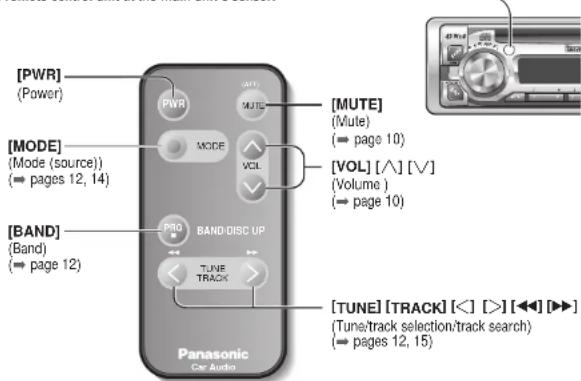

Control Reference Guide

Buttons of the remote control function in the same way as the controls on the main unit of the reference page Point the remote control unit at the main unit's sensor.

CG-DP133U/DP103U/DPX153U

Preliminary Steps

Check and take steps as described in the tables below.

If You Suspect Something Wrong

Immediately switch the power off.

Disconnect the power connector and check that there is neither smoke nor heat from the unit before asking for repairs. Never try to repair the unit by yourself because it is dangerous to do so.

Troubleshooting Tips

Common

Trouble	Cause/Step
No power.	Car's ignition switch is not on. →Turn your car's ignition switch to ACC or ON.
	Cables are not correctly connected. →Connect cables correctly.
	Battery cable is not correctly connected. →Connect the battery cable to the terminal that is always active.
	Accessory cable is not correctly connected. →Connect the accessory cable to your car's ACC source.
	Grounding wire is not correctly connected. →Connect the grounding wire to a metal part of the car.
	Fuse is burnt out. →Call the store where you purchased the unit, or your nearest Servicenter (see the attached sheet) and ask for fuse replacement.
No sound.	Mute is set to ON. →Set it to OFF.
	Cables are not correctly connected. →Connect cables correctly.
	Condensation (dew). →Wait for a while before use.
Noise.	A mobile phone is used near the unit. →Keep the mobile phone away from the unit.

Caulions:

• Do not use the unit if it malfunctions or if there is something wrong.
• Do not use the unit in irregular condition, for example, without sound, or with smoke or foul smell, which can cause ignition or electric shock. Immediately stop using it and call the store where you purchased it.

CQ-DP133U/DP103U/DPX153U

Troubleshooting (Continued)

Radio

Trouble Cause/Step

Much noise in FM stereo and monaural broadcasts.

Preset station is reset.

Station is too far, or signals are too weak.
Select other stations of higher signal level.

The motor antenna relay control lead is not connected correctly.
If there is a motor antenna in the car, connect the motor antenna relay control lead to the motor antenna lead that is installed in the car correctly.

The radio antenna is not extended enough.
Extend fully the radio antenna.

Battery cable is not correctly connected.
Connect the battery cable to the terminal that is always active.

CD

Trouble Cause/Step

Disc is in the CD compartment but no sound is made, or disc is ejected automatically.

Sound skips, bad sound quality. (e.g. caused by noise)

Disc is upside down
Place disc in the correct direction with the label side up.

Disc is dirty
Disc has scratches
Clean disc, referring to the section on "Notes on Discs".

A disc that has data other than CD-DA type is loaded.
Dlscs that have CD-DA type data should be used.

The unit may not successfully play back a CD-R/RW that is made in combination of writing software, a CD recorder (CD-R/RW drive) and a disc which are incompatible one another. Refer to instructions for the concerned devices for details.

Disc is dirty
Disc has scratches
Clean disc, referring to the section on "Notes on Discs".

The unit may not successfully play back a CD-R/RW that is made in combination of writing software, a CD recorder (CD-R/RW drive) and a disc which are incompatible one another. Refer to instructions for the concerned devices for details.

□ CD (Continued)

Trouble Cause/Step

Sound skips due to vibration.

Disc is not ejected.

Time is counted but no sound comes out.

Sound Setting

Trouble Cause/Step

No sound from left, right, front or rear speakers.

Left and right sounds are reversed in stereo listening.

Mounting angle is over 30^
Adjust mounting angle to less than 30^

Instable mounting.
=Mount the unit securely with the mounting parts, referring to the section on installation.
Disc is defective.
- Mechanical trouble
Press [A] (eject). If normal operation is not restored, call the store where you purchased the unit or the nearest Servicenter to ask for repairs.

The first track of a mix mode elsc was reproduced. (Mix mode is a format in which data except music is recorded on the first track and music data is recorded on other than the first track in a session.)
Play back music data recorded on other than the first track.

Left and right balance, or front and rear balance is off on one side. Adjust balance/fader setting as appropriate.

Cables are not correctly connected Connect the cables correctly.
The right speaker wire is connected to the left speaker and the left speaker wire to the right speaker.
Connect the speaker wires to the correct ones.

Troubleshooting (Continued) Maintenance

Remote Control Unit

Trouble Cause/Step

Buttons are Invalid for operation.

Only for CQ-DP133U/DPX153U

Battery polarities are reversed. Insert the battery correctly.

Wrong battery. Check the battery.

Battery has run down. Replace the battery

Remote control unit is in the wrong direction. Direct the remote control unit at sensor on the front panel.

Error Display Messages

CD

Display Cause/Step

• Disc is dirty, or is upside down.
• A disc that has data other than CD-DA type is loaded.
• Check the disc.

Disc has scratches. Check the disc.

No operation by some cause.
If normal operation is not restored, call the store where you purchased the unit or the nearest Servicenter to ask for repairs.

Product Servicing

If the suggestions in the charts do not solve the problem, we recommend that you take it to your nearest authorized Panasonic Servicercenter. The product should be serviced only by a qualified technician.

Replace the Fuse

Use fuses of the same specified rating (15 A). Using different substitutes or fuses with higher ratings, or connecting the product directly without a fuse, could cause fire or damage to the unit. If the replacement fuse fails, contact your nearest Panasonic Servicenter for service.

CQ-DP133U/DP103U/DPX153U

Care of the Unit

□ Cleaning this Unit

Use a dry, soft cloth to wipe.

Caution on Cleaning

Never use solvents such as benzine, thinner as they may mar the surface of the unit.

Notes on Discs

Do not play any ordinary music CDs with labels other than this one.

How to hold the disc

• Do not touch the underside of the disc.
• Do not scratch the discs.
  Do not bend disc.
• When not in use, keep the disc in the case.

Do not use Irregular shaped discs.

Do not leave discs on the following places:

• Direct sunlight

Near car heaters

• Dirty, dusty and damp areas
• Seats and dashboards

Disc cleaning

Use a dry, soft cloth to wipe from the center outward.

Do not attach any seals or labels to your discs.

Do not write on the disc label in a heavy pen or ballpoint pen stroke.

Notes on CD-Rs/RWs

• You may have trouble playing back some CD-R/RW discs recorded on CD recorders (CD-R/RW drives), either due to their recording characteristics or dirt, fingerprints, scratches, etc. on the disc surface.
  CD-R/RW discs are less resistant to high temperatures and high humidity than ordinary music CDs.
  Leaving them inside a car for extended periods may damage them and make playback impossible.
• The unit may not successfully play back a CD-R/RW that was made by the combination of writing software, a CD recorder (CD-R/RW drive) and a disc if they are incompatible one another.
  This player cannot play the CD-R/RW discs if the session is not closed.
• This player cannot play the CD-R/RW discs which contains other than CD-DA data.
• Be sure to observe the instructions of CD-R/RW disc for handling it.

Do not use irregular shaped ciscs.

CG-DP133U/DP103U/DPX153U

Installation Guide

WARNING

This Installation Information is designed for experienced installers and is not intended for non-technical individuals. It does not contain warnings or cautions of potential dangers involved in attempting to install this product.

Any attempt to install this product in a motor car by anyone other than qualified installer could cause damage to the electrical system and could result in serious personal injury or death.

□ Installation Hardware

	ItemNo. Diagram Q'1y
①	Mounting collar		1
②	Hex. nut (5 mmo)		1
③	Rear support strap		1
④	Tapping screw(5 mm: 16 mm)		1
⑤	Mounting bolt (5 mmo)		1
⑥	Power connector		1
⑦	Removable face platecase		1
⑧	Trim plate		1
⑨	Dismounting plate		2

Overview

This product should be installed by a professional. However, if you plan to install this product yourself, your first step is to decide where to install it. The instructions in these pages will guide you through the remaining steps:

(Pleases refer to the "WARNING" statement above.)

• Identify and label the car wires
• Connect the car wires to the wires of the power connector.
  Install the unit in the dashboard.
• Check the operation of the unit.

22 23

CG-DP133U/DP103U/DPX153U

If you encounter problems, please consult your nearest professional installer.

Caution: This unit operates with a 12 V DC negative ground auto battery system only. Do not attempt to use it in any other system. Doing so could cause serious damage.

Before you begin Installation, look for the items which are packed with your unit.

Warranty Card...Fill this out promptly.
- Panasonic Servicenter List for Service Directory ...Keep for future reference in case the product needs servicing.
- Installation Hardware...Needed for in-dash installation.

Required Tools

You'll need a screwdriver, a 1.5 V AA battery, and the following:

12VDC

Test bulb

Electrical

tape

Side-cut

pliers

□ Dashboard Specifications

Thickness Min. 475 mm

Max. % (5.56 mm)

Identify All Leads

The first step in installation is to identify all the car wires you'll use when hooking up your sound system.

As you identify each wire, we suggest that you label it using masking tape and a permanent marker. This will help avoid confusion when making connections later.

Note: Do not connect the power connector to the stereo unit until you have made all connections. If there are no plastic caps on the stereo hooking wires, Insulate all exposed leads with electrical tape until you are ready to use them. Identify the leads in the following order.

Power Lead

If your car has a radio or is pre-wired for one

Cut the connector wires one at a time from the plug (leaving the leads as long as possible) so that you can work with individual leads.

Turn the ignition on to the accessory position, and ground one lead of the test bulb to the chassis.

Touch the other lead of the test bulb to each of the exposed wires from the cut radio connector plug. Touch one wire at a time until you find the outlet that causes the test bulb to light.

Now turn the ignition off and then on. If the bulb also turns off and on, that outlet is the car power lead.

If your car is not wired for an audio unit:

Go to the fuse block and find the fuse port for radio (RADIO), accessory (ACC), or ignition (IGN).

Battery Lead

If your stereo unit has a yellow lead, you will need to locate the car's battery lead. Otherwise you may ignore this procedure. (The yellow battery lead provides continuous power to maintain a clock, memory storage, or other function.)

If your car has a radio or is pre-wired for one: With the ignition and headlights off, identify the car battery lead by grounding one lead of the test bulb to the chassis and checking the remaining exposed wires from the cut radio connector plug.

If your car is not wired for an audio unit:

Go to the fuse block and find the fuse port for the battery, usually marked BAT.

Speakers

Identify the car speaker leads. There are two leads for each speaker which are usually color coded.

A handy way to identify the speaker leads and the speaker they are connected with is to test the leads using a 1.5V AA battery as follows.

Hold one lead against one pole of the battery and stroke the other lead across the other pole. You will hear a scraping sound in one of the speakers if you are holding a speaker lead.

If not, keep testing different lead combinations until you have located all the speaker leads. When you label them, include the speaker location for each.

Antenna Motor

If your car is equipped with an automatic power antenna, identify the car motor antenna lead by connecting one bulb tester lead to the car battery lead and touching the remaining exposed wires from the cut radio connector plug one at a time. You will hear the antenna motor activate when you touch the correct wire.

Antenna

The antenna lead is thick, black wire with a metal plug at the end.

Connect All Leads

Now that you have identified all the wires in the car, you are ready to begin connecting them to the stereo unit wires. The wiring diagram ( page 28) shows the proper connections and color coding of the leads.

We strongly recommend that you test the unit before making a final installation.

You can set the unit on the floor and make temporary connections to test the unit. Use electrical tape to cover all exposed wires.

Important: Connect the red power lead last, after you have made and insulated all other connections.

Ground

Connect the black ground lead of the power connector to the metal car chassis.

CG-DP133U/DP103U/DPX153U

Installation Guide (Continued)

Speakers

Connect the speaker wires. See the wiring diagram ( page 28) for the proper hookups. Follow the diagram carefully to avoid damaging the speakers and the stereo unit.

The speakers used must be able to handle more than 45 W of audio power. If using an optional audio amplifier, the speakers should be able to handle the maximum amplifier output power. Speakers with low input ratings can be damaged. Speaker impedance should measure 4-8 Ω, which is typically marked on most speakers. Lower or higher impedance speakers will affect output and can cause both speaker and stereo unit damage.

Motor Antenna

Connect the car motor antenna lead to the dark blue motor antenna relay control lead.

(Do not confuse the antenna lead with blue/white stripe lead for a power amplifier.)

Battery

Connect the yellow battery lead to the correct radio wire or to the battery fuse port on the fuse block.

Antenna

Connect the antenna by plugging the antenna lead into the antenna receptacle.

Equipment

Connect any optional equipment such as an amplifier, according to the instructions furnished with the equipment. Leave about 12^ (30 cm) of distance between the speaker leads/amplifier unit and the antenna/antenna extension cord. Read the operating and installation instructions of any equipment you will connect to this unit.

Power

Connect the red power lead to the correct car radio wire or to the appropriate fuse port on the fuse block.

If the stereo unit functions properly with all these connections made, disconnect the wires and proceed to the final installation.

Final Installation

Lead Connections

Connect all wires, making sure that each connection is Insulated and secure. Bundle all loose wires and fasten them with tape so they will not fall down later. Now insert the stereo unit into the mounting collar.

Congratulations! After making a few final checks, you're ready to enjoy your new auto stereo system.

Final Checks

1. Make sure that all wires are properly connected and insulated.
2. Make sure that the stereo unit is securely held in the mounting collar.
3. Turn on the ignition to check the unit for proper operation.

If you have difficulties, consult your nearest authorized professional installer for assistance.

Preparation

• We strongly recommend that you wear gloves for installation work to protect yourself from injuries.

• When bending the mounting tab of the mounting collar with a screwdriver, be careful not to injure your hands and fingers.

• Disconnect the cable from the negative battery terminal (see cautions below).

• Unit should be installed in a horizontal position with the front end up at a convenient angle, but not more than 30^ .

Caution: Do not disconnect the battery terminals of a car with a trip or navigational computer since all user settings stored in memory will be lost. Instead take extra care with installing the unit to prevent shorts.

- Dashboard Installation - Installation Opening

This unit can be installed in any dashboard having an opening as shown above. The dashboard should be 34 × (4.75 mm)^2 × 30^ ( 5.56 mm ) thick in order to be able to support the unit.

Cautions:

• We strongly recommend that you wear gloves for Installation work to protect yourself from injuries.
• When bending the mounting tab of the mounting collar with a screwdriver, be careful not to injure your hands and fingers.

First complete the electrical connections, and then check them for correctness. page 28] The Included Mounting Collar: (1) Is designed specially for this unit. Do not use It to attach any other model.

Insert Mounting Collar ① Into the dashboard, and bend the mounting tabs out with a screwdriver.

The tabs to be bent vary depending on the car. To securely install the unit, fully bend a number of the tabs so that there is no rattling.

⑥Power Connector

m - 1 0 ;

Mounting Springs (喜)

Engage the Mounting Springs (念) in the mounting holes of the Mounting Collar ① firmly.

Mounting Spring

Establish the rear connection of the unit. After fixing Mounting Bolt (9) and Power Connector ⑥, fix the rear of the unit to the car body by either method (a) or (b) shown below.

Insert Trim Plate ⑧

After installation reconnect the negative (-) battery terminal.

(a) Using the rear support strap ①
(b) Using the rubber cushion (option)

Rubber cushion (option)

Rear support bracket (provided on the car)

CQ-DP133U/DP103U/DPX153U

CG-DP133U/DP103U/DPX153U

Installation Guide (Continued)

To Remove the Unit

Switch off the power of the unit.

Remove the removable face plate.
Press [ ] The removable face plate will be opened.
Push the face plate to either the right or left.
Pull it out toward you.

Remove the Trim Plate (8) with a screwdriver.

Insert the Dismounting plate (9) along the grooves on both sides of the main unit until "click" is heard.
Pull out the unit while pushing the plates further inside.

Remove the unit pulling with both hands.

CG-DP133U/DP103U/DPX153U

Anti-Theft System

This unit is equipped with a removable face plate. Removing this face plate makes the radio totally inoperable.

Place the Removable Face Plate into Case

Switch off the power of the unit.
Remove the removable face plate. (→ page 26)
Genly press the bottom of the case and open the cover. Place the face plate into the case and take it with you when you leave the car.

Install Removable Face Plate

Slide the left side of the removable face plate in place.
Press the right end of the removable face plate until "click" is heard.

Caulions

• This face plate is not waterproof. Do not expose it to water or excessive moisture.
• Do not remove the face plate while driving your car.
• Do not place the face plate on the dashboard or nearby areas where the temperature rises to high level.
• Do not touch the contacts on the face plate or the main unit, since this may result in poor electrical contacts.
  If dirt or other foreign substances get on the contacts, wipe them off with a clean and dry cloth.
• Do not apply a strong downward force onto the face plate and do not put anything on it while it is open, or it might be damaged.

CG-DP133U/DP103U/DPX153U

Electrical Connections

Cautions:

This product is designed to operate with a 12 V DC, negative ground battery system.
- To prevent damage to the unit, be sure to follow the connection diagram below.
- Strip about 5 mm of the lead ends for connection.
- Do not insert the power connector into the unit until the wiring is completed.
- Be sure to insulate any exposed wires from a possible short-circuit from the car chassis. Bundle all cables and keep cable terminals free from touching any metal parts.
- Remember, if your car has a drive computer or a navigation computer, the data of its memory may be erased when the battery terminals are disconnected.

Supplied hardware

Wiring Diagram

CO-DP133U/DP103U/DPX153U

Specifications

General

Power supply: 12 V DC (11 V-16 V), test voltage 14.4 V, negative ground
Current consumption:Less than 2.2A (CD play mode:0.5W-4 channels)
Maximum power output: 45 W- 4 channels at 1 kHz, volume control maximum
Tone adjustment range:
Bass: ±12 dB at 100 Hz
Treble: ±12 dB at 10 kHz
Suitable speaker impedance: 4-8 Ω
Preamp output voltage: 2.5 V (CD play mode: 1 kHz, 0 dB)
Output impedance: 200 Ω
Dimensions (W·H·D): 7·1 ^15 /6·5 ^16 (178·50·155 mm)
Weight: 3 lbs. 1 oz (1.4 k g)

FM Stereo Radio

Frequency range: 87.9 MHz-107.9 MHz
Usable sensitivity: 11.0 dBf. (1.25 μ
50 dB quieting sensitivity: 15.2 dBf. (1.6 μ V, 75Ω)
Frequency response: 30 Hz-15 kHz (±3 dB)
Alternate channel selectivity: 75 dB
Stereo separation: 42 dB (1 kHz)
Image response ratio
IF response ratio: 100 dB
Signal/noise ratio: 70 dB

AM Radio

Frequency range: 530 kHz-1 710 kHz
Usable sensitivity: 28 dB/μV (25 μ V, S/N 20 dB)

CD Player

Sampling frequency: 8 times oversa
DA converter:
Error correction system: Panasonic super decoding algorithm
Pick-up type: Astigma 3-beam
Light source: Semiconductor laser
Wave length: 780 nm
Frequency response: 20 Hz-20 kHz (±1 dB)
Sional/noise ratio:96 dB
Total harmonic distortion: 0.01% (1 kHz)
Wow and flutter Below measurable limits
Channel separation: 75 dB

Above specifications comply with EIA standards.

Note: Specifications and the design are subject to modification without notice due to improvements in technology.

CQ-DP133U/DP103U/DPX153U

Installation instable.

Coppexion: Pressions [SRC1 (POWFB)]

Conelation: 1.1.1.15 [10] (FOWER) Descenpoxy:

Electronics Company, Division

of Matsushita ElectricCorporation of America

One Panasonic Way, Secaucus.

New Jersey 07094

http://www.panasonic.com

Panasonic Sales Company.

Division of Matsushita Electric

of Puerto Rico, Inc. ("PSC")

Ave. 85 de Imagenia, Km. 9.5 Son Gabriel Industrial Park

Carolina, Puerlo Rico 00985

http://www.panasonic.com

Panasonic Canada Inc.

5770 Ambler Drive,

Mississauga, Ontario

14W213

http://www.panasonic.com/
