USER MANUAL CQRG131U PANASONIC

Radio Frequency Interference Statement (Part 15 of the FCC-Rules):

Applies only in U.S.A.

This equipment has been tested and found to comply with the limits for a Class B digital, pursuant to Part 15 of the FCC Rules.

• These limits are designed to provide reasonable protection against harmful interference in an automobile installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by tuning the equipment off and on, the user is encouraged to consult the dealer or an experience radio technician for help.

FCC Warning:

Any unauthorized changes or modifications to this equipment would void the user's authority to operate this device.

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions.

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received including interference that may cause undesired operation.

For Canada:

This Class B digital apparatus complies with Canadian ICES-003.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, AND ANNOYING INTERFERENCE, USE ONLY THE INCLUDED COMPONENTS.

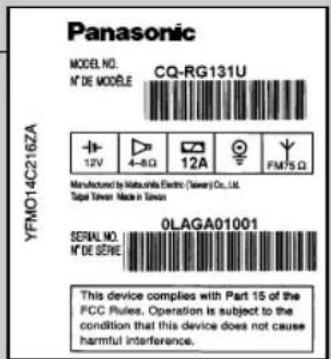

Find the model number and serial number on either the back or bottom of the unit. Please record them in the space below and retain this booklet as a permanent record of your purchase to help with identificaton in case of theft.

MODEL NUMBER CQ-RG131U

SERIAL NUMBER

DATE PURCHASED

FROM

Panasonic welcomes you to our ever growing family of electronic product owners. We know that this product will bring you many hours of enjoyment. Our reputation is built on precise electronic and mechanical engineering, manufactured with carefully selected components and assembled by people who take pride in their work. Once you discover the quality, reliability, and value we have built into this product, you too will be proud to be a member of our family.

Use This Product Safely

When Driving

Keep the volume level low enough product to be aware of road and traffic conditions.

When Car Washing

Do not expose the product, including the speakers and tapes, to water or excessive moisture. This could cause electrical shorts, fire, or other damage.

When Parked

Parking in direct sunlight can produce very high temperatures inside your car. Give the interior a chance to cool down before switching the unit on.

Use the Proper Power Supply

This product is designed to operate of a 12 volt, negative ground battery system (the normal system in a North American car.)

Protect the Tape Mechanism

Keep magnets, screwdrivers, or other metallic objects away from the tape mechanism and tape head to prevent poor performance or malfunctions.

Use Authorized Servicenters

Do not attempt to disassemble or adjust this precision product. Please refer to the Servicenter list included with this product for service assistance.

Contents

Radio Frequency Interference Statement (Part 15 of the FCC Rules). 2

Use This Equipment Safely. 4

□Power and Sound Controls 10 How to adjust the volume, mute, balance, and tone for best listening
□Radio Basics. 12
Manual and automatic tuning, band selection, preset stations
□Cassette Tape Player Basics. 14 How to load, wind, play, and eject a cassette tape
□CD Changer Basics. 16
Play, repeat, random and scan, error messages
Note:
CD changer controls are applicable to units with optional CD changer unit (sold separately).
□Clock Basics. 18 Setting the time, selecting the clock display
□ Installation Guide. 19 Step-by-step procedures, anti-theft system, electrical connections
Troubleshooting 28 Troubleshooting tips, where to get service help

Specifications 29

800

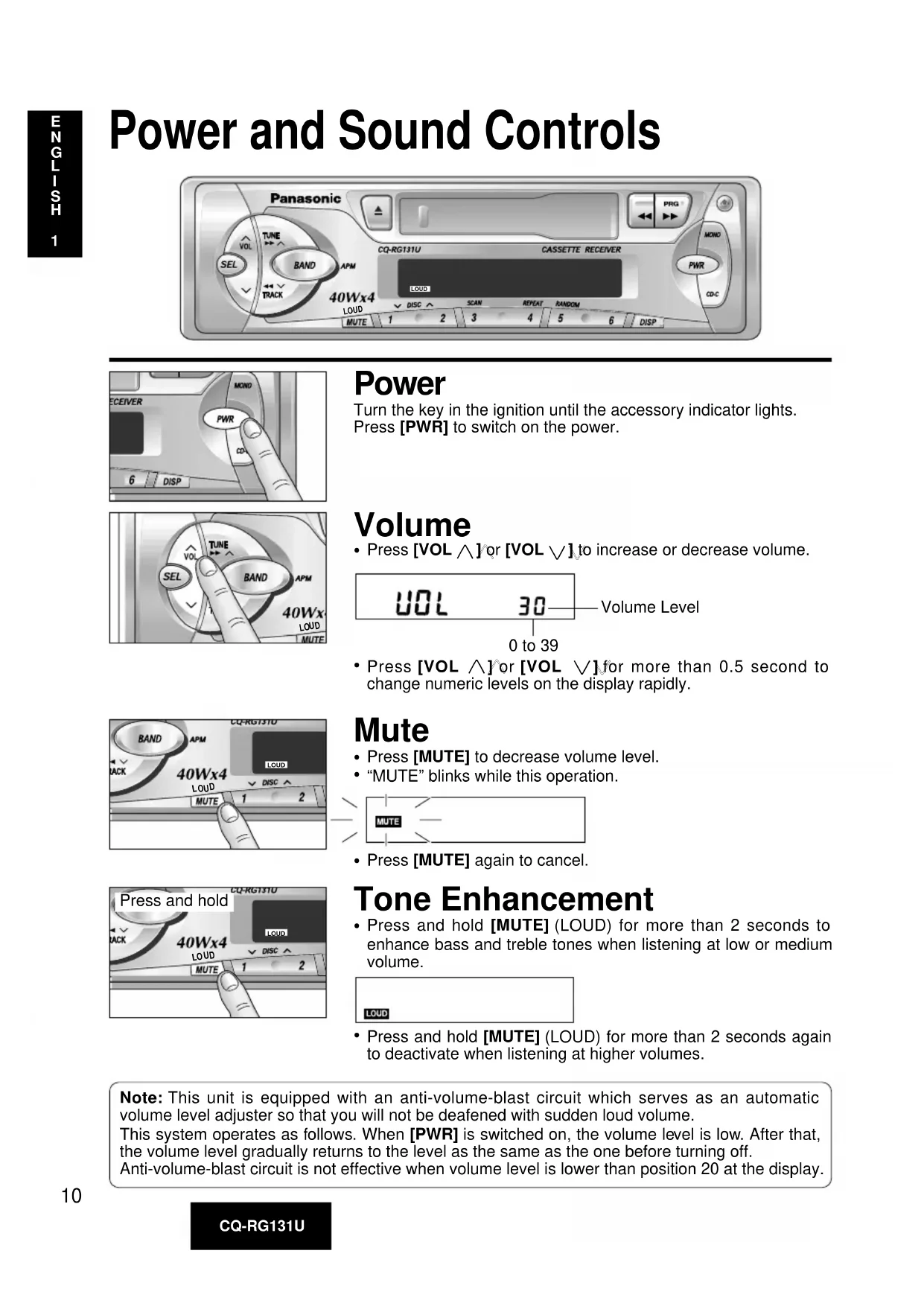

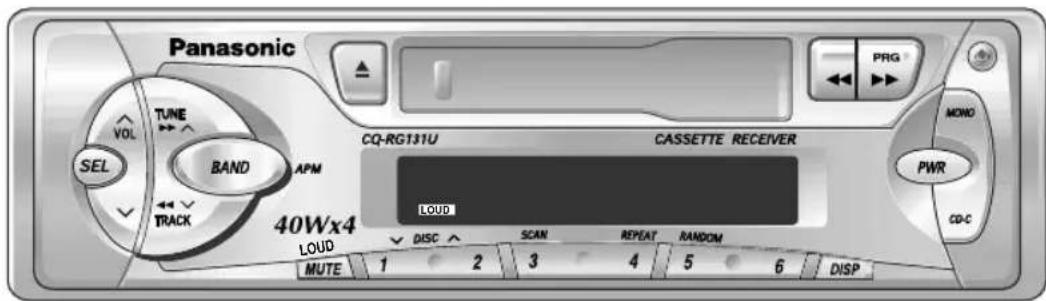

Power and Sound Controls

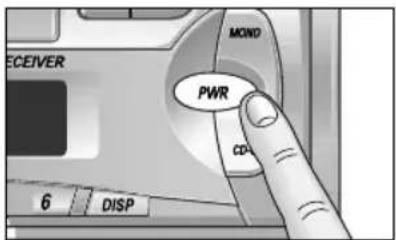

Power

Turn the key in the ignition until the accessory indicator lights. Press [PWR] to switch on the power.

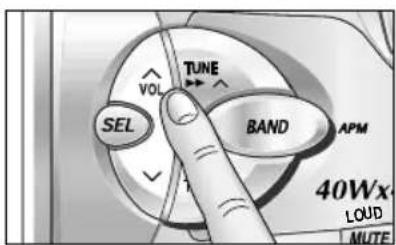

Volume

• Press [VOL ∧] or [VOL ∨] to increase or decrease volume.

• Press [VOL ∧] or [VOL ∨] for more than 0.5 second to change numeric levels on the display rapidly.

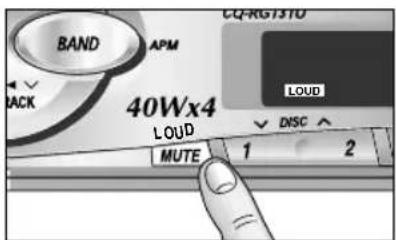

Mute

• Press [MUTE] to decrease volume level.
• "MUTE" blinks while this operation.

• Press [MUTE] again to cancel.

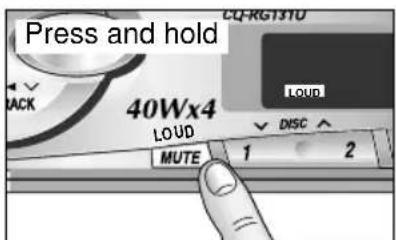

Tone Enhancement

• Press and hold [MUTE] (LOUD) for more than 2 seconds to enhance bass and treble tones when listening at low or medium volume.

• Press and hold [MUTE] (LOUD) for more than 2 seconds again to deactivate when listening at higher volumes.

Note: This unit is equipped with an anti-volume-blast circuit which serves as an automatic volume level adjuster so that you will not be deafened with sudden loud volume.

This system operates as follows. When [PWR] is switched on, the volume level is low. After that, the volume level gradually returns to the level as the same as the one before turning off.

Anti-volume-blast circuit is not effective when volume level is lower than position 20 at the display.

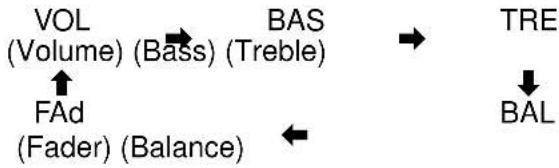

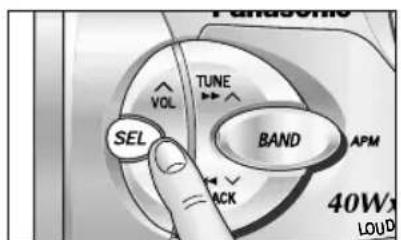

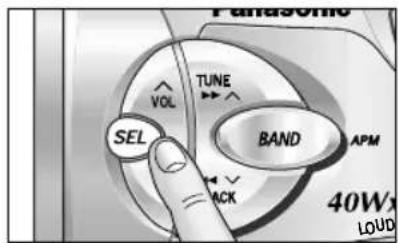

Changing Audio Modes

Press [SEL] to switch the audio modes as follows.

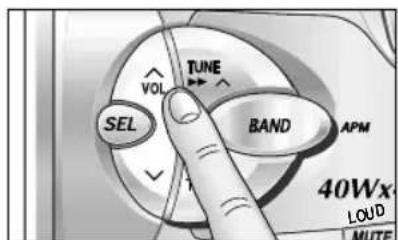

Bass and Treble

Press [SEL] to select the BASS (TREBLE) mode. Press [VOL or [VOL ] to increase or decrease the bass/treble response.

3R5

to 12

TRE

-12 to 12

Balance

Press [SEL] to select the BALANCE mode. Press [VOL or [VOL ] to shift the sound volume to the right or left speakers.

BAC

R 15

BAL

0

1 to 15R or L Balance Center

(R:Right,L:Left)

Fader

Press [SEL] to select the FADER mode. Press [VOL or [VOL ] to shift the sound volume to the front or rear speakers.

F 15

1 to 15F or R

FAd

der Center

(F: Front, R: Rear)

Note: When a control mode (BAS/TRE/BAL/FAd) is selected but no operation is made within 5 seconds (2 seconds at volume mode), the display will return to the normal operation (Radio, Cassette, etc.) mode. In such a case, press [SEL] again to select the next control mode.

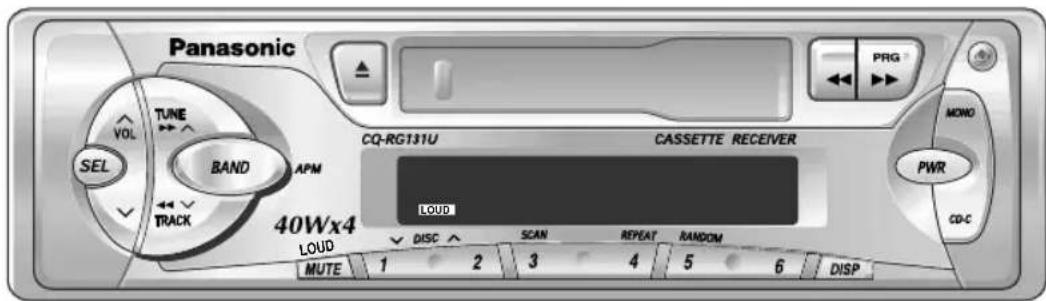

Radio Basics

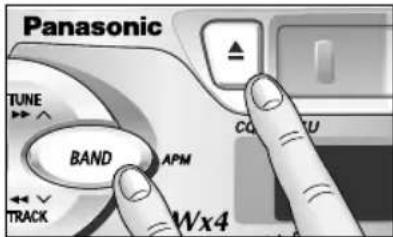

Change to the tuner mode

① In case of Tape mode .Eject a tape.
② In case of CD Changer mode.. Press [BAND].

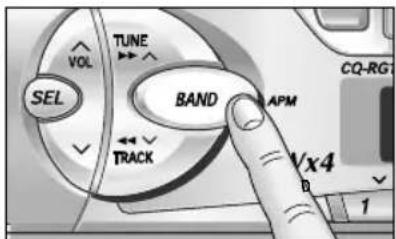

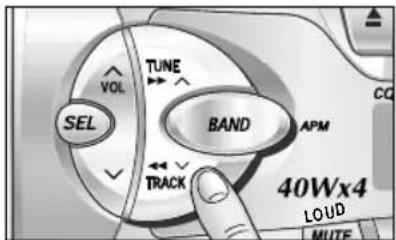

Selecting a Band

Press [BAND] to select the band as follows.

"ST" indicator lights if the station is broadcasting in stereo.

Manual Tuning

Press [TUNE ] or [TUNE ] to move to a higher or lower frequency.

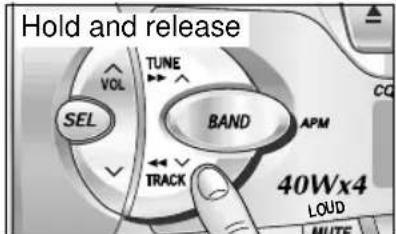

Seek Tuning

Press and hold [TUNE ]or [TUNE ]for more than 0.5 second, then release. The radio automatically stops on the next station.

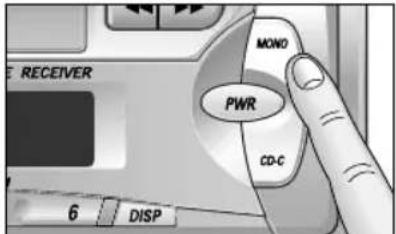

To reduce interference during FM broadcasts (MONO)

Press [MONO] for monaural reception in case a lot of interference is present in an FM stereo signal or to improve the listening quality of weak FM broadcasts. To turn it off, press [MONO] again.

Preset Station Setting

Up to 24 stations can be preset in the station memory as follows;

FM1 FM2 FM3 AM
6 stations 6 stations 6 stations 6 stations

Caution: For safety reasons, do not attempt to program while driving.

Manual Station Preset

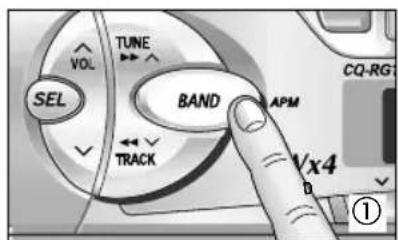

① Press [BAND] to select a desired band.
② Use manual or seek tuning to find a station that you want to program into memory.

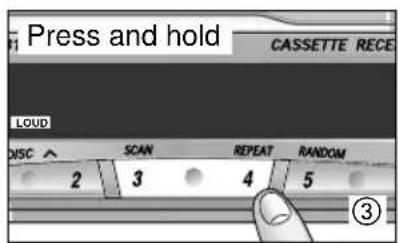

③ Press and hold one of the station selector buttons 1 through 6 until the display blinks. The memory is now set for that button on the band you have selected.

Repeat the process to set other stations for the FM1 to AM bands.

Note: You can change the memory setting by repeating the above procedure.

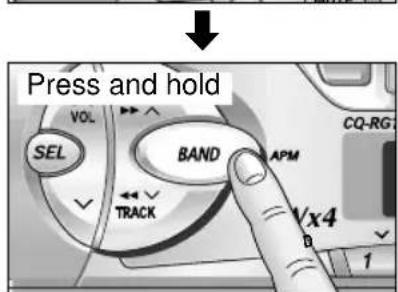

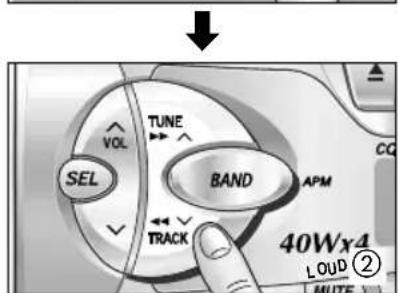

Auto Preset Memory

Select a band, and press and hold [BAND] (APM) for more than 2 seconds.

• The 6 strongest available stations will be automatically set in memory on preset buttons [1] through [6].
• Once set, the preset stations are sequentially scanned for 5 seconds.
• Press the appropriate preset button for the station you want to hear.

Note: The stations manually preset on the selected band will be deleted.

Tuning in a Preset Station

Press any of the buttons [1] through [6] to tune in the station preset by the above steps ① to ③.

Cassette Tape Player Basics

Exposed Tape

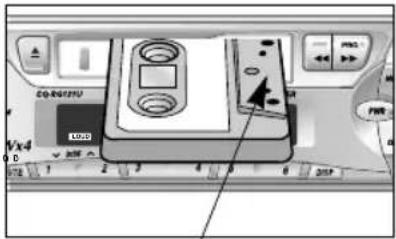

Loading a Cassette

Gently insert a cassette with the exposed tape side facing to the right until the mechanism captures it, and playback starts.

TRAPE u.u

Program Indicator

(This indication "rotates.)

"▲" light: Rewind
"▼" light : Fast Forward

"▲" light : Fast Forward
"▼" light : Rewind

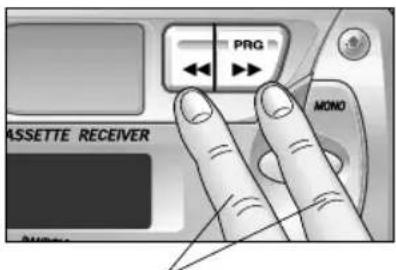

Rewind and Fast Forward

When the program indicator lights, press [←] to rewind or press [▶] to fast forward the tape.

When the program indicator lights, press [▲] to fast forward or press [▶] to rewind the tape.

TRAPE

To stop rewind or fast forward, gently press the button that is not in use.

The tape will resume playing from that position.

Press Both

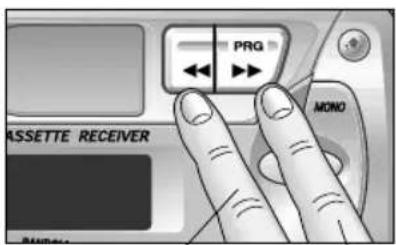

Changing Sides

Press [←] and [▶] at the same time to switch to the program on the other side of the tape.

The display changes to indicate which program is playing.

TAPETU.U

TAPE

Top Side Playing Bottom Side Playing

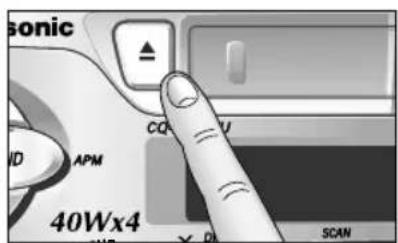

Stopping and Ejecting the Tape

Once inserted into the unit, your tape will play continuously until you eject it.

If you press [▲] (EJECT), the unit ejects the tape and returns to radio operation.

When you stop the car engine, the tape will stop but not be ejected.

Notes:

• You can not change to CD Changer mode or Radio mode while tape playing. If you want to change to CD Changer mode or Radio mode, eject the tape.
• Always remove the cassette when you stop using the cassette player. This will prolong the life of your tape.

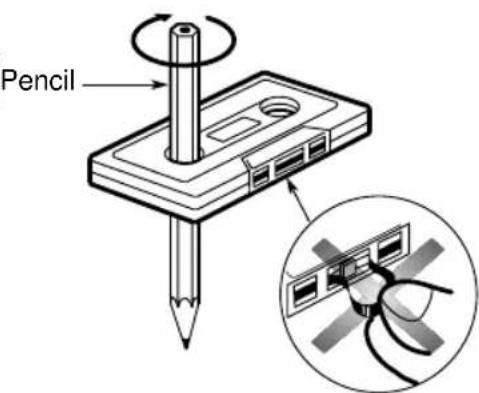

Notes on Cassette Tapes

Tape Slack: Use a pencil or similar object to take up the slack as shown. If a loose tape is used, this may result in the tape becoming tangled in the rotating parts of the unit.

Do not touch or pull out the tape.

Notes:

• To maintain your cassette player in top condition, avoid using tapes that are longer than 90 minutes (C-90).
• If you insert into the unit a cassette with a loose tape caused by forcing it into cassette with a finger or the like, the cassette may not be properly reproduced. In such a case, eject the cassette, make the tape tigt, then insert it back into the deck.

CD Changer Basics

Note: CD changer functions are applicable to units with optional CD changer unit. (sold separately)

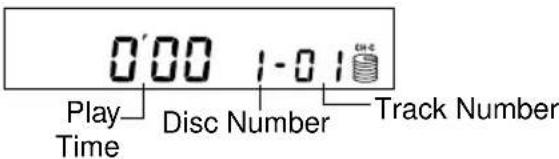

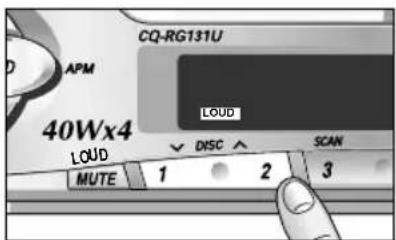

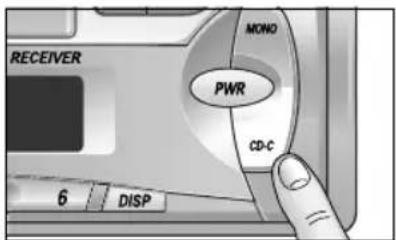

To Changer mode

While a disc magazine inserted in the CD changer, press [CD-C]. Play starts from the first track.

Note: The cassette, if loaded, should be removed. Otherwise, the CD play will not start.

Selecting a Disc

Press [DISC ] or [ DISC] to select discs in ascending or descending order.

230 3-01

Selecting a Track

Press [TRACK ] once to go to the next track. Press repeatedly to step forward through all the tracks.

Press [TRACK ] once to play from the beginning of the current track. Press twice to play the previous track. Press repeatedly to step backward through all the tracks.

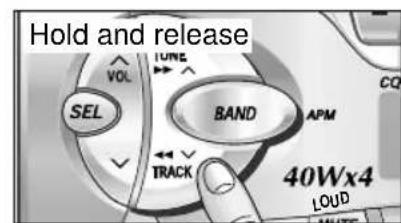

Searching a Track

Press and hold [TRACK ] or [TRACK ] for more than 0.5 second to activate fast forward or reverse through a track. Release [TRACK ] or [TRACK ] to resume the normal CD play from that position.

Repeating a Track

• Press [4] (REPEAT) to repeat the current selection. "REPEAT" indicator lights.
• The current selection continues to repeat until you press [4] (REPEAT) again.

REPEAT

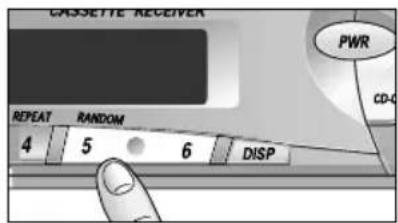

Random Selection

• Press [5] (RANDOM) to random selection of music is played from all available CDs. "RANDOM" indicator lights.
  To turn it off, press [5] (RANDOM) again.

RANDOM

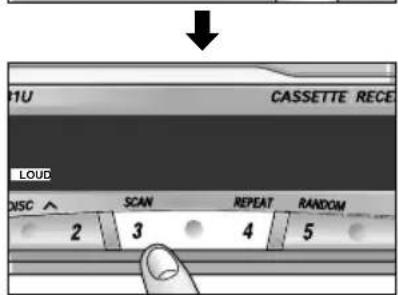

Scanning Tracks

• Press [3] (SCAN). The track number blinks and the first 10 seconds of each track on the discs play in sequence.
• To stop scanning and continue with the current track, press [3] (SCAN) again.

012

2-0+

Scanning Discs

Press and hold [3] (SCAN) for more than 2 seconds. The 1st track of all the discs in the magazine is played for 10 seconds each. Also, Disc Number blinks at the same time. To stop the current play of the disc scanning, press and hold [3] (SCAN) for more than 2 seconds again.

012

2-01

□Error Display Messages

E1	Displays when the compact disc is dirty or upside down. Selects the next available compact disc.	E3	Displays when the compact disc stops operating for some reason. Please contact your nearest authorized Panasonic Serviceter.
E2	Displays when compact disc is scratched. Selects next available compact disc.	0000	Displays when there is no disc in the magazine.

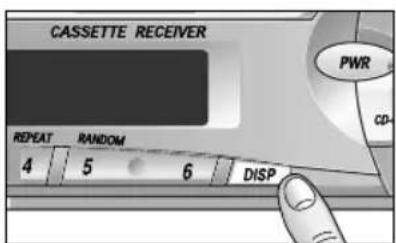

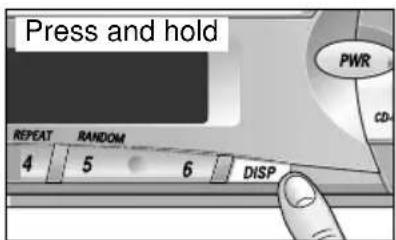

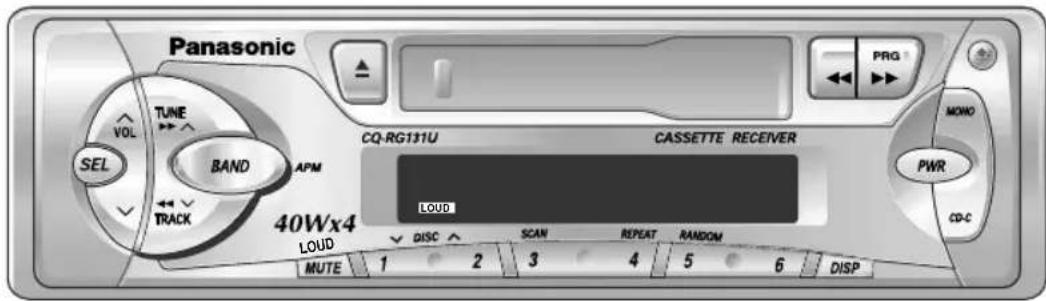

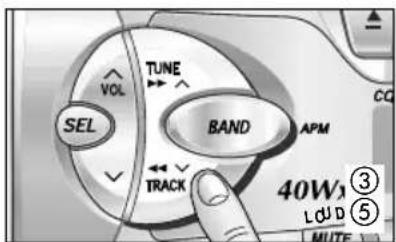

Clock Basics

(The clock system is 12-hours.)

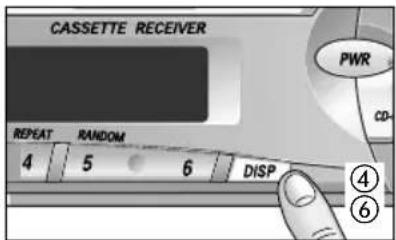

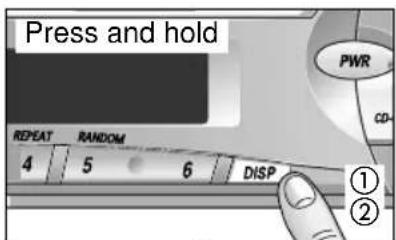

Initial Time Setting

① Press [DISP]. "AdJ" is displayed.
② Press and hold [DISP] again for more than 2 seconds. "12" blinks indicating the time setting mode is activated.
③ To set hours, press [A] or [V].
④ Press [DISP] again for minute setting.
⑤ To set minutes, press [A] or [V]. Hold [A] or [V] to change numbers rapidly.
⑥ When you have set the time, press [DISP].

Resetting the Time

When you want to reset the time, press and hold [DISP] for more than 2 seconds to activate the time setting mode. Then, repeat step ③ to ⑥ above.

Selecting the Clock Display

Press [DISP] for clock display.

Press [DISP] once again, the current audio display mode resumes.

WARNING

This installation information is designed for experienced installers and is not intended for non-technical individuals. It does not contain warnings or cautions of potential dangers in attempting to install this product.

Any attempt to install this product in a motor car by anyone other than qualified installer could cause damage to the electrical system and could result in serious personal injury or death.

□Overview

This product should be installed by a professional. However, if you plan to install this unit yourself, your first step is to decide where to install it. The instructions in these pages will guide you through the remaining steps: (Please refer to "WARNING" statement above).

• Identify and label the vehicle wires.
• Connect the vehicle wires to the wires of the power connector.

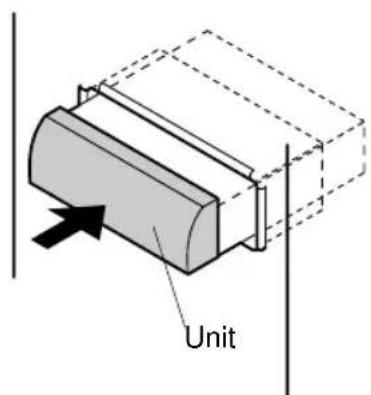

  Install the unit in the dash.
• Check the operation of the unit.

If you do encounter problems, please consult your nearest professional installer.

Caution: This unit will operate with a 12 volt DC negative ground auto battery system only. Do not attempt to use it in any other systems. Doing so could cause serious damage.

Before you begin installation, look for the following items included in the packing with your unit.

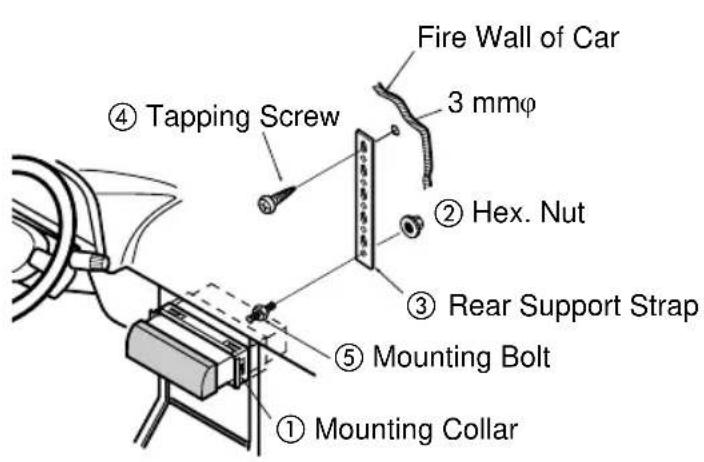

□ Installation Hardware

No.	Item	Diagram Q'ty

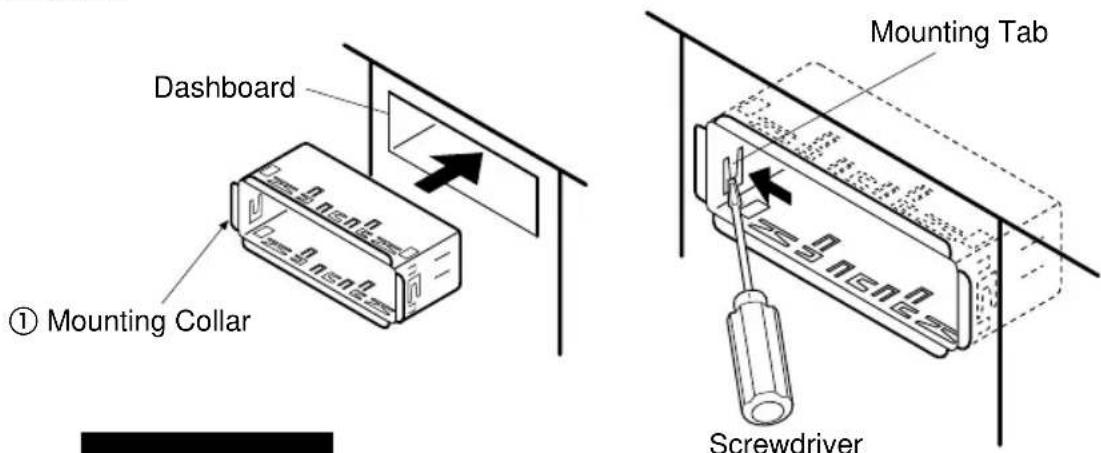

①	Mounting Collar		1
②	Hex. Nut (5 mmφ)		1
③	Rear Support Strap		1
④	Tapping Screw (5 mmφ x 16 mm)		1
⑤	Mounting Bolt (5 mmφ)		1

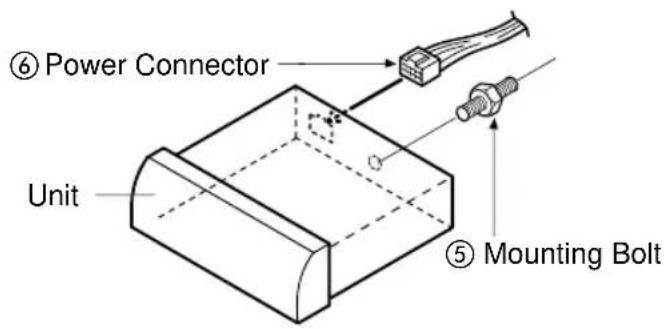

⑥	Power Connector		1
⑦	Dismounting Plate		1

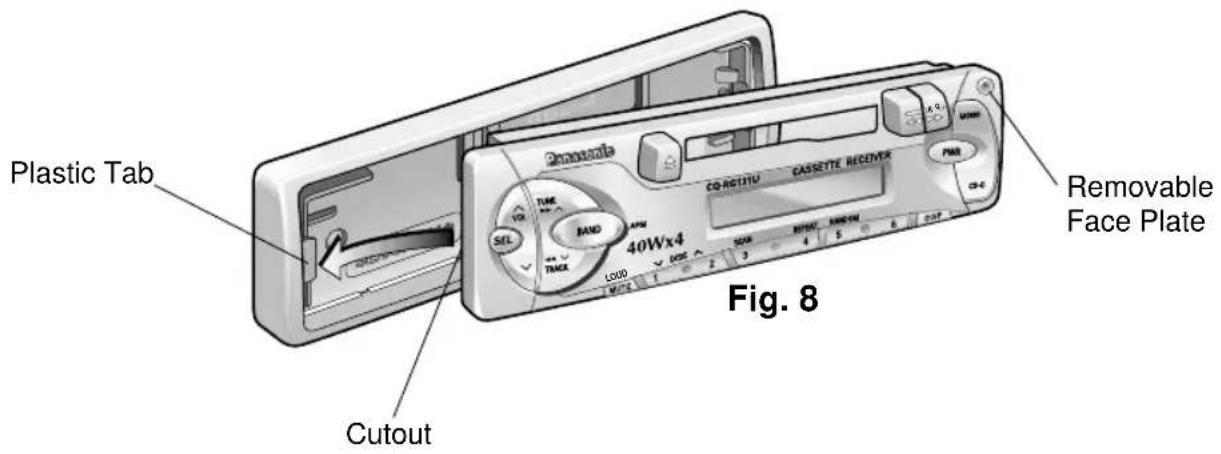

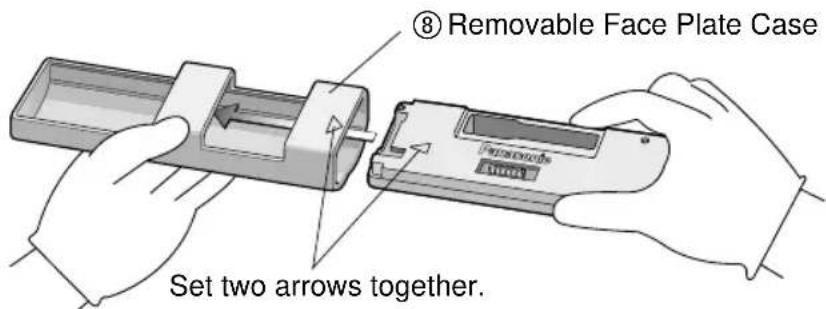

⑧	Removable Face Plate Case		1

Warranty Card . Fill this out promptly
- Panasonic Servicenter for service
Directory . . .Keep this for future reference in case the unit needs servicing
- Installation Hardware . . . . . . .Needed for in-dash installation

Installation Guide

continued

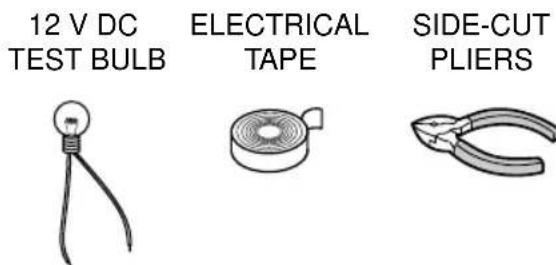

Required Tools

You'll need a screwdriver, a 1.5 volt AA battery, and the following:

Power Lead

If your car has a radio or is pre-wired for one: Cut the connector wires one at a time from the plug (leaving the leads as long as possible) so that you can work with individual leads.

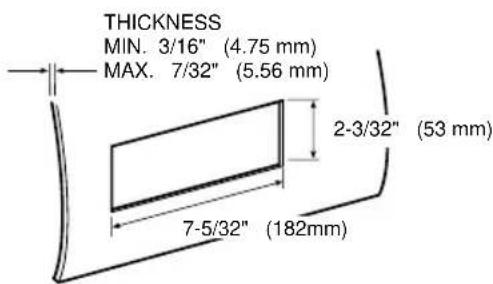

□ Dashboard Specifications

Turn the ignition on to the accessory position, and ground one lead of the test bulb to the chassis.

Touch the other lead of the test bulb to each of the exposed wires from the cut radio connector plug. Touch one wire at a time until you find the outlet that causes the test bulb to light.

Now turn the ignition off and then on. If the bulb also turns off and on, that outlet is the car power lead.

If your car is not wired for an audio unit: Go to the fuse block and find the fuse port for radio (RADIO), accessory (ACC), or ignition (IGN).

Identify All Leads

The first step in installation is to identify all the car wires you'll use when hooking up your sound system.

As you identify each wire, we suggest that you label it using masking tape and a permanent marker. This will help avoid confusion when making connections later.

Note: Do not connect the power connector to the stereo unit until you have made all connections. If there are no plastic caps on the stereo hooking wires, insulate all exposed leads with electrical tape until you are ready to use them. Identify the leads as follows.

Battery Lead

If your stereo unit has a yellow lead, you will need to locate the car's battery lead. Otherwise you may ignore this procedure. (The yellow battery lead provides continuous power to maintain a clock, memory storage, or other function.)

If your car has a radio or is pre-wired for one: With the ignition and headlights off, identify the car battery lead by grounding one lead of the test bulb to the chassis and checking the remaining exposed wires from the cut radio connector plug.

If your car is not wired for an audio unit: Go to the fuse block and find the fuse port for the battery, usually marked BAT.

Speakers

Identify the car speaker leads. There will be two leads for each speaker, usually color coded.

A handy way to identify the speaker leads and the speaker they connect with is to test the leads using a 1.5 volt AA battery as follows.

Hold one lead against one pole of the battery and stroke the other lead across the other pole. You will hear a scraping sound in a speaker if you are holding a speaker lead.

If not, keep testing different lead combinations until you have located all the speaker leads. When you label them, include the speaker location for each.

Antenna Motor

If your car is equipped with an automatic power antenna, identify the car motor antenna lead by connecting one bulb tester lead to the car battery lead and touching the remaining exposed wires from the cut radio connector plug one at a time. You will hear the antenna motor activate when you touch the correct wire.

Antenna

The antenna lead is a thick, black wire with a metal plug at the end.

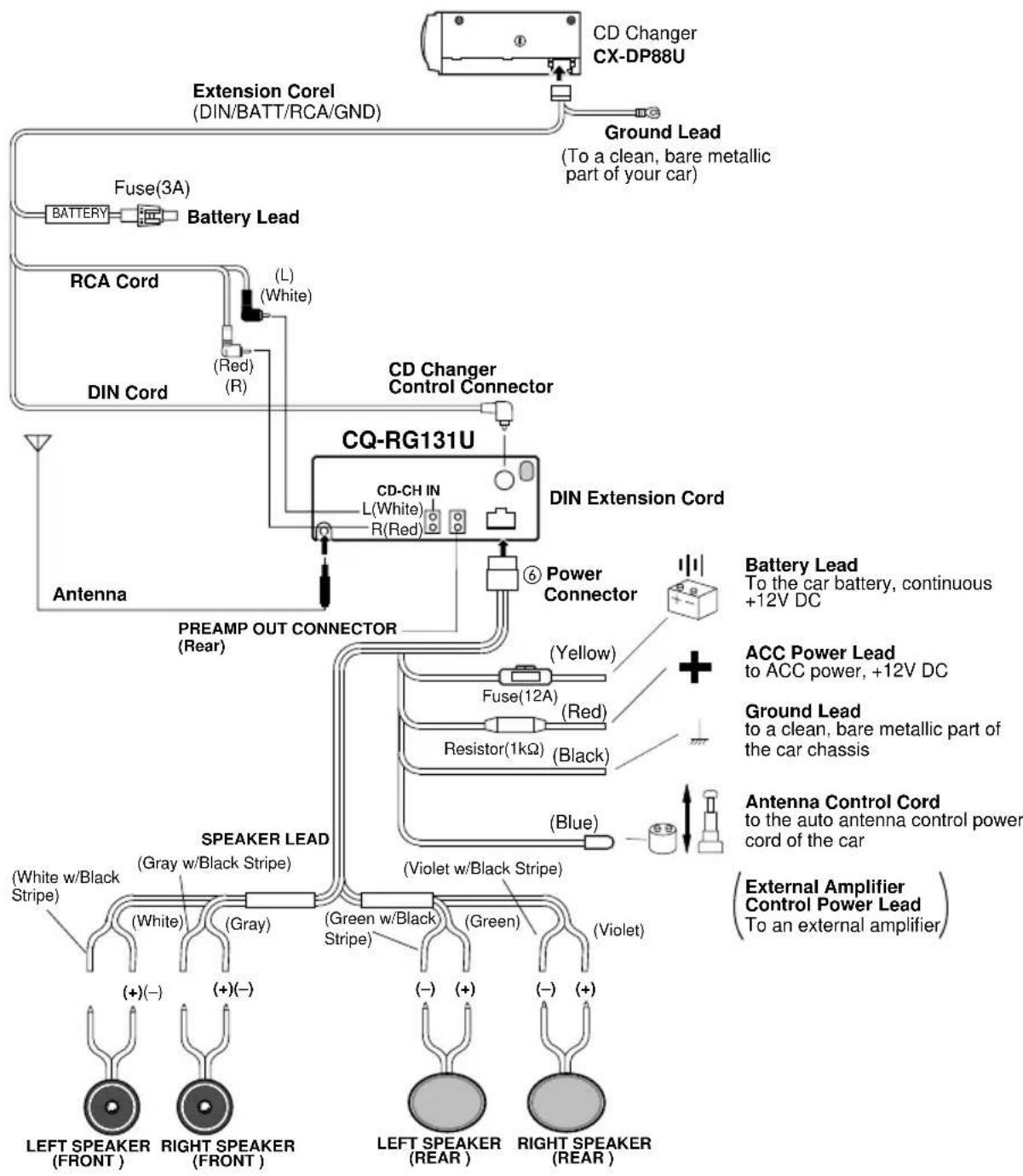

Connect All Leads

Now that you have identified all the wires in the car, you're ready to begin connecting them to the stereo unit wires. The connection diagram on Page 27 show the proper connections and color coding of the leads.

We strongly recommend that you test the unit before making a final installation.

You can set the unit on the floor and make temporary connections to test the unit. Use electrical tape to cover all exposed wires.

IMPORTANT: Connect the red power lead last, after you have made and insulated all other connections.

Ground

Connect the black ground lead of the power connector to the metal car chassis.

Speakers

Connect the speaker wires. See the wiring diagram below for the proper hookups. Follow the diagram carefully to avoid damaging the speakers and the stereo unit.

The speaker used must be able to handle more than 40 watts of audio power. If using an optional audio power, the speakers should be able to handle the maximum amplifier output power. Speakers with low input ratings can be damaged.

Speaker impedance should measure 4 - 8 Ω, which is typically marked on most speakers. Lower or higher impedance speakers will affect output and can cause both speaker and stereo unit damage.

Caution: Never ground the speaker cords. For example, do not use a chassis ground system or a three-wire speaker common system. Each speaker must be connected separately using parallel insulated wires. If in doubt about how your car's speakers are wired, please consult with your nearest professional installer.

CORRECT Common Gro
INCORRECT Common Chassis Ground

INCORRECT Speaker Common (common earth lead)

Installation Guide continued

Motor Antenna

Connect the car motor antenna lead to the blue motor antenna relay control lead.

Battery

Connect the yellow battery lead to the correct radio wire or to the battery fuse port on the fuse block.

Antenna

Connect the antenna by plugging the antenna lead into the antenna receptacle.

Product

Connect any optional product such as amplifier, according to the instructions furnished with the product. Keep about 12 inches (30 cm) of distance between the speaker cords/amplifier unit and the antenna/antenna extension cord. Read the operating and installation instructions for any product you will connect to this unit.

Power

Connect the red power lead to the correct car radio wire or to the appropriate fuse port on the fuse block.

If the stereo unit functions properly with all these connections made, disconnect the wires and proceed to the final installation.

Final Installation

Lead Connections

Connect all wires, making sure that each connection is insulated and secure. Bundle all loose wires and fasten them with tape so they won't fall down later. Now insert the stereo unit into the mounting collar.

Congratulations! After making a few final checks, you're ready to enjoy your new auto stereo system.

Final Checks

1. Make sure that all wires are properly connected and insulated.
2. Make sure that the stereo unit is securely held in the mounting collar.
3. Turn on the ignition to check the unit for proper operation.

If you have difficulties, consult your nearest authorized professional installer for assistance.

Precautions

• When bending the mounting tab of the mounting collar with a screwdriver, be careful not to injure your hands and fingers.
• We strongly recommend you to wear gloves for installation work to protect yourself from injuries.

Installation Procedures

1. Secure the Mounting Collar ①.

Insert Mounting Collar ① into the car's dashboard, and bend mounting tabs out with a screwdriver.

2. Secure the rear of the unit.

a) Check the electrical connection by referring to this operating instructions.
b) Connect the Mounting Bolt ⑤ using a suitable wrench.
c) Insert the Power Connector ⑥ to the unit.

d) Insert the unit into Mounting Collar ① and push it in until "click" is heard.
e) Secure the rear of the unit to the car by either of the two recommended methods as follows.

Using the Rear Support Strap ③

Affix one end of the Rear Support Strap ③ to the rear of the unit, and the other end to the Fire

Wall of Car, or some other metallic area.

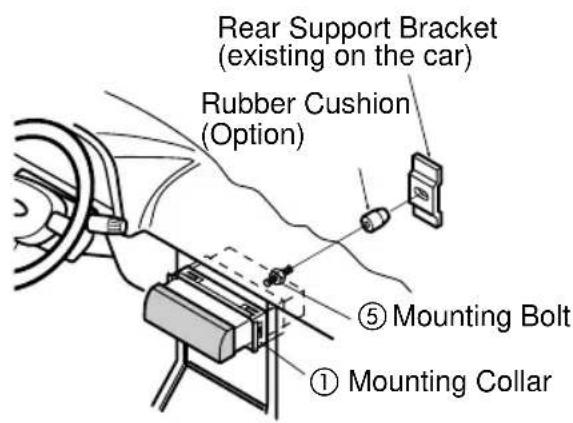

Using the Rubber Cushion (Option)

(If there is an existing Rear Support Bracket on the Fire Wall of Car.)

Cover Mounting Bolt on the rear of the unit with Rubber Cushion (Option), and mount it into

the existing Rear Support Bracket.

1. After installation, reconnect the negative (-) battery terminal.

Installation Guide continued To Remove the Unit

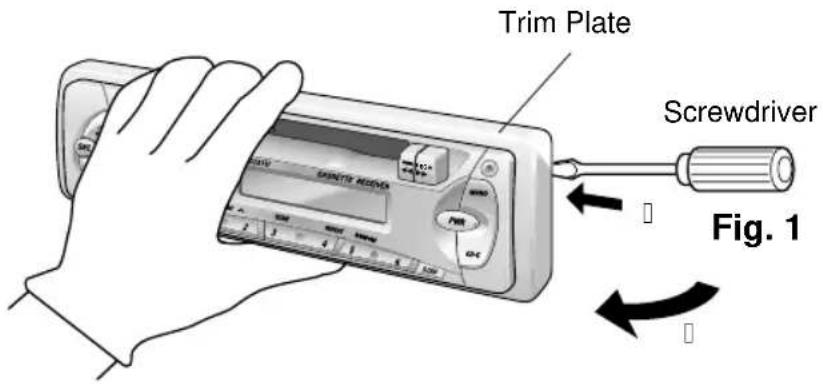

a) Remove the trim plate with a screwdriver as shown in the figure (Fig. 1).

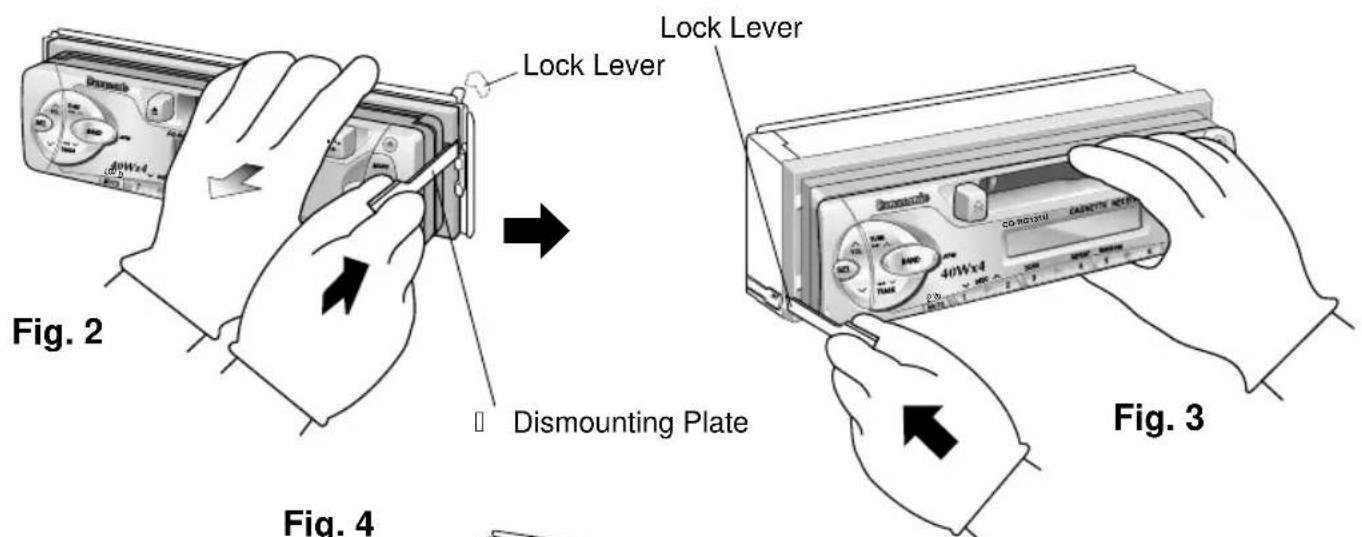

b) Pull out the unit while pushing the two lock levers using Dismounting Plate as follows. (Fig 2, 3)

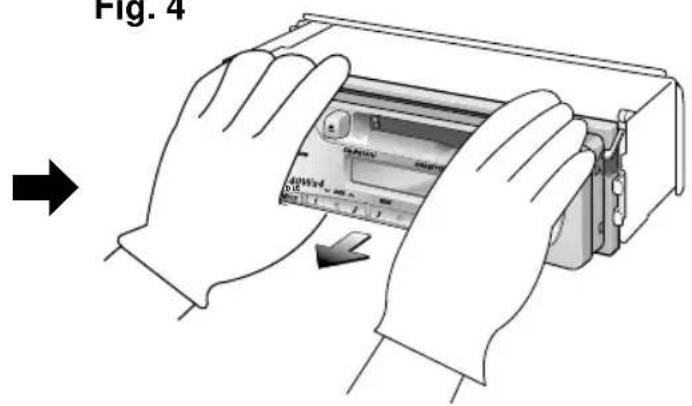

c) Remove the unit pulling with both hands. (Fig 4).

Note: Do not lose the Dismounting Plate. It will be needed to remove the unit from the car's dashboard.

Anti-Theft System

This unit is equipped with a removable face plate. By removing this face plate, the radio becomes totally inoperable. The security indicator will blink.

To Remove the Removable Face Plate

① Switch off the power.

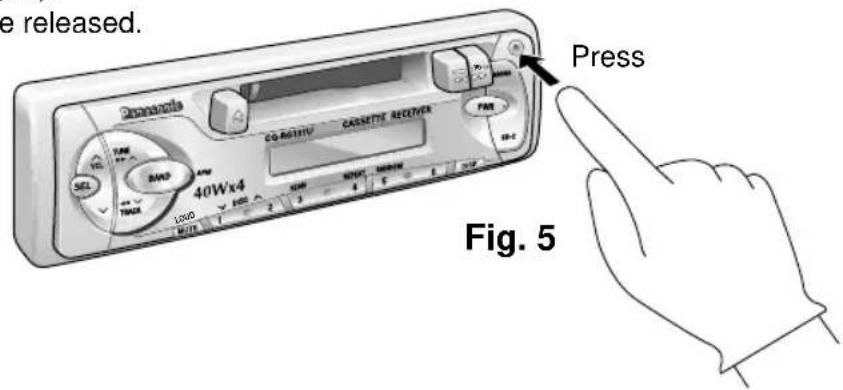

② Press the release button (Fig. 5).

The removable face plate will be released.

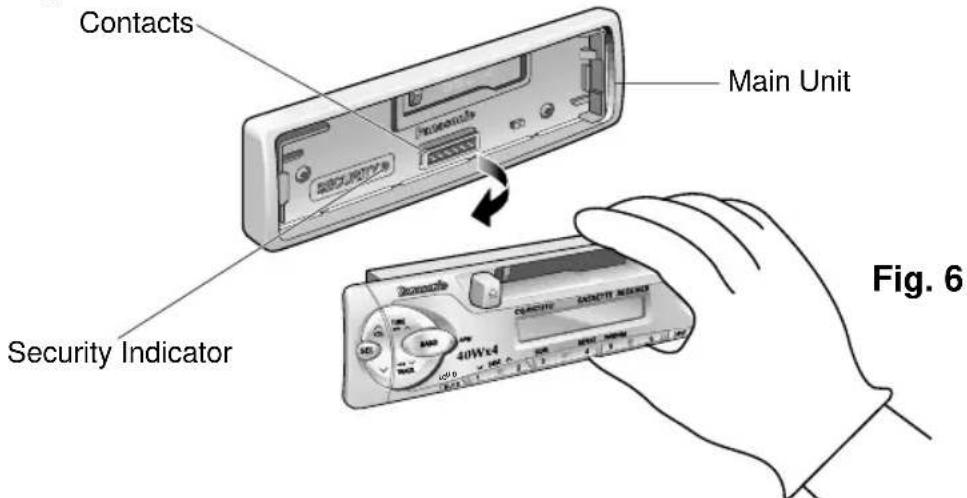

③ Remove the removable face plate by pulling on the right side of the unit. Place the removable face plate in a supplied case.

④ As shown in Fig. 7, insert the removable face plate with the arrow pointing toward the removable face plate case until you hear a "click". Keep the removable face plate in the case. Then, you can bring the plate safely.

Fig. 7

Installation Guide continued

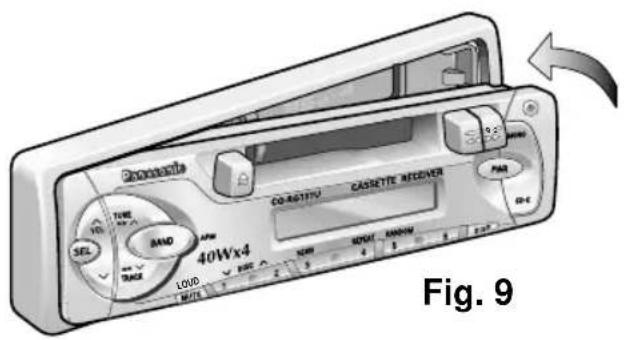

To install the Removable Face Plate

① Slide the left side of the removable face plate in place.

② Press the right end of removable face plate until "click" is heard.

Cautions:

1. Before removing the removable face plate, make sure the power is off.
2. This removable face plate is not water-proof. Do not expose it to water or excessive moisture.
3. Do not remove the removable face plate while driving your car.
4. Do not place the removable face plate on the dashboard or nearby areas where the temperature rises to high levels.
5. Do not touch the contacts on the removable face plate or on the main unit, since this may result in poor electrical contacts.
6. If dirt or other foreign substances get on the contacts, wipe them with a clean, dry cloth.

Electrical Connection

• This unit can be connected to an optional CD changer (CX-DP88U). For details consult your nearest Panasonic Servicenter.
• For connection to a CD changer, refer to the operating instructions of the CD Changer (CX-DP88U).

Cautions:

• To prevent damage to the unit, be sure to follow the connection diagram below.
• Remove the covering of the leads about 5mm long from their end before connecting.
• Do not insert the power connector into the unit until the wiring is completed.
• Be sure to insulate any exposed wires from a possible short-circuit from the car chassis. Bundle all cables and keep cable terminals free from touching any metal parts.

Troubleshooting

□ Maintenance

Your product is designed and manufactured to ensure a minimum of maintenance. Use a soft cloth for routine exterior cleaning. Never use benzine, thinner, or other solvents.

□ When Something Doesn't Work

Check the charts below for possible causes and solutions to any problem you might be experiencing. Some simple checks or minor adjustments may eliminate the problem.

Product Servicing

If the suggestions in the charts don't solve the problem, we recommend that you take it to your nearest authorized Panasonic Servicenter. The unit should be serviced only by a qualified technician.

□ Replacing the Fuse

Use fuses of the same specified rating (12 amps). Using different substitutes or fuses with higher ratings, or connecting the unit directly without a fuse, could cause fire or damage to the stereo unit.

If the replacement fuse fails, contact your nearest authorized Panasonic Servicenter for service.

Troubleshooting Tips

PROBLEM POSSIBLE CAUSE PROBABLE SOLUTION
Unit will not turn on. Dead car	batteryIgnition not on.Bad power line connection.Fuse burned out.	Charge car battery.Turn ignition to On or Accessory.Check connections.Replace fuse.
Radio has static. Antenna not hooked up.Close to high power lines.	Hooked up.Close to high power lines.	Hook up antenna.Move away from high power lines.
Radio memory buttons do not work.	Not holding buttons down long enough.	Press and hold buttons for more than 2 seconds.
Tape sound quality is poor. Heads are dirty.Poor quality tape.	Heads are dirty.Poor quality tape.	Clean heads. (Ask a service representative for advice.)Use better quality tape.
Tape will not change programs.	Not pressing [▶] and [▲] buttons at the same time.	Press [▶] and [▲] buttons at the same time.
CD Changer will not operate.	Unit not properly connected.Unit not switched into CD Change mode.No CDs in the magazine.	Check connections.Press CD.C button.Check disc magazine.
CD Changer will not play a specific disc.	Disc loaded upside down.Disc damaged.Disc not loaded in magazine.	Reload disc properly.Check disc for scratches, chips.Check disc magazine.

Specifications

GENERAL

Power Supply: 12 V DC (11 V - 16 V) Test Voltage 14.4 V, Negative ground

Maximum Power Output : 40 W x 4 channels at 400 Hz, Volume Control maximum

Power Output : 20 W per channel into 4 Ω, 40 to 30,000 Hz at 3 % THD.

Tone Action : Bass ; ± 12 dB at 100 Hz

Treble; ± 12 dB at 10kHz

Current Consumption : Less than 2.5 A (tape mode, 0.5 W 4-speaker)

Pre-Amp Output Voltage:2.0V(CD Play mode;1kHz0dB)

Speaker Impedance : 4 Ω (4 - 8 Ω acceptable)

Dimensions (W x H x D): 7" x 1-15/16" x 5-7/8" (178 x 50 x 150 mm)

Weight : 3 lbs. 8 oz. (1.6 k

g)

AM RADIO

Frequency Range: 530 - 1,710 kHz

Useable Sensitivity: 28dB / V (25 V / S / N20 dB)

FM STEREO RADIO

Frequency Range: 87.9 - 107.9 MHz

Useable Sensitivity: 12 dBf. (1.1 μV/ 75 Ω, S/N 30 dB)

50 dB Quieting Sensitivity: 17 dBf. (1.8 V/ 75 Ω)

Frequency Response : 30 - 15,000 Hz ±3 dB

Alternate Channel Selectivity : 75 dB

Stereo Separation : 35 dB at 1,000 Hz

Signal/Noise Ratio : 70 dB (Mono)

TAPE PLAYER

Reproduction System : 4-track, 2-program stereo

Tape Speed : 1-7/8"/sec (4.76 cm/sec)

FF/REW Time :Less than 200 sec (C-60)

Frequency Response : 35 - 14,000 Hz ±3 dB

Wow and Flutter : 0.12 % (WRMS)

Signal/Noise Ratio : 52 dB

*Above specifications comply with EIA standards.

Note:

Specifications and design are subject to modification without notice due to improvements in technology.

FM1 FM2 FM3 AM
6 stations 6 stations 6 stations 6 stations

Panasonic Consumer Electronics Company, Division of Matsushita Electric Corporation of America

One Panasonic Way, Secaucus, New Jersey 07094

http://www.panasonic.com

Panasonic Sales Company.

Division of Matsushita Electric of Puerto Rico, Inc. ("PSC")

Ave. 65 de Infanteria, Km. 9.5

San Gabriel Industrial Park, Carolina,

Puerto Rico 00985

www.panasonic.com

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3

www.panasonic.ca
