USER MANUAL T9 EZVIZ

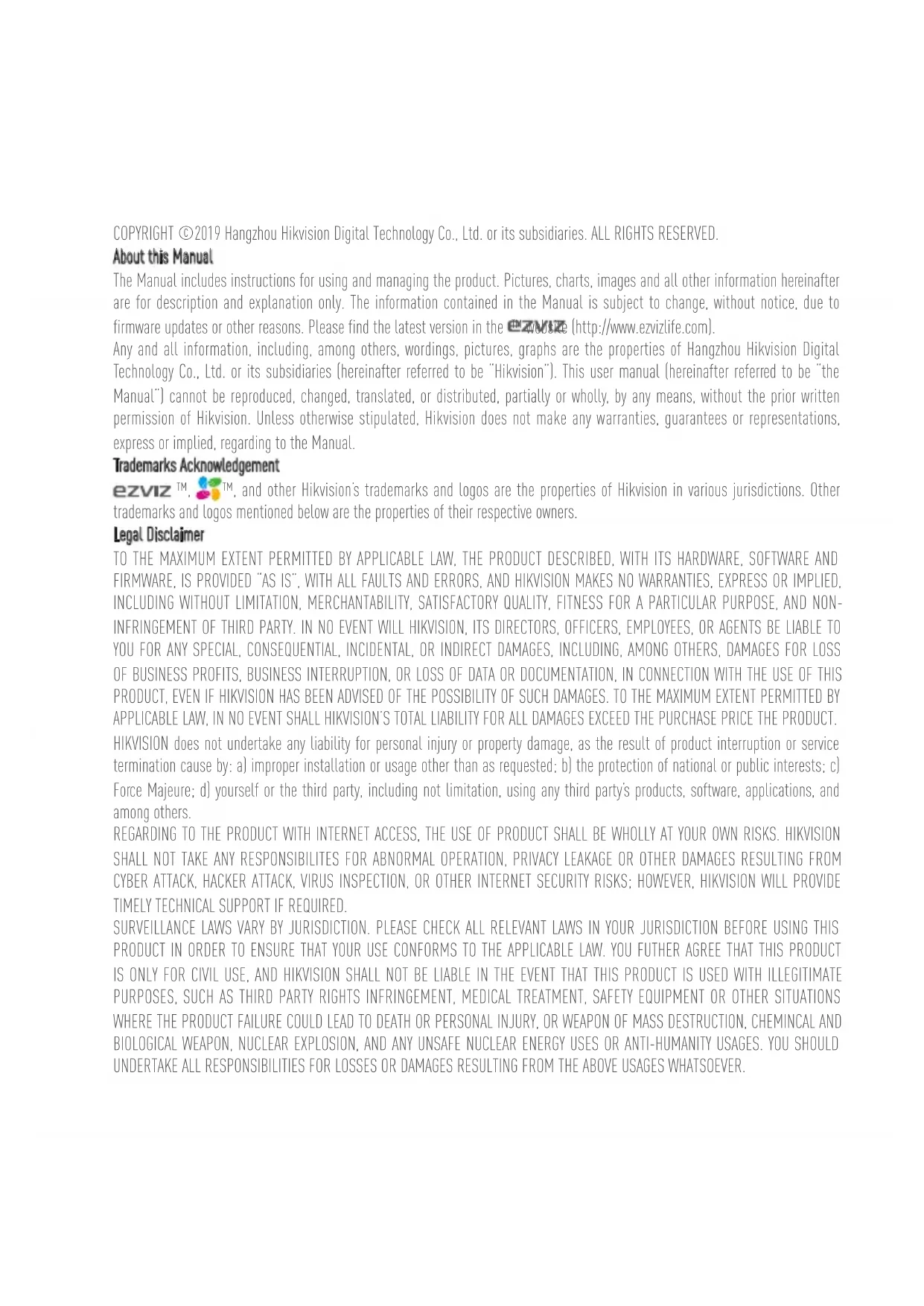

COPYRIGHT ©2019 Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries. ALL RIGHTS RESERVED.

About this Manual

The Manual includes instructions for using and managing the product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version in the ezvizile (http://www.ezvizlife.com).

Any and all information, including, among others, wordings, pictures, graphs are the properties of Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be "Hikvision"). This user manual (hereinafter referred to be "the Manual") cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of Hikvision. Unless otherwise stipulated, Hikvision does not make any warranties, guarantees or representations, express or implied, regarding to the Manual.

Trademarks Acknowledgement

ezvizTM, and other Hikvision's trademarks and logos are the properties of Hikvision in various jurisdictions. Other trademarks and logos mentioned below are the properties of their respective owners.

Legal Disclaimer

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED "AS IS", WITH ALL FAULTS AND ERRORS, AND HIKVISION MAKES NO WARRANTYES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND NONINFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL HIKVISION'S TOTAL LIABILITY FOR ALL DAMAGES EXCEED THE PURCHASE PRICE THE PRODUCT. HIKVISION does not undertake any liability for personal injury or property damage, as the result of product interruption or service termination cause by: a) improper installation or usage other than as requested; b) the protection of national or public interests; c) Force Majeure; d) yourself or the third party, including not limitation, using any third party's products, software, applications, and among others.

REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.

SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS TO THE APPLICABLE LAW. YOU FUTHER AGREE THAT THIS PRODUCT IS ONLY FOR CIVIL USE, AND HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGIMATE PURPOSES, SUCH AS THIRD PARTY RIGHTS INFRINGEMENT, MEDICAL TREATMENT, SAFETY EQUIPMENT OR OTHER SITUATIONS WHERE THE PRODUCT FAILURE COULD LEAD TO DEATH OR PERSONAL INJURY, OR WEAPON OF MASS DESTRUCTION, CHEMICAL AND BIOLOGICAL WEapon, NUCLEAR EXPLOSION, AND ANY UNSAFE NUCLEAR ENERGY USES OR ANTI-HUMANITY USAGES. YOU SHOULD UNDERTAKE ALL RESPONSIBILITIES FOR LOSSES OR DAMAGES RESULTING FROM THE ABOVE USAGES WHATSEVER.

IN THE EVENT OF ANY CONFLICTS BETWEEN THE ABOVE AND THE APPLICABLE LAW, THE LATER PREVAILS.

Regulatory Information

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the Radio Equipment Directive 2014/53/EU, the EMC Directive 2014/30/EU, the RoHS Directive 2011/65/EU.

2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: www. recyclethis.info.

2006/66/EC and its amendment 2013/56/EU (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info.

EC DECLARATION OF CONFORMITY

Hereby, Hangzhou Hikvision Digital Technology Co., Ltd. declares that the radio equipment type [CS-T9-A] is in compliance with Directive 2014/53/EU.

The full text of the EC DECLARATION OF CONFORMITY is available at the following web link:

http://www.ezvizlife.com/declaration-of-conformity.

Safety Instruction

CAUTION: THE PRODUCT IS BUILT IN A REPLACEABLE BATTERY. RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

Due to the product shape and dimension, the name and address of the importer/manufacturer are printed on the package.

SAVE THIS MANUAL FOR FUTURE REFERENCE

Operations

EN

Step 1

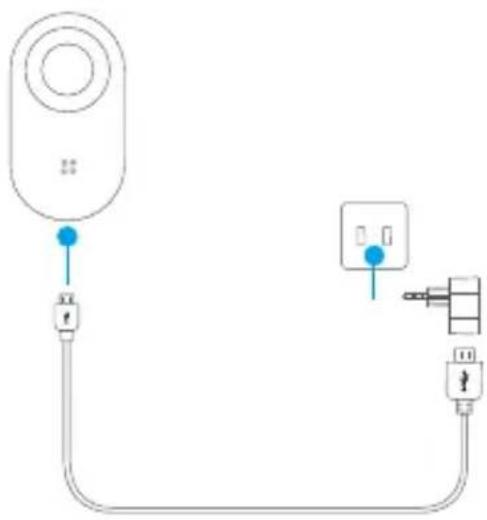

Starting Home Sense Siren

1 Connect the Siren to the power adapter with the power cable.
Plug the power adapter into the power outlet to power on the Siren. The red indicator lights on for 2 seconds indicating the siren has started up.

Step 2

Adding to Internet Alarm Hub

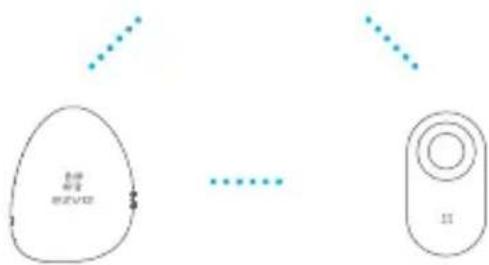

The Siren must be linked with the A1 Home Sense Alarm Hub and other detectors such as Open/Close and Motion Detectors. The EZVIZ Home Sense Alarm Hub and detectors are sold separately.

Option 1 (Recommended) Adding by EZVIZ App

1 Installing the EZVIZ App

• Search for the EZVIZ App in Google PLAY or APP Store and install it on your mobile device.
• Open the app and register for an EZVIZ user account.

2 Adding Siren

Log in the EZVIZ app and scan the device QR code to add it to the Home Sense Alarm Hub.

Option 2 Adding by Operating the Home Sense Alarm Hub

1 Enable the "Adding Detectors Mode" of your Home Sense Alarm Hub. Refer to Quick Start Guide of your Home Sense Alarm Hub for details.

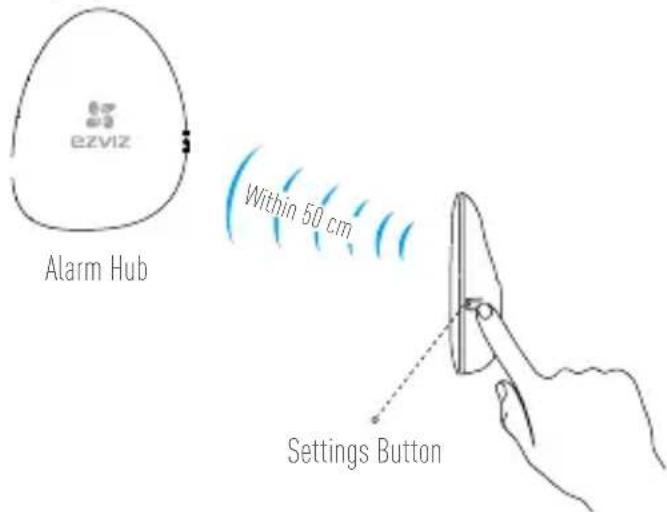

2 Bring the Siren close to the Alarm Hub and press the button on Siren, the status indicator will flash a red light once indicating the adding signal is sent.

The Alarm Hub announces the device type and serial number being added.
Test the Siren.

• Press the Emergency button on the remote control of the Alarm Hub to trigger an emergency alarm. If the Siren starts to alarm, it has been added to the Internet Alarm Hub successfully.
• Press the Mute button on the remote control of the Alarm Hub to clear the alarm, and stop the Siren sound.

Step 3

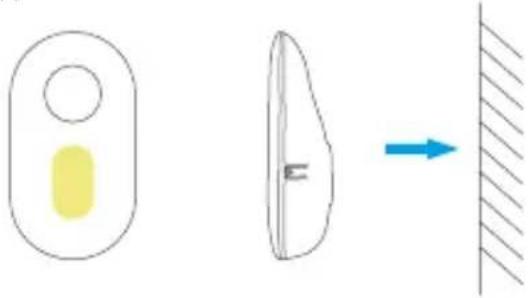

Installing Siren

1 Choose a clean flat surface to install the Siren
2 Installing Siren

Option 1 (Recommended)

Option 2

Mount the Siren to the chosen location using the Use the supplied screw kit to hang the Siren onto supplied foam sticker as illustrated below. the chosen mounting location.

Basics

Red Indicators

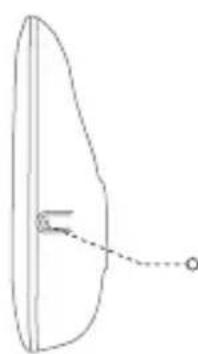

Setting Button

Press Once: Add Siren to the Home Sense Alarm Hub Press and Hold for 1s: Mute

Function

If the connected Alarm Hub receives alarms from other detectors, Siren will be triggered and start to alarm.

Appendix

Box Contents

Home Sense Siren with Strobe Lightx1 Foam Sticker x1 Screw Kit x1

Power Adapter x1 USB Cable x1 Quick Start Guide x1

Specifications

Power Voltage DC 5V (Micro USB)

Working Current Static: 22mA Maximum: 200mA

Working Environment Indoor

Working Temprature -10°C to 55°C (14°F to 131°F)

Working Humidity 10% to 90%

Storage Temperature -20°C to 70°C (-4°F to 158°F)

Weight 77g

Dimension (H^W^D)67mm^33mm^121mm (2.6**1.3**4.8")

Alarm Volume 85dB (within 3m

Alarm Light Red indicators blink when alarm occurs.

Betrieb

Schritt 1

DE

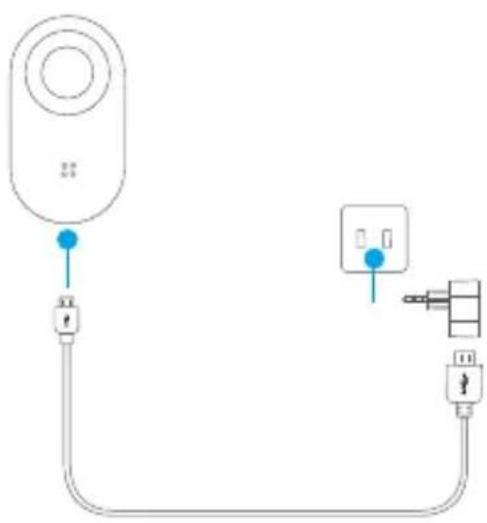

Start at Home Sense-sirene

1 Slut sirenen til stromadapteren med stromkablet.
2 Sæt strømadapteren i stikkontakten for at slå sirenen til. Den rød kontrollampe lyser i 2 sekunder for at vise, at sirenen erændt.

Trin 2

Tilfogjelse til alarmhubben til internettet

Sirenen skal tilknyttes A1 Home Sense Alarm Hub og andre detektorer, som f.eks. d-/-vinduesdetektorer og bevgelsesdetektorer. EZVIZ Home Sense Alarm Hub og detektorer saelges separat.

Mulighed 1 (anbefales) Tilfjelse vha. appen EZVIZ

1 Installing af appen EZVIZ

• Søg after append EZVIZ i Google Play eller Apple App
  Store, og installer den på din mobilenhed.
• Abn appen, og registrar en EZVIZ-brugerkonto.

Thank you for purchasing EZVIZ products. This limited warranty gives you, the original purchaser of the EZVIZ product, specific legal rights. You may also have other legal rights that vary by state, province or jurisdiction. The disclaimers, exclusions, and limitations of liability under this limited warranty will not apply to the extent prohibited by applicable law. No distributor, reseller, agent, or employee is authorized to make any medication, extension, or addition to this limited warranty.

Your EZVIZ product is warranted for a period of two (2) years from the date of purchase against defects in materials and workmanship, or such longer period as may be required by law in the country or state where this product is sold, when used normally in accordance with user manual.

You can request warranty service by emailing us at support.eufdezvizlife.com.

For any defective EZVIZ products under warranty, HANGZHOU HIKVISION DIGITAL TECHNOLOGY CO., LTD. ("the Company") will, at its option, (i) repair or replace your product free of charge; (ii) exchange your product with a functional equivalent product; (iii) or refund the original purchase price, provided you provide the original purchase receipt or copy, brief explanation of the defect, and return the product in its original packaging. At the sole discretion of the Company, repair or replacement may be made with a new or refurbished product or components. This warranty does not cover the postal cost, insurance and any other incidental charges incurred by you in returning the product.

Except where prohibited by applicable law, this is your sole and exclusive remedy for breach of this limited warranty. Any product that has either been repaired or replaced under this limited warranty will be covered by the terms of this limited warranty for the longer of ninety (90) days from the date of delivery or the remaining original warranty period.

This warranty does not apply and is void:

• If the warranty claim is made outside the warranty period or if the proof of purchase is not provided.
• For any malfunction, defect or failure caused by or resulting from the evidence of impact, mishandling, tampering, use contrary to the applicable instruction manual, incorrect power line voltage, accident, loss, theft, fire, flood or other Acts of God, shipping damage or damage resulting from repairs performed by unauthorized personnel.
• For any consumable parts, such as batteries, where the malfunction is due to the normal aging of the product.
  Cosmetic damage, including but not limited to scratches, dents and broken plastic on ports.
  Any software, even if packaged or sold with EZVIZ hardware.
  For any other damages free from defects in material or workmanship.
  Routine cleaning, normal cosmetic and mechanical wear and tear.

Please do not hesitate to contact your seller, or send e-mails to us support.eufdezvizlife.com, with any questions.

COPYRIGHT ©2019 HANGZHOU HIKVISION DIGITAL TECHNOLOGY CO., LTD. ALL RIGHTS RESERVED.
