Product Type	Door/Window Opening Detector
Brand	EZVIZ
Model	T6
Power Supply	Rechargeable battery 450 mAh / 1.66 Wh, charging via USB cable (5 V)
Battery Life	Up to 3 months
Trigger Angle	Greater than 3°
Operating Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Operating Humidity	10% to 90% RH
LED Indicator	Red (open/charging), blue (closed/charged)
Communication	Radio frequency (hub required, not included)
Package Contents	T6 Detector, base, 2 foam adhesive pads (1 mm and 3 mm), power cable, installation guide
Warranty	2 years (defects in materials and workmanship)
Customer Service	[e-mail]

Frequently Asked Questions - T6 EZVIZ

How to add the T6 detector to the alarm hub?

You can add the T6 in two ways: Option 1 (recommended): remove the base, scan the QR code on the back of the T6 via the EZVIZ app, then follow the instructions. Option 2: activate the Add detectors mode on the hub, place the T6 within 50 cm, then press the button on the T6. The blue indicator will flash twice to confirm.

How to install the detector on a door or window?

Stick the foam adhesive pad onto the T6 base. For metal surfaces, use the 3 mm thick pad; for other surfaces, you can use the 1 mm or 3 mm pad. Stick the base to the desired location on the door or window, then slide the T6 onto the base.

How to record the closed state of the detector?

Keep the door or window closed, then press the button on the T6 for 2 seconds. The indicator will flash red for 15 seconds to indicate that the closed state is recorded. Repeat this step after each recharge or change of installation position.

What to do if the battery is depleted?

You will receive a warning on your EZVIZ account. Slide the T6 off the base, connect the power cable to charge it (the indicator turns red). Once charged (indicator blue), put it back and re-record the closed state.

What is the battery life and how to maximize it?

The battery life can reach 3 months. To maximize lifespan, avoid extreme temperatures and fully recharge the battery before it is completely depleted.

Does the T6 detector work without a hub?

No, the T6 requires an Internet alarm hub (model A1 or similar, sold separately) to connect to your network and send alerts via the EZVIZ app.

How to know if an intrusion is detected?

When the door or window is opened, the T6 indicator flashes red and an alert is sent to your EZVIZ account. When it is closed, the indicator flashes blue.

Is the detector weather-resistant?

The T6 is designed for indoor use. Its operating temperature range is -10°C to 55°C, but it is not waterproof. Avoid installing it in areas exposed to excessive moisture or rain.

What to do if the detector does not turn on or does not respond?

Check that the battery is charged. If the problem persists, reset the T6 by holding the button for 10 seconds. If nothing works, contact EZVIZ support at [e-mail].

Can I use multiple T6 detectors with a single hub?

Yes, a hub can support multiple detectors. Add each T6 via the app following the same addition procedure.

USER MANUAL T6 EZVIZ

Colorful abstract logo with four overlapping petal shapes in blue, green, magenta, and yellow (no text or symbols)

ezviz

Quick Start Guide

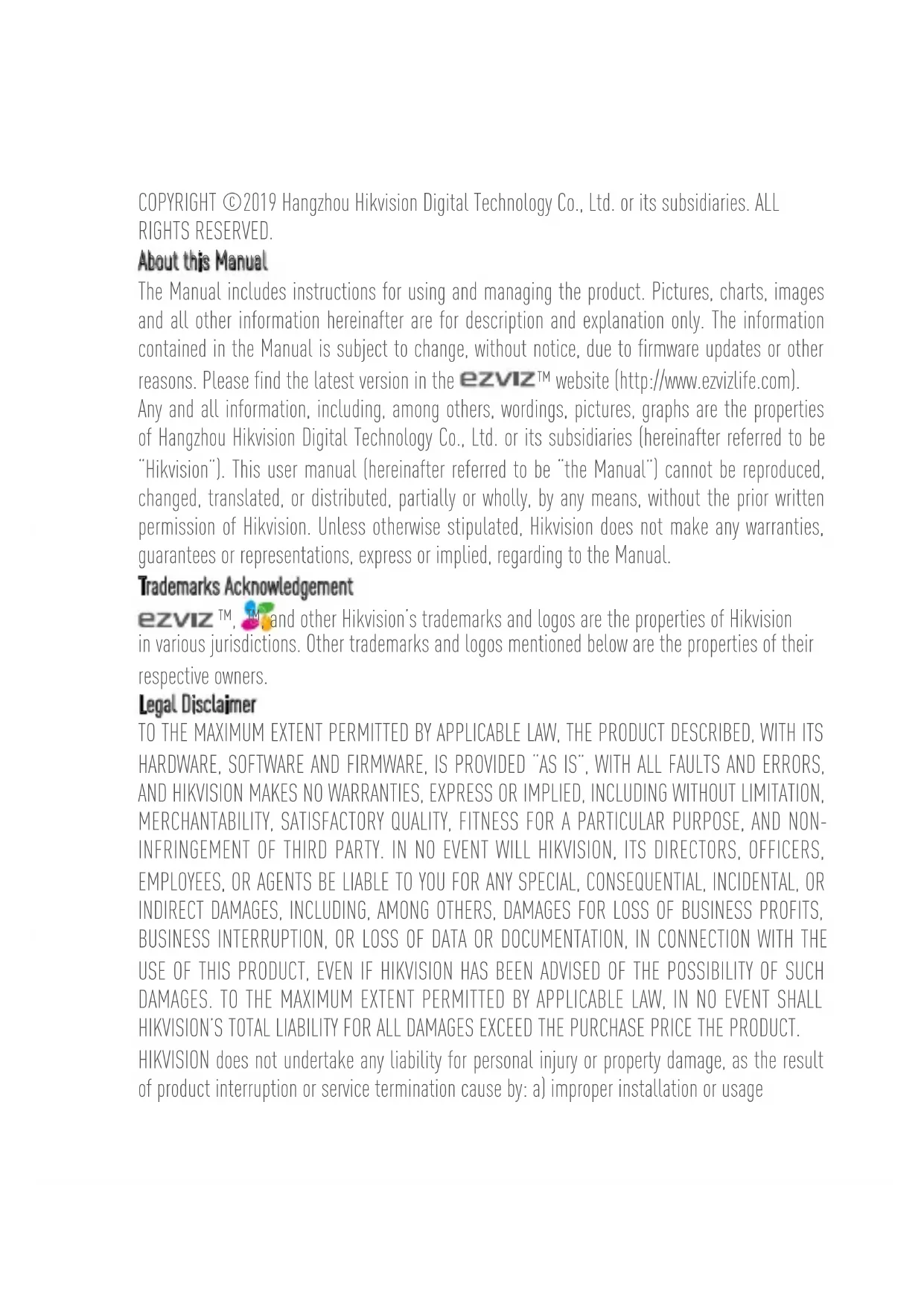

COPYRIGHT ©2019 Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries. ALL RIGHTS RESERVED.

About this Manual

The Manual includes instructions for using and managing the product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version in the ezviz™ website (http://www.ezvizlife.com).

Any and all information, including, among others, wordings, pictures, graphs are the properties of Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be "Hikvision"). This user manual (hereinafter referred to be "the Manual") cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of Hikvision. Unless otherwise stipulated, Hikvision does not make any warranties, guarantees or representations, express or implied, regarding to the Manual.

Trademarks Acknowledgement

ezviz™, M, and other Hikvision's trademarks and logos are the properties of Hikvision in various jurisdictions. Other trademarks and logos mentioned below are the properties of their respective owners.

Legal Disclaimer

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED "AS IS", WITH ALL FAULTS AND ERRORS, AND HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL HIKVISION'S TOTAL LIABILITY FOR ALL DAMAGES EXCEED THE PURCHASE PRICE THE PRODUCT.

HIKVISION does not undertake any liability for personal injury or property damage, as the result of product interruption or service termination cause by: a) improper installation or usage

other than as requested; b) the protection of national or public interests; c) Force Majeure; d) yourself or the third party, including not limitation, using any third party's products, software, applications, and among others.

REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.

SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS TO THE APPLICABLE LAW. YOU FUTHER AGREE THAT THIS PRODUCT IS ONLY FOR CIVIL USE, AND HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES, SUCH AS THIRD PARTY RIGHTS INFRINGEMENT, MEDICAL TREATMENT, SAFETY EQUIPMENT OR OTHER SITUATIONS WHERE THE PRODUCT FAILURE COULD LEAD TO DEATH OR PERSONAL INJURY, OR WEAPON OF MASS DESTRUCTION, CHEMINCAL AND BIOLOGICAL WEAPON, NUCLEAR EXPLOSION, AND ANY UNSAFE NUCLEAR ENERGY USES OR ANTI-HUMANITY USAGES. YOU SHOULD UNDERTAKE ALL RESPONSIBILITIES FOR LOSSES OR DAMAGES RESULTING FROM THE ABOVE USAGES WHATSOEVER.

IN THE EVENT OF ANY CONFLICTS BETWEEN THE ABOVE AND THE APPLICABLE LAW, THE LATER PREVAILS.

Safety Instruction

CAUTION: THE PRODUCT IS BUILT IN A REPLACEABLE BATTERY. RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

Regulatory Information

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the Radio Equipment Directive 2014/53/EU, the EMC Directive 2014/30/EU, the RoHS Directive 2011/65/EU.

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: www.recyclethis.info.

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

2006/66/EC and its amendment 2013/56/EU (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info.

EC DECLARATION OF CONFORMITY

Hereby, Hangzhou Hikvision Digital Technology Co., Ltd. declares that the radio equipment type [CS-T6-A] is in compliance with Directive 2014/53/EU.

The full text of the EC DECLARATION OF CONFORMITY is available at the following web link: http://www.ezvizlife.com/declaration-of-conformity.

Due to the product shape and dimension, the name and address of the importer/manufacturer are printed on the package.

SAVE THIS MANUAL FOR FUTURE REFERENCE

Operations

Step 1

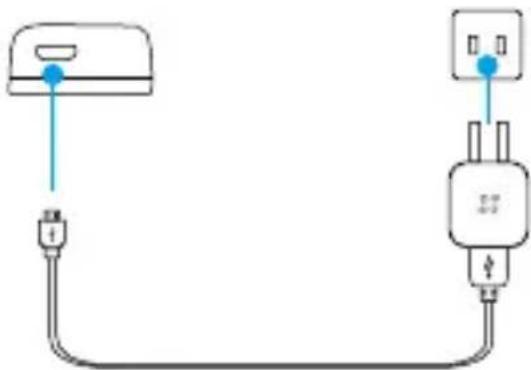

Charging

Make sure to charge the Open/Close Detector before you begin using it for the first time. Connect the sensor to the power socket with the power cable. The status indicator displays red while it is charging and turns blue when charging is complete.

Pure electrical circuit lines without any symbols

A fully-charged battery can last for up to 3 months. Recharge when the battery runs low.

Step 2

Adding to the Home Sense Alarm Hub

The EZVIZ Home sense alarm hub should be purchased separately.

• 0

Option 1 (Recommended) Add Using the EZVIZ App

1 Remove the Base

Detach the base from the detector by sliding it as directed by the arrow. You can see the device QR code code located on the back of the sensor.

2 Adding detector to the Home Sense Alarm Hub

- Download and install the EZVIZ app by searching the "EZVIZ" in App Store (iOS version) and Google Play™ (Android version).

- Start the app and register for an EZVIZ user account following the start-up wizard.

- Log in the EZVIZ app and scan the device QR code to add it to the Alarm Hub.

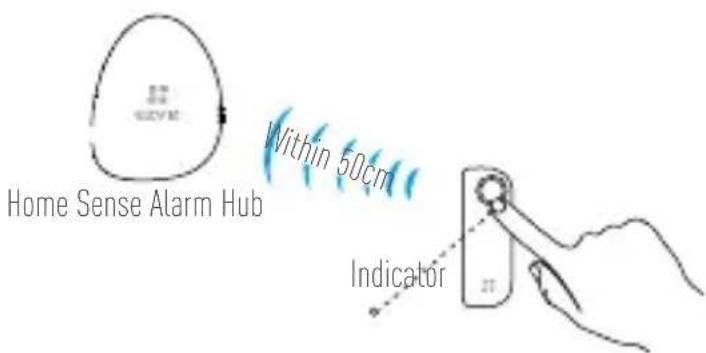

• Option 2 Add Using the Home Sense Alarm Hub

- Enable the "Adding Detectors Mode" of your Home Sense Alarm Hub by quickly pressing its Setting button.

- The Blue indicator flickers twice indicating the adding signal has been sent.

Home Sense Alarm Hub Within 50cm Indicator

- The Home Sense Alarm Hub will announce the type and serial number of the detector being added.

Step 3 Installing Detector

1 Using the Foam Sticker

Attach the foam sticker to the base of the detector.

For metal door or window installation, use the 3 mm thick foam sticker.

3 mm

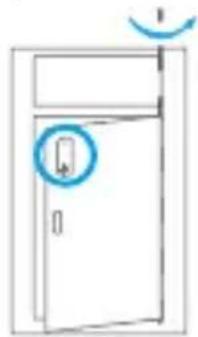

2 Installing the Open/Close Detector

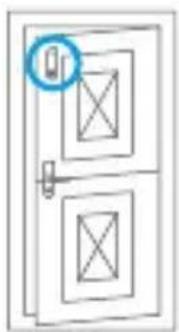

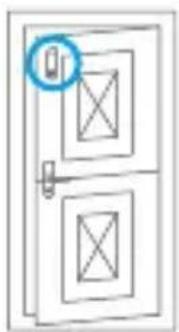

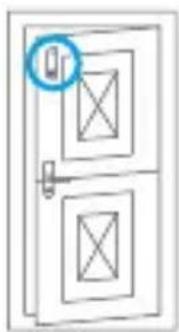

- Install the base close to the edge of the door or window's swinging side as illustrated in the figures below.

Simple line drawing of a door with a hanging device and a curved arrow indicating motion (no text or symbols)

Window

Simple line drawing of a door with two x-shaped panels and a blue circular icon labeled 'Q' (no text or symbols on the door itself)

Door

- Mount the detector to its base to complete the installation.

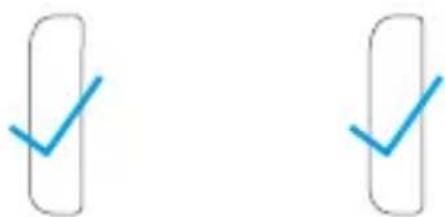

3 Recording Closed Status

Keep the door or window closed and then press and hold the button on detector for 2 seconds to record the closed status. The indicator flickers red for 15 seconds indicating the status is recorded.

The Closed Status will need to be recorded again if the sensor is removed from its current location.

Two identical hand-drawn paperclip symbols with a single blue checkmark (no text or labels)

4 Test the Open/Close Detector

The indicator blinks red when the door or window is opened and will send an alarm message to the linked EZVIZ account. The indicator blinks blue when the door or window is closed.

Maintenance

When the battery runs out, a low battery alert will be sent to the EZVIZ account to notify you to recharge. Remove the detector from its base to recharge it. Reinstall it after it has been recharged.

Appendix

Box Contents

Simple line drawing of a remote control with a magnifying glass icon (no text or symbols)

Home Sense Open/Close Detector x1 Base x1

Simple line drawing of a rounded rectangular object with small square cutouts at the bottom (no text or symbols)

(Attached to the back of Home Sense Open/Close Detector.)

Foam Sticker x2 (1 mm thick & 3 mm thick)

Power Cable x1

Installation Guide

Quick Start Guide x1

Basics

Simple line drawing of a remote control device with no text or symbols

Button

LED Indicator

Flickers Blue Once: The door or window is in closed status.

Flickers Red Once: The door or window is open..

Charging Interface

Base

Specifications

Charging Voltage 5V

Battery Capacity 450mAh/1.66Wh

Battery Life 3 Months

Working Temperature -10°C to 55°C (14°F to 131°F)

Charging Humidity 0 to 40%

Working Humidity 10% to 90%

Trigger Angle >3^

Power Consumption

≤10dBm

Betrieb

Schritt 1

Aufladen

Simple line diagram showing connections between a power plug, socket, and terminal outlet (no text or symbols)

Simple line drawing of a remote control with a magnifying glass icon (no text or symbols)

T6 x1 Sockel x1

Simple line drawing of a rounded rectangular object with small square cutouts (no text or symbols)

Simple line drawing of a remote control device with no text or symbols

Taste

LED-Anzeige

Simple line diagram showing connections between a power plug, socket, and terminal outlet (no text or symbols)

- The Internet Alarm Hub issues a voice prompt of the detector type and serial No. indicating the detector is added.

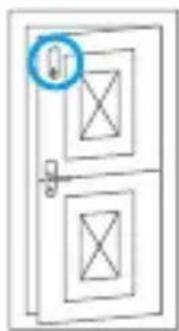

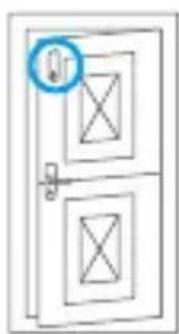

Paso 3

Simple line drawing of a door with a circular icon and a Wi-Fi symbol (no text or labels)

Ventana

Simple line drawing of a door with two panes and a handle, no text or symbols present

Puerta

Simple line drawing of a remote control with a magnifying glass icon (no text or symbols)

Simple line drawing of a rounded rectangular object with small square cutouts (no text or symbols)

Line drawing of a remote control device with a circular dial and dotted lines indicating connection points (no text or symbols)

Botón

ES

Indicador LED

Pure electrical circuit lines without any symbols

Simple line drawing of a door with a circular icon and a Wi-Fi symbol (no text or labels)

Fenêtre

Simple line drawing of a door with two panes and a handle, no text or symbols present

Porte

Simple line drawing of a remote control with a magnifying glass icon (no text or symbols)

1 T6 1 socle

Simple line drawing of a rounded rectangular object with small square cutouts (no text or symbols)

Simple line drawing of a remote control device with no text or symbols

Touche

Diode témoin

Simple line diagram showing connections between a power plug, socket, and terminal outlet (no text or symbols)

Simple line drawing of a door with a circular button labeled 'I' and a hanging flag, no text or symbols present.

Finestra

Simple line drawing of a door with two panes and a handle, no text or symbols present.

Porta

Simple line drawing of a remote control with a magnifying glass icon (no text or symbols)

T6 (1) Base (1)

Simple line drawing of a rounded rectangular object with small square cutouts (no text or symbols)

Pure electrical circuit lines without any symbols

Two identical hand-drawn paperclip symbols with a single blue checkmark (no text or labels)

NL

4 De Open/Gesloten-detector testen

Pure electrical circuit lines without any symbols

1 mm × 3 mm

Two identical hand-drawn rectangular shapes with a single checkmark inside, no text or symbols present.

PL

Pure electrical circuit lines without any symbols

Simple line drawing of a door with a circular button and antenna (no text or symbols)

Παράθυρο

Simple line drawing of a door with two x-shaped cutouts and a blue circular badge (no text or symbols)

Πόρτα

Two identical hand-drawn rectangular shapes with a single checkmark, no text or symbols present.

GR

Simple line diagram showing connections between a power plug and a terminal device (no text or symbols)

1 mm × 3 mm

Two identical hand-drawn rectangular shapes with a single checkmark inside, no text or symbols present.

Pure electrical circuit lines without any symbols

Simple line drawing of a door with two doors and a double door, labeled 'Dvere' below (no text or symbols on the door itself)

Two identical paperclip icons each marked with a blue checkmark (no text or symbols)

4 Test detektora pre otvorené/zatvorené

Simple line drawing of a remote control with a magnifying glass (no text or symbols)

Detektor pre otvorené/zatvorené Home Sense (1 x)

Penová nálepka (2 x) (s hrúbkou 1 mm a 3 mm)

Simple line drawing of a rectangular object with rounded corners and small square cutouts (no text or symbols)

Simple line drawing of a remote control device with a circular dial and dotted lines indicating connection points (no text or symbols)

Tlačidlo

Indikátor LED

Pure electrical circuit lines without any symbols

Simple line drawing of a remote control with a magnifying glass on the top (no text or symbols)

Simple line drawing of a rounded rectangular object with small square cutouts (no text or symbols)

Simple line drawing of a remote control device with no text or symbols

Knapp

LED-indikator

Pure electrical circuit lines without any symbols

Simple line drawing of a door with a hanging device and a curved arrow indicating motion (no text or symbols)

Fönster

Simple line drawing of a door with two x-shaped cutouts and a blue circular icon labeled 'Q' (no text or symbols on the door itself)

Dörr

Simple line drawing of a remote control with a magnifying glass on the top (no text or symbols)

Simple line drawing of a rounded rectangular object with small square cutouts (no text or symbols)

Simple line drawing of a remote control device with no text or symbols

Knapp

LED-indikering

Simple line diagram showing connections between a power outlet, plug, and terminal block (no text or symbols)

Simple line drawing of a door with a hanging device and a curved arrow indicating motion (no text or symbols)

Vindue

Simple line drawing of a door with two x-shaped panels and a blue circular icon (no text or symbols)

Dør

Simple line drawing of a remote control with a magnifying glass icon (no text or symbols)

Simple line drawing of a rounded rectangular object with small square cutouts (no text or symbols)

Simple line drawing of a remote control device with no text or symbols

Knap

LED-kontrollampe

Simple line diagram showing connections between a power outlet, plug, and cable (no text or symbols)

Simple line drawing of a hand holding a small object with a ring, no text or symbols present

FI

Simple line drawing of a double door with two x-shaped cutouts and a blue circular icon labeled 'Ovi' (no text or symbols on the door itself)

Two identical hand-drawn oval shapes with a single blue checkmark, no text or symbols present.

Simple line drawing of a remote control with a magnifying glass icon (no text or symbols)

Simple line drawing of a rounded rectangular object with small square cutouts (no text or symbols)

Simple line drawing of a remote control device with no text or symbols

Painike

LED-merkkivalo

Thank you for purchasing EZVIZ products. This limited warranty gives you, the original purchaser of the EZVIZ product, specific legal rights. You may also have other legal rights that vary by state, province or jurisdiction. The disclaimers, exclusions, and limitations of liability under this limited warranty will not apply to the extent prohibited by applicable law. No distributor, reseller, agent, or employee is authorized to make any medication, extension, or addition to this limited warranty.

Your EZVIZ product is warranted for a period of two (2) years from the date of purchase against defects in materials and workmanship, or such longer period as may be required by law in the country or state where this product is sold, when used normally in accordance with user manual.

You can request warranty service by emailing us at [e-mail].

For any defective EZVIZ products under warranty, HANGZHOU HIKVISION DIGITAL TECHNOLOGY CO., LTD. ("the Company") will, at its option, (i) repair or replace your product free of charge; (ii) exchange your product with a functional equivalent product; (iii) or refund the original purchase price, provided you provide the original purchase receipt or copy, brief explanation of the defect, and return the product in its original packaging. At the sole discretion of the Company, repair or replacement may be made with a new or refurbished product or components. This warranty does not cover the postal cost, insurance and any other incidental charges incurred by you in returning the product.

Except where prohibited by applicable law, this is your sole and exclusive remedy for breach of this limited warranty. Any product that has either been repaired or replaced under this limited warranty will be covered by the terms of this limited warranty for the longer of ninety (90) days from the date of delivery or the remaining original warranty period.

This warranty does not apply and is void:

• If the warranty claim is made outside the warranty period or if the proof of purchase is not provided.
• For any malfunction, defect or failure caused by or resulting from the evidence of impact, mishandling ,tampering, use contrary to the applicable instruction manual, incorrect power line voltage, accident, loss, theft, fire, flood or other Acts of God, shipping damage or damage resulting from repairs performed by unauthorized personnel.
• For any consumable parts, such as batteries, where the malfunction is due to the normal aging of the product.
  • Cosmetic damage, including but not limited to scratches, dents and broken plastic on ports.
  • Any software, even if packaged or sold with EZVIZ hardware.
  • For any other damages free from defects in material or workmanship.
  • Routine cleaning, normal cosmetic and mechanical wear and tear.

Please do not hesitate to contact your seller, or send e-mails to us [e-mail], with any questions.

COPYRIGHT ©2019 HANGZHOU HIKVISION DIGITAL TECHNOLOGY CO., LTD. ALL RIGHTS RESERVED.

BESCHRÄNKTE GARANTIE

Colorful abstract logo with four overlapping petal-like shapes in blue, green, magenta, and yellow (no text or symbols)

ezviz
