USER MANUAL DCE0825D1GQW DEWALT

Line drawing of a DeWALT digital camera module (no text or symbols on body)

Figures A ③ DEWALT ① ② ①a ①b

x1 ③a x2 ③b x3 ③c x1 ③d x2 ③e x3 x2 ③f

B DEWAVE ① ② ③

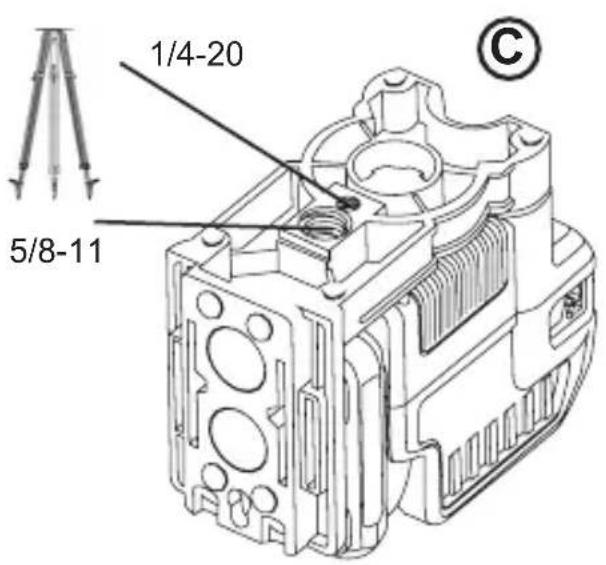

1/4-20 5/8-11 ©

E

1 2 3 << >>

4 DEWILE

F

Diagram showing a device with labeled parts and a magnified view of the internal components, likely illustrating a cable or electrical setup.

5 DCB121 DCB123 DCB127 DEWALIT

Figures
G

≥ 30' (9m) D₁ D½ P₁ D½ ①

I

P1 D1 D1 P2 P3 2 x D1 ①

D₁ D₁/₂ P₁ P₂ D₁/₂ ②

P4 P1 D1 P2 D1 P3 2 x D1 ②

P₁ P₂ ③

P4 P1 ③

H

≥ 30' (9m) P1 P2 ①

P1 X P3 P2 ②

① ≥ 20' (6m) P1 x x P2

K

P3 x P1 x ② x P2

Figures
L

P1 D1 P2 P3

1

2

P1 P2 P3 P4 P5

③

P1 P6 P5 P2 P4 P3

4

P1 P6 P7 P5 P2 P4 P3

Contents

• Laser Information
• User Safety
• Battery Safety
• Powering the Laser
• Turning the Laser On
• Checking Laser Accuracy
  • Using the Laser
• Maintenance
• Troubleshooting
  • Service and Repairs
• Specifications

Laser Information

The DCE0825R and DCE0825G 5 Dot Cross Line lasers are Class 2 laser products. The lasers are self-leveling laser tools that can be used for horizontal (level) and vertical (plumb) alignment projects.

User Safety

Safety Guidelines

The definitions below describe the level of severity for each signal word. Please read the manual and pay attention to these symbols.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

If you have any questions or comments about this or any DeWALT tool, go to http://www.dewalt.eu.

WARNING:

Read and understand all instructions. Failure to follow the warnings and instructions in this manual may result in electric shock, fire, and/or serious personal injury.

SAVE THESE INSTRUCTIONS

WARNING:

Laser Radiation Exposure. Do not disassemble or modify the laser level. There are no user serviceable parts inside. Serious eye injury could result.

WARNING:

Hazardous Radiation. Use of controls or adjustments, or performance of procedures, other than those specified herein may result in hazardous radiation exposure.

The label on your laser may include the following symbols.

Symbol Meaning
V Volts
mW Milliwatts
	Laser Warning
nm Wavelength in	nanometers
2 Class 2 Laser

Warning Labels

For your convenience and safety, the following labels are on your laser.

WARNING: To reduce the risk of injury, user must read instruction manual.

WARNING: LASER RADIATION. DO NOT STARE INTO BEAM. Class 2 Laser Product

DEWALT DG20125G TYPE 1: 4V - 12 V DC 100 Laser 2

30000000000

E: 6000.2.10m SCL

DEWALT DGE0825R TYPE: 1kV • 15kV DC ... Laser 2 1. 1000x 10000000000 ISO 1996-434-7 BER.

GB

GB

• Do not operate the laser in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes.
• Store an idle laser out of reach of children and other untrained persons. Lasers are dangerous in the hands of untrained users.
• Tool service MUST be performed by qualified repair personnel. Service or maintenance performed by unqualified personnel may result in injury. To locate your nearest DeWALT service center go to http://www.dewalt.eu.
• Do not use optical tools such as a telescope or transit to view the laser beam. Serious eye injury could result.
• Do not place the laser in a position which may cause anyone to intentionally or unintentionally stare into the laser beam. Serious eye injury could result.
• Do not position the laser near a reflective surface which may reflect the laser beam toward anyone's eyes. Serious eye injury could result.
• Turn the laser off when it is not in use. Leaving the laser on increases the risk of staring into the laser beam.
• Do not modify the laser in any way. Modifying the tool may result in hazardous laser radiation exposure.
• Do not operate the laser around children or allow children to operate the laser. Serious eye injury may result.
• Do not remove or deface warning labels. If labels are removed, the user or others may inadvertently expose themselves to radiation.
• Position the laser securely on a level surface. If the laser falls, damage to the laser or serious injury could result.

Personal Safety

• Stay alert, watch what you are doing, and use common sense when operating the laser. Do not use the laser when you are tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating the laser may result in serious personal injury.
• Use personal protective equipment. Always wear eye protection. Depending on the work conditions, wearing protective equipment such as a dust mask, non-skid safety shoes, hard hat, and hearing protection will reduce personal injury.

Tool Use and Care

• Do not use the laser if the Power/Transport Lock switch does not turn the laser on or off. Any tool that cannot be controlled with the switch is dangerous and must be repaired.
• Follow instructions in the Maintenance section of this manual. Use of unauthorized parts or failure to follow Maintenance instructions may create a risk of electric shock or injury.

Battery Safety

WARNING: Batteries can explode, or leak, and can cause injury or fire. To reduce this risk:

• Carefully follow all instructions and warnings on the battery label and package, and the accompanying Battery Safety manual.
• Always insert batteries correctly with regard to polarity (+ and -), as marked on the battery and the equipment.
• Do not short battery terminals.
• Do not charge disposable batteries.
• Do not mix old and new batteries. Replace all batteries at the same time with new batteries of the same brand and type.
• Remove dead batteries immediately and dispose of per local codes.
• Do not dispose of batteries in fire.
• Keep batteries out of reach of children.
• Remove batteries when the device is not in use.
• Use only the charger specified for your rechargeable battery pack.

Powering the Laser

This laser can be powered by either of these battery packs:

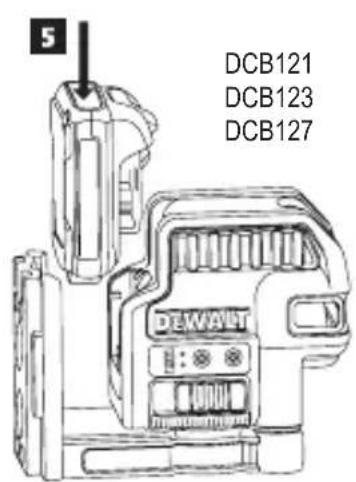

• A DeWALT 10.8V Li-ion Battery Pack (DCB121, DCB123, or DCB127).
• A DeWALT AA Starter Pack with 4 AA batteries. Note: The AA Starter Pack is only recommended for use with the red laser.

Use of any other batteries may create a risk of fire.

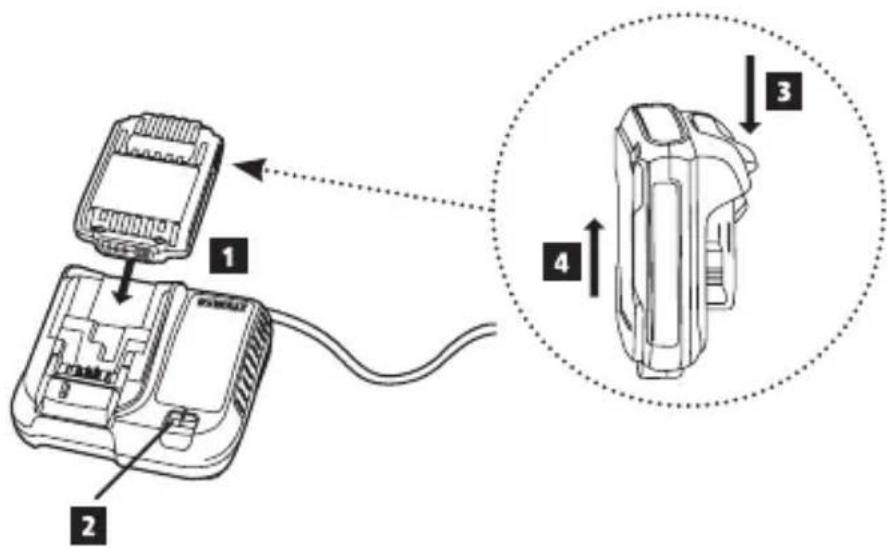

Charging the DeWALT Li-ion Battery

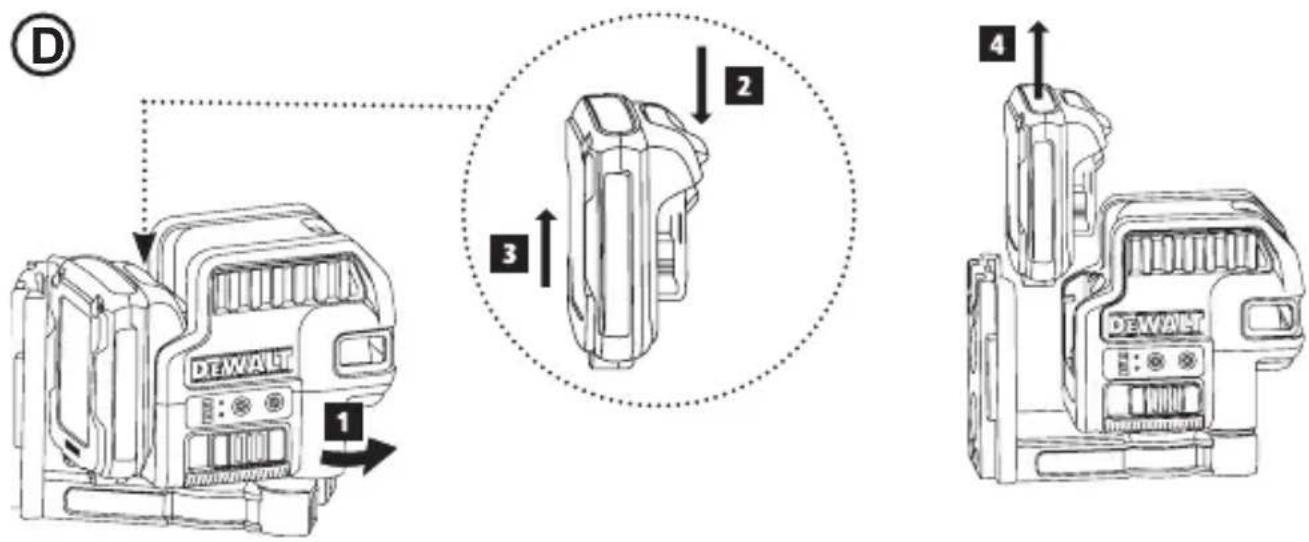

1. If the 10.8V Li-ion battery pack is attached to the laser, remove it (Figure D).

- Rotate the laser so it is easier to access the battery pack (Figure D #1).

- While pressing down on the release button on the battery pack (Figure D #2), pull the battery pack up to unlock it from the laser (Figure D #3).

- Pull the battery pack the rest of the way up and out of the laser (Figure D #4).

1. Plug the charger cord into an electrical outlet.
2. Slide the battery pack into the charger until it snaps in place (Figure F #1). On the charger, the left indicator light will flash to let you know the battery is being charged (Figure F #2).
3. After the battery is fully-charged (the indicator light on the charger no longer flashes), press and hold the release button on the battery pack (Figure F #3) and slide the pack out of the charger (Figure F #4).
4. Slide the battery pack down in the laser until it snaps in place (Figure F #5).

Installing New AA Batteries

CAUTION:

The AA Starter Pack is designed specifically for use with DeWALT 10.8V compatible laser products and cannot be used with any other tools. Do not attempt to modify the product.

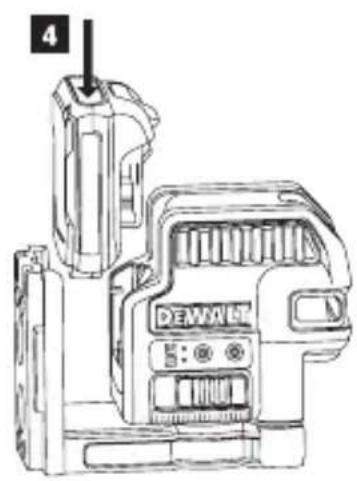

1. If the AA Starter Pack is attached to the laser, remove it (Figure D).

2. Rotate the laser so it is easier to access the Starter Pack (Figure D #1).

3. While pressing down on the release button on the Starter Pack (Figure D #2), pull the Starter Pack up to unlock it from the laser (Figure D #3).
4. Pull the Starter Pack the rest of the way up and out of the laser (Figure D #4).

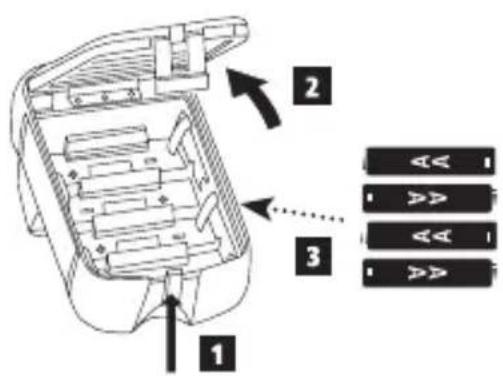

5. On the AA Starter Pack, lift up the latch to open the battery compartment cover (Figure E #1 and #2).

6. Insert four new, high-quality, name brand AA batteries, making sure to position the - and + ends of each battery as noted inside the battery compartment (Figure E #3).

7. Push the battery compartment cover down until it snaps in place.

8. Slide the Starter Pack down in the laser until it snaps in place (Figure E #4).

Viewing the Battery Meter on the Keypad

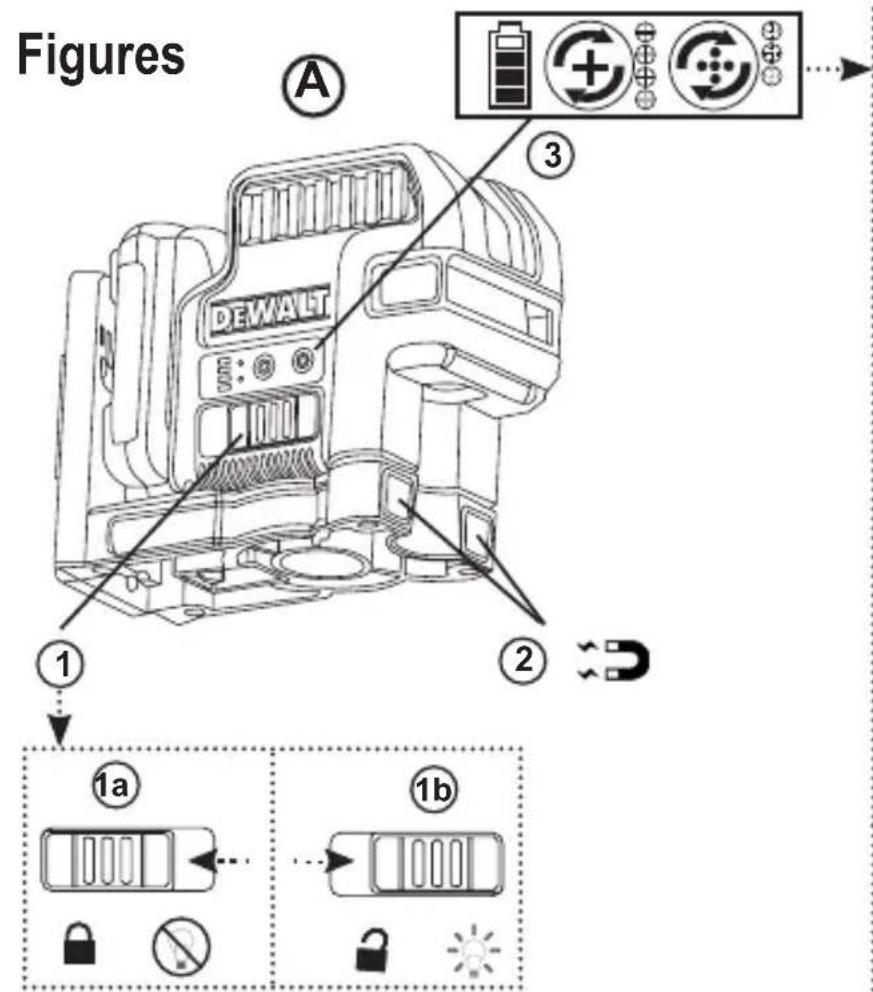

When the laser is ON, the battery meter on the keypad (Figure A #3) indicates how much power remains. Each of the four LEDs on the battery meter represents 25% of the power.

• The bottom LED will illuminate and flash when the battery level is low (below 12.5%). The laser may continue to operate for a short time while the battery power continues to drain, but the beam(s) will quickly dim.
• After fresh batteries are installed in the AA Starter Pack, or the 10.8V Li-ion battery is charged, and the laser is turned ON again, the laser beam(s) will return to full brightness and the battery indicator level will indicate full capacity.
• If all 4 LEDs on the battery meter remain ON, this indicates that the laser is not fully powered OFF. When the laser is not in use, make sure the Power/Transport Lock switch is placed to the LEFT to the Locked/OFF position (Figure A #1a).

Turning the Laser On

1. Place the laser on a smooth, flat surface.
2. Slide the Power/Transport Lock switch to the right to the Unlocked/ON position (Figure A #1b).

3. Press each button on the keypad (Figure Ⓐ #3) to test each laser beam setting.

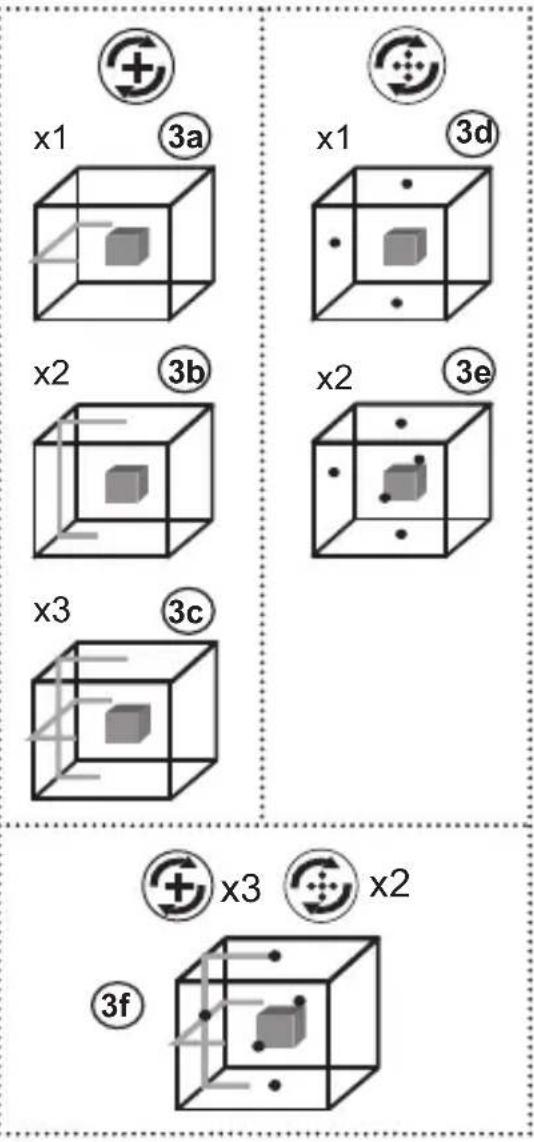

4. Press once to display a horizontal laser line (Figure A #3a), a second time to display a vertical laser line (Figure A #3b), a third time to display a horizontal line and a vertical line (Figure A #3c), and a fourth time to stop displaying laser lines.

5. Press once to display dots above, ahead, and below the laser (Figure A #3d), a second time to display two additional dots from either side of the laser (Figure A #3e), and a third time to stop displaying dots.
6. You can use and together to display laser dots and lines. For example, if you press three times and twice, the laser will display cross lines and five dots (Figure A #3f).

GB

1. Check the laser beams. The laser is designed to self-level. If the laser is tilted so much that it cannot self-level ( > 4^ ), the laser beam will flash.

2. If the laser is tilted between 4^ and 10^ , the beams will flash constantly.

3. If the laser is tilted greater than 10^ , the beams will continually flash 3 times.

4. If the laser beams flash, the laser is not level (or plumb) and should NOT BE USED for determining or marking level or plumb. Try repositioning the laser on a level surface.

5. If ANY of the following statements are TRUE, continue with the instructions for Checking Laser Accuracy BEFORE USING THE LASER for a project.

- This is the first time you are using the laser (in case the laser was exposed to extreme temperatures).

- The laser has not been checked for accuracy in a while.

• The laser may have been dropped.

Checking Laser Accuracy

The laser tools are sealed and calibrated at the factory. It is recommended that you perform an accuracy check prior to using the laser for the first time (in case the laser was exposed to extreme temperatures) and then regularly to ensure the accuracy of your work. When performing any of the accuracy checks listed in this manual, follow these guidelines:

• Use the largest area/distance possible, closest to the operating distance. The greater the area/distance, the easier to measure the accuracy of the laser.
• Place the laser on a smooth, flat, stable surface that is level in both directions.
  • Mark the center of the laser beam.

Horizontal Line Accuracy - Tilt

Checking the tilt of the laser's horizontal line requires a flat vertical surface at least 30' (9m) wide.

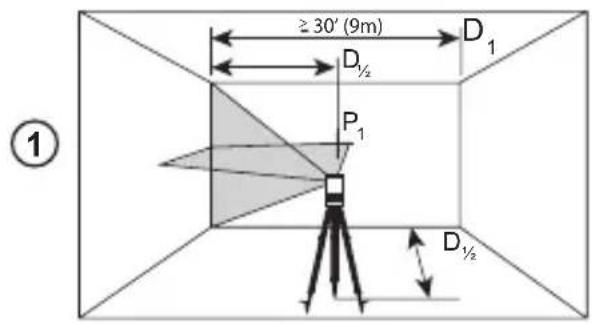

1. Place the laser as shown in Figure G #1 and turn the laser ON.
2. Press 3 times to display a horizontal line and a vertical line.

3. Aim the laser's vertical line at the first corner or reference point (Figure G #1).

4. Measure half the distance across the wall (D1/2) (Figure G #1).

5. Where the horizontal laser line crosses the halfway point (D1/2), mark point P1 (Figure G #1).

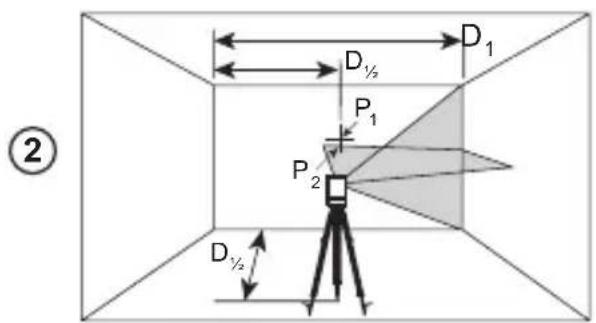

6. Rotate the laser to another corner or reference point (Figure G #2).
7. Where the horizontal laser line crosses the halfway point (D1/2), mark point P2 (Figure G #2).

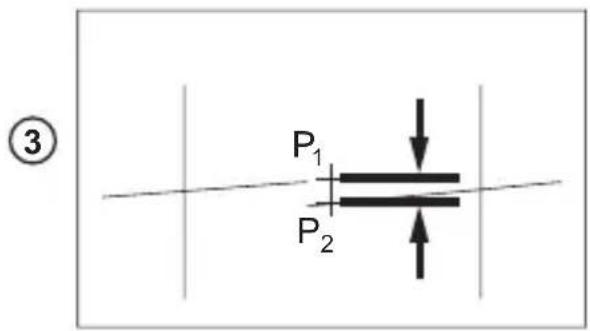

8. Measure the vertical distance between P1 and P2 (Figure G #3).
9. If your measurement is greater than the Allowable Distance Between P1 & P2 for the corresponding Distance (D1) in the following table, the laser must be serviced at an authorized service center.

Distance (D1) Allowable Distance Between P1 and P2

30' (9m) 7/32" (5.5mm)

40' (12m) 9/32" (7.2mm)

50' (15m) 11/32" (9mm)

Horizontal Line Accuracy - Level

Checking the level of the laser's horizontal line requires a flat vertical surface at least 30' (9m) wide.

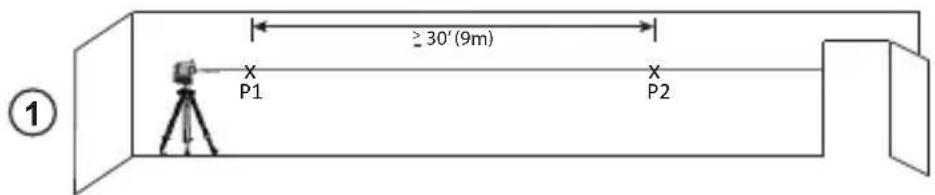

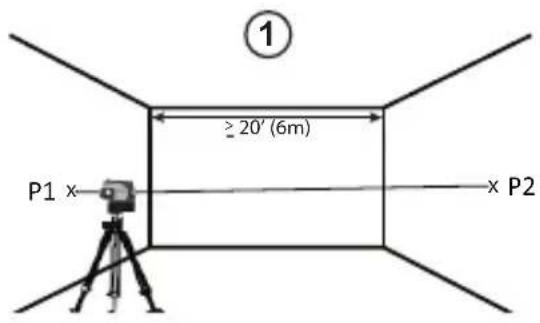

1. Place the laser at one end of the wall as shown in Figure H #1, and turn the laser ON.
2. Press ⬆ once to display a horizontal line.
3. Mark two points (P1 and P2) at least 30' (9m) apart along the length of the laser's horizontal line on the wall (Figure H #1).

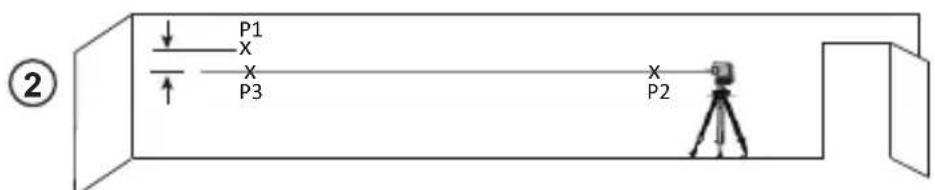

4. Relocate the laser at the other end of the wall and align the laser's horizontal line with point P2 (Figure H #2).
5. Mark point P3 on the laser line near point P1 (Figure H #2).

6. Measure the vertical distance between points P1 and P3 (Figure H #2).

7. If your measurement is greater than the Allowable Distance Between P1 & P3 for the corresponding Distance Between P1 & P2 in the following table, the laser must be serviced at an authorized service center.

Distance Between P1 & P2	Allowable Distance Between P1 and P3
30' (9m) 7/32" (5.5mm)
40' (12m) 9/32" (7.2mm)
50' (15m) 3/8" (9mm)

Vertical Line Accuracy - Plumb

Checking the plumb of the laser's vertical line.

1. Measure the height of a door jamb (or a reference point on the ceiling) to get height D1 (Figure ① #1).

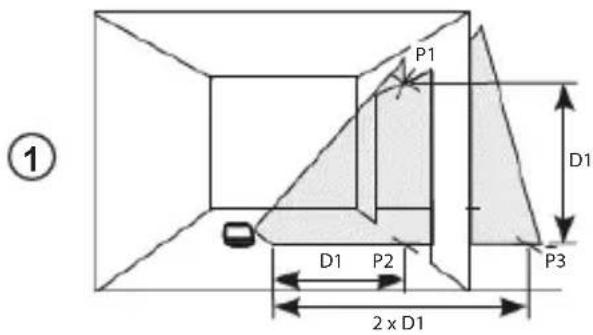

2. Place the laser as shown in Figure I #1 and turn the laser ON.
3. Press ⚠ twice to display a vertical line.
4. Aim the laser's vertical line toward the door jamb or the reference point on the ceiling (Figure ① #1).
5. Mark points P1, P2, and P3, as shown in Figure ① #1.
6. Move the laser to the opposite side of point P3 and aim the laser's vertical line toward point P2 (Figure ① #2).

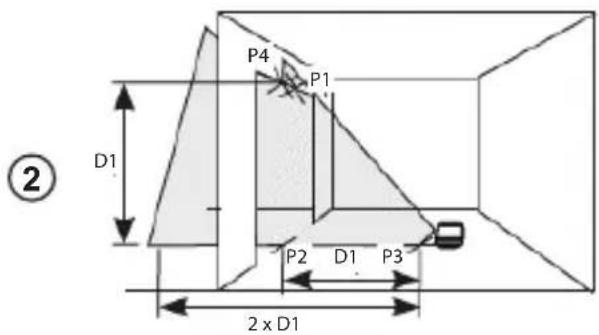

7. Align the vertical line with points P2 and P3, and mark point P4 (Figure ① #2).

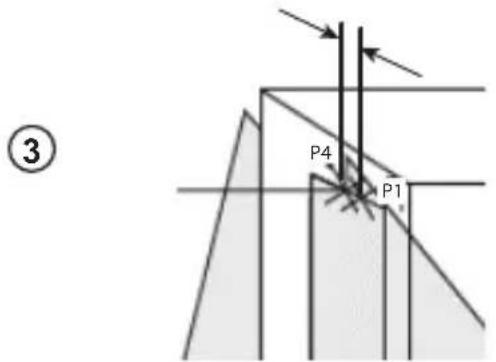

8. Measure the distance between P1 and P4 (Figure ① #3).
9. If your measurement is greater than the Allowable Distance Between P1 & P4 for the corresponding Vertical Distance (D1) in the following table, the laser must be serviced at an authorized service center.

Height of Vertical Distance (D1)	Allowable Distance Between P1 and P4
8' (2.5m) 1/16"	(1.5mm)
16' (5m) 1/8" (3	0mm)
20' (6m) 9/64"	(3.6mm)
30' (9m) 9/32"	(5.5mm)

Plumb Dot Accuracy

Checking the plumb calibration of the laser can be most accurately done when there is a substantial amount of vertical height available, ideally 25' (7.5 m), with one person on the floor positioning the laser and another person near a ceiling to mark the dot created by the beam on the ceiling.

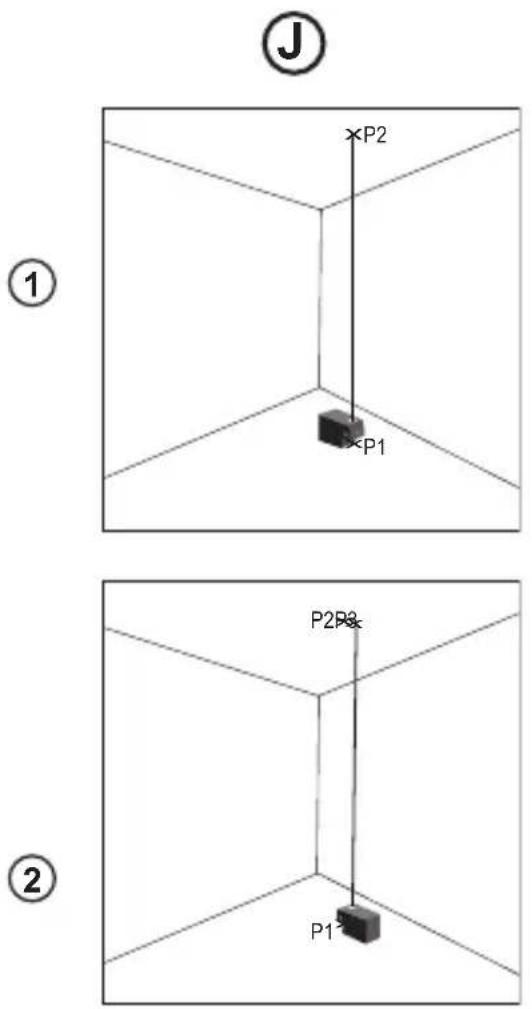

1. Mark point P1 on the floor (Figure Ⓙ #1).
2. Turn the laser ON and press ⚫ once to display dots above, ahead, and below the laser.
3. Place the laser so that the down dot is centered over point P1 and mark the center of the up dot on the ceiling as point P2 (Figure J #1).
4. Turn the laser 180^ , making sure that the down dot is still centered on point P1 on the floor (Figure J #2).
5. Mark the center of the up dot on the ceiling as point P3 (Figure Ⓙ #2).
6. Measure the distance between points P2 and P3.
7. If your measurement is greater than the Allowable Distance Between P2 & P3 for the corresponding Distance Between Ceiling & Floor in the following table, the laser must be serviced at an authorized service center.

Distance Between Ceiling & Floor	Allowable Distance Between P2 & P3
15' (4.5m) 7/64"(2.6mm)
20' (6m) 9/64" (3.3mm)
30' (9m) 7/32" (5.4mm)
40' (12m) 9/32" (7.2mm)

Level Dot Accuracy - Level

Checking the level calibration of the laser unit requires two parallel walls at least 20' (6 m) apart.

1. Turn the laser ON and press twice to display dots above, ahead, below, and to the right and left of the laser.
2. Place the laser 2"-3" (5-8 cm) from the first wall. To test the front laser dot, make sure the front of the laser is facing the wall (Figure K #1).
3. Mark the laser dot position on the first wall as point P1 (Figure K #1).
4. Turn the laser 180° and mark the laser dot position on the second wall as point P2 (Figure K #1).

GB

GB

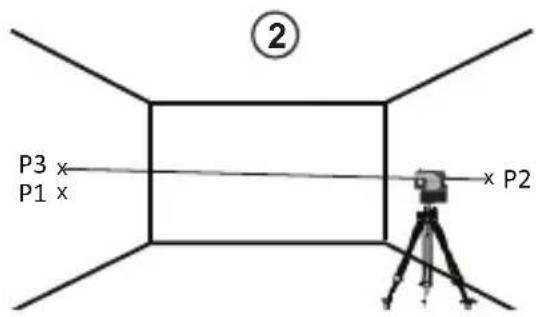

1. Place the laser 2"-3" (5-8 cm) from the second wall. To test the front laser dot, make sure the front of the laser is facing the wall (Figure K #2), and adjust the height of the laser until the laser dot hits point P2.
2. Turn the laser 180^ and aim the laser dot near point P1 on the first wall, and mark point P3 (Figure K #2).
3. Measure the vertical distance between points P1 and P3 on the first wall.
4. If your measurement is greater than the Allowable Distance Between P1 & P3 for the corresponding Distance Between Walls in the following table, the laser must be serviced at an authorized service center.

Distance Between Walls	Allowable Distance Between P1 & P3
20' (6.0m) 9/64" (3	6mm)
30' (9.0m) 7/32" (5	4mm)
50' (15.0m) 11/32"	9mm)
75' (23.0m) 9/16" (1	3.8mm)

1. Repeat steps 2 through 8 to check the accuracy of the right dot and then the left dot, making sure that the laser dot you are testing is the laser dot facing each wall.

Level Dot Accuracy - Square

Checking the level calibration of the laser unit requires a room at least 35' (10m) long. All marks can be made on the floor by placing a target in front of the level or square beam and transferring the location to the floor.

NOTE: To ensure accuracy, the distance (D1) from P1 to P2, P2 to P3, P2 to P4, and P2 to P5 should be equal.

1. Mark point P1 on the floor at one end of the room, as shown in Figure ⑤ #1.
2. Turn the laser ON and press ⚫ once to display dots above, ahead, and below the laser.
3. Place the laser so that the down dot is centered over point P1 and make sure the front dot points toward the far end of the room (Figure L #1).
4. Using a target to transfer the front level dot location on the wall to the floor, mark point P2 on the floor and then point P3 on the floor (Figure L #1).

5. Move the laser to point P2 and align the front level dot to point P3 again (Figure L #2).

6. Using a target to transfer the front level dot location on the wall to the floor, mark the location of two square beams as points P4 and P5 on the floor (Figure L#2).

7. Turn the laser 90° so the front level dot aligns to point P4 (Figure L #3).
8. Mark the location of the first square beam as point P6 on the floor as close as possible to point P1 (Figure L #3).
9. Measure the distance between points P1 and P6 (Figure L #3).
10. If your measurement is greater than the Allowable Distance Between P1 & P6 for the corresponding Distance (D1) in the following table, the laser must be serviced at an authorized service center.

Distance (D1)	Allowable Distance Between P1 & P6
25' (7.5m) 3/32" (2.2mm)
30' (9m) 7/64" (2.7mm)
50' (15m) 3/16"(4.5mm)

1. Turn the laser 180^ so the front level dot aligns to point P5 (Figure L #4).
2. Mark the location of the second square beam as point P7 on the floor as close as possible to point P1 (Figure ⑤ #4).
3. Measure the distance between points P1 and P7 (Figure L #4).
4. If your measurement is greater than the Allowable Distance Between P1 & P7 for the corresponding Distance (D1) in the following table, the laser must be serviced at an authorized service center.

Distance (D1)	Allowable Distance Between P1 & P7
25' (7.5m) 3/32" (2.2mm)
30' (9m) 7/64" (2.7mm)
50' (15m) 3/16"(4.5mm)

Using the Laser

Operating Tips

• Always mark the center of the beam created by the laser.
- Extreme temperature changes may cause movement of internal parts that can affect accuracy. Check your accuracy often while working.
- If the laser is ever dropped, check to make sure it is still calibrated.
- As long as the laser is properly calibrated, the laser is self-leveling. Each laser is calibrated at the factory to find level as long as it is positioned on a flat surface within average ± 4^ of level. No manual adjustments are required.

Turning the Laser Off

Slide the Power/Transport Lock switch to the OFF/Locked position (Figure A #1a) when the laser is not in use. If the switch is not placed in the Locked position, all 4 LEDs will remain lit on the Battery Meter on the keypad (A #3).

Using the Pivot Bracket

The laser has a magnetic pivot bracket (Figure B) #3, Figure D#1) permanently attached to the unit.

WARNING:

Position the laser and/or wall mount on a stable surface. Serious personal injury or damage to the laser may result if the laser falls.

• The bracket has magnets (Figure B #2) which allow the unit to be mounted to most upright surfaces made of steel or iron. Common examples of suitable surfaces include steel framing studs, steel door frames, and structural steel beams.
• The bracket has a keyhole slot (Figure B #1) so it can be hung from a nail or screw on any kind of surface.

Using the Laser with Accessories

WARNING:

Since accessories other than those offered by DeWALT have not been tested with this laser, use of such accessories with this laser could be hazardous.

Only use DeWALT accessories that are recommended for use with this model. Accessories that may be suitable for one laser may create a risk of injury when used with another laser.

The bottom of the laser is equipped with 1/4-20 and 5/8-11 female threads (Figure ©) to accommodate current or future DeWALT accessories. Only use DeWALT accessories specified for use with this laser. Follow the directions included with the accessory.

Recommended accessories for use with this laser are available at extra cost from your local dealer or authorized service center. If you need assistance locating any accessory, please contact your nearest DeWALT service center or visit our website: http://www.dewalt.eu.

Using the Laser with the Ceiling Bracket

The laser ceiling bracket (if included) offers more mounting options for the laser. The ceiling mount has a clamp at one end which can be fixed to a wall angle for acoustic ceiling installation. At each end of the ceiling mount is a screw hole to allow it to be hung from a nail or screw on any kind of surface.

Once the ceiling mount is secured, its steel plate provides a surface to which the magnetic pivot bracket can be attached. The position of the laser can then be fine-tuned by sliding the magnetic pivot bracket up or down on the wall mount.

Maintenance

• When the laser is not in use, clean the exterior parts with a damp cloth, wipe the laser with a soft dry cloth to make sure it is dry, and then store the laser in the kit box provided.
• Although the laser exterior is solvent resistant, NEVER use solvents to clean the laser.
• Do not store the laser at temperatures below -20 °C (-5 °F) or above 60 °C (140 °F).
• To maintain the accuracy of your work, check the laser often to make sure it is properly calibrated.
• Calibration checks and other maintenance repairs may be performed by DeWALT service centers.

GB

Troubleshooting

The Laser Does Not Turn On

• If AA batteries are being used, make sure:
• Each battery is installed correctly, according to (+) and (−) listed inside the battery compartment.
• The battery contacts are clean and free of rust or corrosion.
• The batteries are new, high-quality, name brand batteries to reduce the chance of battery leakage.
• Make sure the AA batteries or Li-ion rechargeable pack are in proper working condition. If in doubt, try installing new batteries.
• Be sure to keep the laser dry.
• If the laser unit is heated above 50 °C (120 °F), the unit will not turn ON. If the laser has been stored in extremely hot temperatures, allow it to cool. The laser level will not be damaged by using the Power/Transport Lock switch before cooling to its proper operating temperature.

The Laser Beams Flash

The lasers are designed to self-level up to an average of 4^ in all directions. If the laser is tilted so much that the internal mechanism cannot level itself, the laser beams will flash indicating that the tilt range has been exceeded. THE FLASHING BEAMS CREATED BY THE LASER ARE NOT LEVEL OR PLUMB AND SHOULD NOT BE USED FOR DETERMINING OR MARKING LEVEL OR PLUMB. Try repositioning the laser on a more level surface.

The Laser Beams Will Not Stop Moving

The laser is a precision instrument. Therefore, if it is not positioned on a stable (and motionless) surface, the laser will continue to try to find level. If the beam will not stop moving, try placing the laser on a more stable surface. Also, try to make sure that the surface is relatively flat, so that the laser is stable.

Service and Repairs

Note: Disassembling the laser level will void all warranties on the product.

To assure product SAFETY and RELIABILITY, repairs, maintenance and adjustment should be performed by authorized service centers. Service or maintenance performed by unqualified personnel may result in a risk of injury. To locate your nearest DeWALT service center, go to http://www.dewalt.eu.

Specifications

GB

	DCE0825R DCE0825G
Light Source Laser diodes
Laser Wavelength 630 – 680 nm visible 510 – 530 nm	visible
Laser Power ≤1.0 mW CLASS 2 LASER PRODUCT
Working Range 15 m (50')	50 m (165') with Detector	30 m (100')50 m (165') with Detector
Accuracy - all lines and dots, except down dot ±3 mm per 10 m (±1/8" per 33')
Accuracy - down dot ±4 mm per 10 m (±5/32" per 33')
Power Source 4 AA (1.5V) size batteries (6V DC)	or 10.8V DeWALT Battery Pack
Operating Temperature -10°C to 50°C (14°F to 122°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Environmental Water & Dust Resistant to IP65
Detector DW0892 DW0892-G

Inhalt

D

DEWALT DCE0825R TYPE: W - 12 V DGE Laser 2 1.1 mm x 100% E1 100% 100% SER.

DEWALT DCE04250 TYPE 1: W-12 WDE www.20000000.com www.20000000.com Laser 2 2 Part 1 Certification No. 1986/1987 1986

DEWALT DE Kuwait TYPE 1: kW · 12 VDC PM Laser 2 SER.

DEWALT DCE0415G TYPE 1: W-12 V DE www.26887.com www.26887.com LASER 2

your 100% of the

your 100% of the

#

DEWALT DCE0425R TYPE 1: HV, 12 VDC 733 SER. LASER 2 F-2008 19% 100% BEI 1400A 1.27% SER.

Distanza tra le pareti Distanza ammissibile tra P1 e P3
6,0 m (20')	3,6mm (9/64")
9,0 m (30')	5,4mm (7/32")
15,0 m (50')	9mm (11/32")
23,0 m (75')	13,8mm (9/16")

Distância entre as paredes	Distância permissível entre P1 e P3
6,0 m 3,6 mm
9,0 m 5,4mm
15,0 m 9 mm
23,0 m 13,8 mm

DEWALT DCE04150 TYPE 1: MV-12 WDE ... Laser 2 C - 100% 100% Not specified. 10% SBR

DEWALT DCORI25R TYPE 11 W·12 VDC 10 www.268.com www.268.com Laser 2 SER.

DEWALT DCE0825G TYPE 1: W-13 VDC 77 www.dewalt.com LASER 2 or part of the company for WeChat.com RCL

DEWALT DCE0825R TYPE 1: NO. 12 W DC = SER. LASER 2 C:\Program Files\DeWALT\DeWALT\Program Files\DeWALT\DeWALT\Program Files\DeWALT\DeWALT\Program Files\DeWALT\DeWALT\Program Files\DeWALT\DeWALT\Program Files\DeWALT\DeWALT\Program Files\DeWALT\DeWALT\Program Files\DeWALT\DeWALT\Program Files\DeWALT\DeWALT\Program Files\DeWALT\DeWALT\Pr www.dewalt.com www.dewalt.com Back to Date SER.

20' (6,0m) 9/64" (3,6mm)

30' (9,0m) 7/32" (5,4mm)

50' (15,0m) 11/32" (9mm)

75' (23,0m) 9/16" (13,8mm)

25' (7,5m) 3/32" (2,2mm)

30' (9m) 7/64" (2,7mm)

50' (15m) 3/16"(4,5mm)

DEWALT DCE0425G TYPE 1: W-12 N D6 www.200837.com www.200837.com Laser 2 2 joint & thickness Ris attached to 10x

DEWALT DEMONITOR TYPE: 11 W - 12 VDC mm Laser 2 SALAWA SALAWA SALAWA SALAWA SALAWA SALAWA SALAWA SALAWA SALAWA SALAWA SALAWA SALAWA SALAWA SALAWA SALAWA SALAWA SALAWA SALAWA SALAWA SALAWA SALAWB SALAWB SALAWB SALAWB SALAWB SALAWB SALAWB SALAWB SALAWB SALAWB SALAWB SALAWB SALAWB SALAWB SALAWB SALAWB SALAWB SALAWB SALAWB SALAWB SALAWBC SALAWBC SALAWBC SALAWBC SALAWBC SALAWBC SALAWBC SALAWBC SALAWBC SALAWBC SALAWBC SALAWBC SALAWBC SALAWBC SALAWBC SALAWBC SALAWBC SALAWBC SALAWBC SALAWBC SALAWB SALAWBC SALAWBC SALAWBC SALAWBC SALAWBC SALAWBC SALAWBC SALAWBC SALAWBC SALAWBC SALAWBC SALAWBC SALAWBC SALAWBC SALAWBC SALAWBC SALAWBC SALAWBC SALAWB SALAWB SALAWB SALAWB SALAWB SALAWB SALAWB SALAWBC

DEWALT Industrial Tool Co.,

DCE0825R, DCE0825G

N498957 Jan. 2017

Copyright © 2017 DEWALT

http://www.DEWALT.eu
