en Operating instructions 3
de Gebrauchsanweisung 19
fr Mode d'emploi 36
es Instrucciones de funcionamiento ..... 53
pt Manual de utilização 70
nl Gebruiksaanwijzing 87
tr Kullanma Kilavuzu 104

BOSCH

Safety precautions....5

Your new appliance 7

Burners 8

Switching on manually 8

Switching on automatically 8

Safety system 9

Switching off a burner 9

Power levels 9

Main Switch / Hob lock. 10

Warnings 10

Suitable pans 11

Wok pan 11

Accessories 12

Additional wok pan support.....12

Additional coffee maker support. 12

Cooking recommendations. 12

Operating the electric hob with double hotplate 13

Switching on and off 13

Suggestions 14

Precautions for use. 15

Cleaning and maintenance 16

Cleaning 16

Unsuitable products 16

Maintenance 17

Faults 17

Technical Assistance Service ..... 18

Warranty conditions ..... 18

Used appliances and packaging.....18

Environmentally-friendly waste management . . 18

Dear customer,

Congratulations on your choice and thank you for purchasing one of our appliances. This practical, modern and functional appliance is manufactured using materials of the highest quality which are subject to strict quality control checks throughout the entire manufacturing process. The appliance is meticulously tested to ensure that it meets your demands and produces perfect cooking results.

Do not remove the appliance from its protective packaging until it is installed in the unit.

Please read these instructions carefully before proceeding to install and use the appliance. The information contained in these instructions is essential for the correct operation of the appliance and, more importantly, for your safety.

The packaging of your appliance has been manufactured using only the materials which are strictly necessary to guarantee efficient protection during transport.

These materials are 100% recyclable, thus reducing the environmental impact. You can also contribute to caring for the environment, by following the advice below:

• dispose of the packaging in the appropriate recycling bin
• before you get rid of an old appliance, make sure you disable it. Contact your local authority to find out the address of your nearest recycling centre to dispose of your appliance
• do not pour used oil down the sink. Collect it in a sealed container and take it to an appropriate collection point or, failing that, place it in the rubbish bin (it will end up in a controlled dump; this is probably not the best option, but it will avoid contaminating ground water).

IMPORTANT:

In the unlikely event that the appliance should be damaged or not meet your expectations in terms of quality, please inform us as soon as possible. For the warranty to be valid, the appliance must not have been tampered with, or used inappropriately

Safety precautions

Read these instructions carefully. Reading these instructions will enable you to use your appliance safely and effectively. Keep the operation and installation instructions and provide them along with the appliance if it is passed on to another user.

The manufacturer is exempt from all responsibility if the requirements of this manual are not complied with.

The images shown in these instructions are for guidance only.

Do not remove the appliance from its protective packaging until it is installed in the unit.

Do not switch on the appliance if it is damaged in any way. Contact our Technical Assistance Service.

This appliance is class 3 type, according to the EN 30-1-1 regulation for gas appliances: built-in appliance.

This appliance must only be used in well ventilated places.

All operations relating to installation, connection, regulation and conversion to other gas types must be carried out by an authorised installation engineer, respecting all applicable regulations, standards and the specifications of the local gas and electricity suppliers. Special attention shall be paid to ventilation regulations.

It is recommended you contact the Technical Assistance Service to change to another gas type.

Before installing your new hob, ensure that it is being installed according to the assembly instructions.

This appliance leaves the factory set to the type of gas that is indicated on the specifications plate. If this needs to be changed, please consult the assembly instructions.

This appliance has been designed for home use only, not for commercial or professional use. This appliance cannot be installed on yachts or in caravans. The warranty will only be valid if the appliance is used for the purpose for which it was designed.

This appliance is only intended for cooking purposes, not as a heating system.

This appliance is not intended for operation with an external clock timer or a remote control.

Never leave the appliance unattended during operation.

This appliance may be used by children 8 years old and older and by persons with reduced physical, sensory or mental capacity or a lack of experience or knowledge if they are supervised or they have been instructed about

the safe use of the appliance and have understood the associated dangers.

Never let children play with the appliance. Cleaning and user maintenance must not be carried out by unsupervised children.

Accumulation of unburned gas in an enclosed area carries a risk of deflagration. Carefully read the instructions and warnings on the operation of gas burners.

The hotplates and surrounding area become very hot. Never touch the hot surfaces. Children under 8 years old must be kept at a safe distance from the appliance.

The hotplates become very hot. Never place combustible items on the hob. Never place objects on the hob.

Do not store or use corrosive chemicals, steamers, inflammable materials or non-food products below or near this domestic appliance.

Fat or oil which is overheated can catch fire easily. Do not leave oil or fats to heat up unattended. If oil or fats do catch fire, never use water to put the fire out. Risk of burns! Put the fire out by covering the pan with a lid and switch off the hotplate.

Pans which are damaged, are not the right size, hang over the edge of the hob or are not positioned correctly can cause serious injuries. Follow the advice and warnings provided relating to the cooking pans.

The kitchen will become hot and humid and combustion products produced when this gas appliance is used. Make sure the kitchen is well ventilated, particularly when the hob is in use: either keep the natural ventilation apertures open, or install a ventilation system (extractor hood). Intense prolonged use of the appliance may require additional or more effective ventilation: open a window or increase the power of the ventilation system.

Do not subject the appliance to draughts. These might blow out the burners.

Do not clean the hob using a steam cleaner. Risk of electrocution!

In the event of a malfunction, turn off the appliance's gas and electricity supply. For repairs, call our Technical Assistance Service.

Do not tamper with the appliance's interior. If necessary, call our Technical Assistance Service.

If one of the control knobs will not turn, do not force it. Call the Technical Assistance Service immediately, so that they can repair or replace it.

Cracks or fractures in the glass may cause electric shocks. Switch off the circuit breaker in the fuse box. Contact the after-sales service.

Your new appliance

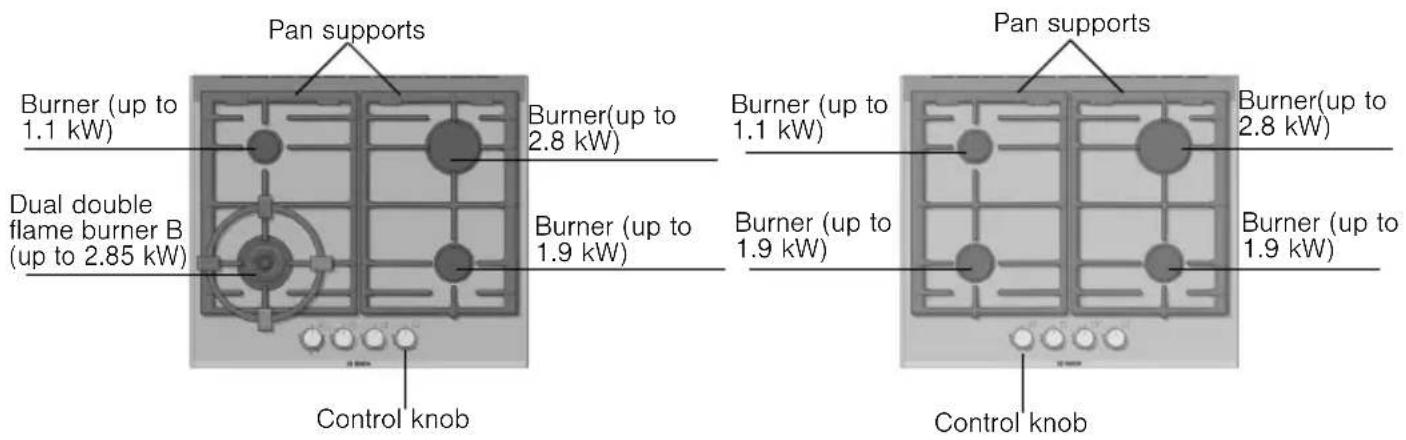

Pan supports Burner (up to 1.1 kW) Dual double flame burner B (up to 2.85 kW) Control knob Pan supports Burner (up to 2.8 kW) Burner (up to 1.9 kW) Control knob Burner (up to 1.1 kW) Burner (up to 1.9 kW) Pan supports Burner (up to 2.8 kW) Burner (up to 1.9 kW)

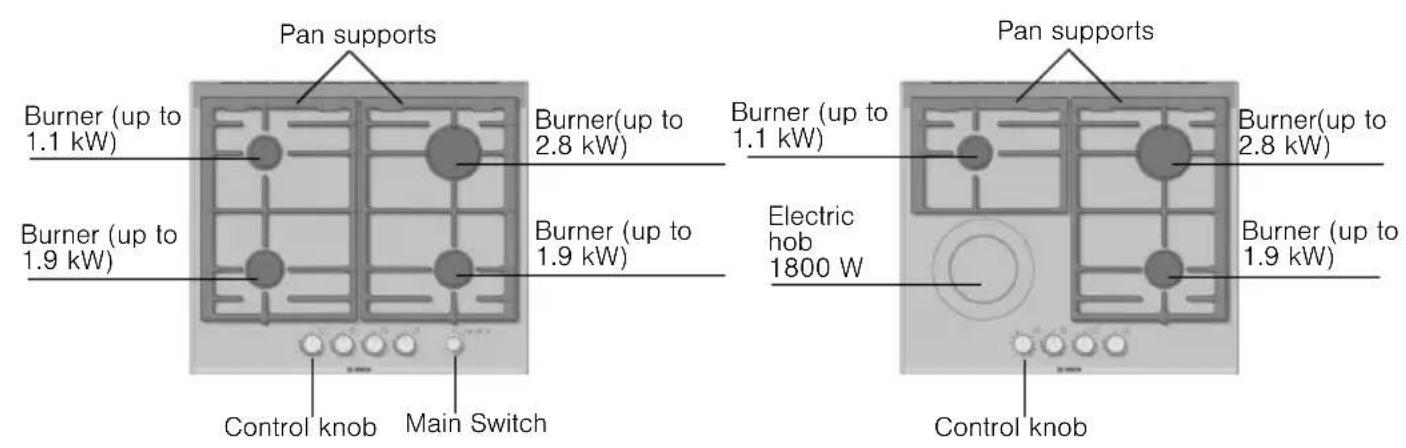

Pan supports Burner (up to 1.1 kW) Burner (up to 1.9 kW) Main Switch Control knob Pan supports Burner (up to 2.8 kW) Burner (up to 1.9 kW) Electric hob 1800 W Control knob Burner (up to 1.1 kW) Burner (up to 2.8 kW) Burner (up to 1.9 kW)

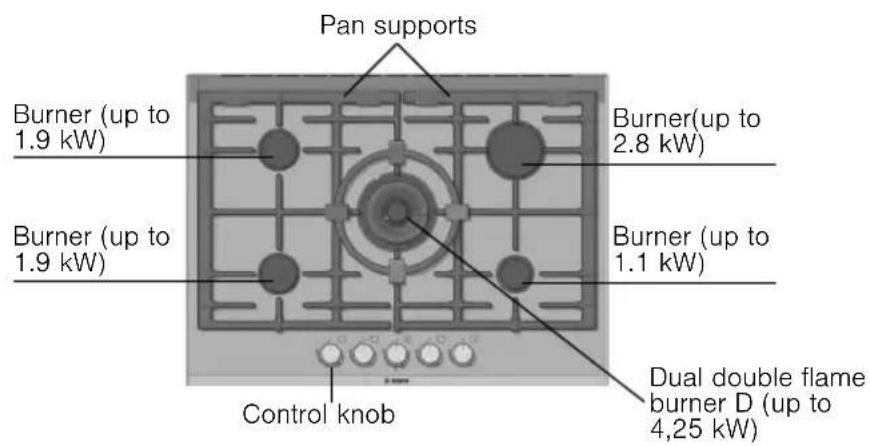

Pan supports Burner (up to 1.9 kW) Burner (up to 1.9 kW) Burner (up to 1.1 kW) Control knob Dual double flame burner D (up to 4,25 kW)

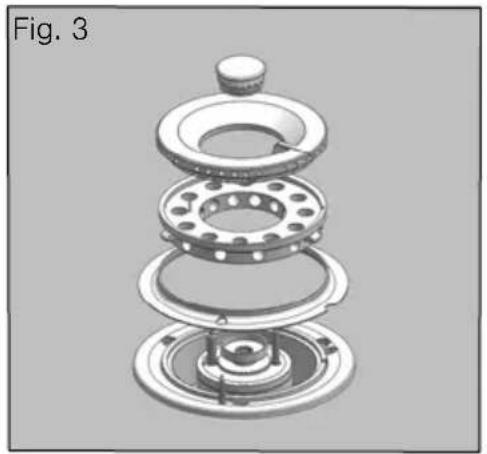

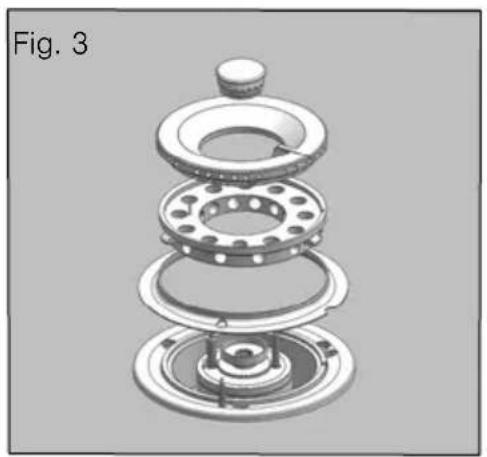

Gas burners Operation

Simple diagram of a dial with a pointer and control knob, labeled 'Fig. 1' (no text or symbols on the dial itself)

Diagram of a mechanical device with a rotating component and a curved arrow indicating motion (no text or symbols)

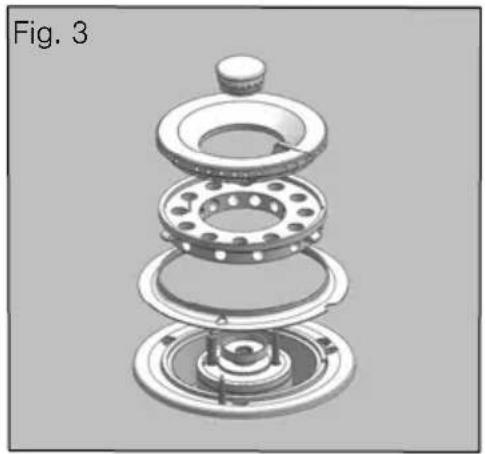

Exploded view diagram of a mechanical assembly (no text or symbols)

Switching on manually

Switching on automatically

There are indications to show which burner each control knob operates. Fig. 1.

It is essential to ensure that all the burner parts and pan supports are correctly installed for the appliance to work correctly. Fig. 2-3-4.

Fig. 4

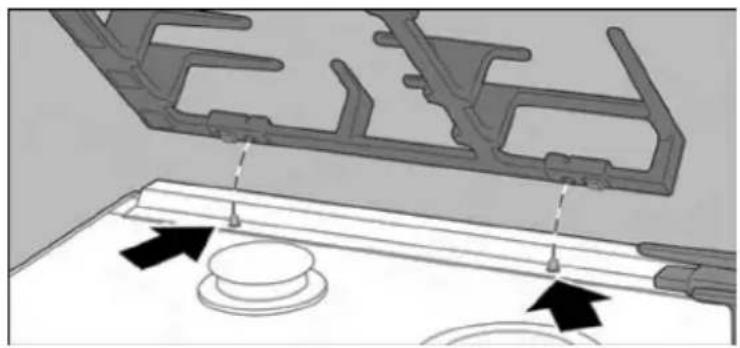

Technical diagram showing mechanical components with arrows indicating movement or force (no text or symbols present)

1. Press the chosen burner control knob and turn it anticlockwise to the required setting.
2. Use any type of lighter or flame (cigarette lighter, matches, etc.) and bring it close to the burner.

If your hob can be switched on automatically (ignition sparkers):

1. Press the chosen burner control knob and turn it anticlockwise to the maximum power setting. While the control knob is still pressed down, sparks are produced on all burners. The flame ignites (it is no longer necessary to press down the control knob).
2. Turn the control knob to the required setting.

If it does not come on, turn the control knob to the off setting and repeat the steps above. This time, press and hold the control knob for longer (up to 10 seconds).

Safety system

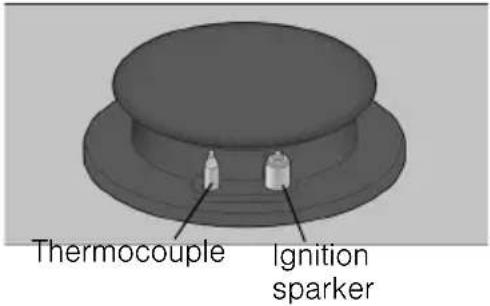

Thermocouple Ignition sparker

Switching off a burner

Power levels

Setting Control knob

off

High flame

Maximum capacity or aperture and electricity on

Low flame

Minimum capacity or aperture

Close-up of a circular mechanical knob or dial with four terminals (labeled 1, 2, 3, 4) and a central pointer (no text or symbols beyond labels)

Two technical diagrams showing mechanical components with no visible text or symbols

Technical illustration of a mechanical component with two views: top shows a circular ring with central hub, bottom shows a circular dial with mounting holes (no text or symbols)

Warning! If after 15 seconds the flame does not ignite, switch off the burner and open a nearby window or door. Wait at least one minute before trying to switch the burner on.

Depending on the model, your hob may have a safety system (thermocouple) that prevents the flow of gas if the burners accidentally switch off. To ensure that this device is active, switch on the burner as usual and, without releasing the control knob, press and hold it down firmly for 4 seconds after lighting the flame.

Turn the corresponding control knob clockwise to the 0 setting.

The progressive control knobs can be used to control the power needed, from minimum to maximum power.

For dual double-flame burners, the inner and outer flames can be controlled separately.

The available power levels are as follows:

Inner and outer flame on full power.

Outer flame on minimum, inner flame on full power.

Technical illustration of a mechanical component with two views: top shows a circular housing with internal gear-like structure, bottom shows a circular dial with mounting holes (no text or symbols)

Technical illustration of a mechanical component with two views: top shows a circular housing with evenly spaced holes, bottom shows a circular dial with central hub and mounting holes (no text or symbols)

Inner flame on full power.

Inner flame on minimum power.

Main switch/Hob lock

Simple illustration of a cylinder on a base with a flame symbol nearby (no text or labels)

The hob may have a main switch to cut off the main gas supply and switch off all the burners at the same time. This switch is very practical if there are children in the house, or, if for any reason, all the burners must be switched off quickly.

Simple diagram showing a cylinder on a base with arrows indicating downward motion and a flame symbol nearby (no text or labels)

To lock the hob:

1. Press the main switch.

This switches off all the burners which are on. The hob is locked.

A B

To unlock the hob:

1. Turn all the control knobs to the "off" position.

2. Press the main switch and turn it fully clockwise. The mains gas supply is turned on.

You can now use your hob normally.

Warnings

It is normal to hear a slight whistling noise while the burner is operating.

When it is first used, it is normal for the burner to give off odours; this does not pose any risk and does not indicate a malfunction; they will disappear in time.

A few seconds after the burner is switched off, a sound (thud) will be produced. This is not a fault - this means that the safety device is no longer operating.

Keep the burner as clean as possible. If the ignition sparkers are dirty they will not light properly. Clean them periodically using a small non-wire brush. Bear in mind

that the ignition sparkers must not suffer any serious impacts.

An orange-coloured flame is normal. This is caused by the presence of dust in the atmosphere, spilt liquids, etc.

If the burner flames are accidentally blown out, switch off the burner operating control knob and do not try to relight it for at least one minute.

Suitable pans

Illustration of four stainless steel cooking pots and a frying pan (no text or symbols)

Burner Minimum pan diameter	Maximum pan diameter
Double flame burner 22 cm
Double flame burner B 22 cm
Double flame burner D 22 cm
Rapid burner 22 cm 26 cm
Semi-rapid burner 14 cm 20 cm
Auxiliary burner 12 cm 16 cm
Electric hob 18 cm

Wok pan A wok is a cooking vessel originating in China; it is a kind

Illustration of a stainless steel cooking pot with lid and two side handles (no text or symbols)

of deep, round, lightweight pan with handles and a flat or concave base.

Food can be prepared in various ways in a wok: it can be stewed, stir fried, cooked on a low heat, pan-fried or steamed. It could be said that woks serve as both as a saucepan and a frying pan and, owing to their shape and size, they can be used to cook quite large ingredients. When cooking with a wok, heat is diffused more uniformly and gently; the intense heat which accumulates means that food takes less time to cook and also requires less oil, making it one of the quickest and healthiest ways of cooking.

Always follow the manufacturer's instructions when cooking with a wok pan.

Accessories

Additional wok pan support

3D illustration of a frying pan above a grid with circular elements, no text or symbols present

Additional coffee maker support

3D architectural layout diagram with a kettle and grid-like structure (no text or symbols)

Depending on the model, the hob may include the following accessories. These are also available from the Technical Assistance Service.

Only for use on the double flame burner with pans which are more than 26 cm in diameter (roasting dishes, earthenware pots, etc.) and with pans with a concave base.

Only for use on the auxiliary burner with pans which are no more than 12 cm in diameter.

The manufacturer accepts no liability if these additional pan supports are not used or are used incorrectly.

Cooking recommendations

Burner Very high, high Medium Low
Double flame burner	Boiling, steaming, griddling, toasting, paellas, Asian food (wok).	Reheating and keeping things hot: cooked and pre-cooked dishes.
Rapid burner Escalopes, steaks, omelettes, frying.		Rice, white sauce and ragout.	Steaming: fish, vegetables.
Semi-rapid burner	Steamed potatoes, fresh vegetables, stews, pasta.	Reheating and keeping things hot: pre-cooked dishes and delicate casseroles.
Auxiliary burner Cooking: casseroles, rice pudding and caramels.		Defrosting and slow cooking: vegetables, fruits and frozen products.	Melting: butter, chocolate, gelatine.

Operating the electric hob with double hotplate

Models equipped with a ceramic hob are dual circuit hobs and therefore include two hotplates, a central 700 W hotplate and another complete 1800 W hotplate, if your appliance operates on 230 V.

Switching on and off

Switching on The small hotplate (central hotplate), is switched on by

Fig. 5

9 8- 7- 6- 5 4 3 2 1 0

Fig. 5a

a 9 8- 7- 6- 5 4 3 2 1 0

turning the control clockwise to setting 0 to unlock it, after which the control can be positioned to any of the settings marked from 1 to 9. Fig. 5:

Setting 1: low power.

Setting 9: full power.

If you also want to use the extendable hotplate, the control must be turned beyond setting 9 (Fig. 5a) and then positioned to setting 9 (maximum heat setting) or set to any other intermediate setting for lower heat levels. To use the small hotplate again, turn the control anticlockwise to setting 0, and switch on again.

Switching off The residual heat/operating indicator light will go out once the surface of the hob has cooled down.

Note It is recommended to start cooking on full power and then

to use the intermediate settings after a few minutes.

Do not allow liquids to be spilt on the surface of the electric hob.

Do not cook with wet pans.

Residual heat The electric hob can be switched off slightly before the

end of the cooking time. The residual heat will enable you to continue cooking for several minutes, thus saving energy.

Suggestions

	Hob with 9 settings
Melting: chocolate, butter, gelatine 1-2
Cooking: rice, white sauce and ragout 2-3
Cooking: potatoes, pasta, vegetables 4-5
Searing: stews, roast joints 4-5
Steaming: fish 5
Heating, warming: ready meals 2-3-4-5
Grilling: escalopes, steaks, omelettes 6-7-8
Cooking and browning 9

These suggested settings are intended as a guide only. The power must be increased for:

• large quantities of liquid
• large quantities of food
• cooking using pans without lids

Precautions for use

The following advice is intended to help you save energy and prevent pan damage:

Two diagrams showing a cooking pot and a windmill on a stove, with no text or symbols present.

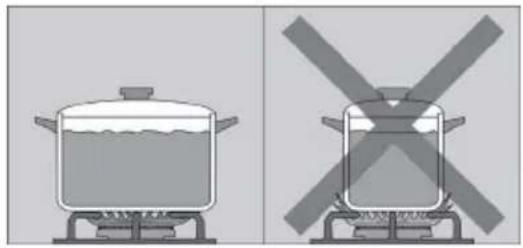

Use pans which are the right size for each burner.

Do not use small pans on large burners. The flame should not touch the sides of the pan.

Two identical illustrations of a cooking pot on a gas stove, one with a lid and the other with a crossed-out pan (no text or symbols)

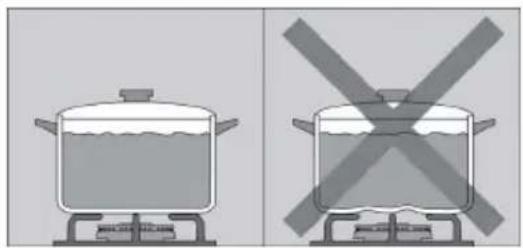

Do not use damaged pans, which do not sit evenly on the hob. Pans may tip over.

Only use pans with a thick, flat base.

Two-panel illustration showing a cooking pot and a cooking pan with steam rising (no text or symbols)

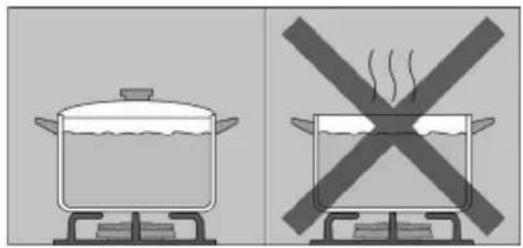

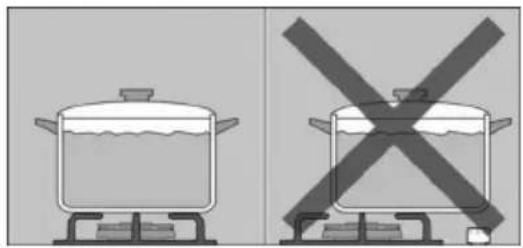

Do not cook without using a lid and make sure the lid is properly fitted to avoid wasting energy.

Two cooking pots on different stand, one with a lid and the other crossed out (no text or symbols)

Always place the pan right over the burner, not to one side. Otherwise it could tip over.

Do not place large pans on the burners near the control knobs. These may be damaged by the very high temperatures.

Two diagrams showing a cooking pot and a cooking pan with crossed-out shapes (no text or symbols)

Place the pans on the pan supports, never directly on the burner.

Pans should be placed on the hob carefully.

Diagram showing a crossed-out triangular object with downward arrows pointing to a device or machine (no text or symbols present)

Do not strike the hob and do not place excessive weight on it.

Make sure that the pan supports and burner covers are correctly positioned before using the appliance

Cleaning and maintenance

Cleaning

Illustration of a hand pressing down on a surface with downward arrows indicating pressure or force (no text or symbols)

Once the appliance is cool, use a sponge to clean it with soap and water.

After each use, clean the surface of the respective burner parts once they have cooled down. If any bits are left (overcooked food, drops of grease etc.), however few, they will become stuck to the surface and more difficult to remove later. The holes and grooves must be clean for the flame to ignite properly.

The movement of some pans may leave metal residue on the pan supports.

Clean the burners and pan supports using soapy water and scrub with a non-wire brush.

Alternatively, the pan supports can be put in the dishwasher. Use the dishwasher manufacturer's recommended detergent. If the pan supports are very dirty, they should be cleaned previously.

Do not put the burner caps in the dishwasher.

If the pan supports are fitted with rubber rests, ensure that these are also cleaned. The rests may come loose and the pan support may scratch the hob.

Always dry the burners and pan supports completely. Water droplets or damp patches on the hob at the start of cooking may damage the enamel.

After cleaning and drying the burners, make sure the burner covers are correctly placed on the burner flame diffuser.

Unsuitable products

Warning symbol image showing a crossed-out bottle and pen above a surface with downward arrows indicating safety or hazard.

Never slide pans across the glass surface, as you may scratch it. In addition, try not to drop heavy or sharp objects on the glass. Never strike any part of the hob.

Do not use steam cleaners. This could damage the hob.

Never use abrasive products, steel scourers, sharp implements, knives, etc. to remove bits of hardened food from the hob.

If your hob is fitted with a glass or aluminium panel, never use a knife, scraper or similar to clean the point where it joins the metal.

Do not use knives, scrapers or similar implements to clean the point where the glass meets the burner trims, the metal frames or the glass/aluminium panels, if fitted.

Maintenance

Diagram showing a crossed-out mechanical device with downward arrows indicating force or damage (no text or symbols present)

Always clean off any liquid as soon as it is spilt: you will save yourself any unnecessary effort.

Where possible, do not allow salt to come into contact with the surface of the electric hob.

Grains of sand that may come from cleaning fruits and vegetables will scratch the glass surface.

Melted sugar, or foods which contain a lot of sugar which may have spilt, should be cleaned off the hotplate immediately, using the glass scraper.

Faults

Sometimes certain faults detected can be easily resolved. Before calling the Technical Assistance Service, bear in mind the following advice:

Fault Possible cause Solution

The general electrical system is malfunctioning.	Defective fuse. Check the fuse in the main fuse box and change it if it is damaged.
	The automatic safety switch or circuit breaker has tripped.	Check the main control panel to see if the automatic safety switch or circuit breaker has tripped.
The automatic switching on function does not work.	There may be food or cleaning products stuck between the ignition sparkers and the burners.	The space between the ignition sparker and the burner must be clean.
	The burners are wet. Dry the burner caps carefully.
	The burner caps are not correctly positioned.	Check that the covers are correctly positioned.
	The appliance is not earthed, is poorly connected or the earthing is faulty.	Contact the installation technician.
The burner flame is not uniform.	The burner components are not correctly positioned.	Correctly place the parts on the appropriate burner.
	The grooves on the burner are dirty. Clean the grooves on the burner.
The gas flow is not normal or there is no gas.	The gas supply is blocked via intermediary valves.	Open all gas taps.
	If the gas is supplied from a gas cylinder, check that this is not empty.	Change the gas cylinder.

Fault Possible cause Solution

The kitchen smells of gas. A gas tap has been left on. Turn off the taps.
	Incorrect coupling of gas cylinder. Check that the coupling is sound.
	Possible gas leak. Shut off the gas supply, ventilate the premises and immediately notify an authorised installation technician so that they can check and certify the installation. Do not use the appliance until you are sure that there is no gas leak in the installation or appliance itself.
The burner immediately switches off after releasing the control knob.	The control knob was not held down for long enough.	Once the burner is on, hold the control knob down a few seconds longer.
	The grooves on the burner are dirty. Clean the grooves on the burner.

Technical Assistance Service

When contacting our Technical Assistance Service, please provide the product number (E-No.) and production number (FD) of the appliance. This information is given on the specifications plate located on the lower section of the hob and on the label in the user manual.

Warranty conditions

The applicable warranty conditions are those set out by the company's representative office in the country of purchase. Detailed information is available from retail outlets. Proof of purchase must be presented to obtain the benefits of the warranty. We reserve the right to introduce changes.

Used appliances and packaging

If the ☒ symbol is shown on the specifications plate, bear in mind the following instructions.

Environmentally-friendly waste management

Unpack the appliance and dispose of the packaging by environmentally-friendly means.

This appliance complies with European directive 2002/96/CE on electrical and electronic equipment identified as WEEE (waste electrical and electronic equipment).

Inhalt

Technical diagram of a mechanical assembly with mounting brackets and directional arrows indicating movement (no text or symbols)

Close-up of a circular mechanical knob with four labeled terminals (no text or symbols beyond labels)

Technical illustration of a mechanical component with two views: top shows a circular gear-like structure, bottom shows a circular ring with mounting holes (no text or symbols)

Technical illustration of a mechanical component with two views: top shows a circular ring with evenly spaced holes, bottom shows a circular dial with mounting holes (no text or symbols)

Technical illustration of a mechanical component with two views: top shows circular flange, bottom shows concentric ring (no text or symbols)

Technical illustration of a mechanical component with two views: top shows a circular housing with bolt holes, bottom shows a circular dial with mounting holes (no text or symbols)

Illustration of four stainless steel cooking pots with different sizes and finishes (no text or symbols)

Illustration of a stainless steel wok with lid and side handles (no text or symbols)

3D diagram of a frying pan above a grid with mechanical components (no text or symbols)

3D diagram of a coffee maker with a kettle and tray, no text or symbols present

Two diagrams showing a cooking pot and a windmill on a stove, with no text or symbols present.

Two identical illustrations of a cooking pot on a gas stove, one with a lid and the other with a crossed-out pan (no text or symbols)

Two-panel illustration: left shows a cooking pot on a stove with no visible text or symbols; right shows a cooking pot with a crossed-out red cross over its side, likely indicating boiling or heating.

Two cooking pots on different stand, one with a lid and the other crossed out (no text or symbols)

Two illustrations: a cooking pot on a stove and a windmill on a stand, both without any text or symbols.

Diagram showing a crossed-out black box with downward arrows below, indicating a process or warning (no text or symbols present)

Diagram showing a hand pressing down on a surface with downward arrows indicating force or movement (no text or symbols present)

Warning symbol with crossed-out black ink, indicating no clear evidence of using a device or tool.

Diagram showing a crossed-out mechanical component and downward force arrows, no text or symbols present

Service Technique 52

Conditions de garantie ..... 52

Simple diagram of a dial with a pointer and control knob, labeled 'Fig. 1' (no text or symbols on the dial itself)

Diagram of a mechanical device with a rotating component and a curved arrow indicating motion (no text or symbols)

Exploded view diagram of a mechanical assembly (no text or symbols)

Allumage manuel

Technical diagram showing mechanical components with arrows indicating movement or force (no text or symbols present)

Close-up of a circular mechanical knob or dial with four terminals (labeled 1, 2, 3, 4) and a central pointer, no text or symbols visible.

Two technical diagrams showing mechanical components: a circular gear-like component and a circular ring with mounting holes (no text or symbols)

Two technical illustrations of a mechanical component with circular features and a side view showing internal structure (no text or symbols)

Two technical diagrams showing mechanical components with no visible text or symbols

Two technical diagrams showing mechanical components with no visible text or symbols

Illustration of four kitchenware: a pan, cooking pot, and two pots (no text or symbols)

Illustration of a stainless steel cooking pot with lid and two side handles (no text or symbols)

3D diagram showing a frying pan above a grid of rectangular blocks, with no visible text or symbols.

3D diagram of a coffee maker with a kettle and tray, no text or symbols present

Two diagrams showing a cooking pot and a windmill on a stove, with no text or symbols present.

Two identical illustrations of a cooking pot on a gas stove, one with a lid and the other with crossed-out panes (no text or symbols)

Two-panel illustration showing a cooking pot and a cooking pan with steam rising (no text or symbols)

Two cooking pots on different stand, one with a lid and the other crossed out (no text or symbols)

Two cooking pots: one with a lid and one crossed out, placed on stovetop (no text or symbols)

Diagram showing a crossed-out black box with a cross symbol above it, indicating a warning or prohibition process.

Diagram showing a hand pressing down on a surface with arrows indicating downward motion (no text or symbols)

Warning symbol with crossed-out black ink, bottle, and knife over a surface with downward arrows indicating process or damage.

Diagram showing a crossed-out mechanical device with downward arrows indicating force or damage (no text or symbols present)

Simple diagram of a dial with a pointer and control knob, labeled 'Fig. 1' (no text or symbols on the dial itself)

Diagram of a mechanical component with a rotating shaft and base, labeled 'Fig. 2' (no text or symbols on the diagram itself)

Exploded view diagram of a mechanical assembly (no text or symbols)

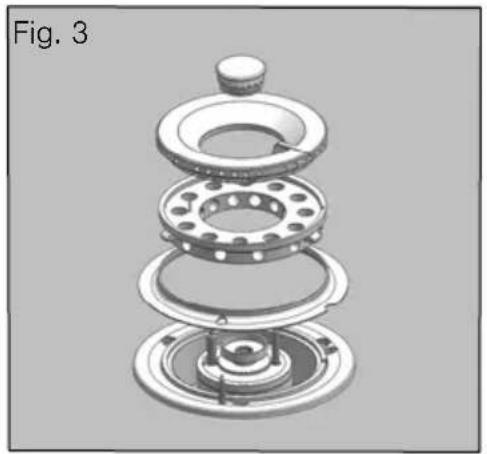

Encendido manual

Technical diagram of a mechanical assembly with mounting brackets and directional arrows indicating movement or force (no text or symbols present)

Close-up of a circular mechanical knob or dial with no visible text or symbols

Two technical diagrams showing mechanical components with gear-like surfaces and a circular component (no text or symbols)

Two technical illustrations of a mechanical component, one showing a circular cross-section and the other a flanged circular inset with mounting holes (no text or symbols)

Four technical diagrams showing mechanical components with no visible text or symbols

Diagram illustrating a 3D cylinder being heated by a flame, showing step A and B with directional arrows.

Illustration of four stainless steel cooking pots and a frying pan (no text or symbols)

Illustration of a stainless steel wok with lid and side handles (no text or symbols)

3D illustration of a frying pan above a grid with mechanical components (no text or symbols)

Parrilla supletoria cafetera

Isometric illustration of a coffee maker with a kettle and tray, no text or symbols present

Two diagrams showing a cooking pot and a windmill on a stove, with no text or symbols present.

Two identical illustrations of a cooking pot on a gas stove, one with a lid and the other with a crossed-out pan (no text or symbols)

Two-panel illustration showing a cooking pot and a cooking pan with steam rising (no text or symbols)

Two cooking pots on different stand, one with a lid and the other crossed out (no text or symbols)

Two cooking pots: one with a lid and one with a crossed-out pan, placed on stovels (no text or symbols)

Diagram showing a crossed-out black box with downward arrows below, indicating a process or warning (no text or symbols present)

Diagram showing a hand pressing down on a surface with downward arrows indicating force or movement (no text or symbols present)

Warning symbol with crossed-out tool and downward arrows indicating process or hazard

Diagram showing a crossed-out mechanical device with downward arrows indicating force or damage (no text or symbols present)

Simple diagram of a dial with a pointer and control knob, labeled 'Fig. 1' (no text or symbols on the dial itself)

Diagram of a mechanical device with a rotating component and a curved arrow indicating motion (no text or symbols)

Exploded view diagram of a mechanical assembly (no text or symbols)

Acendimento manual

Technical diagram of a mechanical assembly with arrows indicating motion or force directions (no text or symbols present)

Close-up of a circular mechanical knob or dial with four terminals (no visible text or symbols)

Two technical illustrations of mechanical components, one showing a circular gear-like structure and the other a circular ring with mounting holes (no text or symbols)

Two technical diagrams showing a mechanical component with a circular housing and a circular dial (no text or symbols)

Technical illustration of a mechanical component with two views: top shows a circular housing with internal gear-like structure, bottom shows a circular dial with mounting holes (no text or symbols)

Technical illustration of a mechanical component with two views: top shows a circular housing with internal components, bottom shows a circular dial with mounting holes (no text or symbols)

Simple 3D illustration of a cylinder on a base with a flame symbol nearby (no text or labels)

Simple diagram showing a cylinder on a base with arrows indicating downward motion and a flame symbol nearby (no text or labels)

A B

Illustration of four stainless steel cooking pots: a pan, a frying pan, and two cooking pots (no text or symbols)

Illustration of a stainless steel cooking pot with lid and side handles (no text or symbols)

3D illustration of a frying pan above a grid with mechanical components (no text or symbols)

3D architectural layout diagram with a kettle and grid-like structure, no visible text or symbols

Two diagrams showing a cooking pot and a windmill on a stove, with no text or symbols present.

Two identical diagrams showing a cooking pot on a gas stove with a crossed-out water pan (no text or symbols)

Two-panel illustration showing a cooking pot and a cooking pan with steam rising (no text or symbols)

Two cooking pots on different stand, one with a lid and the other crossed out (no text or symbols)

Two cooking pots: one with a lid and one crossed out, both placed on a stove (no text or symbols)

Diagram showing a crossed-out black box with downward arrows below, indicating a process or warning (no text or symbols present)

Diagram showing a hand pressing down on a surface with arrows indicating downward motion (no text or symbols)

Warning symbol with crossed-out black box, bottle, and knife over a surface with downward arrows indicating process or damage.

Diagram showing a crossed-out mechanical device with downward arrows indicating force or damage (no text or symbols present)

Technical diagram of a mechanical assembly with mounting brackets and circular components (no text or symbols)

Minimale opening of vermogen

Close-up of a circular mechanical knob or dial with four terminals (labeled 1, 2, 3, 4) and a central pointer (no text or symbols beyond labels)

Two technical diagrams showing mechanical components: one with a gear-like ring and the other a circular component with mounting holes (no text or symbols)

Two technical diagrams showing a mechanical component with circular features and a separate circular component with internal structure (no text or symbols)

Four technical diagrams showing mechanical components with no visible text or symbols

Diagram illustrating a 3D cylinder on a surface with flame icons and labeled points A and B, showing directional movement.

Illustration of four cooking pots and a frying pan (no text or symbols)

Illustration of a stainless steel wok with a lid and two side handles (no text or symbols)

3D diagram showing a cooking pan above a grid with kitchen utensils and a cooking pan (no text or symbols)

3D diagram of a coffee maker with a kettle and tray, no text or symbols present

Two diagrams showing a cooking pot and a windmill on a stove, with no text or symbols present.

Two identical illustrations of a cooking pot on a gas stove, one with a lid and the other with a crossed-out pan (no text or symbols)

Two-panel illustration showing a cooking pot and a steaming pot with crossed-out flames, both on a stove (no text or symbols)

Two cooking pots on different stand, one with a lid and the other crossed out (no text or symbols)

Two cooking pots: one with a lid and one crossed out, placed on stovetop (no text or symbols)

Diagram showing a crossed-out rectangular object with a cross symbol above it, with arrows pointing downward to a platform or device.

Diagram showing a hand pressing down on a surface with arrows indicating downward motion (no text or symbols)

Warning symbol with crossed-out arrow and downward arrows indicating incorrect use of a chemical substance

Warning symbol with crossed-out ring and downward arrows, no text or symbols present

Close-up of a circular dial with pointer and four terminals (no text or symbols visible)

Technical illustration of a mechanical component with gear-like teeth and a circular dial (no text or symbols)

Technical illustration of a mechanical component with two views: top shows a circular ring with evenly spaced teeth, bottom shows a circular dial with internal structure (no text or symbols)

Technical illustration of a mechanical component with two views: top shows circular flange, bottom shows circular dial (no text or symbols)

Two technical diagrams showing mechanical components with no visible text or symbols

Simple diagram showing a cylinder on a circular base with a flame symbol nearby (no text or labels)

Simple diagram showing a cylinder on a base with arrows indicating downward motion and a flame symbol below (no text or labels)

Illustration of four cooking pots and a frying pan (no text or symbols)

Illustration of a stainless steel cooking pot with lid and two side handles (no text or symbols)

3D diagram of a frying pan above a grid with mechanical components (no text or symbols)

Kahve cezvesi eki

3D architectural layout diagram with a kettle and grid pattern (no text or symbols)

Two diagrams showing a cooking pot and a windmill on a stove, with no text or symbols present.

Two identical illustrations of a cooking pot on a gas stove, one with a lid and the other with a crossed-out pan (no text or symbols)

Two-panel illustration showing a cooking pot and a steaming pot with crossed-out flames, both on a stove (no text or symbols)

Two cooking pots on different stand, one with a lid and the other crossed out (no text or symbols)

Two cooking pots: one with a lid and one crossed out, placed on stovetop (no text or symbols)

Diagram showing a crossed-out rectangular object with a cross symbol above it, with arrows pointing downward to a platform or device.

Diagram showing a hand pressing down on a surface with arrows indicating downward motion (no text or symbols)

Warning symbol with crossed-out black object and downward arrows indicating process or hazard

Diagram showing a crossed-out tool and a falling object with downward arrows, no text or symbols present.
