USER MANUAL T14T40N0 NEFF

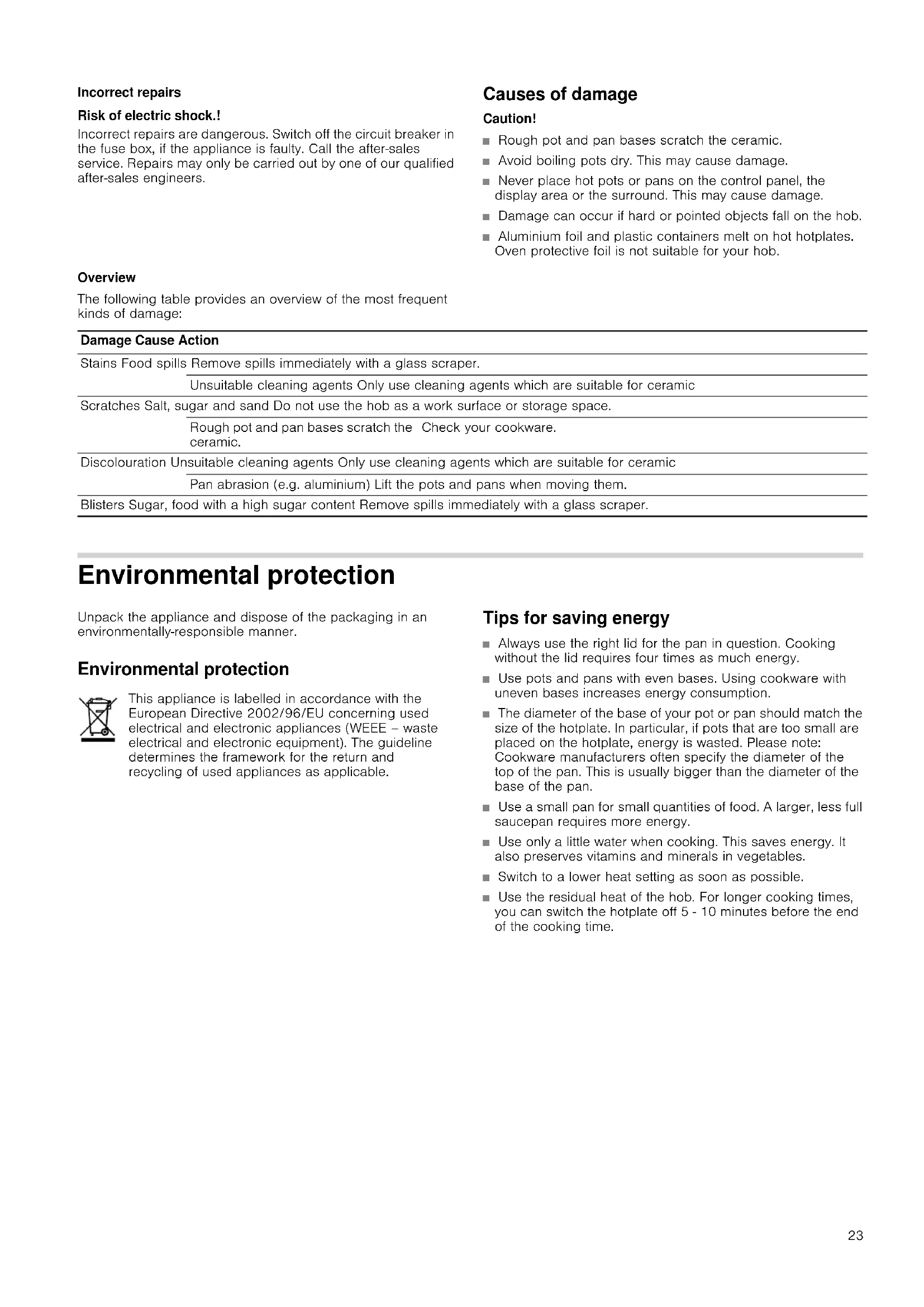

• Ne placez pas de casseroles chaudes près du bandeau de commande ou sur celui-ci B 070 222 143 FR 0 825 398 210 (0,15 € TTC/mn) CH 0848 840 04022 Ú Table of contents Safety information....................................................................22 Safety information for this appliance............................................ 22 Causes of damage ..........................................................................23 Environmental protection........................................................23 Environmental protection................................................................23 Tips for saving energy ....................................................................23 Getting to know your appliance..............................................24 The control panel............................................................................. 24 The hotplates ....................................................................................24 Residual heat indicator................................................................... 24 Twistpad with twist knob.........................................................25 Removing the twist knob................................................................25 Storing the twist knob .....................................................................25 Operation without the twist knob ..................................................25 Setting the hob .........................................................................25 Switching the hob on and off ........................................................ 25 Setting a hotplate.............................................................................25 Table of cooking times ...................................................................26 Childproof lock .........................................................................27 Switching the childproof lock on and off..................................... 27 Automatic childproof lock .............................................................. 27 Timer..........................................................................................27 Automatic hotplate switch-off......................................................... 27 Automatic timer ................................................................................ 27 Kitchen timer..................................................................................... 27 Keep warm function .................................................................28 Wipe protection ........................................................................28 Automatic time limit .................................................................28 Basic settings ...........................................................................28 Changing the basic settings.......................................................... 29 Cleaning and care ....................................................................29 Ceramic .............................................................................................29 Hob surround.................................................................................... 29 Twist knob ......................................................................................... 29 Rectifying faults .......................................................................30 After-sales service ...................................................................30 Produktinfo Additional information on products, accessories, replacement parts and services can be found at www.neff- international.com and in the online shop www.neff- eshop.com m Safety information Please read this instruction manual carefully. This will enable you to operate your hob safely and correctly. Please keep the instruction manual, installation instructions and the appliance certificate in a safe place. If the appliance changes owners, this documentation should always be included. Check the appliance for damage after unpacking it. Do not switch on the appliance if it is damaged. Safety information for this appliance This appliance is intended for domestic use only. This appliance must only be used for food preparation. Do not leave the appliance unattended during operation. Safe operation Adults and children must not operate the appliance without supervision if: ■ they do not have the physical or mental ability, ■ or they lack the knowledge and experience required to operate the appliance correctly. Overheated oil and fat Risk of fire! Overheated oil or fat can ignite very quickly. Never leave hot oil or fat unattended. Never attempt to extinguish burning fat or oil with water. Extinguish the flames with a lid or a plate. Switch the hotplate off. Hot hotplates Risk of burning! Never touch hot hotplates. Small children must be kept at a safe distance from the hob. Risk of fire! ■ Never place combustible items on the hob. ■ Do not keep combustible objects or aerosol cans in drawers directly underneath the hob. Wet saucepan bases and hotplates Risk of injury! Steam pressure may build up if there is liquid between the saucepan base and the hotplate. This may cause the pan to jump suddenly. Always keep the hotplate and saucepan bases dry. Cracks in the ceramic Risk of electric shock.! Switch off the circuit breaker in the fuse box if the ceramic has fractures, flaws or cracks. Call the after-sales service. The hotplate heats up but the display does not work Risk of burning! Switch off the hotplate if the display is not working. Call the after-sales service. The hob switches off automatically Risk of fire! If the hob switches itself off and can then no longer be used, it may unexpectedly switch itself on later. In order to prevent this, disconnect the hob from the power supply. To do so, switch off the circuit breaker in the fuse box. Call the after-sales service.23 Incorrect repairs Risk of electric shock.! Incorrect repairs are dangerous. Switch off the circuit breaker in the fuse box, if the appliance is faulty. Call the after-sales service. Repairs may only be carried out by one of our qualified after-sales engineers. Causes of damage Caution! ■ Rough pot and pan bases scratch the ceramic. ■ Avoid boiling pots dry. This may cause damage. ■ Never place hot pots or pans on the control panel, the display area or the surround. This may cause damage. ■ Damage can occur if hard or pointed objects fall on the hob. ■ Aluminium foil and plastic containers melt on hot hotplates. Oven protective foil is not suitable for your hob. Overview The following table provides an overview of the most frequent kinds of damage: Environmental protection Unpack the appliance and dispose of the packaging in an environmentally-responsible manner. Environmental protection Tips for saving energy ■ Always use the right lid for the pan in question. Cooking without the lid requires four times as much energy. ■ Use pots and pans with even bases. Using cookware with uneven bases increases energy consumption. ■ The diameter of the base of your pot or pan should match the size of the hotplate. In particular, if pots that are too small are placed on the hotplate, energy is wasted. Please note: Cookware manufacturers often specify the diameter of the top of the pan. This is usually bigger than the diameter of the base of the pan. ■ Use a small pan for small quantities of food. A larger, less full saucepan requires more energy. ■ Use only a little water when cooking. This saves energy. It also preserves vitamins and minerals in vegetables. ■ Switch to a lower heat setting as soon as possible. ■ Use the residual heat of the hob. For longer cooking times, you can switch the hotplate off 5 - 10 minutes before the end of the cooking time. Damage Cause Action Stains Food spills Remove spills immediately with a glass scraper. Unsuitable cleaning agents Only use cleaning agents which are suitable for ceramic Scratches Salt, sugar and sand Do not use the hob as a work surface or storage space. Rough pot and pan bases scratch the ceramic. Check your cookware. Discolouration Unsuitable cleaning agents Only use cleaning agents which are suitable for ceramic Pan abrasion (e.g. aluminium) Lift the pots and pans when moving them. Blisters Sugar, food with a high sugar content Remove spills immediately with a glass scraper. This appliance is labelled in accordance with the European Directive 2002/96/EU concerning used electrical and electronic appliances (WEEE – waste electrical and electronic equipment). The guideline determines the framework for the return and recycling of used appliances as applicable.24 Getting to know your appliance The instruction manual is the same for various different hobs. An overview of the models with their dimensions is given on page 2. The control panel Controls When you touch a symbol, the respective function is activated. Notes ■ The settings will remain unchanged if you touch several symbols at once. This allows you to wipe up spills on the control panel. ■ Always keep the controls dry. Moisture reduces their effectiveness. The hotplates Residual heat indicator The hob has a two-stage residual heat indicator for each hotplate. If • appears in the display the hob is still hot. It may be used, for example, to keep a small meal warm or to melt cooking chocolate. As the hotplate cools down further, the display changes to œ. The display remains lit until the hotplate has cooled sufficiently. Displays for ‚-Š heat setting

• /œ residual heat ‹ operating readiness Controls for # main switch " wipe protection L keep warm function L childproof lock Control for ë/ð activation Twist pad with twist knob for selecting the hotplate, for adjusting the heat setting Control for 3 timer function Hotplate Activating and deactivating $ Single-circuit hotplate ð Dual-circuit hotplate Use the twist knob to select the hotplate, touch the ð or ë symbol æ Extended cooking zone Use the twist knob to select the hotplate, touch the ð or ë symbol When the hotplate is activated: the corresponding indicator lights up.25 Twistpad with twist knob The twistpad is the area in which you can select the hotplates and set heat settings using the twist knob. The twist knob automatically centres itself in the twistpad. The twist knob is magnetic and is placed on the twistpad. Tapping the twist knob where there is a marking activates the relevant hotplate. Turning the twist knob sets the heat setting. Removing the twist knob You can remove the touch knob. This makes cleaning easier. You can also remove the twist knob while the hotplate is in operation. All the hotplates switch off after 3 seconds. m Risk of fire! If you place a metal object on the twistpad within 3 seconds, the hob may continue to heat up. For this reason, always switch off the hob using the main switch. Storing the twist knob The twist knob contains a strong magnet. Keep the twist knob away from magnetic data carriers, such as video cassettes, diskettes, credit cards or cards with magnetic strips. The data these contain could otherwise be wiped. They can also cause interference in television sets and monitors. m Hazard due to magnetism! For wearers of electronic implants, e.g. pacemakers or insulin pumps. Implants could be affected by magnetic fields. You must therefore never carry the twist knob in a pocket in your clothing. They must be kept at least 10 cm from pacemakers. Note: The twist knob is magnetic. Metal particles which stick to the underside can scratch the ceramic hob top. Always wipe the twist knob thoroughly. Operation without the twist knob If you have misplaced the twist knob, you can operate the hob without it:

1. Switch on the hob using the main switch.

2. Within the next 5 seconds, simultaneously touch the L and 3

symbols. A signal sounds.

3. Touch the "symbol repeatedly until the display for the

desired hotplate lights up.

4. Touch the L symbol repeatedly until the desired heat setting

appears on the heat setting display. The hotplate is switched on. Notes ■ The timer function can be activated in the usual way. The cooking time must be set with the L symbol. ■ The automatic zone control functions as usual.■ You can place the twist knob back on the twistpad at any time. Setting the hob This section informs you how to set the hotplates. The table shows heat settings and cooking times for various meals. Switching the hob on and off The main switch is used to switch the hob on and off. To switch on: touch the # symbol. The indicator above the main switch lights up. The hob is ready for use. To switch off: touch the # symbol until the display above the main switch goes out. All hotplates are switched off. The residual heat indicator remains on until the hotplates have cooled down sufficiently. Notes ■ The hob switches off automatically if all hotplates have been switched off for more than 15 seconds. ■ The settings remain stored for 4 seconds after the hob has been switched off. If you switch it on again during this time, the hob will operate using the previously stored settings. Setting a hotplate Use the twist knob to set the desired cooking time. Heat setting 1 = lowest setting Heat setting 9 = highest setting There is an intermediate setting between each heat setting. This is identified by a dot. Set the heat setting The hob must be switched on.

1. Select the hotplate. To do this, tap the twist knob in the

appropriate area for the desired hotplate.

2. Within the next 5 seconds, turn the twist knob until the

desired heat setting appears in the heat setting display. The hotplate is switched on. Changing the heat setting Select the hotplate and set the new heat setting. To switch off the hotplate: Select the hotplate and set it to ‹. After about 5 seconds, the residual heat indicator appears. Note: Hotplate temperature is regulated by the heat switching on and off. The heat may also switch on and off at the highest setting.26 Table of cooking times The following table provides some examples. Cooking times and heat settings may vary depending on the type of food, its weight and quality. Deviations are therefore possible. When heating thick liquids, stir regularly. For bringing liquids to the boil, use heat setting 9. Ongoing cooking setting Ongoing cooking time in minutes Melting Chocolate, cooking chocolate, butter, honey Gelatine 1-2 1-2

Heating and keeping warm Stew (e.g. lentil stew) Milk** Heating sausages in water** 1-2 1.-2. 3-4

Braising Roulades Pot roasts Goulash 4-5 4-5 2.-3. 50-60 mins 60-100 mins 50-60 mins Frying** Escalope, plain or breaded Escalope, frozen Cutlet, plain or breaded Steak (3 cm thick) Poultry breast (2 cm thick) Chicken breast, frozen Fish and fish fillet, plain Fish and fish fillet, breaded Fish and fish fillet, breaded and frozen, e.g. fish fingers Scampi and prawns Stir fry, frozen Pancakes Omelette Fried eggs 6-7 6-7 6-7 7-8 5-6 5-6 5-6 6-7 6-7 7-8 6-7 6-7 3.-4. 5-6 6-10 mins 8-12 mins 8-12 mins 8-12 mins 10-20 mins 10-30 mins 8-20 mins 8-20 mins 8-12 mins 4-10 mins 6-10 mins continuous continuous 3-6 mins

• Continue cooking without a lid ** Without lid27 Childproof lock You can use the childproof lock to prevent children from switching on the hotplates. Switching the childproof lock on and off The hob must be switched off. To switch on: touch the L symbol for approx. 3 seconds. The F symbol lights up for 10 seconds. The hob is locked. To switch off: touch the L symbol for approx. 3 seconds. The hob is unlocked. Automatic childproof lock This function automatically activates the childproof lock every time you switch the hob off. Switching on and off You can find out how to switch the automatic childproof lock on and off in the Basic settings section. Timer The timer can be used in two different ways: ■ To switch a hotplate off automatically■ As a kitchen timer Automatic hotplate switch-off Enter a cooking time for the relevant hotplate. When the cooking time has elapsed, the hotplate switches off automatically. Setting the cooking time The hotplate must be switched on.

the twist knob to set the desired cooking time. The cooking time counts down. If you have set a cooking time for several hotplates, the shortest cooking time will be displayed. The x indicator for the hotplate lights up brightly. When the cooking time has elapsed When the cooking time has elapsed, the hotplate switches off. ‹ lights up in the hotplate display. A signal sounds. ‹‹ lights up in the timer display for one minute. The x hotplate indicator flashes. Touch any control. The indicators go out and the audible signal ceases. Changing or cancelling the cooking time Select the hotplate using the twist knob. Touch the 3 symbol and change the cooking time or set to ‹‹. Notes ■ If you wish to call up the cooking time for a hotplate, use the twist knob to select the hotplate. The cooking time appears for 5 seconds. ■ You can set a cooking time of up to 99 minutes. Automatic timer You can use this function to preselect a cooking time for all hotplates. Each time a hotplate is switched on, the preselected cooking then counts down. When the cooking time has elapsed, the hotplate switches off automatically. You can find out how to switch on the automatic timer in the Basic settings section. Note: You can change the cooking time for a hotplate or switch off the automatic timer for the hotplates. Select the hotplate and touch the 3 symbol. Change the cooking time or set to ‹‹ in the settings area. Kitchen timer You can use the kitchen timer to set a time of up to 99 minutes. It runs independently of all the other settings. Deep-fat frying (fry 150-200g per portion continuously in 1-2 litres oil**) Frozen products, e.g. chips, chicken nuggets Croquettes Meat balls Meat, e.g. chicken portions Fish, breaded or battered Vegetables, mushrooms, breaded or battered Small items, e.g. doughnuts, fruit in batter 8-9 7-8 7-8 6-7 5-6 5-6 4-5

Ongoing cooking setting Ongoing cooking time in minutes

Setting the kitchen timer No hotplate should have been selected.

1. Touch the 3 symbol, ‹‹ lights up in the timer display.

2. Set the required cooking time using the twist knob.

The timer starts counting down after a few seconds. When the cooking time has elapsed A signal sounds for one minute and ‹‹ lights up in the timer display. The V indicator flashes. Touch any control. The indicators go out and the audible signal ceases. Changing the time Touch the 3 symbol and use the twist knob to change the time. Keep warm function The keep warm function is suitable for melting chocolate or butter and for warming food and cookware. Switching on the keep warm function:

1. Select the hotplate using the twist knob.

2. In the next 5 seconds, touch the L symbol.

– appears in the heat setting display. The keep warm function is switched on. Switching off the keep warm function: Select the hotplate and touch the L symbol. ‹ appears in the heat setting display. After approximately 5 seconds, the hotplate is switched off, and the residual heat indicator appears. Wipe protection If you wipe over the control panel while the hob is switched on, settings may be altered. To prevent this from happening, your hob has a wipe protection function. Touch the " symbol. A signal sounds. The control panel is locked for 30 seconds. You can now wipe over the control panel without altering any settings. Note: The main switch is excluded from the wipe protection function. You can switch off the hob at any time. Automatic time limit If a hotplate is in use for a long time without the setting being changed, the automatic time limit is activated. The hotplate stops heating. ” and ‰ flash alternately in the hotplate indicator. The display goes out when you touch any control. You can make new settings. When the time limit is activated depends on the heat setting selected (1 to 10 hours). Basic settings Your appliance has various basic settings. You can adapt these settings to your needs. Indicator Function ™‚ Automatic childproof lock ‹ Switched off.* ‚ Switched on. ™ƒ Audible signal ‹ Confirmation signal and fault notification switched off. ‚ Only fault notification switched on. ƒ Confirmation signal and fault notification switched on.* ™† Automatic timer ‹ Switched off.* ‚-ŠŠ Cooking time, after which the hotplates switch off ™‡ Duration of the timer end signal ‚ 10 seconds. ƒ n30 seconds „ 1 minute.* *Basic setting29 Changing the basic settings The hob must be switched off.

1. Switch on the hob.

2. Within the next 10 seconds, touch the 3 symbol for

4 seconds. ™‚ appears in the timer display and ‹ in the hotplate display.

3. Touch the 3 symbol repeatedly until the desired symbol

appears in the timer display.

4. Set the desired value using the twist knob.

5. Touch the 33 symbol for 4 seconds.

The setting is activated. Switching off To exit the basic setting, switch off the hob with the main switch and make new settings. Cleaning and care The information in this section provides help on how best to care for your hob. Suitable maintenance and cleaning products can be purchased from the after-sales service or in our e-Shop. Ceramic Clean the hob after each use. This will prevent spills from burning onto the ceramic. Only clean the hob when it has cooled down sufficiently. Use only cleaning agents which are suitable for ceramic. Follow the cleaning instructions on the packaging. Never use: ■ Undiluted washing-up liquid ■ Detergent intended for dishwashers ■ Scouring agents ■ Harsh cleaning agents such as oven spray or stain remover ■ Abrasive sponges ■ High-pressure cleaners or steam jet cleaners Ground-in dirt can be best removed with a glass scraper, available from retailers. Please note the manufacturer's instructions. You can also obtain a suitable glass scraper from our after- sales service or from the e-Shop. Hob surround To prevent damage to the hob surround, please observe the following instructions: ■ Use only warm, soapy water. ■ Do not use harsh or abrasive agents. ■ Do not use the glass scraper. Twist knob It is recommended that the touch knob is wiped with lukewarm soapy water only. Do not use harsh or abrasive agents. The twist knob will be damaged if cleaned in the dishwasher or immersed in soapy water. ™ˆ Activation of the filament circuits ‹ Switched off.* ‚ Switched on. ƒ Last setting before the hotplate was switched off. ™‰ Operation without twist knob ‹ Switched off ‚ Switched on* ™‹ Reset to basic setting ‹ Switched off. ‚ Switched on. Indicator Function *Basic setting30 Rectifying faults Malfunctions often have simple explanations. Please read the following notes before calling the after-sales service. After-sales service Our after-sales service is there for you if your appliance should need to be repaired. We are committed fo find the best solution also in order to avoid an unnecessary call-out. E number and FD number: Please quote the E number (product number) and the FD number (production number) of your appliance when contacting the after-sales service. The rating plate bearing these numbers can be found on the appliance certificate. Please note that a visit from an after-sales service engineer is not free of charge, even during the warranty period. Please find the contact data of all countries in the enclosed customer service list. To book an engineer visit and product advice Trust the expertise of the manufacturer, and rest assured that the repair will be carried out by trained service technicians using original spare parts for your domestic appliance. Indicator Fault Action Blank There is no power supply. Check the household fuse for the appliance. Check whether there is a power cut by trying other electronic appliances. “ is flash- ing The controls are damp or an object is resting on them. Dry the controls or remove the object. “§„‰ Twist knob not centred in the twistpad. Place the twist knob in the centre of the twistpad.

number Electronic fault. Switch the appliance off and back on again after about 30 seconds using either the household fuse or the circuit breaker in the fuse box. Contact the after-sales service if this appears in the display again. ”ƒ The electronics have overheated and have switched off the corresponding hotplate. Wait until the electronics have cooled down sufficiently. Then touch a control for the hotplate.* ”… The electronics have overheated and have switched off all hotplates. Wait until the electronics have cooled down sufficiently. Then touch any con- trol.* ”‰ The hotplate was in operation for too long and has switched itself off. You can switch the hotplate back on again immediately.
