USER MANUAL Domino N64D40N0 NEFF

Important safety information. 13

Causes of damage 14

Environmental protection. 14

Environmentally-friendly disposal. 14

Getting to know the appliance 15

Your new lava stone grill 15

The control panel. 15

Residual heat indicator. 16

Before using for the first time 16

Cleaning. 16

Heating the grill 16

Grilling with water and lava stones. 16

Setting the grill 17

Switching the grill on and off. 17

Setting the grill. 17

Pre-heating the grill. 17

Topping up the water. 17

Switching Wipe protection on and off. 17

Grilling table. 18

Aftergrilling. 18

Automatic time limit 18

Tips and tricks 19

Timer. 19

Setting the timer. 19

Correcting the timer. 19

Basic settings. 19

Changing the basic settings. 20

Care and cleaning 20

Cleaning the appliance. 20

Do not use these cleaning agents 20

Eliminating faults 21

After-sales service 21

Additional information on products, accessories, replacement parts and services can be found at

www.neff-international.com and in the online shop

www.neff-eshop.com

#

Important safety information

Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners.

This appliance must be installed according to the installation instructions included.

Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.

Only a licensed professional may connect appliances without plugs. Damage caused by incorrect connection is not covered under warranty.

This appliance is intended for domestic use only. The appliance must only be used for the preparation of food and drink. The appliance must be supervised during operation. Only use this appliance indoors.

This appliance is not intended for operation with an external clock timer or a remote control.

This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsible for their safety how to use the appliance safely and have understood the associated hazards.

Children must not play with, on, or around the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised.

Keep children below the age of 8 years old at a safe distance from the appliance and power cable.

Risk of fire!

Hot oil and fat can ignite very quickly. Never leave hot fat or oil unattended. Never use water to put out burning oil or fat. Switch off the hotplate. Extinguish flames carefully using a lid, fire blanket or something similar.
- The appliance becomes very hot and flammable materials could catch fire. Never store or use flammable objects (e.g. spray cans, cleaning agents) under the appliance or in its immediate vicinity. Never place flammable items on or in the appliance.
The appliance becomes very hot and flammable materials could catch fire. Do not use any charcoal or similar fuels in this appliance.

Risk of burns!

The accessible parts become very hot when in operation. Never touch hot parts. Keep children at a safe distance.
- Dripping fat can catch fire quickly during grilling. Do not bend over the appliance. Keep a safe distance away.
The grill remains hot for a long time after being switched off. Do not touch the grill for 30 - 45 minutes after switching it off.
- When the appliance cover is closed, heat will accumulate. Only close the appliance cover when the appliance has cooled down. Never switch the appliance on with the appliance cover closed. Do not rest food on the appliance cover or use it to keep food warm.

Risk of electric shock!

Incorrect repairs are dangerous. Repairs may only be carried out by one of our trained after-sales engineers. If the appliance is faulty, unplug the mains plug or switch off the fuse in the fuse box. Contact the after-sales service.
The cable insulation on electrical appliances may melt when touching hot parts of the appliance. Never bring electrical appliance cables into contact with hot parts of the appliance.
- Do not use any high-pressure cleaners or steam cleaners, which can result in an electric shock.
A defective appliance may cause electric shock. Never switch on a defective appliance. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.

Causes of damage

Caution!

• Damage from unsuitable accessories: only use designated original accessories. Do not use grilling trays or aluminium containers. This will damage the cast grill.
  If hard or sharp objects fall on the glass ceramic panel or the glass ceramic cover, damage could occur.

Environmental protection

Environmentally-friendly disposal

Dispose of packaging in an environmentally-friendly manner.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Getting to know the appliance

Here you can gain an overview of your new appliance's components and control panel.

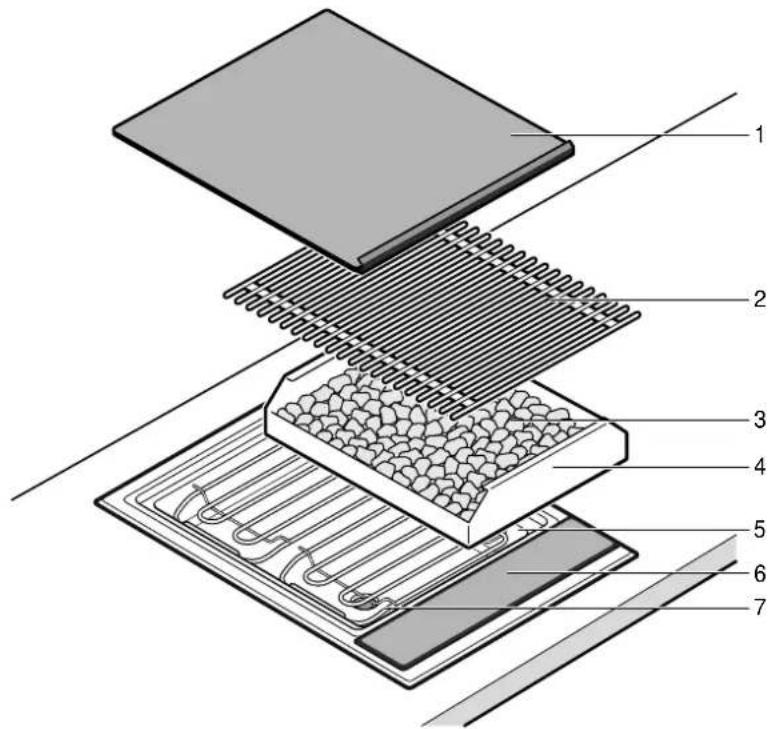

Your new lava stone grill

No. Designation

1 Glass ceramic cover
2 Wire grilling rack
3 Lava stones
4 Lava stone container

No. Designation

5 Grill container (water bath)
6 Control panel
7 Grill element

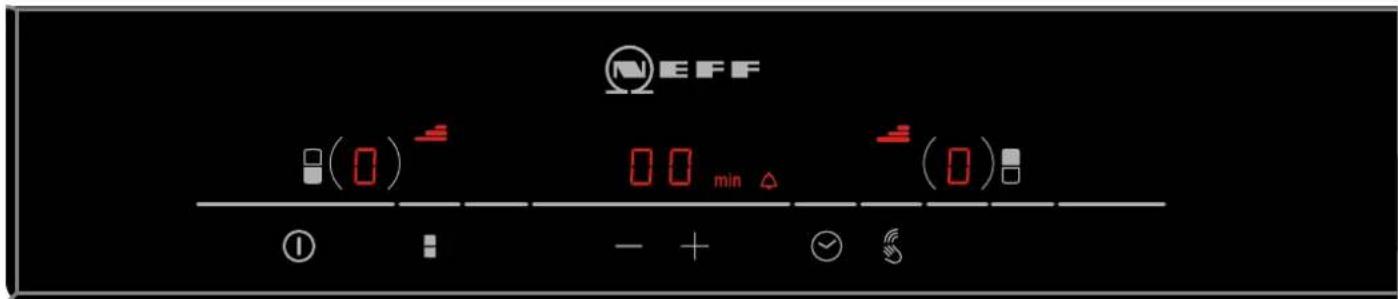

The control panel

Controls

① Main switch
Both heating elements
Front heating element
Rear heating element
Settings range for grill setting and timer
+ Timer
Wipe protection

Displays

1-9 Grill setting
Heating symbol
Cooking time
min. Unit of time
Timer symbol
H/h Residual heat

Controls

When you touch a symbol, the respective function is activated.

Notes

The settings will remain unchanged if you touch several symbols at once. This allows you to wipe up spills on the control panel.
Always keep the controls dry. Moisture reduces their effectiveness.

Residual heat indicator

The grill has a two-stage residual heat indicator. If an ±bH appears in the display, the grill is still hot. As the grill continues to cool down, the indicator switches to h. The indicator goes out when the grill has cooled down sufficiently.

Before using for the first time

In this section, you can find out what you must do before using your grill to prepare food for the first time. Read the Safety information section beforehand.

Cleaning

Clean the grill and accessories thoroughly before first use using lukewarm soapy water.

Heating the grill

Heat the empty grill for a few minutes at the highest setting. This will eliminate the new odour. A slight development of smoke is normal when the grill is used for the first time.

Grilling with water and lava stones

Fill the grill container with water before each use. The amount of water depends on whether or not you wish to use lava stones. The lava stones store the heat of the grill elements and thus ensure intensive radiation of heat and even distribution of heat.

Filling with water and lava stones

1. Remove the wire rack and fold up both grill elements. Remove the lava stone container from the appliance.
2. Ensure the drain valve is closed.

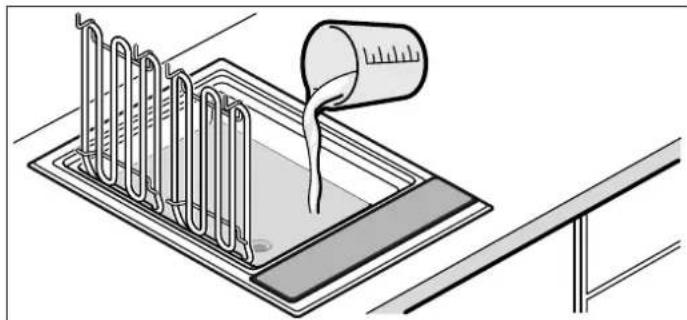

3. Fill water into the grill container. Grilling with lava stones: 1 litre (bottom mark) Grilling without lava stones: 3.5 litres (top mark)

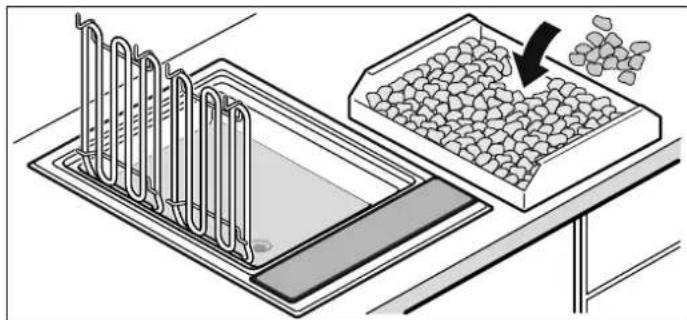

1. To grill with lava stones: Remove the lava stones from the packaging and place them in the lava stone container. Insert the lava stone container in the appliance.

1. Fold down the grill heating element, replace the wire rack. The grill is ready for operation.

Setting the grill

In this section, you can find out how to set the grill. The table shows grill settings and cooking times for various meals.

Switching the grill on and off

The main switch is used to switch the grill on and off.

To switch on: Touch the ① symbol. A signal sounds. The display above the main switch lights up. The grill is ready to use.

To switch off: Touch the ① symbol until the display above the main switch goes out. The grill has been switched off. The residual heat display remains lit until the grill has cooled down sufficiently.

Note: The grill switches off automatically when the grill setting remains at 0 for more than approx. 15 seconds.

Setting the grill

Set the desired grill setting on the control panel.

Grill setting 1 = lowest output

Grill setting 9 - highest output

Setting the grill setting

Note: You can decide whether the heating zones should be linked or not when the appliance is switched on; see Basic settings.

1. Switch on the grill using the main switch.
2. To select a grill element, touch the grill settings display next to the or symbol.

A bar lights up under the grill settings display for the selected grill element.

1. Touch the symbol.

A bar lights up for both grill elements under the grill settings displays. Both grill elements are linked. The same grill setting is set for both grill elements.

1. Touch the symbol.

The link between both grill elements is cancelled again.
5. Set the desired grill setting on the settings range using the + and - symbols.
6. Touch the + symbol.

9 lights up in the grill setting display.

Or:
Touch the - symbol.
4 lights up in the grill setting display.

The heating symbol lights up.

As soon as the set temperature has been reached, a signal sounds and the heating symbol goes out.

Note: The grill regulates the temperature by switching the grill element on and off. The grill element may be switched on and off even at the highest setting.

Pre-heating the grill

Do not place the food to be grilled onto the grill until the preheating time has elapsed. The heating symbol goes out. During the pre-heating time, the grill heats at full power. Once the preheating time has elapsed, the temperature is reduced by switching the heating element on and off in order to achieve a constant temperature for the relevant setting.

The pre-heating time is between 6 and 10 minutes, depending on the grill setting which has been set.

Note: Do not leave the empty grill to heat up at the highest grill setting for a prolonged period of time (approx. 6 - 10 minutes). Heating up for prolonged periods of time may lead to the appliance shutting down (overheating protection). Switch off the appliance and allow it to cool down before you switch it back on again.

Topping up the water

If there is too little water in the grill container, the overheating protection switches the appliance off. Therefore, while grilling, monitor the water level in the grill container and top it up as necessary.

Grilling with lava stones: bottom mark

Grilling without lava stones: top mark

Risk of scalding!

If water touches the hot wire grilling rack or grill element during topping up, hot steam will be generated. Do not reach over the grill while topping up and do not pour water over the hot components.

Switching Wipe protection on and off

When the appliance is in use, you can activate the key lock for approx. 30 seconds using the Wipe protection function in order to clean the control panel.

1. Touch the symbol to switch Wipe protection on.

Note: When Wipe protection is switched on, all symbols are locked, except for the Wipe protection symbol and the ① symbol for switching off the appliance.

The displays above the symbol and above the ① symbol light up.

1. Clean the control panel with water and washing-up liquid.
2. Touch the 念 symbol to switch off Wipe protection.

Grilling table

The details given in the table are guidelines and apply to a preheated grill. The values may vary depending on the type and amount of items to be grilled.

Only place food on the grill when the preheating time has elapsed.

Turn the food on the grill at least once.

Grilled food Setting for grilling over lava	stones	Setting for grilling over water bath	Grilling time in minutes
Beef steak, medium, 2-3 cm 7 - 8 9 8 - 10
T-bone steak, rare, 3 cm 5 - 6 6 - 7 10 - 15
Pork neck steak, boned 6 - 7 7 - 8 12 - 16
Pork chops*, 2 cm 3 - 4 4 - 5 15 - 20
Lamb cutlets, rare, 2 cm 4 - 5 5 - 6 12 - 15
Chicken breast, 2 cm 4 - 5 5 - 6 15 - 20
Chicken wings, 100 g each 4 - 5 5 - 6 15 - 20
Turkey escalope, plain, 2 cm 4 - 5 5 - 6 12 - 15
Salmon steak**, 3 cm 2 - 3 3 - 4 20 - 25
Tuna steak**, 2 cm 3 - 4 4 - 5 10 - 15
Trout***, whole, 200 g 4 - 5 5 - 6 12 - 15
King prawns, 30 g each	5 - 6 6 - 7 12 - 15
Hamburgers / meatballs, 1 cm	3 - 4 4 - 5 12 - 17
Shish kebabs****, 100 g each	2 - 3 3 - 4 17 - 25
Grilled sausage, 100 g each	3 - 4 4 - 5 10 - 20
Vegetables****	1 - 2 2 - 3 8 - 12
* Cut along the bone** Oil the wire grilling rack*** Oil the skin well, oil again before turning**** Turn frequently**** E.g. aubergines, courgettes in 1 cm thick slices, peppers in quarters

After grilling

Only close the glass ceramic cover after the grill has cooled down completely. Leave damp lava stones to dry completely before you close the glass ceramic cover or else mould could develop.

If the water is still hot when being drained, first add cold water to cool it down! To drain the water, place a heat-resistant container underneath the drain tap. Open the tap by turning the lever 90^ downwards. Then close the tap by turning the lever upwards to the stop.

Automatic time limit

If the appliance is in use for a prolonged period without the setting being changed, the automatic time limit is activated.

Depending on the temperature set, the appliance may be operated for between 2 and 4 hours before the automatic time limit is activated.

The heat is interrupted. F and ±bB flash alternately in the display.

The display goes out when you touch any control. You can reset the temperature.

Tips and tricks

Always preheat the grill. In this way, due to the intensive heat radiation, a crust can form quickly and prevent the meat juices from escaping.
- You can brush or marinate the food with heat-resistant oil (e.g. peanut oil) before grilling. This will improve the flavour. Ensure that you do not use too much oil/marinade, as this could cause the food to catch fire and generate thick smoke.
- Do not salt meat before grilling. Otherwise, soluble nutrients and meat juices could be lost.
Place the food directly on the wire rack. Do not use any aluminium foil or grill linings.
Only turn the food when it can be easily removed from the wire rack. If meat sticks to the wire rack, the fibres will be destroyed and the meat juices will escape.
- Do not prick meat during grilling or the meat juices will escape.
Cured meat, such as ham or smoked pork chops, is not suitable for grilling. A harmful compound can be produced.

Score chops several times at the bone and in the fat layer so that they do not bend during grilling.
We recommend removing the fat layer after grilling rather than before, as otherwise the meat will lose juice and flavour.
Poultry pieces will turn out particularly crispy and brown if you baste them towards the end of the grilling time with butter, salted water or orange juice.
After grilling, fruit can be seasoned to taste with honey, maple syrup or lemon juice.
Before grilling, you can precook vegetables which take a long time to cook (e.g. corn on the cob).
- Grill fish fillets skin side up first. Brush the skin with oil so that it does not stick to the wire rack.
- Serve grilled food hot. Do not keep it warm or it will become tough.
- Dripping fat can catch fire on the heating elements and can result in brief formation of flames and smoke. To reduce this, very fatty foods should be grilled over a water bath.

Timer

The timer can be used as a kitchen timer. The timer does not switch the grill on or off.

With the timer, you can set a time up to 99 minutes. You can also use the timer when the grill is switched off.

Setting the timer

1. Touch the symbol until and light up in the timer display.
2. Set the required time on the settings range using the + and - symbols.
3. Touch the + symbol.

30 lights up in the timer display.

Or:

Touch the - symbol.

lights up in the timer display.

1. Touch the + symbol.

The timer display is increased in increments of 1 minute.

1. Touch the - symbol.

The timer display is decreased in increments of 1 minute.

A signal sounds once the time has elapsed. lights up in the timer display and the symbol flashes. The signal and the display switch off after approx. 1 minute.

You can change the duration of the signal in the basic settings; see section Basic settings.

Correcting the timer

1. Touch the symbol.
2. Set the required time on the settings range using the + and - symbols.

Basic settings

Your appliance has various basic settings. You can adapt these settings to suit your own needs.

Display Function
c2	Audible signal
	The confirmation signal and operating error signal are switched off.
	Only the operating error signal is switched on.
	The confirmation signal and operating error signal are switched on.*
c6	Duration of the timer end signal
	10 seconds
	30 seconds
	1 minute*

*Basic setting

Display Function

Switching off the rear heating zones When the appliance is switched on, the heating zones are not linked.* When the appliance is switched on, the heating zones are linked.” When the appliance is switched on, the previous setting is retained.

Resetting to the basic setting Switched off. Switched on.

*Basic setting

Changing the basic settings

The grill must be switched off.

1. Switch on the grill.
2. Within the next 10 seconds, touch the symbol for 4 seconds.
   and ^ flash alternately in the right-hand display; ^ lights up in the left-hand display.
3. Touch the symbol repeatedly until the required display flashes on the right-hand display.
4. Set the required value on the settings range using the + and - symbols.
5. Touch the symbol for at least 3 seconds.

The setting has been saved.

Switching off without saving

To exit the basic setting, switch the appliance off at the main switch. Changes are not saved.

Care and cleaning

In this chapter you will find tips on how to maintain and clean your appliance correctly.

Risk of burns!

The appliance becomes hot during operation. Allow the appliance to cool down before cleaning.

Risk of electric shock!

Do not use high pressure washers or steam cleaners to clean the appliance.

Cleaning the appliance

Clean the appliance after each use, once it has cooled down. This will help prevent residues from burning on. Once residues have burned on several times, they become more difficult to remove.

Do not scrape burnt-on residues off, but leave them to soak in soapy water.

Remove the wire rack and swivel the heating element upwards. Remove the lava stone tray with the lava stones.

Appliance part/surface	Recommended cleaning
Wire grilling rack	Remove rough residues with a washing-up brush. Soak the wire rack in the sink. Clean with a washing-up brush and washing-up liquid and dry thoroughly.Brush stubborn dirt with our grill cleaner gel (order no. 463582) and leave to act for at least 2 hours, or overnight in severe cases. Then rinse thoroughly and dry. Note the packaging instructions of the cleaner.Do not clean in the dishwasher!

Lava stone tray and grill container

Remove lava stones or drain water. Clean in the sink with water and washing-up liquid using a washing-up brush; dry with a soft cloth. Leave stubborn dirt to soak or remove with our grill cleaner gel (order no. 463582).

Appliance part/surface	Recommended cleaning
Lava stones Dry very damp lava stonesoccasionally in the oven at 200°C.This can help prevent the formation ofmould.Replace lava stones when theybecome black. The lava stones maybe fully saturated with fat and could generate a lot of smoke during use orthe fat could catch fire.You can obtain the correct lava stonesfrom your specialist retailer (order no.00291050). When topping up, ensure that the grill element does not liedirectly on top of the lava stones.
Control panel andglass ceramiccover	Clean with a soft,damp cloth and some washing-up liquid; the cloth should not be too wet. Dry off with asoft cloth.

Do not use these cleaning agents

Scouring or chemically aggressive cleaners
Acidic cleaners (e.g. vinegar, citric acid, etc)
Cleaners containing chlorine or with a high content of alcohol
Oven cleaner
Hard and scratchy sponges, brushes or scouring pads
Thoroughly wash out new sponge cloths before using them.

Eliminating faults

Faults often have simple explanations. Please read the following information before calling the after-sales service.

Display Fault Measure

None The power supply has been discon- nected.		Check the household fuse for the appliance. Check whether there is a power cut by trying other electronic appliances.
E or EE flashes	The controls are damp or an object is resting on them.	Dry the controls or remove the object. Then touch any control.
Er + number	Appliance fault Switch off the appliance	for at least 15 seconds. Switch the appliance back on. Contact the after-sales service if this display appears again.
F2	The electronics have overheated and have switched off the front grill element.	Wait until the electronics have cooled down sufficiently. Then touch any control.
F4	The electronics have overheated and have switched off the appliance.	Wait until the electronics have cooled down sufficiently. Then touch any control.
F8	The appliance was in operation for too long and has switched itself off.	You can switch the grill back on again immediately.
The display is normal, but the temperature set has not been reached.	No water in the grill's container. The appliance has reduced the setting.	Fill the grill's container with water. If necessary, leave the appliance to cool down.
The appliance has reduced the setting or shut down.	Excessively long pre-heating. Do not leave the empty grill to heat up at the highest grill setting for a prolonged period of time (approx. 6 - 10 minutes). Heating up for prolonged periods of time may lead to the appliance shutting down (overheating protection). Switch off the appliance and allow it to cool down before you switch it back on again.

After-sales service

Our after-sales service is there for you if your appliance should need to be repaired. We are committed to find the best solution also in order to avoid an unnecessary call-out.

E number and FD number:

Please quote the E number (product number) and the FD number (production number) of your appliance when contacting the after-sales service. The rating plate bearing these numbers can be found on the appliance certificate.

Please note that a visit from an after-sales service engineer is not free of charge, even during the warranty period.

Please find the contact data of all countries in the enclosed customer service list.

To book an engineer visit and product advice

GB 0844 8928989

Calls from a BT landline will be charged at up to 3 pence per minute. A call set-up fee of up to 6 pence may apply.

IE014502655

0.03 € per minute at peak. Off peak 0.0088 € per minute.

Rely on the professionalism of the manufacturer. You can therefore be sure that the repair is carried out by trained service technicians who carry original spare parts for your appliances.
