USER MANUAL DVD750VR PHILIPS

RETURNING THE PRODUCT. 1-800-531-0039 OR VISIT US ON THE WEB AT WWW.PHILIPS.COM H9421CD/DVD750(EN).pgs1-51.QX3 03.4.11 11:29 AM Page 2 Return your Warranty Registration card today to ensure you receive all the benefits you’re entitled to. Once your PHILIPS purchase is registered, you’re eligible to receive all the privileges of owning a PHILIPS product. So complete and return the Warranty Registration Card enclosed with your purchase at once. And take advantage of these important benefits. Warranty Verification Owner Confirmation Model Registration Registering your product within 10 days confirms your right to maximum protection under the terms and conditions of your PHILIPS warranty. Your completed Warranty Registration Card serves as verification of ownership in the event of product theft or loss. Returning your Warranty Registration Card right away guarantees you’ll receive all the information and special offers which you qualify for as the owner of your model. Know these safetysymbols Congratulations on your purchase, and welcome to the “family!” CAUTION

RISK OF ELECTRIC SHOCK

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Dear PHILIPS product owner: Thank you for your confidence in PHILIPS.You’ve selected one of the best-built, best-backed products available today. And we’ll do everything in our power to keep you happy with your purchase for many years to come. As a member of the PHILIPS “family,” you’re entitled to protection by one of the most comprehensive warranties and outstanding service networks in the industry. What’s more, your purchase guarantees you’ll receive all the information and special offers for which you qualify, plus easy access to accessories from our convenient home shopping network. And most importantly you can count on our uncompromising commitment to your total satisfaction. All of this is our way of saying welcome-and thanks for investing in a PHILIPS product. P.S. Remember, to get the most from your PHILIPS product, you must return your Warranty Registration Card within 10 days. So please mail it to us right now! This “bolt of lightning” indicates uninsulated material within your unit may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering. The “exclamation point” calls attention to features for which you should read the enclosed literature closely to prevent operating and maintenance problems.

MOISTURE. CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert. ATTENTION: Pour éviter les choc électriques, introduire la lame la plus large de la fiche dans la borne correspondante de la prise et pousser jusqu’au fond. For Customer Use Enter below the Serial No. which is located on the rear of the cabinet. Retain this information for future reference. Model No. ________________ Serial No. ________________ Visit our World Wide Web Site at http://www.philips.com H9421CD/DVD750(EN).pgs1-51.QX3 03.4.11 11:29 AM Page 3 Safety and General Information 3 Safety Precautions

Warning: To prevent fire or shock hazard, do not expose this equipment to rain or

moisture. Federal Communications Commission (FCC) Warning: Any unauthorized changes or modifications to this equipment void the user’s authority to operate it. Department of Health and Human Services (DHHS) Certification: Complies with 21 Center for Radiation (CFR) chapter 1 subchapter J applicable at time of manufacture. Laser Safety: This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this device, due to possible eye injury. CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. CAUTION:VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK DEFEATED. DO NOT STARE INTO BEAM.THE BEAM IS LOCATED INSIDE, NEAR THE DECK MECHANISM. Special Information for Canadian Users: This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Radio/TV Interference: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1) Reorient or relocate the receiving antenna.

2) Increase the separation between the equipment and the receiver.

3) Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

4) Consult the dealer or an experienced radio/TV technician for help.

• Copyright Protection: Unauthorized copying, broadcasting, public performance, and lending of Discs are prohibited.This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. Note to the Cable TV System Installer: This reminder is provided to call the Cable TV system installer’s attention to Article 820-40 of the National Electrical Code, which provides guidelines for proper grounding – in particular, specifying that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as possible. Declaration of Conformity Model Number: Trade Name: Responsible Party: DVD750VR Philips Philips Consumer Electronics P.O. Box 14810 Knoxville,TN 37914-1810 (865) 521-4316 Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories. Copyright 2003 Philips.All rights reserved. VCR Plus+® and PlusCode® are registered trademarks of Gemstar Development Corporation.The VCR Plus+ system is manufactured under license from Gemstar Development Corporation. H9421CD/DVD750(EN).pgs1-51.QX3 03.4.11 11:29 AM Page 4 4 Table of Contents General Information Additional VCR Features Safety and General Information p. 3
• Table of Contents p. 4
• Introduction p. 5
• Playable Discs and Video Cassettes p. 6
• Multi-Channel Television Sound p. 49
• -50 Hi-Fi Stereo p. 51
• Disc Playback Features Initial DVD/VCR Setup Hookups p. 7
• -15 Remote Control Setup p. 16
• First-time DVD/VCR Setup p. 17
• Basic Playback Video Cassette Playback p. 18
• Disc Playback p. 19

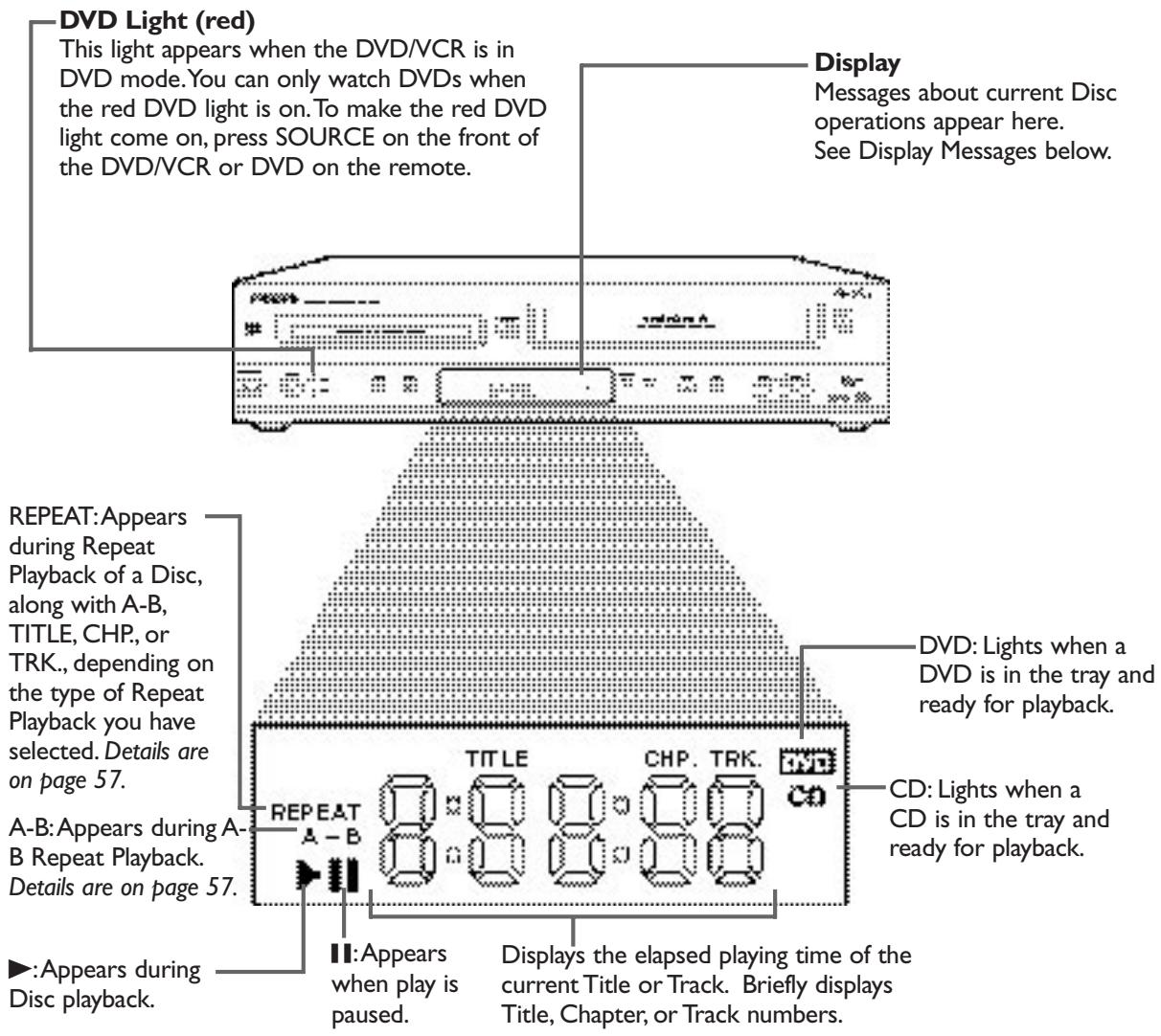

• Basic DVD/VCR Controls Display Panel (DVD) p. 20
• Display Panel (VCR) p. 21
• Front Panel p. 22
• Rear Panel p. 23
• Remote Control p. 24

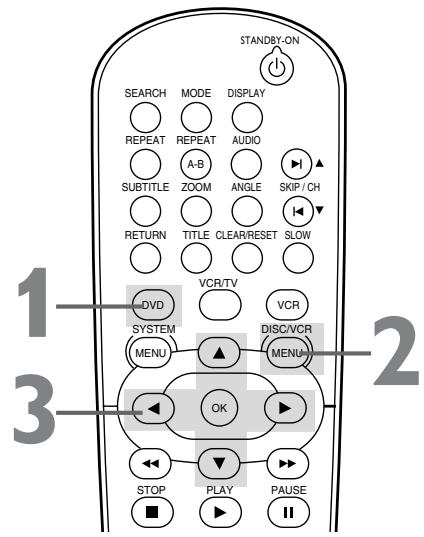

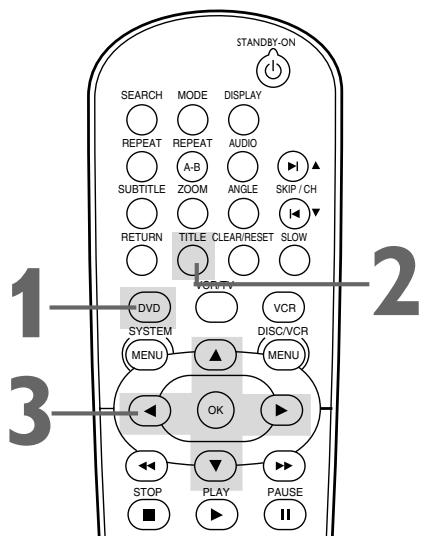

• -25 DVD Disc Menus p. 52
• Fast Forward/Reverse Search p. 53

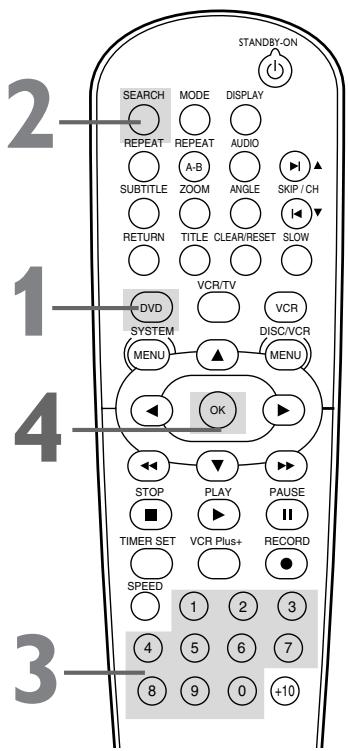

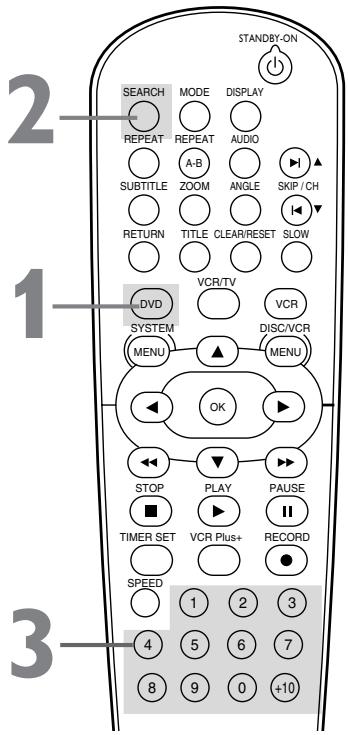

• Title/Chapter Playback, Specific Time Playback p. 54
• Track Playback p. 55

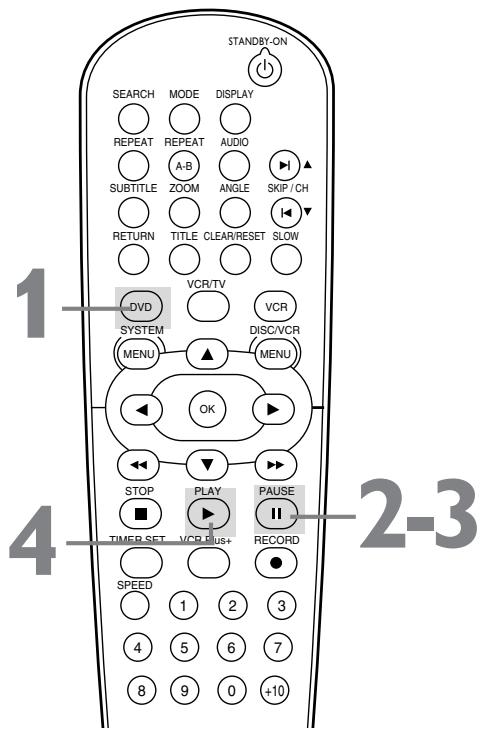

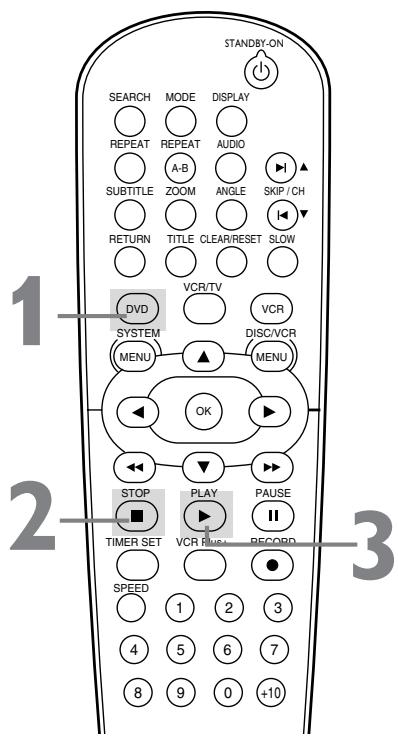

• Paused and Step-by-Step Playback, Resume p. 56

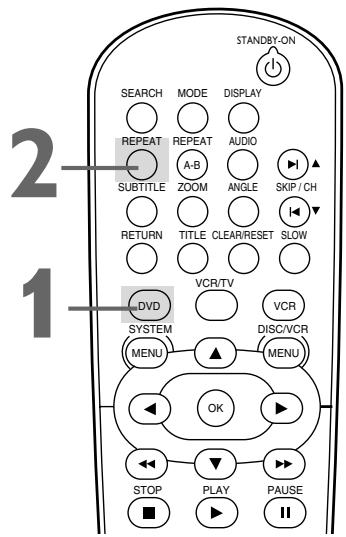

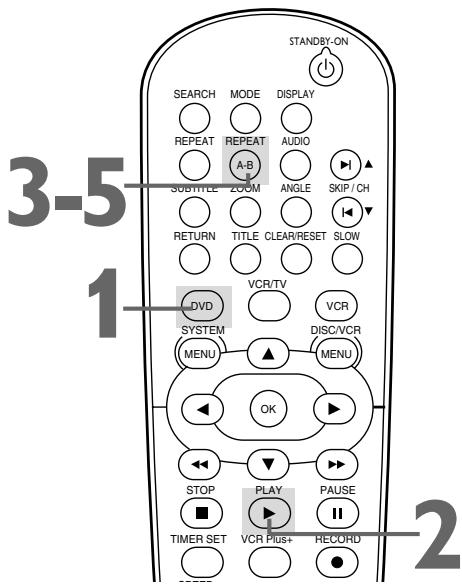

• Repeat,A-B Repeat p. 57
• Markers p. 58

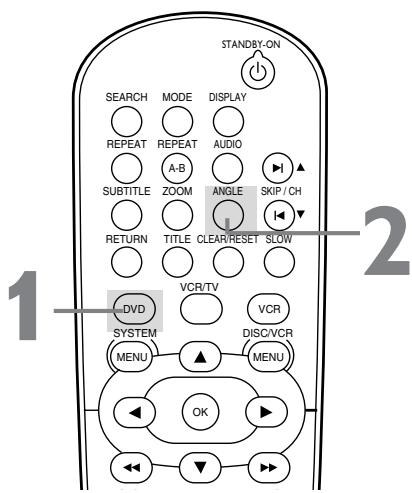

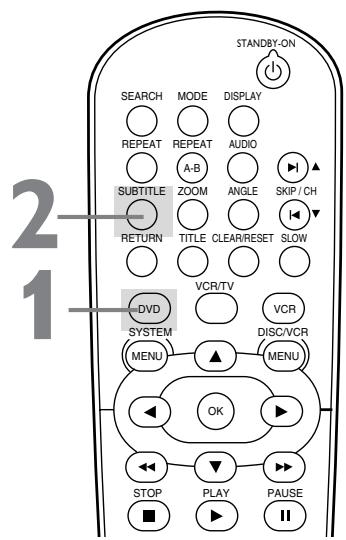

• Subtitles, Camera Angles p. 59
• Parental Controls Password p. 60
• Parental Levels p. 61

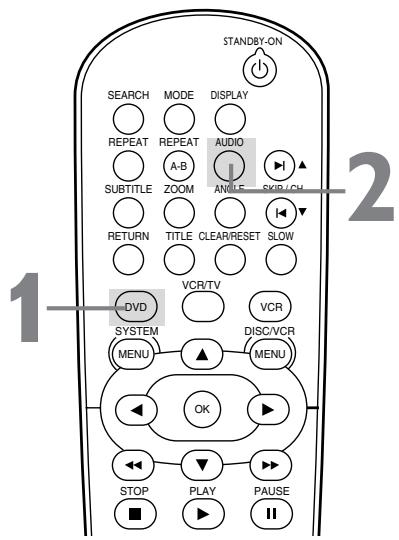

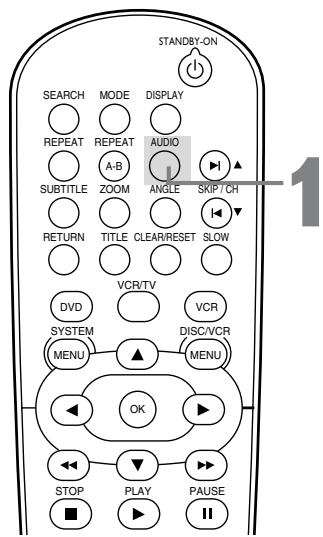

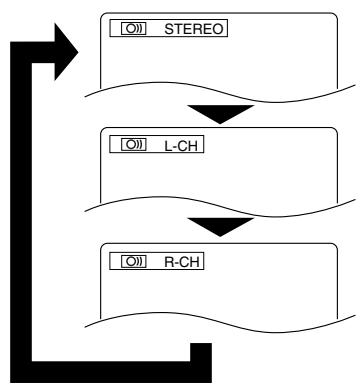

• Audio Language, Stereo Sound Mode p. 62

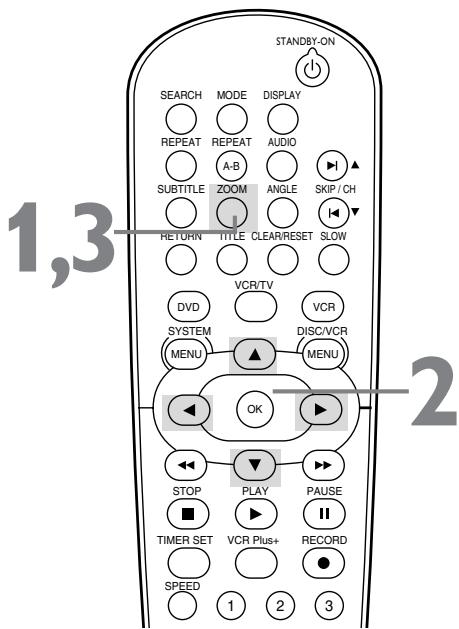

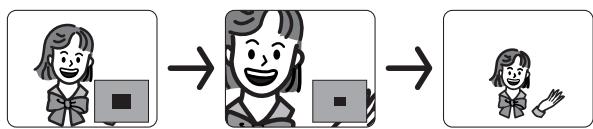

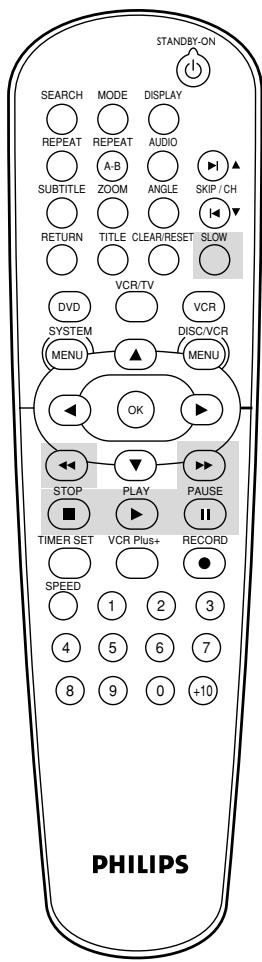

• DVD Slow Motion, Zoom p. 63

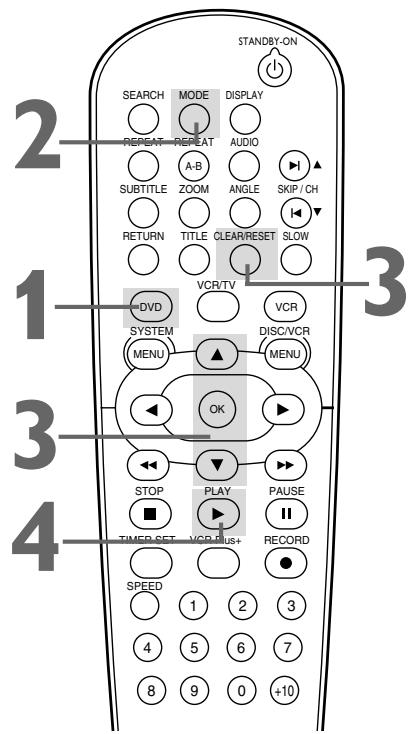

• Programmed Playback p. 64
• Random Playback p. 65

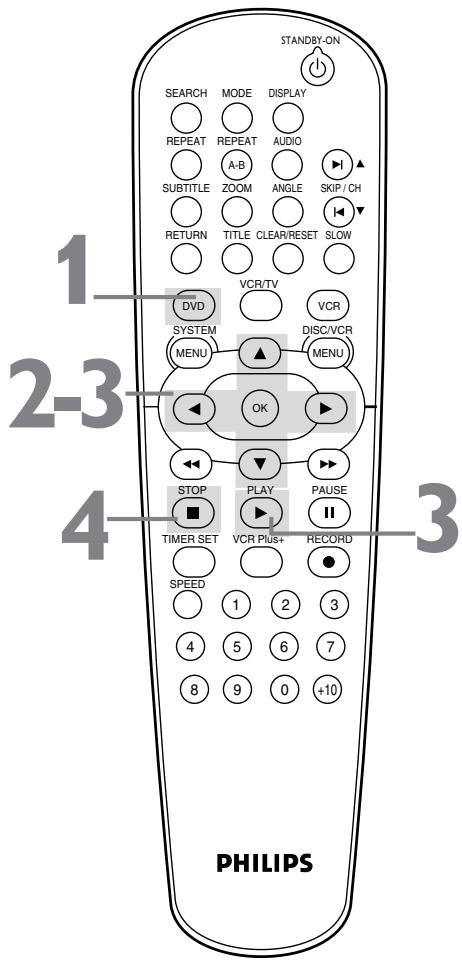

• MP3/JPEG Playback p. 66
• MP3/JPEG Displays p. 67
• DVD Player Setup Options Additional VCR Setup Channel Setup p. 26
• -27 Clock (VCR) p. 28
• -29 Language (VCR) p. 30
• VCR Status Displays p. 31

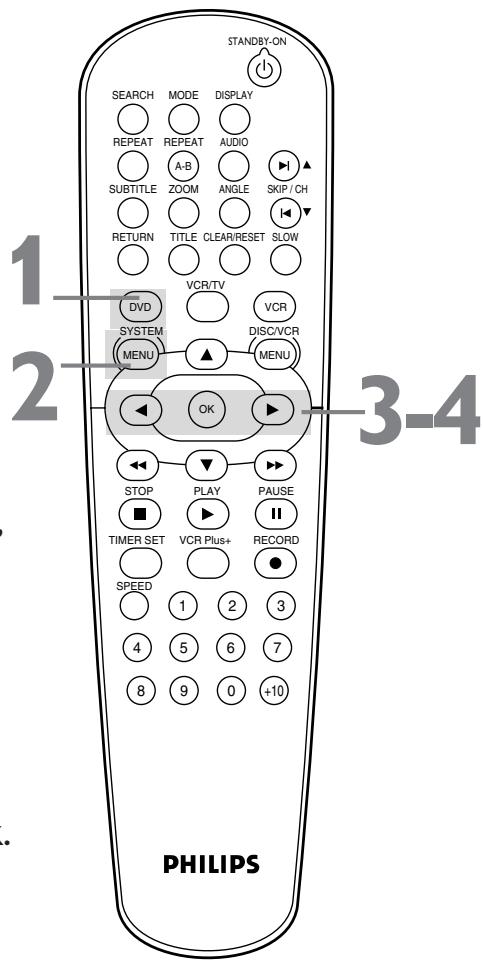

• Display p. 68

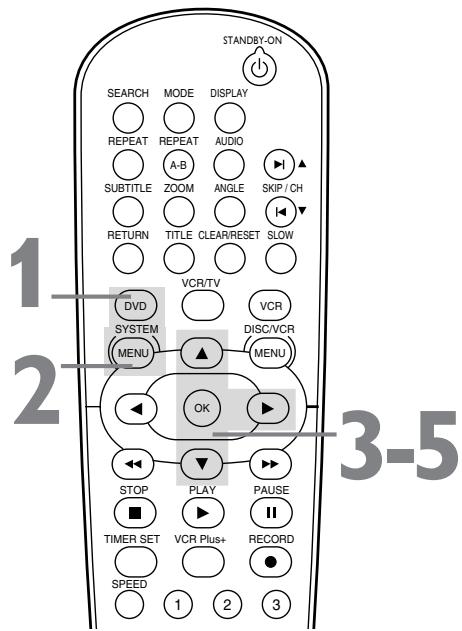

• -69 Language p. 70

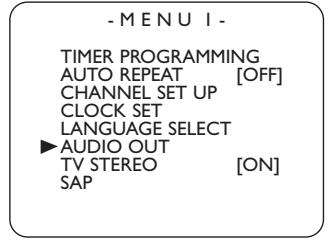

• -71 Audio p. 72

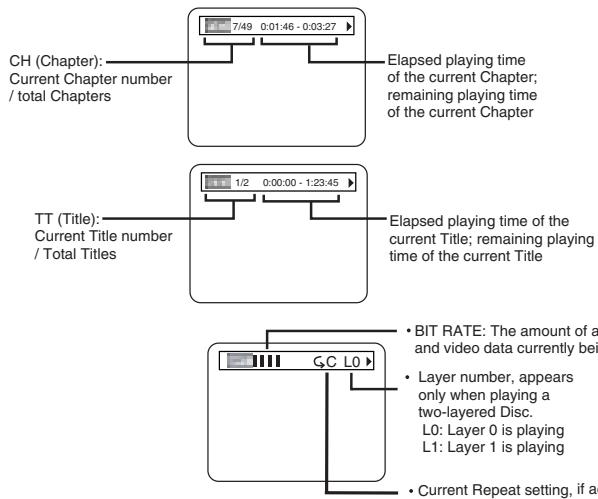

• On-Screen Displays p. 73
• Black Level,Virtual Surround p. 74
• Information You May Need VCR Recording Options Videotape Recording p. 32
• Recording One Channel/Watching Another p. 33

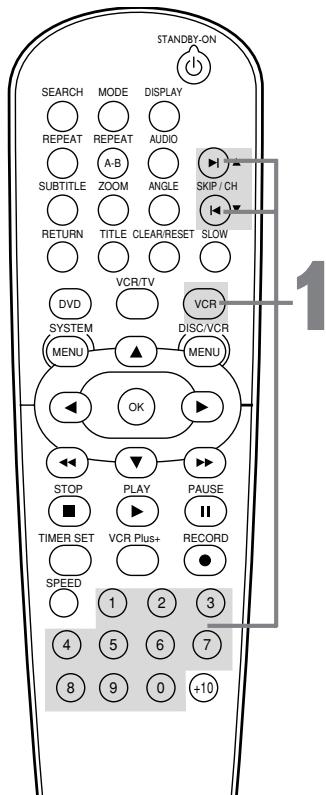

• One-Touch Recording p. 34

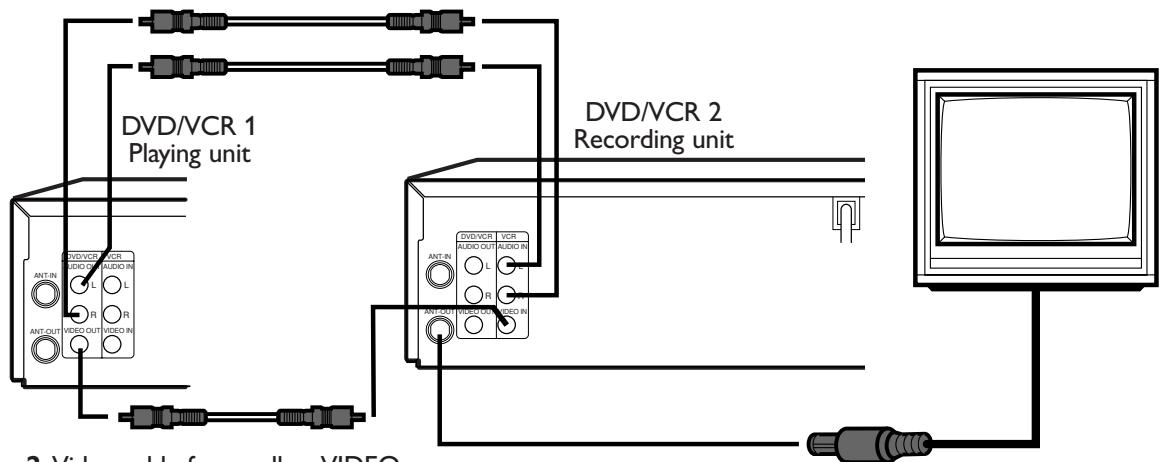

• Rerecording (Tape Duplication) p. 35
• Timer Recording p. 36
• -38 DVD to Videotape Duplication p. 39

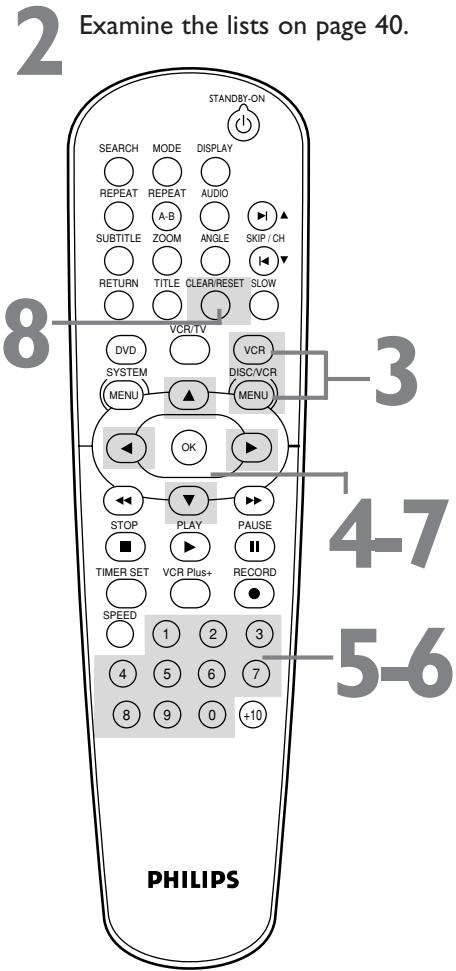

• Video Cassette Playing Options Setting Up the VCR Plus+ Programming System p. 40

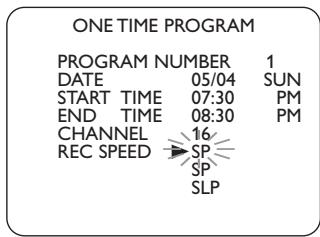

• -41 Timer Recording with the VCR Plus+ Programming System p. 42
• -43 Repeat Play p. 44
• Tape Counter p. 45

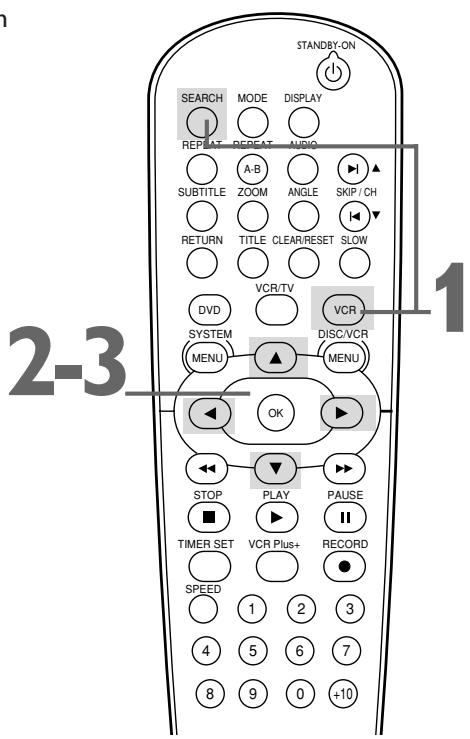

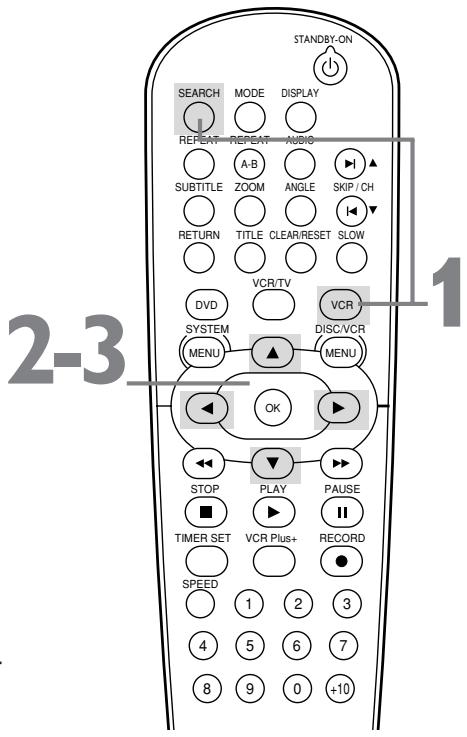

• Time Search, Index Search p. 46
• Special Effects Playback p. 47
• Automatic Operation Features p. 48
• Care and Maintenance p. 75
• Glossary p. 76
• Specifications p. 77
• Helpful Hints p. 78
• -81 Limited Warranty p. 82
• Information Index H9421CD/DVD750(EN).pgs1-51.QX3 03.4.11 11:29 AM Page 5 Introduction 5 Welcome! This DVD/VCR combines a Digital Video Disc (DVD) Player and a Hi-Fi Video Cassette Recorder (VCR) into one unit, letting you play DVDs,Audio Compact Discs (Audio CDs), and Video Cassettes on one piece of equipment. Read this owner’s manual carefully to learn how to use the features listed below. VCR Features p. 83

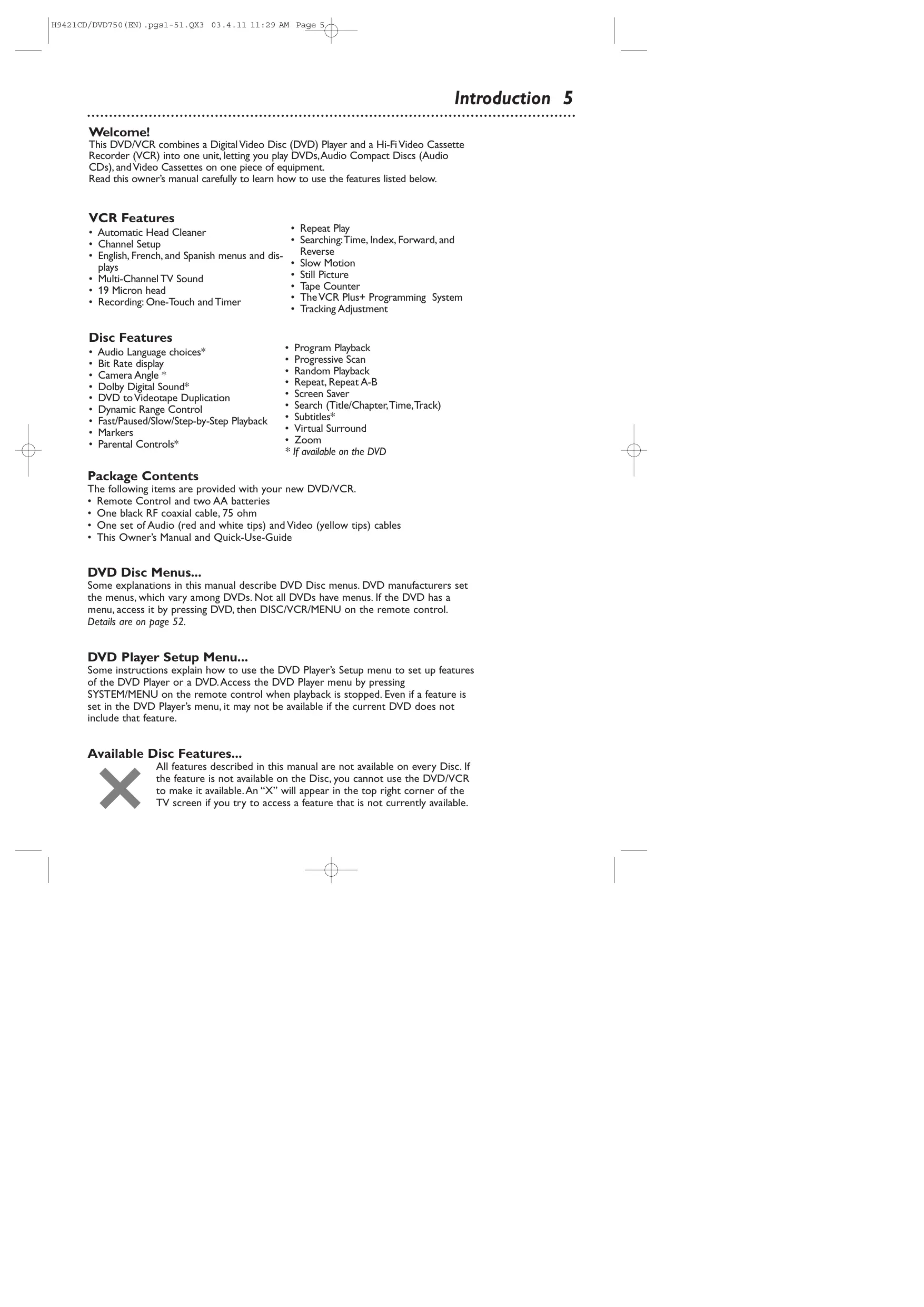

• Automatic Head Cleaner
• English, French, and Spanish menus and displays
• Multi-Channel TV Sound
• Recording: One-Touch and Timer Disc Features

• Searching:Time, Index, Forward, and Reverse
• The VCR Plus+ Programming System

• If available on the DVD Package Contents The following items are provided with your new DVD/VCR.
• Remote Control and two AA batteries
• One black RF coaxial cable, 75 ohm
• One set of Audio (red and white tips) and Video (yellow tips) cables
• This Owner’s Manual and Quick-Use-Guide DVD Disc Menus... Some explanations in this manual describe DVD Disc menus. DVD manufacturers set the menus, which vary among DVDs. Not all DVDs have menus. If the DVD has a menu, access it by pressing DVD, then DISC/VCR/MENU on the remote control. Details are on page 52. DVD Player Setup Menu... Some instructions explain how to use the DVD Player’s Setup menu to set up features of the DVD Player or a DVD. Access the DVD Player menu by pressing SYSTEM/MENU on the remote control when playback is stopped. Even if a feature is set in the DVD Player’s menu, it may not be available if the current DVD does not include that feature. Available Disc Features... All features described in this manual are not available on every Disc. If the feature is not available on the Disc, you cannot use the DVD/VCR to make it available. An “X” will appear in the top right corner of the TV screen if you try to access a feature that is not currently available. H9421CD/DVD750(EN).pgs1-51.QX3 03.4.11 11:29 AM Page 6 6 Playable Discs and Video Cassettes Playable Discs The DVD Player will play Digital Video Discs (DVDs);Audio Compact Discs (CDs); finalized Digital Video Discs Rewritable (DVD+RW); and finalized Compact Discs Rewritable (CD-RW) and Compact Discs Recordable (CD-R). To play a DVD, make sure it meets the requirements for Region Codes and Color Systems as described below. Discs that have the following logos will play on the DVD Player. Other Disc types are not guaranteed to play in the DVD/VCR. Recordable ReWritable DVD Audio CD CD-RW/CD-R DVD+RW Region Codes This DVD/VCR has a Region One (1) DVD Player. DVDs must be labeled for ALL regions or for Region 1 in order to play on the DVD Player.You cannot play DVDs that are labeled for other regions. Look for the symbols below on your DVDs. If these region symbols do not appear on your DVD, you cannot play the DVD in this DVD Player. The number inside the globe refers to a region of the world. Region 1 represents the United States, Canada, upper regions of North America, Bermuda, the U.S.Virgin Islands, and small regions near Australia. A DVD labelled for a specific region can only play on DVD Players with the same region code. Color Systems DVDs are recorded in different color systems throughout the world.The most common color systems are NTSC (which is used primarily in the United States and North America), PAL, and SECAM. This DVD Player uses NTSC, so DVDs you play must be recorded in the NTSC system.You cannot play DVDs recorded in other formats.The color system of the DVD may be listed on the DVD or on the Disc case. Playable Video Cassettes The VCR of this DVD/VCR has a High Quality (HQ) system and is compatible with existing Video Home System (VHS) equipment. Use only video cassettes that have the mark.The use of other tapes may result in poor picture quality and excessive deposits on the video heads, which may not be covered by the warranty if damage occurs. The VCR also has a 19 micron head, which provides a better picture when you view tapes recorded in slow speed (SLP). H9421CD/DVD750(EN).pgs1-51.QX3 03.4.11 11:29 AM Page 7 Hookups 7 Determining the best possible connection... Your hookup will be determined primarily by your existing equipment, especially your TV. However, the following guidelines describe which options have the best picture (video) and sound (audio) quality.You will not use all the jacks on the DVD/VCR. If your TV only has an RF-style jack, usually labelled Antenna In, RF In, or 75 ohm, use the ANTOUT jack of the DVD/VCR to connect to the TV.This hookup provides both audio and video in a single cable. Set your TV to channel 3 or 4 - the output channel of the DVD/VCR.This connection allows you to use both the DVD and VCR features. Details are on page eight.

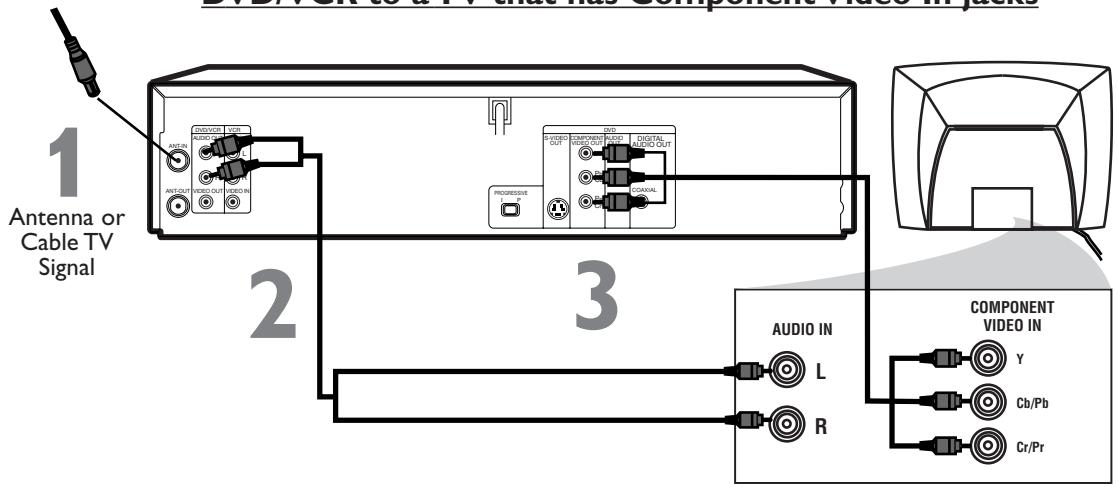

If your television has Component Video In jacks (which could be labelled Y Cr Cb,Y Pr Pb, or YUV and may be green, blue, and red), use the Component Video jacks (Y Pb/Cb Pr/Cr) for the best picture quality. Set the INTERLACE/PROGRESSIVE SCAN SELECTOR to INTERLACE. If you use only this video connection, only the DVD picture will be available.To see DVD features on the TV, set the TV to its Component Video In channel. Details are on page 12. If your TV has Progressive Scanning (480p), connect the TV to the Component Video Out jacks of the DVD/VCR. Set the INTERLACE/PROGRESSIVE SCAN SELECTOR on the DVD/VCR to PROGRESSIVE. Set your TV to Progressive Scan. Progressive Scan provides less flickering and higher image resolution than traditional (480i) TV signals.When PROGRESSIVE is selected, no video will be sent from the VIDEO OUT or S-VIDEO OUT jacks. If your TV has an S-Video In jack (which also may be labelled Y/C or S-VHS), use the S-Video jack for excellent picture quality. If you use only this video connection, only the DVD picture will be available.To see DVD features on the TV, set the TV to its S-Video In channel. Details are on page If your TV has a single yellow Video In jack (which also may be labelled CVBS, Composite, or baseband), use the yellow Video jack for good picture quality.This connection provides a picture for both the DVD Player and the VCR.To see DVD or VCR features on the TV, set the TV to its Video In channel. Details are on page 11. If you have a Stereo with a Coaxial Digital Audio In jack, this provides the clearest sound for the DVD Player. Connect the DVD/VCR’s COAXIAL DIGITAL AUDIO OUT jack to your Stereo for the best sound quality. If you use only this audio connection, only Disc sound (no VCR) will be available. Details are on page 15. If digital audio connections are not possible, connect the DVD/VCR’s red and white DVD/VCR AUDIO OUT jacks to the Audio In jacks of your Stereo or TV.This connection provides sound for both the DVD Player and the VCR. Details are on pages 11-14. Before you begin... ● Refer to the manuals of your TV, Cable Box, Stereo, or other devices as necessary. Note the style of jacks and connectors on the other equipment. Determine how to choose different Audio and Video In channels on your other equipment so you can see and hear the DVD/VCR material playing on the TV, Stereo, etc. ● Disconnect all equipment from the power outlets. Connect the equipment to the power outlets only after you have finished hooking up everything. Never make or change connections with equipment connected to the power outlet. Remember... ● Set the TV to the correct Video In channel. Such channels may be called AUX or AUXILIARY IN,

AUDIO/VIDEO or A/V IN, EXT1 or External In, etc.These channels often are located near channel 00. See your TV owner’s manual for details. If you do not see the DVD or VCR playback on the TV, go to the lowest TV channel (01 or 02) and change channels downward until you see the DVD or VCR picture on the TV. Or, if your TV has only a single Antenna In jack and you are using the RF coaxial cable (as described on page eight), set the TV to channel 3 or 4. To help you find the right Audio/Video In channel, turn on the DVD/VCR. Press DVD to put the DVD/VCR in DVD mode.With no Disc in the Player, a large DVD Video logo will appear on the TV screen when you get the TV on the correct Audio/Video In channel or channel 3 or 4. Set the Stereo to the correct channel or “source” mode. Depending on your connection, you may need to purchase additional cables or adaptors. If your TV or monitor has BNC-type connectors, you will need an adaptor. If you switch between PROGRESSIVE and INTERLACE when the power is on, the DVD/VCR will turn off. When you turn on the DVD Player again, the last selected scanning system will be active. To use the VCR features, you must include a connection with the supplied yellow video cable and red/white audio cables or with the supplied RF coaxial cable. Once you determine the best option, find your choice on pages 8-15. Follow the steps for the hookup you choose.Then, go to page 17 to complete the first-time setup. H9421CD/DVD750(EN).pgs1-51.QX3 03.4.11 11:29 AM Page 8 8 Hookups (cont’d) DVD/VCR to TV only Simplest connection using only the supplied black RF coaxial cable This connection will let you use the features of both the VCR and the DVD Player.

Antenna or Cable TV signal

Antenna In Jack (on back of TV) example only

ANT / CABLE Black RF coaxial cable (supplied) Disconnect the antenna or Cable TV signal from your TV and connect it to the ANT-IN (Antenna In) jack of your DVD/VCR. Connect the supplied black RF coaxial cable to the ANT-OUT (Antenna Out) jack on the back of the DVD/VCR and to the ANTENNA IN JACK on the TV. The ANTENNA IN jack on the TV may be labelled TV IN, RF IN, 75Ω (ohm), or ANT-IN. See your TV owner’s manual for assistance. Plug in the power cords of the TV and the DVD/VCR. Set your TV to channel 3 or 4. The DVD/VCR’s output channel is 3 when you purchase it. So, set your TV to channel 3 when the DVD/VCR is new. If you cannot use channel 3 at your TV, you can change the DVD/VCR’s output channel to channel 4.To do so, press the VCR button to put the DVD/VCR in VCR mode.The green VCR light will be on the front of the DVD/VCR. Insert a videotape and press PLAY B to start playback. During playback, press and hold the (VCR) PLAY B button on the front of the DVD/VCR for three to five seconds. Each time you do this, the DVD/VCR’s output channel switches between 3 and 4. Change your TV to channel 3 or 4 accordingly. (You cannot change the DVD/VCR’s output channel while adjusting tracking manually. Press STOP C to stop play and cancel manual tracking, then press PLAY B to resume play and change the output channel.) There is not a channel 3/4 switch on the DVD/VCR (as customary with most VCRs). You are ready to turn on the DVD/VCR. Go to page 17 before turning on the DVD/VCR. H9421CD/DVD750(EN).pgs1-51.QX3 03.4.11 11:29 AM Page 9 Hookups (cont’d) 9 DVD/VCR to Cable Box or Satellite Receiver and TV Using only basic RF coaxial cables This connection will let you use the features of both the VCR and the DVD Player.

Cable Box/Satellite Receiver

ANT-IN Cable Signal DVD

RF coaxial cable DIGITAL AUDIO OUT RF coaxial cable COAXIAL

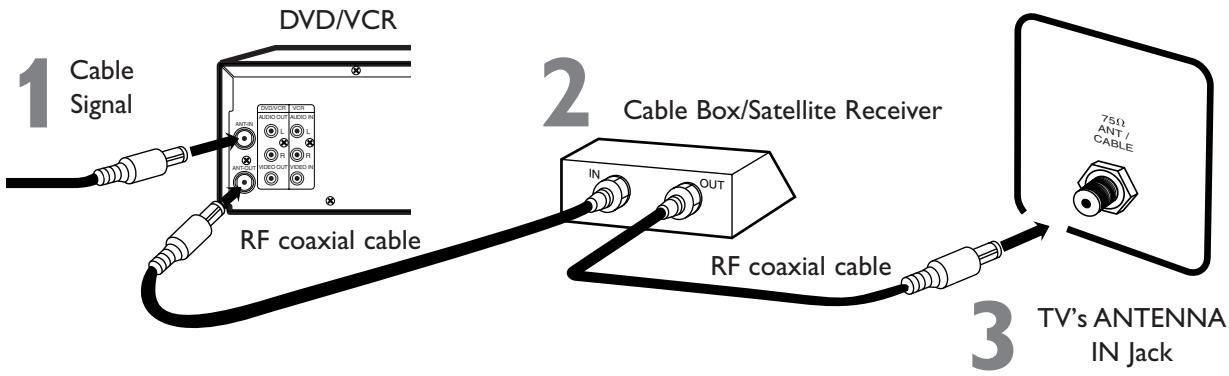

Connect a Cable TV or Satellite signal to the IN jack on the Cable Box/Satellite Receiver. Use an RF coaxial cable (as the one supplied) to connect the OUT jack on the Cable Box/Satellite Receiver to the ANT-IN (Antenna In) jack on the DVD/VCR. Use a second RF coaxial cable to connect the ANTOUT (Antenna Out) jack on the DVD/VCR to the TV’s Antenna In jack. Remember... There are two ways to connect your Cable Box/Satellite Receiver to the DVD/VCR.With the connection on this page: ● Select TV channels at the Cable Box/Satellite Receiver, not the DVD/VCR.To record or view TV channels, follow these steps:

1) Press VCR to put the DVD/VCR in VCR mode.The green

VCR light will appear on the front of the DVD/VCR.

2) Press SKIP3/CHo or SKIP /CHp to set the DVD/VCR

to the Cable Box/Satellite Receiver output channel (03 or 04).

3) Set the TV to the DVD/VCR’s output channel (03 or 04).The

DVD/VCR’s output channel is channel 3 when the DVD/VCR is new.To change it from 3 to 4, press and hold the (VCR) PLAY B button on the DVD/VCR for 3-5 seconds during tape playback. For more details, see step 4 on page 8.

4) Select the channel you want to view/record at the Cable

Box/Satellite Receiver. ● You may not view a channel other than the one you are recording. ● You can only program a timer recording for one channel at a time. Set your Cable Box/Satellite Receiver to the channel you want to record.When you enter the channel you want to record in a timer recording, select channel 03 or 04 (the Cable Box/Satellite Receiver output channel). (This is step 7 on page 38.) Leave the Cable Box/Satellite Receiver on for a timer recording. ● If you use the VCR Plus+ Programming system, set the Cable/TV channel to 03 or 04 (Cable Box/DBS output channel) for every VCR Plus+ channel in the VCR Plus+ Cross Reference Map.You must set the Cable Box/DBS to the channel you want to record; leave the Cable Box/DBS on for the timer recording. Details are on page 40. Helpful Hint

• If your Cable Box or Satellite Receiver has Audio and Video Out jacks, use audio and video cables to connect them to the VCR AUDIO IN and VIDEO IN jacks on the rear of the DVD/VCR.You will not need the RF coaxial cable connection between the Cable Box/Satellite Receiver and the DVD/VCR as described at step 2. H9421CD/DVD750(EN).pgs1-51.QX3 03.4.11 11:29 AM Page 10 10 Hookups (cont’d) DVD/VCR to Cable Box or Satellite Receiver and TV Using only basic RF coaxial cables This connection will let you use the features of both the VCR and the DVD Player. DVD/VCR

Cable Box/Satellite Receiver DVD

COAXIAL OUT RF coaxial cable RF coaxial cable

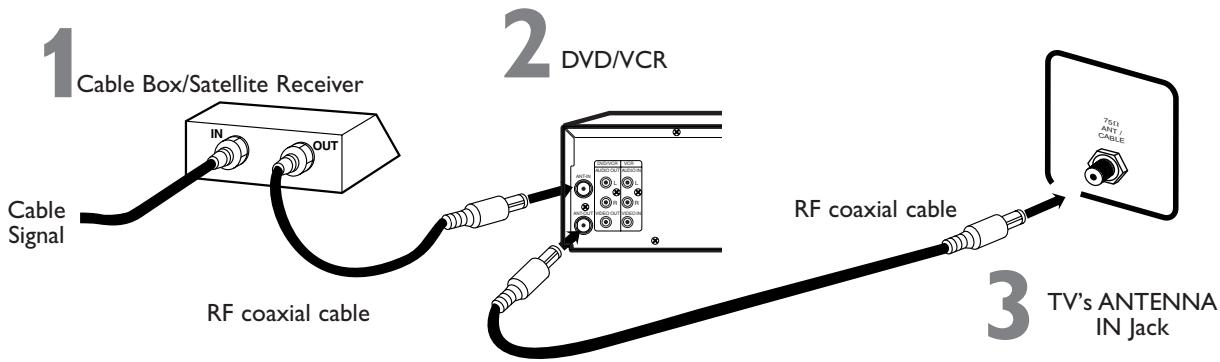

Connect a Cable TV or Satellite signal to the DVD/VCR’s ANT-IN (Antenna In) jack. Use an RF coaxial cable (as the one supplied) to connect the ANT-OUT (Antenna Out) jack on the DVD/VCR to the IN jack on the Cable Box/Satellite Receiver. Use a second RF coaxial cable to connect the OUT jack on the Cable Box/Satellite Receiver to the ANTENNA IN jack on the TV. Remember... There are two ways to connect your Cable Box/Satellite Receiver to the DVD/VCR.With the connection on this page: ● You may watch one channel while recording another. Follow these steps:

1) Put the Cable Box/Satellite Receiver on the same channel as

the DVD/VCR’s output channel (03 or 04).The DVD/VCR’s output channel is channel 3 when the DVD/VCR is new.To alternate it between 3 and 4, press and hold the (VCR) PLAY B button on the front of the DVD/VCR for 3-5 seconds during tape playback. For details, see step 4 on page eight. Set the TV to the Cable Box/Satellite Receiver output channel (03 or 04).

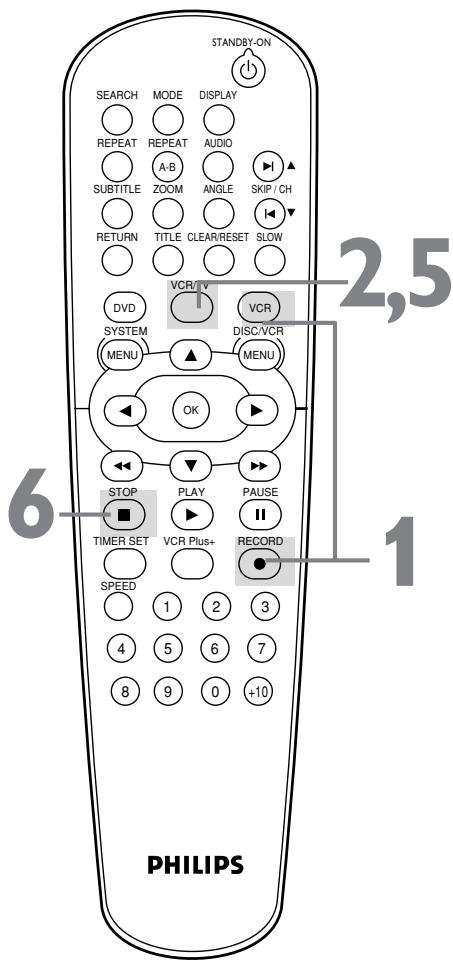

2) Press VCR to put the DVD/VCR in VCR mode.The green VCR

light will appear on the front of the DVD/VCR.

3) Press VCR/TV on the remote to choose VCR position.

4) Press SKIP3/CHo or SKIP /CHp to select the channel you

want to record at the DVD/VCR. Press RECORD or RECORD to start the recording.

5) Press VCR/TV on the remote once to put the DVD/VCR in TV

6) Select the channel you want to watch at the Cable

Box/Satellite Receiver. ● When you play a tape or Disc, make sure the Cable Box/Satellite Receiver is set to the DVD/VCR’s output channel (03 or 04). Set the TV to the Cable Box/Satellite Receiver output channel (03 or 04). Helpful Hints

• When you play a tape, make sure the Cable Box/Satellite Receiver is set to the same channel as the RF output channel of the DVD/VCR (03 or 04). Set the TV to the Cable Box/Satellite Receiver output channel (03 or 04).
• If your Cable Box or Satellite Receiver has Audio and Video Out jacks, use audio and video cables to connect them to the VCR AUDIO IN and VIDEO IN jacks on the rear of the DVD/VCR.You will not need the RF coaxial cable connection between the Cable Box/Satellite Receiver and the DVD/VCR as described at step 2. H9421CD/DVD750(EN).pgs1-51.QX3 03.4.11 11:29 AM Page 11 Hookups (cont’d) 11 DVD/VCR to a TV that has Audio and Video In jacks Using the supplied red, white, and yellow cables This connection will let you use the features of both the VCR and the DVD Player.

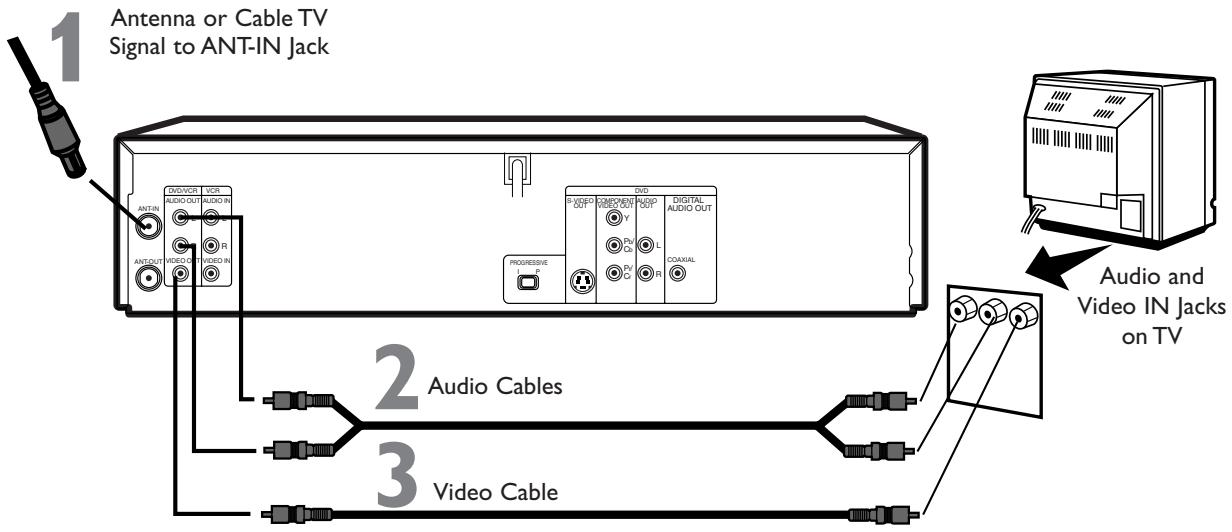

Antenna or Cable TV Signal to ANT-IN Jack

COAXIAL Audio Cables Video Cable Connect the antenna or Cable TV signal to the ANT-IN (Antenna In) jack of your DVD/VCR. Connect the red and white audio cables (supplied) to the red and white DVD/VCR AUDIO OUT jacks on the DVD/VCR and to the red and white AUDIO IN jacks on the TV. Match the cable colors to the jack colors. If the TV has a single AUDIO IN jack, use the white audio cable to connect the DVD/VCR’s white DVD/VCR AUDIO OUT (left) jack to the TV’s AUDIO IN jack.You will not use the red cable. Or, purchase a “splitter” audio cable to go from the left/right AUDIO OUT jacks of the DVD/VCR to the TV’s single AUDIO IN jack.

Connect the yellow video cable (supplied) to the DVD/VCR VIDEO OUT jack on the DVD/VCR and to the VIDEO IN jack on the TV. The VIDEO IN jack on the TV is usually yellow and may be labelled CVBS, Composite, or Baseband video.

Connect the power cords of the TV and the DVD/VCR to a power outlet.Turn on the TV and set it to the correct Audio/Video In channel. Go to your lowest TV channel (01 or 02), then change channels downward until you see VCR or DVD playback on the TV screen. To help you find the right Audio/Video In channel, turn on the DVD/VCR. Press DVD to put the DVD/VCR in DVD mode.With no Disc in the Player, a large DVD Video logo will appear on the TV screen when you get the TV on the correct Audio/Video In channel.

You are ready to turn on the DVD/VCR. Go to page 17 to complete the first-time setup. Audio and Video IN Jacks on TV H9421CD/DVD750(EN).pgs1-51.QX3 03.4.11 11:29 AM Page 12 12 Hookups (cont’d) DVD/VCR to a TV that has Component Video In jacks

Antenna or Cable TV Signal

Connect the antenna or Cable TV signal to the ANT-IN (Antenna In) jack of your DVD/VCR. Connect the supplied red and white audio cables to the red and white DVD/VCR AUDIO OUT jacks on the DVD/VCR and to the red and white AUDIO IN jacks on the TV. Match the cable colors to the jack colors. Connect component video cable (not supplied) to the COMPONENT VIDEO OUT jacks on the DVD/VCR and to the COMPONENT VIDEO IN jacks on the TV. The Component Video In jacks on the TV are usually red, blue, and green. The Component Video connection only supplies video (picture) for the DVD Player of the DVD/VCR.Therefore, in order to use the VCR features or view TV channels at the DVD/VCR, you still need to either connect the RF coaxial cable between the ANT-OUT jack of the DVD/VCR and the TV’s Antenna In jack, or connect the yellow video cable. To connect the supplied RF coaxial cable, see step 2 on page eight.To connect the supplied yellow video cable, see step 3 on page 11. If your TV is compatible with progressive scanning (480p), connect the TV to the Component Video Output jacks of the DVD player, and make sure INTERLACE/PROGRESSIVE SCAN SELECTOR is set to PROGRESSIVE (P). Connect the power cords of the DVD/VCR and TV to a power outlet. Turn on the TV and set it to the Component Video In channel for DVD Player features. If you are using the RF coaxial cable for VCR playback, choose channel 3 or 4 at the TV. If you are using the yellow video cable for VCR playback, choose the Video In channel at your TV. Go to your lowest TV channel and change channels down until you see VCR or DVD playback on the TV screen, or try channel 3 or 4 at the TV. To help you find the right Audio/Video In channel, turn on the DVD/VCR. Press DVD to put the DVD/VCR in DVD mode.With no Disc in the Player, a large DVD Video logo will appear on the TV screen when you get the TV on the correct Component Video In channel.

You are ready to turn on the DVD/VCR. Go to page 17 before turning on the DVD/VCR. After you complete the VCR setup as described on page 17, set DOLBY DIGITAL to OFF in the DVD Player’s Setup menu. Details are on page 72. If you play a DVD when the settings are wrong, the sound will be distorted or you may damage the TV speakers. H9421CD/DVD750(EN).pgs1-51.QX3 03.4.11 11:29 AM Page 13 Hookups (cont’d) 13 DVD/VCR to a TV that has an S-Video In jack

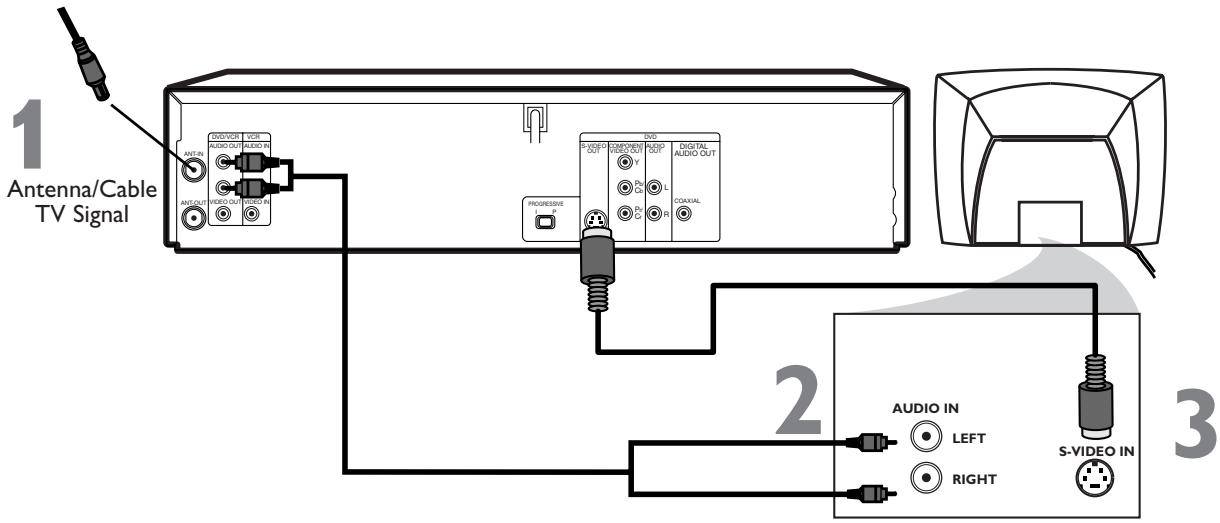

Antenna/Cable TV Signal

Connect the antenna or Cable TV signal to the ANT-IN (Antenna In) jack of your DVD/VCR. Connect the supplied red and white audio cables to the red and white DVD/VCR AUDIO OUT jacks on the DVD/VCR and to the red and white AUDIO IN jacks on the TV. Match the cable colors to the jack colors.

Connect an S-Video cable (not supplied) to the S-VIDEO OUT jack on the DVD/VCR and to the S-VIDEO IN jack on the TV. The S-Video connection only supplies video (picture) for the DVD Player of the DVD/VCR.Therefore, in order to use the VCR features or view TV channels at the DVD/VCR, you still need to either connect the RF coaxial cable between the ANT-OUT jack of the DVD/VCR and the TV’s Antenna In jack, or connect the yellow video cable. To connect the supplied RF coaxial cable, see step 2 on page eight.To connect the supplied yellow video cable, see step 3 on page 11.

Connect the power cords of the DVD/VCR and TV to a power outlet. Turn on the TV and set it to the S-Video In channel for DVD Player features. If you are using the RF coaxial cable for VCR playback, choose channel 3 or 4 at the TV. If you are using the yellow video cable for VCR playback, choose the Video In channel at your TV.To find the correct Video In channel, go to your lowest TV channel and change channels downward until you see VCR or DVD playback on the TV screen, or try channel 3 or 4 at the TV. To help you find the right S-Video In channel, turn on the DVD/VCR. Press DVD to put the DVD/VCR in DVD mode.With no Disc in the Player, a large DVD Video logo will appear on the TV screen when you get the TV on the S-Video In channel.

You are ready to turn on the DVD/VCR. Go to page 17 before turning on the DVD/VCR. After you complete the VCR setup as described on page 17, set DOLBY DIGITAL to OFF in the DVD Player’s Setup menu. Details are on page 72. If you play a DVD when the settings are wrong, the sound will be distorted or you may damage the TV speakers.

Antenna/Cable TV Signal

Connect the antenna or Cable TV signal to the ANT-IN (Antenna In) jack of your DVD/VCR. Connect the supplied red and white audio cables to the red and white DVD/VCR AUDIO OUT jacks on the DVD/VCR and to the red and white AUDIO IN jacks on the Stereo. Match the cable colors to the jack colors.

Connect the supplied yellow video cable to the DVD/VCR VIDEO OUT jack on the DVD/VCR and to the VIDEO IN jack on the TV. To use Component Video cable or S-Video cable instead for the DVD Player, see pages 12-13.You will still need the yellow video cable or RF coaxial cable for VCR features.

Connect the power cords of the DVD/VCR,TV, and Stereo to a power outlet.Turn on the TV and set it to the Video In channel. Or, simply go to your TV’s lowest channel (02 or 03) and continue changing channels downward at the TV until you see VCR or DVD playback on the TV screen. To help you find the right Video In channel at the TV, turn on the DVD/VCR. Press DVD to put the DVD/VCR in DVD mode.With no Disc in the Player, a large DVD Video logo will appear on the TV screen when you get the TV on the correct Video In channel.

You are ready to turn on the DVD/VCR. Go to page 17 before turning on the DVD/VCR. After you complete the VCR setup as described on page 17, set DOLBY DIGITAL to OFF in the DVD Player’s Setup menu. Details are on page 72. If you play a DVD when the settings are wrong, the sound will be distorted or you may damage the speakers. H9421CD/DVD750(EN).pgs1-51.QX3 03.4.11 11:29 AM Page 15 Hookups (cont’d) 15 DVD/VCR to a TV and to a Stereo that is Dolby Digital-compatible Using Digital Audio connections

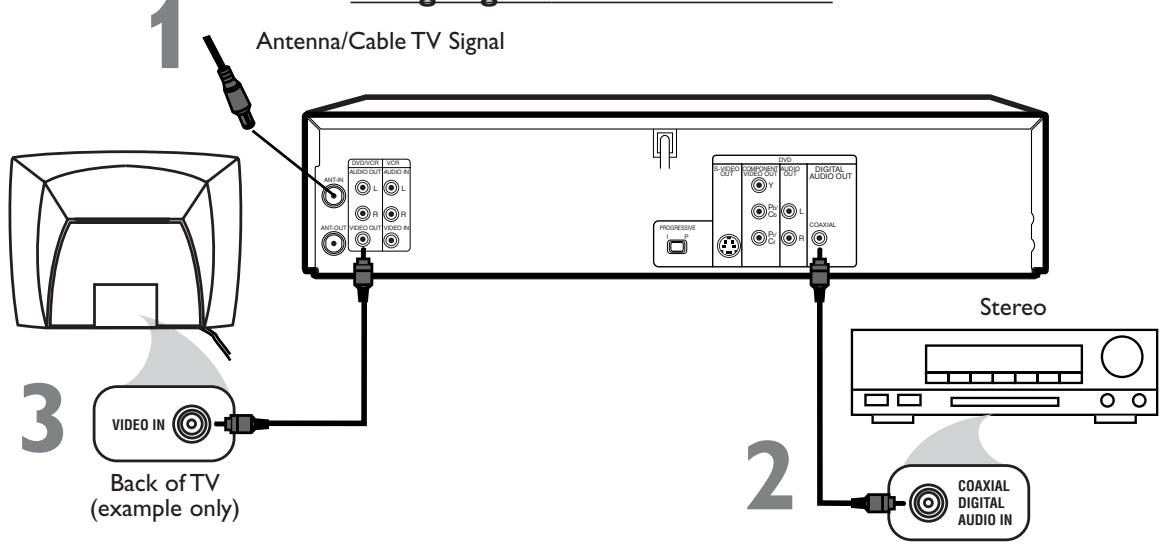

Antenna/Cable TV Signal DVD

Connect the antenna or Cable TV signal to the ANT-IN (Antenna In) jack of your DVD/VCR.

Connect the supplied yellow video cable to the yellow DVD/VCR VIDEO OUT jack on the DVD/VCR and to the VIDEO IN jack on the TV. To use component video cable or S-Video cable instead for the DVD Player, see pages 1213.You will still need the yellow video cable or RF coaxial cable for VCR features.

Connect a coaxial digital audio cable (not supplied) to the DVD/VCR’s COAXIAL DIGITAL AUDIO OUT jack and to the COAXIAL DIGITAL AUDIO IN jack on the Stereo. This digital audio connection only provides sound for the DVD Player of the DVD/VCR. So, in order to use the VCR features or view TV channels at the DVD/VCR, you still need to either connect the RF coaxial cable between the ANT-OUT jack of the DVD/VCR and the TV’s Antenna In jack, or connect the supplied red/white audio cables.To connect the supplied RF coaxial cable, see step 2 on page eight.To connect the red/white audio cables, see step 2 on page 11. Plug in the power cords of the Stereo,TV, and DVD/VCR.Turn on the Stereo and select its Auxiliary IN channel.Turn on the TV and set it to the correct Video In channel. Go to your TV’s lowest channel (01 or 02) and change channels downward until you see DVD or VCR material on the TV screen. To help you find the right Video In channel on the TV, turn on the DVD/VCR. Press DVD to put the DVD/VCR in DVD mode.With no Disc in the Player, a large DVD Video logo will appear on the TV screen when you get the TV on the correct Video In channel. You are ready to turn on the DVD/VCR. Go to page 17 before turning on the DVD/VCR. Remember... Some DVDs are recorded in 5.1 channel Dolby Digital Surround. Select 5.1 channel Dolby Digital Surround Sound in the DVD Disc menu. If Dolby Digital Surround is not recorded on the Disc, you will not have surround sound available. If you connect the DVD/VCR to a Dolby Digital Stereo, set DOLBY DIGITAL to ON in the DVD Player’s Setup menu. Details are on page 72. If the DVD/VCR is not connected to a Dolby Digital-compatible Stereo, set DOLBY DIGITAL to OFF. Incorrect settings may cause noise distortion and damage the speakers. COAXIAL DIGITAL AUDIO IN H9421CD/DVD750(EN).pgs1-51.QX3 03.4.11 11:29 AM Page 16 16 Remote Control Setup Putting Batteries in the Remote Control

Remove the battery compartment lid on the bottom of the remote control by pressing the tab, then lifting the lid. Place two AA batteries inside the battery compartment with their + and – ends aligned as indicated. Replace the battery compartment lid. Using the Remote Control

Point the remote control at the DVD/VCR’s remote sensor (marked IR, see page 22) when using the remote to operate the DVD/VCR. Do not point the remote at the TV. Do not put objects between the remote and the DVD/VCR.

Recycling Guidelines/Battery Safety

Your new product and its packaging contain materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount that needs to be properly disposed.Your product uses batteries that should not be thrown away when depleted but should be disposed of as small chemical waste. Please find out about the local regulations on disposal of your old product, batteries, and packaging whenever you replace existing equipment. Battery Usage CAUTION - To prevent battery leakage that may result in bodily injury, property damage, or damage to the unit: Install ALL batteries correctly, with the + and - markings on the battery aligned as indicated on the unit; Do not mix batteries, for example, old with new or carbon with alkaline; and Remove batteries when the unit will not be used for a long time.

H9421CD/DVD750(EN).pgs1-51.QX3 03.4.11 11:29 AM Page 17 First-time DVD/VCR Setup 17 Before turning on your DVD/VCR, make sure batteries are in the remote control and the DVD/VCR and TV are connected correctly. You cannot program channels if you are using a Cable Box or a Satellite Receiver. These menus may not appear if you have already turned on the DVD/VCR.

Turn on the TV. Set it to channel 3 or 4 or its AUDIO/VIDEO IN channel, depending on how you connected the DVD/VCR to a TV. Press VCR, then press STANDBY-ON. The green VCR light will appear on the front of the DVD/VCR.The display shown below will appear. These menus may not appear if you have already turned on the DVD/VCR.You may have turned on the DVD/VCR before to find the Audio/Video In channel of the TV, for example. If so, follow the steps on page 26 to set up channels and page 30 to select a language for the VCR menus.

TITLE CLEAR/RESET SLOW

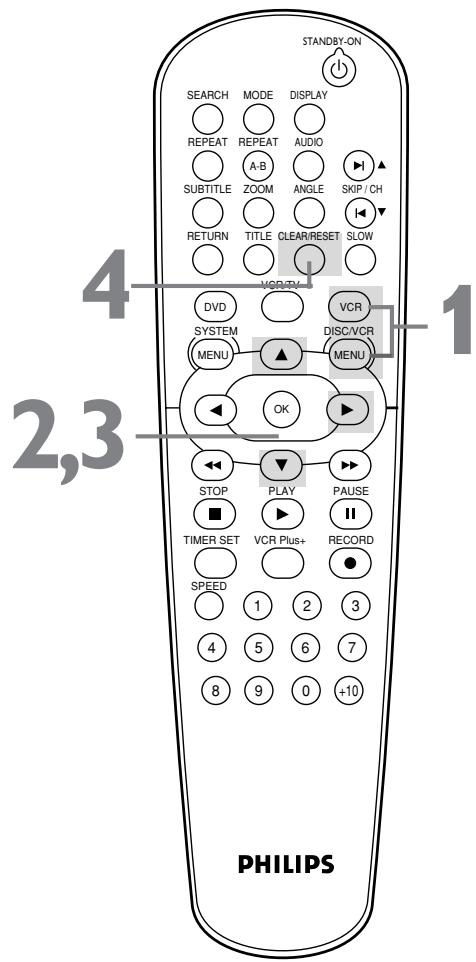

Press o or p to select English, French, or Spanish as the language for VCR on-screen displays and menus. Then, press B.

Press B to begin channel programming. AUTO SETUP will flash on the TV screen during the channel search.The DVD/VCR will memorize all available channels. When channel programming is complete, the lowest available channel will appear on the TV. These channels will be available when you want to watch TV while in VCR mode.To put the DVD/VCR in VCR mode, press VCR so the green VCR light appears. Use the SKIP3/CHo and SKIP /CHp buttons to select memorized channels.To select non-memorized channels, use the Number buttons.

• To skip this feature and play a tape immediately, insert a tape with its record tab removed.
• To skip step 3, press DISC/VCR/MENU.VCR menus and displays will be in English.
• If you try to program channels when there is no antenna or Cable TV signal connected to the ANT-IN jack of the DVD/VCR, programming will stop.AUTO SET UP will stop flashing. Connect an antenna or Cable TV signal to the DVD/VCR’s ANT-IN jack and press B again.
• Repeat this process if the power fails.
• To stop the Channel Setup while AUTO SET UP is flashing, press DISC/VCR/MENU. H9421CD/DVD750(EN).pgs1-51.QX3 03.4.11 11:29 AM Page 18 18 Video Cassette Playback Read and follow the steps below to play a tape.

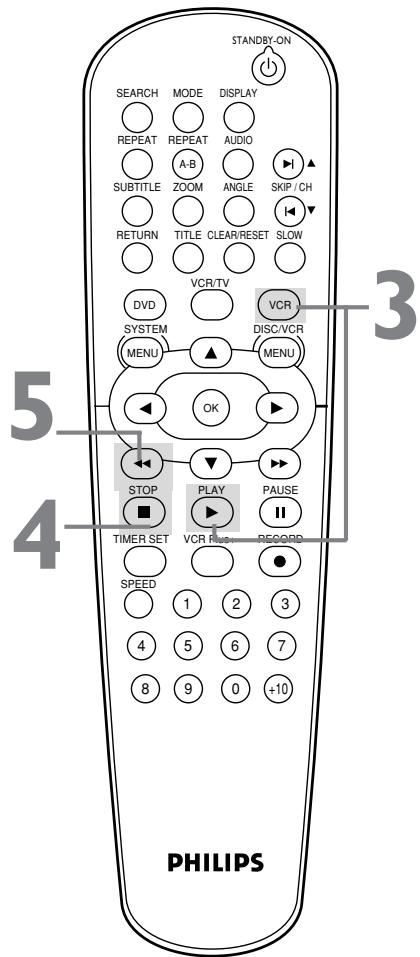

Turn on the TV. Set it to channel 3 or 4 or its AUDIO/VIDEO IN channel. This depends on how you connected the DVD/VCR to a TV. Details are on pages 7-15.

With the DVD/VCR power off, insert a tape in the cassette compartment of the DVD/VCR. The VCR light will appear on the front of the DVD/VCR. If the tape’s record tab has been removed, play will start automatically. If the DVD/VCR power is already on, press VCR to put the DVD/VCR in VCR mode if necessary.The green VCR light will appear on the front of the DVD/VCR.

TITLE CLEAR/RESET SLOW

If playback does not start automatically, press VCR, then press PLAY B. Press STOP C to stop playback. Press h to rewind the tape. After the tape stops, press STOP/EJECT A on the front of the DVD/VCR to remove the tape.

+10 Press STOP/EJECT A on the DVD/VCR. Helpful Hints

• Other tape playback features are on pages 44-51.

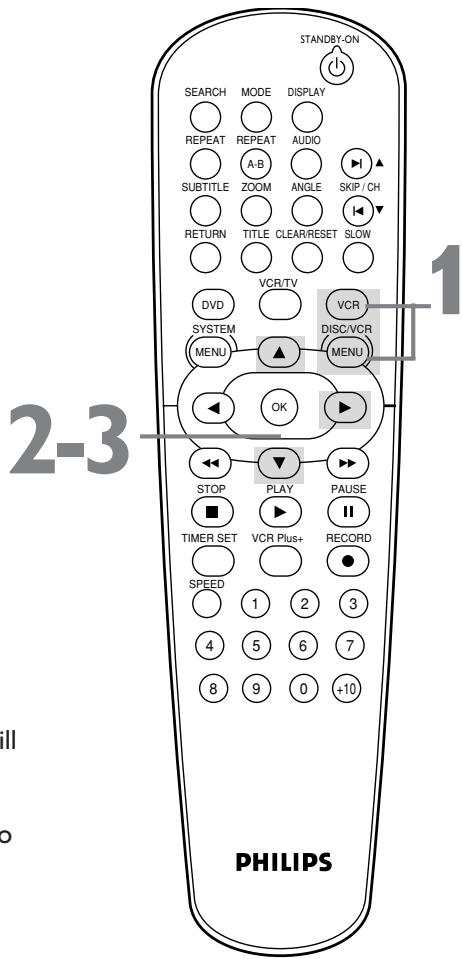

• If AUTO REPEAT is ON, playback will begin when you insert a tape, even when the record tab is intact. Details are on page 44.
• You must connect the DVD/VCR to a TV using the RF coaxial cable or the audio/video cables in order to use the VCR features.These hookups are explained on pages eight and

H9421CD/DVD750(EN).pgs1-51.QX3 03.4.11 11:29 AM Page 19 Disc Playback 19 Before you begin, turn on the TV, Stereo, and other equipment connected to the DVD/VCR. Make sure the TV and the Stereo (if applicable) are set to the correct channel. Details are on pages 7-15. STANDBY-ON SEARCH MODE DISPLAY REPEAT REPEAT

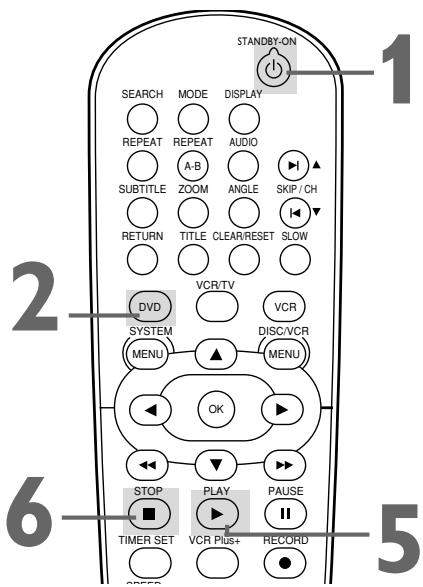

Press STANDBY-ON to turn on the DVD/VCR. Press DVD so the red DVD light appears on the front of the DVD/VCR. Press OPEN/CLOSE A (to the right of the disc tray on the front of the DVD/VCR) to open the Disc tray.

TITLE CLEAR/RESET SLOW

Place a Disc into the tray. If the DVD is recorded on only one side, place the Disc in the tray with the label facing up and the shiny side facing down. Some DVDs are recorded on both sides. Make sure the label of the side you want to play is facing up. Press PLAY B. The tray will close and play will begin at the first Chapter or Track. If a DVD menu appears instead, see page 52. With some Audio CDs, playback will not begin unless you press PLAY B. Or, press OPEN/CLOSE A or press the tray toward the DVD/VCR to close the tray. With MP3 and JPEG files, playback will begin from the beginning of the disc.

Press OPEN/CLOSE A on the DVD/VCR. Insert a Disc. Press STOP C to stop playback. Helpful Hints Remember, this DVD/VCR will play only certain Discs. See page six for details.

• An “X” may appear at the top right corner of the TV screen when you try a feature. Either the feature is not available on the Disc, or the DVD/VCR cannot access the feature at this time.This does not indicate a problem with the DVD/VCR.
• If a Disc is dirty or scratched, the picture may appear distorted or playback may stop. Remove the Disc and turn off the DVD/VCR. Disconnect the power cord, then reconnect it. Clean the Disc, then turn on the DVD/VCR again and reinsert the Disc for playback.
• When the DVD or CD light appears on the display panel, the Disc is loaded and ready for playback.
• When you press OPEN/CLOSE A or PLAY (DVD) on the front of the DVD/VCR when the power is off, the DVD/VCR will turn on in DVD mode. Otherwise, the DVD/VCR will turn on in the mode in which it was turned off. H9421CD/DVD750(EN).pgs1-51.QX3 03.4.11 11:29 AM Page 20 20 Display Panel (DVD) DVD Light (red) This light appears when the DVD/VCR is in DVD mode.You can only watch DVDs when the red DVD light is on.To make the red DVD light come on, press SOURCE on the front of the DVD/VCR or DVD on the remote. REPEAT:Appears during Repeat Playback of a Disc, along with A-B, TITLE, CHP., or TRK., depending on the type of Repeat Playback you have selected. Details are on page 57. DVD: Lights when a DVD is in the tray and ready for playback. CD: Lights when a CD is in the tray and ready for playback. A-B:Appears during AB Repeat Playback. Details are on page 57. B:Appears during Disc playback. Display Messages about current Disc operations appear here. See Display Messages below. F:Appears when play is paused. Displays the elapsed playing time of the current Title or Track. Briefly displays Title, Chapter, or Track numbers. Display Messages Appears after the disc tray closes if the tray is empty, if there is an error reading the disc, or if an unacceptable disc is installed. Tray is opening or is open. Tray is closing. Disc is loading. H9421CD/DVD750(EN).pgs1-51.QX3 03.4.11 11:29 AM Page 21 Display Panel (VCR) 21 Counter/Clock/Channel If there is a tape in the VCR, the tape counter will appear.The remaining time will appear during a One-Touch Recording. If there is not a tape in the VCR, the current time will appear when the clock is set. An A or P will appear beside the time to indicate AM or PM.The DVD/VCR must be in VCR mode.The channel number will appear here briefly when you change TV channels. Cassette Compartment Insert a video cassette here.

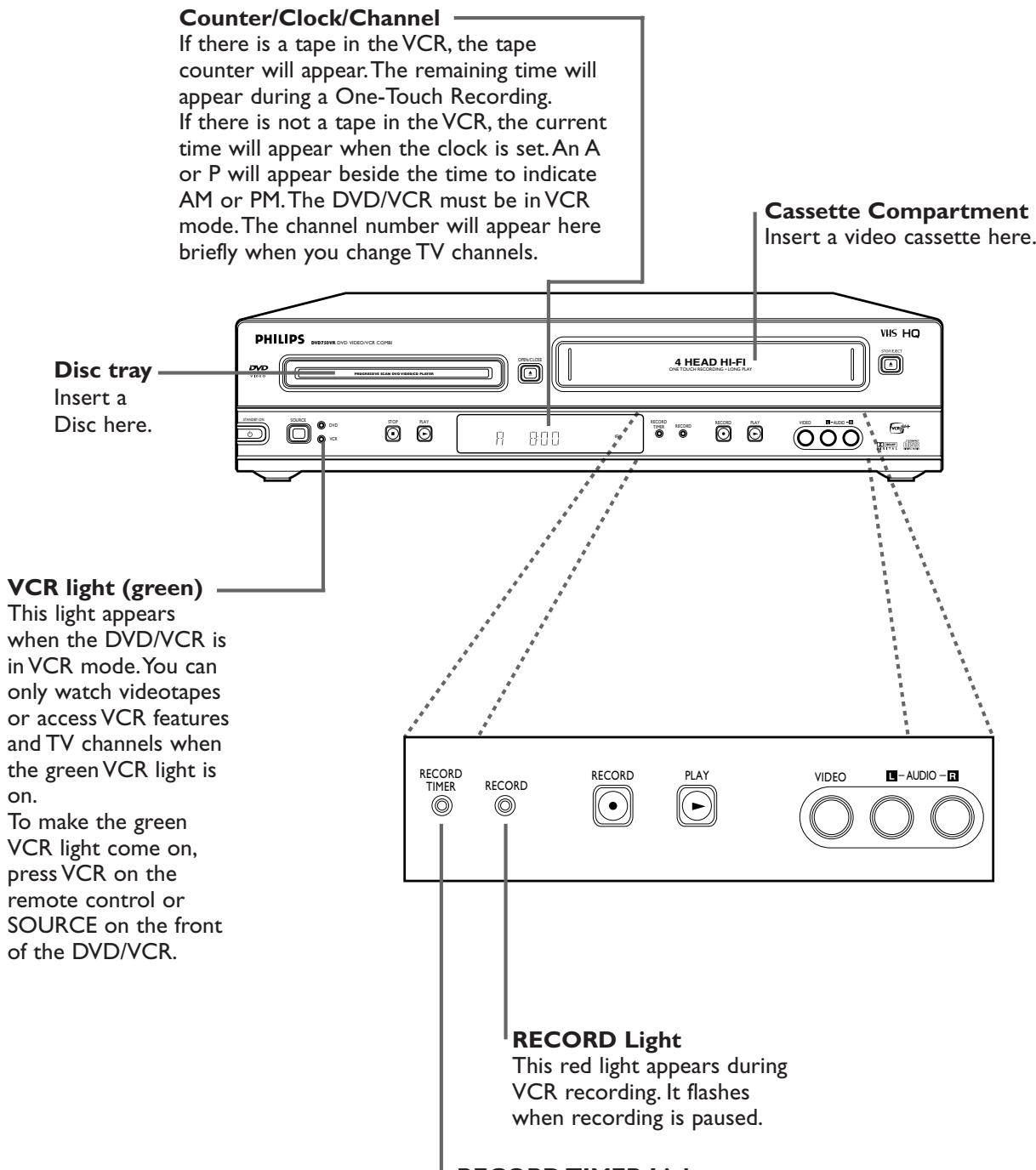

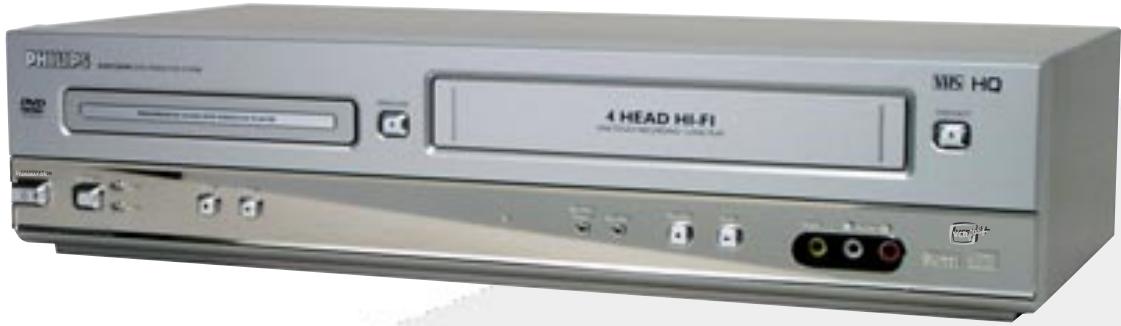

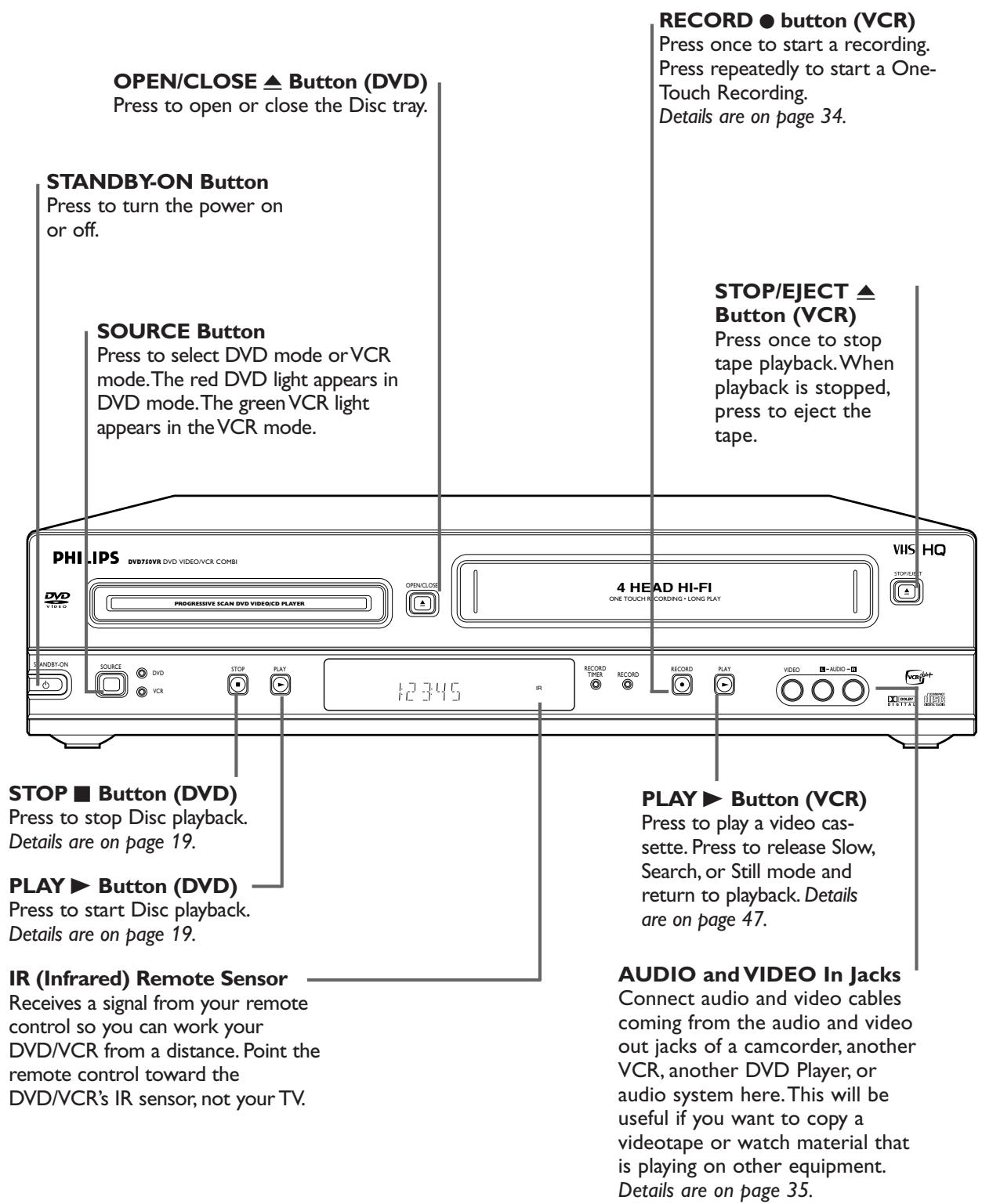

DVD750VR DVD VIDEO/VCR COMBI

Disc tray Insert a Disc here. VCR light (green) This light appears when the DVD/VCR is in VCR mode.You can only watch videotapes or access VCR features and TV channels when the green VCR light is on. To make the green VCR light come on, press VCR on the remote control or SOURCE on the front of the DVD/VCR. OPEN/CLOSE 4 HEAD HI-FI

VCR RECORD TIMER RECORD RECORD PLAY VIDEO RECORD Light This red light appears during VCR recording. It flashes when recording is paused. RECORD TIMER Light This red light glows when the DVD/VCR is set for a timer recording or during a One-Touch Recording. It flashes if a timer recording is set but no tape is in the DVD/VCR. It flashes when all timer recordings or One-Touch Recordings are finished. AUDIO H9421CD/DVD750(EN).pgs1-51.QX3 03.4.11 11:29 AM Page 22 22 Front Panel RECORD I button (VCR) Press once to start a recording. Press repeatedly to start a OneTouch Recording. Details are on page 34. OPEN/CLOSE A Button (DVD) Press to open or close the Disc tray. STANDBY-ON Button Press to turn the power on or off.

Button (VCR) Press once to stop tape playback.When playback is stopped, press to eject the tape. SOURCE Button Press to select DVD mode or VCR mode.The red DVD light appears in DVD mode.The green VCR light appears in the VCR mode.

DVD750VR DVD VIDEO/VCR COMBI

OPEN/CLOSE 4 HEAD HI-FI

STANDBY-ON SOURCE DVD STOP RECORD TIMER PLAY VCR STOP C Button (DVD) Press to stop Disc playback. Details are on page 19. PLAY B Button (DVD) Press to start Disc playback. Details are on page 19. IR (Infrared) Remote Sensor Receives a signal from your remote control so you can work your DVD/VCR from a distance. Point the remote control toward the DVD/VCR’s IR sensor, not your TV. RECORD RECORD PLAY VIDEO AUDIO

PLAY B Button (VCR) Press to play a video cassette. Press to release Slow, Search, or Still mode and return to playback. Details are on page 47. AUDIO and VIDEO In Jacks Connect audio and video cables coming from the audio and video out jacks of a camcorder, another VCR, another DVD Player, or audio system here.This will be useful if you want to copy a videotape or watch material that is playing on other equipment. Details are on page 35. H9421CD/DVD750(EN).pgs1-51.QX3 03.4.11 11:29 AM Page 23 Rear Panel 23 ANT-IN (Antenna In) jack Connect your antenna or Cable TV signal here. Details are on pages 8-15. DVD AUDIO OUT jacks Left (white) and Right (red) Connect the supplied audio cables here and to the Audio In jacks of a television or audio VCR AUDIO IN jacks equipment. However, these jacks only supply Left (white) and Right (red) Connect audio cables coming from the audio audio for the DVD Player. Use these if you want a secondary connection between the out jacks of a camcorder, another VCR, DVD Player and another TV, etc. another DVD Player, or an audio source here. Details are on page 35. This will be useful if you want to copy a videotape or watch AC Power Cord material that is playing on other equipment. Connect to a standard AC outlet to supply

INTERLACE/PROGRESSIVE SCAN

power to the DVD/VCR. SELECTOR Switch to select interlace or progressive scanning. Details are on page 12.

DVD S-VIDEO OUT Jack Connect an S-Video cable (not supplied) here and to the S-Video In jack of a television.This supplies the picture only for the DVD Player. Details are on page 13. VCR VIDEO IN Jack (yellow) Connect a video cable coming from the video out jack of a camcorder, another VCR, or another DVD Player here. Details are on page 35. DVD/VCR VIDEO OUT Jack (yellow) Connect the yellow video cable (supplied) here and to the TV’s Video In jack.This supplies the picture for both the VCR and the DVD Player. Details are on page 11. ANT-OUT (Antenna Out) Jack Use the supplied RF coaxial cable to connect this jack to the ANTENNA IN jack on your TV, Cable Box, or Satellite Receiver. Details are on pages 8-10. DVD/VCR AUDIO OUT Jacks Left (white) and Right (red) Connect the supplied audio cables (red and white) here and to the Audio In jacks of a TV or Stereo. Details are on pages 11-14. These jacks provide audio for both the DVD Player and the VCR. Pb/

AUDIO OUT Jack (black) Connect a coaxial digital audio cable (not supplied) here and to the Coaxial Digital Audio In jack of a Stereo.This supplies audio only for the DVD Player. Details are on page 15.

DVD COMPONENT VIDEO OUT

(Y Pb/Cb Pr/Cr) Jacks (green, blue, red) Connect component video cables (not supplied) here and to the Component Video In jacks of a television.This supplies the picture only for the DVD Player. Details are on page 12. Helpful Hint

• The DVD S-VIDEO OUT, DVD

COMPONENT VIDEO OUT, DVD

AUDIO OUT and DVD COAXIAL DIGITAL AUDIO OUT jacks are only useful in DVD mode.To have sound and picture in VCR mode, you must connect either the RF coaxial cable or the audio/video cables supplied, using the DVD/VCR AUDIO OUT and VIDEO OUT jacks on the left of the rear of the DVD/VCR. Details are on pages eight and 11. H9421CD/DVD750(EN).pgs1-51.QX3 03.4.11 11:29 AM Page 24 24 Remote Control SEARCH Button In DVD mode, press to search for a specific Title/Chapter/Track/Time. Details are on pages 54-55. In VCR mode, press for a Time Search or an Index Search. Details are on page 46. STANDBY-ON Button Press to turn the power on or off. STANDBY-ON SEARCH MODE DISPLAY REPEAT REPEAT REPEAT Button Press to play a Track, Audio CD,Title, or Chapter repeatedly. Details are on page 57. A-B REPEAT Button Press to set up A-B Repeat. Details are on page 57. RETURN Button Press to return to the previous level of the DVD Player’s Setup menu or to remove the Setup menu. TITLE Button Press to see a DVD Title menu. Details are on page 52. s B KL Buttons Press to select an item in a menu. STOP C Button Press to stop Disc playback, tape playback, or recording. AUDIO A-B ANGLE SKIP / CH SUBTITLE ZOOM RETURN

TITLE CLEAR/RESET SLOW

+10 PLAY B Button Press to begin Disc or tape playback. VCR Plus+ Button Press to set a timer recording with the VCR Plus+ programming system. Details are on pages 40-41. DISPLAY Button In VCR mode, press to see status displays. Details are on page 31. In DVD mode, press to access Disc information. Details are on page 73. SKIP3/CHo and SKIP / CHp Buttons In DVD mode, press to skip Chapters or Tracks. In VCR mode, press to change TV channels at the DVD/VCR. SLOW Button Press to view a videotape in slow motion. Details are on page 47. CLEAR/RESET Button Press to remove VCR menus. Press to reset the tape counter. Details are on page 45. Press to reset a menu item in DVD mode. g (Fast Forward) Button In DVD mode, press to fast forward the Disc. Details are on page 53. Press when DVD playback is paused to start slow motion playback. Details are on page 63. In VCR mode, press to fast forward the tape. Details are on page 47. PAUSE k Button Press to pause Disc playback or to advance the picture one frame at a time. Details are on page 56. Press to pause or resume VCR recording. Details are on page 32. Press to pause a tape. Details are on page 47. RECORD I Button Press to start a VCR recording. Details are on page 32. Helpful Hints

• For DVD Player features, press DVD before pressing other buttons.To put the DVD/VCR in DVD mode, press DVD or SOURCE so the red DVD light appears on the front of the DVD/VCR.
• For VCR features, press VCR before pressing any other buttons.To put the DVD/VCR in VCR mode, press VCR or SOURCE so the green VCR light appears on the front of the DVD/VCR. H9421CD/DVD750(EN).pgs1-51.QX3 03.4.11 11:29 AM Page 25 Remote Control (cont’d) 25 MODE Button Press to set a Program. Details are on page 64. Press to start Random playback. Details are on page 65. ZOOM Button Press to enlarge the DVD, or JPEG image. Details are on page SUBTITLE Button Press to select a language for DVD subtitles. Details are on page 59. DVD Button Press before using the remote control for DVD features. Press to put the DVD/VCR in DVD mode. SYSTEM/MENU Button Press to access or remove the DVD Player’s Setup menu. h (Rewind) Button Press to fast reverse a DVD or Audio CD. Details are on page

53. Press to rewind a tape.

Details are on page 47. TIMER SET Button Press to set a timer recording that you have programmed. Details are on pages 36-38. SPEED Button Press to select the VCR’s recording speed (SP or SLP). Details are on pages 30, 35, and 76. Number Buttons In DVD mode, press to select a Track or Chapter for playback. Use the +10 button for items 10 and above. Details are on page 55. In VCR mode, use to select TV channels. Enter channel numbers as a twodigit number for the quickest results (to select channel 6, press 0,6). For channels 100 and above, enter a three-digit number (for channel 117, press 1, 1, 7). If you have Cable TV, channels 1-125 are available. If you have an antenna, channels 2-69 are available.The +10 button has no effect in VCR mode. Use the Number buttons to enter the VCR Plus+ programming number. STANDBY-ON SEARCH MODE ANGLE Button Press to see a DVD picture from a different angle. Details are on page 59. DISPLAY REPEAT REPEAT AUDIO A-B ANGLE AUDIO Button Press to choose a DVD audio language or an Audio CD sound mode. Details are on page 62. SKIP / CH SUBTITLE ZOOM RETURN

TITLE CLEAR/RESET SLOW

+10 VCR/TV Button Press to select VCR or TV position. In VCR position, watch a tape or watch/record TV programs (changing channels at the VCR). Use TV position to watch TV channels (changing channels at the TV) or watch one program while recording another. Details are on page 33. VCR Button Press before using the remote control for VCR features. Press to put the DVD/VCR in VCR mode. DISC/VCR/MENU Button Press to access or remove a DVD Disc menu or the VCR menu. OK Button Press to confirm or select menu items. H9421CD/DVD750(EN).pgs1-51.QX3 03.4.11 11:29 AM Page 26 26 Channel Setup Although your DVD/VCR may automatically memorize the channels you receive when you turn it on for the first time, you can set up the channels again. STANDBY-ON SEARCH

TITLE CLEAR/RESET SLOW

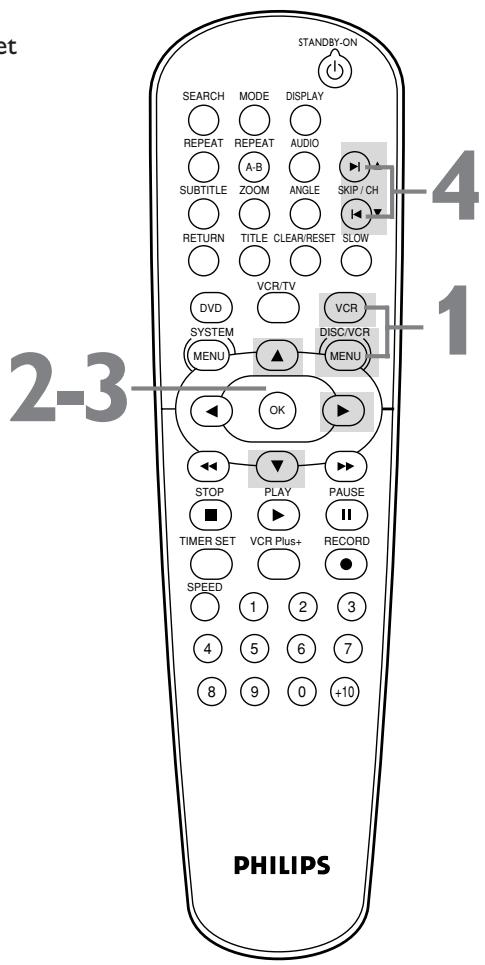

+10 Press o or p to select AUTO SET UP. Press B.

AUTO SET UP will flash while the DVD/VCR sets up the available channels.When setup is complete, the lowest available channel will appear on the TV. Now when you press SKIP3/CHo or SKIP / CHp, you will scan only through available channels.You still can select any channel using the Number buttons. CH01

• You cannot program channels if you are using a Cable Box or Satellite Receiver.
• If you have an antenna, channels 2-69 will be available. If you have Cable TV, channels 1-125 will be available.
• To stop Channel Setup, press DISC/VCR/MENU while AUTO SET UP is flashing. H9421CD/DVD750(EN).pgs1-51.QX3 03.4.11 11:29 AM Page 27 Channel Setup (cont’d) 27 Adding/Deleting Channels You may want to add or delete TV channels if your channel lineup changes or if you no longer watch some channels.

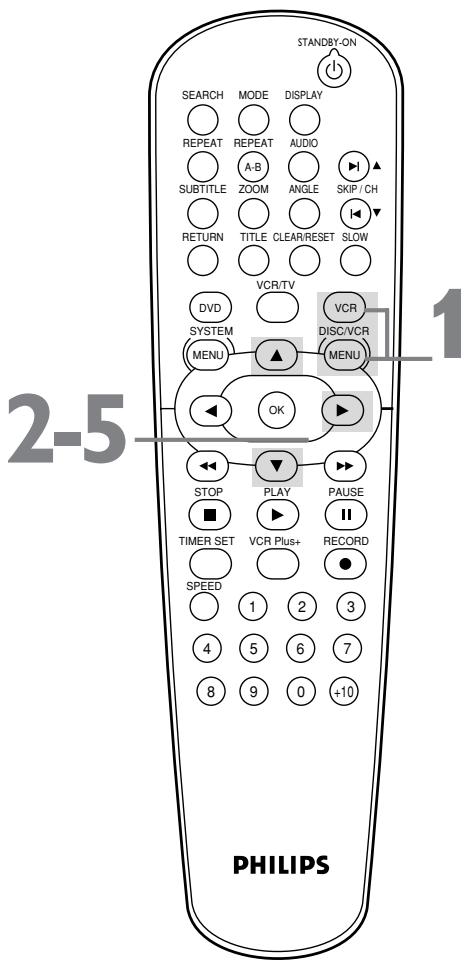

TITLE CLEAR/RESET SLOW

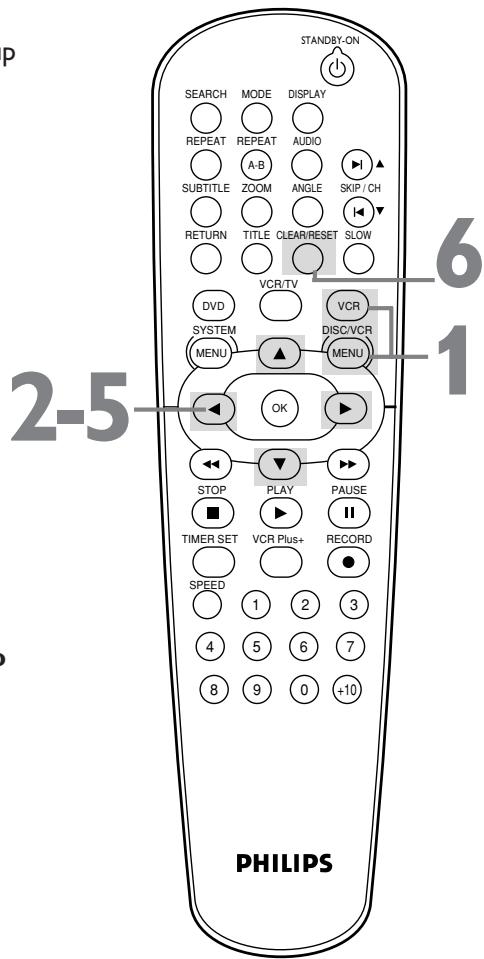

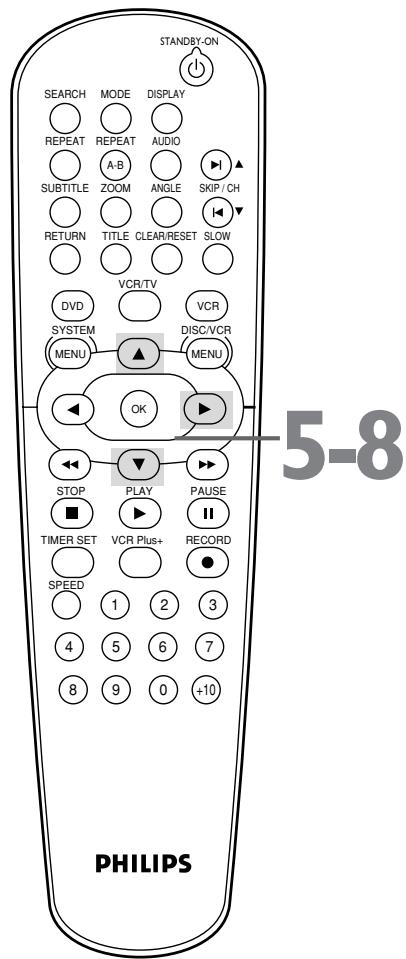

Press o or p until the channel number you want to add or delete appears on the screen.

(CATV) Press B or s so ADD or DELETE flashes on the screen. While your choice is flashing, press CLEAR/RESET. The channel you added or deleted will be the current channel. Added channels are available when you flip through channels using the SKIP3/CHo and SKIP / CHp buttons.You still can select deleted channels with the Number buttons.

H9421CD/DVD750(EN).pgs1-51.QX3 03.4.11 11:29 AM Page 28 28 Clock (VCR) Follow these steps to set the VCR clock. Make sure: ● The DVD/VCR is on and in VCR mode. Press VCR so the green VCR light appears on the front of the DVD/VCR.

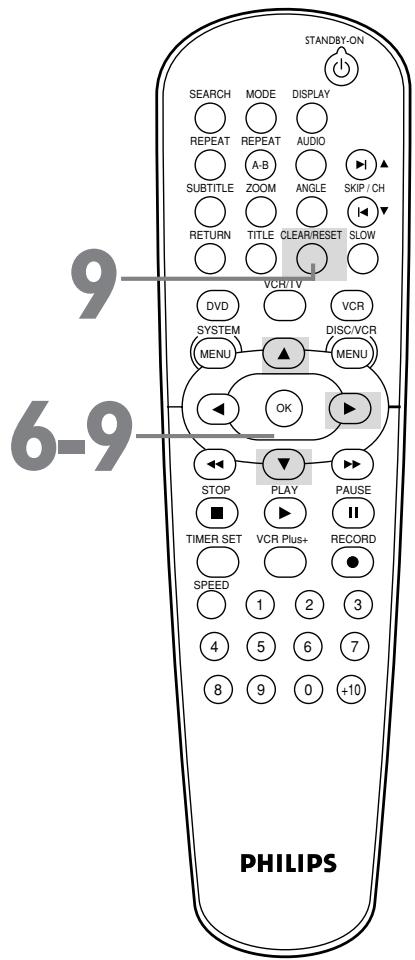

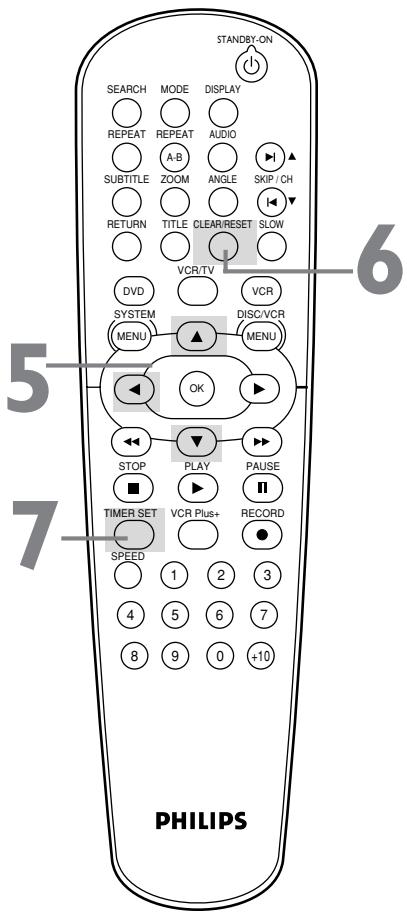

TITLE CLEAR/RESET SLOW

VCR/TV While the MONTH space is flashing, press o or p until the month appears.Then, press B. CLOCK SET MONTH DAY 03 / –– YEAR

While the DAY space is flashing, press o or p until the day appears.Then, press B.

+10 CLOCK SET MONTH DAY 03 / 20 YEAR

While the YEAR space is flashing, press o or p until the year appears. Press B. The day of the week will appear automatically. CLOCK SET MONTH DAY 0 3 / 2 0 THU HOUR MINUTE

• If the clock has never been set, the CLOCK SET menu may appear when you press DISC/VCR/MENU. If so, follow the instructions from step 3 above.

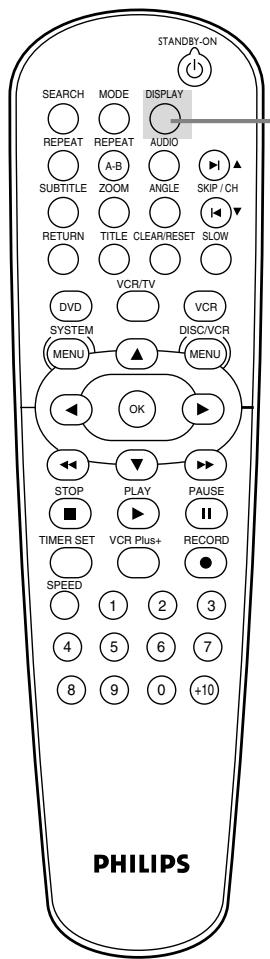

• Press DISPLAY until the time appears on the TV screen.
• Power failures of more than 30 seconds can erase the clock setting. H9421CD/DVD750(EN).pgs1-51.QX3 03.4.11 11:29 AM Page 29 Clock (VCR) (cont’d) 29

While the HOUR space is flashing, press o or p until the hour appears.Then, press B. STANDBY-ON CLOCK SET MONTH DAY 0 3 / 2 0 THU SEARCH YEAR

While the MINUTE space is flashing, press o or p until the minute appears.Then, press B. CLOCK SET MONTH DAY 0 3 / 2 0 THU YEAR

TITLE CLEAR/RESET SLOW

While the AM or PM space is flashing, press o or p to point to AM or PM. Your selection will flash on the screen in the AM/PM space.

AM/PM B PM Press CLEAR/RESET or B to start the clock. Helpful Hint

• To reset the clock, follow steps 1-2 on page 28. Select the information you want to change using B or s.When the information is flashing, use o or p to enter the correct information. Press CLEAR/RESET to set the clock. H9421CD/DVD750(EN).pgs1-51.QX3 03.4.11 11:29 AM Page 30 30 Language (VCR) Follow the steps below to change the language of the VCR onscreen displays and menus. STANDBY-ON SEARCH

TITLE CLEAR/RESET SLOW

+10 Press o or p to choose ENGLISH, FRANCAIS (French), or ESPANOL (Spanish). LANGUAGE SELECT BENGLISH FRANCAIS ESPAÑOL

• If you select French or Spanish and need English:

4) Press CLEAR/RESET.

H9421CD/DVD750(EN).pgs1-51.QX3 03.4.11 11:29 AM Page 31 VCR Status Displays 31 You may access status displays by pressing DISPLAY.The displays may include the current time, channel, and other information.

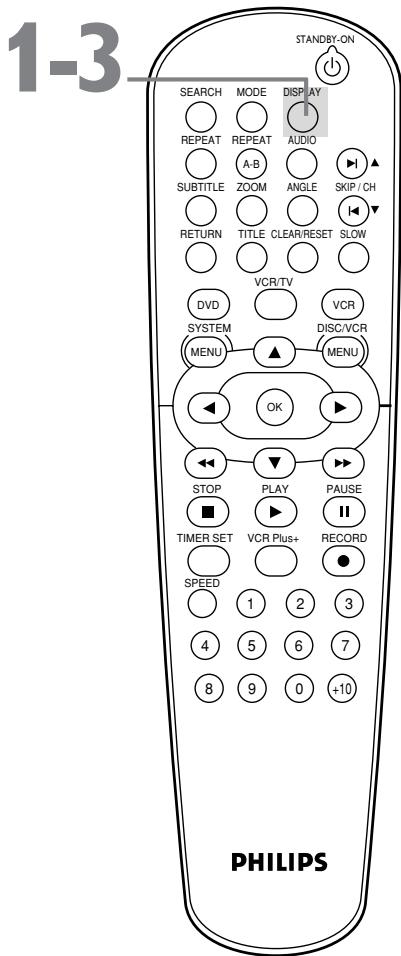

Press DISPLAY. The COUNT display will appear for five seconds. After five seconds, only the real-time tape counter will appear.This counter shows you the elapsed playing time of the tape (from the point at which the counter was set to zero).The counter also will appear on the display panel on the front of the DVD/VCR. 1-3 STANDBY-ON SEARCH MODE DISPLAY REPEAT REPEAT AUDIO A-B ANGLE SKIP / CH SUBTITLE ZOOM RETURN

TITLE CLEAR/RESET SLOW

0:12:34 HIFI Press DISPLAY again. The CLOCK display will appear for five seconds. After five seconds, only the time will appear (the clock must be set). (If you are watching TV, the channel number and the availability of stereo or second audio will also appear.) The time also will appear on the display panel on the front of the DVD/VCR. STOP STOP PLAY PAUSE TIMER SET VCR Plus+ RECORD SPEED

Press DISPLAY again to remove all the displays. Helpful Hints

• If the channel you select has no broadcast, the screen will be solid blue.
• You cannot access a status display when viewing a still picture, during slow motion, or during forward and reverse searching.
• Channel numbers appear on the screen for a few seconds each time you change channels. H9421CD/DVD750(EN).pgs1-51.QX3 03.4.11 11:29 AM Page 32 32 Videotape Recording Read and follow the steps below to record a television program onto a videotape. Before you begin, make sure the DVD/VCR is in VCR mode. Press VCR so the green VCR light appears on the front of the DVD/VCR.

Turn on the TV and set it to channel 3 or 4 or the Video In channel. If you connected the DVD/VCR to the TV using the supplied audio and video cables, select your TV’s Video In channel. Details are on page 11. If you connected the DVD/VCR to the TV using the supplied RF coaxial cable, choose channel 3 (or 4) at the TV. Details are on pages 8-10. Press RECORD I to start recording. The red RECORD light will appear on the front of the DVD/VCR. To pause the recording, press PAUSE k once. The red RECORD light will flash. To resume recording, press RECORD I or press PAUSE k again. The red RECORD light will come on again. To stop recording, press STOP C. Insert a tape in the DVD/VCR. SEARCH MODE DISPLAY REPEAT REPEAT AUDIO A-B ANGLE SKIP / CH SUBTITLE ZOOM RETURN

TITLE CLEAR/RESET SLOW

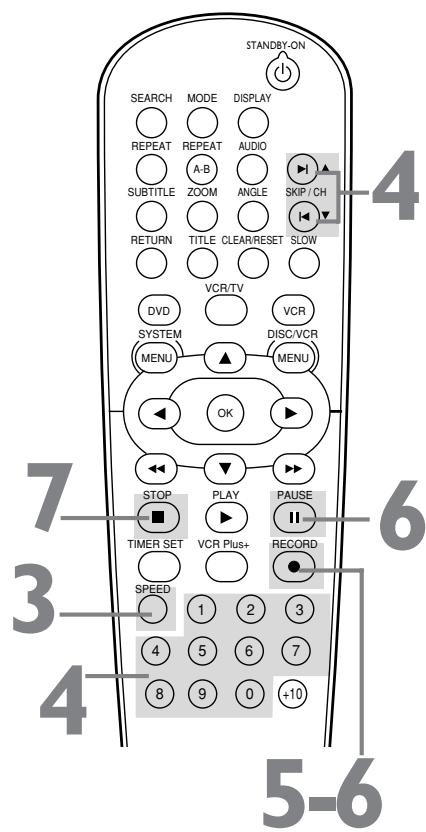

VCR/TV Press SPEED until the desired tape speed (SP or SLP) appears briefly on the screen. Details about tape speed are on page 76. Press SKIP3/CHo or SKIP / CHp or the Number buttons to select the TV channel to record. Turn on the TV. STANDBY-ON Insert a tape with its record tab intact into the cassette compartment of the DVD/VCR. If tape playback begins, press STOP C. DVD VCR SYSTEM DISC/VCR MENU MENU

+10 5-6 Helpful Hints Recording Prevention Video Cassettes have record tabs to ensure that recordings are not accidentally erased.

To prevent recording, break off the tab with a screwdriver. To allow recording, cover the hole with clear tape. Remove the tab to prevent recording. Cover the hole to allow recording.

• Other recording options are on pages 33-39.
• The VCR will record in a preset volume.
• Pause will switch to Stop after five minutes to protect the VCR and the tape from damage.When a recording is paused, review the pause time remaining with the ■ marks on the screen. Each ■ mark equals one minute remaining. During the last minute of paused recording, the ■ mark will flash.
• If any menu is on the TV screen, the RECORD I button on the remote does not function. Press CLEAR/RESET to remove the menu.Then, press RECORD I. Or, use the RECORD I button on the front of the DVD/VCR. H9421CD/DVD750(EN).pgs1-51.QX3 03.4.11 11:29 AM Page 33 Recording One Channel/Watching Another 33

Press VCR, then press RECORD I to record the current TV channel. Details are on page 32. STANDBY-ON SEARCH Press VCR/TV once to put the DVD/VCR in TV position. MODE DISPLAY REPEAT REPEAT AUDIO A-B Use the TV remote control to select the channel you want to watch at the TV. To return to the channel being recorded, use the TV remote control to select channel 03 or 04 at the TV. Details are on page eight. Or, if you connected the DVD/VCR to the TV using audio and video cables, select the TV’s correct Video In channel. Details are on page 11. Press VCR/TV on the DVD/VCR remote control to put the DVD/VCR in VCR position. The channel being recorded will appear on the TV screen. Press STOP C to stop the recording. SUBTITLE ZOOM ANGLE RETURN

TITLE CLEAR/RESET SLOW

Select the channel you want to watch at the TV. Select channel 03, 04, or Video In at the TV. Helpful Hint

• If you use a Cable Box or Satellite Receiver, you may not be able to watch one channel while recording another. See pages 9-10 for details. H9421CD/DVD750(EN).pgs1-51.QX3 03.4.11 11:29 AM Page 34 34 One-Touch Recording One-Touch Recording (OTR) lets you set a timed recording 30 minutes to eight hours long. Before you begin: ● Place the DVD/VCR in VCR mode. Press VCR so the green VCR light appears on the front of the DVD/VCR. ● Select a recording speed (SP, SLP) with the SPEED button. ● Put a videotape in the cassette compartment. Make sure the tape’s record tab is intact and the tape is long enough to record the program(s).

TITLE CLEAR/RESET SLOW

VCR/TV Press RECORD I on the front of the DVD/VCR until the desired recording length (30 minutes to eight hours) appears on the TV screen. Recording will begin.The RECORD light and the RECORD TIMER light will appear on the front of the DVD/VCR. DVD VCR SYSTEM DISC/VCR MENU MENU

Press RECORD on the DVD/VCR. Stopping an OTR To stop an OTR before recording is finished, press STOP on the remote control or STOP/EJECT A on the front of the DVD/VCR. To cancel the OTR but continue recording, press RECORD on the front of the DVD/VCR repeatedly until RECORD appears in the upper left corner of the screen. When an OTR finishes, the DVD/VCR will either switch to DVD model or turn itself off. If it changes to DVD mode, press STANDBY-ON to turn it off. After an OTR, the RECORD TIMER light flashes because the VCR is still on standby for timer recordings. Press TIMER SET on the remote or STOP/EJECT A on the DVD/VCR to cancel timer standby and use the VCR normally again. Helpful Hints

• The remaining recording time will appear on the display panel. Press DISPLAY to see it on the TV screen.
• To change the recording length while an OTR is in progress, press RECORD on the front of the DVD/VCR.
• You cannot start a timed OTR with the RECORD I button on the remote.
• You cannot pause an OTR.
• If the preset time for a timer recording comes up during an OTR, the OTR has priority.The timer recording will not take place.
• If the end of the tape is reached during an OTR, the VCR will stop recording, eject the tape, and switch to DVD mode or turn off. H9421CD/DVD750(EN).pgs1-51.QX3 03.4.11 11:29 AM Page 35 Rerecording (Tape Duplication) 35 These instructions show you how to copy videotapes.The illustration uses two DVD/VCRs. Other VCRs or Camcorders may operate differently.

1. Audio cables from AUDIO OUT jacks (red and white)

of DVD/VCR 1 to AUDIO IN jacks of DVD/VCR 2 DVD/VCR 2 Recording unit DVD/VCR 1 Playing unit

OUT jack of DVD/VCR 1 to VIDEO IN jack of DVD/VCR 2

3. RF coaxial cable from the ANT-OUT

(Antenna Out) jack of DVD/VCR 2 to the TV’s ANTENNA IN jack Make the connections shown above. DVD/VCR 1 will play your tape. Put a prerecorded tape into the cassette compartment of DVD/VCR 1. Press VCR to put the unit in VCR mode if necessary. DVD/VCR 2 will record your tape. Insert a blank tape in the cassette compartment of DVD/VCR 2. Press VCR to put the unit in VCR mode if necessary. Turn on the TV and set it to channel 03 or 04 (the RF output channel of DVD/VCR 2).To determine the DVD/VCR’s output channel, see step 4 on page eight. Point the remote control at DVD/VCR 2. Press Number buttons 0, 0, 1 or 0, 0, 2. (See Helpful Hints at right.) Press SPEED to select SP or SLP at DVD/VCR 2. Press PLAY B (VCR) on the front of DVD/VCR 1 and RECORD I on the front of DVD/VCR 2 at the same time. To stop recording, press STOP/EJECT A on DVD/VCR 1, then press STOP/EJECT A on DVD/VCR 2. Helpful Hints

• If you use the AUDIO and VIDEO IN jacks on the back of DVD/VCR 2, press Number buttons 0, 0, 1 at step 5. L1 will appear on the TV screen.
• If you use the AUDIO and VIDEO In jacks on the front of DVD/VCR 2, press Number buttons 0, 0, 2 at step 5. L2 will appear on the TV screen.
• Unauthorized recording of copyrighted television programs, video tapes, or other materials may infringe on the rights of copyright owners and violate copyright laws.
• If a program has copyright protection, it may not record clearly. H9421CD/DVD750(EN).pgs1-51.QX3 03.4.11 11:29 AM Page 36 36 Timer Recording Follow the steps below to program the VCR of the DVD/VCR to record TV programs while you’re away from home. Before you begin: ● Set up the TV channels at the DVD/VCR. Details are on page 26. ● Set the clock. Details are on pages 28-29. ● Put a tape in the cassette compartment of the DVD/VCR. Make sure the tape’s record tab is intact and the tape is long enough to record the program(s). ● Press VCR so the green VCR light appears on the front of the DVD/VCR.

TITLE CLEAR/RESET SLOW

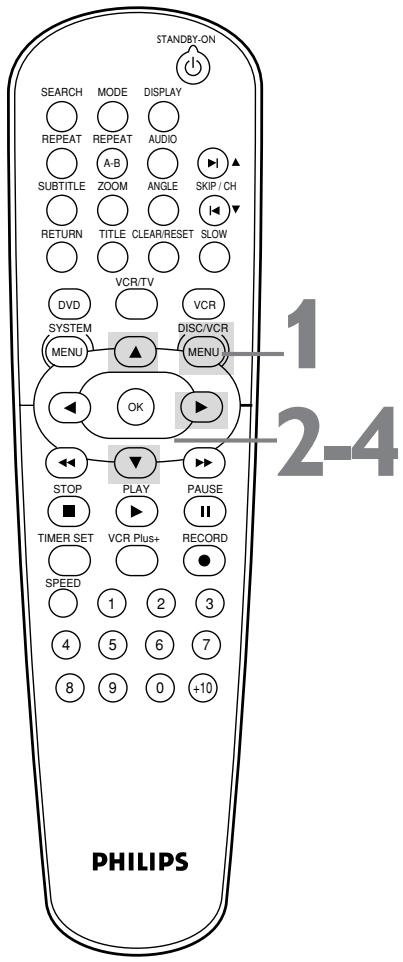

Press o or p to select TIMER PROGRAMMING.Then, press B. Program numbers that do not have a timer recording stored will flash. STOP PLAY PAUSE TIMER SET VCR Plus+ RECORD

Press o or p to select ONCE, DAILY, or WEEKLY. Then, press B. ● ONCE - The VCR will record a TV program on any day you choose, up to 12 months away. ● DAILY - The VCR will record a TV program at the same time on the same channel every day, Monday through Friday. ● WEEKLY - The VCR will record a TV program at the same time on the same channel every week, for example, every Monday. PROGRAM NUMBER B ONCE DAILY WEEKLY

• You cannot access the TIMER PROGRAMMING menu at step 2 if the clock is not set.The CLOCK SET menu will appear. Follow the steps on pages 28-29 to set the clock.
• Only programs that will air MondayFriday can be recorded on a DAILY basis. If you select DAILY at step 4, then enter a Saturday or Sunday DATE at step 5, the correct program will not be recorded.The VCR will alter the recording date and record a different program than the one you intended. H9421CD/DVD750(EN).pgs1-51.QX3 03.4.11 11:29 AM Page 37 Timer Recording (cont’d) 37

Press o or p until the month appears. Then, press B. Next, press o or p until the day appears.Then, press B. The day of the week will appear. You cannot record more than one year in advance. STANDBY-ON SEARCH MODE DISPLAY REPEAT REPEAT AUDIO A-B ANGLE SKIP / CH SUBTITLE ZOOM RETURN

TITLE CLEAR/RESET SLOW

To enter the recording’s start time, press o or p until the hour appears. Press B. Press o or p until the minute appears. Press B. Finally, press o or p to point to AM or PM. AM or PM will flash beside the start time. Press B.

Repeat the procedure in step 6 to set the recording’s end time. Press o or p until the channel number appears. Then, press B. ● If you are using a standard antenna/Cable TV hookup (as shown on page eight), select the channel of the TV program you want to record. ● If you are recording from other equipment, select L1 or L2.To determine L1 or L2, refer to the Helpful Hint on page 38. ● If you are using a Cable Box/Satellite Receiver, select the Cable Box/Satellite Receiver output channel (03 or 04). Then, at the Cable Box/Satellite Receiver, select the channel you want to record. Leave the Cable Box/Satellite Receiver on for the timer recording. Details are on page nine.

Instructions continue on page 38. Helpful Hints

• Enter the information while the space is flashing.
• To stop a started timer recording, press STOP/EJECT A on the front of the DVD/VCR. (You cannot stop a started timer recording with the STOP C button on the remote.)
• With ShowGuard, if the power fails for more than 30 seconds, programmed timer recordings will be restored when the clock is reset. More Helpful Hints are on page 80. H9421CD/DVD750(EN).pgs1-51.QX3 03.4.11 11:29 AM Page 38 38 Timer Recording (cont’d)

Press o or p to select a recording tape speed. The arrow will appear beside your choice.The selected speed will flash beside REC SPEED. Details about tape speed are on page 76. STANDBY-ON SEARCH DISPLAY REPEAT REPEAT AUDIO A-B

TITLE CLEAR/RESET SLOW

Press CLEAR/RESET to store the timer recording. Press TIMER SET. The DVD/VCR will turn off and the red RECORD TIMER light will appear on the front of the DVD/VCR. In some cases, the DVD/VCR will switch to DVD mode instead.You may use the DVD Player during a timer recording. If you want to use the VCR until time for the recording, don’t press TIMER SET until a few minutes before the recording should start. Or, press TIMER SET only when you know you won’t be using the VCR anymore (until after the recording).When the RECORD TIMER light is on, you cannot put the DVD/VCR in VCR mode by pressing VCR or SOURCE.You must first press TIMER SET to cancel the timer recording temporarily.Then, you can use the VCR features again. Cancelling Timer Recordings

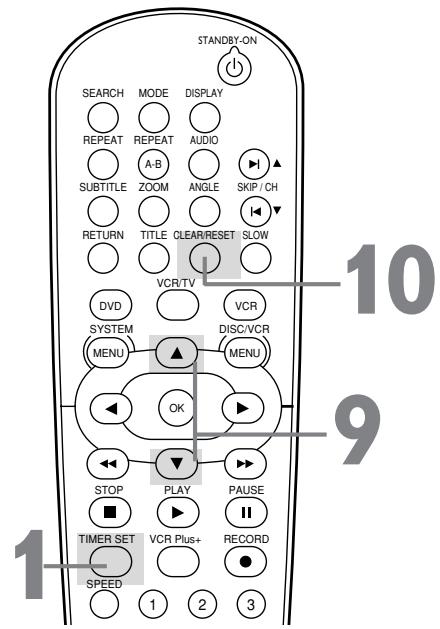

Press VCR, then press DISC/VCR/MENU. Press o or p to select TIMER PROGRAMMING, then press B. Press o or p to find the program you want to cancel. While the program number is flashing, press s to clear all the information for that program.

• If you are recording from other equipment, set CHANNEL to L1 or L2. If you connected the other equipment to the AUDIO and VIDEO In jacks on the front of the DVD/VCR, choose L2. If you connected the audio and video cables to the AUDIO IN and VIDEO IN jacks on the back of the DVD/VCR, choose L1.
• To change incorrect information, press s or B to choose the item you want to change. Press o or p to adjust the information.
• If a timer recording is set and the RECORD TIMER light is on, pressing STOP/EJECT A will turn on the DVD/VCR and/or cancel the timer recording.The RECORD TIMER light will turn off. Press STOP/EJECTA again to remove the tape. Remember to insert a tape and press TIMER SET to reset the timer recording.
• If there is no tape in the VCR when you press TIMER SET, the RECORD TIMER light will flash. Insert a tape. H9421CD/DVD750(EN).pgs1-51.QX3 03.4.11 11:29 AM Page 39 DVD to Videotape Duplication 39 Follow the steps below to copy a DVD to a videotape. This will be possible only if the DVD is not copy protected. Before you begin: ● Put a videotape in the cassette compartment. Make sure the tape’s record tab is intact and the tape is long enough to record the DVD. ● Put the DVD you want to copy in the disc tray. ● Press VCR so the green VCR light appears on the front of the DVD/VCR. ● Turn on the TV.

Point the remote control at the DVD/VCR. Press Number buttons 0, 0, 3. “DISC” will appear on the TV screen. STANDBY-ON SEARCH MODE DISPLAY REPEAT REPEAT AUDIO A-B

TITLE CLEAR/RESET SLOW

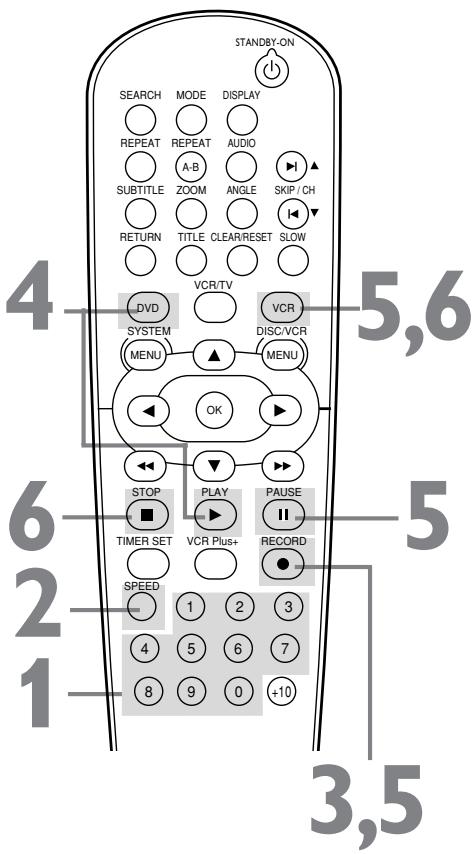

Press SPEED until the desired tape speed (SP or SLP) appears briefly on the screen. Details about tape speed are on page 76.

To stop recording, press VCR, then press STOP C. Press RECORD I to start recording. The red RECORD light will appear on the front of the DVD/VCR.

+10 3,5 Press DVD. Press PLAY B to play the disc. To pause the recording, press VCR, then press PAUSE k once. The red RECORD light will flash. To resume recording, press RECORD I or press PAUSE k again. The red RECORD light will come on again. Helpful Hints

• A timer recording is not possible during DVD to videotape duplication.
• You cannot copy a DVD to a videotape if you are using Progressive Scan. Details are on page 12. H9421CD/DVD750(EN).pgs1-51.QX3 03.4.11 11:29 AM Page 40 40 Setting Up the VCR Plus+ Programming System

First, fill in the boxes on this page. It will only take a few minutes, and you must do it if you want the VCR Plus+ programming system to work properly. Since the channel numbers of the stations you receive may not be the same as the station numbers, and since channel numbers differ from area to area, you must program the VCR with your local channel information.To fill in the boxes, you will need 1) a cable channel list, if applicable (you can request one from your cable company), and 2) a chart that lists VCR Plus+ channel numbers (Guide channels), which you can find in your TV guide or the TV listings of your local newspaper. NOTE: If you are using a Cable Box/DBS, the User channel must be 3 or 4 (the Cable Box/DBS output channel) for every Guide channel. Channels Station Call Letters GUIDE CH. Channels USER CH. Station Call Letters GUIDE CH. USER CH. H9421CD/DVD750(EN).pgs1-51.QX3 03.4.11 11:30 AM Page 41 Setting Up the VCR Plus+ Programming System (cont’d) 41

Now, compare the channel numbers you have written in the GUIDE CH. and USER CH. columns. For stations whose Guide and User channels do not match, you must tell the VCR the Guide and User channels by following steps 3-7.

TITLE CLEAR/RESET SLOW

PLAY PAUSE TIMER SET VCR Plus+ RECORD SPEED Press the Number buttons, o, or p until the Guide channel number you want appears.Then, press B.

Press the Number buttons, o, or p until the User channel number you want appears. If you have an antenna, choose channels 2-69. If you have Cable TV, choose channels 1-125.To select L1 (line input), press 0,0 on the remote control. ● Press s to go back one step from the current step. Press B to memorize the Guide and User channels you entered. To set more Guide and User channels, repeat steps 5-7. Press CLEAR/RESET to remove the menu. Helpful Hints

• To check a User channel, press DISC/VCR/MENU until MENU 2 appears. Press o or p to select GUIDE CHANNEL MAP, then press B. If the channel is not on the screen, press B until you reach the correct page.
• To erase a User channel, press s. A pair of numbers will flash. Press o or p until the numbers flash. Press s to delete the User channel. Press CLEAR/RESET to remove the menu.
• To correct a Guide channel, repeat steps 3-5 on this page.Then, press o, p, or the Number buttons to enter the correct number. Press B, then press CLEAR/RESET to remove the menu. H9421CD/DVD750(EN).pgs1-51.QX3 03.4.11 11:30 AM Page 42 42 Timer Recording with the VCR Plus+ Programming System Follow these steps to set a timer recording with the PlusCode programming numbers in your TV guide. Before you begin: ● Set up the channels at the VCR (page 26-27). ● Set up the VCR Plus+ and Cable/TV channel numbers (pages 40-41). ● Set the clock (pages 28-29). ● Put a tape in the VCR. STANDBY-ON SEARCH MODE DISPLAY REPEAT REPEAT AUDIO A-B ANGLE SKIP / CH SUBTITLE ZOOM RETURN

TITLE CLEAR/RESET SLOW

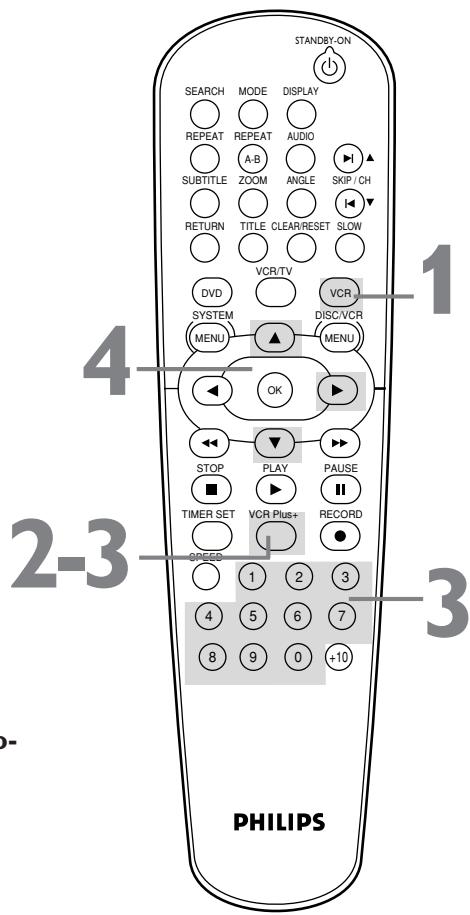

Press VCR Plus+. VCR Plus+ system PlusCode No. : – – – – – – – –

Press Number buttons to enter the PlusCode programming number of the program you wish to record. Then, press VCR Plus+. VCR Plus+ system PlusCode No. : 1 2 3 4 5 – – –

Press o or p to select a ONCE, DAILY, or WEEKLY recording.Then, press B. ● ONCE: The VCR will record a TV program on any day you choose, up to 12 months away. ● DAILY: The VCR will record a program every day from Monday to Friday – starting at the same time and recording for the same length of time. ● WEEKLY: The VCR will record a program on the same day, at the same time, and for the same length of time every week. VCR Plus+ system B ONCE DAILY WEEKLY Helpful Hints

• The number you entered may flash on the screen after step 3 if you enter an incorrect PlusCode programming number (for example, one that is too short).The previous screen will appear. Enter the correct PlusCode programming number.
• If the number you entered flashes on the screen after step 3, the timer recording you just programmed and another timer recording overlap.The current timer recording will not occur.
• You may use the VCR Plus+ Programming System to record programs on Cable TV channels up to channel 125.
• With ShowGuard, if the power fails for more than 30 seconds, programmed timer recordings will be restored when the clock is reset. H9421CD/DVD750(EN).pgs1-51.QX3 03.4.11 11:30 AM Page 43 Timer Recording with the VCR Plus+ Programming System (cont’d) 43

Press o or p until your desired tape speed appears. (Example: SP) There are cases in which the program information does not match your area. If the incorrect information appears, select the number you want to change using s.Then, enter the correct numbers using o or p. STANDBY-ON SEARCH

TITLE CLEAR/RESET SLOW

Press CLEAR/RESET. Press TIMER SET for the recording. Insert a tape in the VCR. Leave the Cable Box/DBS on (if applicable). AUDIO A-B

Press TIMER SET. The DVD/VCR will turn off and the red RECORD TIMER light will appear on the front of the DVD/VCR. In some cases, the DVD/VCR will switch to DVD mode instead.You may use the DVD Player during a timer recording. If you want to use the VCR until time for the recording, don’t press TIMER SET until a few minutes before the recording should start. Or, press TIMER SET only when you know you won’t be using the VCR anymore (until after the recording).When the RECORD TIMER light is on, you cannot put the DVD/VCR in VCR mode by pressing VCR or SOURCE.You must first press TIMER SET to cancel the timer recording temporarily.Then, you can use the VCR features again. DISPLAY REPEAT REPEAT

TITLE CLEAR/RESET SLOW

+10 Press B so ON appears next to AUTO REPEAT. Tape playback will begin immediately. AUTO REPEAT B will appear on the TV screen briefly. (If you are fast forwarding or rewinding the tape, press CLEAR/RESET to remove the menu, then press PLAY B to begin tape playback.) The tape will play to the end, rewind, then play again. (TV programming will appear on the screen while the tape is rewinding.)

• To cancel AUTO REPEAT, follow steps 1-2. At step 3, press B so OFF appears beside AUTO REPEAT. Press CLEAR/RESET. H9421CD/DVD750(EN).pgs1-51.QX3 03.4.11 11:30 AM Page 45 Tape Counter 45 Follow the steps below to reset the VCR’s real-time tape counter to zero at a tape location you want to refer to later.

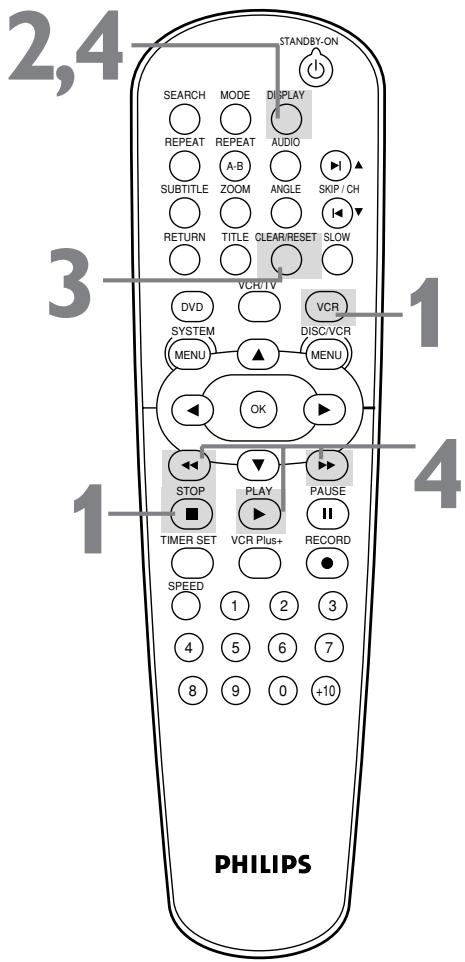

Press VCR, then play, fast forward, or rewind a tape to the location that you would like to refer to later. Press STOP C to stop the tape. Press DISPLAY to see the status display. STOP 2,4 STANDBY-ON SEARCH MODE DISPLAY REPEAT REPEAT AUDIO A-B

TITLE CLEAR/RESET SLOW

1 : 23 : 45 HIFI While the counter is on the screen, press CLEAR/RESET to reset the counter to zero.

0 : 00 : 00 HIFI When you later want to return to this point on the tape, press DISPLAY so you can see the counter (while tape play is stopped). Press h or g. As the tape rewinds or forwards, watch the counter.When it reaches zero, press PLAY B to play the tape. Helpful Hints

• You may only set the counter to zero at one location at a time. Setting the counter to zero at a second location will erase the previous zero setting.
• If you remove the tape, the counter will reset to zero at the point at which you last stopped playback whenever you reinsert the tape. H9421CD/DVD750(EN).pgs1-51.QX3 03.4.11 11:30 AM Page 46 46 Time Search, Index Search Time Search STANDBY-ON Follow the steps below to search forward or backward on a tape a specific length of time.There must be a tape in the cassette compartment. SEARCH MODE DISPLAY REPEAT REPEAT

TITLE CLEAR/RESET SLOW

Within 30 seconds, press o or p until your desired length of time appears. Or, press and hold o or p until you reach the desired length of time. You can set a Time Search for up to 9 hours and 59 minutes (9:59). Within 30 seconds, press s (for a reverse search) or B (for a forward search). The VCR begins rewinding or fast forwarding the tape.When the tape finishes rewinding or fast forwarding the time you specified, playback will begin. The time will count down beneath TIME SEARCH during the search. If the end of the tape is reached during the search, the search will stop and the tape may rewind. Details are on pages 46-48.

+10 SEARCH MODE DISPLAY REPEAT REPEAT AUDIO A-B Press VCR, then press SEARCH until the INDEX SEARCH screen appears.

DISC/VCR STANDBY-ON An Index Mark is made automatically at the beginning of each recording. Essentially, an Index Mark is a “bookmark.” Find the start of a recording by following these steps. INDEX SEARCH VCR SYSTEM SPEED Index Search

TITLE CLEAR/RESET SLOW

VCR/TV 2-3 Within 30 seconds, press o or p until the number of programs you want to skip appears beneath INDEX SEARCH. Include the current program in your number. Within 30 seconds, press s (for a reverse search) or B (for a forward search). When the tape finishes rewinding or forwarding, playback will start.The program numbers will count down beneath INDEX SEARCH during the search. If the end of the tape is reached during the search, the search will stop and the tape may rewind. Details are on page 48. Recordings should be at least one minute long in SP speed, two minutes in LP, and three minutes in SLP. Otherwise, the Index Mark will not be available. Details on tape recording speeds are on page 76. DVD VCR SYSTEM DISC/VCR MENU MENU

• Time Search and Index Search are not available during recording.
• To cancel a search, press STOP C . H9421CD/DVD750(EN).pgs1-51.QX3 03.4.11 11:30 AM Page 47 Special Effects Playback 47

Before you begin, press VCR so the green VCR light appears on the front of the DVD/VCR. STANDBY-ON Forward and Reverse Searching (SP/LP/SLP) SEARCH

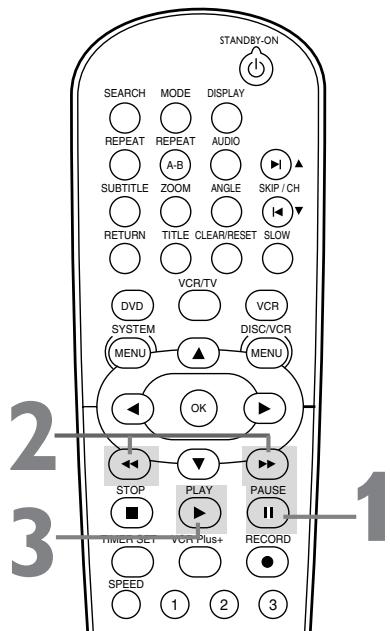

During tape playback, press and release g or h. A fast forward or reverse picture search will begin. MODE DISPLAY REPEAT REPEAT AUDIO A-B ANGLE SKIP / CH SUBTITLE ZOOM RETURN

TITLE CLEAR/RESET SLOW

During tape playback, press g or h, then press again. The search speed will increase. Repeatedly pressing g or h will switch between regular and high speed searching. To return to normal playback, press PLAY B. Viewing a Still Picture

+10 During tape playback, press PAUSE k. A still picture will appear on the screen. To advance the still picture one frame at a time, press PAUSE k repeatedly. To release the still picture and return to playback, press PLAY B. Viewing a Slow Motion Picture

During tape playback, press SLOW. The tape will play in slow motion. To return to normal playback, press PLAY B. Helpful Hints

• Slow and Still modes will switch to Stop mode after five minutes to protect the DVD/VCR and the tape from damage.
• SP/LP/SLP means this feature will work with tapes recorded in Standard Play, Long Play, or Super Long Play. LP/SLP means this feature will work with tapes recorded in Long Play or Super Long Play. Tape speed details are on page 76. H9421CD/DVD750(EN).pgs1-51.QX3 03.4.11 11:30 AM Page 48 48 Automatic Operation Features The following tape features are available in VCR mode. Press VCR so the green VCR light is on, if necessary. Automatic Playback When you put a tape in the DVD/VCR, the power will come on. If the tape’s record tab is missing, playback will begin. If a timer recording is set and the RECORD TIMER light is flashing, the power will not come on automatically when you insert a tape with the record tab intact. If a timer recording is set and the RECORD TIMER light is flashing, the DVD/VCR will eject the tape if the record tab is missing. Automatic Rewind, Eject When a tape is played, fast forwarded, or recorded to its end, the tape will rewind to the beginning, stop, and eject. This feature does not operate if AUTO REPEAT is ON. Details are on page 44. Tape Eject A tape can be ejected with the DVD/VCR power on or off (but the DVD/VCR must be plugged in). If a timer recording is set and the RECORD TIMER light is on, pressing STOP/EJECT A will turn on the DVD/VCR and/or cancel the timer recording.The RECORD TIMER light will turn off. Press STOP/EJECT A again to remove the tape. Remember to insert a tape and press TIMER SET to reset the timer recording. Automatic Tracking Adjustment The VCR adjusts tracking automatically to give you the best possible picture quality.With some recordings, however, you may get a better picture using manual tracking (see below). Manual Tracking To manually adjust the tracking during normal playback and slow motion playback of a videotape, press SKIP3/CHo or SKIP /CHp on the remote. Tracking will return to Automatic Tracking when you press STOP C or insert a tape. Furthermore, you can press SKIP3/CHo or SKIP /CHp to remove vertical jitter in a Still picture. Before Tracking Adjustment After Tracking Adjustment H9421CD/DVD750(EN).pgs1-51.QX3 03.4.11 11:30 AM Page 49 Multi-Channel Television Sound 49 Your DVD/VCR can play tapes recorded in Hi-Fi (high fidelity) stereo, which produces a crisp, clear sound from the left and right audio channels.Your DVD/VCR also can play tapes recorded in a second audio (usually, that means your program is recorded in a second language). Of course, your DVD/VCR will play tapes recorded in monaural (single-source) sound as well. Your DVD/VCR also will record a video cassette in Hi-Fi stereo or in second audio, so when you play that tape on the DVD/VCR, it will be in stereo or second audio. Read the directions on this page to familiarize yourself with the stereo and second audio setups.Then follow the directions on page 50 to record in stereo or second audio, or follow the directions on page 51 to play tapes recorded in Hi-Fi stereo. Understanding Displays When you watch TV channels through the DVD/VCR, portions of the display shown below will appear when you press DISPLAY twice. STOP 5:40 PM CH 02 STEREO SAP If SAP or STEREO appears, the program is available in second audio or stereo. Even though a program is available in second audio or stereo, you must program the DVD/VCR to receive or record the program. Follow the directions on page 50. This display is not available during tape playback. SLP To play programs in stereo, connect the DVD/VCR to a Stereo or TV as described on pages 11 and 14.You will use the red and white AUDIO OUT jacks on the DVD/VCR. H9421CD/DVD750(EN).pgs1-51.QX3 03.4.11 11:30 AM Page 50 50 Multi-Channel Television Sound (cont’d) To set the DVD/VCR to receive programs in stereo or second audio, follow these steps. STANDBY-ON SEARCH

TITLE CLEAR/RESET SLOW

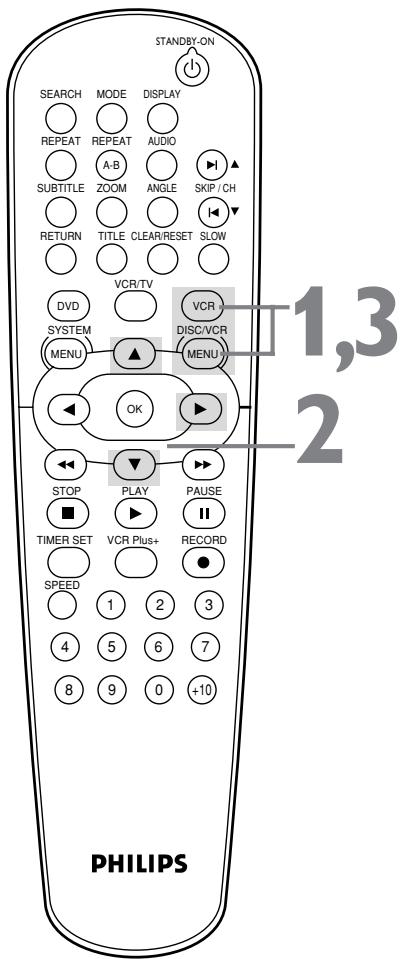

Press o or p to select TV STEREO or SAP (Second Audio Program). Press B so ON appears beside your selection. STOP PLAY PAUSE TIMER SET VCR Plus+ RECORD 1,3

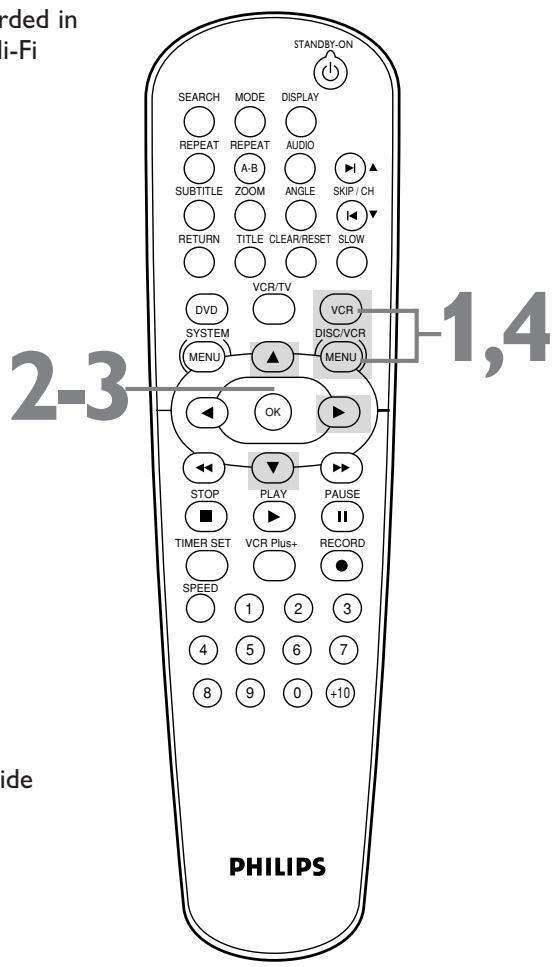

+10 Press DISC/VCR/MENU to remove the menu. Helpful Hints

• You can only receive and record in stereo or second audio programs that are broadcast in stereo or second audio.You can only play in stereo or second audio tapes that were recorded in stereo or second audio. Please see page 49 to determine if the program is in stereo or second audio.
• If SAP is ON but the program is not broadcast in Second Audio, you will hear and record the program in normal audio. H9421CD/DVD750(EN).pgs1-51.QX3 03.4.11 11:30 AM Page 51 Hi-Fi Stereo 51 Multi-Channel Television Sound system broadcasts are recorded in Hi-Fi stereo.To play in Hi-Fi stereo the tapes recorded in Hi-Fi stereo, follow these steps.

TITLE CLEAR/RESET SLOW

+10 Press o or p to select HIFI. ON will appear beside HIFI. AUDIO OUT BHIFI [ON] MONO Helpful Hints

• Programs are recorded in both HiFi stereo sound and in monaural sound.
• The audio level of a tape recorded in Hi-Fi stereo will differ from the audio level of a tape not recorded in Hi-Fi stereo.
• You can change to MONO if you want monaural audio playback. Follow steps 1-2, then press o or p to select MONO. Press DISC/VCR/MENU. HIFI will disappear from the status display.
• If you play non-Hi-Fi tapes while AUDIO OUT is set to HIFI, HIFI will not appear on the status display. The tape will play in monaural sound. Please see additional notes on page 81. H9421CD/DVD750(EN)pgs52-84.QX3

03.4.11 11:35 AM Page 52

52 DVD Disc Menus DVDs contain menus that describe the contents of the DVD or allow you to customize DVD playback. For example, the menu may offer choices for subtitle languages, special features, or scene selection.To use the DVD Disc menu and select playback features, follow these steps. STANDBY-ON SEARCH MODE DISPLAY REPEAT REPEAT

AUDIO A-B Press DVD to put the DVD/VCR in DVD mode. Press DISC/VCR/MENU. The DVD’s main Disc menu will appear. Press o, p, s, or B to select an item, then press OK. Continue this process to set up all the features you want.

TITLE CLEAR/RESET SLOW

PAUSE Using the Title Menu Some DVDs have a Title Menu, which lists the Titles available on the DVD. Use the Title Menu to start playback at a specific Title.

STANDBY-ON SEARCH Press DVD. MODE DISPLAY REPEAT REPEAT AUDIO A-B Press TITLE. The Title menu will appear. If a Title menu is not available, the “X” may appear on the TV screen. Or, if the DVD only has a main Disc menu as described above, it may appear when you press TITLE. Press o, p, s, or B to select a Title, then press OK. Playback will begin at the Title you selected.

TITLE CLEAR/RESET SLOW

STOP PLAY PAUSE Helpful Hints

• Menus vary among DVDs. Follow the information accompanying the DVD.
• Not all DVDs have Title menus.
• Some DVDs may refer to Chapters as “scenes.” Some DVDs may refer to the Title Menu as the “scene index.”
• The TITLE button will not be active with all DVDs. H9421CD/DVD750(EN)pgs52-84.QX3

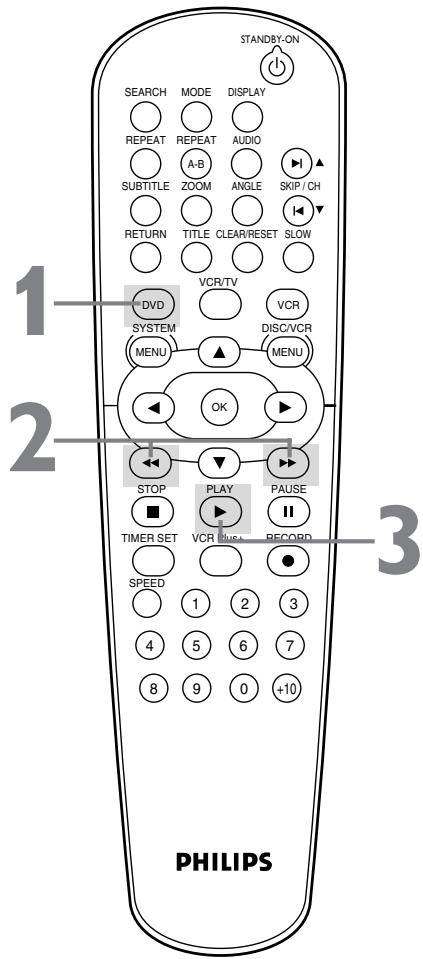

SEARCH MODE DISPLAY REPEAT REPEAT During playback, press g or h. Use g for a forward search. Press h for a reverse search. ● During DVD playback, pressing g or h will forward or reverse the picture at two, eight, 50, or 100 times the normal playback speed. An h 2, h 8, h 50, or h 100 will appear briefly on the TV screen to indicate reverse searching. Or, g 2, g 8, g 50, or g 100 will appear briefly on the TV screen to indicate fast forward searching. Sound will be muted during searching. ● During Audio CD playback, you may search only at 16 times the normal playback speed. An h 16 or g 16 will appear briefly on the TV screen. Sound will be intermittent during searching on an Audio CD. ● During MP3 playback, you can search at only eight times the normal speed. An h 8 or g 8 will appear briefly on the TV.

Example: Playing a DVD in reverse at twice the normal playing speed.

STANDBY-ON Press DVD to put the DVD/VCR in DVD mode.The red DVD light will appear on the front of the DVD/VCR. Press PLAY B to return to normal playback. AUDIO A-B

TITLE CLEAR/RESET SLOW

With a DVD in the DVD/VCR, press DVD. During DVD playback, press SEARCH until CH (for Chapter) or TT (for Title) appears on the TV screen.The number of available Titles or Chapters will appear at the right ( /4, for example). Enter the Title or Chapter number using the Number buttons. The selected Title or Chapter will start to play.

TITLE CLEAR/RESET SLOW

Press DVD to put the DVD/VCR in DVD mode. During DVD or Audio CD playback, press SEARCH until the Time Search display appears. STANDBY-ON

TITLE CLEAR/RESET SLOW

Within 30 seconds, use the Number buttons to enter the elapsed playing time (of the Track or Title) at which you want playback to begin. Enter the time in hours, minutes, and seconds.Within a few seconds, playback will start at the specified time. ● Example: 1 hour, 23 minutes, and 30 seconds 1→2→3→3→0 ● Make sure the time you enter is within the total time of the current Title or Track. If it is not, the time space will clear and playback will continue at its current point.The total time available in the current Track or Title will appear in the Time Search display. ● If you make a mistake entering the time, press CLEAR/RESET to clear the time area. Enter the correct information. Press OK.

• Title/Chapter playback is not available with some DVDs. H9421CD/DVD750(EN)pgs52-84.QX3

03.4.11 11:35 AM Page 55

Track Playback 55 There are three ways to begin playback on an Audio CD at a specific Track: Use the Number buttons, the SEARCH button, or SKIP3/CHo and SKIP /CHp. ● Before you begin, press DVD so the red DVD light appears on the front of the DVD/VCR.

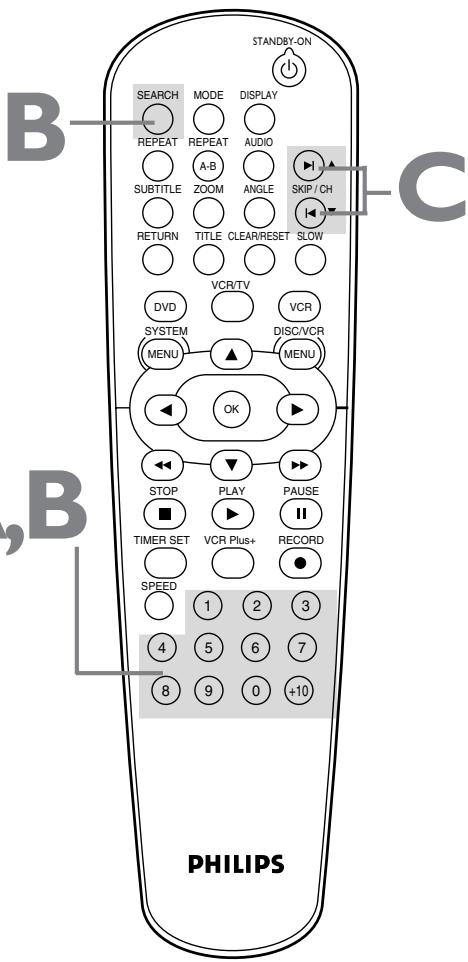

Using the Number Buttons Press the Number buttons to enter a Track number. Playback will start at the selected Track. For Tracks 10 and above, press the +10 button so the Search display (TR _ _ ) appears on the TV. Press the Number button of the first digit, then press the Number button of the second digit. For example, to play Track 26, press +10, then Number 2, then Number 6. For single-digit Tracks (1-9), press a single Number button. If you enter a Track number that is not available on the Disc, playback will not begin (or the current Track will continue to play). STANDBY-ON

TITLE CLEAR/RESET SLOW

Using SEARCH Press SEARCH so the Track Search display (TR) appears. Within 30 seconds, press the Number buttons to select the Track number. Playback will begin at the selected Track. For a single-digit Track (1-9), enter a zero first. For example, to play Track 5, press 0, 5. You do not have to use the +10 button in Search Mode.

Using SKIP3/CHo or SKIP /CHp During playback, press SKIP3/CHo to skip the current Track and move to the next Track. The Track number will appear briefly on the DVD/VCR display panel. During playback, press SKIP /CHp to return to the beginning of the current Track or press repeatedly to go to previous Tracks. The Track number will appear briefly on the DVD/VCR display panel. Helpful Hint

• You cannot use SKIP3/CHo to go from the last Track on the Disc to the first Track. H9421CD/DVD750(EN)pgs52-84.QX3

Press DVD. SEARCH MODE DISPLAY REPEAT REPEAT During DVD or Audio CD playback, press PAUSE k. Play will pause and the sound will be muted. When playing a DVD, press PAUSE k repeatedly to see the picture advance one frame (or step) at a time. The sound will remain mute. Pressing PAUSE k repeatedly during Audio CD, MP3, or JPEG playback will have no effect. AUDIO A-B SKIP / CH SUBTITLE ZOOM RETURN

TITLE CLEAR/RESET SLOW

Press PLAY B to resume playback.

Press DVD. STANDBY-ON Press STOP C during DVD or Audio CD playback. In a few seconds, the following Resume message will appear on the TV screen. (The file list will appear during MP3 or JPEG playback.) Press 'PLAY' to play from here. To play the beginning, press 'STOP' first and then 'PLAY'. SEARCH MODE DISPLAY REPEAT REPEAT AUDIO A-B

TITLE CLEAR/RESET SLOW

Press PLAY B. In a few seconds, play will resume from the point at which it stopped last.You can resume play at the same point even if you turn off the DVD/VCR, then turn it on again later. However, opening the disc tray will cancel the Resume feature. Play will start at the beginning the next time you insert the Disc. To cancel Resume and start playing the Disc from the beginning, press STOP C a second time while playback is stopped. The Stop symbol (C) will appear briefly on the TV screen. Press PLAY B to start playing the Disc from the beginning.

Press DVD to put the DVD/VCR in DVD mode. SEARCH During DVD or Audio CD playback, press REPEAT until the repeat mode you want appears on the TV. On a DVD, select CHAPTER,TITLE, or OFF. On an Audio CD, select TRACK, ALL (all Tracks on the Disc), or OFF. Selecting a new Track, Chapter, or Title will cancel repeat playback.

TITLE CLEAR/RESET SLOW

Example: Repeat a DVD Chapter STOP Example: Repeat an Audio CD Track PLAY PAUSE A-B Repeat Follow these steps to play a section of a DVD or Audio CD repeatedly. STANDBY-ON SEARCH

MODE DISPLAY Press DVD. REPEAT REPEAT Press PLAY B to play the Disc to the point at which you want repeated playback to begin. Press A-B REPEAT to set the starting point (A). A - will appear on the TV screen. 3-5

AUDIO A-B SUBTITLE ZOOM ANGLE RETURN

TITLE CLEAR/RESET SLOW

Play or fast forward the Disc to the point at which you want repeated playback to end, then press A-B REPEAT again. A-B will appear on the TV.The section will begin to play repeatedly. To cancel A-B Repeat, press A-B REPEAT. OFF will appear on the TV screen. Regular playback will resume. STOP PLAY PAUSE TIMER SET VCR Plus+ RECORD SPEED

• Repeat playback and A-B Repeat are not available with all Discs.
• The entire A-B Repeat section must be within a single Title or Track. If you do not enter Point B before the end of the Track or Title is reached, the end of the Track or Title will become Point B automatically.
• Point B must be later on the Disc than Point A. H9421CD/DVD750(EN)pgs52-84.QX3

03.4.11 11:35 AM Page 58

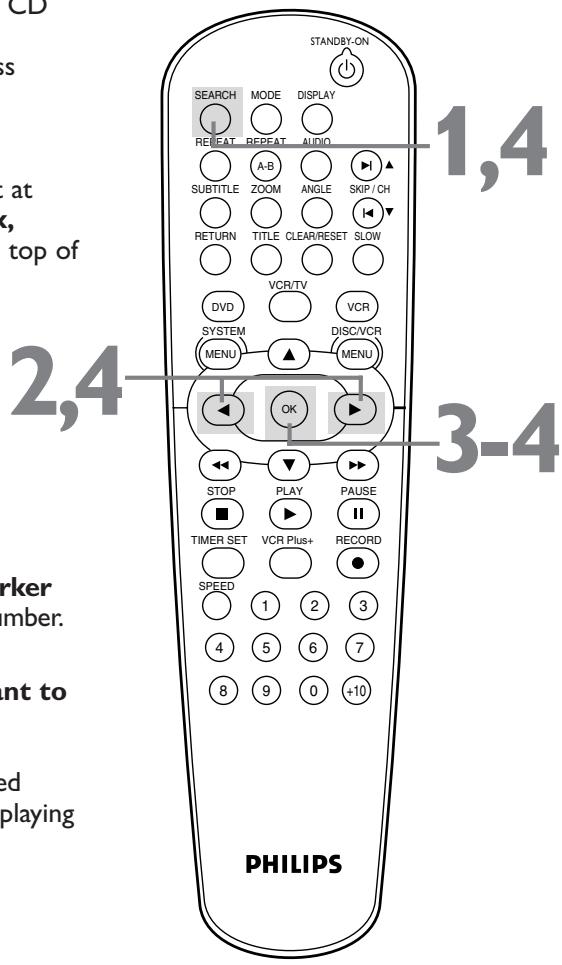

58 Markers Use Markers to remember your favorite places on an Audio CD or DVD.To set the Markers, follow these steps. ● Before you begin, place the DVD/VCR in DVD mode. Press DVD so the red DVD light appears on the front of the DVD/VCR. STANDBY-ON SEARCH MODE DISPLAY REPEAT REPEAT AUDIO A-B

Play the Disc to within 30 seconds prior to the point at which you want to set the Marker. During playback, press SEARCH until the Markers appear at the top of the TV screen. 2,4

Within 30 seconds, press s or B to select a Marker (1-10). Make sure _ : _ _ : _ _ appears beneath the number.

To return to a Marker during playback, press SEARCH until you see the Markers. Press s or B to choose the Marker you want, then press OK. Disc play will continue from the marked point. Let the Disc play to the point at which you want to set the Marker (up to 30 seconds away). When the Disc reaches the point you want to remember, press OK. The Title number and elapsed playing time (DVD) or Track number and its elapsed playing time (Audio CD) will appear. SUBTITLE ZOOM ANGLE RETURN

TITLE CLEAR/RESET SLOW

• Opening the disc tray or turning off the DVD/VCR will erase all the Markers.
• To erase a single Marker, press SEARCH until you see the Markers. Press s or B to select a Marker. Press CLEAR/RESET. Press RETURN or SEARCH to remove the display.
• To erase all the Markers, press SEARCH until you see the Markers. Press B to select AC, then press OK. Press SEARCH or RETURN to remove the display. H9421CD/DVD750(EN)pgs52-84.QX3

Subtitles, Camera Angles 59 Subtitles You can select a language for DVD subtitles during playback.You can select only languages that are available on the DVD.

STANDBY-ON SEARCH Press DVD. MODE DISPLAY REPEAT REPEAT AUDIO A-B During playback, press SUBTITLE to select a subtitle language. The number of available languages appears at the right of the subtitle display. In the example below, six languages are available ( /6). After a few seconds, the subtitles will appear. Or, press SUBTITLE to turn off subtitles.

TITLE CLEAR/RESET SLOW

PLAY STOP Camera Angles STANDBY-ON Some DVDs contain scenes recorded from different angles.The camera angle will not change if the DVD does not contain sequences recorded from different camera angles. SEARCH MODE DISPLAY REPEAT REPEAT

AUDIO A-B Press DVD. During playback, press ANGLE to select a different angle. The number of available angles appears at the right of the Angle display. In this example, eight angles are available ( /8). PAUSE

TITLE CLEAR/RESET SLOW

STOP PLAY PAUSE Helpful Hints

• On some DVDs, you must select a subtitle language in the Disc menu.
• If the language does not appear after pressing SUBTITLE several times, the Disc does not have subtitles in that language.
• Opening the disc tray will cancel your subtitle setting.
• If the current portion of the Disc has multiple camera angles, will appear on the TV screen.ANGLE ICON must be ON. Details are on pages 68-69. H9421CD/DVD750(EN)pgs52-84.QX3

03.4.11 11:35 AM Page 60

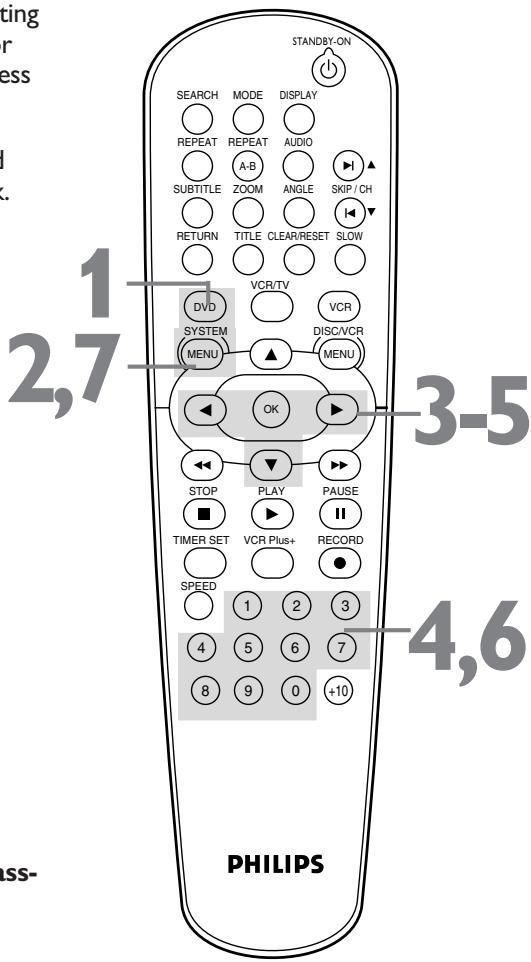

60 Parental Controls Password Parental Controls prevents viewing of DVDs that exceed your rating limits.This feature will not limit viewing if the DVD is not rated or coded. Check your DVDs and settings before letting children access the DVD/VCR. Follow these steps to change your password.

TITLE CLEAR/RESET SLOW

SEARCH Press DVD to put the DVD/VCR in DVD mode.The red DVD light will be on. Press STOP C to stop Disc playback. PLAYER MENU TV ASPECT DOLBY DIGITAL

STANDBY-ON SPEED Press B to select (the lock), then press OK. The first time you set a password, this menu will appear.

+10 4,6 Press the Number buttons to enter a four-digit password. The password will appear on the screen.Write it down so you don’t forget it. Press OK.You are finished! Go to step 7. If you have set a password before, this menu will appear. Press the Number buttons to enter your current four-digit password. Asterisks (*) will appear instead of your password.This protects its identity.

Press the Number buttons to enter a four-digit password. The password numbers will appear on the screen. Write down the password so you will not forget it. Press OK. The previous menu will reappear. Press SYSTEM/MENU to remove the menu. Helpful Hints

• The default password is 4737. If you forget your password, press Number buttons 4, 7, 3, 7 at step 4.You will be prompted to enter a new four-digit password. Use the Number buttons to enter a new four-digit password, then press OK. PARENTAL LEVEL will reset to ALL. See page 61 to reset PARENTAL LEVEL as you desire.
• A power failure will not erase your password. H9421CD/DVD750(EN)pgs52-84.QX3

03.4.11 11:35 AM Page 61

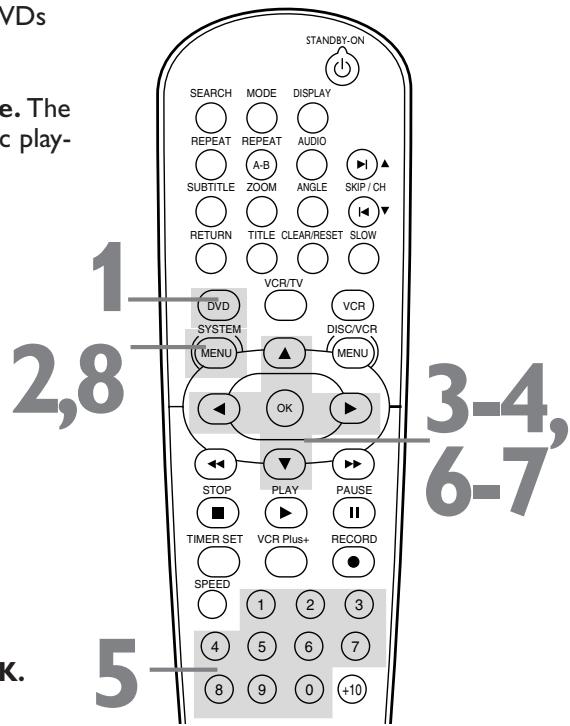

Parental Levels 61 Follow these steps to set the rating level for your DVDs. DVDs whose ratings exceed the level you set will not play.

TITLE CLEAR/RESET SLOW

MODE (the lock), then press OK.

• ALL - Parental Controls is inactive; all discs can play.
• 7 - NC-17 - Not appropriate for children under 17
• 6 - R - Restricted; parental approval required for viewers under 18.

• 4 - PG13 Unsuitable for children under 13
• 3 - PG - Parental Guidance suggested.
• 1- G - General Audience; recommended for all ages.

Press o or p to select a level, then press OK. The rating levels continue on two menu screens. Press o or p repeatedly to move to the next or previous screen to find the rating level you want. After making your selection, the previous menu will appear. The level you selected will appear beside PARENTAL LEVEL. PARENTAL

• When you try to play a DVD whose rating exceeds the level you set, an on-screen message will indicate the DVD cannot play. Remove the DVD, then set PARENTAL LEVEL to ALL. Reload the DVD and begin playback. Some DVDs may let you enter your four-digit password to begin playback. Follow the on-screen messages as prompted.

62 Audio Language, Stereo Sound Mode Audio Language You can select a language for DVDs during playback if multiple languages are available.

STANDBY-ON SEARCH Press DVD to put the DVD/VCR in DVD mode if necessary.The red DVD light will be on. During DVD playback, press AUDIO repeatedly to choose one of the available languages. The new audio will be heard.The display will disappear after about five seconds. The Audio display may show if the DVD has Dolby Digital or multi-channel (5.1 CH) sound or its sampling rate (48 k, for example).The number of available languages appears after the “ / ” at the right of the display ( /3, for example). MODE DISPLAY REPEAT REPEAT AUDIO A-B

TITLE CLEAR/RESET SLOW

PLAY STOP PAUSE 1.ENG Dolby D 5.1ch 48k/3 Example: English audio STANDBY-ON Stereo Sound Mode If you connected the DVD/VCR to a Stereo or TV using the COAXIAL DIGITAL AUDIO OUT jack as described on page 15, you cannot adjust Stereo Sound Mode. Otherwise, adjust Stereo Sound to determine whether you will hear the left channel, the right channel, or both channels (stereo) during Audio CD playback.

TITLE CLEAR/RESET SLOW

VCR/TV Press AUDIO during Audio CD playback to choose STEREO, L-CH, or R-CH. DVD VCR SYSTEM DISC/VCR MENU MENU STEREO

Both right and left channels are heard (stereo). STOP PLAY PAUSE L-CH Only the left channel is heard. Helpful Hints R-CH Only the right channel is heard.

• If a language is not available after pressing AUDIO several times, the DVD does not have that language.
• Some DVDs only let you change the language in the Disc menu.
• Audio languages may be abbreviated (such as ENG for English). Or, three dashes (- - -) may appear instead of an abbreviation.
• You cannot adjust the Stereo Sound Mode when Virtual Surround is active. Details are on page 74. H9421CD/DVD750(EN)pgs52-84.QX3

Press PAUSE F during DVD playback. SEARCH MODE DISPLAY REPEAT REPEAT Press D or h. Slow motion playback will begin. Press D or h repeatedly during slow motion playback to play the DVD forward or backward at 1/16, 1/8, or 1/2 the normal speed. AUDIO A-B SKIP / CH SUBTITLE ZOOM ANGLE RETURN

TITLE CLEAR/RESET SLOW

VCR/TV 1/2 Example: Playing a DVD forward at half the normal speed.

Press PLAY B to return to normal playback.

Zoom You can enlarge the DVD picture to two or four times larger than normal. STANDBY-ON SEARCH

Press ZOOM during playback or when play is paused. The picture will appear twice as large. Press ZOOM again to make the picture four times as large as normal. Either x2 or x4 will appear beside the zoom icon on the TV screen. While the picture is enlarged, press o, p, s, or B to move the zoomed image up, down, left, or right. The gray box with an inner blue box that shows during Zoomed playback is the position guide.To remove it or show it, press OK.The position of the blue box inside the gray box indicates the position of the zoomed image within the overall picture. MODE DISPLAY REPEAT REPEAT AUDIO A-B 1,3 ANGLE SKIP / CH SUBTITLE ZOOM RETURN

TITLE CLEAR/RESET SLOW

To return the picture to normal, press ZOOM. Helpful Hints

• The sound will be mute during slow motion playback.
• The SLOW button on the remote does not activate slow motion of DVDs.
• The x4 zooming is not active with some Discs. Only x2 zooming is available for JPEGs. H9421CD/DVD750(EN)pgs52-84.QX3

03.4.11 11:35 AM Page 64

64 Programmed Playback You may determine the order in which Audio CD Tracks will play. You also can program MP3 or JPEG files to play in a special order. To set a Program, follow these steps.

While playback is stopped, press MODE. The PROGRAM screen will appear. Audio CD example

STANDBY-ON Press o or p to select a track you want to play, then press OK. Press CLEAR/RESET to erase the last Track in the Program if you make an error. Repeat this step until you have selected all the Tracks you wish to play in the Program.

TITLE CLEAR/RESET SLOW

+10 Press PLAY B. The Tracks will play once in the order you set.Turning off the DVD/VCR or opening the disc tray will erase the Program. Helpful Hints

• You cannot use the Number buttons or SEARCH to select another Track while playing a Program. Use SKIP3/CHo or SKIP /CHp to select other Tracks within the Program.
• You cannot combine random playback with programmed playback.
• You may play a Program or a Track within a Program repeatedly. During programmed playback, press REPEAT so ALL (all Tracks in the Program) or TRACK appears. The entire Program or the current Track will play over and over.
• You cannot alter a Program during playback.
• You can start Program play only while in the PROGRAM screen.
• A Program can have a maximum of 99 Tracks. H9421CD/DVD750(EN)pgs52-84.QX3

03.4.11 11:35 AM Page 65

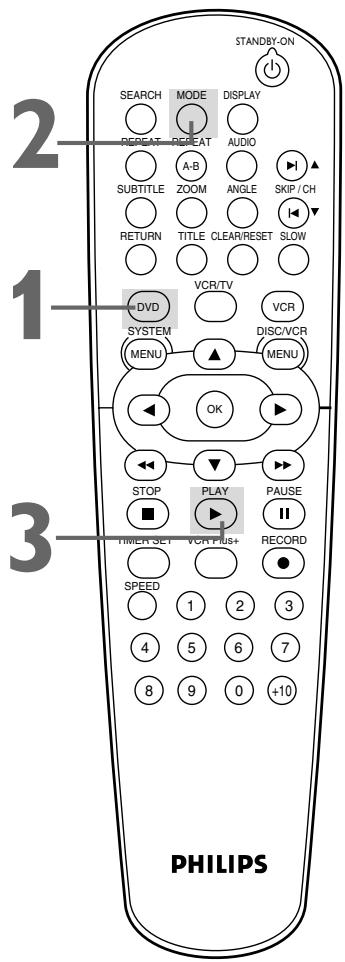

Random Playback 65 You may play the Tracks of an Audio CD in Random order instead of the order in which they are recorded (1,2,3...).You can also use this feature for JPEG and MP3 files.

Press DVD to put the DVD/VCR in DVD mode. The red DVD light will appear. While playback is stopped, press MODE twice so the RANDOM screen appears. STANDBY-ON

TITLE CLEAR/RESET SLOW

While the RANDOM screen appears, press PLAY B. The Tracks will play in random order. After all the Tracks have played once, playback will stop.

66 MP3/JPEG Playback The DVD Player will play MP3 and JPEG files that you record and finalize on a CD-RW (Compact Disc-Rewritable) or CD-R (Compact Disc-Recordable). These Discs may contain pictures in a JPEG format or audio Tracks in an MP3 format. You may copy or download MP3 music files from certain legal Internet sites, then copy those files onto a CDR or CD-RW. You cannot make or record such Discs using this DVD/VCR. See your computer manual for details on recording. Keep these characteristics in mind when making Discs you intend to play on the DVD Player of this DVD/VCR. ● Record MP3 Tracks at a sampling frequency of 44.1 kHz or 48 kHz.Use a bit rate between 112 kbps and 320 kbps. ● When recording JPEG Files, the size of the picture should be between 32 x 32 and 6300 x 5100 dots.

Press DVD to put the DVD/VCR in DVD mode. When you put a CD-RW or CD-R with MP3 or JPEG files in the DVD/VCR, the File List will appear on the TV screen. To see the File List during playback, press SEARCH.The current Track will be highlighted. Press o or p to select a Folder, MP3 Track, or JPEG File. If you choose a Track or File, press PLAY B or OK. Starting with the Track or File you selected, the Tracks/Files will play in the order they were recorded, i.e. 1, 2, 3,... If you select a Folder and press OK, the Tracks or Files within that Folder will appear. Press K or L to select the Track or File you want, then press PLAY B or OK. ● Choose FIRST PLAY to start play from the first individual File or Track listed. ● Press TITLE to return to the first item on the first MP3 or JPEG screen.You also can press { to return to previous screens. ● During JPEG playback, press MODE to choose a transition mode. For example, you can choose Cut in/Cut off or Fade in/Fade out. Press MODE again to remove the transition modes. To stop playback, press STOP C. STANDBY-ON SEARCH MODE DISPLAY REPEAT REPEAT AUDIO A-B

TITLE CLEAR/RESET SLOW

• JPEG images and MP3 Tracks are known as Files. Groups of Files are called Folders.
• JPEG Files have the icon.
• A maximum of 255 Folders can be recognized.A maximum of 256 Files can be recognized.
• MP3 Files have the 3 icon.
• During playback, press the Number buttons to select another Track. Or, press SKIP3/CHo or SKIP /CHp to change Tracks.
• If a Track is not available,“X” will appear on the TV screen. Play may resume at an incorrect Track or may continue with its current Track.
• Specific Time playback is not possible with MP3 Tracks. H9421CD/DVD750(EN)pgs52-84.QX3

03.4.11 11:35 AM Page 67

MP3/JPEG Displays 67 You can review MP3 and JPEG Track (File) information during playback. ● Before you begin, place the DVD/VCR in DVD mode. Press DVD so the red DVD light appears on the front of the DVD/VCR. STANDBY-ON SEARCH MODE REPEAT REPEAT

Press DISPLAY during playback. The current Track name will show on the TV screen. Press DISPLAY again. The current Track number, total Tracks available, and elapsed playing time of the current Track will appear.

1-3 DISPLAY AUDIO A-B SUBTITLE ZOOM ANGLE RETURN

TITLE CLEAR/RESET SLOW

SKIP / CH VCR/TV DVD VCR SYSTEM DISC/VCR MENU MENU 2/25 0:01:15

STOP PLAY PAUSE TIMER SET VCR Plus+ RECORD SPEED Or, the following may appear to indicate Repeat play. TRACK:The current Track will play repeatedly. GROUP:Tracks in the current Folder will play repeatedly. ALL:All Tracks will play repeatedly.

Press DISPLAY again to remove the display.

68 Display You can change the TV Aspect, Angle Icon, and Automatic Power Off features of the DVD Player in the Display menu.

TITLE CLEAR/RESET SLOW

MODE REPEAT REPEAT QUICK SETUP

Press o or p to select an item, then press OK. ● If you selected TV ASPECT, press o or p to select a setting, then press OK. Choose 4:3 LETTER BOX if you want to see the entire, widened picture with black bars at the top and bottom of the screen.This looks like the picture you see when watching movies in a theater. This setting is possible only if the DVD was recorded in the letterbox or widescreen format. Choose 4:3 PAN & SCAN for a full height picture, with both sides trimmed. Some companies refer to this as reformatting the picture to fit your TV screen and may call it the regular or normal format. Choose 16:9 WIDE if a widescreen TV is connected to the DVD/VCR. ● If you selected ANGLE ICON, press OK repeatedly to turn ANGLE ICON ON or OFF.The default setting is ON. Choose ON to see the Angle icon when multiple camera angles are available during DVD playback. Details are on page 59. Choose OFF to disable the Angle icon. ● If you selected AUTO POWER OFF, press OK repeatedly to set AUTO POWER OFF to ON or OFF.The default setting is ON. Choose ON if you want the DVD/VCR to switch to VCR mode automatically if there is no activity at the DVD Player for 35 minutes. STANDBY-ON SEARCH MODE DISPLAY REPEAT REPEAT AUDIO A-B SUBTITLE ZOOM ANGLE RETURN

TITLE CLEAR/RESET SLOW

• Selecting a different TV ASPECT setting is only effective if it is available on the DVD. Check the DVD Disc menu or case for details.

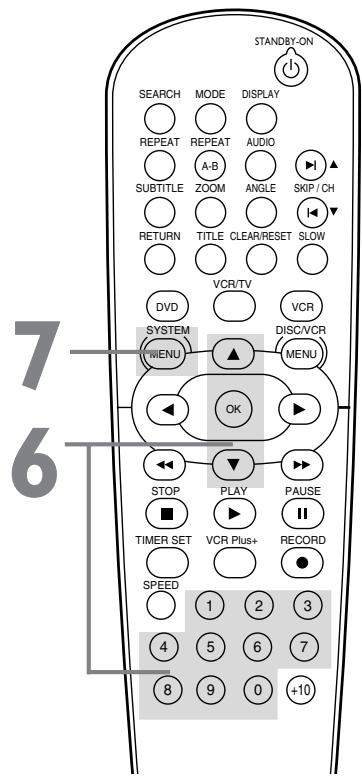

70 Language You can use the LANGUAGE settings to select different languages for the Audio or Subtitles of DVDs, as well as languages for DVD Disc menus and the menus of the DVD Player SETUP menus. STANDBY-ON SEARCH

MODE Press DVD to put the DVD/VCR in DVD mode. Press B to select CUSTOM at the top of the menu, then press OK.

TITLE CLEAR/RESET SLOW

Press o or p to select AUDIO, SUBTITLE, DISC MENU, or PLAYER MENU.Then, press OK. The language options for the selected item will appear. AUDIO:The DVD’s audio plays in the selected language.

PLAYER MENU:The DVD Player’s Setup menu can be in English, French, or Spanish only.

• If the DVD’s default settings for Audio and Subtitle are the same language, the subtitles may not show unless you turn them on.
• Use the AUDIO and SUBTITLE buttons to select Audio and Subtitles available on the DVD. Details are on pages 59 and 62.
• If you set AUDIO to ORIGINAL, the default setting of the DVD Audio will play.
• If you set PLAYER MENU to French or Spanish and need English: Follow steps 1-3. At step 4, the IDIOMA or LANGUE menu will appear. Press OK. Press p to select MENU DU LECTEUR or MENU REPRODUC., then press OK. Press o to select ENGLISH, then press OK. The menus will change to English. Press SYSTEM/MENU to remove the menus.
• You can change the PLAYER MENU language in the QUICK SETUP menu that appears when you first press SYSTEM/MENU. With QUICK selected, press OK. PLAYER MENU will be selected. Press OK. Press o or p to choose a language, then press OK. Press SYSTEM/MENU to remove the menu. H9421CD/DVD750(EN)pgs52-84.QX3

Press o or p to select a language, then press OK. The language list continues on multiple screens. Press o or p to move to the other screens. ● If you select OTHER for AUDIO, SUBTITLE, or DISC MENU, press four Number buttons to enter the code for the language you desire. Use the Language Codes below.The language or language code you select will appear in the Language menu beside AUDIO, SUBTITLE, or DISC MENU. LANGUAGE LANGUAGE CODE Please enter a 4-digit language code.

can select other languages for AUDIO, SUBTITLE, and DISC MENU only if the language is available on the Disc. If the language you select is not recorded on the DVD, changing these settings will have no effect. Press SYSTEM/MENU to remove the menu. SEARCH MODE DISPLAY REPEAT REPEAT AUDIO A-B SUBTITLE ZOOM ANGLE RETURN

TITLE CLEAR/RESET SLOW

English Esperanto Estonian F-H Faroese Fiji Finnish French Frisian Gaelic (Scots) Galician Georgian German Greek Greenlandic Guarani Gujarati Hausa Hebrew Hindi Hungarian I-K Icelandic Indonesian Interlingua Interlingue Inupiak Irish Italian Japanese Javanese

Rhaeto-Romance 6459 Romanian Russian

Samoan Sangho Sanskrit Serbian Serbo-Croatian Sesotho Setswana Shona Sindhi Singhalese Siswat Slovak Slovenian Somali Spanish Sundanese Swahili Swedish

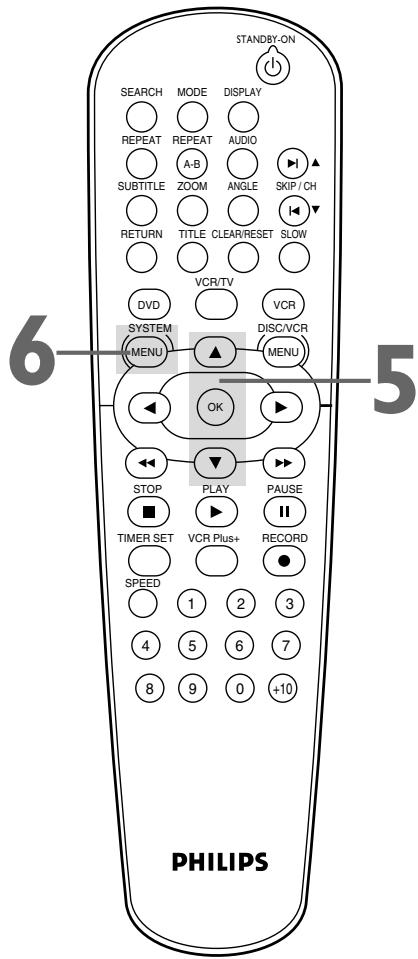

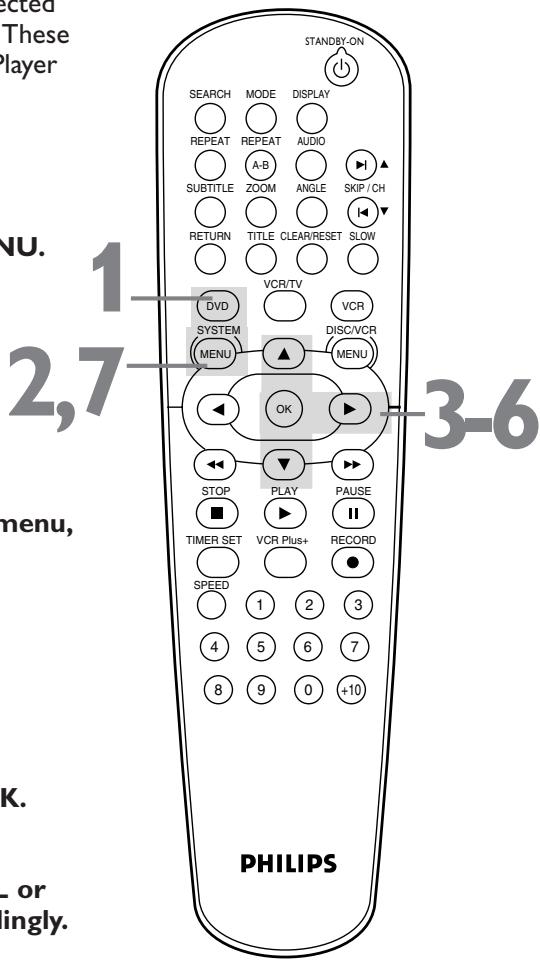

72 Audio Change Audio settings based on other equipment you connected to the DVD/VCR or according to your Disc sound features.These settings only affect the Disc Audio playback from the DVD Player of the DVD/VCR.

MODE DISPLAY AUDIO A-B While playback is stopped, press SYSTEM/MENU. The QUICK SETUP screen will appear.

TITLE CLEAR/RESET SLOW

Press B to select AUDIO ( Press o or p to select DRC, DOLBY DIGITAL or DOWN SAMPLING, then follow step 6 accordingly. If you selected DRC, press OK repeatedly to turn Dynamic Range Control (DRC) ON or OFF. Choosing ON compresses the range of volume by suppressing loud sounds and raising low sounds. ● If you selected DOLBY DIGITAL, press OK repeatedly to select ON or OFF. Select ON if you used the COAXIAL DIGITAL AUDIO OUT jack to connect the DVD/VCR to a stereo that is Dolby Digital compatible. Details are on page 15. Otherwise, choose OFF. ● If you selected DOWN SAMPLING, press OK repeatedly to choose ON or OFF. Choose ON to set downsampling to 48 kHz. Choose OFF to set downsampling to 96 kHz.

• Dolby Digital sound must be available on the DVD.
• You can adjust DOLBY DIGITAL in the QUICK SETUP menu that appears when you first press SYSTEM/MENU.With QUICK selected, press OK. Press p to select DOLBY DIGITAL. Press OK to choose ON or OFF. Press SYSTEM/MENU to remove the menu.
• When you play a Disc that has copyright protection, downsampling will be at 48 kHz, even if you set DOWN SAMPLING to OFF. H9421CD/DVD750(EN)pgs52-84.QX3

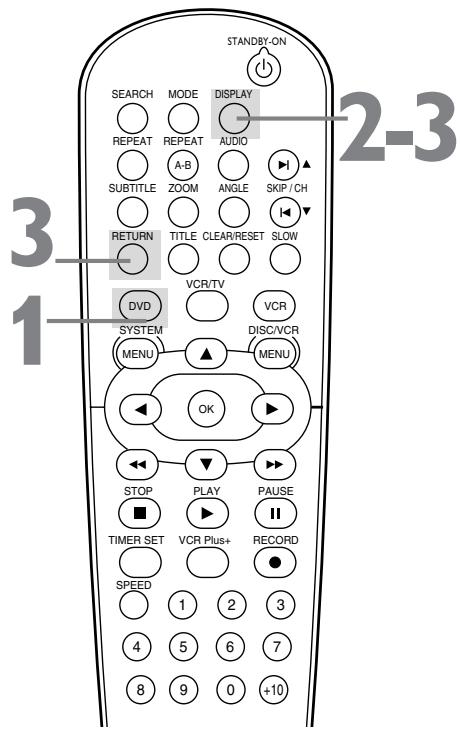

Press DVD to put the DVD/VCR in DVD mode. SEARCH Press DISPLAY repeatedly to see the following displays during DVD playback. CH 7/49 0:01:46 - 0:03:27 Elapsed playing time of the current Chapter; remaining playing time of the current Chapter CH (Chapter): Current Chapter number / total Chapters MODE DISPLAY REPEAT REPEAT 2-3 AUDIO A-B

TITLE CLEAR/RESET SLOW

1/2 0:00:00 - 1:23:45 TT (Title): Current Title number / Total Titles Elapsed playing time of the current Title; remaining playing time of the current Title BIT RATE: The amount of audio and video data currently being read. STOP PLAY PAUSE TIMER SET VCR Plus+ RECORD SPEED C L0 Layer number, appears only when playing a two-layered Disc. L0: Layer 0 is playing L1: Layer 1 is playing

+10 Current Repeat setting, if active C: Chapter repeat T: Title repeat A B: A-B repeat

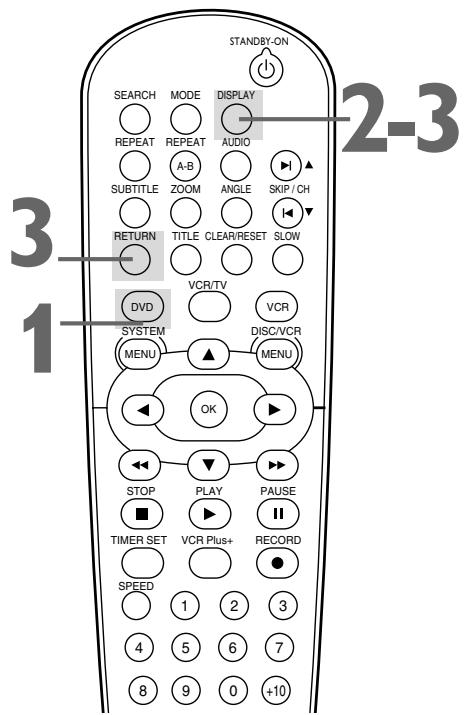

Press DVD to put the DVD/VCR in DVD mode. MODE 2-3 DISPLAY REPEAT REPEAT AUDIO A-B Press DISPLAY repeatedly to see the following displays during Audio CD playback.

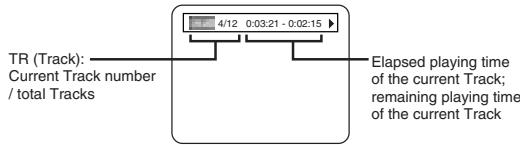

4/12 0:03:21 - 0:02:15 TR (Track): Current Track number / total Tracks Elapsed playing time of the current Track; remaining playing time of the current Track

TITLE CLEAR/RESET SLOW

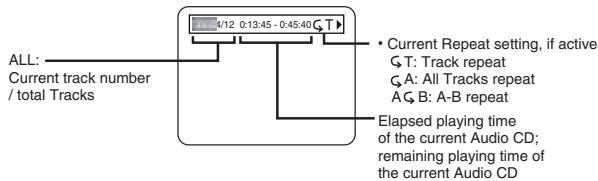

Current Repeat setting, if active T: Track repeat A: All Tracks repeat A B: A-B repeat Elapsed playing time of the current Audio CD; remaining playing time of the current Audio CD

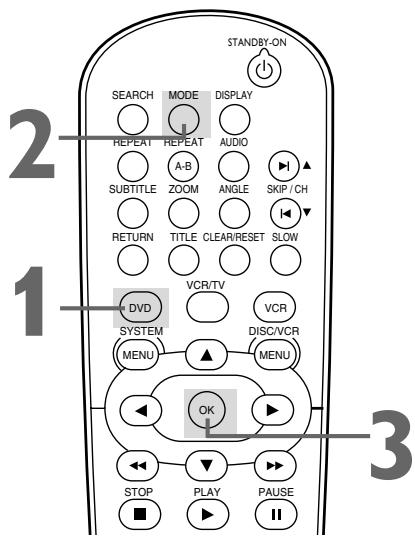

74 Black Level,Virtual Surround Black Level Adjust Black Level to brighten the DVD picture during playback.

Press DVD to put the DVD/VCR in DVD mode. During DVD playback, press MODE so the Black Level icon shows in the top left corner of the TV screen. SEARCH

TITLE CLEAR/RESET SLOW

VCR/TV DVD VCR SYSTEM DISC/VCR MENU MENU Within 10 seconds, press OK repeatedly to choose ON or OFF. ON brightens the dark parts of the picture. OFF shows the original picture as recorded.

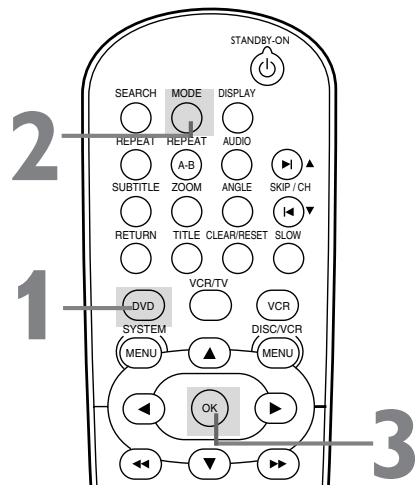

Virtual Surround STANDBY-ON You can enjoy improved stereo sound when you play DVDs, Audio CDs, or MP3 files recorded in Dolby Digital or Pulse Code Modulation (PCM). Check the Disc case for details on availability.

SKIP / CH Press DVD. During Disc playback, press MODE so the Virtual Surround icon appears in the top left corner of the TV screen. SEARCH

TITLE CLEAR/RESET SLOW

VCR/TV DVD VCR SYSTEM DISC/VCR MENU MENU While the Virtual Surround icon appears, press OK to choose 1, 2, or OFF. The default setting is OFF. The icon will disappear after about 10 seconds.

• Virtual Surround is available only when the DVD/VCR is connected to a Stereo using the red and white DVD/VCR AUDIO OUT jacks on the DVD/VCR.
• Virtual Surround is active only if you set Stereo Sound Mode to Stereo. Details are on page 62. H9421CD/DVD750(EN)pgs52-84.QX3

03.4.11 11:36 AM Page 75

Care and Maintenance 75 Cleaning the DVD/VCR

• Wipe the front panel and other exterior surfaces of the DVD/VCR with a soft, slightly damp cloth.
• Never use a solvent, thinner, benzene, or alcohol to clean the DVD/VCR. Do not spray insecticide liquid near the DVD/VCR. Such chemicals may discolor the surface or damage the DVD/VCR. Cleaning a Disc
• Use a soft, dry cloth to wipe the Disc.
• Wipe the Disc in a straight line from the center to the edge. Never wipe the Disc in a circular motion.
• Do not use detergent or abrasive cleaning agents.
• Handle the Discs so fingerprints and dust do not adhere to the Discs.
• Always store the Disc in its protective case when it is not in use. Checking the Laser
• If the DVD/VCR does not operate as described in this manual, the DVD Player’s laser may be dirty. Consult an Authorized Service Center for inspection and cleaning of the laser. Caring for Video Cassettes
• Use only cassettes with the mark.
• Remove any light adhesive stick-on notes from the video cassette before putting the cassette in the VCR. Removable labels can jam the VCR. Caring for the VCR’s Video Heads
• Periodic maintenance is required to maintain your DVD/VCR’s excellent performance.The VCR has an Automatic Head Cleaner. However, the video heads will require replacement eventually. Only an authorized service center should perform this service. H9421CD/DVD750(EN)pgs52-84.QX3

03.4.11 11:36 AM Page 76

76 Glossary AUDIO IN/OUT Jacks: jacks on the front and back of the DVD/VCR that receive audio from another source (IN) or send audio to another system (OUT).These jacks are red (right) and white (left). Automatic Channel Setup: process in which the VCR memorizes all available TV channels.Then, when you press SKIP3/CHo or SKIP /CHp in VCR mode, you only scan through channels you receive. Bands: settings that allow you to tune channels.

• Antenna – VHF (very high frequency; channels 2-13) and UHF (ultra high frequency; channels 14-69).
• Cable – standard channels 1-125 can be received without a Cable Box. Cable Box/DBS Output Channel: 03 or 04. COAXIAL DIGITAL AUDIO OUT jack: Sends digital audio to a Stereo, allowing you to adjust the volume at the Stereo.This connection provides the 5.1 channel surround sound as heard in movie theaters.This jack is black. COMPONENT VIDEO OUT (Y Pb/Cb Pr/Cr) Jacks: jacks on the back of the DVD/VCR that send high-quality DVD video to a TV with Component Video In jacks. This connection provides the best picture quality for the DVD Player of the DVD/VCR. Dolby Digital: A surround sound system that provides 5.1 channel sound as used in movie theaters. Dubbing: copying a video cassette using another VCR. HQ: high quality; a feature in the VCR circuitry which provides enhanced picture detail. Line Input: The channel to which you set your DVD/VCR during video cassette copying. If you connected the other video equipment to the AUDIO and VIDEO In jacks on the front of the DVD/VCR, select L2. If you used the AUDIO and VIDEO IN jacks on the back of the DVD/VCR, select L1. If you accidentally enter Line Input mode, press SKIP3/CHo or SKIP /CHp or the Number buttons to select another channel. OTR: One-Touch Recording; a timed recording on the VCR that starts immediately and records for 30 minutes to 8 hours. RF coaxial cable: A black cable supplied with your DVD/VCR. Use it to connect your DVD/VCR to your TV, Cable Box, or Satellite Receiver. S-Video: Produces a clearer DVD picture by sending separate signals for the luminance and the color. S-Video only provides a picture for the DVD Player of the DVD/VCR. Tape Speeds: how fast the video cassette travels during a recording or playback.The faster the tape speed, the better the picture quality. Slower tape speeds affect picture quality, but you can record more onto a videotape.
• SP (standard play) – fastest tape speed (recording time for a T120 tape is approximately two hours); best picture quality.
• LP (long play) – average tape speed.You cannot record in LP with this VCR. If tapes were recorded on a different VCR in LP speed, the tape will play in LP on the DVD/VCR.
• SLP (super long play) – slowest tape speed (recording time for a T120 tape is approximately six hours).This speed allows the maximum recording on a single videotape. VIDEO IN/OUT Jacks: jacks on the front and back of the DVD/VCR that receive video from another source (IN) or send video to other video equipment or a TV (OUT).These jacks are yellow. H9421CD/DVD750(EN)pgs52-84.QX3

03.4.11 11:36 AM Page 77

Specifications 77 VCR Video Heads Four heads - Hi-Fi Antenna VHF/UHF – 75 ohm external antenna terminal VHF Output Signal Channel 03 or 04 75 ohms unbalanced DVD Color System NTSC Frequency Response DVD (linear sound): 20 Hz to 22 kHz (sample rate: 48 kHz) 20 Hz to 44 kHz (sample rate: 96 kHz) Audio CD: 20 Hz to 20 kHz Signal-to-Noise Ratio Audio CD: 120 dB JEITIA (Japan Electronics and Information Technology Industries Association) Dynamic Range DVD (linear sound): 102 dB Audio CD: 99 dB (JEITIA) Total Distortion Factor Audio CD: 0.003% (JEITIA) DVD: 0.0025% Wow and Flutter Below the measurement limitation (±0.001% W PEAK) (JEITIA) Power Requirement 120V AC +/- 10%, 60 Hz +/- 0.5% Power Consumption Power on: 24 W Power off: 7.0 W Operating Temperature 41°F (5°C) to 104°F (40°C) Relative Humidity 30% to 80% Dimensions 17-1/8” (W) x 3-7/8” (H) x 8-5/8” (D) (435mm x 99mm x 218mm) Weight

NOTE: Designs and specifications are subject to change without notice. H9421CD/DVD750(EN)pgs52-84.QX3

03.4.11 11:36 AM Page 78

78 Helpful Hints If you are having problems with your product, check this list of problems and possible solutions before requesting service.You may be able to solve the problem yourself. If you need to call a customer service representative, please know the model number and serial number of your product before you call.This information is displayed on the back of the product. Also, please take a moment to identify the problem you are having, and be prepared to explain this to the representative. If you believe the representative will need to help you with operations, please stay near the product. Our representatives will be happy to assist you. The DVD/VCR has no power.

• Make sure the power cord is connected completely to an AC (alternating current) outlet.
• Press the STANDBY-ON button to turn on the DVD/VCR.The DVD/VCR turns on in the mode it was in when you turned it off. If there has been a power failure, it will turn on in VCR mode. Press DVD to put the unit in DVD mode. Press VCR to put the unit in VCR mode. Or, press OUTPUT on the front of the DVD/VCR to switch between the two modes. The remote control will not operate the DVD/VCR.
• Aim the remote control directly at the remote sensor (IR) on the front of the DVD/VCR, not toward the TV. Details are on page 22.
• Remove all obstacles between the remote control and the DVD/VCR.
• Inspect and/or replace the batteries in the remote control. Details are on page 16.
• Use the remote control within 23 feet of the DVD/VCR.
• When using the DVD Player, press the DVD button, then try the other DVD feature buttons. Press DVD so the red DVD light appears on the front of the DVD/VCR.This means the DVD/VCR is in DVD mode.
• To use the VCR, press VCR, then try the other VCR feature buttons. Press VCR so the green VCR light appears on the front of the DVD/VCR.This means the DVD/VCR is in VCR mode. There is no picture in DVD mode.
• Make sure the video cable is connected correctly.You may connect either the yellow video cable (supplied), an optional S-Video cable, or optional component video cables. Make sure the TV is set to the correct Video In channel (usually the AUX IN, A/V IN, Auxiliary In, EXT or External In, Component Video In, or S-Video In channel). Check your TV owner’s manual for details. Details are on pages 11-15.
• If you only used the supplied black RF coaxial cable, details are on pages 8-10. Make sure the TV is set to channel 3 or 4 (the output channel of the DVD/VCR). Or, if you have a Cable Box/Satellite Receiver, make sure the TV is set to the Cable Box/Satellite Receiver output channel (usually 03 or 04).
• Insert a DVD that is playable on this DVD/VCR. Details are on page six.
• Make sure the DVD/VCR is in DVD mode. Press DVD or OUTPUT so the red DVD light appears on the front of the DVD/VCR.
• Check if the INTERLACE/PROGRESSIVE SCAN SELECTOR is set correctly according to your TV. Disc cannot play.
• Insert a playable Disc. Details are on page six.
• Place the Disc correctly in the Disc tray. If the Disc is one-sided, place the Disc in the tray with the label facing up. If the Disc is two-sided, make sure the label of the side you want to play is facing up.
• Clean the Disc. Make sure the Disc is not scratched or warped.
• Cancel the Parental Controls, enter the password, or change the control level. Details are on pages 60-61.
• Make sure the Disc is labelled for use in Region 1 or ALL regions and is NTSC compatible. Details are on page six. H9421CD/DVD750(EN)pgs52-84.QX3

03.4.11 11:36 AM Page 79

Helpful Hints (cont’d) 79 There is no sound.

• Connect the audio cables firmly. Make sure the cables are connected to the AUDIO IN jacks on the TV or Stereo. Details are on pages 11-14.
• Check the audio settings of the DVD Player. Details are on page 72.
• Check the audio settings of the DVD. For example, you may have selected “soundtrack” playback or an unavailable sound setting (such as Dolby Digital). Details are on pages 62 and 72. Try other sound options provided in the DVD Disc menu.
• If you used audio cables (instead of only using the supplied black RF coaxial cable) make sure the TV or Stereo is set to the correct Audio In channel (usually the AUX IN, Auxiliary In, A/V IN, Audio In, or External In channel). See your TV or Stereo owner’s manual for details. The picture is distorted.
• Connect the DVD/VCR directly to the TV. Details are on pages 8-15. Do not connect the DVD/VCR to a VCR, then connect the VCR to the TV. Copyright protection systems in the VCR could distort the picture playing on the DVD/VCR.
• There are some cases where a Disc or videotape picture may be distorted slightly because of the quality in which it was recorded.This is not a malfunction of the DVD/VCR.
• Make sure the Disc is compatible with the DVD Player of the DVD/VCR. Details are on page six. You cannot change the camera angle of a DVD.
• The DVD might not contain segments recorded from different camera angles. See if multiple angles are available by referring to the Disc case or DVD Disc menu. Details are on page 59. You cannot change the audio or subtitle language of a DVD.
• The DVD does not contain audio or subtitles in the desired language. Not all DVDs contain audio or subtitles in multiple languages. See if other languages are available by referring to the Disc case or DVD Disc menu. Details are on pages 59 and 62. An X appears in the top right corner of the TV screen when you try a DVD feature.
• The operation is not available at the current time or the feature is not available on the Disc. Some features are only available during playback. Others can be accessed only if play is stopped.Try stopping or playing the Disc, then try the feature again. The DVD/VCR switches from DVD mode to VCR mode after 35 minutes of no activity.
• When AUTO POWER OFF is set to ON, the DVD/VCR switches itself from DVD mode to VCR mode if Disc playback stops for more than 35 minutes and you press no buttons on the remote or the DVD/VCR. Details are on pages 68-69. A screen saver appears on the TV screen during DVD mode.
• The DVD logo will appear on the TV screen when you stop Disc playback.You cannot remove it. You want to use the DVD Player during a VCR timer recording or while the TIMER REC light appears.
• Press STANDBY-ON to turn on the DVD/VCR. Press DVD to choose DVD mode, then continue with other DVD features as described in this manual. H9421CD/DVD750(EN)pgs52-84.QX3

03.4.11 11:36 AM Page 80

80 Helpful Hints (cont’d) Power Failure

• Clock setting, language selection, and channel setup may be lost if the power fails. See pages 26-30 to set up the channels, clock, and language again. The VCR will not record a TV program.
• Put the DVD/VCR in VCR mode. Press VCR or OUTPUT so the green VCR light appears on the front of the DVD/VCR.
• Check the connections between the DVD/VCR,TV, antenna/Cable TV signal, and Cable Box/Satellite Receiver (if applicable). Details are on pages 8-15. For VCR features, you must connect the DVD/VCR to a TV with the RF coaxial cable or the yellow video cable as described on pages 8-11.
• Make sure the video cassette has a record tab. Details are on page 32. The VCR will not perform a timer recording.
• Make sure the recording start and stop times are set correctly. Details are on pages 36-38.
• Make sure a tape is in the VCR and the tape has a record tab. Details are on page 32. If, after programming a timer recording, you press TIMER SET without putting a tape in the DVD/VCR, the TIMER REC light will blink.
• If the record tab on a tape is missing, the DVD/VCR will eject the tape.The TIMER REC light will blink.
• Press TIMER SET to put the DVD/VCR in standby mode for the timer recording.The TIMER REC light should appear on the front of the DVD/VCR.
• Make sure the VCR clock is set. Details are on pages 28-29.
• The VCR may not perform or continue a timer recording if the power fails.
• If you have a Cable Box/Satellite Receiver, set timer recordings differently. Details are on page nine.
• Finish programming a timer recording at least five minutes before it is set to begin.
• 12 p.m. is noon; 12 a.m. is midnight. There is no picture or the picture is noisy or has streaks during video cassette playback.
• Put the DVD/VCR in VCR mode. Press VCR or OUTPUT so the green VCR light appears on the front of the DVD/VCR.
• If you used the supplied RF coaxial cable to connect the DVD/VCR to the TV, make sure the TV is on the same channel as the DVD/VCR’s output channel (03 or 04).The DVD/VCR’s output channel is channel 3 when you receive it.To change it to channel 4, see page eight. Make sure channel 03 or 04 is properly adjusted at the TV. Or, if you connected the DVD/VCR to the TV using audio and video cables, select the correct Video In channel at the TV. Details are on pages 8-13.

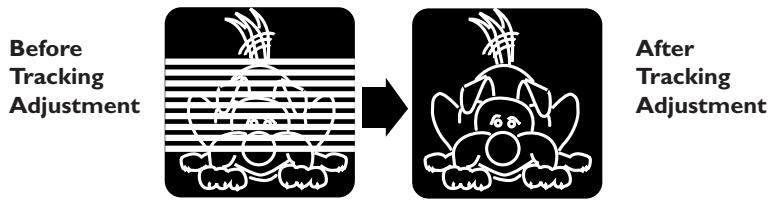

• Adjust the tracking. Details are on page 48.
• TVs placed too close to the DVD/VCR can cause interference during tape playback. Move the DVD/VCR away from the TV. The Number buttons won’t work for TV channels above 69.
• Enter channel numbers as a two-digit number. If you want to select channels 100 and above, enter channel numbers as a three-digit number. If you do not have Cable TV, only channels 2-69 are available. TV programs cannot be watched normally.
• Check the connections between the DVD/VCR,TV, antenna/Cable TV signal, and Cable Box/Satellite Receiver (if applicable). Details are on pages 8-15. Poor reception
• You may need to tune your TV again. Or, reset channels at the VCR using CHANNEL SET UP. Details are on pages 26-27. H9421CD/DVD750(EN)pgs52-84.QX3

03.4.11 11:36 AM Page 81

Helpful Hints (cont’d) 81 You cannot insert a video cassette.

• Insert the tape, window side up, with the record tab facing you.
• Make sure a tape isn’t already in the VCR by pressing STOP/EJECT A on the front of the DVD/VCR.
• Gently push on the center of the tape when putting it in the VCR. Never force the tape into the VCR.
• If a timer recording is set, you cannot insert a tape without a record tab. You cannot remove the tape.
• Make sure the power plug is completely connected to a power outlet.
• If you have set a timer recording, press TIMER SET to delay the recording.The TIMER REC light will turn off.Then, press STOP/EJECT A on the front of the DVD/VCR to eject the tape. Insert another tape and press TIMER SET to reset the timer recording.
• Unplug the DVD/VCR power cord for five minutes.Then, plug in the power cord again and press STANDBYON on the DVD/VCR. Press STOP/EJECT A on the DVD/VCR three to five times. If the tape still does not eject, you may need to have an authorized servicer remove the tape. DVD/VCR ejects the tape when you press RECORD, RECORD, or TIMER SET.
• Make sure the tape has a record tab. Details are on page 32. Satellite Receiver Hookups
• Watching one TV channel while recording another may not be possible if you have a Satellite Receiver. Set your TV to channel 03 or 04, then make your channel selections at the Satellite Receiver.
• With many Satellite Receiver hookups, if you use audio and video cables to connect your DVD/VCR to your TV, you will have to put your DVD/VCR in Line Input mode (L1 or L2). Line Input mode
• If you accidentally enter Line Input mode (L1 or L2 will appear on your TV screen briefly), press SKIP3/CHo or SKIP /CHp or the Number buttons to select another channel. Hi-Fi Stereo Sound
• During playback, Hi-Fi audio may normally revert to normal audio when you adjust tracking.
• When connecting the DVD/VCR to a TV with the red and white audio cables, you will only get stereo sound if you connect the DVD/VCR AUDIO OUT jacks on the DVD/VCR to the AUDIO IN jacks on your TV, and if the TV is on its Audio/Video In channel. See your TV owner’s manual for details.
• When you connect the DVD/VCR AUDIO OUT jacks on the DVD/VCR to the AUDIO IN jacks on your TV, the stereo light on the TV might not glow. If the status display indicates you are receiving stereo, you are. Details are on page 49.
• Only tapes recorded in Hi-Fi audio will play in Hi-Fi audio.Tapes recorded in normal audio will play in monaural (single-channel) audio. Cleaning the Video Heads
• Your DVD/VCR automatically cleans the video heads of the VCR each time you insert a tape. However, the heads may become dirty. If so, have an authorized servicer clean the video heads. Eventually, the heads may need to be replaced. The playback picture is too dim, too bright, or fluctuates in brightness.
• Some programs may be broadcast with copyright protection technology in order to protect the rights of copyright owners.This technology is used on programs that are recorded on video cassettes or DVDs, as well as some programs broadcast by antenna/cable/satellite television channels. Programs broadcast with copyright protection may not record clearly. Likewise, if you play a tape that is a recording of a copyright protected program, the picture may not be clear.Tapes of copyright protected programs may have a picture that is dark or dim, or the brightness of the picture may fluctuate.Therefore, avoid recording or playing copies of copyright protected programs.
• This DVD/VCR incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation and is intended for home and other limited viewing uses only, unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. RENEWED 90 DAY LIMITED WARRANTY H9421CD/DVD750(EN)pgs52-84.QX3

• Un câble coaxial RF noir, 75 ohms

DIGITAL AUDIO OUT Câble RF coaxial Câble RF coaxial COAXIAL

COAXIAL OUT Câble coaxial RF Câble coaxial RF Connexions

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW

OPEN/CLOSE 4 HEAD HI-FI

OPEN/CLOSE 4 HEAD HI-FI

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW

VCR Plus+ system PlusCode No. : – – – – – – – –

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW

_:_ _:_ _ TOTAL 1:29:00

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW

DISPLAY REPEAT REPEAT AUDIO A-B

2,8 Appuyez sur SYSTEM/MENU. MODE Appuyez sur B pour sélectionner CUSTOM, puis appuyez sur OK. ANGLE SKIP / CH SUBTITLE ZOOM RETURN

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW

TITLE CLEAR/RESET SLOW
