Brand	Neff
Model	T59PF6TX0
Product type	Cooker with hob and oven
Power supply	230 V, 50 Hz
Main functions	Cooking assistance with wireless temperature sensor, Bluetooth, cooking programming
Wireless temperature sensor	Integrated, replaceable with part Z31PX10X0
Silicone patch	Required for attaching the sensor (ref. 00577921, pack of 5)
Sensor battery	Type CR2032, replaceable
Sensor maintenance and cleaning	Clean with a damp cloth, do not put in dishwasher
Hob maintenance	Suitable cleaning product, avoid abrasive sponges
Child safety	Use possible from age 8 under supervision
Magnetic safety	Minimum distance of 10 cm for wearers of electronic implants
Risk of burns	Sensor hot after cooking, use gloves
Spare parts	Temperature sensor (Z31PX10X0), silicone patch (00577921), CR2032 battery
Repairability	Sensor and battery replaceable by user
General information	User manual downloadable, Neff after-sales service

Frequently Asked Questions - T59PF6TX0 NEFF

How to stick the silicone patch on the pan?

Clean the area with alcohol, remove the protective film, apply the patch using the included stencil, press firmly, then let dry for 1 hour without using or cleaning the pan.

How to replace the temperature sensor battery?

Remove the lower silicone cover, unscrew, open the casing, remove the old battery, insert a new CR2032 battery respecting polarity, then close.

How to clean the temperature sensor?

Clean it with a damp cloth. Do not put it in the dishwasher, do not immerse it in water, and do not clean it under running water.

What type of battery to use for the sensor?

Use a quality CR2032 battery. It lasts particularly long.

What to do if the sensor LED does not light up?

This means the battery is dead. Replace it with a new CR2032 battery following the replacement procedure.

Is the sensor compatible with all types of pans?

Yes, provided you stick a silicone patch on the pan. The sensor attaches magnetically.

Can I use the temperature sensor in the oven?

No, the sensor is designed only for use on the hob. It must not be exposed to excessive heat, for example in an oven.

Is there a risk for pacemaker wearers?

Yes, because the sensor is magnetic. Keep a minimum distance of 10 cm between the sensor and any electronic implant.

How to dispose of the used temperature sensor?

Remove the battery and dispose of it at a designated collection point. The sensor itself must be disposed of in accordance with the WEEE directive.

Where can I buy spare parts for the sensor?

Parts are available from specialist retailers or from Neff after-sales service. References: sensor + 5 patches (Z31PX10X0) or pack of 5 patches (00577921).

USER MANUAL T59PF6TX0 NEFF

Wireless Temperature Sensor

Z31PX10X0

de Gebrauchsanleitung. 3 en Instruction manual 9 fr Mode d'emploi. 14 it Istruzioni per l'uso 19 nl Gebruiksaanwijzing 24 da Brugsanvisning. 29 no Bruksveiledning. 34 sv Bruksanvisning. 39 fi Käyttöohje 44 es Instrucciones de uso 49 pt Instruções de Serviço. 55 el Οδηγίες χρήσης 60 tr Kullanma kılavuzu 66 cs Návod k použití 71 sk Návod na používanie 76 hu Használati utasítás .81 pl Instrukcja obsługi. 86 ro Instrucțiuni de utilizare 92 bg Ръководство 97 ru Правила пользования. 102 uk Інструкція використання..108 sr Uputstva za upotrebu. 114 hr Upute za uporabu 119 sl Navodila za uporabo. 124 sq Udhëzim për përdorim 129 mk Упатство за употреба. .134

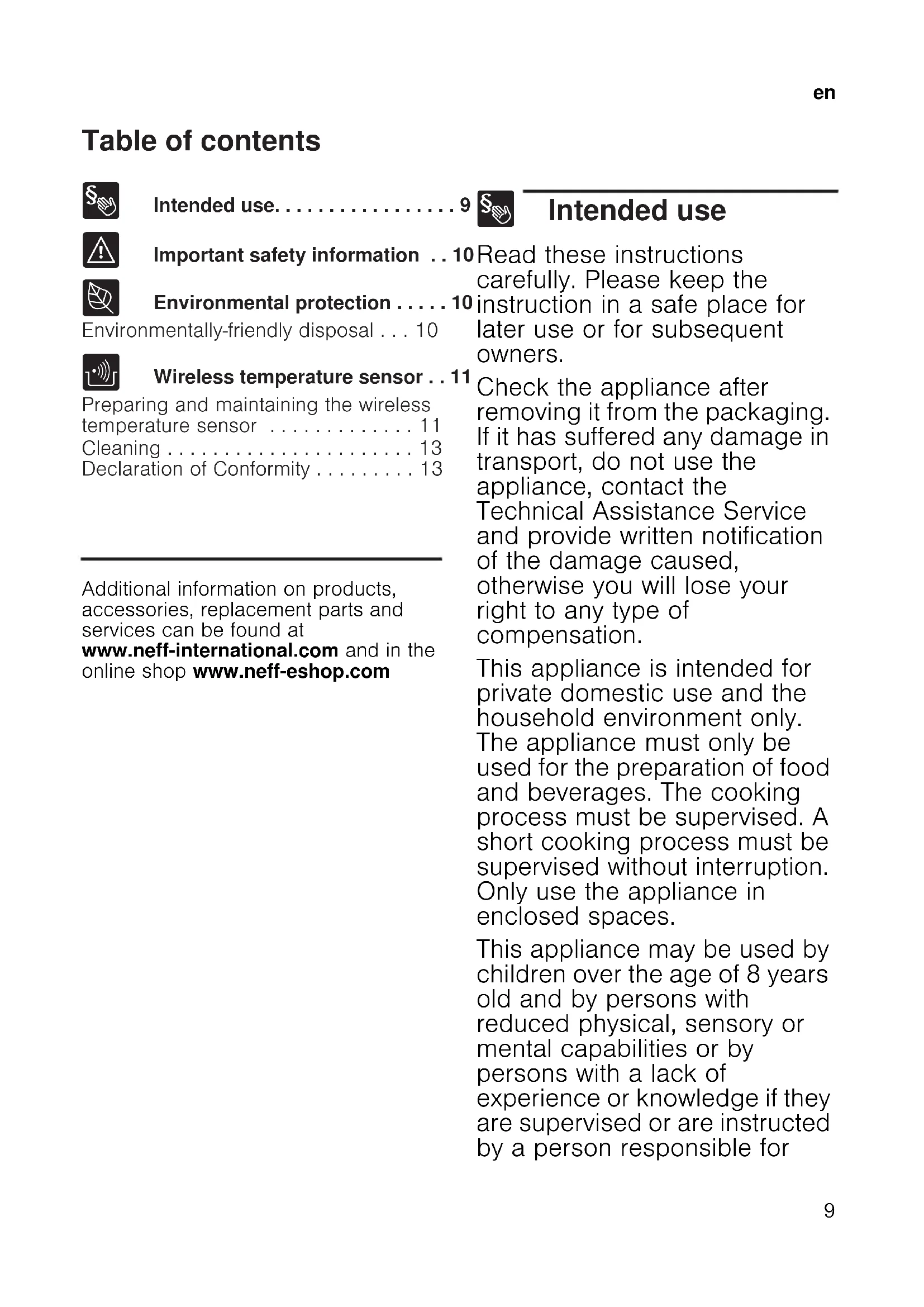

Table of Contents

Online Shop: www.neff-eshop.com

For

Product information

and

applications

089-12474474

089-12474474

Read these instructions carefully. Please keep the instruction in a safe place for later use or for subsequent owners.

Environmental protection . . . . 10

Environmentally-friendly disposal . . . 10

Wireless temperature sensor . . 11

Preparing and maintaining the wireless temperature sensor 11 Cleaning. 13 Declaration of Conformity. 13

Additional information on products, accessories, replacement parts and services can be found at www.neff-international.com and in the online shop www.neff-eshop.com

Check the appliance after removing it from the packaging. If it has suffered any damage in transport, do not use the appliance, contact the Technical Assistance Service and provide written notification of the damage caused, otherwise you will lose your right to any type of compensation.

This appliance is intended for private domestic use and the household environment only. The appliance must only be used for the preparation of food and beverages. The cooking process must be supervised. A short cooking process must be supervised without interruption. Only use the appliance in enclosed spaces.

This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsible for

their safety how to use the appliance safely and have understood the associated hazards.

Children must not play with, on, or around the appliance.

Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised.

When using the cooking functions, set the hotplate on which you have placed the saucepan with the temperature sensor.

Important safety information

Warning

Hazard due to magnetism!

The wireless temperature sensor is magnetic. The magnetic elements in it may damage electronic implants, e.g. pacemakers or insulin pumps. People fitted with electronic implants should therefore not carry the temperature sensor in their pockets and always keep it at least 10 cm away from their pacemaker or similar medical device.

Warning

Risk of injury!

The battery in the wireless temperature sensor may become damaged or explode if it gets too hot. Remove the sensor from the hob after cooking and do not store it near sources of heat. The temperature sensor may be very hot when removing it from the saucepan. Wear oven gloves or use a tea towel to remove it.

Environmental protection

Environmentally-friendly disposal

Dispose of packaging in an environmentally-friendly manner.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

The wireless temperature sensor is battery-powered. Dispose of used batteries in an environmentally responsible manner.

Wireless temperature sensor

Additional information can be found in the detailed instruction manual for the hob in chapter "Cooking Assist Functions". Read it through carefully.

Preparing and maintaining the wireless temperature sensor

In this section, you will find the following information:

Adhering the silicone patch Using the wireless temperature sensor Changing the battery

You can obtain a temperature sensor and silicone patches from specialist retailers or through our technical after-sales service. Always quote the relevant reference number.

00577921 Set of 5 silicone patches

Z31PX10X0 Temperature sensor and set of 5 silicone patches

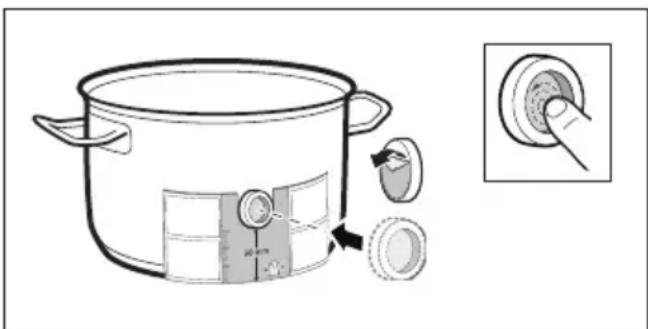

Adhering the silicone patch

The silicone patch attaches the temperature sensor to the cookware.

A silicone patch must be adhered when using a saucepan with the cooking functions for the first time.

Proceed as follows:

1. The adhesion point on the saucepan must be free of grease. Clean the saucepan, dry it thoroughly and wipe the adhesion point with a degreasing agent such as spirit.
2. Remove the protective film from the silicone patch. Adhere the silicone patch to the saucepan in the correct place using the enclosed template as a guide.

1. Press the silicone patch down, including its inside surface.

The adhesive requires 1 hour to fully harden. The cookware must not be used or cleaned during this time.

Notes

Cookware with the silicone patch must not be left to soak for long periods in soapy water. If the silicone patch comes off, attach a new one.

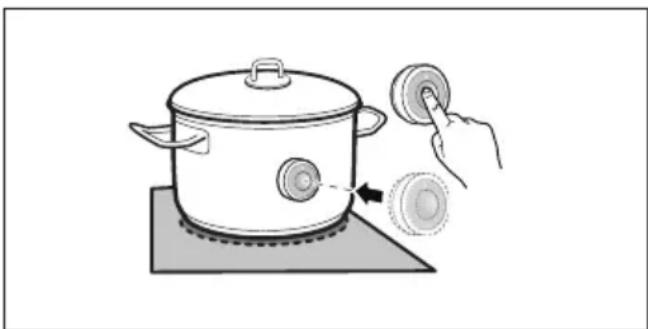

Using the wireless temperature sensor

Attach the temperature sensor to the silicone patch and align it correctly.

Notes

Make sure that the silicone path is completely dry before attaching the temperature sensor. Position the cookware in such a way that the temperature sensor is pointing towards the outer side of the hob.

en

To prevent overheating, the temperature sensor must not be pointed towards another item of cookware that is hot. Remove the temperature sensor from the saucepan after cooking. Store it in a clean, safe place away from sources of heat.

Changing the battery

If you press the wireless temperature sensor symbol and the LED does not light up, the battery is flat.

Changing the battery:

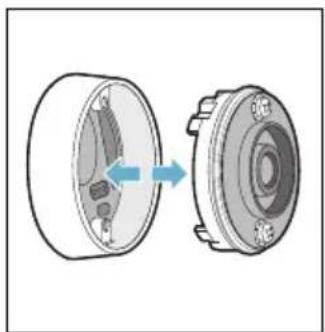

1. Remove the silicone cover from the lower section of the casing. Unscrew the screws with a screwdriver.

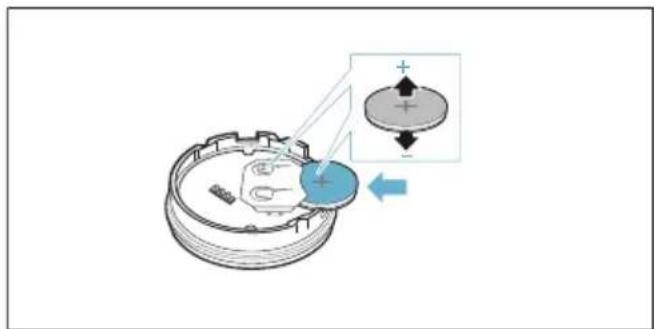

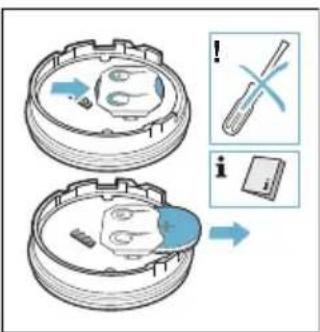

1. Remove the upper section of the casing. Take the old batteries out. Put the new batteries in. Make sure that the polarity is correct.

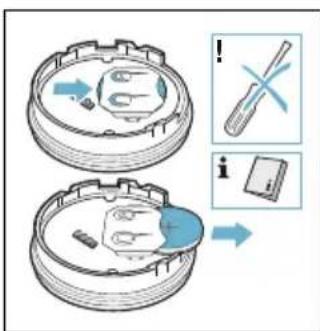

Caution!

Do not use metal objects to remove the battery. Do not touch the contacts.

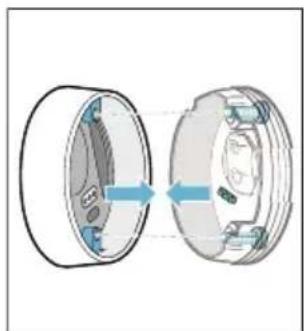

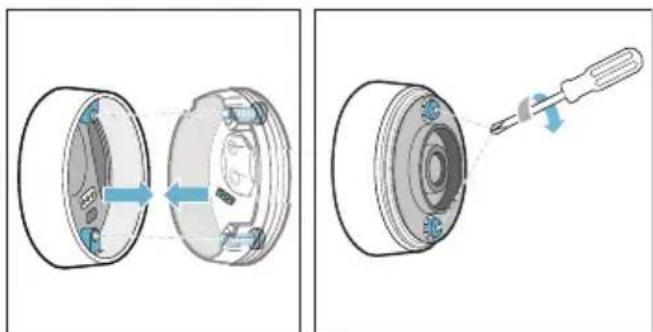

1. Put the upper and lower sections of the casing back together. Make sure that the contact pins are aligned correctly.

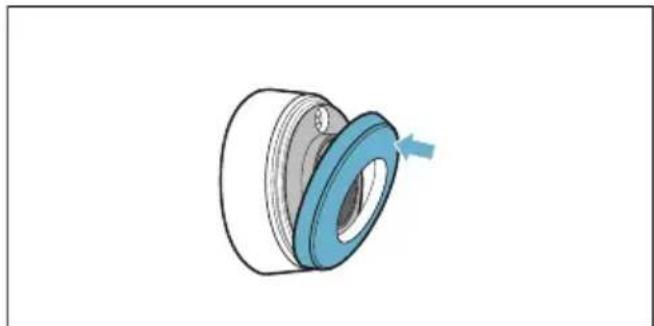

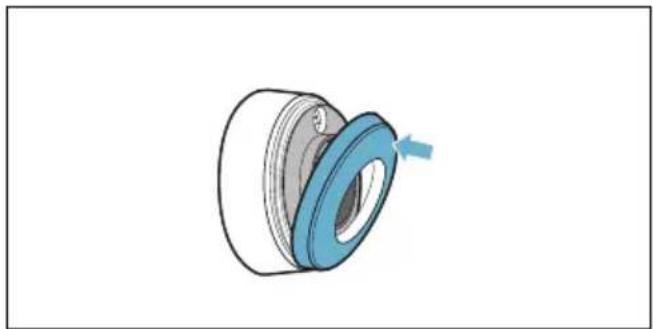

1. Put the silicone cover back on the lower section of the temperature sensor casing.

Note: Only use premium-quality CR2032 batteries. These have an especially long service life.

Cleaning

Temperature sensor

Clean the temperature sensor with a damp cloth. Never clean it in the dishwasher. Do not immerse it in water or clean it under running water.

Remove the temperature sensor from the saucepan after cooking. Store it in a clean, safe place (such as in its packaging) away from sources of heat.

Silicone patch

Clean and dry before attaching to the temperature sensor. Dishwasher safe.

Note: Cookware with the silicone patch must not be left to soak for long periods in soapy water.

Temperature sensor window

The sensor window must always be clean and dry. Proceed as follows:

Remove dirt and oil splatters regularly. Use a soft cloth or cotton buds and window cleaner for cleaning.

Notes

• Do not use abrasive cleaning agents such as scouring pads, scrubbing brushes or cream cleaners.
• Do not touch the sensor window with your fingers. This may make it dirty or scratch it.

Declaration of Conformity

Constructa-Neff Vertriebs-GmbH hereby declares that the appliance with wireless temperature sensor function meets the basic requirements and other relevant provisions of the Directive 1999/5/EG.

A detailed R&TTE Declaration of Conformity can be found online at www.neff-international.com on the product page for your appliance under "Additional documents".

The logos and the Bluetooth® brand are registered trademarks and property of Bluetooth SIG, Inc. These trademarks are used by Constructa-Neff Vertriebs-GmbH under licence. All other trademarks and brand names are owned by the respective companies.

Table of contents

Online: www.neff-eshop.com

www.neff-international-home.com

a v internetovom obchode:

www.neff-eshop.com

Intended use

ucelu

Dispose of packaging in an environmentally friendly manner.

!Warning: Danger from magnets!

The temperature sensor contains magnets. Magnets can damage electronic implants, e.g. pacemakers or insulin pumps. People with electronic implants should not carry the temperature sensor in their pockets or on their bodies. Maintain a minimum distance of 10 cm from the pacemaker or similar medical device.

!Warning: Risk of burns!

The temperature sensor can be damaged by heat if it is heated too much. Do not place the sensor near hot objects or store it near heat sources. The sensor can be very hot after cooking. Use oven mitts or a kitchen towel when handling it.

Do not use metal objects to handle the battery. Do not touch the contacts.

1. Reassemble the upper and lower parts of the housing. Ensure that the plug contacts are correctly aligned.

1. Place the silicone cap on the lower part of the temperature sensor housing.

Warning: Do not use rechargeable batteries. Use only CR2032 battery.

Cleaning

Temperature sensor

Clean the temperature sensor with a damp cloth. Never clean the dishwasher. Do not immerse in water and do not clean under running water.

Remove the temperature sensor from the product packaging after cooking. Store it in a clean, safe place, for example in the packaging and not near a heat source.

Silicone pad

Before placing the temperature sensor, clean and dry it. Suitable for dishwasher.

Note: The silicone pad should not be left in the cleaning solution for a longer time.

If the light on the wireless temperature sensor does not turn on when pressed, this means the battery is discharged.

Battery replacement

1. Remove the silicone cover at the bottom of the housing. Unscrew the screws with a screwdriver.

1. Remove the top part of the housing. Take out the old battery. Insert a new battery. Pay attention to the correct polarity of the poles.

Attention!

Do not use metal objects to remove the battery. Do not touch the contacts.

1. Connect the top and bottom parts of the housing. Pay attention to the correct position of the contact pins.

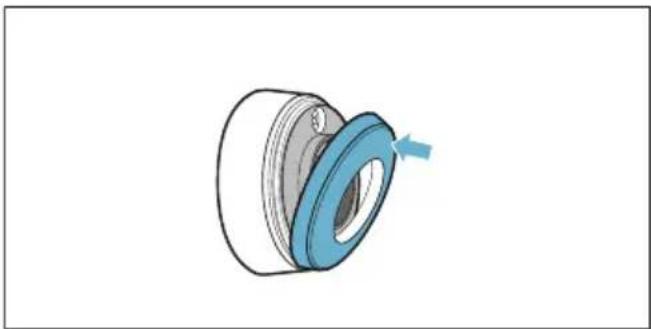

1. Install the spiral cover back onto the lower part of the temperature sensor housing.

Note: Use only high-quality CR2032 batteries. They have a longer service life.

Cleaning

Temperature sensor

Use a damp cloth to clean the temperature sensor. Never place the temperature sensor in a dishwasher. Never immerse it in water or rinse it under running water.

After cooking, do not forget to remove the temperature sensor from the cookware. Store the temperature sensor in a dry and safe place, for example in its packaging, or as far away from heat sources as possible.

Spiral cover

Clean and dry the temperature sensor before reinstalling it. It is suitable for cleaning in a dishwasher.

Note: Do not leave cookware with the spiral cover in soapy water for a long time.

Temperature sensor window

The temperature sensor window must always be clean and dry. To do this, the following rules must be observed:

Remove stubborn grease stains. Use a non-abrasive cloth or cotton swabs and a glass cleaner.

Note

Do not use abrasive cleaning agents, as well as hard cloths and brushes. Do not touch the temperature sensor window with your fingers. This can cause contamination or damage.

Declaration of Conformity

Constructa-Neff Vertriebs-GmbH hereby declares that this appliance complies with the essential requirements and other relevant provisions of Directive 1999/5/EC.

The detailed declaration of conformity can be found at www.neff-international.com on the page describing your appliance in the section "Additional Documentation".

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Constructa-Neff Vertriebs-GmbH is under license. All other trademarks and trade names are the property of their respective owners.

Contents

Intended use 108

Important safety instructions 109

Environmental protection 110

Safety instructions. 110

Without temperature sensor. 110

Preparing the temperature sensor for connection. 110 Operation. 112 Declaration of Conformity. 113

For more detailed information about the product, accessories, spare parts, and service, please visit the official website www.neff-international.com or the online shop www.neff-eshop.com.

Intended use

Please read the instructions carefully. Keep the installation and operating instructions for future use and pass them on to the next user.

Check the device after unpacking. If the device is damaged during transport, do not use it. Contact the technical service and report the damage in writing. The warranty becomes void if the device is used improperly.

During use. Use the device only for cooking and heating food. It is necessary to monitor the cooking process. For short cooking processes, continuous monitoring is required. Use the device only in enclosed spaces.

Children aged 8 years or older, as well as persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, may use the appliance if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Do not let children play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

When using the functions, the variant installed must correspond to the configuration in which the pan with the temperature sensor is located.

www.neff-international.com in v splletni trgovini www.neff-eshop.com

Declaration of Conformity

Constructa-Neff Vertriebs-GmbH hereby declares that the appliance with temperature sensor complies with the essential requirements and other relevant provisions of Directive 1999/5/EC.

The detailed R&TTE declaration of conformity can be found on the Internet at www.neff-international.com on the product page for your appliance, under additional documents.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Constructa-Neff Vertriebs-GmbH is under license. Other trademarks and trade names are those of their respective owners.
