USER MANUAL KDV24V10 BOSCH

EN Operating Instructions

FR Mode d'emploi

Household Appliances

Inhaltsverzeichnis

Information concerning disposal	14
Safety information	14-16
Your new appliance	16
Observe ambient temperature and ventilation	17
Connecting the appliance	17
Turning on and temperature selection	18
Switching-off and setting out of use	18
Arranging food	19
Freezing fresh products storing frozen food and making ice	20-21
Defrosting	22
Cleaning	23
Energy saving tips	23
Small problems for self-help	24-25
Calling customer service	25

Innholdsfortegnelse

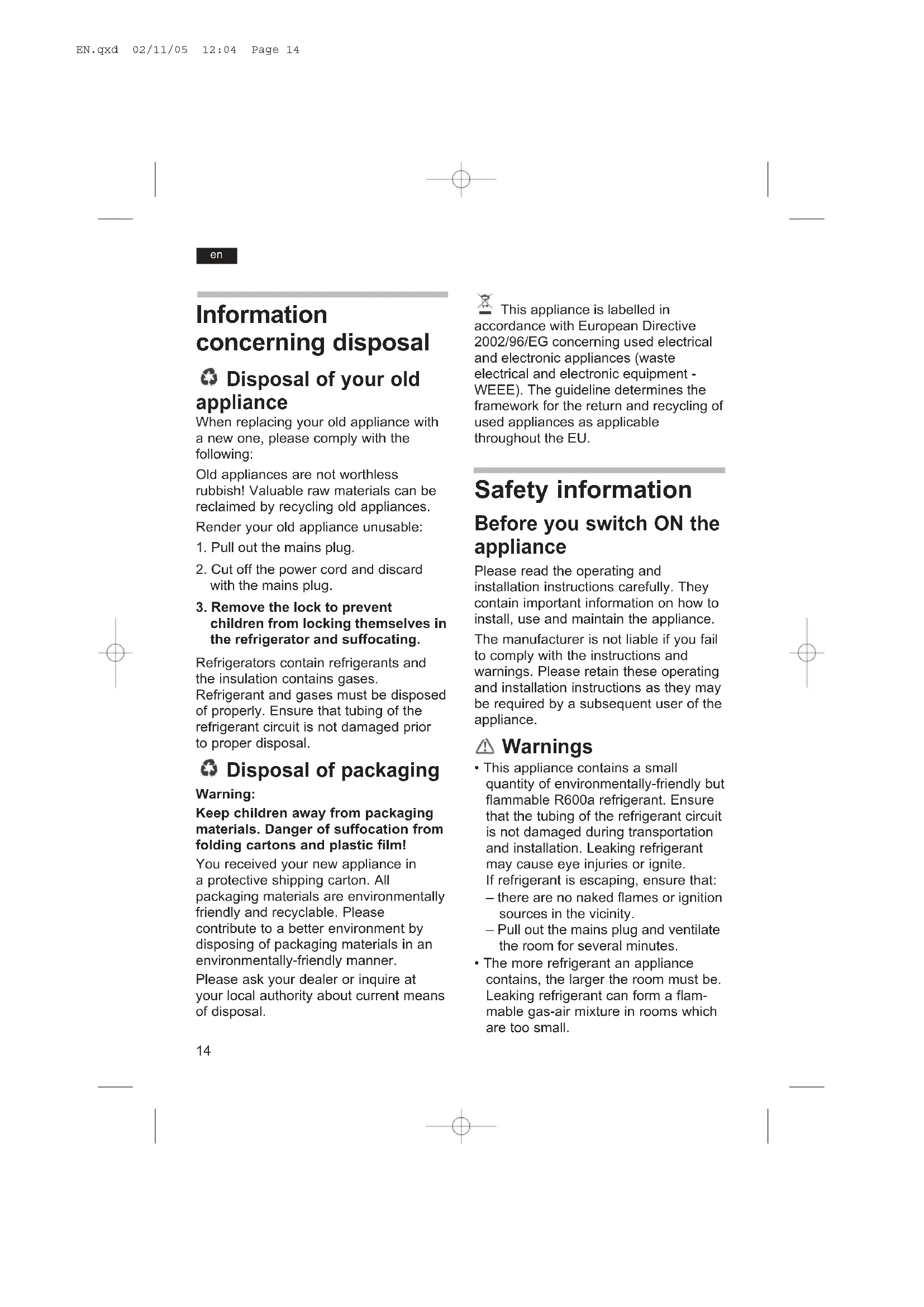

Information concerning disposal

Disposal of your old appliance

When replacing your old appliance with a new one, please comply with the following:

Old appliances are not worthless rubbish! Valuable raw materials can be reclaimed by recycling old appliances.

Render your old appliance unusable:

1. Pull out the mains plug.
2. Cut off the power cord and discard with the mains plug.
3. Remove the lock to prevent children from locking themselves in the refrigerator and suffocating.

Refrigerators contain refrigerants and the insulation contains gases. Refrigerant and gases must be disposed of properly. Ensure that tubing of the refrigerant circuit is not damaged prior to proper disposal.

Disposal of packaging

Warning:

Keep children away from packaging materials. Danger of suffocation from folding cartons and plastic film!

You received your new appliance in a protective shipping carton. All packaging materials are environmentally friendly and recyclable. Please contribute to a better environment by disposing of packaging materials in an environmentally-friendly manner.

Please ask your dealer or inquire at your local authority about current means of disposal.

This appliance is labelled in accordance with European Directive 2002/96/EG concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Safety information

Before you switch ON the appliance

Please read the operating and installation instructions carefully. They contain important information on how to install, use and maintain the appliance.

The manufacturer is not liable if you fail to comply with the instructions and warnings. Please retain these operating and installation instructions as they may be required by a subsequent user of the appliance.

Warnings

• This appliance contains a small quantity of environmentally-friendly but flammable R600a refrigerant. Ensure that the tubing of the refrigerant circuit is not damaged during transportation and installation. Leaking refrigerant may cause eye injuries or ignite. If refrigerant is escaping, ensure that:

• there are no naked flames or ignition sources in the vicinity.

• Pull out the mains plug and ventilate the room for several minutes.

• The more refrigerant an appliance contains, the larger the room must be. Leaking refrigerant can form a flammable gas-air mixture in rooms which are too small.

en

The room must be at least 1m^3 per 8 g of refrigerant. The amount of refrigerant in your appliance is indicated on the rating plate inside the appliance.

In an emergency

Rinse eyes and call a doctor.
- Keep ignition sources and naked flames away from the appliance.
- Pull out the mains plug and ventilate the room for several minutes.

• In the following cases pull out the mains plug or switch off the fuse.

• Defrosting

• Cleaning

Do not pull out the mains plug by tugging the cable.

• Do not switch on damaged or defective appliances. If in doubt, contact your dealer.
• Never use electrical appliances inside the refrigerator (e.g. heater, electric ice maker, etc.).
• Do not store products which contain flammable propellants (e.g. spray cans) or explosive substances in the appliance - Risk of explosion!
• Do not allow children to play with the appliance!
• NEVER use a steam cleaner to defrost or clean the appliance. Steam may come into contact with electrical components and cause a short-circuit or an electric shock.

When using the appliance, comply with the following:

• Never cover or block the ventilation openings!
• Repairs may be performed by qualified technicians only. Improper repairs may put the user in considerable danger.
• Do not stand or support yourself on the base, drawers or doors, etc.
• Bottles which contain a high percentage of alcohol must be sealed and stored in an upright position.
• If the appliance features a lock, keep the key out of the reach of children.
• Keep plastic parts and the door seal free of oil and grease. Otherwise, parts and door seal will become porous.
• Do not store bottled or canned drinks (especially carbonated drinks) in the freezer compartment. Bottles and cans will explode.
• Do not put an ice lolly or ice cube directly from the freezer compartment into your mouth. Risk of burns from very low temperatures!
• Never touch frozen food with wet hands. Your hands could freeze to the food!
• Do not scrape off hoarfrost or stuck frozen food with a knife or pointed object. You could damage the refrigerant tubing. Leaking refrigerant may ignite or cause eye injuries.
• Use only agents recommended by the manufacturer to accelerate the defrosting process.
• People who have limited physical, sensory or mental abilities or inadequate knowledge must not use this appliance unless they are supervised or given meticulous instructions

en

Important

• Do not block the ventilation grilles on the refrigerator casing.
• Do not use mechanical devices or any other method to accelerate the thawing-out process, other than those recommended by the manufacturer.
• Do not damage the refrigeration circuit.
  Always use the internal electrical components recommended by the manufacturer for your refrigerator/freezer.

General requirements

The appliance is suitable

• for refrigerating and freezing food,
  for making ice.

The appliance is designed for domestic use.

If the appliance is used industrially, the appropriate standards and regulations shall apply.

The appliance has been interference-suppressed in compliance with EU Directive 89/336/EEC.

The refrigerant circuit has been tested for leaks.

This product complies with the relevant safety regulations for electrical appliances (EN 60335/2/24).

Your new appliance

Details may differ according to the appliance type, especially with respect to features.

Fig. 1

1 Ice-cube tray
2 Temperature selector/inner light
3 Racks
4 Meat container
5 Discharge gutter for thaw-water
6 Shelf
7 Vegetable bin
8 Kickstrip with ventilation outlet
9 Container
10 Big shelf
11 Door seal
22 Freezer switch (Fig. 3)

A Deep-freezing compartment

B Refrigerator

Observe ambient temperature and ventilation

The climatic class can be found on the rating plate (Fig. 10) and indicates the ambient temperatures at which the appliance can be operated.

Climatic class Permitted ambient
temperature

SN +10 °C to 32 °C
N +16 °C to 32 °C
ST	+16 °C to 38 °C
T	+16 °C to 43 °C

Ventilation

Fig. 4

The air on the rear panel of the appliance heats up. The warm air must be able to escape. Otherwise, the refrigerator must work harder. This will increase the power consumption.

Therefore: Never cover or block ventilation openings!

Usable capacity

Information on the usable capacity can be found inside your appliance on the rating plate.

Connecting the appliance

After installing the appliance, wait at least 1/2 hour until the appliance starts up. During transportation the oil in the compressor may have flowed into the refrigeration system.

Before switching on the appliance for the first time, clean the interior (see Cleaning).

The socket should be easily accessible. Connect the appliance to 220-240 V/50 Hz alternating current via a correctly installed earthed socket. The socket must be fused with a 10 A fuse or higher.

If the appliance is to be operated in a non-European country, check on the rating plate whether the indicated voltage and current type correspond to the values of your mains supply. The rating plate is located in the appliance at the bottom left-hand side. The mains connection cable may be replaced by an electrician only.

en

Turning on and temperature selection

Clean the inside of the appliance thoroughly, before using the first time (see cleaning).

Turning on

Turn temperature selector (figure 3) out of the position "O".

The refrigerating process begins.

Should the door of the freezer compartment refuse to come open shortly after having closed it, please wait for two or three minutes for the suction produced, when the door was first opened, to release.

Temperature selection

Use the temperature selector (Figure 3) to adjust the temperature of both freezer and refrigerating compartments.

Observe the high figures yield low degrees of temperature.

When the temperature selector is placed at setting "O" the refrigerating process is turned off.

From setting "1" onwards it starts and increases.

We suggest a medium temperature setting (approximately "2-3").

To freeze foods, rotate the temperature control to "3" (see also "Freezing").

Observe the following for the storage of frozen food:

If the temperature of the room where the appliance has been placed drops below +18^ the freezer switch should be connected. A red mark will indicate it is on (figure 3/22). On connecting the switch, the inner light will remain on at reduced power. This ensures that the temperature required in the freezer compartment for long-life storage of food is maintained.

Switching-off and setting out of use

Switching-off

Turn the temperature selector (Figure 3) to the setting "O".

The refrigerating process stops for the whole appliance.

Setting out of use

If the appliance is set out of use for a long period of time, unplug, allow to defrost and clean. Leave the door of the freezer compartment and appliance's door open.

Arranging food

How to rearrange the inner fittings

The shelf racks in the refrigerator area may be adjusted to different levels. To adjust, pull rack forward, push it down and reinstall at the desired position. (Fig. 4).

The containers on the inside of the door may be taken out for cleaning (Fig. 6).

Please observe the following when arranging food inside the appliance:

• Allow warm food or beverages to cool down before placing inside the appliance.
• Wrap or cover food well before placing inside the appliance.
• Oil or fat should not be allowed to come in contact with the plastic parts of the appliance or with the door seal (these are materials which tend to become easily porous).
• Do not store explosive substances inside the appliance.
• Keep high-proof alcoholic beverages in air-tight bottles or jars and store in upright position.
• The coldest areas in the refrigerator are the rear wall and the area around the bottom shelf.

Example of arrangement

Figure 1

In the freezer compartment (A): freezing of fresh products, storage of deep-frozen goods and making ice cubes.

In the refrigerator (B):

On racks (3), from top to bottom: pastries, ready-cooked meals, dairy products.

In the meat containers (4)

meat and cold slices.

On the shelf (6):

meat, sausages and cold slices.

In the vegetable bin (7):

vegetables, lettuce and fruit.

In the door compartment (9):

tubes and small tins.

On the large shelf (10):

large bottles.

Note refrigeration zones in the refrigerator compartment!

The air circulation in the refrigerator compartment means that there are zones at different temperatures.

Depending on the model, the zone for sensitive foods is right at the bottom between the arrow on the side and the glass surface below (fig. 11/1 and 2) or between the two arrows (fig. 12/1 and 2). Ideal for storing meat, fish, sausage and salad mixtures, etc.

en

Freezing fresh products storing frozen food and making ice

Observe the following when purchasing deep-frozen food:

• Inspect the package and ensure that it is perfect conditions.
• Check the expiry date stamped on the package; make sure it has not run out.
• Check the thermometer in the freezer of the store where you purchase your goods; it should indicate a temperature lower than -18^ .
• When shopping, ensure that the deep-frozen products are the last items to be purchased; wrap them up in newspaper or place in an insulating bag and take them home at once, place in the home freeze right away.

Wrapping-up

If home freezing, ensure that the products of your choice are absolutely fresh and in perfect condition. Pack food airtight so that it does not lose its taste or dehydrate.

Suitable wrapping material:

Plastic film, polyethylene bags, alu-foil and freezing containers.

All these products are available at your local dealers and most large supermarkets.

Unsuitable wrapping material:

wrapping paper, wax-coated paper, butcher's paper, cellophane, rubbish bags or used carrier bags.

Wrap-up food, press down on parcel to remove all air and seal airtight.

Suitable sealing material:

rubber bands, plastic clips, string, waterproof adhesive tape or similar. Plastic and polyethylen bags may be heat-sealed with an appropriate machine.

Label package indicating contents and date of freezing before storing in the freezer compartment.

Freezing capacity:

Information about the max. freezing capacity according to current standards can be found on the rating plate.

The maximum freezing capacity for fresh food in 24h (distributed on the freezer racks) is indicated on the characteristics plate (in Kg/24h), see figure 10.

To retain the vitamins, nutritional value, appearance and flavour, do not exceed the max. freezing capacity.

Adjust temperature selector to freezing and switch on freezing process

Turn temperature selector to an average temperature setting (approx. "3") whenever fresh products are put in to freeze.

This temperature setting is sufficient for freezing up to 2,5kg of food. For larger amounts you should additionally actuate the freezing switch (Fig. 3/22).

(Press the rocker switch -red marking appears).

If takes approximately 24 hours for the freezing process to reach full completion; once the food is thoroughly frozen, you may disengege the freezing switch.

Please observe following when putting fresh food into the freezer compartment:

Please carefully ensure that freshly freezing food does not come into contact with food which is already frozen.

Observe the following tips for better storage of frozen food:

If the temperature of the room where the appliance has been placed drops below +18^ the freezer switch should be connected. A red mark will indicate it is on (figure 3/22). On connecting the switch, the inner light will remain on at reduced power. This ensures that the temperature required in the freezer compartment for long-life storage of food is maintained.

Storage life

To avoid quality loss, it is important not to be exceed the admissible storage life assigned to each product. The length of admissible storage varies from product to product. Fish, cold slices, ready-cooked meals bread and pastries will keep out to two months at a temperature of -18^ . At the same degree of temperature you may keep meat, poultry and cheese for up to four months and fruit and vegetables for up to six months.

Defrosting frozen products

Depending on the type of food and the use intended for it, you may choose among any of the following defrosting methods:

• at ambient temperature,
• in the refrigerator,
• in an electric oven.
• with/without fanheater,
• in a microwave oven.

You may refreeze food that has partially or totally defrosted provided that:

• in the case of meat and fish, these products were not kept for longer than a day at a temperature of 3^ or higher;
• in the case of other products, these were not kept for longer than three days at a temperature of 3^ or higher.

Otherwise, check food for smell, appearance and flavour, if these have remained unaltered, boil, fry, roast or cook food to some kind of ready meal and refreeze. Observe that the maximum admissible storage life in this case is shorter than average.

Making ice

Figure 7

Fill ice tray 3/4 full with water and place on the bottom of the freezer compartment. Ice cubes will be easier to remove if the tray is given a gentle twist.

en

Defrosting

Refrigerator

The refrigerator defrosts automatically. The thaw-water collects in the discharge gutter (figure 8/7) and is then conducted to the refrigerating unit to evaporate. Ensure that the discharge gutter and the discharge outlet (figure 8/19) are clean at all times, so that water may drain unhindered.

Freezer compartment

For safety reasons, the freezer compartment (Figure 1/A) does not defrost automatically, since the products stored in this area, are not supposed to accidentally thaw out. Intensive frost and ice build-up adversely influence the cold transmission to the frozen products and cause the rate of energy consumption to increase.

Scrape off frost build-ups

To remove frost build-ups you may use the standard frost scrapers available at most local dealers and large supermarkets. Ensure that the freezer compartment is not damaged when frost is scraped. Never use sharp or pointed items or metal utensils to remove frost.

Allow ice coats to thaw out

If a thick ice coat has built up inside the freezer compartment, it should be allowed to thaw out.

If there are still frozen products in the freezer, swicht on the freezer switch (Fig. 3/22) about 4 hours before defrosting so that the food is once again deep frozen.

Observe the following procedure:

• Remove frozen products, wrap up well in newspaper and store in a cool place.
• Turn the temperature selector (Figure 1/2) to setting "O" or unplug. Do not allow thaw water to run into the temperature selector.
• Leave door open and wipe-up thaw water with a cloth or sponge.
• Rub freezer compartment dry, switch appliance on once more and reinsert frozen products.

Defrosting aids

Be extremely careful when using defrosting sprays. These sprays may cause the formation of explosive gases, contain propellants or substances which may be a major health hazard and even damage the plastic parts of the appliance.

When making use of these sprays, read the manufacturer's instructions most carefully and adhere strictly to the given indications.

Cleaning

Before cleaning, make it a rule to unplug the appliance and/or disengage the fuse

Use luke-warm water with a little desinfectant and washing-up liquid to clean the entire appliance, except for the door seal. Never use sand, abrasive cleansers or acids, e.g. chemical solvents.

Clean the door seal (Figure 1/11) with clear water and dry thoroughly afterwards.

Do not allow cleaning water to get into the temperature selector.

The discharge gutter (Figure 8/7) and the discharge outlet (Figure 8/19) should be cleaned more frequently to ensure that thawwater can drain unhindered. Pierce the discharge outlet with a toothpick or similar object to get it clean. Try to prevent cleaning water from getting into discharge outlet and running through to the evaporating plate.

In you so wish, you may additionally use a standard furniture polish to clean the outer cabinet panels. Ensure that the door of the appliance is closed while doing this, to

prevent the polish from getting to the door seal or to the plastic parts inside the appliance.

Energy saving tips

• Install appliance in a cool and well ventilated room, do not expose to direct sunlight and keep away from heat sources (radiators, cookers etc.).
• Allow warm food and beverages to cool down before storing in the appliance.
• When defrosting, place the deep-frozen goods inside the refrigerator. The cold loss from the frozen goods can be effectively used-up to assist the cooling process inside the refrigerator.
• Allow freezer compartment to thaw out when ice has built-up. A thick coat of ice adversely affects the cold transmission to the frozen goods and causes the rate of energy consumption to increase.
• When putting in or taking out food, avoid keeping the door of the appliance open for too long.

en

Small problems for self-help

Before calling the service engineer, check the following points and see if you can solve the problem yourself.

If the service engineer is simply called-in for advice, i.e. if he finds no real fault with the appliance when he visits, you will be charged the full cost of service time, even before the guarantee period has run out.

Problem
Possible cause

Unusual noises:	- The appliance may not be standing level or some kind of object is caught near the refrigerating unit. - A part on the rear wall of the appliance cannot turn freely and rubs against the appliance or against the wall. In this case, bend part carefully away.
The inner light does not work:	- The bulb has burnt out. Pull plug out of supply socket. Remove screen (Fig. 9) then remove bulb and exchange for a new one, maximum 15W, 220-240 V, E 14 base. - The light switch sits (Figure 5/1). Try to get the switch to move. If it doesn't budge call customer service. - The temperature selector (figure 9/3) is on setting "O".
The temperature inside the refrigerator is too cold:	- Temperature setting dial is set at a too low position. - Fresh food was put into freeze without switching on the super-freeze (Fig. 8/22).
Cooling output deteriorates:	- The door was opened too often. - A large amount of food was placed in the refrigerator. - A thick layer of frost has built up inside the freezer. - The relief outlet and the ventilation grid are covered. - Some kind of object is caught between the refrigerating unit and the wall.
Total lack of cooling:	- Plug does not fit properly into socket. - The fuse has disengaged. - Temperature selector (figure 1/2) is on setting "O".

Small problems for self-help

If you have not managed to solve the problem with help of the above mentioned tips, call customer service.

Do not insist on solving the problem yourself. Above all, refrain from working on the electrical parts.

Try not to open the door of the appliance unnecessarily to avoid cooling loss.

Calling customer service

You can find your local customer service in the telephone directory or in the customer service list. When calling customer service, please quote the product number (E-Nr.) and the production number (FD) of the appliance.

This information can be found on the rating plate (Fig. 10).

To prevent unnecessary call-outs, please assist customer service by quoting the product and production numbers. This will save you additional costs.

Compartment congélateur

CoBeTbI NO yJaJIeHnIO

YNAKOBKN

He daaIte JETAM HpTaB C yNakOBouHbMaTepeHa.ION HnC aactbO erO dIeHentOB.Annapat - 30 He HpyuKa! Ectb onacnoctbyyu, B CBBn C TEM, TTO Kopo6Kn HILACTHbIC HAHb N IACTMACcH!

BoBpeMTrpanCHOpTHPOBKNIOBaHreroDoma HOBn annapat 3aHHHeu ynaKOBKO.Bce yHaKOBOHTbIe MaTePNaJIb CJeTaJIb B COOTBETCTBNI C HOPMaMH 3aHHITb OKpyKaHOWeCpeB, INHXMOJHO perEhepPOBaTb HINHCIOJIb3OBaTBTOPHNO.

CJeIaIeBaaKTHBbHbKbIbB3aHHTy OKpyKaIOHcIcPbIy,yaIbHnpeHEpHpyyBAKOBOHbE MaTePbIb B COOTBetCTBn C HOpMaHncc3aHHTbl.

BaI Dnctprh6bIOTOp HIN MeCTHbI ynpabJIIOHN C yIOBOJcTBNCM IPOHHOPMHyOT Bac O HANOOE e 0fpeKTHBHN N COBPemEHBN MEOJAN H BO3MOKHOCTX YdA.TeHN, B COOTBeTCTBH N C HopMaH 3aHHTb OKpyKaioue Cpebl.

AaHb npOp HmEe OTMeKy O COOTBcETCBn EBponecckn HopMaM 2002/96/EG yTH.13aunn 3Jektpnuecknx n 3JektponuHx npOpOBw (waste electrical and electronic equipment - WEEE).

JaHHHe HOpMb OHpeJIeHOT JeHCTByIOHHe Ha TeppHTOPHN EBPOCOO3IpaBnIa BOBpATA H yTHINBAHHN CTapBX IpuHOBOPOB.

CobetbI IO MEPaM

JIyIyIaKOBKn He IIOxOJI:

YnakOBOHnB6yMaH，NEpramENT，NEIIOOan HBCPbTaN MaRaHHHa YnakOBKa.

BIOKHTI HPOJYKTb BYHAKOBKy, BHHCYHTRE H3 Iee BO3JyX H ITOTHO 3aKpOHTe.

JIA 3aKpbBaHn yIaKOBKn IOXODT:

PcHOBbc KObHa,PiactMaccOBbc 3aKHMb, MOpOyCToHHBBe KJIeHNHe JeHTb (CKOT) H T.I. NIOTHAIECHOBbc NaKCTb MoKaHO 3aIaHBaTb C HOMOIBBO CHIIHAJIbIOr ObTOBO np6opa.

Ipei 3akJaIKo IpoIyKTOB B MOpO3HbHyIO KaMepy, HOMeTbTe NaKeTb, yKa3aB IX COIEpKIMoe H JAty 3akJaIK.

Monnoctb 3amopaxnBaHna

JIaHIIbe OTHOCHTJIbHO MaKc.
IPOH3BO.IITcJIbHOCTN 3aMopaJKNBaHHB B COOTBECTBIM C TpeoBAHHIM,
IPMBCHHBMIB DeICTByeIOIIeH
HOPMaTHBHOJ IOKyMeHTaHH, BbHaHIEc BΦHPMeHHO TaBJHKe.

MaKcHMaJIbHa MoIIIOCTb
3aMopaxHBaHHn CBxHX IPOyKTOB 3a
24 Yaca (HOmeHeHHbx Ha
3aMopaxHBaIOHnpe PienETKN),
yKa3bBaETcB Ta6JIHe XapakTePnCTHK
(B Kf/24I.)CM.PcyHOK 10.

No.10KHTI npOyKTb, KOTOpBte BxOHTI 3AMOPo3HTb, HJHO MOpO3HbHOI KAMcPb. CTeIITRE 3a TEM, TTO6b yke ZAMOpOKeHHne I CBEKHe npOyKTb He COUPnKaIcA.IIOBb Jpyr cIpyTOM.

BkJIOueHne 3amopaknBaHnN n BbOp TempeaTypbI

IocTaBtepeKIOHATcBtemepaTybB HIOJKeHnOo"3", cHm BxOTHTeAMOpOBHTB CBeKHe npOyTb. Ipn ETOM NOToKEHH HpeKIOHATcB BMyKTezAMOpOBHTb JO 2,5 KITPOyKTob. JINZAMOPAKHNBAHH60JIIEHO KOIMCTBaIPOyKTOB Heo6XoHMO IOnOHHTcBHO HAKaTb KHONKY Tny6OKOH ZAMOPOKN 22 (pnc. 3). Ipn ETOM 3aTopaETcKpaCHNI HnHKaTOp. JINNoHO ZAMOPOKH npOyKTOB Heo6XoHMo 24 Yaca. IocTe OTOrPeKHM Tny6OKOH ZAMOpOKN IyKHOOTKIOHTB.

KaJIeHJIapb 3aMOpaKINBaHn

TTO TOI06bI COxpaHHTb KaYcCTBO 3aMOPoKCHHHX HPOyKTOB, BAHO COJIOATb IOnyCTHMb CpOK XpaHEHH, KOTOpB 3aBBHCT OT BHa 3aMOPoKCHHHX HPOyKTOB. IpeC3aMopaKaHBaHHEM OTMETTE Laty HrTOBHeHH HPOyKTA II Laty 3aKaJIaIKB MOpO3HbHyIO KaMepy.

Pa3mopajkBaHne 3aMOPoKeHHbIX IPOIyKTOB

B3ABHCMOCTHOTBIAIPOUYKTOB HIXNOCIEYIOHNEO6pa60TH,pa3MOPaKaBaHHeMOGHOOCYHCCCTB.HTb pa3THHbMHCHOCO6AMn:

-ПИЗ KOMHaTHOH TemHepaType,
-BXOIOH.HbHOI KaMPO,
B 3.1EKTpHueckOJ LyXOBKe,
-B MHKPOBOIHOBOI HCNH.

Pa3mOpOkeHbIe Hpa3mOpaKaKbHaebMe
HPOyKTbMOTyTbCHOBaZaMOpOKeHb,
ecn MIOc Hp6Ba He 6oJIee 1 IIN, a npTyHe
HPOyKTb-He 6oJIee 3 IINHaxOHNICb npH
temepaType Bblie +3eC.Bo CEx npTyHX
CHyAIX, ECIM BkYC, 3aHax HBeHNHHBn
HPOyKTaIE HMEHNICb, eTO MoJHO
CBAPITb HIN HOKaPHTb HCHOBA ZAMOpO3NTb.
PiH ETOM cPOK NocTeYIOHcO XpaHcHn
HPOyKTa COKpaHaAcTc.

PnIroTOBJIeHHeJIbJa

HaIOJIHHTe BAHHOUYIJIbHa Ha 3/4 BOIOI HIOCTABBE BMOPOBHIbHyIO KAMpy.

TTOI TO6bBAM 6bIO. JERTE HEBILEKATB TOTOBIE Ky6HKn IBa H3 BAHHOKN, MOKHOC CICrKa HcpeHyTB.

Pa3mopaXnBaHne XOJIOJIbHnKa

Pa3MopajKnBaHne XOJIIOJINJBHOI KaMepbI

XOIOHNbHKn pa3MopAaKbAeTc
ABTOMATueckn.BoTa co6npaTcB CTOHbI
KeTo67 (pnc. 8),OTkyTA HOnaTeCBA
XIOIOHNbHyIO MaHHy H TAM HCnapaETcB
PiOBepBe,TO6bI CTouHbIK KeTo6 H CTOHoe
OTBepCTHe 19 (pnc. 8) BceTua HxOHNbcB
HCTOTE.

Pa3MopajKbHHe MOp03NJIbHOJ KaMepbI

Mop03HbHaKaMepa pa3MaOpaaHBaeTcH He ABTOMAHTUeCKn, TAK KaK 3aMOp0KeHHbc HPOyKTbHe IOJTHbIIOITaHBaTb.CtOH HHe HIN.1bJa yXyIiHaET HOdAу XoIOna B MOp03HbHyO KaMepy, TTO B CBOIO OepeB bYBeIMHbaet pAcXOI eJIeKTPo3HepHN.

CHATNE CIOH INHEA

YTO6b ydaJIITb CJIOB O6pa3OBaBIIErOcH HHei, UyAHO HCHO.IIb3OBaTb CHeuHa.IbHbIK CKpe60K. HIN B KOEM CIyuae HC-1b34 HOb3OBaTbCtOCTpbIM Meta.IUHIECKHM IIpeIMetAM, YTO6b HC HOBe.IITb HOEpXHOCTb MOpO3H.IbHOI KaMepbI.

ru

OrTaBaHnE CIOJbJa

EcmBMOPO3HbHOKAMpeO6pa3OBaJIC CIOIbHaTOpaMOPaKaHBaTbccHyKHO CTyIOHNMOpa3OM:

BKIOHITPCGKHM CYBOKOHAMOPOKHN4YACA,HAKAB KHOHky22(pnC.3);
BBHbTEZAMOPOKCHHHICHPOLYKTM，BABCPHTE HXB43ETYHIOJOKHTBEHPOXTAHHOEC MCTO;
HEPCKHOHATC,TEMHPATyPHIOCTABNTB HIOJOKEHNE“0”HINBBITAHHTBEIHKYH3 PO8ETK.HCHNTREa TEM，YTO6bBOHAHE HONATA BHYTPBHEPKHOHATC,TEMHPATyPH;
-ocrabtreBepnyotkpbrton;
-ydaJIHTe BOYI NOJOTHeHEM HIN rOkoi;
HAcyO HOpOTnC MOpOBuBHyIO KAMcPy, BKHOHTE XoIOUBUBHK HIOJOGKHTE 3AMOPGCKHHbIUPOUYKTH.

PoiptyuHbIe cpeJcTbA

PnHIOIb3OBAHH 3JIKTPOBENTHTOTOPOB HINΦHOB,paBHOMePHo paNpCteHITc HOTOK TOpHrERo BO3yXa IIO BceH IOBepxHOCTH KAMEpb. HIN B KOem Cuyae He pa3MeHAnTe 3JIKTPoPNH6Opb BHyTPh MOp0HNbHONKAMEpb.

ByIbte OCTOPOKHn IPN HCHNOBAAHH CHINHA.BHNA A3P03OJIe, KOTOPBE MOrYT O6pa3OBBBaTB B3pBBOONACHIE Ra3b, COIEpKaTH BENOCHTBA, NHOpeKJADIOHNH IIACTMACCOBME TETAH INH BPeIHBE JETAIOPOBBIA.

UNTka XOJIOJIbHnKa

HepeTcKaHauatbHCTHTbH MHTb XOIOIHINHHK, He 3aBHyTe OTEIOOHHTcEOT CTH. JIIMBTb BCETO XOIOIHINHHKa, KPOMEYIOOTHHTeJIIBEPHI, COHTCH TELIAB BOIA C H6oBHMMIO6aBteHNMe IOIOHNX cpeCTB. HenpHROHNIIO6be paCTBOPHTeJn, a TaKaKe YHCTAHNc CpOCTBA, CoepKaHIne IECOK HIN KHCOTbl.

YIOHTHTE 11 (pnc.1)
IPOTHPATB TObKO YICTOB BOIOH BA TEM
HACCYBO BHTPATB.CIEHNTe 3a TEM, TTO6b
BOIA HC HONLA BHYTPB HEPCKIOATcEH
TEMHEPATy.

CTOHHJKeIOB H CTOHHOE OTHBcPTHE HUYKHO OHHATb HAJIe, YEM OCTaJIbIbIe YACTN XOOHUNBHnKA, YTOOB HmTTO HC MHeIaIO BOIc IIpH OTaHBAHH CTKaTB HO IIM. CTOHHOE OTHBcPTHE OHHAAITE HAIOKOJ.CIEJITETa TEM, YTOOB BOJa, KOTOPOI MOOT XOOHUNBHnK, HC HOnAIIaIa TYda, UIE HCHApAE TCA BOHa.

CoBeTbI IO 3KOHOMH NJIeKTPo3Heprn

YCTAHABHBAHHTXOIOUBHBHKB HPOXBAHOM, XOPHO IPOBETPBACMOMIOMCHHHB, BTAHOTIPIMBX COIHCHBHAX. tyCNI HNCTOHIKOB TELTA.
- He zakpbbaite bentn. binnounhne otBepctna.
TeIbIe 6JIOJa nepei pa3MeHHeHem B XIOIOJIbIKKe Ipe.IBaPITcIbIO OCTyKaIITBE MOpO3JIbHKa.
XOpOIO 3AMOPOBBtE HPOUYKTH, HPGKICHEM pA3MOpAaHHBaTb MOpO3HbHyIO Kamepy.
吕B3Hpy3HH Bbypy3HHPOyKTOB DEPAHTIIBCPHIO OTKpHTBMNH MHHMAJIbHO BO3MOJHOE BPEM. YEM MEHHe Bb6yTe DEPAHTIIBCPHIO OTKpHTBMNH, TEM MCHHe Jb46yETO6P3OBBBHTBCHA MOPOBHLBOH PCHEKTKE.
HeocraBnIe IbepuXoIOHbIMKaOTKpHTbIMM UHTTEbHOC BcEMH.

ru

KaK caMOCTOATEJIbHo yCTpaHnTb MeJKeHe HeIOJaIKN /CepBnchna CJyK6a

JaIeKO He npn KaJIOH HEnoJaKe HE0xOIMMO Bb3bBaTb CHeHaJIInCTa CepBnCHOH cTyKb. Oeyb qacto JeIo 3aKIOuaeTcB KaKoJ-IMoMeIOH. IOETOMy, IpeKJe TEm o6paIIaTcB CepBnCHyIO cIyKb, npOBepBe, HeJB3a JIN yCTpaHHTb Ety HEnCpABHOCTb CBOHMn CNJAMN Ha OCHOBAHH IIpNBEdHbIX INke yka3AHN.

Pn Heo6bHOM Hyme:

HIN XOIOHNIBHK CTOH HEPOBHO HHTN HENPPOHO, HIN B XOIOHNIBHb aRpcta T NOHaI HOCTOPOHNII HpeIMet Tak, YTO Jeta Ha 3AHEH CTEHKe XOIOHNIBHka HC MOKET CBOOIOHO BHPPOBaTb. OCTOPAOHO yda.INTe 3OT HpeIMet.

EcJH He ropit oCbeHenne XOJIIOJIbHOI KaMepbl:

HnHnupBHaJAMHa HAKaHbAHHH.BbHbTE BnIKy CTeBOTo IIHypa HbPOeTKH,CHMMTE KpbHKy (PNC.9),ZAMEHHTe JAMUY (MAKc. 15Br,220B,IOKO.IB E14).
3aHHHCHBHKHOATCBOCBHEHN1 (pnc.5).PiOBepbTe,MOKETJIN OH HINATBCI.FCNHET,TOBBIOBHTe CnHnTHCTA CepBHCNO CIyK6bl.
- HpeKIOHnOATEb TcMnepaTypbHaxoHTcB HIOJIOKeHHN "0".

BExoIOHbHOI Kamepe TemnepaTpa Hnke O6bHNOH:

• IpeekIOIaTe.Ib TEMIIepaTypb CTOnr He B ToH IO3HH.

B MOPO3HbHyIO KAMEPY HOIOKTH CHHHKOM MHORO CBOKHX IPOTYKTOB, HC BKOIOHB KHOIKy peKHMA TpyOKOH ZAMOPOKH.

BExoIOJIbHnKe TemIepaTpa Bblue O6bUHO:

CIMHKOMaTROOTKpbHbHOHTCBepHb.
B MOpO3JIbHOI KAmpe CTHIKOM MHORO CBEGHX HPOAYKTOB.
OeHb60JIbIOI CIOI HHeB MOpO3JIbHOI KaMpe.
3aKpbTbBEHTBBAHINBBITKKa.
McKTu CTcHoi HXOIOIHbHKOM HONAI HOCTOPOHINIIPEMT.

COBCEM HET OXJIAKJeHnA:

BulkaIIOXOyKpENHcHbpozTe.
BbIKIOHIOCTIpeIOXpaHHTe.IbHOe yctpoiCTBO.
- HepeKIOHATE. IB TEMHEPATyC TcTNTB HIOIOKEHHN "0".

Ecm Bam He yiaIOc b yctpaHtB HnnpaBHOCb Ha OCHOBaHH HpHBeHHbX 3ecb ykaaHH, opaHaaTecb B CepBnchyio cyko.

YTObHbEeKaTb HotepeXoIOa,He OTKpbBaIte IBeepB6e3 HeoXOUMOCn.

He npohBDOHTe camoCTOReIbHO daJIbHeINHnpePbTb, npEKeIe Bcero, c 3JekTPueckoiqactboarperata.

Cep Bucnna CnyK6a

PnO6paHcHHB CcpBHCHyIO CtyK6y COo6haIte, IokaJyIhCTa, cepHbI (pnc.10/23) H 3aBOITCKOI (pnc.10/24) Homep BaIero arperata.

3Tn daHHbc Bb haHaeTe Buepehoi pAMKe Ha TINOBO Ta6.1uKke, paCIOJIOKeHHo CteBa CH3y B MOpO3HbHOM OTcICCHHa, PIOOM C 6OKCOM IIT OBOHeI.

YBaKaembe rooHoa, CooBaaem BaM, TIO HauHa npolykna OceTHpHnPoBaHa HA COOTBcTCTBE pocHHckm Tpe6oAHHM 6eOaHcHcTn corAio 3akOny PΦ «O zaiHne npab nhotpebteJe. HOpMaHNO no ceTHpHkaHn HauHX np6oPob, a taKke JAAHHe o Homepe oceTHpHkata n cpoKe erO deHCTBn Bb MoKete No.tuHTB bΦnpMe OOO «BCX BtToBaI texHka» no TeJefoHy (095) 737-22939.

TeepoHmchertepckoi cyk6bno pemohry 6b08bx np6opob 《b095) 737-2961

TeJeFOnIINcHTepeckOy cIyKbI no pEmoITry bblIOBx npHOpOB 《CmEnO》(095) 737-22962

TepeoH. HcHepckoi cyKbHpoemHry bTROBx np60pOe d^ arteHay (095) 737-22965

Subject to modification
