USER MANUAL E5785 HUAWEI

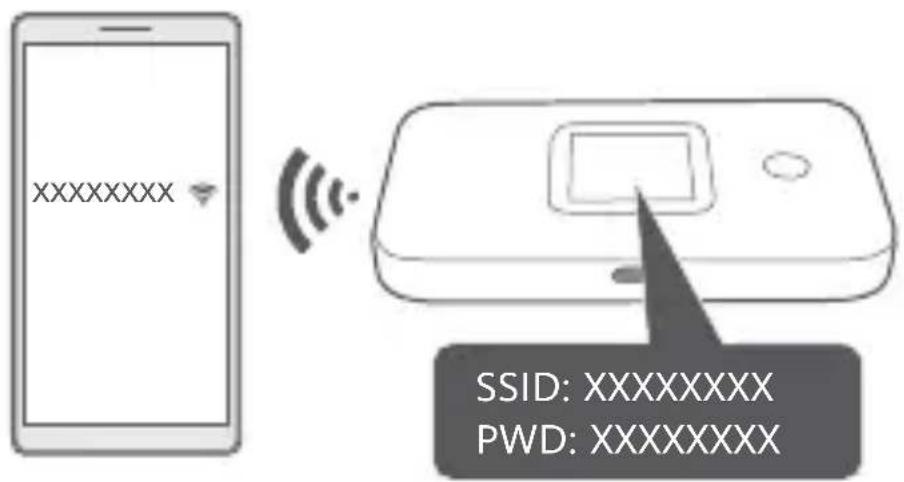

network name (SSID) and password (PWD). xxxxxxxx SSID: XXXXXXXX PWD: XXXXXXXX Refer to the FAQs section below if you cannot access the Internet after you have connected to your Mobile WiFi. 3Device Management Using app: You may scan the QR code below to download HUAWEI SmartHome App to manage your Mobile WiFi, for example, changing your Wi-Fi name or password, or checking data usage. If you cannot add device in the app, please check if you are using the latest version. Using browser: Enter 192.168.8.1 into the browser on your mobile phone or computer to go to your Mobile WiFi's web-based management page. The default login password is admin.

• If you cannot visit the web-based management page, check whether your mobile phone or computer is connected to your Mobile WiFi.

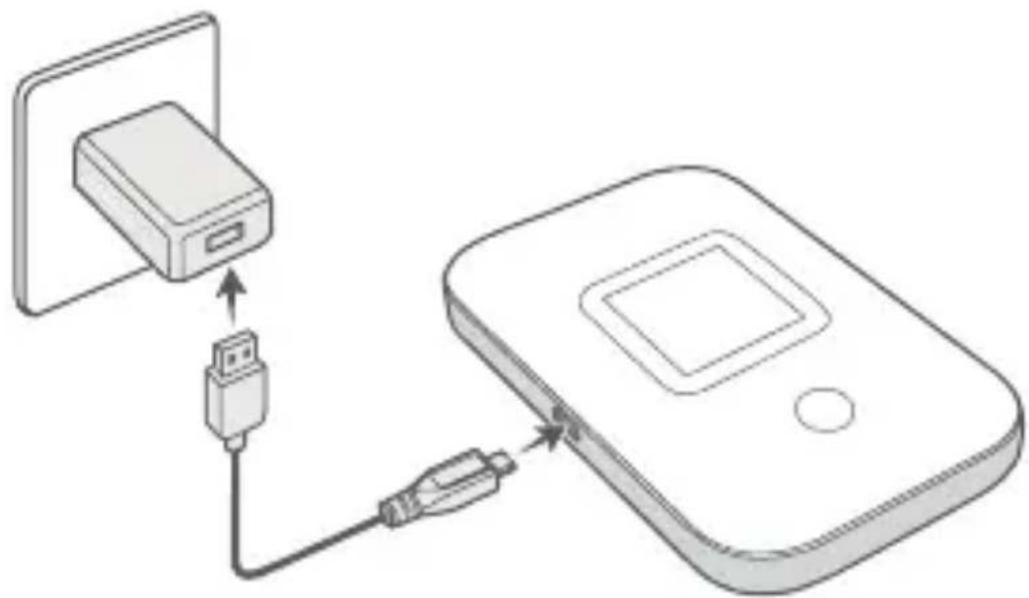

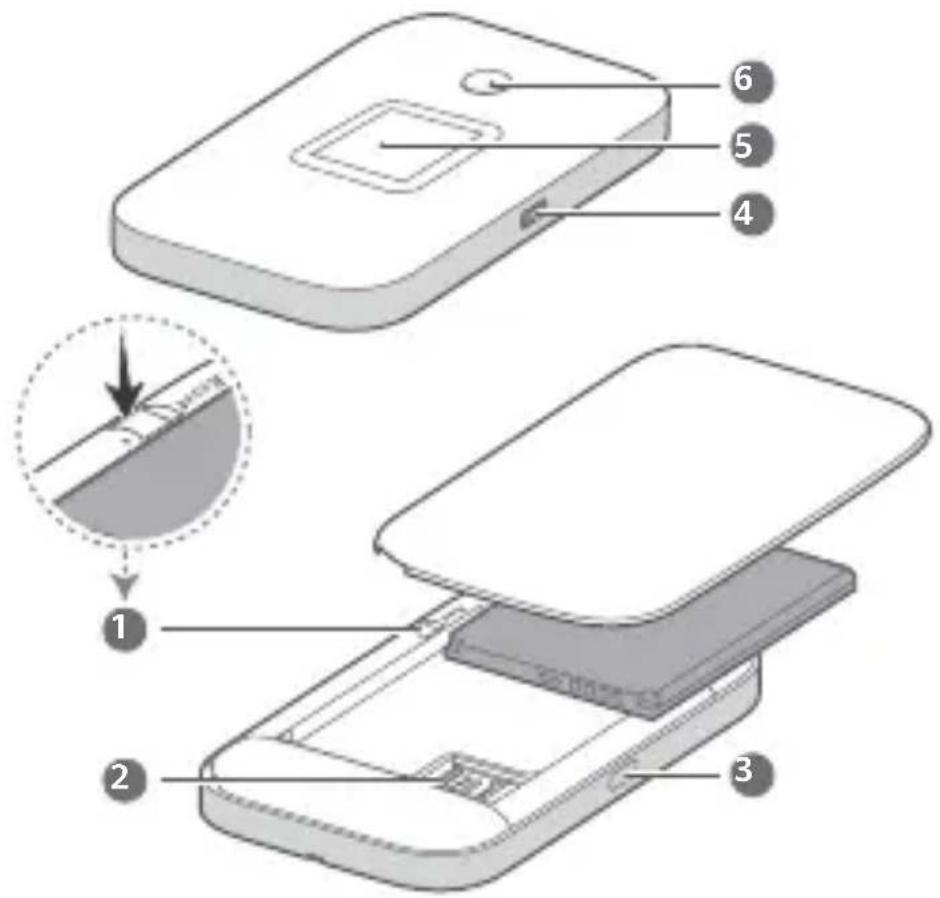

• We suggest that you modify the default Wi-Fi name and password, and the default login password to ensure that your data is secure. 4Charging Please use the original Huawei charging cable and power adapter. The power adapter is an optional accessory that you can purchase from retailers. 5Appearance

Power button To power off the Mobile WiFi: Press and hold the Power button until the LCD screen turns off. To restore the Mobile WiFi to its factory settings: Use a pin to press and hold the Reset button while your Mobile WiFi is powered on. 6FAQs What should I do if my Mobile WiFi cannot receive any signal or cannot connect to the Internet?

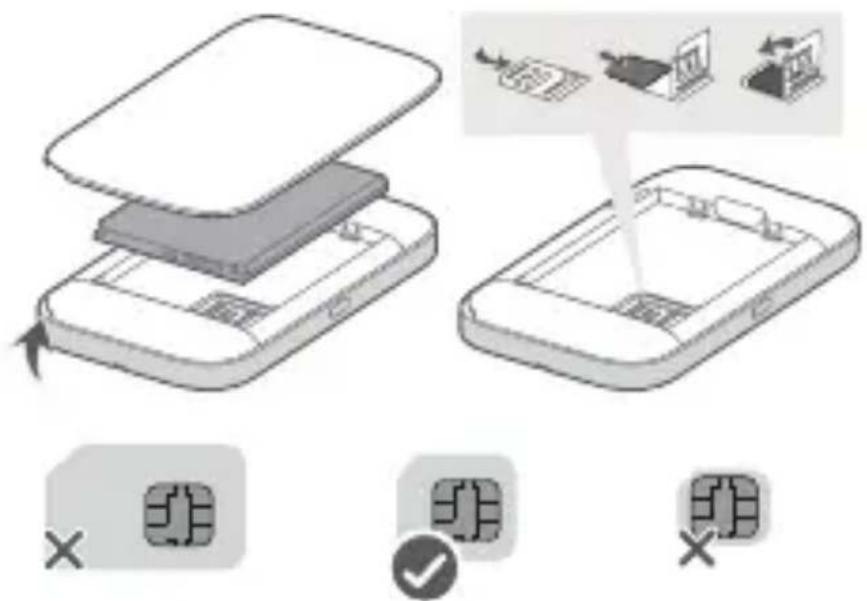

• Make sure that the SIM card is the right size and inserted correctly into the slot.

• Confirm that your SIM card has sufficient balance. If your SIM card is new, ensure that it has Internet access.

• The PIN verification feature may have been enabled. 1) Open the HUAWEI SmartHome App, and go to Advanced Settings > PIN Management to enter the correct PIN code. 2) Disable this feature if you don't want to enter your PIN on a regular basis.

• If the issue persists, restore your Mobile WiFi to its factory settings and try again. What should I do if my Mobile WiFi's signal reception is weak or the Internet speed is slow?

• Move your Mobile WiFi closer to a window or use it in an open area to receive better signal.

• However, if your mobile phone receives good signal strength at the same spot where your Mobile WiFi is placed, restore your Mobile WiFi to its factory settings and try again. Refer to the Appearance section above to restore your Mobile WiFi to its factory settings. What should I do if I can't connect to my Mobile WiFi after a period of inactivity? Your Mobile WiFi may be in sleep mode or powered off.

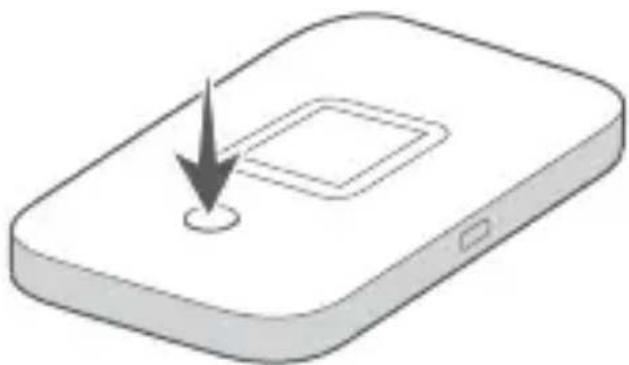

• Press the Power button on your Mobile WiFi. If the LCD screen turns on, your Mobile WiFi was in sleep mode. In this mode, your Mobile WiFi automatically disables Wi-Fi 7to save power. You can disable the sleep mode through the HUAWEI SmartHome App.

• If there is no response after you press the Power button, your Mobile WiFi is powered off. Press and hold the Power button to power it back on. Avoid using your Mobile WiFi where active wireless devices are prohibited (such as during flights), and ensure that it is powered off. Why can't I access the web-based management page by entering 192.168.8.1 on my browser? This is likely due to an IP address conflict when the Mobile WiFi assigns itself a new IP address. Please try entering

192.168.9.1 and see if this resolves the issue.

If your Mobile WiFi features an LCD screen, you can view the IP address of your Mobile WiFi's web-based management page on the LCD screen. 8Safety information Copyright © Huawei 2020. All rights reserved.

THIS DOCUMENT IS FOR INFORMATION PURPOSE

ONLY, AND DOES NOT CONSTITUTE ANY KIND OF WARRANTIES. LTE is a trademark of ETSI. Wi-Fi

, the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are trademarks of Wi-Fi Alliance. Privacy Policy To better understand how we use and protect your personal information, please read the Privacy Policy at http://consumer.huawei.com/privacy-policy

Software Update By continuing to use this device, you indicate that you have read and agree to the following content: In order to provide better service, this device will automatically obtain software update information from Huawei or your carrier after connecting to the Internet. This process will use mobile data, and requires access to your device's unique identifier (IMEI/SN) and the service provider network ID (PLMN) to check whether your device needs to be updated. In addition, this device supports the automatic downloading and installation of important updates from Huawei or your carrier in cases of emergency. This function is enabled by default. To disable this function, please log in to the product management website and make the corresponding changes in the settings menu. Safety information

• Some wireless devices may affect the performance of hearing aids or pacemakers. Consult your service provider for more information. 9• Pacemaker manufacturers recommend that a minimum distance of 20 cm be maintained between a device and a pacemaker to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket.

• Ideal operating temperatures are 0 °C to 35 °C. Ideal storage temperatures are -20 °C to +60 °C. Extreme heat or cold may damage your device or accessories.

• Keep the device and accessories in a well-ventilated and cool area away from direct sunlight. Do not enclose or cover your device with towels or other objects. Do not place the device in a container with poor heat dissipation, such as a box or bag.

• Keep the device away from sources of heat and fire, such as a heater, microwave oven, stove, water heater, radiator, or candle.

• Using an unapproved or incompatible power adapter, charger or battery may cause fire, explosion or other hazards.

• Choose only accessories approved for use with this model by the device manufacturer. The use of any other types of accessories may void the warranty, may violate local regulations and laws, and may be dangerous. Please contact your retailer for information about the availability of approved accessories in your area.

• For pluggable devices, the socket-outlet shall be installed near the devices and shall be easily accessible.

• Ensure that the charger meets the requirements of Clause 2.5 in IEC60950-1/EN60950-1/UL60950-1 and has been tested and approved according to national or local standards.

• Keep the battery away from excessive heat and direct sunlight. Do not place it on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode if overheated. 10• Do not attempt to modify or remanufacture the battery, insert foreign objects into it, or immerse or expose it to water or other liquids. Doing so may lead to fire, explosion, or other hazards.

• Dispose of used batteries in accordance with local regulations. Improper battery use may lead to fire, explosion, or other hazards.

• Areas with flammables and explosives: Do not use the device where flammables or explosives are stored (in a gas station, oil depot, or chemical plant, for example). Using your device in these environments increases the risk of explosion or fire. In addition, follow the instructions indicated in text or symbols. Do not store or transport the device in containers with flammable liquids, gases, or explosives.

• Blasting Caps and Areas: Turn off your device or wireless device when in a blasting area or in areas posted turn off “two-way radios” or “electronic devices” to avoid interfering with blasting operations.

• Medical devices: Please consult your doctor and the device manufacturer to determine if operation of your device may interfere with the operation of your medical device.

• Hospitals: Switch off your wireless device when requested to do so in hospitals, clinics or health care facilities. These requests are designed to prevent possible interference with sensitive medical equipment.

• Aircraft: Switch off your wireless device whenever you are instructed to do so by airport or airline staff. Consult the airline staff about the use of wireless devices on board the aircraft, if your device offers a ‘flight mode’ this must be enabled prior to boarding an aircraft. 11Disposal and recycling information The crossed-out wheeled-bin symbol on your product, battery, literature or packaging reminds you that all electronic products and batteries must be taken to separate waste collection points at the end of their working lives; they must not be disposed of in the normal waste stream with household garbage. It is the responsibility of the user to dispose of the equipment using a designated collection point or service for separate recycling of waste electrical and electronic equipment (WEEE) and batteries according to local laws. Proper collection and recycling of your equipment helps ensure electrical and electronic equipment (EEE) waste is recycled in a manner that conserves valuable materials and protects human health and the environment, improper handling, accidental breakage, damage, and/or improper recycling at the end of its life may be harmful for health and environment. For more information about where and how to drop off your EEE waste, please contact your local authorities, retailer or household waste disposal service or visit the website http://consumer.huawei.com/en/. Reduction of hazardous substances This device and its electrical accessories are compliant with local applicable rules on the restriction of the use of certain hazardous substances in electrical and electronic equipment, such as EU REACH, RoHS and Batteries (where included) regulations. For declarations of conformity about REACH and RoHS, please visit our web site http://consumer.huawei.com/certification

EU regulatory conformance RF exposure requirements 12Important safety information regarding radio frequency (RF) radiation exposure: RF exposure guidelines require that the device be used at a minimum of 0.50 cm from the human body. Failure to observe this guideline may result in RF exposure exceeding limits. Certification information (SAR) This device meets guidelines for exposure to radio waves. Your device is a low-power radio transmitter and receiver. As recommended by international guidelines, the device is designed not to exceed the limits for exposure to radio waves. These guidelines were developed by the International Commission on Non-Ionizing Radiation Protection (ICNIRP), an independent scientific organization, and include safety measures designed to ensure the safety of all users, regardless of age and health. The Specific Absorption Rate (SAR) is the unit of measurement for the amount of radio frequency energy absorbed by the body when using a device. The SAR value is determined at the highest certified power level in laboratory conditions, but the actual SAR level during operation can be well below the value. This is because the device is designed to use the minimum power required to reach the network. The SAR limit adopted by Europe is 2.0 W/kg averaged over 10 grams of tissue, and the highest SAR value for this device complies with this limit. Statement Hereby, Huawei Technologies Co., Ltd. declares that this device E5785-92c is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The most recent and valid version of the DoC (Declaration of Conformity) can be viewed at http://consumer.huawei.com/certification

This device may be operated in all member states of the EU. 13Observe national and local regulations where the device is used. This device may be restricted for use, depending on the local network. Restrictions in the 2.4 GHz band: Norway: This subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny-Ålesund. Restrictions in the 5 GHz band: According to Article 10 (10) of Directive 2014/53/EU, the packaging shows that this radio equipment will be subject to some restrictions when placed on the market in Belgium (BE), Bulgaria (BG), the Czech Republic (CZ), Denmark (DK), Germany (DE), Estonia (EE), Ireland (IE), Greece (EL), Spain (ES), France (FR), Croatia (HR), Italy (IT), Cyprus (CY), Latvia (LV), Lithuania (LT), Luxembourg (LU), Hungary (HU), Malta (MT), Netherlands (NL), Austria (AT), Poland (PL), Portugal (PT), Romania (RO), Slovenia (SI), Slovakia (SK), Finland (FI), Sweden (SE), the United Kingdom (UK), Turkey (TR), Norway (NO), Switzerland (CH), Iceland (IS), and Liechtenstein (LI). The WLAN function for this device is restricted to indoor use only when operating in the 5150 to 5350 MHz frequency range. Frequency Bands and Power (a) Frequency bands in which the radio equipment operates: Some bands may not be available in all countries or all areas. Please contact the local carrier for more details. (b) Maximum radio-frequency power transmitted in the frequency bands in which the radio equipment operates: The maximum power for all bands is less than the highest limit value specified in the related Harmonized Standard. The frequency bands and transmitting power (radiated and/or conducted) nominal limits applicable to this radio equipment are as follows: WCDMA900/2100:25.7dBm,LTE 14Band 1/3/7/8/20/38/40:25.7dBm,LTE Band42/43:26dBm,Wi-Fi 2.4G:20dBm,Wi-Fi 5G: 5150-5350MHz:23dBm,5470-5725MHz:30dBm. Accessories and Software Information Some accessories are optional in certain countries or regions. Optional accessories can be purchased from a licensed vendor as required. The following accessories are recommended: Adapters: HW-050200X02 (X represents the different plug types used, which can be either C, U, J, E, B, A, I, R, Z or K, depending on your region) Batteries: HB824666RBC The product software version is 10.0.1.1(H191SP3C00). Software updates will be released by the manufacturer to fix bugs or enhance functions after the product has been released. All software versions released by the manufacturer have been verified and are still compliant with the related rules. All RF parameters (for example, frequency range and output power) are not accessible to the user, and cannot be changed by the user. For the most recent information about accessories and software, please see the DoC (Declaration of Conformity) at http://consumer.huawei.com/certification. Please visit http://consumer.huawei.com/en/support/hotline for recently updated hotline and email address in your country or region. 15Insertion de la carte SIM Insérez la carte SIM dans le logement avec la puce orientée vers le bas et le côté biseauté vers l'extérieur. micro-SIM (3FF) mini-SIM (2FF) nano-SIM (4FF) Français 16Mise sous tension du Mobile WiFi Appuyez et maintenez le Bouton d'alimentation pour mettre sous tension le Mobile WiFi. Votre Mobile WiFi recherche automatiquement des signaux de réseau de données mobiles après sa mise sous tension. Référez-vous à la section Questions fréquentes ci- dessous si le Mobile WiFi ne reçoit aucun signal ou si la réception du signal est faible. 17Accès à Internet Connectez votre appareil au Mobile WiFi pour accéder à Internet. Appuyez sur le bouton MENU sur votre Mobile WiFi pour accéder à l’écran de menu et voir le nom du réseau Wi-Fi
