USER MANUAL MeoPro 8x42 HD Meopta

Thank you for your trust in the Meopta brand.

MeoPro binoculars are representative of the traditional quality of Meopta - optika, s.r.o. The binoculars are manufactured from premium materials; top-quality optical glass is used for all optical elements.

All binoculars are designed to be 100% water-proof and dust-proof and are filled with an inert gas.

In the event of a complaint or any defect, contact your dealer or the manufacturer directly - Meopta - optika, s.r.o.

For information about our products, news and dealers, visit

www.meoptasportsoptics.com.

MeoPro HD

EN

Aluminum body

Aircraft grade aluminum alloy body

Nitrogen purged and sealed

Binoculars are sealed and filled with inert nitrogen gas, and protected from internal condensation build up

Ergonomic

Perfectly balanced ergonomic design

Waterproof

The binoculars are fully waterproof even when immersed in water and they are completely protected against humidity, rain and snow

Shock resistant

The robust mechanical structure and rubber armouring guarantee durable shock resistance

HD

HD optics eliminates secondary chromatic aberration

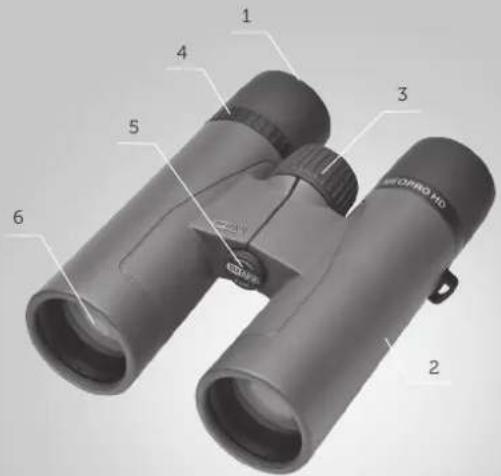

1 Eyepiece with twist-up eyec
2 Rubber-coated binocular body (left- and right-hand oculars)
3. Focusing knob

1. Dioptric correction knob
2. Binocular central joint with a threaded tripod mount (after unscrewing the plastic cover)
3. Objective lens

01

Interpupillary distance adjustment

03

Adjusting the dioptic correction

Dioptric correction adjustment procedure

Cover the right objective with the cap
- Focus using knob #3
- Uncover the right objective and cover the left objective with the cap
- Focus using knob #4 (make sure not to turn knob #3 in the process)

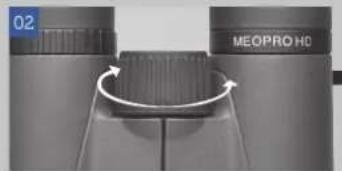

Focusing

04

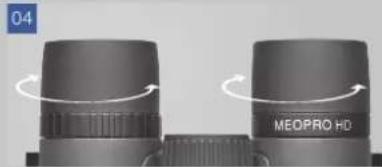

Adjusting the twist-up eyecups

Maintenance and Cleaning

Important!

1. Protect the binocular from falling and hard impact
2. Only clean the glass as recommended
3. Protect the glass with caps

All Meopta binoculars feature a robust dust-proof and water-proof design but, like any other optomechanical devices, they require careful handling and protection of the optical surfaces against damage. When a scope is not being used, its outer optical surfaces should be protected with the supplied caps. Dust deposited on the mechanical parts of the scope should be removed with a soft cloth:

dust on the optical components should be blown off or wiped off gently with the antistatic cloth supplied with the scope. After using the binocular in the rain, thorough drying with a soft cloth is recommended. Make sure to store the binocular in a dry, ventilated area. For storage in humid or tropical conditions we recommend to place the binocular in a case, together with a moisture absorbing agent such as silica gel.

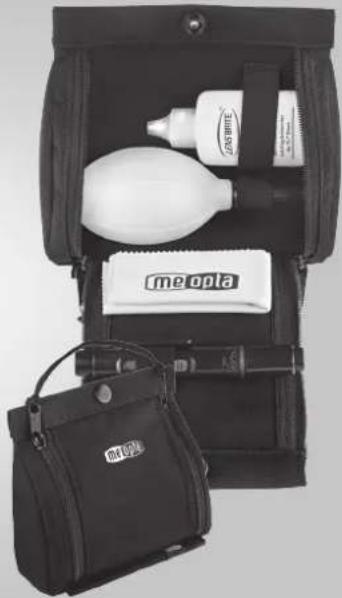

Optical Cleaning Kit

A special Meopta cleaning kit can be purchased to clean your optical device. It contains a high-quality 2-in-1 brush, lens cloth, cleaning blower, and cleaning liquid.

Disposal-related Instructions:

Upon the expiration of its lifetime, dispose of the equipment as O-category waste - catalogue number 200301 - mixed community waste.

MeoPro HD

EN

Model	8x32	10x32	8x42	10x42	8x56
Magnification	8x	10x	8x	10x	8x
Optical lens diameter (mm)	32	32	42	42	56
Field of view (°)	8,4	6,7	7,2	6,7	6
Field of view (m/1000m)	148	117	126	117	105
Eye relief (mm)	17	15	20	17	18,5
Minimum observing distance (m)	2	2	2	2	2,2
Exit pupil diameter (mm)	4,0	3,2	5,3	4,2	6,7
Dioptric range of eyepiece (Dpt)	±3	±3	±3	±3	±3
Weight (g)	598	598	730	715	1030

PerynnpOBKa BbIDBxKbIX Opipa OkyIpa

06cnyxmbHne n oucnTka

Baxho!

1.6nHokn npedoxpaHnTe OT naeHnN ydapOB o TBepdbie npedMeTbI
2. ouctky ontnuecknx nobepxhocte npoBOaTe TOnbKO peKOMeHIOBaHHbIM cnoc6om
3. 3aunuae onTueckne nobepxHocn KpbuKamn

BnHOKn Meopta MEmOT MaCCNBHyIO PbIeHeHnpHuaemyIO BODOpHepOnHuaeMyIO KOHCTpyKuIO, Ondako
aHaIOrTuHO BCEM OTNtKO-MexAHueckMm Pn6bOpam
Tpe6yIot 6bePknHOO6paJIeHnI N3aunTbONTHueckHX
NoBepxHoTeO TOnOBpEJdHn. Ecnbl He nOblteTcB
BnHOKmK, TO peKOMeHyEM 3auHqatb BHeWHiNE
OTNHueckMe NOBEPXHOCTn PnIOKeHHbIMKn KpbIuKaAM.
PbIb, OcaJaIOUaCRA Ha MexaHuecko Yactn BnHOKn,

MOKETbYdaneHaTOHKOITKaHbIO,CONTWHECKHXJc
aHTeOHMOKETbYdaneHaO6yBKOIINNEKHM
OBtPnAHmAHTNCTATWHeCKoCAnfTeKOn,KOTOPAR
pInnaraTcRKnPb6OpbyEcnNoNb3yETcB
BDOkNHyBOIPOrOy，PEKOMeHDyETcERoTtAEtBHO
BbCYuNTbMRTKOITKaHbIO.

BIOKINX XpAHNTBE CYXOM, NPOBETPBAEMOM MECTE. B CNYAE xpaHEHNAO B OYEBN BAAKNBHX IN TPONNCECKMX YCBOBHX pOKEMDEYTCR NOMCTNTB PnIPOB B OFTJNR BMECTC C NORNOTENEM BNARH, HANP, CINNKARENEM.

KOMNNEKTJIAOCHTKONTUKN

ДЯ OЧТКИ CBOHX ONTNUHECKIX PNP6OB BBy MOKTe прOBPECTN YHAHN DINOPEB CNEUANHBn HABOP DЯ ОчNTKII MeOPTA, KUSTOKA «21n1», CNEUANHBa canФETKa, 06dYbOuHbI WAPNK, NCTHmI PaCTBOp

Yka3aHn no yTuMn3auu:

Nocpe okohannepcoka cnybbl ytnnnnpynte
obopyoanhaK kao xTObbl kateropnO -kataonkhbl
Homep 200301-cmeaahnhbl komyHahlbhbe otXdb.

MeoPro HD

RU
