USER MANUAL CR010 DOMO

WARRANTY Dear client , All of our products are always submitted to a strict quality control before they are sold to you. Should you nevertheless experience problems with your device, we sincerely regret this. In that case, we kindly request you to contact our customer service. Our sta will gladly assist you. +32 14 21 71 91 info@linea2000.be Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00 Friday: 8.30 – 12.00 and 13.00 – 16.30 This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it. The guarantee on accessories and components that are liable to wear-and-tear is only 6 months. The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.

• In case of incorrect connection, e.g., electrical voltage that is too high.

• In case of incorrect, rough or abnormal use.

• In case of insucient or incorrect maintenance.

• In case of repairs or alterations to the device by the consumer or non-authorised third parties.

• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer. SAFETY INSTRUCTIONS When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.

• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the rst time. Make sure children cannot play with the packaging materials.

• This appliance is intended to be used in household and similar applications such as:

• sta kitchen areas in shops, oces and other working environments;

• by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments.

• Children should be supervised to ensure that they do not play with the appliance.

• This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given31 Domo CR010 www.domo-elektro.be

supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 16 and supervised.

• Keep the appliance and its cord out of reach of children younger than 16 years.

• Attention: This appliance cannot be used with an external timer or a separate remote control.

• Before use, check if the voltage stated on the appliance corresponds with the voltage of the power net at your home.

• Do not let the cord hang on a hot surface or on the edge of a table or counter top.

• Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualied service center for check-up and repair.

• Close supervision is necessary when the appliance is used near or by children.

• The use of accessories that are not recommended or sold by the manufacturer can cause re, electrical shock or injuries.

• Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Unplug the appliance by grasping the plug. Never unplug by pulling the cord.

• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

• Do not use the appliance outdoors.

• Only use the appliance for its intended use.

• Always use the appliance on a steady, dry and level surface.

• The manufacturer can not be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.

• All repairs should be carried out by the manufacturer or its aftersales service.

• Never immerse the appliance, the cord or the plug in water or any other liquid.

• Make sure that children do not touch the cord or appliance.

• Keep the cord away from sharp edges and hot parts or other heat sources.

• Before use, remove all packaging materials and any promotional stickers.

• Keep the ventilation openings free of obstructions.

• Do not use any other electrical appliance inside the fridge, unless they are approved for this purpose by the manufacturer.

• Do not keep any explosive substances inside the appliance, like for instance aerosol cans with a ammable propellant.

• Make sure that the refrigerant circuit does not get damaged, for instance during transportation or installation.

• Make sure that the plug does not get squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause re.

• Make sure that you have access to the plug of the appliance.

• Do not pull the cord.

• If the socket is loose, do not plug in the appliance. (risk of electric shock or re)

• This is a heavy appliance. Be careful when moving it.32 Domo CR010

• Remove the exterior and interior packing, wipe the outside thoroughly with a soft dry cloth and the inside with a wet, lukewarm cloth.

• Avoid direct sunlight and heat. Direct sunlight may aect the acrylic coating. Heat sources nearby will cause higher electricity consumption.

• Avoid very moist places.

• Before connecting your refrigerator to the power supply, check that the voltage stated on the rating label of your appliance corresponds to the voltage in your home. A dierent voltage could damage the appliance.

• Make sure that the air can circulate around the refrigerator.

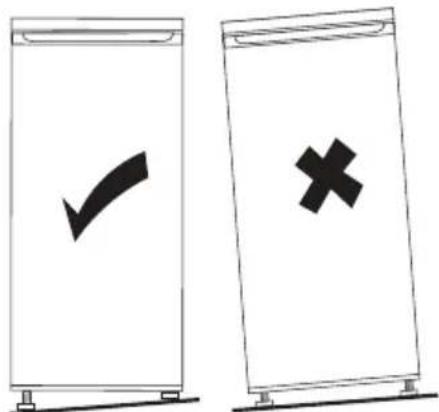

• For uneven surfaces, front feet can be aligned.

• Allow the appliance to stand for 2 hours before turning it on. This allows the cooling agent to settle.

• After installation, leave the freezer for 12 hours before turning it on. This way the refrigerant can settle.

DOOR CONVERSION The freezer has a reversible door. If you need to hinge your door on the opposite side it is recommended that you call your local authorised service agent to make this conversion or ask a technician. Before you reverse the door, you should ensure the appliance is unplugged and empty.

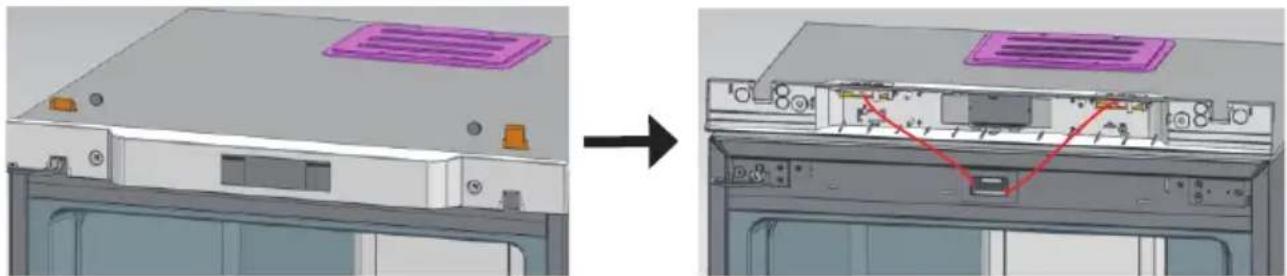

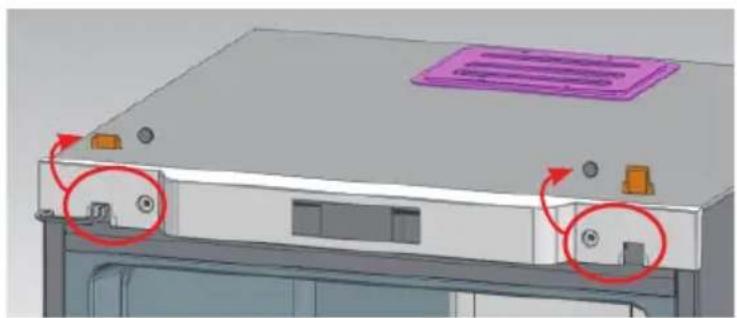

1. Remove the cover plates from the screws.

2. Remove the decorative nish of the control.

3. Unscrew the screws of the hinge. Lift the door and place it on a soft surface to avoid scratching.

Remove the hinge from the door.

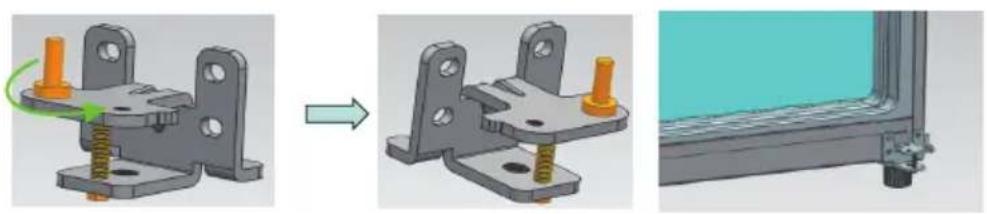

4. Loosen the hinge pin of the bottom hinge bracket. Re-fasten the pin on the other side. Attach the

bracket to the right side of the refrigerator.

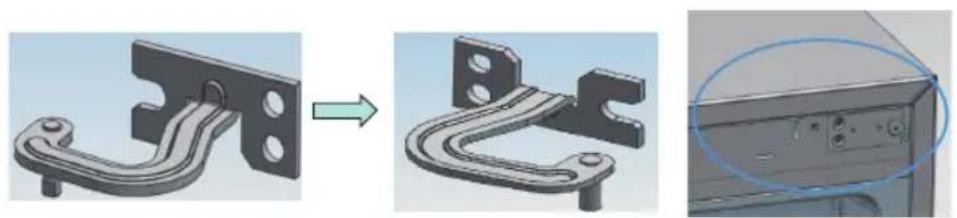

5. Reverse the top hinge pin and fasten it to the right side of the refrigerator.34

6. Fasten the top hinge at the place are provided on the right-hand side of the door. Place the door on

the bottom hinge pin. Fasten the top hinge last.

7. Finally, replace the decorative nish of the control and the cover plates.

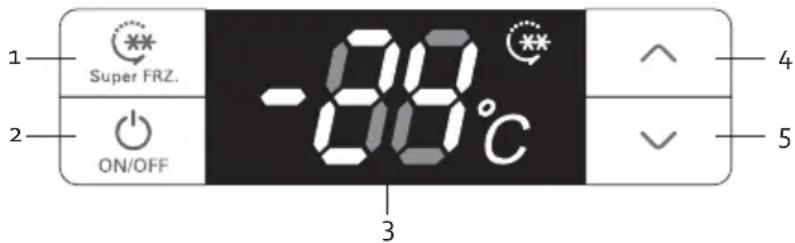

4. Button for raising temperature and setting the Super Freeze time.

5. Button for lowering temperature and setting the Super Freeze time.

1. Super Freeze function

This function allows you to lower the temperature to -24°C for a specic amount of time. Use this function for freezing fresh food. Press the button for 3 seconds to start the Super Freeze function. The Super Freeze icon will be displayed. Set the desired time between 6 and 48 hours. The default setting is 6 hours. If you have not set the time within 5 seconds, the function will start automatically. If you still want to adjust the time, you must press the button for the Super Freeze function again. Once the set time has passed, the thermostat will return to the temperature selected before setting the Super Freeze function. In order to turn o the Super Freeze function, press and hold the Super Freeze button for 3 seconds or adjust the temperature using the buttons for raising/lowering the temperature. The Super Freeze icon will disappear from the display.

Press this button for 3 seconds to turn the appliance on or o. A signal will sound.

The temperature will appear on the display. The standard temperature is -18°C. If the door is not opened or if no buttons are pressed for 30 seconds, the display will go into standby mode. If the door is open, the display will remain on. If a problem occurs, the display will show an error code. The display will then go into standby mode after 30 seconds. 4 + 5. Buttons for raising/lowering the temperature These buttons allow you to set the temperature between -16°C and -24°C.35 Domo CR010 www.domo-elektro.be

ALARM If the door is open for longer than 2 minutes, an alarm will sound. Close the door to prevent the refrigerator from warming up. To stop the alarm without closing the door, press any button on the control. If there is a problem, an error code will appear on the display and an alarm will sound. To stop the alarm, press any button on the control. If the temperature is above -8°C for longer than 6 hours, an alarm will sound. The alarm will sound every second for 10 minutes. After that, the alarm will sound every 30 minutes. The code E9 will appear on the display. The alarm will stop when the temperature goes below -12°C. To stop the alarm, press any button on the control. The error on the display will remain visible until the problem is resolved. FREEZING AND STORING FOOD IN THE FREEZER Use the freezer

• To store deep-frozen food.

• To freeze food. Note: Ensure that the freezer door has been closed properly. Avoid opening the freezer drawers unnecessarily. Purchasing frozen food

• Packaging must not be damaged.

• Use by the ‘use by /best before/best by/’ date.

• If possible, transport deep-frozen food in an insulated bag and place quickly in the freezer. Freezing fresh food Freeze fresh and undamaged food only. To retain the best possible nutritional value, avour and colour, vegetables should be blanched before freezing. Aubergines, peppers, zucchini and asparagus do not require blanching. Note: Keep food to be frozen away from food which is already frozen.

• The following foods are suitable for freezing: Cakes and pastries, sh and seafood, meat, game, poultry, vegetables, fruit, herbs, eggs without shells, dairy products such as cheese and butter, ready meals and leftovers such as soups, stews, cooked meat and sh, potato dishes, soués and desserts.

• The following foods are not suitable for freezing:Types of vegetables, which are usually consumed raw, such as lettuce or radishes, eggs in shells, grapes, whole apples, pears and peaches, hard-boiled eggs, yoghurt, soured milk, sour cream, and mayonnaise. Packing frozen food To prevent food from losing its avour or drying out, place food in airtight packaging.

1. Place food in packaging.

4. Label packaging with contents and dates of freezing.

Suitable packaging: Plastic lm, tubular lm made of polyethylene, aluminium foil, freezer containers. Recommended storage times of frozen food in the freezer These times vary depending on the type of food. The food that you freeze can be preserved from 1 to 12 months (minimum at -18°C).36 Domo CR010

Food Storage time Bacon, casseroles, milk 1 month Bread, ice cream, sausages, pies, prepared shellsh, oily sh 2 months Non-oily sh, shellsh, pizza, scones and muns 3 months Ham, cakes, biscuits, beef and lamb chops, poultry pieces 4 months Butter, vegetables (blanched), eggs whole and yolks, cooked craysh, minced meat (raw), pork (raw) 6 months Fruit (dry or in syrup), egg whites, beef (raw), whole chicken, lamb (raw), fruit cakes 12 months Never forget:

• When you freeze fresh foods whit a ‘use by /best before/best by/’ date, you must freeze them before the expiry of this date.

• Check that the food was not already frozen. Indeed, frozen food that has thawed completely must not be refrozen.

• Once defrosted, food should be consumed quickly.

CLEANING AND MAINTENANCE

CLEANING Do not use abrasive cleaning agents or solvents.

1. Turn the appliance o. Disconnect the mains plug from the mains socket.

2. Take out the food and store in a cool location.

3. Clean the appliance with a soft cloth, warm water and detergent.

4. Wipe the door seal with clear water only and then wipe dry thoroughly.

5. After cleaning reconnect and adjust the temperature control knob as desired.

6. Put the food back into the appliance.

VACATION TIME For short vacation periods, leave the control knobs at their usual settings. During longer absences;

• Disconnect from electrical outlet.

• Clean the refrigerator thoroughly, including defrost pan.

• Leave door open to avoid possible formations of condensate, mold or odors. POWER FAILURE

• Most power failures are corrected within an hour or two and will not aect your refrigerator temperatures. However, you should minimize the number of door openings while the power is o. During power failures of longer duration, take steps to protect your food by blacking dry ice on top of packages.

• Frozen food should not be aected if the power failure lasts for less than 15 hours.

• Do not refreeze frozen foods that have thawed completely. The food may be dangerous to eat.37 Domo CR010 www.domo-elektro.be

TROUBLE SHOOTING Frequently, a problem is minor and a service call may not be necessary, use this trouble shooting guide for a possible solution. Error codes E2 Failure of temperature sensor in freezer E5 Failure of defrost sensor E6 Communication error E7 Failure of ambient temperature sensor E9 Alarm with high temperature EC EEPROM power failure Does not work.

• Check connection of power cord to power source.

• Use proper voltage. The appliance is too cold.

• The temperature has been set too cold. Raise the temperature slightly. The food is not frozen.

• The temperature has not been set correctly. Reset the temperature.

• The door has been left open too long. Only open the door when it is necessary.

• The appliance is positioned too close to a source of heat. Formation of ice on the seal of the door.

• The seal of the door does not seal properly. Thaw the ice on the seal and reshape the rubber with your hand so that the door closes properly. Unusual noise. The appliance is touching the wall or another object. Gently move the appliance.38 Domo CR010

ENVIRONMENTAL GUIDELINES This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city oce, your household waste disposal service or the shop where you purchased the product. The packaging is recyclable. Please treat the packaging ecologically.39 Domo CR010 www.domo-elektro.be ENLINEA 2000 bvba - Dompel 9 - 2200 Herentals - Belgium - Tel: +32 14 21 71 91 - Fax: +32 14 21 54 63 BESTEL de originele Domo-accessoires en -onderdelen online via: of scan hier: COMMANDEZ d’authentiques accessoires et pièces Domo en ligne sur: ou scannez ici: BESTELLEN SIE die Domo Original-Zubehör und -Ersatzteile online über: oder hier scannen: ORDER the original Domo accessories and parts online at: or scan here: webshop.domo-elektro.be Webshop
