Product type	Infrared patio heater
Brand	DOMO
Model	DO7342TV
Installation	Wall-mounted or on stand (foot)
Power supply	Electric, mains
Nominal voltage	220-240 V ~
Power	2000 W (estimated)
Wall mounting height	Minimum 1.8 m from the ground
Operating angle	Between 13° and 43°
Water resistance	Water resistant, do not expose to persistent rain
Safety	Limited angle to prevent tipping, on/off switch
Material	Metal and glass (infrared lamp)
Maintenance	Clean with a damp cloth, do not immerse
Warranty	2 years
Supplied accessories	Stand, wall mounting kit, screws, wall plugs, brackets
Repairability	Lamp replaceable by a qualified professional
Weight (approximate)	5 kg
Package dimensions	Approx. 60 x 30 x 25 cm (estimated)
Usage	Outdoor (patio, balcony) under shelter
Heating type	Infrared, direct radiation

Frequently Asked Questions - DO7342TV DOMO

How to install the DO7342TV heater on a wall?

Attach the 4 brackets to the back of the heating head with the provided screws. Drill 4 holes in the wall (minimum height 1.8 m), insert wall plugs, then fix the wall brackets with bolts. Hang the heating head and adjust it between 13° and 43° before tightening.

Can I use this heater in the rain?

The DO7342TV is water resistant but should not be exposed to persistent rain. It is recommended to use it under a shelter or store it during prolonged bad weather.

What is the recommended heating angle?

The safe operating angle is between 13° and 43° from the horizontal. Do not tilt the head outside this range to avoid the risk of tipping.

How to clean the heater?

Unplug and allow the appliance to cool down. Clean the exterior with a clean, damp cloth. Do not use harsh detergents and never immerse the appliance in water.

What to do if the infrared lamp no longer works?

The lamp must be replaced by a qualified person or by after-sales service. Do not attempt to repair it yourself.

Can I use this appliance with an extension cord?

Only use a suitable extension cord (adequate cross-section, grounded). Avoid cable reels and do not let the cable come into contact with hot surfaces.

Does the heater shut off automatically in case of tipping?

Yes, thanks to the built-in safety feature, the appliance limits its tilt angle. If tilted beyond 43° or below 13°, the heater may turn off to prevent any danger.

What is the warranty of the DO7342TV?

The warranty is 2 years from the date of purchase, covering material and manufacturing defects. Accessories and wear parts are warranted for 6 months. Keep your receipt.

Can I mount the heater on the ceiling?

No, mounting is intended only on the wall or on the supplied stand. Do not install on the ceiling to comply with safety distances.

How to use the heater with the stand?

Attach the brackets to the heating head, screw the feet onto the base, assemble the stand, then place the head on the stand using the studs and nuts. Adjust the height with the adjustment screw.

USER MANUAL DO7342TV DOMO

All of our products are always submitted to a strict quality control before they are sold to you.

Should you nevertheless experience problems with your device, we sincerely regret this.

In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday-Thursday:8.30-12.00 and 13.00-17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

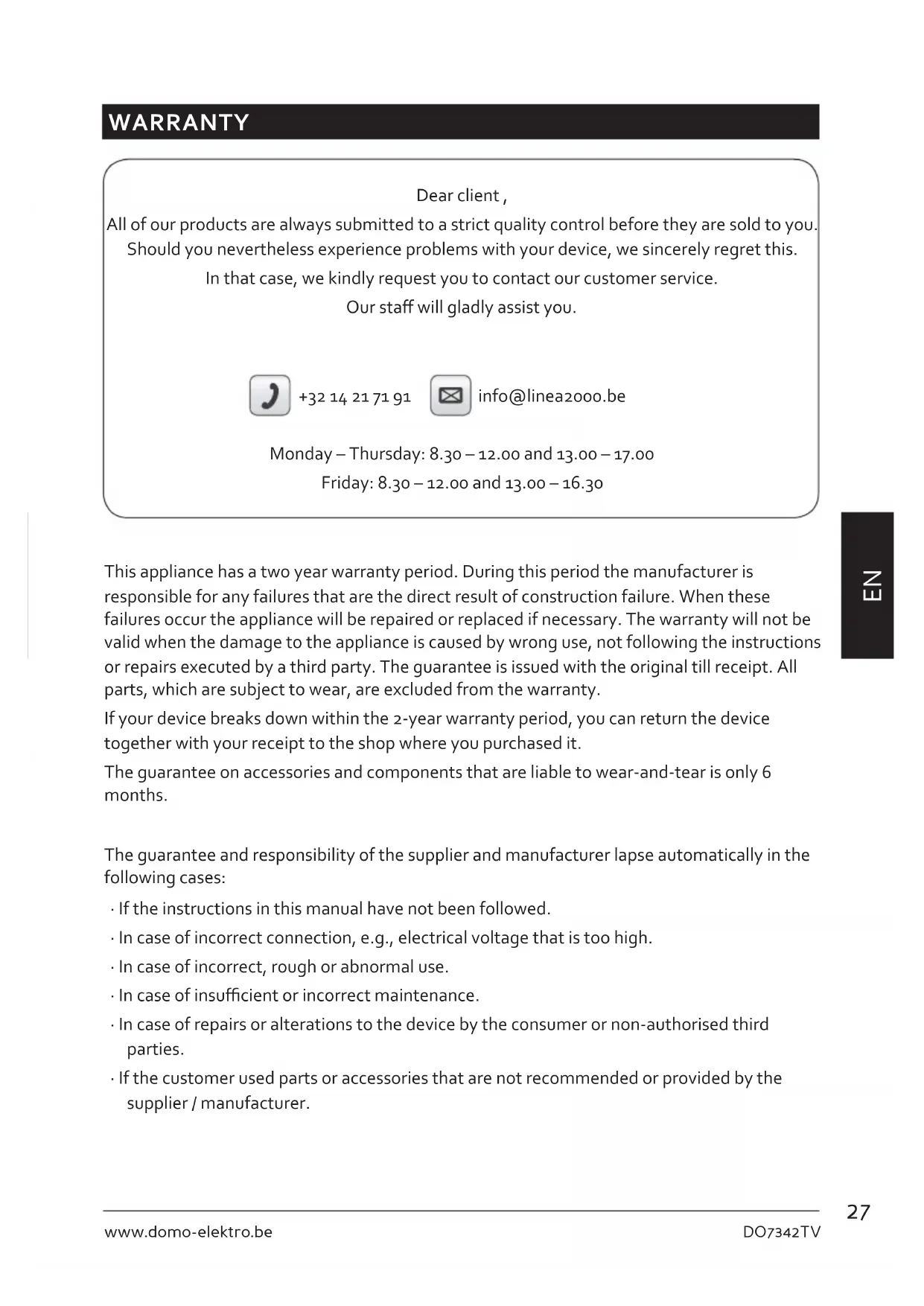

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty.

If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
  In case of incorrect connection, e.g., electrical voltage that is too high.
  In case of incorrect, rough or abnormal use.
  In case of insufficient or incorrect maintenance.
• In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.
  Children should be supervised to ensure that they do not play with the appliance.
• This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 16 and supervised.
• Keep the appliance and its cord out of reach of children younger than 16 years.
• The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• CAUTION: In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

The appliance can become hot during use. Keep the power cord away from hot parts.

Don't cover the appliance.

This heater is not equipped with a device to control the room temperature. Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

• Do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.
• Before use, check if the voltage stated on the appliance corresponds with the voltage of the power net at your home.
• Do not let the cord hang on a hot surface or on the edge of a table or counter top.
• Do not use this appliance indoors.

• Do not move the appliance while in use or when still hot. Allow to cool before moving or before maintenance.

• Check carefully that the voltage and frequency of the power net match the indications on the rating label of the appliance.

• Do not leave a working appliance unattended.
• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.
• Only use the appliance for its intended use.
• Always use the appliance on a steady, dry and level surface.
• Never immerse the appliance, the cord or the plug in water or any other liquid.
• Never place the appliance in the neighbourhood of flammable materials, gases or explosives.
• Do not use the appliance in the neighbourhood of a bath, swimming pool or any other object that contains water.

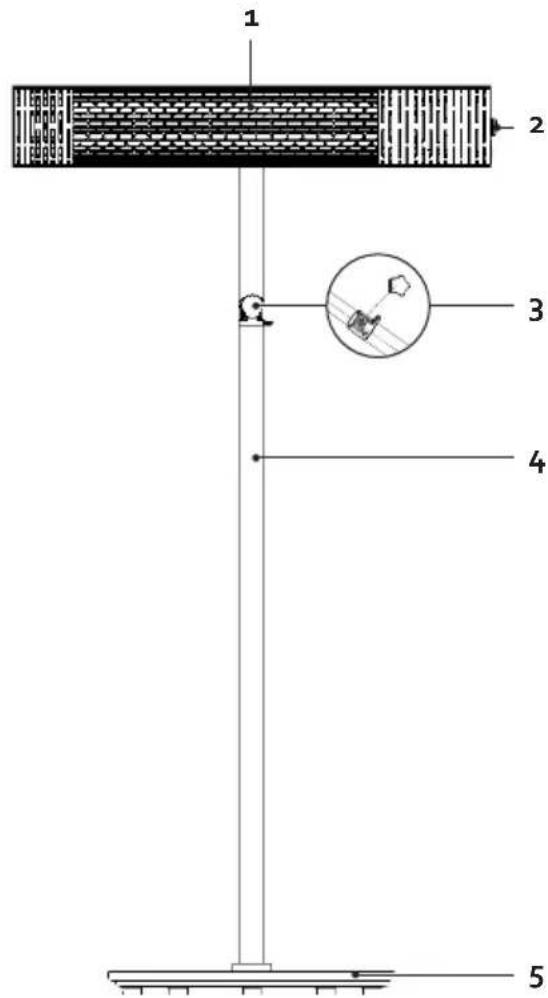

PARTS

1. Heating unit
2. On-off switch
3. Adjustable screw
4. Stand
5. Base

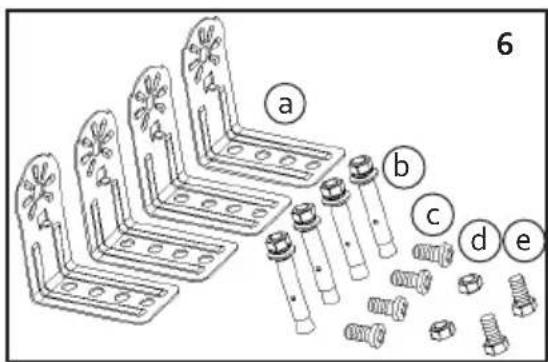

6. Components for mounting

a. 4 Brackets
b. Expansion bolts (quick anchors)
c. 4 Screws for heating unit
d. Nuts
e. Bolts

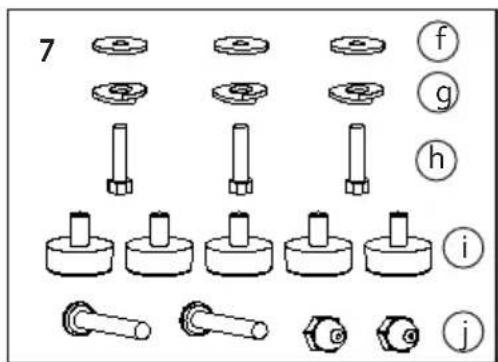

1. Components of base

f. Flat washers
g. Washers
h.3 Screws for base
i. Feet
j. Metal pins with nut

INSTALLATION

• Installation should be done by an expert or qualified person.
• Make sure that the appliance is turned off, has cooled down and that the plug has been removed from the socket before installing the appliance.
• You may choose a wall mount or mounting on a stand.

• Keep the cord at a sufficient distance from the heat source and the housing of the heating unit.

• The terrace heater is water-resistant, but it may not be left to stand in persistent rain. We recommend storing the appliance in a dry location if you will not be using it for a longer time period or during the winter period.

• Use only the accessories provided.

• Use the appliance only if it has been properly installed.
• Always use the appliance on a sturdy, dry, even surface.

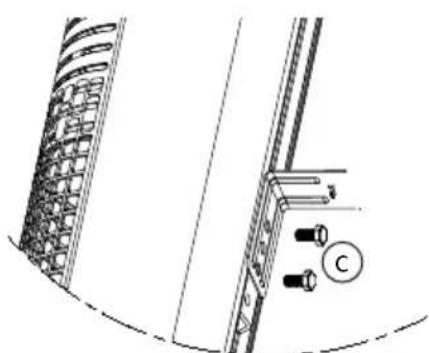

MOUNTING ON THE STAND

• Mount the 2 brackets with extra holes on the back of the heating unit with the 4 screws provided.

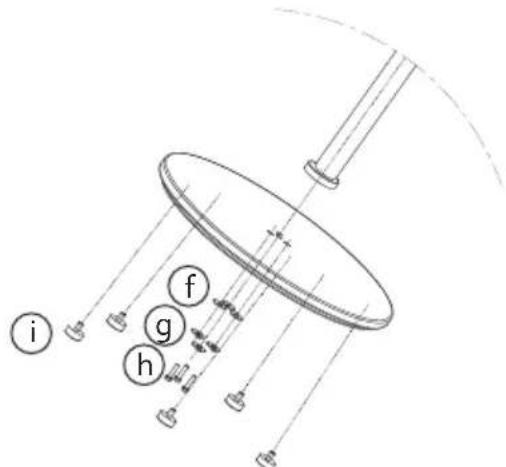

• Screw the feet into the bottom of the base.
• Position the stand on the base and mount it with the flat washers, the washers and the 3 screws.

乙

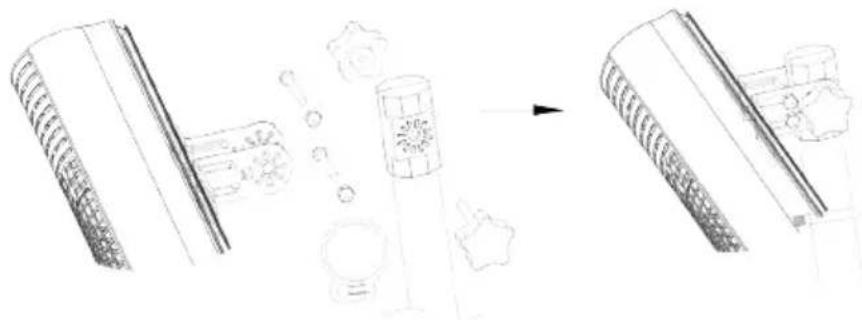

• Mount the heating unit on the top of the stand. Feed the metal pins through the extra holes in the brackets and use the nuts to fasten them. Aim the heating unit in the desired position and secure it tightly.

• Caution: the appliance must be mounted such that the on-off switch is on the right-hand side when facing the appliance and looking at the lamp.

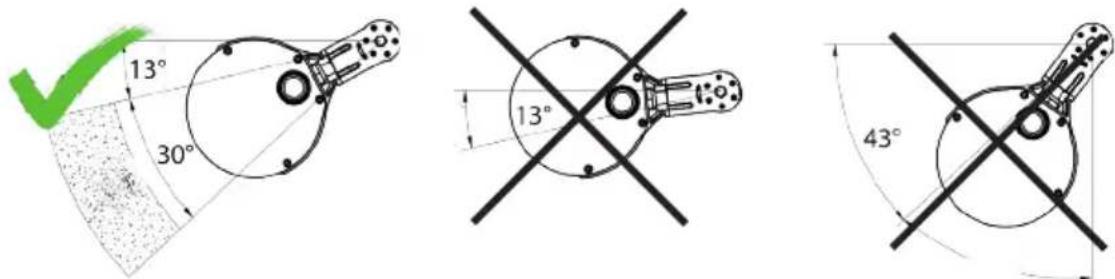

• Caution: the appliance is equipped with a safeguard. The working angle is therefore restricted to between 13^ and 43^ . This prevents the unit from being aimed too high or too low. By installing the metal pins, the heating unit cannot be tilted any further.

• Adjust the stand to the desired height and tighten the screw with the adjustment screw on the stand.

• There is a cord clamp on the stand. Remove it, pull the cord through, and refasten the clamp.

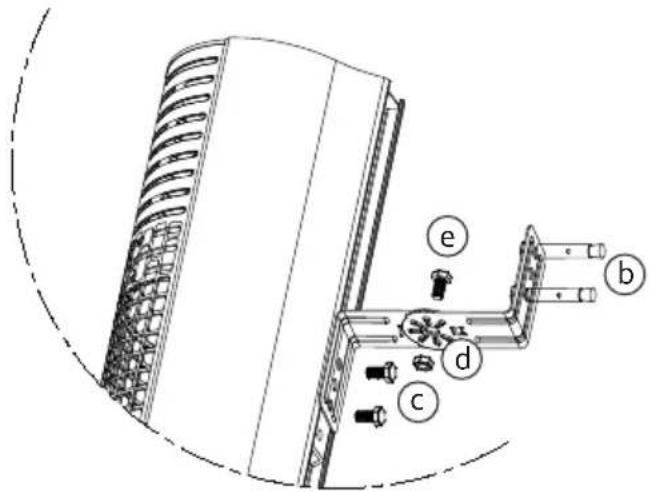

WALL MOUNTING

• Mount the 4 brackets to the backside of the heating unit with the screws provided.
• The heating unit must be positioned at least 1.8m above the ground and at least 0.5m away from adjacent walls and ceiling.
  Measure the correct distance for the drill holes and drill the 4 holes in the wall.
• Place the expansion bolts (quick anchors) in the wall. Screw in the nuts of the expansion bolts and remove the pinions. Mount the other 2 brackets on the expansion bolts. Then

position the pinions and the nuts on the bolts and fasten them securely.

• Fasten the brackets of the heating unit to the brackets on the wall with the nuts and bolts. Set the heating unit in the desired position before tightening the nuts.

• Caution: the appliance must be mounted such that the on-off switch is on the right-hand side when facing the appliance and looking at the lamp.

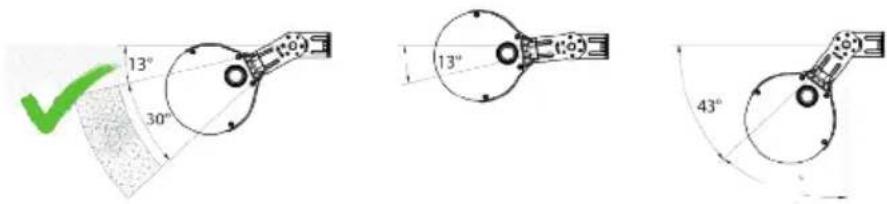

• Caution: the appliance is equipped with a safeguard. The working angle is therefore restricted to between 13^ and 43^ . This prevents the unit from being aimed too high or too low.

USE

Prior to initial use, remove all packaging materials and any promotional stickers. Put the plug in the socket. Turn the terrace heater on with the on/off switch.

CLEANING AND MAINTENANCE

• Turn the appliance off and remove the plug from the socket. Make sure that the appliance has cooled.
• Never immerse the appliance or the plug in water.
• Clean the outside with a clean damp cloth. Dry the appliance off well. Never use aggressive or abrasive cleaning agents.
• If dirt or dust has collected inside the appliance, this must be cleaned by a qualified person or customer services. Do not use the appliance until it has been cleaned.
• If the lamp is defective, it must be replaced by a qualified person or customer services.

ENVIRONMENTAL GUIDELINES

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Z

The packaging is recyclable. Please treat the packaging ecologically.
