USER MANUAL LICM25S Limit

Abstract black and white logo with stylized 'L' and dot (no text or symbols)

Limit.

MODEL/ MODELE: LICM25S

Microwave Oven

INSTRUCTION MANUAL

MODEL: LICM25S

Read these instructions carefully before using your microwave oven, and keep it carefully.

If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Specifications

Model:	LICM25S
Rated Voltage:	230V~50Hz
Rated Input Power(Microwave):	1500W
Rated Output Power(Microwave):	900W
Rated Input Power(Grill):	1400W
Rated Input Power(Convection):	2400W
Oven Capacity:	25L
Turntable Diameter:	315mm
External Dimensions(LxWxH):	513× × 307mm401
Net Weight:	Approx. 16.65 kg

IMPORTANT SAFETY INSTRUCTIONS WARNING

To reduce the risk of fire, electric shock, injury to personor exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including he following:

1. Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
2. Warning: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

3. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been givensupervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

4. Keep the appliance and its cord out of reach of children less than 8 years.

5. Only use utensils suitable for use in microwave ovens.

6. The oven should be cleaned regularly and any food deposits should be removed.

7. Read and follow the specific:"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".

8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

9. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

10. Do not overcook food.

11. Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.

12. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.

13. Install or locate this oven only in accordance with the installation instructions provided.

14. Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

15. This appliance is intended to be used in household and similar applications such as:

-staff kitchen areas in shops, offices and other working environments;

-by clients in hotels, motels and other residential type environments;

-farm houses;

-bed and breakfast type environments.

1. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

2. Do not store or use this appliance outdoors.

3. Do not use this oven near water, in a wet basement or near a swimming pool.

4. The temperature of accessible surfaces may be high when the appliance is operating. The surfaces are liable to get hot during use. Keep cord away from heated surface, and do not cover any vents on the oven.

5. Do not let cord hang over edge of table or counter.

6. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
7. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
8. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
9. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
10. Children should be supervised to ensure that they do not play with the appliance.
11. The appliances are not intended to be operated by means of an external timer or separate remote-control system.
12. Accessible parts may become hot during use. Young children should be kept away.
13. Steam cleaner is not to be used.
14. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

15. Only use the temperature probe recommended for this oven. (for ovens provided with a facility to use a temperature-sensing probe.)

16. WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

17. The microwave oven must be operated with the decorative door open. (for ovens with a decorative door.)

18. The rear surface of appliance shall be placed against a wall.
19. The microwave oven shall not be placed in a cabinet unless it has been tested in a cabinet.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

To Reduce the Risk of Injury to Persons Grounding Installation

DANGER

Electric Shock Hazard Touching some of the internal componentscan cause serious personal injury or death.Do not disassemble this appliance.

WARNING

Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.2. If a long cord set or extension cord is used: 1) The marked electrical rating of the cordset or extension cord should be at least as great as the electrical rating of the appliance. 2) The extension cord must be a grounding-type 3-wire cord. 3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

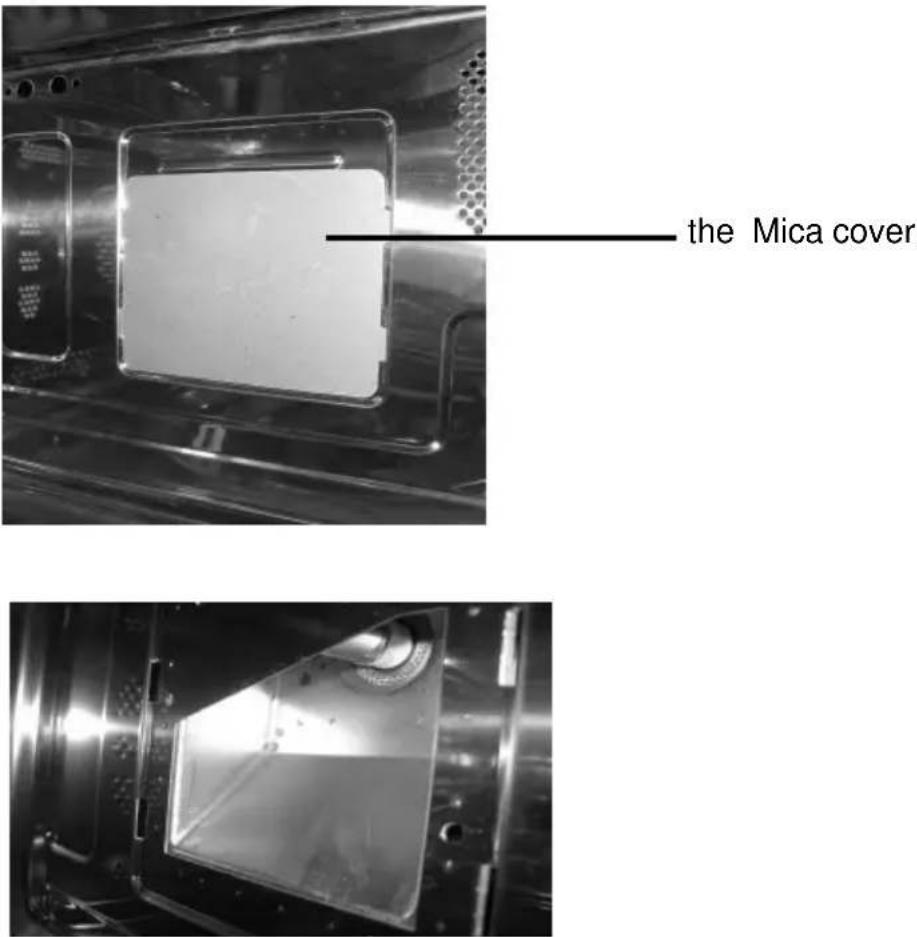

5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

UTENSILS

CAUTION Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils Remarks

Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls.
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils Remarks

Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

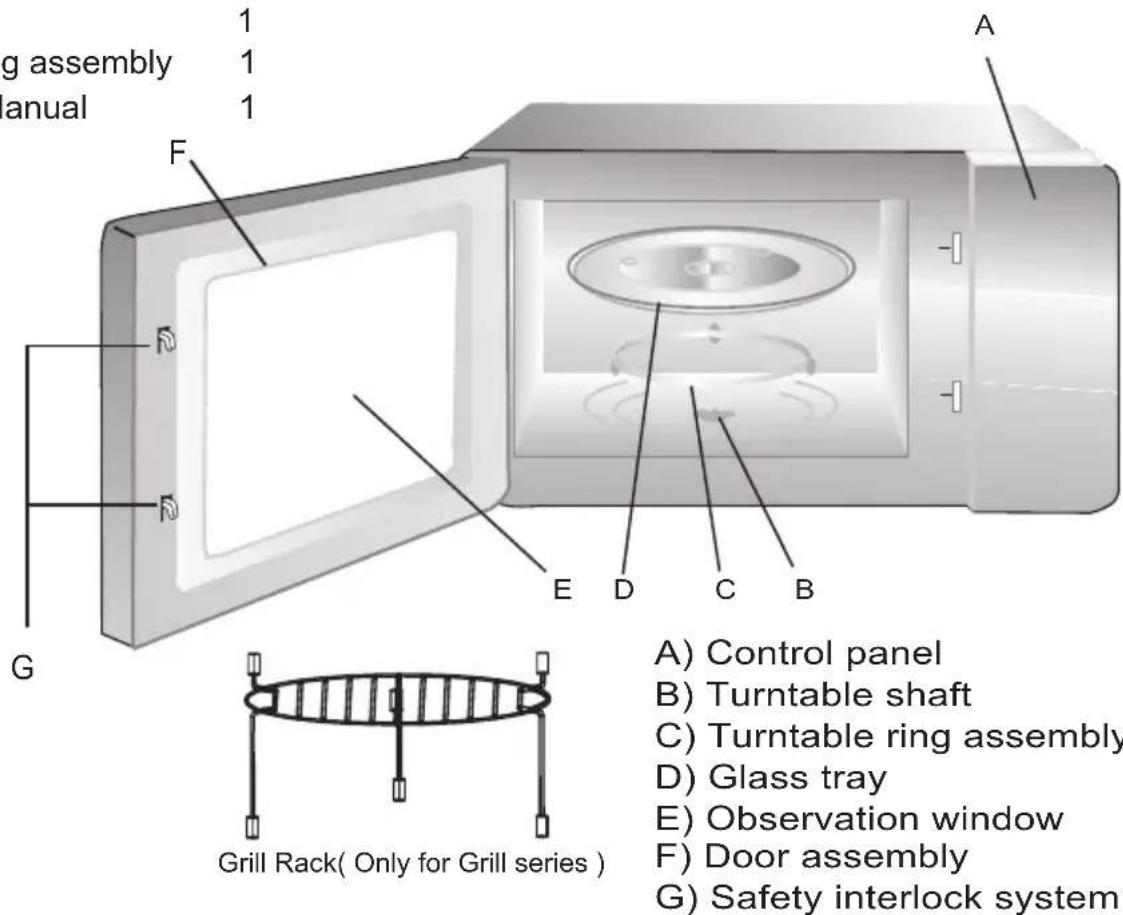

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Glass tray	1
Turntable ring assembly	1
Instruction Manual	1

g assembly manual 1 1 1 A F G E D C B A) Control panel B) Turntable shaft C) Turntable ring assembly D) Glass tray E) Observation window F) Door assembly G) Safety interlock system Grill Rack( Only for Grill series )

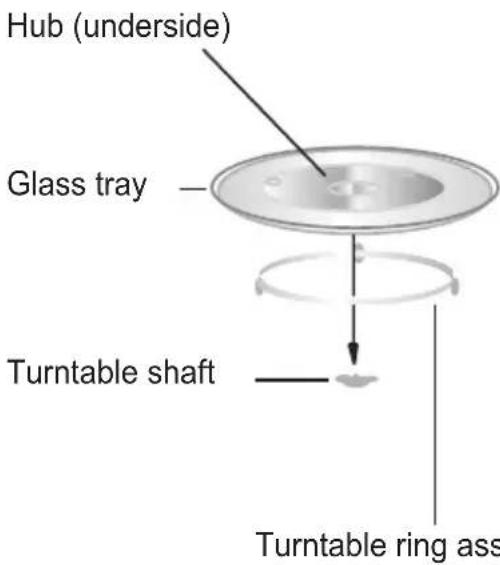

Turntable Installation

Hub (underside) Glass tray Turntable shaft Turntable ring ass

a. Never place the glass tray upside down. The glass tray should never be restricted.
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Countertop Installation

Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

Installation

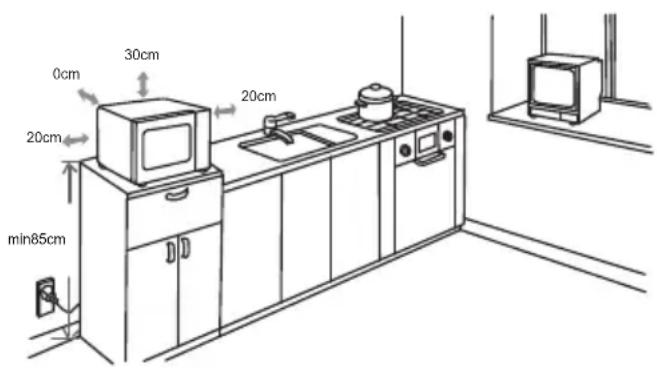

1. Select a level surface that provide enough open space for the intake and/or outlet vents.

0cm 30cm 20cm 20cm min85cm 20cm

(1) The minimum installation height is 85cm.
(2) The rear surface of appliance shall be placed against a wall.

Leave a minimum clearance of 30cm above the oven, a minimum clearance of 20cm is required between the oven and any adjacent walls.

(3) Do not remove the legs from the bottom of the oven.

(4) Blocking the intake and/or outlet openings can damage the oven.
(5) Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.

1. Plug your oven into a standard household outlet.

Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING: Do not install oven over arange cooktop or other heat-producing appliance. If installed near or over a heatsource, the oven could be damaged and the warranty would be

void.

The accessible surface may be hot during open

Warning symbol with steam inside a triangle, indicating heat or smoke hazard

When the microwave oven is electrified, the oven will display "0:00", buzzer will ring once.

1) Press "CLOCK/PRE-SET" to select the time 12-hour or 24-hour.
2) Turn " 🔍 " to adjust the hour figures, the input time should be within 0-23(24-hour) or 1-12 (12 hour).
3) Press "CLOCK/PRE-SET", the minute figures will flash.
4) Turn " 🔍 " to adjust the minute figures, the input time should be within 0-59.
5) Press "CLOCK/PRE-SET " to finish clock setting,":" will flash.

Note: 1) If the clock is not set, it would not function when powered.(Display "0:00")

2) During the process of clock setting, if you press "STOP/CLEAR", the oven will go back to the previous status automatically.

2. Microwave Cooking

Press "MICROWAVE" several times or press "MICROWAVE" once then turn " " to select the function you want. Press "START/+30SEC./CONFIRM" to confirm the power.

Turn " 🔥 " to adjust the cooking time. Press " START/+30SEC./CONFIRM" to start cooking.

Example: If you want to use 80% power to cook for 20 minutes, you can operate the oven as the following steps.

1) Press " MICROWAVE " once, the oven will display "P100".
2) Press " MICROWAVE" once again or turn " " to choose 80%, the oven will display "P80".
3) Press "START/+30SEC./CONFIRM" to confirm the microwave power.
4) Turn " " to adjust the cooking time until the oven display "20:00".

(The maximum cooking time is 95 minutes.)

5) Press "START/+30SEC./CONFIRM" to start cooking.

NOTE: the step quantities for the adjustment time of the coding switch are as follow:

Microwave Power Chart

Press	Once Twice Thrice 4 times 5 times
Power	100%	80%	50%	30%	10%
Display	P100	P80	P50	P30	P10

1. Grill & Combination Cooking

1) Press the "GRILL/COMBI." key once.
2) Press the "GRILL/COMBI." several times or turn " [icon] " until "G-1","C-1" "C-2", "C-3" or "C-4" displays.
3) Press the "START/+30SEC./CONFIRM" to confirm the power.
4) Turn " 🔍" to adjust the cooking time. (The maximum cooking time is 95 minutes.)
5) Press the " START/+30SEC./CONFIRM " key to start cooking. ":" will be lighted.

Note:1) If half the grill time passes, the oven sounds twice, this is normal.

But in order to have a better effect of grilling food, you should turn the food over, close the door, and then press" START/+30SEC./CONFIRM" to continue cooking. If no operation, the oven will not pause and continue working.

2) "C-1" refers to the combination of microwave and convection.

"C-2" refers to the combination of microwave and grill.

"C-3" refers to the combination of convection and grill.

"C-4" refers to the combination of microwave, grill and convection.

1. Convection Cooking(With preheating funtion)

The convection cooking can let you to cook the food as a traditional oven. Microwave is not used. It is recommended that you should preheat the oven to the appropriate temperature before placing the food in the oven.

1) Press the "CONVECTION" key once, the LED will display "150"
2) Keep pressing the same key or turn " " to select the convection temperature, the temperature can be chosen from 150 degrees to 240 degrees.
3) Press the "START/+30SEC./CONFIRM" to confirm the temperature.
4) Press the "START/+30SEC./CONFIRM" to start preheating. When the preheating temperature arrives, the buzzer will sound twice to remind you to put the food into the oven. And the preheated temperature is displayed and flash.
5) Put the food into the oven and close the door. Turn " " to adjust the cooking time. (The maximum setting time is 95 minutes.)
6) Press the "START/+30SEC./CONFIRM" key to start cooking.

Note: a. Cooking time cannot be input until the preheating temperature arrives.

If the temperature arrives, door must be opened to input the cooking time.

b. If the time not input in 5 minutes, the oven will stop preheating. The buzzer sound five times and turn back to waiting states.

1. Convection Cooking( Without pre-heating function)

1) Press the "CONVECTION" key once, the LED will display "150"

2) Turn " " to select the convection temperature, the temperature can be chosen from 150 degrees to 240 degrees.

3) Press the " START/+30SEC./CONFIRM " to confirm the temperature.

4) Turn " 🔍 " to adjust the cooking time.(The maximum setting time is 95 minutes.)

5) Press the "START/+30SEC./CONFIRM" key to start cooking.

1. Defrost by weight

1) Press "W.T/TIME DEFROST" pad once, the LED will display "dEF1".

2) Turn " 🔍" to select the weight of food. The weight should be 100-2000g.

3) Press "START/+30SEC./CONFIRM" key to start defrosting.

1. Defrost by time

1) Press "W.T/TIME DEFROST" pad twice, the LED will display "dEF2".

2) Turn " 🔍 " to adjust the cooking time. (The maximum cooking time is 95 minutes.)

3) Press "START/+30SEC./CONFIRM" key to start defrosting.

1. Pre-set Function

1) Set the clock first. (Consult the instruction of clock setting.)

2) Input the cooking program. 2 stages can be set at most. Defrosting should not be set in pre-set function.

Example: if you want to cook with 100% microwave power for 15 minutes.

a. Press "MICROWAVE" once to choose 100% microwave power;

b. Press "START/+30SEC./CONFIRM" to confirm the microwave power.

c. Turn " " to adjust the cooking time of 15 minutes;

d. Be careful! Do not press " START/+30SEC./CONFIRM" to start cooking.

3) Press "CLOCK/PRE-SET" the oven will display the current time.

4) Turn " 🔍 " to adjust the hour figures, the input time should be within 0-23(24-hour) or 1-12 (12 hour).

5) Press "CLOCK/PRE-SET", the minute figures will flash.

6) Turn " " to adjust the minute figures, the input time should be within 0-59.

7) Press "START/+30SEC./CONFIRM" to finish the preset function.

8) When the pre-set time arrives, the buzzer will sound twice to remind you to start cook.

9.Multi-Stage Cooking

Two stages of cooking can be maximally set. If one stage is defrosting, it should be put in the first stage. The buzzer will ring once after each stage and the next stage will begin. Preheat and auto menu cannot be set here.

Example: if you want to cook with 100% microwave power for 10 minutes+ 80% microwave power for 5 minutes. The steps are as following:

1) Press "MICROWAVE" once to choose 100% microwave power;
2) Press "START/+30SEC./CONFIRM" to confirm the microwave power.
3) Turn " " to adjust the cooking time of 10 minutes;
4) Press "MICROWAVE" twice to choose 80% microwave power;
5) Press "START/+30SEC./CONFIRM" to confirm the microwave power.
6) Turn " " to adjust the cooking time of 5 minutes;
7) Press "START/+30 SEC./ CONFIRM" to start cooking.

10. Speedy Cooking

1) In waiting state, press "START/+30SEC./CONFIRM" to start cooking with 100% microwave power for 30 seconds, each added press will increase 30 seconds cooking time up to 95 minutes.
2) In microwave, grill, combination and convection cooking state, each press of "START/+30SEC./CONFIRM" can increase 30 seconds.
3) Time cannot be increased under defrost, multi-stage and auto menu function.

11. Inquiring Function

(1) In cooking state, press "MICROWAVE" "CONVECTION" or "GRILL/ COMBI.", the current power will be displayed for 2-3 seconds.
(2) In pre-set state, press "CLOCK/PRE-SET" to inquire the time for delay start cooking. The pre-set time will flash for 2-3 seconds, then the oven will turn back to the clock display.
(3) During cooking state, press "CLOCK/PRE-SET" to check the current time. It will be displayed for 2-3 seconds.

12. Auto Menu

1) In waiting state, turn " 🔍 " right to choose the function wanted, the LED will display "A1" "A2" "A3" "A4" ..."A9" "A10", "A1" in order.
2) Press "START/ +30 SEC./CONFIRM" to confirm the menu you need.
3) Turn " 🔍 " to choose the weight of menu, and "g" indicator will light.
4) Press "START/+30 SEC./CONFIRM" to start cooking.

Menu	Weight	Display
A1 REHEAT	150 g	150
	250g	250
	350g	350
	450g	450
	600g	600
A2 POTATO	1(approx.230g)	1
	2(approx.460g)	2
	3(approx.690g)	3
A3 MEAT	150g	150
	300g	300
	450g	450
	600g	600
A4 VEGETABLE	150g	150
	350g	350
	500g	500
A5 FISH	150g	150
	250g	250
	350g	350
	450g	450
	650g	650
A6 PASTA	50g(with cold water 450ml)	50
	100g(with cold water 800ml)	100
	150g(with cold water 1200ml)	150
A7 SOUP	200ml	200
	400ml	400
	600ml	600
A8 CAKE	475g	475
A9 PIZZA	200g	200
	300g	300
	400g	400
A10 CHICKEN	500g	500
	750g	750
	1000g	1000
	1200g	1200

Note: when cooking with cake menu, you should preheat the oven with 160 degrees first and then cook with 160 degrees.

You should preheat first following the auto menu operation, when the oven reaches the temperature, it will stop working and sound to remind opening the door to put cake in, then press "Start/+30Sec./Confirm" to start cooking.

13 Lock-out Function for Children

Lock: In waiting state, press " STOP/CLEAR" for 3 seconds, there will be a long beep denoting entering the lock state and the lock indicator will light. The current time will display if the clock has been set, otherwise, the oven will display " 0:00 ".

Lock quitting: In locked state, press "STOP/CLEAR" for 3 seconds, there will be a long "beep" denoting that the lock is released.

14. Specifications

(1) Buzzer will sound five times when cooking finished;
(2) During cooking, if the door is opened and after closing the door, "START/+30SEC./CONFIRM" must be pressed to continued cooking;
(3) Once the cooking program has been set, " START/+30SEC./CONFIRM " is not pressed in five minutes, the previous setting will be cancelled.
(4) Buzzer will sound once by efficient pressing. No response by inefficient pressing.

Trouble shooting

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside. It is very dangerous.

Trouble	Possible Cause	Remedy
Oven can not be started.	(1) Power cord not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	(3) Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat.	(4) Door not closed well.	Close door well.
Glass turntable makes noise when microwave oven operates	(5) Dirty roller rest and oven bottom.	Refer to "Maintenance of Microwave" to clean dirty parts.

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangle below (no readable text or symbols)

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.

WARNING!

Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron. It's sharp after removing the mica from the original place!

the Mica cover

Limit®

0 --- 1 min : 5 secondes

1 --- 5 min : 10 secondes

5 --- 10 min : 30 secondes

10 --- 30 min : 1 minute

30 --- 95 min : 5 minutes

5. Fonction convection

KEUKENGEREEDSCHAP WAARSCHUWING

Warning symbol depicting steam rising inside a triangle, indicating heat hazard

Gebruik
