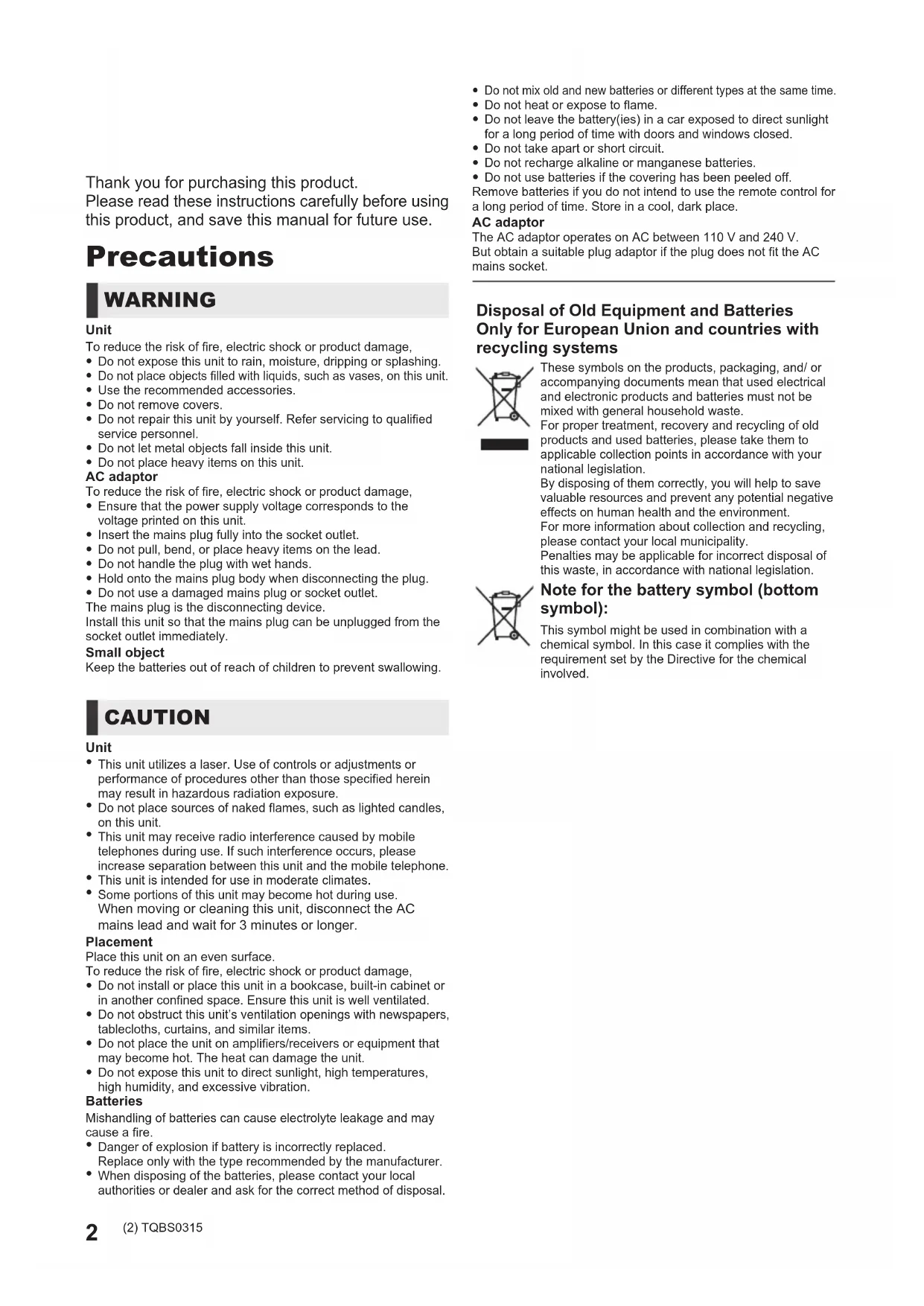

levysoitin QG_UB450EG.indb 1 2018/12/24 16:12:042 (2) TQBS0315 Thank you for purchasing this product. Please read these instructions carefully before using this product, and save this manual for future use. Precautions WARNING Unit To reduce the risk of re, electric shock or product damage,

Do not expose this unit to rain, moisture, dripping or splashing.

Do not place objects lled with liquids, such as vases, on this unit.

Use the recommended accessories.

Do not remove covers.

Do not repair this unit by yourself. Refer servicing to qualied service personnel.

Do not let metal objects fall inside this unit.

Do not place heavy items on this unit.AC adaptorTo reduce the risk of re, electric shock or product damage,

Ensure that the power supply voltage corresponds to the voltage printed on this unit.

Insert the mains plug fully into the socket outlet.

Do not pull, bend, or place heavy items on the lead.

Do not handle the plug with wet hands.

Hold onto the mains plug body when disconnecting the plug.

Do not use a damaged mains plug or socket outlet.The mains plug is the disconnecting device.Install this unit so that the mains plug can be unplugged from the socket outlet immediately.Small objectKeep the batteries out of reach of children to prevent swallowing. CAUTION Unit

This unit utilizes a laser. Use of controls or adjustments or performance of procedures other than those specied herein may result in hazardous radiation exposure.

Do not place sources of naked ames, such as lighted candles, on this unit.

This unit may receive radio interference caused by mobile telephones during use. If such interference occurs, please increase separation between this unit and the mobile telephone.

This unit is intended for use in moderate climates.

Some portions of this unit may become hot during use.When moving or cleaning this unit, disconnect the AC mains lead and wait for 3 minutes or longer.PlacementPlace this unit on an even surface.To reduce the risk of re, electric shock or product damage,

Do not install or place this unit in a bookcase, built-in cabinet or in another conned space. Ensure this unit is well ventilated.

Do not obstruct this unit’s ventilation openings with newspapers, tablecloths, curtains, and similar items.

Do not place the unit on ampliers/receivers or equipment that may become hot. The heat can damage the unit.

Do not expose this unit to direct sunlight, high temperatures, high humidity, and excessive vibration.BatteriesMishandling of batteries can cause electrolyte leakage and may cause a re.

Danger of explosion if battery is incorrectly replaced. Replace only with the type recommended by the manufacturer.

When disposing of the batteries, please contact your local authorities or dealer and ask for the correct method of disposal.

Do not mix old and new batteries or different types at the same time.

Do not heat or expose to ame.

Do not leave the battery(ies) in a car exposed to direct sunlight for a long period of time with doors and windows closed.

Do not take apart or short circuit.

Do not recharge alkaline or manganese batteries.

Do not use batteries if the covering has been peeled off.Remove batteries if you do not intend to use the remote control for a long period of time. Store in a cool, dark place.AC adaptorThe AC adaptor operates on AC between 110 V and 240 V.But obtain a suitable plug adaptor if the plug does not t the AC mains socket. Disposal of Old Equipment and Batteries Only for European Union and countries with recycling systems These symbols on the products, packaging, and/ or accompanying documents mean that used electrical and electronic products and batteries must not be mixed with general household waste.For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points in accordance with your national legislation.By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment.For more information about collection and recycling, please contact your local municipality.Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation. Note for the battery symbol (bottom symbol): This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved. QG_UB450EG.indb 2 2018/12/24 16:12:053 (3)TQBS0315English Table of contents Accessories Check the supplied accessories before using this unit. 1 Remote control (N2QAYA000205) 2 Batteries for remote control 1 AC adaptor

Product numbers are provided in these operating instructions correct as of February 2019. These may be subject to change.

Do not use AC adaptor with other equipment.

Do not use any other AC adaptors except the supplied one.

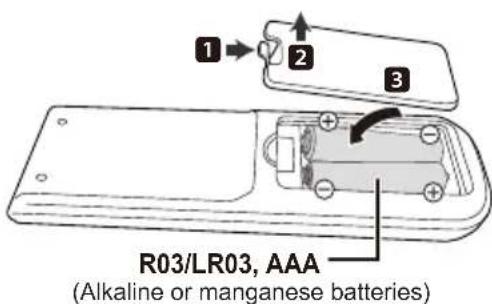

Using the remote control

(Alkaline or manganese batteries) – Insert the batteries to the terminal so that it ( and

matches those in the remote control. A more detailed operating instruction is available in “Operating Instructions (PDF format)”. To read it, download it from the website. http://panasonic.jp/support/global/cs/bd/oi/index.html You will need Adobe Reader to browse or print the Operating Instructions (PDF format). You can download and install a version of Adobe Reader that you can use with your OS from the following website. (As of February 2019) http://www.adobe.com/products/acrobat/readstep2.html Firmware updates Panasonic is constantly improving the unit’s rmware to ensure that our customers are enjoying the latest technology. Panasonic recommends updating your rmware as soon as you are notied. For details, refer to “Firmware updates” (

8). To dispose or transfer this unit The unit may keep the user settings information in the unit. If you discard this unit either by disposal or transfer, then follow the procedure to return all the settings to the factory presets to delete the user settings. Turn the unit on. Press and hold [] on the main unit and the [0] on the remote control at the same time for more than 5 seconds. – POWER LED starts to ash, and “00 RET” is displayed on the screen. Press [ ] (right) repeatedly on the remote control until “08 FIN” is displayed on the screen. Press and hold [OK] for more than 5 seconds.

The operation history may be recorded in the memory of this unit. Precautions.................. 2 Accessories

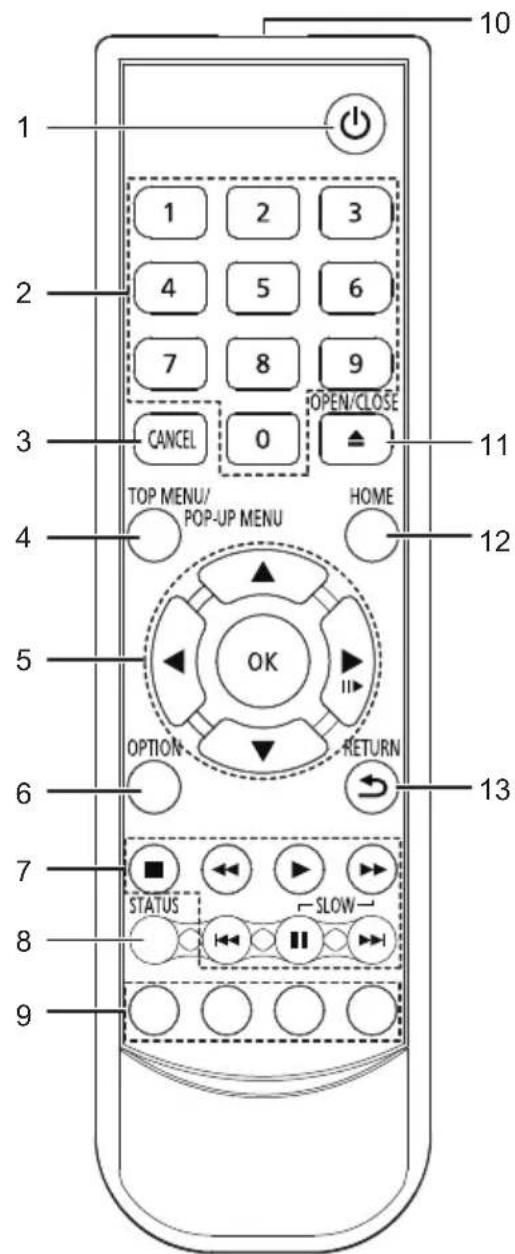

1 Turn the unit on and off 2 Select title numbers, etc./Enter numbers. 3 Cancel 4 Show Top menu/Pop-up menu 5 [ , , , ] : Move the highlight for selection [OK] : Conrm the selection ( ) : Frame-by-frame 6 Show Option menu 7 Basic playback control buttons 8 Show the status messages 9 Coloured buttons (red, green, yellow, blue) Used for various purposes depending on the screen 10 Transmit the remote control signal 11 Open or close the disc tray 12 Show HOME menu 13 Return to previous screen

When other Panasonic products respond to this remote control, change the remote control code of other Panasonic products to other than code 1. PRIVACY POLICY (excerpt) Panasonic Corporation, a company having its registered ofce of 1006, Oaza Kadoma, Kadoma City, Osaka 571-8501, Japan, automatically collects personal data such as IP address and/or Device ID from your device as soon as you connect it to the Internet. We do this to protect our customers and the integrity of our Service as well as to protect the rights or property of Panasonic. You have a right of access, rectication and objection to in certain circumstances, a right of erasure, restriction of processing, data portability and a right to object to other forms of processing. If you wish to exercise any of the above rights and/or wish to know more about the processing of your personal data in this context, please refer to the full text of our privacy policy displayed at the support page of your device, http://av.jpn.support.panasonic.com/support/global/cs/bd/privacy/ or contact our customer communications/ support number or address described in the Pan European Guarantee included in your device box to send you the full text of our privacy policy. QG_UB450EG.indb 4 2018/12/24 16:12:055 (5)TQBS0315English

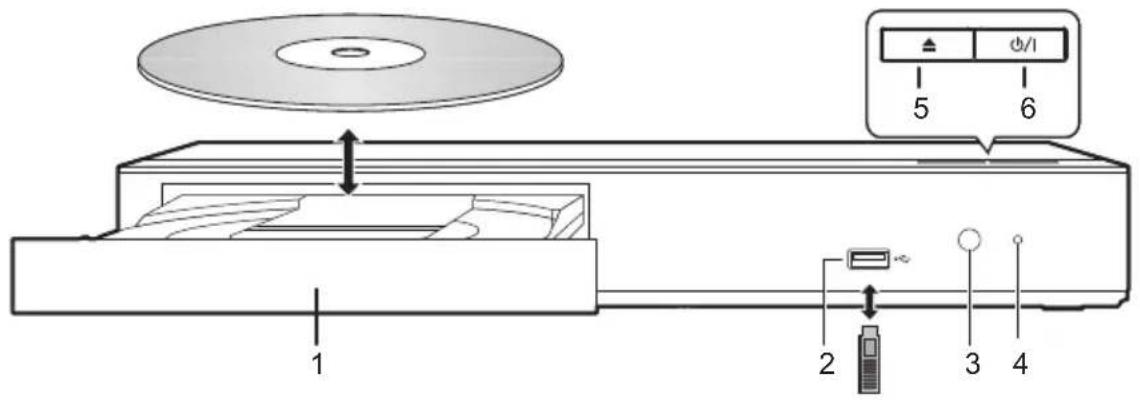

1 Disc tray 2 USB port ( DC 5 V 500 mA) This port supports USB 2.0 High Speed. 3 Remote control signal sensor Distance: Within approx. 7 m Angle: Approx. 20° up and down, 30° left and right 4 POWER LED The LED lights up when the unit is turned on, and ashes when error occurs. 5 Open or close the disc tray

Press to switch the unit from on to standby mode or vice versa. In standby mode, the unit is still consuming a small amount of power. CAUTION Do not place objects in front of the unit. The disc tray may collide with objects when it is opened, and this may cause malfunction.

When inserting a media item, ensure that it is facing the correct way, which is the right side facing up.

If you connect a Panasonic product with a USB connection cable, the setup screen may be displayed on the connected equipment. For details, refer to the instructions for the connected equipment.

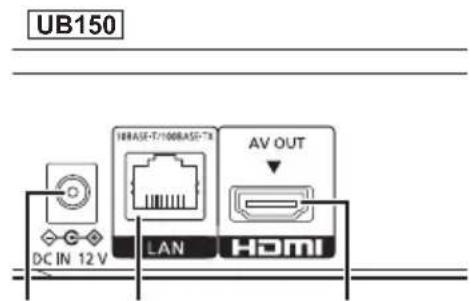

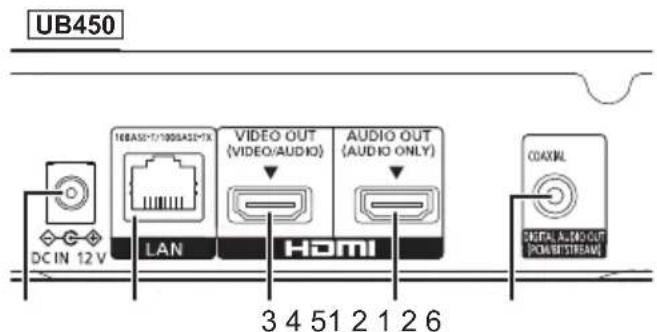

UB150 HDMI AV OUT terminal The symbols on this product (including the accessories) represent the following.

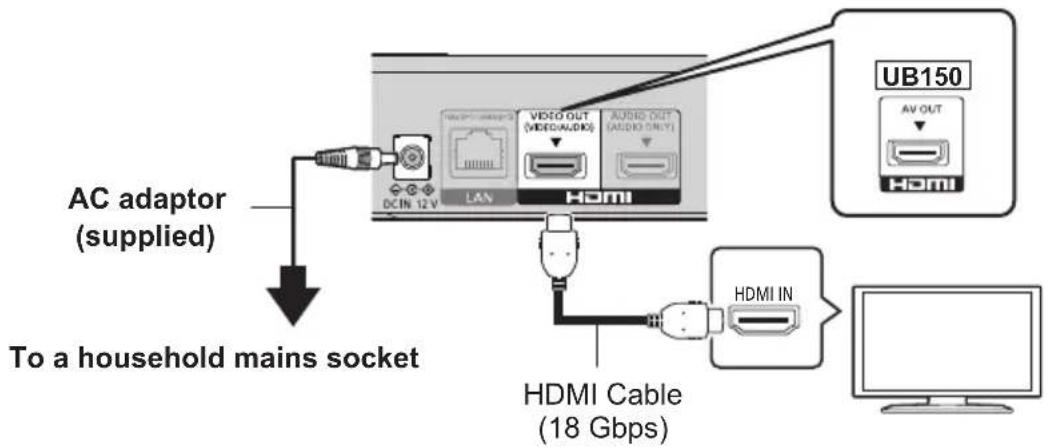

Class II equipment (The construction of the product is double-insulated.) QG_UB450EG.indb 5 2018/12/24 16:12:066 (6) TQBS0315 Quick Start Guide STEP 1 : Connecting to a TV HDMI IN HDMI Cable (18 Gbps) To a household mains socket AC adaptor (supplied) UB150

To enjoy 4K output, you need to connect this unit to a 4K compatible TV.

To enjoy images in 4K (50p/60p), you need an HDMI cable that supports 18 Gbps. When outputting 1080p or 24p (4K) signal, please use HDMI cables 5.0 meters or less. It is recommended that you use Panasonic’s HDMI cable.

If you connect this unit to a 4K-compatible TV and perform “Easy Settings”, 4K (50p/60p) will be automatically selected.

To view Ultra HD Blu-ray content in 4K/HDR format, connect to the HDMI terminal of a device that supports HDCP2.2, 4K (50p/60p) 4:4:4, and HDR signals that meet Ultra HD Blu-ray standards.

This unit consumes a small amount of AC power (

8) even when turned off in standby mode. For

the purpose of energy conservation, the unit should be disconnected if you will not be using it for extended period of time.

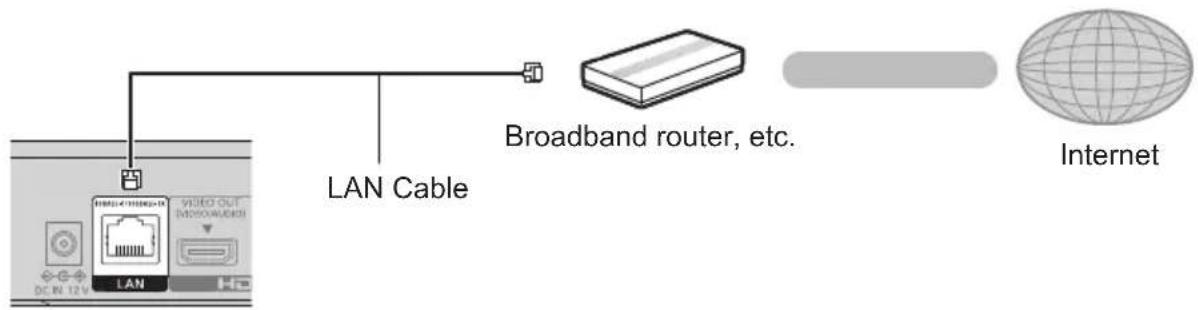

The unit is in the standby condition when the AC adaptor is connected. The primary circuit is always “live” as long as the AC adaptor is connected to an electrical outlet. STEP 2 : Connecting to a network

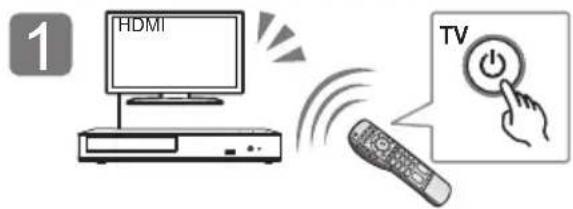

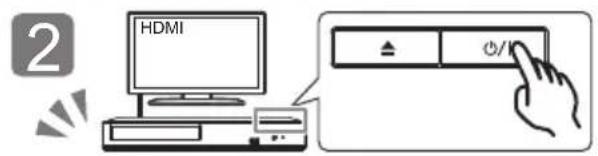

HDMI Turn on the TV and select the appropriate video input. Press [

Follow the on-screen instructions to continue with the settings. In your use of internet functions For EEA and Switzerland Your use of internet-enabled functions and software updates must follow the rules set forth in the “Terms and Conditions of Use”. Please review “Terms and Conditions of Use” and “Privacy Policy” carefully and conrm your understanding of “Privacy Policy” and agreement to the “Terms and Conditions of Use” by checking the box and select “OK”. [HOME]

“Legal Notices” For other than EEA and Switzerland You must agree to the terms of use for the Internet function and the privacy policy. [HOME]

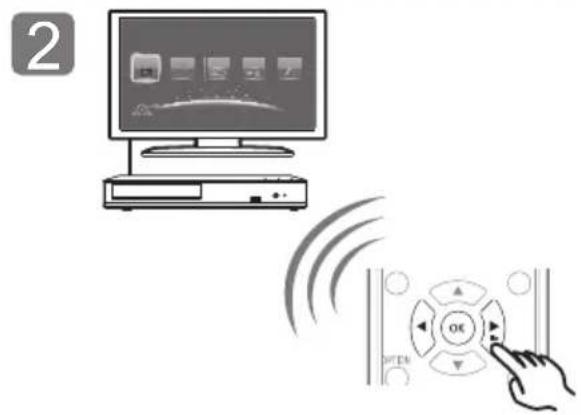

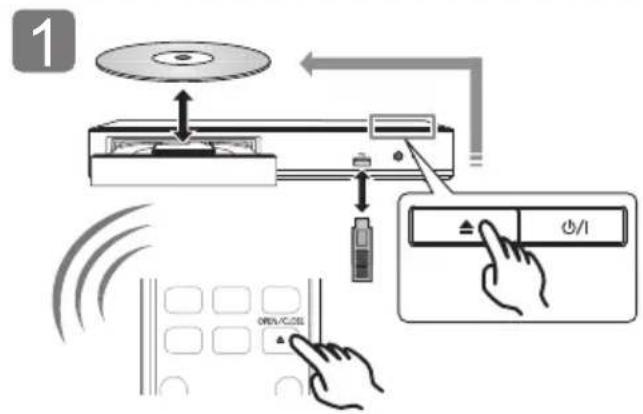

Insert the media. Select the item to play and press [OK]. Operations during playback Following functions may not work depending on the media and contents. Stop Press [

The stopping point is memorized. Resume play function Press [ ] to restart from this point.

The point is cleared if the media is removed. Pause Press [ ]. Press [ ] again or [ ] to restart play. Search While playing, press [ ] or [ ]. The speed increases up to 5 steps.

Press [ ] to revert to normal playback speed. Slow motion While paused, press [

Skip While playing or paused, press

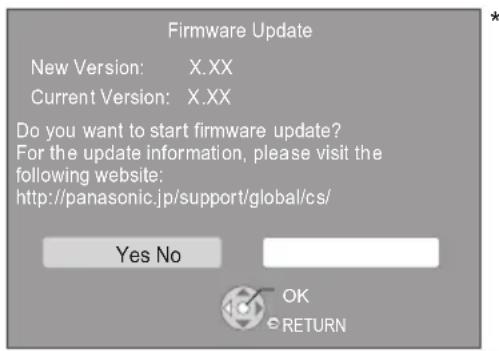

] or [ ]. Skip to the title, chapter or track. QG_UB450EG.indb 7 2018/12/24 16:12:078 (8) TQBS0315 Firmware updates Occasionally, Panasonic may release updated rmware for this unit that may add or improve the way a feature operates. These updates are available free of charge. This unit is capable of checking the rmware automatically when connected to the Internet via a broadband connection. When a new rmware version is available, the following message is displayed. Firmware Update Current Version: X.XX New Version: X.XX Do you want to start firmware update? For the update information, please visit the following website: http://panasonic.jp/support/global/cs/ Yes No RETURN

Select “Yes” to start downloading the rmware. You cannot operate the unit until the update is complete. Don’t remove the AC adaptor during the update. Removing the AC adaptor while the update is in progress may damage the unit. After the rmware is installed, unit will restart and the following screen will be displayed. The firmware has been updated.Current Version

You can also download the latest rmware from the following website and store it to a USB device to update the rmware. http://panasonic.jp/support/global/cs/ (This site is in English only.) When the update is complete, turn off and on the unit.

To show the rmware version on this unit; [HOME]

Downloading will require several minutes. It may take longer or may not work properly depending on the connection environment.

Region management information The unit can play back BD-Video/DVD-Video discs of the following regions codes, including “ALL”: Example: BD-Video DVD-Video

Specications Power supply DC 12 V, 1.5 A (DC IN terminal) Power consumption UB450 Approx. 13 W UB150 Approx. 12 W Power consumption in standby mode Approx. 0.3 W (Quick Start: Off) Dimensions (W x H x D) Including the projecting parts UB450 320 mm x 46 mm x 198 mm UB150 320 mm x 46 mm x 193 mm Mass Approx. 1.2 k

Specications are subject to change without notice. QG_UB450EG.indb 8 2018/12/24 16:12:079 (9)TQBS0315 English Licenses This product uses Cinavia technology to limit the use of unauthorized copies of some commercially-produced lm and videos and their soundtracks. For details, refer to the operating instructions (PDF format). “AVCHD”, “AVCHD 3D”, “AVCHD Progressive” and “AVCHD 3D/ Progressive” are trademarks of Panasonic Corporation and Sony Corporation. Java is a registered trademark of Oracle and/or its afliates. Dolby, Dolby Audio, Dolby Vision, and the double-D symbol are trademarks of Dolby Laboratories. For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, the Symbol, DTS and the Symbol together, DTS-HD, and the DTS-HD logo are registered trademarks and/or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved. The product with Hi-Res AUDIO logo is conformed to High-Resolution Audio standard dened by Japan Audio Society. This logo is used under license from Japan Audio Society. The terms HDMI and HDMI High-Denition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries. <AVC> This product is licensed under the AVC Patent Portfolio License for the personal use of a consumer or other uses in which it does not receive remuneration to (i) encode video in compliance with the AVC Standard (“AVC Video”) and/or (ii) decode AVC Video that was encoded by a consumer engaged in a personal activity and/ or was obtained from a video provider licensed to provide AVC Video. No license is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA, L.L.C. See http://www.mpegla.com <VC-1> This product is licensed under the VC-1 Patent Portfolio License for the personal and non-commercial use of a consumer to (i) encode video in compliance with the VC-1 Standard (“VC-1 Video”) and/or (ii) decode VC-1 Video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a video provider licensed to provide VC-1 Video. No license is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA, L.L.C. See http://www.mpegla.com “DVD Logo” is a trademark of DVD Format/Logo Licensing Corporation. Windows is a trademark or a registered trademark of Microsoft Corporation in the United States and other countries. Adobe is a trademark or registered trademark of Adobe Systems Incorporated in the United States and/or other countries. HDR10+

logo is a trademark of HDR10+ Technologies, LLC. Copyright 2004-2014 Verance Corporation. Cinavia

is a Verance Corporation trademark. Protected by U.S. Patent 7,369,677 and worldwide patents issued and pending under license from Verance Corporation. All rights reserved. This product incorporates the following software: (1) the software developed independently by or for Panasonic Corporation, (2) the software owned by third party and licensed to Panasonic Corporation, (3) the software licensed under the GNU General Public License, Version 2.0 (GPL V2.0), (4) the software licensed under the GNU LESSER General Public License, Version 2.1 (LGPL V2.1), and/or (5) open source software other than the software licensed under the GPL V2.0 and/or LGPL V2.1. The software categorized as (3) - (5) are distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY, without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. Please refer to the detailed terms and conditions thereof shown in the Player Settings menu. At least three (3) years from delivery of this product, Panasonic will give to any third party who contacts us at the contact information provided below, for a charge no more than our cost of physically performing source code distribution, a complete machine-readable copy of the corresponding source code covered under GPL V2.0, LGPL V2.1 or the other licenses with the obligation to do so, as well as the respective copyright notice thereof. Contact Information: oss-cd-request@gg.jp.panasonic.com The source code and the copyright notice are also available for free in our website below. https://panasonic.net/cns/oss/ (1) MS/WMA This product is protected by certain intellectual property rights of Microsoft Corporation and third parties. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary and third parties. (2) MS/PlayReady/Final Product Labeling This product contains technology subject to certain intellectual property rights of Microsoft. Use or distribution of this technology outside of this product is prohibited without the appropriate license(s) from Microsoft. (3) MS/PlayReady/End User Notices Content owners use Microsoft PlayReady™ content access technology to protect their intellectual property, including copyrighted content. This device uses PlayReady technology to access PlayReady-protected content and/or WMDRM-protected content. If the device fails to properly enforce restrictions on content usage, content owners may require Microsoft to revoke the device’s ability to consume PlayReady-protected content. Revocation should not affect unprotected content or content protected by other content access technologies. Content owners may require you to upgrade PlayReady to access their content. If you decline an upgrade, you will not be able to access content that requires the upgrade. (4) Vorbis, FLAC The software licenses are displayed when “Software Licence” in the Setup menu is selected.*
