USER MANUAL Volume Multi Styler DC1050 Carmen

Productname: Carmen Volume Multi Styler

EAN giftbox: 5011832066589

Specifications:

• Powerful hot air brush for medium length to long hair, 1200 Watt
• 4 exchangeable attachments: 2 combi hair-pin brushes (Ø 38 mm & Ø 20 mm), Ø 32 mm soft flexible brush and a nozzle
• ION technology for shiny and anti-static hair
• 2 heat settings 550 W - 1200 W
  Cool shot function
  1.8m swivel cord
• Hanging loop
  2-year guarantee

Technical specifications:

• 220-240V~50/60Hz 1200W

> DESCRIPTION

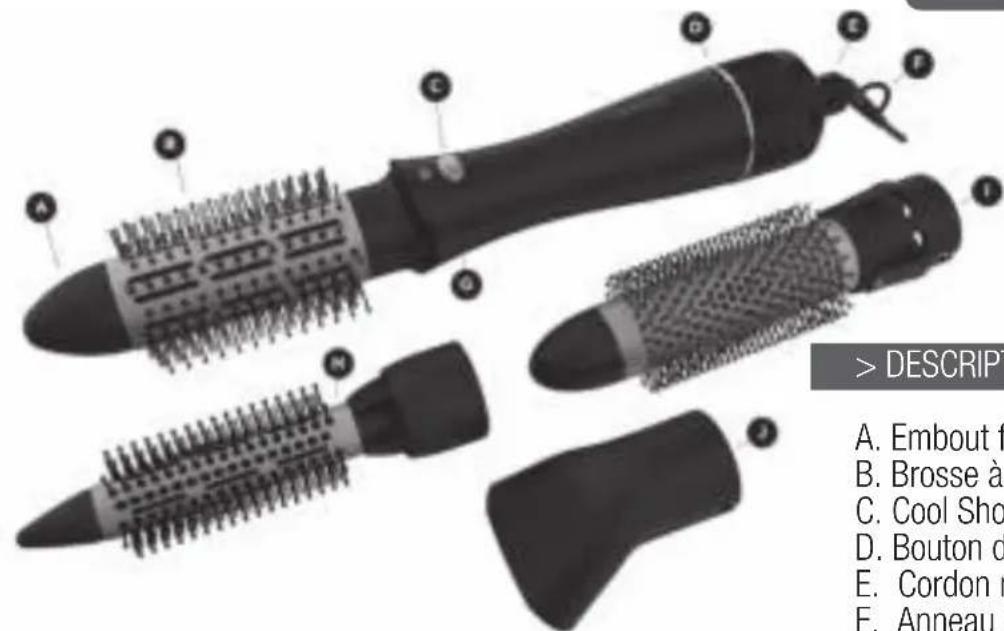

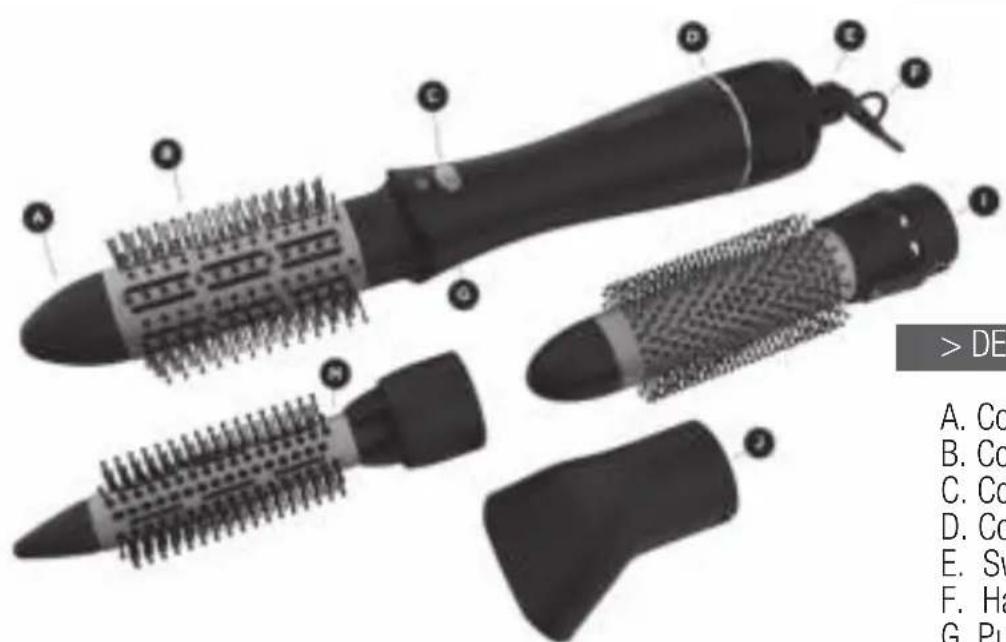

DELIVERY SET

Unit body -1 pc.
Instruction manual -1 pc.
Attachments -4 pcs.

A. Cool tip
B. Combi pin brush
C. Cool shot
D. Control button
E. Swivel cord
F. Hanging loop
G. Push button
H. Combi pin brush
I. Flexiblebrush hair brush
J. Concentrator

ENGLISH·3

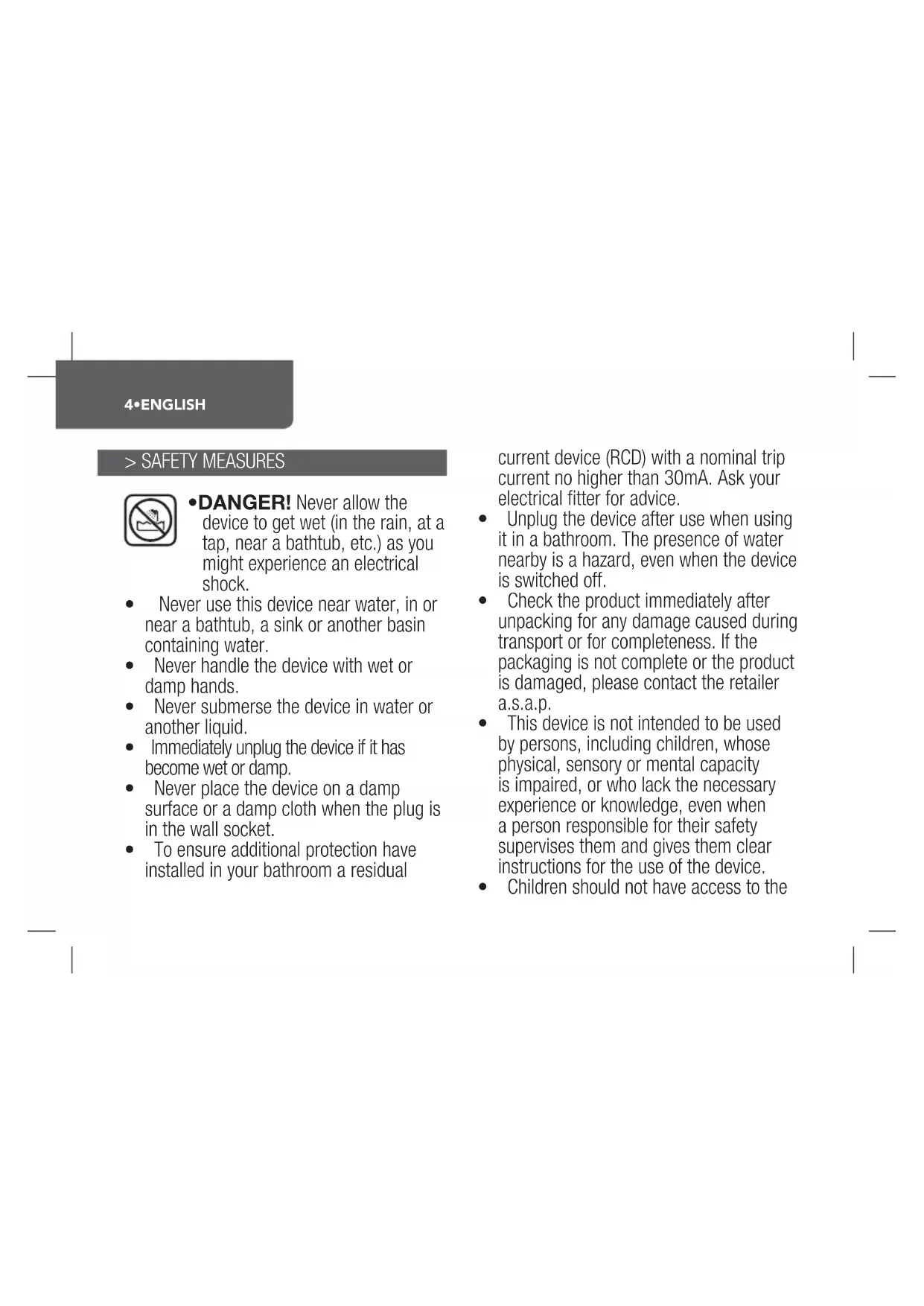

> SAFETY MEASURES

• DANGER! Never allow the device to get wet (in the rain, at a tap, near a bathtub, etc.) as you might experience an electrical shock.

• Never use this device near water, in or near a bathtub, a sink or another basin containing water.

• Never handle the device with wet or damp hands.
• Never submerge the device in water or another liquid.
• Immediately unplug the device if it has become wet or damp.
• Never place the device on a damp surface or a damp cloth when the plug is in the wall socket.
• To ensure additional protection have installed in your bathroom a residual

current device (RCD) with a nominal trip current no higher than 30mA . Ask your electrical fitter for advice.

• Unplug the device after use when using it in a bathroom. The presence of water nearby is a hazard, even when the device is switched off.
• Check the product immediately after unpacking for any damage caused during transport or for completeness. If the packaging is not complete or the product is damaged, please contact the retailer a.s.a.p.
• This device is not intended to be used by persons, including children, whose physical, sensory or mental capacity is impaired, or who lack the necessary experience or knowledge, even when a person responsible for their safety supervises them and gives them clear instructions for the use of the device.
  Children should not have access to the

device, nor should they play with it.

• Packaging material, including plastic bags, must be stored out of the reach of children.
• You must use the device only for its intended purpose to prevent hazardous situations.
  The mains voltage must match the voltage specified on the product.
• Risks can occur even when your devices are not switched on. For safety reasons, switch off the device and unplug it when not in use.
  Pull the plug out of the wall socket when:
• the device malfunctions when in use;
• the device has fallen;
• the device has bumped against something;
• before cleaning the device;
• after use.
• Switch off the device when not in use, even for a brief period.

Always unplug the device when leaving it unattended for a longer period.

• Never leave the device unattended.

• Never use the device when it is damaged. Regularly check the device and the lead for damage. The lead cannot be replaced. The device will have to be discarded if the lead is damaged. Repairs must be performed exclusively by experts. Repairs that are inexpertly performed can be very hazardous for the user.

If the device is damaged, contact the supplier to find out if you can still use it.

• Grab the lead by the plug when unplugging it. Never pull on the lead itself.

• Do not insert the plug in the wall socket when:

• the lead is damaged;

• the device is visibly damaged;
• the device has fallen.

6-ENGLISH

• Do not let the lead touch the hot parts of the device.
  Always make sure that the lead is unencumbered when you move the device around.
• Avoid tripping over the lead.
• Never cover the lead with a rug, mat, blanket etc.
• Never wrap the lead around the device.
• Check the cord of the device regularly for cable breakage to prevent short circuits.
• Let the device cool before storing or cleaning it.
• Store the device in a safe place to prevent accidental erroneous use.
• The device must be stored in a dry place at temperatures between 15^ and 25^ .
• Do not expose the device to heat (radiator, oven, etc.), direct sunlight or humidity.

• Do not use any accessories other than those recommended by Carmen.

• Keep the device clean and do not use abrasives or products containing solvents.

• Connect the device only to an electrical system that meets the prevailing regulations and that is equipped with a delay fuse. Make sure that the maximum current of all devices connected to this fuse does not exceed its maximum current (16A).
• We recommend equipping the group to which the bathroom is connected with a residual current operated circuit breaker of maximum 16A to increase safety. Ask your electrician for advice.

> DIRECTION FOR USE

IMPORTANT: THIS IS A HIGH TEMPERATURE PRODUCT

Dry the hair completely before using the hot air brush. The combi pin brush can be changed easily by pressing on the push button. Any

other attachment can be placed on the device. Plug the device in the socket when the desired attachment is placed. Take hold of a strand and pull it straight out from the head. Place the hot air brush against the hair strand, close to the head and on the side where you want that strand to fall, and pull the brush through the hair. This method will spread the hair evenly across the brush. Pull the brush to the end of the strand and catch the hair ends in the brush. Now roll up the brush until you reach the head (or stop earlier if you only want to curl the ends). Switch on the device and wait till the curl keeps it shape. Unroll the curl until you can remove the round brush from the curl. Allow the curl to cool down before brushing it through. Proceed in the same way, strand by strand. After a little practice with the hot air brush you will soon learn how to achieve the results you are looking for

Switch:

0 = device is off

• = 550 W
  = 1200W

> CLEANING AND MAINTRANCE

• Unplug the device before cleaning it.
• Do not let children clean the device.
• Never submerse it in water.
• Protect the device from dust.
  Occasionally clean the ventilation grille to remove dust and hairs.
• You can use a slightly damp cloth to clean the device. Afterwards, dry the device with a dry cloth.

> ENVIRONMENT AND WASTE

In accordance with the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), this device is marked with the symbol of a crossed-out wheelie bin indicating that this product cannot be disposed of as household waste. The device must be brought to the appropriate waste collection point for treatment, removal, and recycling of WEEE (information can be obtained at

the town hall of your domicile) or brought back to a dealer based on the principle of "1 for 1 free of charge" (the dealer's take back does not create a right to a payment or rebate). The consumer or user contributes to the preservation of the natural resources and to the protection of human health by respecting the environment in this manner.

> WARRANTY

This CARMEN device comes with a two (2)-year warranty to be counted from the date of purchase under normal conditions of use. This warranty does not cover damage directly or indirectly caused by misuse, neglect, unauthorised use, accidents, unauthorised repairs or modifications, as well as a lack of maintenance. Please save your receipt/invoice as proof of your purchase. This device's accessories are not covered by a warranty. Exclusions from the warranty

• Modifications, dismantlingorintegration with another device or an assembly making the device fixed or semi-fixed,
  Normal wear and tear of the parts,
• Degradation due to improper use,

• Failure to comply with the user manual or with the maintenance and safety instructions,

• Damage resulting from poor maintenance or a lack of maintenance,

• Damage caused by external factors (lightening...),
• Abnormal use of the device,
• Improper storage,
• Shocks,
• Deformation of the tank,
  The device having been submerged,
• Expired warranty.

For warranty and service we refer you to the reseller and for more information you can consult our website www.carmen.nl.

This is a class II device with double insulation and no grounding

This device conforms to the Electromagnetic Compatibility Directive 2014/30/EU and the Low Voltage Directive 2014/35/EU

10 • NEDERLANDS

PRODUCTINFORMATIE

Productcode: DC1050

Productnaam: Carmen Volume Multi Styler

EAN geschenkverpakking: 5011832066589

Specifications:

BELANGRIJK: DIT APPARAAT WORDT ZEER HEET

INFORMATIONS SUR LE PRODUIT

Specifications techniques

• 220-240V~ 50/60Hz 1200W

FRANÇAIS·29

CONTENU DE LA LIVRAISON

Acessórios -4 unids.
