USER MANUAL Extra 330 FMS

WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly can result in damage to the product, personal property and cause serious injury.

This is a sophisticated hobby product and NOT a toy. It must be operated with caution and common sense and failure to do so could result in injury or damage to the product or other property. This product is not intended for use by children without direct adult supervision.

This manual contains instructions for safety operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual prior to assembly, setup or use, in order to operate and avoid damage or serious injury.

Safety precautions and warnings

As the user of this product, you are solely responsible for operating in a manner that does not endanger yourself and others or result in damage to the product or the property of others. This model is controlled by a radio signal subject to interference from many sources outside your control. This interference can cause momentary loss of control so it is advisable to always keep a safe distance in all directions around your model, as this margin will help avoid collisions or injury.

Age Recommendation: Not for children under 14 years. This is not a toy.

• Never operate your model with low transmitter batteries.
  Always operate your model in an open area away from cars, traffic or people.
• Avoid operating your model in the street where injury or damage can occur.
• Never operate the model in populated areas for any reason.
  Carefully follow the directions and warnings for this and any optional support equipment you use (chargers, rechargeable battery packs, etc.)
• Keep all chemicals, small parts and anything electrical out of the reach of children.
• Moisture causes damage to electronics. Avoid water exposure to all equipment not specifically designed and protected for this purpose.
• Never lick or any place of any your model in your mouth as it could cause serious injury or even death.

Safety

Lithium Polymer (Li-Po) Battery Warning

CAUTION: Always follow the manufacturer's instructions for safe use and disposal of batteries. Fire, property damage, or serious injury can result from the mishandling of Li-Po batteries.

By handling, charging or using a Li-Po Battery you assume all risks associated with lithium batteries. If at any time the batteries begin to swell or balloon, discontinue use immediately!
Always store the batteries at room temperature in a dry area to extend the life of the battery. Always transport or temporarily store the battery in a temperature range of 40-120F. Do not store the battery or model in a car or in direct sunlight. If stored in a hot car, the battery can be damaged or even catch fire.
Never use a Ni-Mh Charger to charge Li-Po Batteries. Failure to charge the battery with a Li-Po compatible charger may cause fire resulting in personal injury and property damage.
Never discharge Li-Po Cells below 3V.
Never leave charging batteries unattended.
Never charge damaged batteries.

Charging the Flight Battery Warning

Use a battery charger that is designed to safely charge the Li-Po Battery. Read the charger instructions carefully before use. When charging the battery, make certain the battery is on a heat resistant surface. It is also highly recommended to place the Li-Po Battery inside a fire resistant charging bag readily available at hobby shops or online.

Introduction

Known for pushing the limits of R/C, FMS is proud to announce the 2000mm Extra 330- one of the largest production foam aircraft to ever grace the skies.

FMS has committed a significant amount of resources and all of its experience, along with information gathered from its worldwide community of top pilots to ensure that this aircraft would be the pinnacle of R/C aerobatic aircraft. The Extra 330 redefines what a foam aerobatic aircraft can be.

Building on the advanced construction and design of its predecessors, the Extra 330 integrates a strong yet lightweight hollow wing structure, carbon fiber wing spars, carbon fiber landing gear and highly efficient large wooden propellers- which effectively reduce vibrations while being highly efficient.

Featuring a monstrous 6860 motor, Predator 90A High-voltage ESC and Predator high-voltage 23kg servos, the Extra 330 will perform any maneuver the pilot thinks of. High speed passes, inverted fight, loops and point rolls are a piece of cake when its powered by the recommended 12S battery.

As the Extra 330 is a large aircraft, FMS' designers have made the wings and tail surfaces easily detachable- for easy storage or for transportation.

Be the wow factor of your local field with the FMS 2000mm Extra 330!

Features:

• 6860 Motor, 90A high-voltage ESC (5.5V-8.4V high-low-voltage switching BEC).
• Predator high-voltage servos (23KG max) with CNC-processed metal servo arms for larger torsion, more rapid response and better 3D performance.
• Efficient and strong wooden propellers for maximum thrust and reduced vibrations.
• High-end finish, tried-and-tested sturdiness, carbon fiber landing gear.
• Hollow-wing.
• Screw-together construction.
• Detachable large control surface design.
  Large battery compartment.

Table of contents

Introduction 3
Kit contents 3
Model assembly 4
Battery installation 9
Receiver diagram
Preflight check 9
Clevis installation 11
Control horn and servo arm settings 11
Center of gravity(CG) 11
Before flying the model 12
Flying course 12
Troubleshooting 13
Spare parts list content 13

Kit contents

Before assembly, please inspect the contents of the kit. The photo below details the contents of the kit with labels. If any parts are missing or defective, please identify the name or part number (refer to the spare parts list near the end of the manual) then contact your local shop or email us: support @fmsmodel.com.

Specifications

Wingspan: 2000mm(78.7in)

Overall length: 2005mm(78.9in)

Flying weight: 6000g

Wing area: 81.5dm²(1263sq.in)

ESC: HV 90A

Recommended battery: 22.2V 4000mAh 35C x2 (series connection)

A.

B.

E

C.

F.

D.

G.H.

1.

1.

K.

A: Fuselage
B: Main wing set
C:Aileron
D: Vertical stabilizer

E: Vortex generator
F: Carbon fiber spars
G: Horizontal stabilizer
H: Propeller

I: Linkage rods and screws
J: Spinner set
K: Landing gear set

Model assembly

Main landing gear set installation

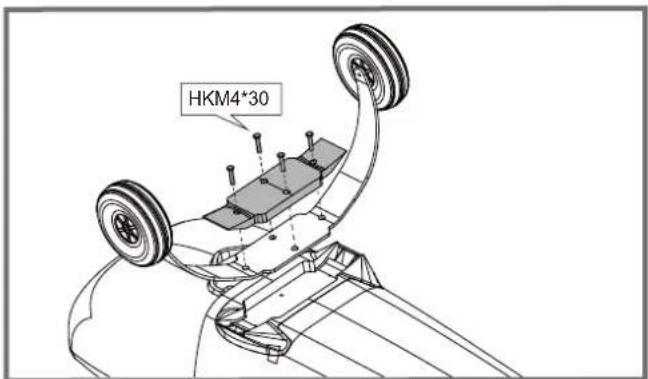

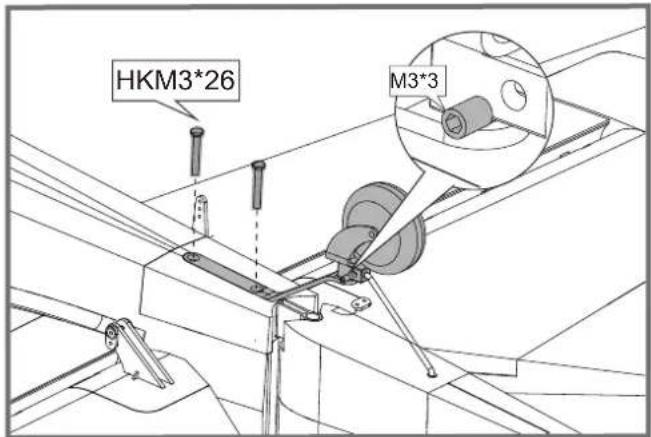

1. With the fuselage inverted, carefully install the landing gear and fairing onto the fuselage, securing them with the provided screws.

Vertical stabilizer installation

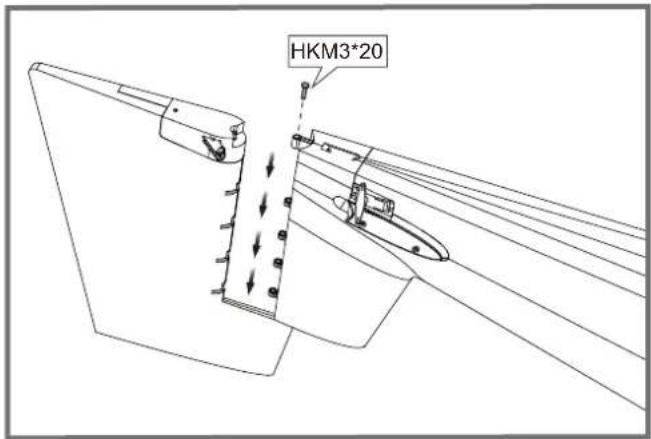

1. Install the rudder to the fuselage slot and secure it with the included screw as shown.

Rear landing gear set installation

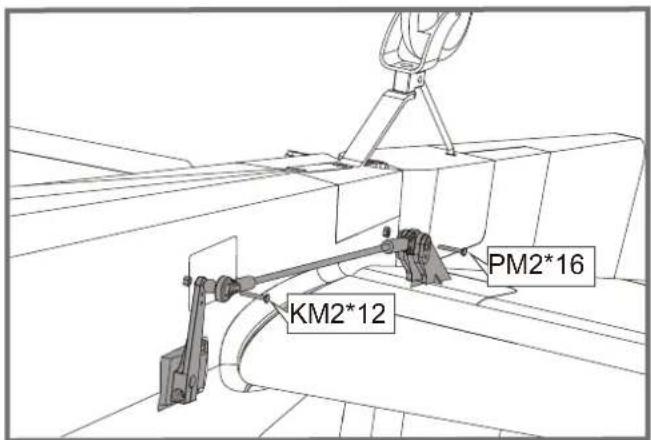

1.Install the linkage rod as shown.

Model assembly

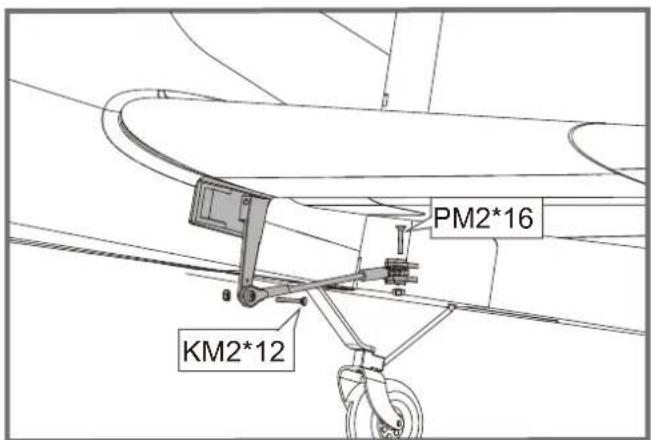

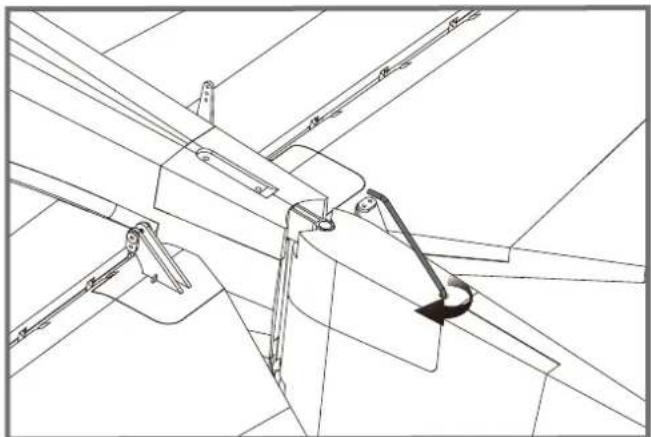

1. Carefully Install the rear landing gear set to the fuselage with the included screws as shown.

Horizontal stabilizer installation

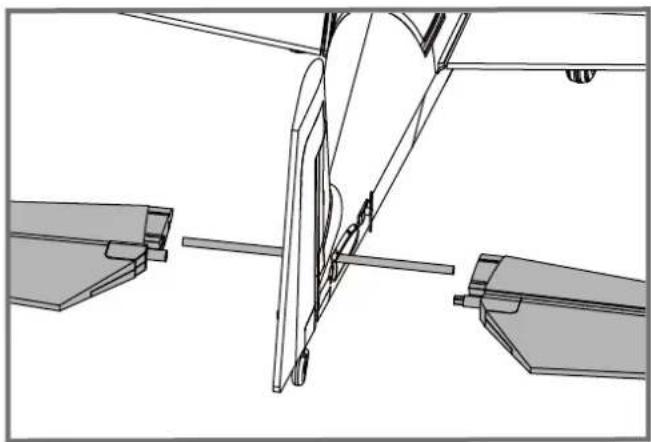

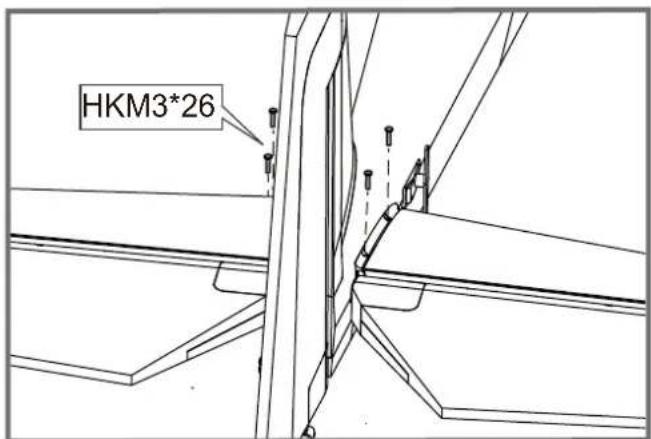

1. Insert the horizontal stabilizer spar into the fuselage. Slide the two halves of the horizontal stabilizer together as shown.

1. Ensure the control horn faces down. Secure the two horizontal stabilizer pieces in place using the included screws.

Model assembly

Aileron installation

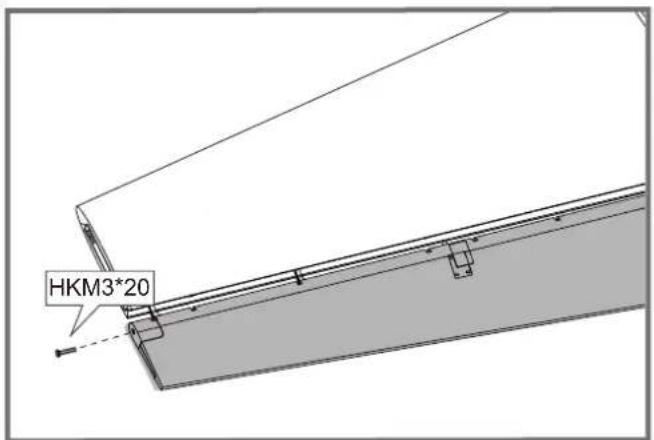

1. Secure the two aileron pieces to wings using the included screws. Ensure the control horns and servos are being on the same surface.

Main wing installation

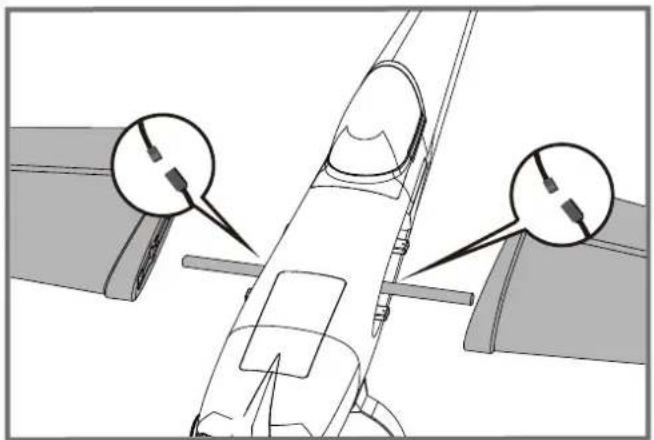

1. Insert the wing spar into the fuselage then slide the wing halves onto the spar. Plug the aileron servo leads into the leads from the fuselage. Push the wing halves into the cutout on the fuselage.

Notice: The connectors on both side should be attached precisely and firmly.

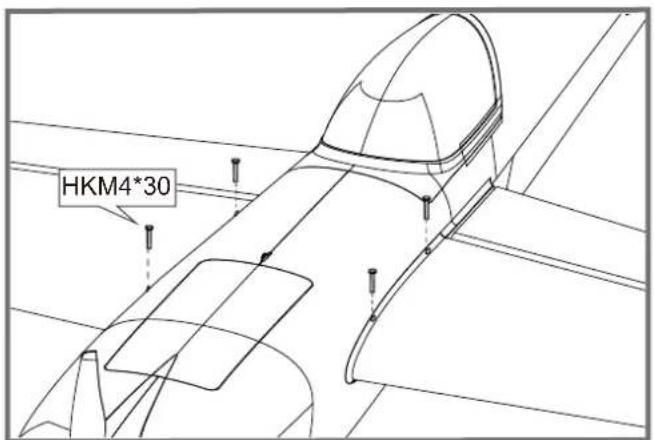

1. Secure the wings on the fuselage using the included screws as shown.

Model assembly

Linkage rod installation

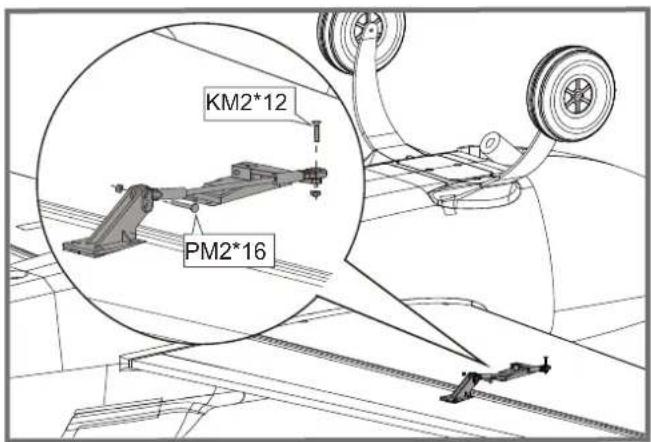

1.Make sure the servos are in the neutral position. Attach the ball link to the elevator control horn's outermost hole using the included linkage rod. Secure the linkage rod in place using the included screws as shown.

2.Make sure the servos are in the neutral position. Attach the ball link to the rudder control horn's outermost hole using the included linkage rod. Secure the linkage rod in place using the included screws as shown.

3.Make sure the servos are in the neutral position. Attach the ball link to the aileron control horn's outermost hole using the included linkage rod. Secure the linkage rod in place using the included screws as shown.

Model assembly

Vortex generator installation

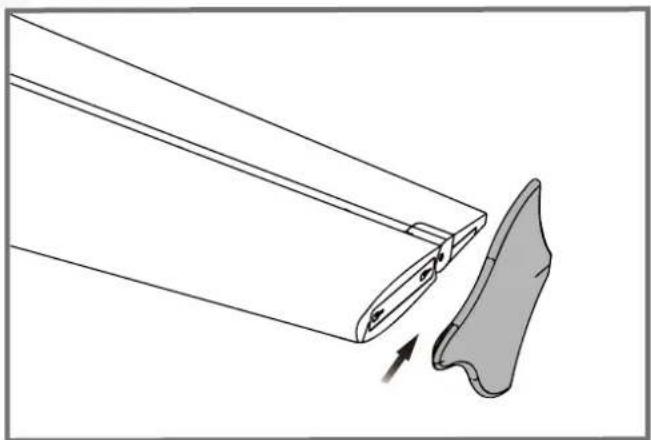

1.Install the vortex generators in place as shown.

Install the propeller and spinner

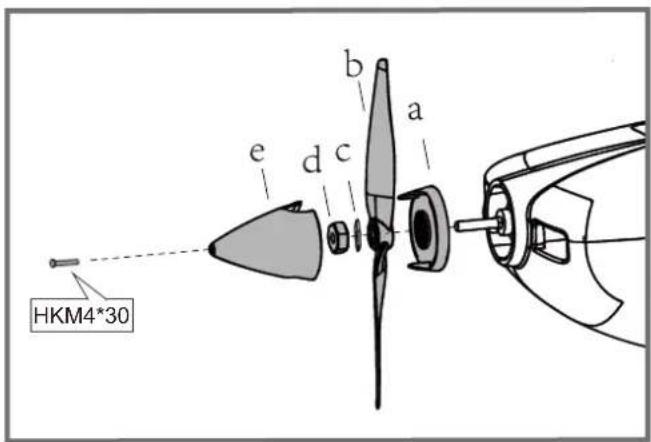

1.Assemble the spinner and propeller as shown.

Battery installation

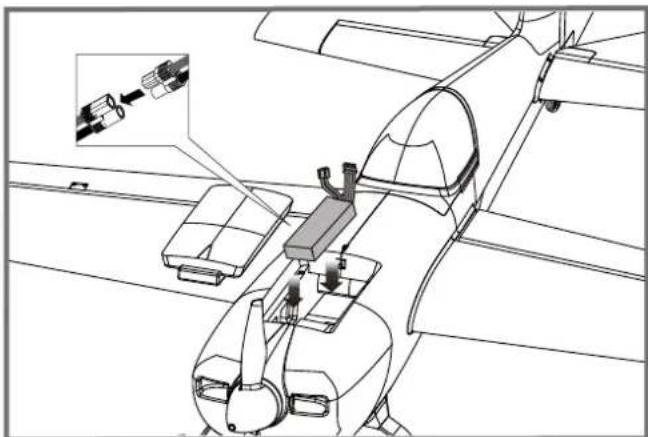

1.Pull back on the latch and remove the battery hatch.
2. Apply the hook tape to the cable end of the battery
3.Slide the full charged battery into the battery compartment with the power supply cable toward the rear end of the plane.

Note: The center of gravity can be adjusted by moving the battery forward or aft. Having the correct center of gravity is critical to achieving proper flight characteristics.

Receiver diagram

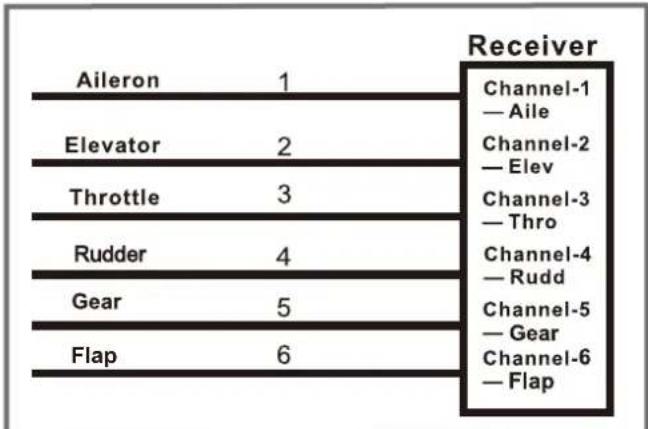

The cables from the servo connector board should be connected to your receiver in the order shown. Tuck the wire leads into the recessed cavity towards the rear of the battery hatch.

Preflight check

Important ESC and model information

1. The ESC included with the model has a safe start. If the motor battery is connected to the ESC and the throttle stick is not in the low throttle or off position, the motor will not start until the throttle stick is moved to the low throttle or off position. Once the throttle stick is moved to the low throttle or off position, the motor will emit a series of beeps. Several beeps with the same tune means the ESC has detected the cells of the battery. The count of the beeps equals the cells of the battery. The motor is now armed and will start when the throttle is moved.
2. The motor and ESC come pre-connected and the motor rotation should be correct. If for any reason the motor is rotating in the wrong direction, simply reverse two of the three motor wires to change the direction of rotation.
3. The motor has an optional brake setting. The ESC comes with brake switched off and we recommend that the model be flown with the brake off. However, the brake could be accidentally switched on if the motor battery is connected to the ESC while the throttle stick is set at full throttle. To switch the brake off, move the throttle stick to full throttle and plug in the motor battery. The motor will beep one time. Move the throttle stick to low throttle or the off position. The motor is ready to run and the brake will be switched off.
4. Battery Selection and Installation. We recommend the 22.2V 4000mAh 35C Li-Po battery. If using another battery, the battery must be at least a 22.2V 4000mAh 35C battery. Your battery should be approximately the same capacity, dimension and weight as the 22.2V 4000mAh 35C Li-Po battery to fit the fuselage without changing the center of gravity significantly.

Transmitter and model setup

Before getting started, bind your receiver with your transmitter. Please refer to your transmitter manual for proper operation. CAUTION: To prevent personal injury, DO NOT install the propeller assembly onto the motor shaft while testing the control surfaces. DO NOT arm the ESC and do not turn on the transmitter until the Transmitter Manual instructs you to do so. Tips: Make sure all control sticks on your radio are in the neutral position (rudder, elevator, ailerons) and the throttle is in the OFF position. Make sure both ailerons move up and down (travel) the same amount. This model tracks well when the left and right ailerons travel the same amount in response to the control stick. Move the controls on the transmitter to make sure the aircraft control surface moves correctly. See diagrams right.

Bank left Bank right	Aileron
Climb Descend	Elevator
Steer left Steer right	Streering Rudder

Control throws

The suggested control throw setting for the Extra 330 are as follows (dual rate setting):

Tips: On the first flight, fly the model in low rate. The first time you use high rates, be sure to fly at low to medium speeds. High rate, as listed, is only for EXTREME maneuvering.

	High Rate	Low Rate
Elevator	90mm up/down	70mm up/down
Aileron	130mm up/down	90mm up/down
Rudder	130mm left/right	90mm left/right

Clevis installation

1.Pull the tube from the clevis to the linkage.
2.Carefully spread the clevis, then insert the clevis pin into the desired hole in the control horn.
3. Move the tube to hold the clevis on the control horn.

Control horn and servo arm settings

The table shows the factory settings for the control horns and servo arms. Fly the aircraft at the factory settings before making changes.

After flying, you may choose to adjust the linkage positions for the desired control response.

derAile

Horns	Arms
ElevatorRud

More control throw

Less control throw

Check the C.G. (Center of gravity)

When balancing your model, adjust the battery as necessary so the model is level or slightly nose down. This is the correct balance point for your model. After the first flights, the CG position can be adjusted for your personal preference.

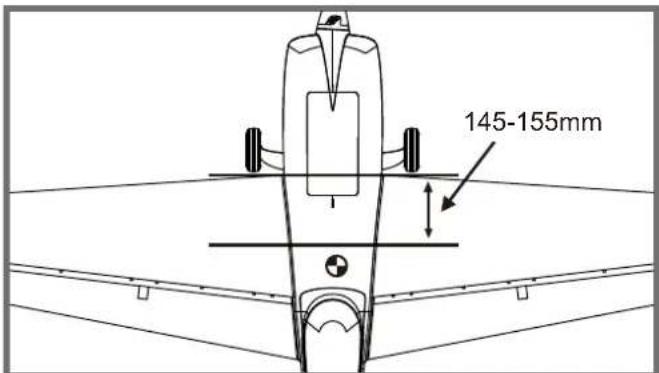

1. The recommended Center of Gravity (CG) location for your model is(145-155mm) from the leading edge of the main wing (as shown) with the battery pack installed. Mark the location of the CG on top of the wing.

2. When balancing your model, support the plane at the marks made on the bottom of the main wing with your fingers or a commercially available balancing stand. This is the correct balance point for your model. Make sure the model is assembled and ready for flight before balancing.

Before flying the model

Find a suitable flying site

Find a flying site clear of buildings, trees, power lines and other obstructions. Until you know how much area will be required and have mastered flying your plane in confined spaces, choose a site which is at least the size of two to three football fields - a flying field specifically for R/C planes is best. Never fly near people - especially children, who can wander unpredictably.

Perform the range check for your plane

As a precaution, an operational ground range test should be performed before the first flight each time you go out. Performing a range test is a good way to detect problems that could cause loss of control such as low batteries, defective or damaged radio components, or radio interference. This usually requires an assistant and should be done at the actual flying site you will be using.

First turn on the transmitter, then install a fully-charged battery into the fuselage. Connect the battery and install the hatch.

Remember, use care not to bump the throttle stick. Otherwise, the propeller/fan will turn and possibly cause damage or injury.

Note: Please refer to your Transmitter Manual that came with your radio control system to perform a ground range check. If the controls are not working correctly or if anything seems wrong, do not fly the model until you correct the problem. Make certain all the servo wires are securely connected to the receiver and the transmitter batteries have a good connection.

Monitor your flight time

Monitor and limit your flight time using a timer (such as on a wristwatch or in your transmitter if available). When the batteries are getting low you will usually notice a performance drop before the ESC cuts off motor power, so when the plane starts flying slower you should land. Often (but not always) power can be briefly restored after the motor cuts off by holding the throttle stick all the way down for a few seconds. To avoid an unexpected dead-stick landing on your first flight, set your timer to a conservative 4 minutes. When your alarm sounds you should land right away.

Flying course

Take off

While applying power, slowly steer to keep the model straight. The model should accelerate quickly. As the model gains flight speed you will want to climb at a steady and even rate. It will climb out at a nice angle of attack (AOA).

Flying

Always choose a wide-open space for flying your plane. It is ideal for you to fly at a sanctioned flying field. If you are not flying at an approved site always avoid flying near houses, trees, wires and buildings. You should also be careful to avoid flying in areas where there are many people, such as busy parks, schoolyards, or soccer fields. Consult laws and ordinances before choosing a location to fly your aircraft. After takeoff, gain some altitude. Climb to a safe height before trying technical manoeuvres, including high speed passes, inverted flight, loops, and point rolls.

Landing

Land the model when you hear the motor pulsing (LVC) or if you notice a reduction in power. If using a transmitter with a timer, set the timer so you have enough flight time to make several landing approaches.

The model's three point landing gear allows the model to land on hard surfaces. Align model directly into the wind and fly down to the ground. Fly the airplane down to the ground using 1/4-1/3 throttle to keep enough energy for proper flare. Before the model touches down, always fully decrease the throttle to avoid damaging the propeller or other components. The key to a great landing is to manage the power and elevator all the way to the ground and set down lightly on the main landing gear. After a few flights you will find the model can be set down lightly on the mains and you can hold the nose wheel off balancing themodel on the mains until it slows and gently settles the nose.

Maintenance

Repairs to the foam should be made with foam safe adhesives such as hot glue, foam safe CA, and 5min epoxy. When parts are not repairable, see the Spare Parts List for ordering by item number.

Always check to make sure all screws on the aircraft are tightened. Pay special attention to make sure the spinner is firmly in place before every flight.

Trouble shooting

Problem Possible Cause Solution
Aircraft will not respond to the throttle but responds to other controls.	-ESC is not armed.-Throttle channel is reversed.	-Lower throttle stick and throttle trim to lowest settings.-Reverse throttle channel on transmitter.
Extra propeller noise or extra vibration.	-Damaged spinner, propeller, motor or motor mount.-Loose propeller and spinner parts.-Propellor installed backwards.	-Replace damaged parts.-Tighten parts for propeller adapter, propeller and spinner.-Remove and install propeller correctly.
Reduced flight time or aircraft underpowered.	-Flight battery charge is low.-propeller installed backward.-Flight battery damaged.	-Completely recharge flight battery.-Replace flight battery and follow flight battery instructions.
Control surface does not move, or is slow to respond to control inputs.	-Control surface, control horn, linkage or servo damage.-Wire damaged or connections loose.	-Replace or repair damaged parts and adjust controls.-Do a check of connections for loose wiring.
Controls reversed.	Channels are reversed in the transmitter.	Do the control direction test and adjust controls for aircraft and transmitter.
-Motor loses power-Motor power pulses then motor loses power.	-Damage to motor, or battery.-Loss of power to aircraft.-ESC uses default soft Low Voltage Cutoff(LVC).	-Do a check of batteries, transmitter, receiver, ESC, motor and wiring for damage(replace as needed)-Land aircraft immediately and recharge flight battery.
LED on receiver flashes slowly.	Power loss to receiver.	-Check connection from ESC to receiver.-Check servos for damage.-Check linkages for binding.

Spare parts list content

FMSRL101	Fuselage	FMSRL116	Tire set
FMSRL102	Main wing set	FMSRL117	Landing gear insert
FMSRL103	Horizontal stabilizer	FMSPROP051	Propeller
FMSRL104	Vertical stabilizer	FMSBM032	Motor board
FMSRL105	Aileron	FMSDJ016	Motor mount
FMSRL106	Battery cover	PRKV240	6860-KV240 motor
FMSRL107	Main landing gear set	PRESC021	90A HV ESC
FMSRL108	Rear landing gear set	PR75MGDR	Predator 75g digital metal gear servo reverse
FMSRL109	Plastic canopy
FMSRL110	Spinner set
FMSRL111	Vortex generator
FMSRL112	Decal sheet
FMSRL113	Pipe set
FMSRL114	Linkage rod
FMSRL115	Screw set
Visit our website: www.fmsmodel.com to see photo of this product. Enter the key word "ESC" in the search bar for the stock ESC instruction manual.
