USER MANUAL SRU 5010 PHILIPS

Quick, Clean & Easy Setup

www.philips.com/urc

Contents

1. Introduction 4
2. Installing the remote control 4-6

Inserting the batteries 4
Testing the remote control 4
Setting the remote control 5

1. Keys and functions 7
2. Extra possibilities 8

Adding a function to the remote control 8
Restoring the original functions of your remote control 8

1. Troubleshooting 8
   6.Need help? 9

Code list of all brands / equipment 52-60

Information to the Consumer 62

1. Introduction

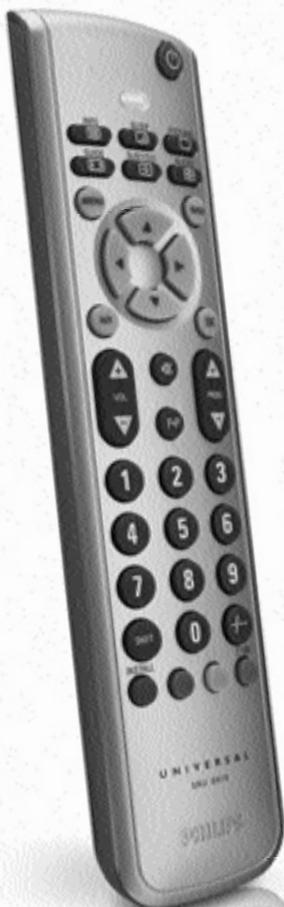

Congratulations on your purchase of the Philips SRU 5010 universal remote control. After installing the remote control it can operate the most-used functions of almost any brand of TV.

You can find information about how to prepare this remote control for use in the chapter 'Installing the remote control'.

2. Installing the remote control

Inserting the batteries

1 Press the cover inwards and slide it in the direction of the arrow.
2 Place two AAA type batteries into the battery compartment, as shown.
3 Slide the cover back and click it firmly into place.

Note: If the LED blinks four times after every key press, the remote control is indicating that its batteries are running low. Replace the old batteries with two new AAA batteries.

Testing the remote control

The remote control has been programmed to operate the most-used functions of almost any brand of TV. Because the SRU 5010 may use different signals for each make and even for different models of the same brand, it is advisable to test whether your TV responds to the SRU 5010.

The example below instructs you how to do this.

1 Turn your TV on manually or use the original remote control. Tune to channel 1.

2 Check whether all the keys are working For an overview of the keys and their functions see 3. Keys and functions'.

If the TV responds as it should to all of the key commands the SRU 5010 is ready for use.
If the TV does not respond at all or not to all of the key commands, follow the instructions under 'Setting the remote control', or for online setup go to: www.philips.com/urc.

Setting the remote control

This is only necessary if your TV does not respond to the SRU 5010.

If that is the case, the SRU 5010 does not recognize the brand and/or model of your TV and you need to program the remote control to do so.

You can set the remote control either automatically or manually.

Automatically setting the remote control

The remote control will now automatically search for the right code for your device.

1 Make sure the TV is switched on and select a channel using the original remote control or the keys on the TV (for example channel 1). The SRU 5010 emits the 'switch off TV' signal for all models of TV that are stored in the memory.
2 Then keep keys 1 and 3 on the SRU 5010 pressed simultaneously for three seconds, until the LED flashes twice and then remains lit.
3 Press and hold the Standby key of the SRU 5010.
The SRU 5010 now starts emitting all known TV off' signals, one by one. Each time a code is sent, the LED lights up
4 When your TV switches off (stand-by), release the Standby key of the SRU 5010 immediately.
The SRU 5010 has now found a code that works on your TV.
5 Check if you can operate all functions on your TV with the SRU 5010.
If this is not the case, you can redo the automatic setting. The SRU 5010 will then search for a code that works better.
After the SRU 5010 has run through all the known codes, the search will stop automatically and the LED will stop flashing.
Automatic programming of a TV takes a maximum of 5 minutes.

Manually setting the remote control

1 Turn on the TV manually or use the original remote control. Tune in to channel 1.
2 Look up the brand of your TV in the code list at the back of this manual. One or more four-figure codes are shown for each brand. Note the first code.

On our website www.philips.com/urc you can directly select your device typenumber to find the right code.

3 Keep keys 1 and 3 pressed simultaneously for three seconds until the LED flashes twice and then remains lit

4 Then enter the code noted in step 2 using the digit keys.
- The LED will now flash twice and then remains lit.
The code has now been stored in the memory of the SRU 5010.
If the LED flashes once for an extended period, the code has not been entered properly or the wrong code has been entered.
Start again from step 2.
5 Point the SRU 5010 at the TV and check that it responds as it should.
- If the TV responds to all of the key commands, the SRU 5010 is ready for use. Do not forget to note your code.
If the TV does not respond at all, or not to all of the key commands, start again from step 2 and try the next code from the list.

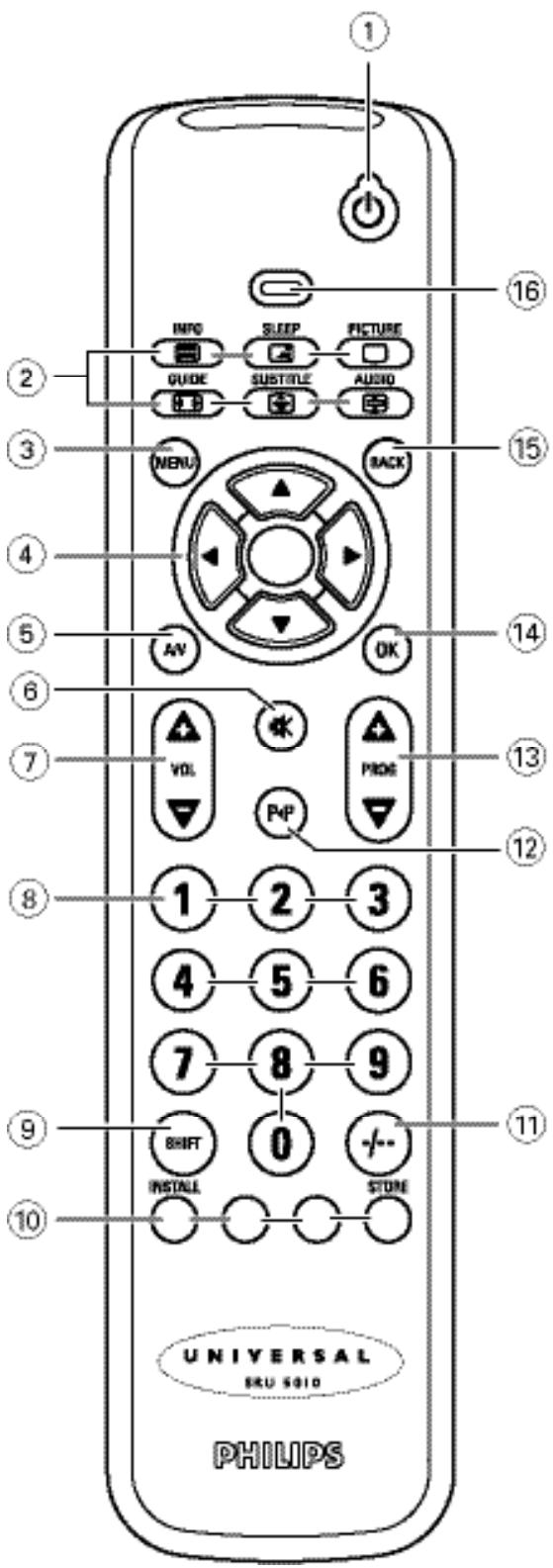

3. Keys and functions

The illustration on page 3 gives an overview of all keys and their functions.

① Standby. switches the TV on or off.
② 1 ... - teletext on/off (图)；

• text mix ( );

• text off (□);

• wide screen TV (10);

• enlarge (图)；

• text hold ( ).

③ MENU.........turns the menu on and off.
④ Cursor keys....cursor up, down, left, right in a menu.
(5) A/V. switches between external inputs of your equipment.
(6) mutes the sound of the TV.
⑦ -VOL + . . . adjusts the TV volume.
⑧ Digit keys... direct choice of channels and other functions.
⑨ SHIFT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . for extra functions. When pressed at the same time as a second key, the second key will get another function. All blue labelled keys can be used together with SHIFT. For example:

SHIFT + INSTALL installs your TV

SHIFT + STORE...stores TV settings

Try out other combinations with the SHIFT-key on your TV in order to find out which functions are available.

Only functions featured on the original remote control are available.

10 Red, green, yellow and blue teletext keys
11 --- selects between one- and two-figure channel numbers.
12 PIP selects previous programme/channel.
13 - PROG + . selects a previous or following channel.
(14) OK . confirms your selection.
15 BACK. jumps back one level in the menu or turns off the menu.
16 LED

If the device does not respond at all, or not to all of the key commands, follow the instructions under 'Setting the remote control'. It is possible that you must enter another code for the device.

4. Extra possibilities

Adding a function to the remote control

If you want to add a function to the SRU 5010, you can contact the Philips service line for Universal Remote Control to ask for the 5-figure code for the extra function.

Restoring the original functions of your remote control

1 Keep keys 1 and 6 on the SRU 5010 pressed simultaneously for three seconds, until the LED flashes twice and then remains lit.

2 Press keys 9, 8 and 1, in that order

The LED flashes twice.

All original functions have now been restored and any extra functions have been deleted.

5. Troubleshooting

Problem
Solution
The LED blinks four times after every key press.
- The remote control is indicating that its batteries are running low. Replace the old batteries with two new 1.5 Volt, AAA batteries.
- The TV does not respond and the LED does not flash when you press a key.
Replace the old batteries with two new 1.5 Volt, AAA batteries.
The TV does not respond but the LED does flash when a key is pressed.
- Point the SRU 5010 at the device and make sure that there are no obstructions between the SRU 5010 and the device.
The SRU 5010 does not respond properly to commands.
- Maybe you are using the wrong code. Try programming the RU 5010 again using another code, which is mentioned under the brand of your device, or reset for automatic search to find the right code. If the TV still does not respond, call our helpline.
The Teletext keys do not work.
Find out whether your TV is equipped with Teletext.
You have difficulties operating all of the functions on your device.
- Maybe the SRU 5010 has to be adapted to the model of the device. Call our helpline for details.
- Your brand of device is not in the code list.
Try to set the SRU 5010 automatically. See 'Automatically setting the remote control'.
- None of the codes works during manual setting of the remote control.
If that is the case, follow the instructions under 'Automatically setting the remote control'.

6. Need help?

If you have any questions about the SRU 5010, you can always contact us. You will find our contact details after the code list at the back of this manual. Read this manual carefully before you make a call. You can solve most of the problems yourself. If you cannot find any answers to your problems, write down the details of your device shown in the code list at the back of this manual. This will help our operators to assist you better and more quickly. Look up the numbers of the models in the instructions accompanying the device or on the back of your device. When you call our helpline, make sure the device is to hand so that our operators can help you determine whether your remote control is working properly.

The model number of your Philips universal remote control is SRU 5010/86.

Date of purchase:

/..

(day/month/year)

Sommaire

A.R.Systems.....0064,0583,0401,0482

Accent. 0064,0583

Accuphase .0583

Acura. 0583, 0064, 0036

Adcom. .0652

ADL. 1244

Admiral...0114,0120,0240,0190,0390

Adyson. .0244, 0243

AEG. 1583

Agashi 0243,0244

Agazi. .0243

AGB. .0543

Agef. .0114

Aiko. 0243, 0036, 0398, 0099

.0062,0388,0218,0244

Aim. 0064, 0099, 0583, 0832

Aiwa. .0728,1943

Akai.0245,0244,0064,0507,0218

0543,0062,0036,0575,0099

.0583,0245,0190,0658,0243

0057,0244,0245,0064,0218

0507,0579,0729,0742

1564

Akiba. 0064, 0309, 0583, 0245

0321,0482

Akito. .0695,0583,0064

Akura.....0445, 0064, 0303, 0245, 0036

0309, 0386, 0695, 0741, 1064, 1583

Alaron. .0243

Alba.0103,0036,0398,0695,0583

.0245,0243,0274,0382,0190

0514,0063,0458,0064,0262

0445,1064,0741

Alcyon. .0233

Allorgan.0064,0244,0233,0321

Allstar. .0244,0583,0064

Amplivision.....0204,0427,0244,0397

Amstrad .0036, 0398, 0245, 0064

0583,0389,1064,0204,0543

Anam. .0036

Andersson. 1176, 1190

Anex. .0448

Anglo. 0036

Anitech. 0397, 0583, 0036, 0064

0103,0309

Ansonic. 0500, 0064, 0036, 0695

0401,0190,0319,0286,0274

0455,0319,0131,0397,1464

AOC. 1129

Apollo. .0426

Arc En Ciel.....0223, 0360, 0426, 0528

0595,0243,0136

Arcam. .0064,0244,0243

Ardem. 0064, 0741

Aristona. 0427, 0583, 0064

ART. 1064

Arthur Martin.0132, 0190, 0264

ASA.0064,0373,0097,0114,0131

Asberg. .0245, 0583, 0103, 0129

Asora. .0036

Asuka. .0064, 0244, 0309, 0245

Atlantic. 0036, 0583, 0347, 0233

Atori. .0427

Auchan. 0064, 0190

Audiosonic.0244,0583,0401,0397

0741,0364,0742,0245,0513

0455,0036,0064,0136

Audioton.0103,0513,0244,0455

Audiovox. 1311

Audioworld. .0725

Ausind. 0114

Autovox.0038,0233,0103,0274

01140244,0264

AWA.....0036,0063,0064,0583,0243

0244,0135,0038,0633

Axxent. 0265, 0036

Ayomi .0136

Baird.0114,0220,0370,0099,0244

Bang & Olufsen. .0190, 0592, 0114

Barco .0245,0579,0407

Basic Line.0244, 0401, 0583, 0190

0695,0245,0309,0482

0036, 0064, 1064, 1190

Bauer. .0832

Baur.0244,0222,0064,0583,0581

0218,0388,1532,0532,0037

0037,0376,0388,0539,0562

Bazin. 0397, 0244

Beko.0064,0513,0583,0742,0062

0741,0633,0397,0445,0742

0835,1064

Belson. .0725

BenQ. 1239

Beon. 0364, 0583, 0064, 0445

Berthen. .0695

Best. 0064,0397,0364,0448

Bestar.....0244, 0583, 0064, 0397, 0401

Bestar-Daewoo. .0401

Binatone. 0274, 0244

Black Diamond.0641, 1064, 1936

Black Panther. 0129

Black Star. 0309

Blacktron. .0309

Blackway. .0581, 0245

Blaupunkt.0064,0218,0482,0197

0240,0063,0222,0562,0581

Blue Sky.0309,0741,1064,0514

0695,0482,0742,0309,0064

0245,0583,0835,1218

Blue Star. 0274, 0309

Bondstec. 0244, 0274

Boots. 0347,0036,0244

Bosch. 0309, 0347

BPL. 0652,0064,0309

Brandt. 0314,0528,0426,0136

0360,0223,0264,0362,0595

0587,0652,0741

Brandt Electronic.0445, 0362, 0528

0595

Brinkmann.0064,0583,0513,0445

.0695

Brionvega.0243,0583,0114,0389

Britannia.0114,0244,0243

Bruns. .0321, 0455, 0114

BSR. 0245,0190,0321,0579

BTC. 0245

Bush.0245,0695,0376,0036,0063

0064,0398,0309,0401,0388

0382,1064,0514,0244,0725

0583,0741,0262,0321,0390

0398,0579,0641,0644,1270

1286, 1583, 1927

Cadia. 1310

Candle. 0057

Canton. 0637, 0245

Carad....0482,0064,0637,0695,1064

Carena.0063,0583,0064,0482

Carrefour.0197,0583,0063,0097

Carver. .0036, 0197

Cascade. 0064, 0036

Casio .0064,0583

Casio. .0064,1232

Cathay. 0064, 0583

CCE. 0064,1064,0583

Celestial. .0847

Centrum. 0064, 1064

Centurion. 0064, 0114, 0583

Century.0101,0274,0114,0240 0265

CGE.0036,0274,0103,0190,0303

0445,0101,0333,0397,0579

Cimline. 0036, 0245

Cinex. 1583

Citizen. .0057

City. 0445, 0036

Clarivox.0245,0064,0097,0364

Clatronic. .0243,0397,0583,0398

0741,0244,0245,0103,0274

0036,0347,0129,0064,0633

.0741

Clayton. 1064

CMS. 0036, 0244, 0243

CMS Hightec. .0244

Concorde. 0243

Condor. 0064, 0347, 0309, 0583

0397,0036,0445,0190,0129

0036, 0274

Conrac. 0835, 0243, 0583

Contec....0528, 0036, 0063, 0064, 0243

Continental Edison. 0036, 0314

0223,0595,0426,0360,0136

0264,0514,0528

Cosmel. 0240,0064,0364

Crezar. .0240

Crosley. 0036, 0274, 0101, 0103

0240,0114,0374,0579

Crown.0458,0397,0064,0448

0583,0514,0741,0386,0742

0445,0366,0036,0103,0513

0633,0739,1064

Crystal. 0274, 0458

CS Electronics. .0274, 0243, 0245

CTC. 0120,0274

Curtis Mathes. 0245, 0057

CyberHome. 1203

Cybertron. 0064, 0245

Daewoo.0245,0401,0243,0036

1164,0244,0064,0583,0661

0907,1245,1936

Dainichi. 0064, 0243, 0245

Dansai. 0397,0583,0062,0036

.0063,0244,0064,0243

Dantax. .0064,0513,0741,0742

Dawa. 0036, 0583

Daytek. 1234

Dayton. 0036, 1234, 0099, 0064

Daytron.0401, 1184, 1221, 1252

1508, 1603

Edison-Minerva .0462,0514

E-Elite. .0245, 0514

Elbe.0114,0265,0397,0190,0389

0064,0583,0245,0218,0637

0244,0543,0388,0286,0319

0462,0657

Elbe-Sharp. 0543

Elcit. 0274,0129

Electrograph. 1782

Elekta. .0064,0036,0583,0309

Elfunk. 1235

ELG. 0243,0583

Elin.0245,0583,0131,0575,0388

0190,0036,0064,0376,0475

Elite 0129,0583,0245,0347

Elman. 0129, 0036

Elta. .0274,0036,0458

Emco .0274, 0204

Emerson. 0309, 0114, 0064, 0583

0398,0309,0347,0388,0513

0397,0190,0097,0204,0240

.0274,0741,1936

Emperor. 0309, 0064

Envision. .0057

Epson. 1149

Erres. .0064, 0583

ESA .0839

ESC. 0064, 0244

Etron. .0583, 0036

Euro-Feel. 0243, 0244

Euroman.0064,0243,0244,0448

.0397

Europa. 0064

Europhon.0233,0543,0583,0240

.0274,0244,0243,0129,0458

0579

Evolution. 1783

Expert. 0064, 0286, 0233

Exquisit. 0064, 0274, 0401, 0583

Fenner. .0036, 0401

Ferguson.0220,0652,0265,0222

0136, 0587, 0064, 0583, 0131

0135,0388,0314,0362,0370

0575,1064

Fidelity. 0244, 0190, 0398, 0064

0583,0220,0243,0388,0390

0539

Filsai .0244

Finlandia.0132,0373,0386,0190

0099,0314,0390,0575

Finlux. 0321, 0131, 0741, 0373

0244,0099,0190,0543,0742

0658,0103,0519,0507,0500

0097,0445,0114,0129,0835

1583,0064,0132,0374,0579

First Line.0131, 0064, 0243, 0401

0695,0741,0190,0036,0243

.0274,0265,0099,0244,0388

.0262,0321,0376,0579,0583

0835,1064,1218

Fisher. 0064, 0244, 0397, 0388

0190,0099,0114,0063,0131

0579, 0582

Flint.0220,0583,0099,0245,0064

0482,0637

Force. 1176

Forgestone. 0114, 0220

Formenti. 0120, 0190, 0243, 0583

0347,0513,0103,0347,0579

0064,0114,0240

Formenti-Phoenix.0243, 0347, 0579

Fortress. 0397, 0114, 0120

Fraba. .0036, 0583, 0064, 0397

Friac.0274,0064,0036,0129,0397

0448,0637

Frontech.0233,0458,0190,0036

.0244,0274,0390,0475

Fujitsu. .0099, 0036, 0710, 0064

.0583,0388,0286,0233,0244

Fujitsu General. .0036, 0233, 0244 .0710

Funai. 0321, 0695, 0064

Future. .0064, 0583

Galaxy .0397,0583,0064

Galaxis. 0240, 0445, 0064, 0397

Gateway. 1782

GBC.0190,0245,0036,0240,0401

0579

GE.0190,0309,0136,0362,0120

.0652

GEC.0240,0190,0064,0583,0543

0099,0244,0376,0244,0388

General Electric. 0036

General Technic. 0036

Genesis .0245,0036

Genexxa. .0240, 0583, 0190, 0036

.0245

Gericom.0835,0907,1233,1244

Germanvox. .0695,0240

Goldfunk. 0243, 0695

Goldhand. 0364, 0243

Goldline. 0064

Goldstar.0514,0036,0317,0244

0274,0243,0583,0458,0190

0388,0136,0057,0064,0390

Gooding. .0063,0514

Goodmans.0397,0661,0064,0583

0036,1064,0695,0543,0514

0317,0507,0398,0587,0244

0362,0245,1936,0062,0063

0099,0262,0344,0370,0401

0657,0741,0835,0907,1190

1286, 1927

Gorenje. 0245, 0448, 0397

GPM. 0388, 0245

Gradient. 0197

Graetz. 0064, 0398, 0366, 0583

0190,0374,0388,0514,0741

Granada.0309,0583,0099,0386

0135,0244,0063,0366,0543

0103,0500,0362,0587,0190

0575,0064,0253,0370,0378

.0383,0390,0427

Grandin. 0562, 0064, 0427, 0036

0190,0637,0741,0742,0347

0695,0482,0401,0347,0309

.0245,0907,1064,1218

Grundig.0725,0264,0218,0614

0581,0583,0064,0097,0103

0063,0222,0514,0562,0657

0733,1250

H&B. 0835

Haier. .0725

Halifax. 0243, 0244

Hampton. 0245, 0244, 0243

Hanimex.0064,0245,0321

Hanseatic.0036,0583,0309,0388

0347,0661,0321,0455,0240

0397,0036,0321,0244,0064

0114,0303,0458,0741,0835

Hantarex.0064,0036,0543,0129

0240,0265

Hantor. 0036, 0583, 0064

Harwa. 1223, 1296

Harwood. 0036, 0064, 0344, 0514

Hauppauge. 0036, 0583

Havermy .0120

HCM. 0244, 0064, 0583, 0244

0245,0445,0036,0309

Hema. 0528,0036,0244

Hifivox.....0136,0595,0223,0426,0528

Higashi. 0243

Hikona. 0245

HiLine .0245,0064

Hinari. 0309, 0064, 0036, 0245

0190,0514,0063,0262,0321

0382

Hisawa. 0252, 0245, 0637, 0309

0427,0482,0741

Hisense .0535,0583

Hit. 0114

Hitachi. 0036, 0244, 0376, 0333

0383,0370,0500,0543,0583

0370,0244,0223,0063,0064

0099,0132,0135,0136,0190

0240,0252,0374,0390,0507

0519,0575,0579,0661,1064

1072, 1164, 1176, 1182

Hitachi Fujian. .0135

Hitsu. 0036, 0245, 0482, 0637

HMV. 0114

Hoeher. .0741, 1583

Home Electronics. .0633

Hornyphon.0401,0583,0064

Hoshai. 0064, 0309

Huanyu. 0244,0243,0401

Hugoson 1244

Humax. 1322

Hygashi. 0036, 0243

Hyper.....0388,0036,0243,0244,0274

Hypersonic. 0064

Hypson.0064, 0583, 0742, 0244

0309,0265,0482,0427,0695

0741, 1064

Hyundai 1179, 1271

Iberia. 0583, 0064

ICE. 0245, 0398, 0064, 0036, 0245

0244, 0243

ICeS. 0243,0245,0064

ICT. 0064, 1164

liyama. 1244

Imperial.0264,0190,0583,0445

0388,0101,0064,0103,0376

.0223,0274,0397,0445,0458

0579,0657

Indesit. 0064, 0240, 0264

Indiana. 0514, 0583, 0064

InFocus. 1191, 1233

Ingelen.0036,0637,0388,0190

0514,0741

Ingersol. .0036

Inno Hit. 0064, 0099, 0245, 0244

0543,0274,0317,0309,0036

0129, 1190

Innovation. 0064, 0583

Insignia 1231

Interactive.0036,0583,0190,0388

0397,0136

Interbuy .0064, 0274, 0539, 0583

Interfunk.0064,0583,0114,0190

0388,0397,0136,0274,0528

0595,0376,0539

Internal. 0243, 0583, 0064, 1936

International. 0309

Intervention. 0064, 0244, 0398, 0513

0397,0514,0245,0190,0129

0274,0036,0583,0458,0309

0475,0482

IR .0036,0097

Irradio.0245,0064,0274,0398

0317,0103

Isukai.....0244,0064,0482,0245,0309

ITC. 0064,0244,0347,0579

ITS.0190,0398,0243,0036,0583

ITT. 0388, 0507, 0376, 0575, 0220

0373,0366,0190,0637,0374

0378,0500,0637

ITT Nokia.0575, 0507, 0373, 0366

0637,0658,0190,0374,0376

0378,0388,0458,0500,0633

ITV .0063,0064,0401

Jean. 0062, 0063

IEC. 0064

IMB. 0583,0661

Jocel. 0739

Jubilee. 0583

JVC.0036,0680,0220,0398,0245

0445,0063,0120,0633,0677

0710

Kaisui. 0243, 0245, 0064, 0583

0036,0482,0244,0309

Kamp. 0233, 0243

Kapsch. 0064, 0190, 0286, 0131

0233,0388

Karcher. .0583, 0448, 0309, 0637

0190,0633,0741,1583

Kathrein. 0398, 0064, 0583

Kawa. 0243, 0398

Kawasho. 0190

KB Aristocrat.0389, 0190, 0374

Kendo.0233,0637,0274,0583 0190,0539,0397,0129,0455

.0064,0262,0274,0321,0389,1464

Kennedy .0057,0190,0233,0240 0462,0579

Kennex. 1064

Kenwood. 0243, 0057

Kingsley. 0583, 0243

Kioto .0733

Kiton. .0462, 0064, 0695

Kneissel. 0064, 0265, 0401, 0583 .0286, 0319, 0265, 0389, 0462 .0637

Kolster.....0064,0583,0129,0274,0376

Konka. .0514,0583,0245,0445 0614,0741,0064,0398

Kontakt. 0064, 0514

Korpel. .0114, 0583, 0064

Korting....0064, 0397, 0114, 0347, 0448

Kosmos. .0036, 0583

Koyoda. 0265, 0036

Kraking. .0244, 0265

KTV. 0190, 0057, 0244

Kuba. 0376

Kyoshu. .0445

Kyoto. .0513,0190,0243,0244

L&S Electronic. 0741, 0835

LaSat. 0036, 0397, 0513

Leader. 0064,0036

Lecson. .0064, 0583

Lenco.....0036,0190,0131,0064,0401

Lenoir. .0274

Lesa. .0064

Levis Austria. 0583

Leyco. .0244, 0099, 0321, 0064

LG .0064,0274,0397,0458,0036 .0064,0190,0243,0583,0725 .0741,0742,1173,1175,1205 .1218,1279,1664

Liesenk & Tter. 0064, 0583

Liesenkotter .0036,0064

Lifetec.0036,0064,0695,0539 1064,1164,0583,0245,0401,0741

Lloyds .0539

LME. 0458

Local India TV. 0398

Lodos. 1064

Loewe. .0038, 0064, 0397, 0064

0114,0319,0539,0543

Logik. 0233, 0725, 0038, 0220, 0907 1244

Logix. .0695

Luma. 0233,0064,0401,0036 .0286,0389,0390,1064

Lumatron.0064,0064,0286,0388 0244

Lux May. 0264, 0036, 0064

Luxor. .0373,0384,0519,0388 0383,0575,0190,0373,0500 .0244,0658,0264,0317,0376

0390, 0507, 1064, 1190

M Electronic....0114, 0064, 0274, 0132

0370,0131,0401,0036,0244

0507,0519,0243,0190,0314

0583,0661,0388,0218,0222

0136,0373,0401

Madison. .0064

Magnadyne. .0543,0274,0129 0114,0374,0579

Magnafon.0064,0243,0103,0129 0240,0543

Magnavox. 0063, 1481

Magnum.0064,0741,0742,1316

Manest.0064,0583,0347,0190 0303,0062,0244,0262,0321

Manhattan. 0064, 0695, 1064

Marantz.0114,0064,0583,0882

Marelli. 0064

Marelli. .0114

Mark. 0262,0583,0401,0036 .0741,0742,0064,0244

Masuda. .0036, 0245

Matsui.....0204,0064,0382,0583,0038

0398,0244,0099,0321,0063

0482,0190,0543,0222,0218

0362,0036,0062,0262,0382

0390,0458,0514,0741,1064

Matsushita. 0064, 0677

Maxent. 1782

Maxim 1583

Mediator. 0064, 0583

Medion. 0064,0539,0583,0695

.0725,0741,0835,0907,1064

:1164,1248,1275,1464,1927

0637,0695

Megas. 0036, 0637

MEI 1064

Melectronic.0036,0064,0131,0132

.0190,0222,0243,0244,0274

.0373,0376,0401,0507,0519

.0539,0661,0741

Melvox. .0427

Memorex. .0364, 0036, 1064

Memphis. 0036, 0099, 0364

Mercury. 0114, 0064, 0036

Metronic .0652

Metz.....0064,0114,0240,0394,0415

.0474,0562,0581,0614,0695

0773,1190

Metz.0222,0562,0394,0064,0583

.0695,0240,0581

MGA. 0064,0064,0131

Micromaxx.....0835,0583,0064,0657

0695,1064

Microstar. 0064, 0835

Mikomi. 1176

Minato. 0514, 0583, 0064

Minerva.0222,0097,0543,0103

.0135,0581,0264,0514,0562

.0581

Minoka. 0220, 0064, 0386

Mirror. 1927

Mistral Electronics. 0135, 0220

Mitsubishi.0190,0120,0539,0114

0220,0063,0583,0264,0064

0135,0562,1064

Mitsuri General. 0397

Mivar. 0036, 0317, 0243, 0103

0636,0543,0244,0318,0319

Monaco. 0064,0036

Morgan's. .0103, 0583, 0064

Motion. 0120, 0103

Motorola. .0397

MTC.0220,0539,0243,0388

0057,0376,0397

MTlogic. .0741

Multibroadcast. 0129, 0220

Multistandard .0064

Multitec. .0064, 0513, 0695, 1064

1583,0244,0583

Multitech.0131, 0036, 0243, 0397

0274,0583,0129,0064,0103

.0244,0390,0513

Murphy. 0064, 0190, 0243

Musikland .0583,0245,0274

Myryad. 0064, 0064, 0583

NAD. 0388

Naiko. .0401,0583,0064,0633

Nakimura. .0190,0064

Naonis. 0253, 0390

NAT. 0253,0264

National.0063,0253,0264,0267

NEC.0064,0197,0036,0401,0244

0064,0583,0038,0057,0063

.0244,0347,0482,0614,1162

1731, 1297, 1397

Neckermann.....0064,0218,0532,0583

0190,0445,0274,0581,0244

0274,0347,0539,0376,0114

.0240,0390,0397

NEI.0274,0583,0458,0064,0364

0398

Neovia 1233

Nesco. .0064,0274

Netsat. 0064, 0583

Network. .0364

Neufunk. .0064, 0036, 0245, 0309

0583,0637,0741

New Tech. 0244, 0370, 0475

NewWorld. 0243

Newtech. 0245, 0036, 0370

Nicamagic. .0099, 0243

Nikkai.0129,0244,0062,0364

.0243,0036,0063,0064,0099,0245

Nikko. .0344

Nobliko.0426,0103,0097,0129

.0243

Nogamatic.....0190,0528,0223,0360

.0595

Nokia.....0136,0388,0376,0519,0500

0366,0401,0658,0373,0347

0386,0637,0136,0384,0190

0374,0378,0507,0575,0633

Nordic. .0244

Nordmende.....0190, 0314, 0595, 0426

.0223,0370,0240,0064,0136

.0222,0528,0587,0741

Normerel. 0064

Novatronic. 0064, 0132, 0401

Oceanic.0397,0388,0190,0374

0427,0500,0575

Okano .0398,0036,0064,0397

Onimax. .0741

Onwa. .0064,0129,0245,0398

Opera. 0120

Optonica .0064

Orbit. 0262

Orion.....0099, 0204, 0064, 0347, 0543

0382,0038,0036,0262,0321

0344,0741,0907,1943

Online. 0064, 0245

Ormond. 0695, 1064

Orsowe. .0543

Osaki.0245,0099,0064,0401,0583

.0303,0244,0382

Osio. .0317

Oso. 0245

Osume. .0037, 0063, 0064, 0583

0099,0245

Otake. 0344

Otto Versand....0243, 1532, 0120, 0539

0064,0583,0222,0218,0388

0136,0253,0274,0562,0347

.0244,0036,0376,0309,0581

0455,0581,0037,0063,0136

0240,0262,0321,0370,0374

0532,0579

Pacific.....0583,0741,1064,1164,1264

Pael. 0397, 0243

Palladium.0036, 0064, 0532, 0445

.0583,0274,0190,0581,0244

0376,0114,0240,0390,0397

0445,0657,0741,1164

Palsonic. .0064, 0244, 0445, 0725

Panama....0677, 0244, 0064, 0583, 0274

Panasonic.0064,0264,0253,0301

0543,0240,0575,0388,0267

.0264,0190,0394,0064,0374

.0253,0378,0677,1237,1337

1677

Panavision. 0265, 0064

Pathe Cinema.0240,0347,0319

0190,0243,0265,0427,0458

.0579

Pathe Marconi. .0036, 0528, 0360

0426,0264,0595,0223

Pausa. .0036

Penney. 0099, 0057

Perdio .0064,0347,0099,0190

0243,0309

Perfekt. 0114

Philco. .0244, 0101, 0057, 0445

0103,0274,0240,0397,0064

0114,0579

Philex. 0220, 0378

Philharmonic. .0583

Philips.....0064,0036,0883,0581,0218

0114,0220,0265,0359,0370

.0388,0401,0583,0632,1273

1783, 1481

Phocus. 1316

Phoenix..0064, 0114, 0243, 0347, 0513, 0579

Phonola...0057, 0243, 0064, 0114, 0220

Pilot. 0064, 0733

Pioneer.0064,0370,0455,0136

0190,0314,0388,0513,0539

Pionier. .0513, 1583

Plantron. .0595, 0036

Playsonic.0064,0244,0366,0741

0742

Polcom. .0036, 0528, 0595

Poppy. 0274

Portland. .0401

Powerpoint. 0064, 0514, 0725

Prandoni-Prince.0244,0543,0103

0240,0388,0390

Precision. .0099

Prinston. 1064

Prinz. 0036, 0388

Profex. 0064,0036,0103,0190 .0388,0390

Profi. 0036

Profilo. 1583

Profitronic. 0064, 0129

Proline.....0064, 0099, 0652, 0657, 0661

1064

Prosonic. 0064, 0244, 0695, 0741

.0243

Protech. 0064, 0036, 0445, 0695

0376,0129,0458,0364,0244

.0274,0513,0579,1064

ProVision. 0064,0583,0741

Pye. .0036, 0583, 0064, 0114, 0376

0401,0581

Pymi. .0274

Quadral. 0245

Quasar. 0064,0036,0274

Quelle.....0063,0131,0388,0539,0528

0562,0581,0532,0244,0274

0101,0097,0037,0038,0064

.0240,0333,0579,0695,1064

Questa. 0136,0063

Radialva. 0064, 0245, 0364, 0458

Radiola.0114,0583,0064,0244

Radiomarelli.....0036,0543,0064,0114

RadioShack. .0057,0064

Radiotone.0097,0036,0064,0455

.0695,1064

Rank Arena. 0063

RBM. .0097

RCA. .0388,1474,0120,0652

Realistic. .0057

Rediffusion.....0741,0063,0373,0378

0388,0575

Reflex. 0064, 0695, 1064

Relisys.....1233, 1234, 1236, 1238, 1240

1241, 1242, 1295

Reoc. 0064, 0741

Revox. 0233,0397,0064

Rex.0114,0190,0233,0286,0390

RFT.0036,0455,0064,0099,0114

R-Line. .0064

Roadstar.0114,0036,0064,0245

0309,0445,0695,0741,1064

1216, 1927

Robotron. 0448, 0114

Rowa. .0725,0739

Roxy. .0475

Royal Lux. 0114, 0362

RTF. 0652

Saba.0265,0314,0114,0136,0426

0543,0388,0362,0575,0587

0528,0370,0525,0223,0190

0240,0374,0595,0652,0741

Saccs. 0482, 0265

Saisho.....0064,0543,0204,0244,0190

.0036,0038,0262,0458

Saivod.....0190,0583,0064,0695,0739

1064, 1190

Sakai. 0190, 0317

Salora.....0240,0383,0388,0386,0543

0575,0366,0190,0317,0376

0390,0507,0579,0658,1264

Salsa. 0362

Sambers.0064, 0543, 0103, 0129, 0240

Sampo 1782

Samsung. 0243, 0036, 0244, 0397

0243,0671,0099,0317,0190

0057,0729,0839,0841,0839

0064,0475,0583,0614,1087

1262, 1276

Sandra. 0064, 0244, 0243

Sansui.0583,0482,0064,0733

Santon. .0036

Sanyo.....0064,0319,0038,0397,0366

0131,0099,0243,0244,0190

0036, 0135, 0064, 0583, 0513

0063,0197,0240,0582,0920

1235

SBR. .0376,0583,0064,0220

Schaub Lorenz.0064,0575,0513

0374,0388,0401,0633,0741

1218

Schneider.0244,1164,0244,0286

0274,0398,0388,0245,0695

1064,0370,0190,0741,0064

.0097,0376,0379,0583

Scotland. 0190

Seaway. .0661

Seelver. 1064

SEG.0114,0695,0063,0129,0389

0064,0036,0103,0243,0244

0245,0376,0514,0579,0661

1064, 1190, 1464

SEI .0233,0129,0240,0321,0233 0064,0037,0114,0204,0374 0543,0579

Sei-Sinudyne.0037,0064,0114,0129 .0233,0240,0321,0374,0543 .0579

Seleco.0036,0190,0389,0233,0286 0373,0374,0390,0398,0462

Sencora. 0303, 0036

Sentra. 0120, 0062

Serino. 0120,0482,0637

Sharp. .0063, 0120, 0220, 0321, 0543 1120, 1190, 1220

Shintoshi. 0064

Shivaki. .0064

Shorai. .0114, 0321

Siarem....0218,0543,0114,0129,0240 0374,0579

Siemens. 0064, 0222, 0581, 0240 .0218, 0374, 0562

Sierra. .0397,0583

Siesta. 0243,0397

Silva. 0063,0064,0243,0388

Silva Schneider. 0064, 1583

Silver. 0063,0388,0742,0114

SilverCrest. 1064

Singer.....0036,0114,0129,0362,0462 0204

Sinudyne.0037,0114,0129,0204 .0233,0240,0262,0321,0374 .0543,0579,0384,0388

Skantic. 0383,0384,0064

SKY. 0064,0907,0347

Sliding. .0907

SLX .0695

Smaragd. .0514

Sogera. 0388

Solavox. 0064, 0099, 0190, 0378 0388, 0575

Sonawa. 0245

Soniko .0064

Sonitron.0244,0366,0064,0397

Sonoko. .0036,0064,0309,0244

Sonolor. 0190,0309,0374,0388 .0532,0575,0064

Sontec.....0036,0064,0321,0397,0532

Sony.0129,0037,1678,0063,0101 .0038,0064,0120,0197,0532 1037,1532,1778

Sound & Vision. .0064, 0245, 0129 .0401

Soundwave.0064,0347,0445,0742 0245

Spectra. 0036

Sangyong. 0036

Standard.0036,0064,0244,0245 .0347,0401,1064

Starlite. 0036, 0064, 0579, 0309

Stenway. 0245, 0309, 0233

Stern.....0190,0233,0286,0390,0321

Strato. 0036, 0064

Strong. 1176, 1190

Sunkai....0321,0482,0514,0637,0064 0382,0245,0262

Sunstar. 0036, 0064, 0398

Sunwood. 0543, 0036, 0064

Superla. 0036, 0243, 0543

SuperTech. 0036, 0064, 0243, 0245 .0401

Supra. .0036

Susumu. 0245, 0314, 0362

Sutron. 0243

SVA. 0614

Swissline. 0274

Sydney. 0244

Sylvania. 0064, 0057

Sysline. 0064, 0474

Sytong. 0243

T + A. 0394,0474

Tandberg.0245, 0136, 0394

Tandy.....0063,0120,0244,0274,0303 .0099,0190,0245

Targa. .0729

Tashiko....0063,0190,0243,0244,0386 0390,0064

Tatung.0038,0064,0099,0244,0543 1083,1583,1783,0036

TCM. .0741,0835

Teac. .0036, 0064, 0197, 0458, 0482 .0539, 0695, 0725, 0739, 1695 .1751, 0244, 0445, 1064

TEC. .0347,0274,0498,0362,0036 0064,0244,0286,0364,0579

Tech Line. 0064, 0695, 1464

Technema. 0136, 0347

Technics .0583,0677

TechniSat. 0583, 1294

Technisson. .0741, 1316

Technosonic. .0583

Techwood. 1190

TecnImagen .0583

Teco. 1067

Tedelex. 0036, 0244, 0458

Teleavia. 0064,0528,0360,0517 .0595,0223,0370,0426

Telecor. 0136, 0190, 0286

Telefunken.0064,0528,0498,0362 0289,0652,0729,0426,0064

.0583,0101,0370,0593,0595 0333,0136,0223,0240,0314

0373,0513,0517,0525,0587 0741

Telefusion .0064

Telegazi. 0064, 0347, 0190

Teletech.0036,0064,0364,0695 1064,0244,0274

Teleton. 0063, 0233, 0244, 0286

0376,0390,0347

Televideoon.....0243,0347,0579,0321

Teleview. .0064

Temco. 0131, 0321

Tempest. .0036

Tennessee .0064

Tensai.....0244, 0245, 0321, 0347, 0036

0132,0401,0398,0064,0131

.0274,0344,0742,1064

Tenson. .0036, 0347

Tevion.....0583,0695,0741,0835,1064

1164, 1275, 1286, 1316, 1583

Texet.....0036, 0243, 0244, 0245, 0401

0264

Thomson.0220,0314,0136,1474

0360,0362,0370,0426,0517

0528,0498,0595,0223,0064

.0264,0376,0587,0652

Thorn.....0099, 0064, 0539, 0388, 0101

0265,0062,0063,0131,0136

0220,0362,0370,0386,0532

0562,0580

Thorn-Ferguson.0220,0265,0370

Tiny 1296

Tokai.0243,0064,0036,0190,0364

0401,0475,0695,1064

Tokaido. 1064

Tokyo. 0309, 0062, 0475

Tomashi. 0245, 0309, 0270

Toshiba....0376, 0535, 0677, 0063, 0062

.0097, 0129, 0136, 0222, 0270

0517,0580,0741,1183,1190

1191, 1316, 1535, 1583, 1683

Towada. 0036, 0244, 0579

Toyoda. 0244,0398

Trans Continens.0064, 0244, 0695

1064

Transonic.0036,0064,0243,0583

0539,0725,0739

Transtec. 0064

Triad. 0543, 0583

Trident. 0244, 0543

Tristar. 0204, 0245, 0220

Triumph.0309,0543,0593,0064

0204,0270,0373,0583

Tsoschi. 0309, 0583

TVTEXT 95.0103,0583

Uher.....0114,0064,0347,0401,0445

0513,0397,0286,0103,0233

.0507

Ultravox.0064,0401,0243,0190

0064,0583,0240,0114,0129

0274,0378,0579

Unic Line. 0064, 0583, 0482

United.....0064, 0741, 0742, 1064, 1943

0373,0583

Universal. 0064

Universum.0364,0132,0562,0388

0274,0519,0507,0397,0445

0038,0539,0063,0190,0321

0131,0064,0583,0036,0037

0097,0101,0103,0197,0204

0240,0244,0317,0333,0373

0389,0448,0500,0528,0532

Univox.....0064, 0114, 0190, 0364, 0265

Utax. .0064

V7 Videoseven. 1782,0907

Vestel.....0036, 0190, 0695, 1064, 0064

0244,0579,0583,1190

Vexa. 0243,0583

Videocon. .0535

Videologic. 0243, 0245

Videologique .0025

Vision.0064,0244,0347,0303,0583

Vistar. 0064,0388,0233

Vortec. 0114,0583

Voxson.0244,0064,0445,0190

0114,0390

Waltham.0064,0695,0445,0314

0190,0583,0136,0244,0383

0458,0517,1064

Wards. 0057

Watson....0243, 0583, 0245, 0036, 0240

.0695,1064,0064,0240,0347

1464

Watt Radio.0240,0190,0129,0243

0579

Wega. 0036, 0063, 0064, 0114

Wegavox. 0064,0064

Welltech. 0741

Weltblick.0064,0583,0244,0347

Weston. 0064, 0583

Wharfedale.0347,0583,0064,0583

1264,1583

White Westinghouse.0309,0243

0364,0064,0347,1309

Windsor. 1064

Windstar.0064,0309,0364

Windy Sam. .0583

World-of-Vision. 0907, 1316

Xenius. .0661

Xoro. 1223, 1244, 1270

Xrypton. 0309, 0583, 0064

X-View. 1218

Yamaha. 0057, 0677, 1603

Yamashi...0064,0482,0244,0583,0309

Yokan. 0244, 0583, 0064

Yoko.....0245,0064,0036,0397,0366

.0243,0274,0458,0244,0448

Yorx. 0233

Zanela .0265

Zanussi.0366,0244,0233,0390

Zenor. 0366

TV

Equipment

Brand

Model number

Number of original remote

Code

Helpline

Country

Belgié/Belgique

Danmark

France

Deutschland

Espana

EAAynvas

Ireland

Italia

Luxemburg

Nederland

Norge

Österreich

Portugal

Suomi

Sverige

Suisse/die Schweiz

United Kingdom

Phone number

070 253 011

35258758

0891650007

01805007533

902 889 343

0080031221219

016011158

199 404 043

4066615645

0900 0400 062

22708258

0820 901116

21359 1441

0922948258

087505196

012120045

0906 1010 018

Tariff

0,17

Local tariff

0,23

0,12

€ 0,15

Local tariff

Local tariff

€ 0.25

Local tariff

0,20

Local tariff

Local tariff

Local tariff

Local tariff

Local tariff

Local tariff

£ 0.15

GB Information to the Consumer

Disposal of your old product

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.

Please inform yourself about the local separate collection system for electrical and electronic products.

Please act according to your local rules and do not dispose of your old products with your normal household waste. The correct disposal of your old product will help prevent potential negative consequences for the environment and human health.

Dealer's name, address and signature
