23011 - Hand blender KORONA - Free user manual and instructions

Product type	Hand mixer/beater
Brand	KORONA
Model	23011
Power supply	230 V ~ 50/60 Hz
Number of speeds	5 speeds + Turbo
Continuous operating time (CO-Time)	5 minutes maximum
Material of beaters	Stainless steel
Included accessories	Beaters and dough hooks
Cleaning of body	Damp cloth, do not immerse
Cleaning of accessories	Dishwasher or warm soapy water
Safety	Unplug before cleaning; do not use near water; supervise children
Turbo function	Maximum speed (equivalent to level 5) on all settings
Eject button	Yes, to remove accessories
Intended use	Mixing, whipping, kneading light doughs
Warranty	2 years against material and manufacturing defects
After-sales service	KORONA Service, Am Steinbach 9, 59872 Meschede, Germany
Recycling	Do not dispose of with household waste, take to recycling center
Languages of the manual	FR, DE, EN, NL and others on request

Frequently Asked Questions - 23011 KORONA

How to insert or remove the beaters or hooks?

Make sure the appliance is unplugged and turned off (position 0). Insert the ends into the mixer slots until they click. To remove, press the eject button.

What are the different speeds and what are they used for?

Speed 1: soft ingredients (butter, flour). Speed 2: liquids. Speed 3: cake batter. Speed 4: creamed butter, dessert. Speed 5: egg whites, whipped cream. Turbo: maximum speed.

How long can I use the appliance continuously?

The continuous operating time is 5 minutes maximum. Then allow the motor to cool down before reusing.

Can I use the appliance with boiling liquids?

No, never use boiling liquids. Let them cool down (lukewarm) to avoid burns.

How to clean the mixer?

Unplug and turn off the appliance. Clean the body with a damp cloth without harsh detergent. The beaters and hooks are dishwasher safe or can be cleaned in warm soapy water. Never immerse the body.

What to do if the appliance stops working?

Check the plug and cord. If the problem persists, contact KORONA service ([e-mail]). Do not attempt to repair yourself.

Can I use glass bowls?

No, use a plastic or metal bowl. Glass bowls may break.

How to activate the Turbo function?

Press the Turbo button (4) during operation. It gives maximum speed regardless of the selected speed setting.

Is the appliance under warranty?

Yes, the product is guaranteed for 2 years against material and manufacturing defects. The warranty does not cover normal wear, damage due to improper use, or defects known at the time of purchase.

Where to find spare parts?

Contact KORONA service at: KORONA Service, Am Steinbach 9, 59872 Meschede, Germany. Tel.: [phone], e-mail: [e-mail].

USER MANUAL 23011 KORONA

KORONA electric GmbH, Sundern/Germany

www.korona-electric.de

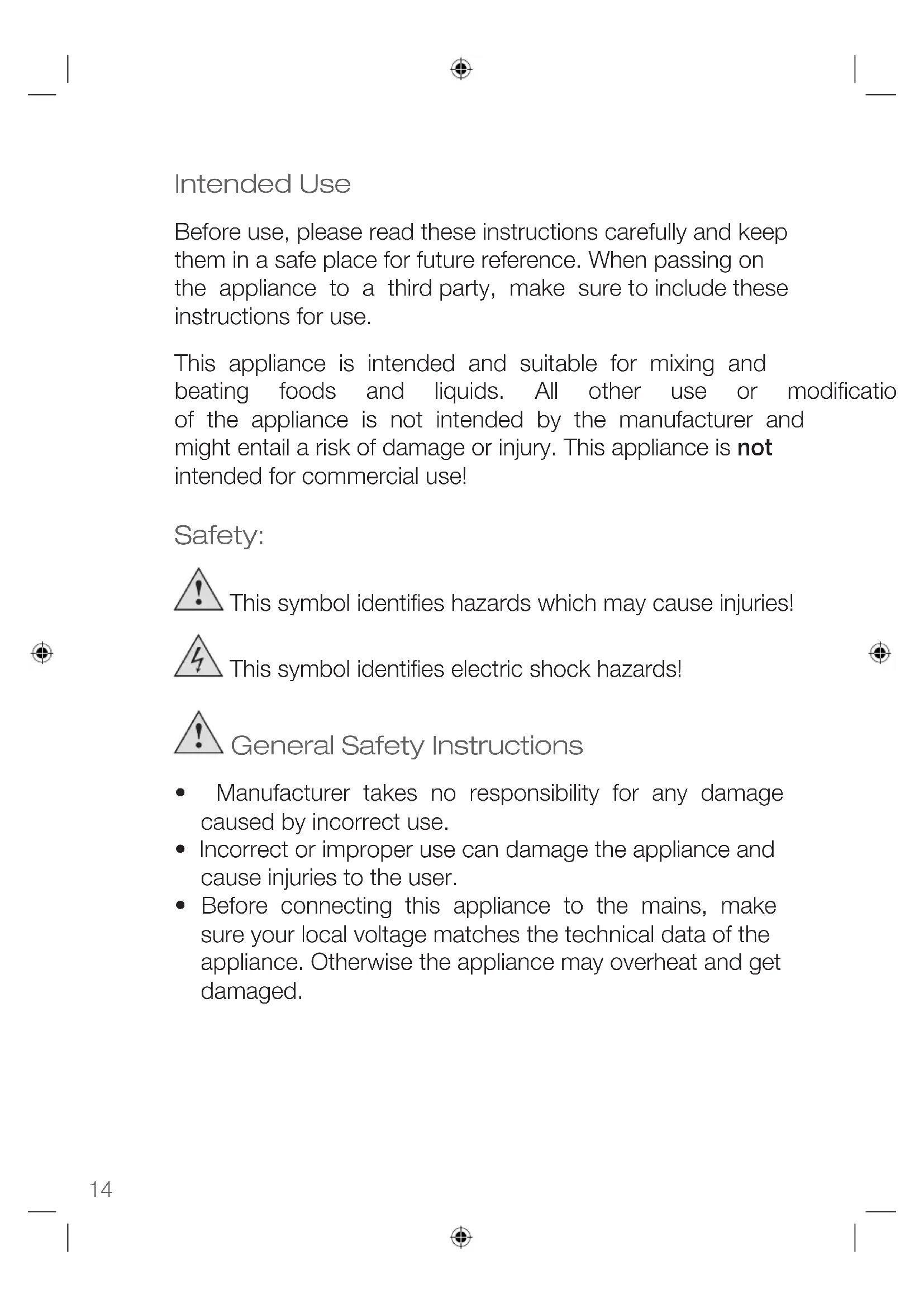

Before use, please read these instructions carefully and keep them in a safe place for future reference. When passing on the appliance to a third party, make sure to include these instructions for use.

This appliance is intended and suitable for mixing and beating foods and liquids. All other use or modification of the appliance is not intended by the manufacturer and might entail a risk of damage or injury. This appliance is not intended for commercial use!

Safety:

This symbol identifies hazards which may cause injuries!

This symbol identifies electric shock hazards!

General Safety Instructions

• Manufacturer takes no responsibility for any damage caused by incorrect use.
• Incorrect or improper use can damage the appliance and cause injuries to the user.
• Before connecting this appliance to the mains, make sure your local voltage matches the technical data of the appliance. Otherwise the appliance may overheat and get damaged.

Caution! Danger of electric shock!

• Never put the appliance, cord or plug into water or any other liquid.
• Do not use the appliance near a sink or wash basin.
• Do not use the appliance with wet hands.
• Do not use the appliance outdoors.

An electric appliance is not a toy!

• Never leave the appliance unattended during use.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• Always unplug your appliance when it is not in use, and before cleaning.
  Always pull the plug - not the cord.
• Keep the appliance and the cord well away from any hot surfaces to avoid any damage to the appliance.
• Make sure the cord may not inadvertently be pulled cause anyone to trip when in use. Do not allow the cord to hang over sharp edges.
• Do not bend the cord or wind it round the appliance.
• Keep the appliance out of reach of children.

Do not use the appliance,

if the cord is damaged.
in case of malfunction.
- if the appliance was dropped or is damaged otherwise. Have it checked and, if necessary, repaired by a qualified person/Customer Service. Never attempt to make any modifications to or repair the appliance yourself.
- Only use accessories evaluated for use with this appliance.
- Never attempt to drive any objects into the appliance.
- Never attempt to open the housing yourself!

Special Safety Instructions

1 3

Warning! To avoid the possibility of injury/damage to the appliance, electric shock, risk of fire and burns!

• Only use the appliance for its intended purpose and as described in this manual.
  Make sure all parts are properly attached.
• When exchanging parts make sure that the appliance is unplugged and switched off (0-position).
• Always disconnect the appliance from the electricity supply if it is left unattended, before assembling and disassembling or cleaning.
• Never touch the rotating parts/blades with your hair and/or other objects when using the appliance. This could lead to serious injuries and/or damage to the appliance.
• Never affix parts with different functions to the appliance at the same time.
• Never use any boiling liquids. Allow those liquids to cool down first (lukewarm) to avoid serious injuries/burns.
  Continuous Operation: 5 Minutes.

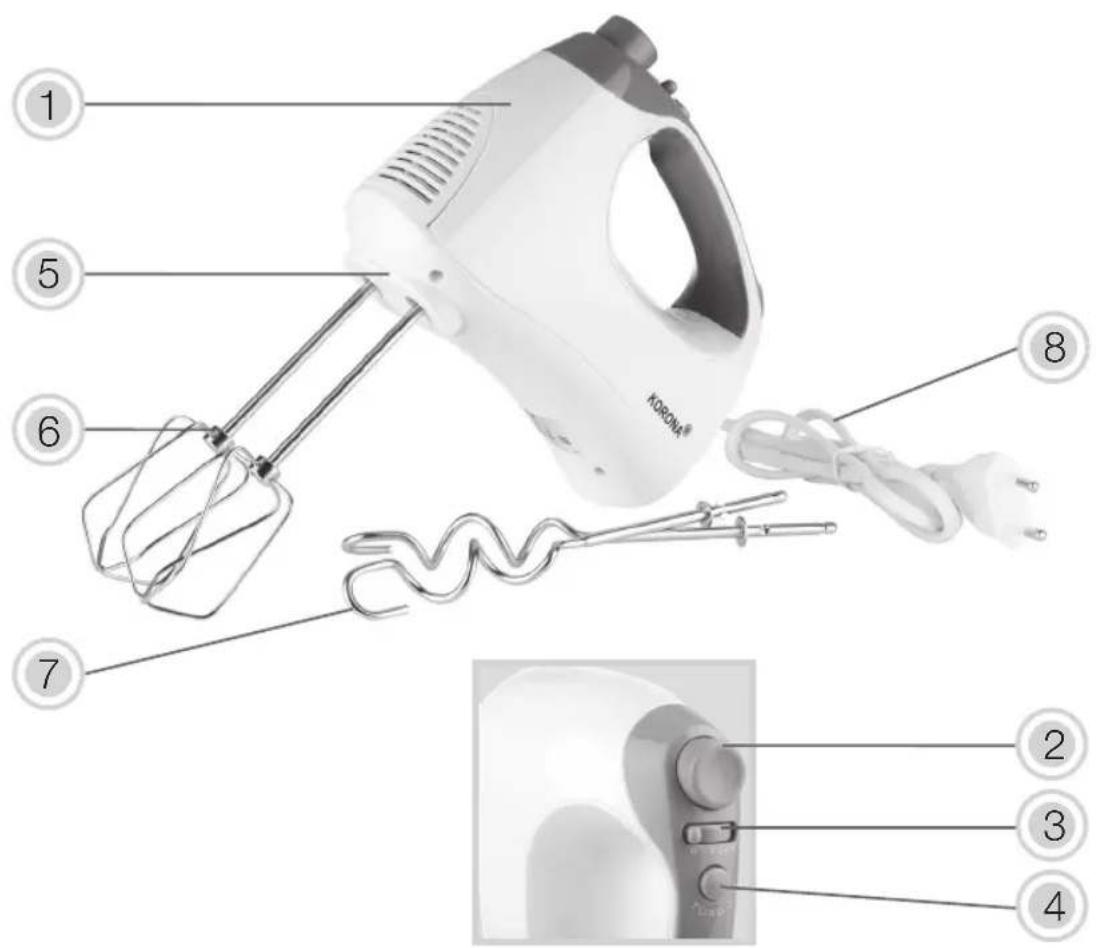

Product Description

1. Mixer
2. Eject button
3. Speed control switch
4. Turbo speed button
5. Slots for beaters /dough hooks
6. Beaters
7. Dough hooks
8. Power cord and plug

Before First Use

• Remove all packaging material and check whether appliance is complete and undamaged.
• Fully unwind the power cord (8).
• Clean the appliance as specified under „Cleaning and Care".

Warning: Plastic bags are a danger to toddlers and, as they, therefore keep them away to avoid suffocation.

Inserting / Removing the beaters / dough hooks

Attention: Make sure that the appliance is unplugged and switched off (0-position).

1. Insert the ends of the beaters (6) resp. dough hooks (7) into the resp. slots (5) of the mixer (1). You may need to twist them slightly until they click into place.
2. To remove the beaters (6) resp. dough hooks (7) push the eject button (2).

Operation

1. Insert beaters (6) resp. dough hooks (7) into the slots (5) of the mixer (1).
2. Put the required ingredients into a bowl (no glass bowls) and lower the beaters (6) resp. dough hooks (7) into the ingredients.
3. Connect the plug (8) to a properly installed wall socket.
4. Start the mixing process by turning the speed control switch (3) to the right. You can choose from 5 settings (1 - 5) and Turbo (4) (see explanation underneath).
5. Once the mixing process is complete switch off (0-position) your appliance and disconnect it from the mains. Remove

the contents from the bowl and the beaters (6) resp. dough hooks (7) with a plastic or wooden spatula.

1. Remove the beaters (6) resp. dough (7) hooks by pushing the eject button (2). Use the dough hooks for making yeast dough and shortcrust.

Speed Setting

0 Off

1 suitable starting speed for mixing "soft" ingredients, e.g. butter, flour, etc.
2 ideal speed for mixing liquid ingredients
3 ideal speed for mixing cake batter
4 ideal speed for creaming butter, desert, etc.
5 ideal speed for beating egg whites, whipping cream, mashing potatoes, etc.

Turbo function

Same speed as level 5. This button (4) allows you to operate the appliance in each speed setting at its fullest capacity.

Warning: DO NOT operate the appliance longer than 5 minutes (CO-time) at a time, to avoid overheating of the appliance.

Cleaning and Care

Before cleaning, always switch off the appliance and disconnect it from the mains. Let it completely cool down.

Never immerse the appliance in water. Danger! Electric Shock!

Clean the appliance as soon as possible after use with a damp cloth and do not use any aggressive cleaning agents.

Release and clean the stainless steel beaters (6) resp. dough hooks (7) in warm water using some dishwashing detergent or in the dishwasher.

! Cleaning and user maintenance shall not be made by children without supervision.

After use, store the appliance in a clean and dry place and keep it out of the reach of children.

Disposal Instructions

Waste electrical devices marked with this sign must not be disposed of with your household waste, but are to be collected separately. Therefore, please return this device at the end of its life cycle to special collection points for disposal or your local dealer.

Your hand mixer 23011 is packed in a retail box. Such boxes are recyclable waste, i.e. they are reusable or recyclable.

Technical Data:

Voltage: 230V 50 / 60Hz

Rated Power: 300 W

CO-Time: 5 Minutes

Protection Class: I I

CO-Time: The CO-Time (Continuous Time) describes the time how long an appliances may be used without the motor being damaged or overheating. After the appliance has run for this period of time it must be switched off to allow the motor to cool down.

Subject to change without notice!

CE

Guarantee:

This product is guaranteed against defects in materials and workmanship for a period of 2 years.

This guarantee is not valid:

• if the appliance has not been used in accordance to the instructions
  for damages due to wear and tear (batteries, etc.)
• for damages known by customer at time of purchase
  for damages caused by owner

This guarantee does not affect your statutory right, nor any legal right you may have as a costumer under applicable national legislation governing the purchase of goods.

In order to assert his/her right in a guarantee case during the guaranteed period, the customer must provide evidence of the date of purchase (receipt).

The guarantee is to be asserted against

KORONA electric GmbH, Sundern/Germany.

Service Address:

KORONA Service, Am Steinbach 9, 59872 Meschede, Germany

Telephone Hotline: [phone]

Mail: [e-mail]

web: www.korona-electric.de

within 2 years after the date of purchase. In case of guarantee the customer is given the right to get the appliance repaired at our own or at an authorized shop. Further rights (due to guarantee case) are not given to the customer.
