23511 - Hand blender KORONA - Free user manual and instructions

Product Type	Hand Blender
Brand	Korona
Model	23511
Power Consumption	700 W
Voltage	220-240 V
Frequency	50/60 Hz
Blending Shaft Material	Stainless Steel
Speed Settings	2 speeds + turbo
Cord Length	1.2 m
Weight	0.8 kg
Dimensions (L x W x H)	40 x 7 x 7 cm
Color	White/Grey
Safety Features	Overheat protection, non-slip handle
Dishwasher Safe Parts	Blending shaft and beaker
Accessories Included	Measuring beaker, whisk attachment
Warranty	2 years

Frequently Asked Questions - 23511 KORONA

How do I use the turbo function?

Press and hold the turbo button for maximum power. Release to return to the selected speed. Use for tough ingredients like ice or frozen fruit.

Can I blend hot liquids?

Yes, but allow liquids to cool slightly (below 80°C) to avoid pressure buildup. Do not fill the beaker more than halfway when blending hot liquids.

How do I clean the blending shaft?

Detach the shaft and rinse under running water. It is dishwasher safe. Alternatively, blend warm soapy water for 30 seconds.

What is the maximum blending time?

Do not operate continuously for more than 1 minute. Let the blender cool down for at least 2 minutes between cycles to prevent overheating.

Is the blender suitable for crushing ice?

Yes, use the turbo function in short bursts. Do not overload the beaker. For best results, add a little liquid with the ice.

Can I use the blender with non-stick pans?

No, only use the blender in the provided beaker or suitable containers. Avoid contact with hot surfaces or non-stick coatings to prevent damage.

How to replace the blade?

The blade is not user-replaceable. If damaged, contact Korona customer service for assistance or consider a replacement unit.

What does the warranty cover?

The 2-year warranty covers manufacturing defects under normal household use. It does not cover wear and tear, misuse, or commercial use.

Why does the motor stop during use?

The motor has overheat protection. If it stops automatically, unplug and let it cool for 15 minutes before restarting. This prevents motor damage.

Is the blender BPA-free?

Yes, all plastic parts that come into contact with food are BPA-free and comply with food safety regulations.

USER MANUAL 23511 KORONA

Black-and-white photo of a glass of juice with strawberries on the side (no text or symbols)

CE

Two horizontal grayscale color swatches with a central target symbol (no text or labels)

Produktbeschreibung

Close-up of a white cylindrical container with a small black arrow and a downward arrow, no visible text or symbols.

Before use, please read these instructions carefully and keep them in a safe place for future reference. When passing on the appliance to a third party, make sure to include these instructions for use.

This appliance is intended and suitable for toasting and reheating

the appliance is not intended by the manufacturer and might entail a risk of damage or injury. This appliance is not intended for commercial use!

Safety:

This symbol identifies hazards which may cause injuries!

This symbol identifies electric shock hazards!

General Safety Instructions

by incorrect use.

cause injuries to the user.

sure your local voltage matches the technical data of the damaged.

Caution! Danger of electric shock!

liquid.

An electric appliance is not a toy!

capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

play with the appliance.

before cleaning.

surfaces to avoid any damage to the appliance.

anyone to trip when in use. Do not allow the cord to hang over sharp edges.

Do not use the appliance,

Have it checked and, if necessary, repaired by a qualified person

appliance yourself.

Special Safety Instructions

Warning! To avoid the possibility of injury/damage to the appliance, electric shock, risk of fire and burns!

or other objects when using the appliance. This could lead

operation, switch off the appliance, disconnect it from the mains and remove the blockage.

etc.

Never process large quantities at one time.

mains.

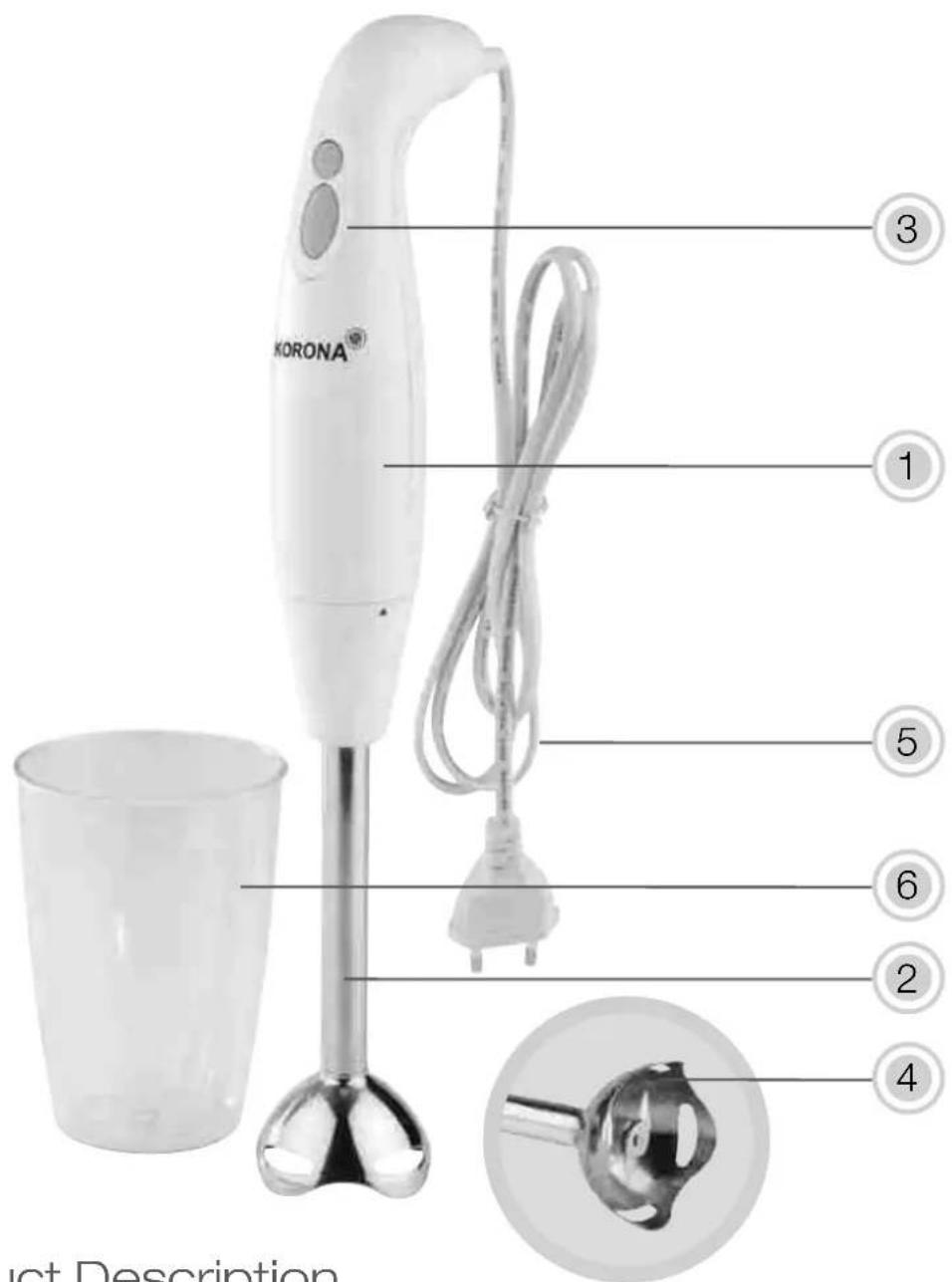

Product Description

1. Motor unit
2. Blender
3. Speed Control button
4. Cutting knife
5. Power cord and plug
6. Mixing cup

Before First Use

appliance is complete and undamaged.

Warning: Plastic bags are a danger to toddlers and babies, before keep them away to avoid suffocation.

Operation

Your stick blender can be used for processing soups, sauces,

to serious injuries.

Attach / Release the Blender

Close-up of a white cylindrical container with small black symbols and a downward arrow, no readable text or labels.

Rotate the blender unit to lock and unlock according to the silkscreen logo.

Instruction Manual

Processing of foods

properly locked.

that the blade guard is completely covered.

socket.

1. Start the mixing process by pressing the speed control

the mains.

To properly blend the ingredients, move the appliance up and down and in circles.

Attention: The appliance is equipped with a pulse switch appliance switches off, automatically.

Warning: DO NOT operate the appliance longer than 1 minutes

Cleaning and Care

Before cleaning, always switch off the appliance and disconnect it from the mains. Let it completely cool down. Never immerse

Clean the appliance as soon as possible after use with a damp cloth and do not use any aggressive cleaning agents.

the Blender. Clean it in warm water using some dishwashing detergent. Rinse with clear water and dry it properly. The

dishwashing detergent or in the dishwasher.

Stubborn stains can be removed with some vegetable oil

The blade is extremely sharp. Risk of injury!

After use, store the appliance in a clean and dry place and keep it out of the reach of children.

Disposal Instructions

Waste electrical devices marked with this sign must not be

EU directive on Waste Electric And Electronic Equipment of

please return this device at the end of its life cycle to special collection points for disposal or your local dealer.

Your stick blender 23511 is packed in a retail box. Such boxes are recyclable waste, i.e. they are reusable or recyclable.

Instruction Manual

Technical Data:

CE

how long an appliances may be used without the motor being damaged or overheating. After the appliance has run for this period of time it must be switched off to allow the motor to cool down.

Subject to change without notice!

Guarantee:

This product is guaranteed against defects in materials and workmanship for a period of 2 years.

instructions

This guarantee does not affect your statutory right, nor any legal right you may have as a costumer under applicable national legislation governing the purchase of goods.

guaranteed period, the customer must provide evidence of the

KORONA electric GmbH, Sundern/Germany.

Service Adresse:

KORONA Service, Am Steinbach 9, 59872 Meschede, Germany

Telefon Hotline: [phone]

Mail: [e-mail]

web: www.korona-electric.de

within 2 years after the date of purchase. In case of guarantee the customer is given the right to get the appliance repaired
