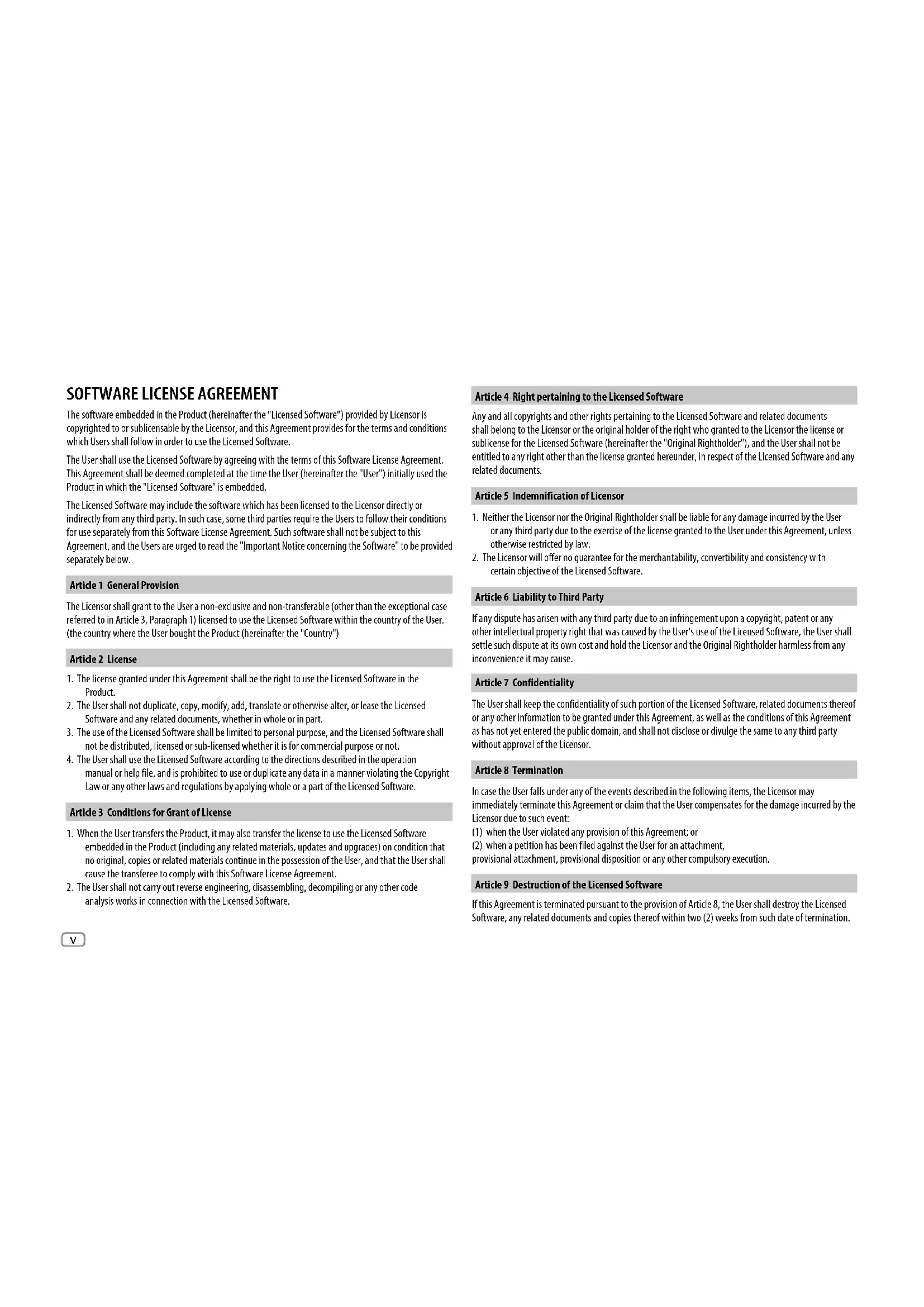

The software embedded in the Product (hereinafter the "Licensed Software") provided by Licensor is copyrighted to or sublicensable by the Licensor, and this Agreement provides for the terms and conditions which Users shall follow in order to use the Licensed Software. The User shall use the Licensed Software by agreeing with the terms of this Software License Agreement. This Agreement shall be deemed completed at the time the User (hereinafter the "User") initially used the Product in which the "Licensed Software" is embedded. The Licensed Software may include the software which has been licensed to the Licensor directly or indirectly from any third party. In such case, some third parties require the Users to follow their conditions for use separately from this Software License Agreement. Such software shall not be subject to this Agreement, and the Users are urged to read the "Important Notice concerning the Software" to be provided separately below. Article 1 General Provision The Licensor shall grant to the User a non-exclusive and non-transferable (other than the exceptional case referred to in Article 3, Paragraph 1) licensed to use the Licensed Software within the country of the User. (the country where the User bought the Product (hereinafter the "Country") Article 2 License

1. The license granted under this Agreement shall be the right to use the Licensed Software in the

Software and any related documents, whether in whole or in part.

3. The use of the Licensed Software shall be limited to personal purpose, and the Licensed Software shall

not be distributed, licensed or sub-licensed whether it is for commercial purpose or not.

4. The User shall use the Licensed Software according to the directions described in the operation

manual or help file, and is prohibited to use or duplicate any data in a manner violating the Copyright Law or any other laws and regulations by applying whole or a part of the Licensed Software. Article 3 Conditions for Grant of License

1. When the User transfers the Product, it may also transfer the license to use the Licensed Software

embedded in the Product (including any related materials, updates and upgrades) on condition that no original, copies or related materials continue in the possession of the User, and that the User shall cause the transferee to comply with this Software License Agreement.

2. The User shall not carry out reverse engineering, disassembling, decompiling or any other code

analysis works in connection with the Licensed Software. Article 4 Right pertaining to the Licensed Software Any and all copyrights and other rights pertaining to the Licensed Software and related documents shall belong to the Licensor or the original holder of the right who granted to the Licensor the license or sublicense for the Licensed Software (hereinafter the "Original Rightholder"), and the User shall not be entitled to any right other than the license granted hereunder, in respect of the Licensed Software and any related documents. Article 5 Indemnification of Licensor

1. Neither the Licensor nor the Original Rightholder shall be liable for any damage incurred by the User

or any third party due to the exercise of the license granted to the User under this Agreement, unless otherwise restricted by law.

2. The Licensor will offer no guarantee for the merchantability, convertibility and consistency with

certain objective of the Licensed Software. Article 6 Liability to Third Party If any dispute has arisen with any third party due to an infringement upon a copyright, patent or any other intellectual property right that was caused by the User's use of the Licensed Software, the User shall settle such dispute at its own cost and hold the Licensor and the Original Rightholder harmless from any inconvenience it may cause. Article 7 Confidentiality The User shall keep the confidentiality of such portion of the Licensed Software, related documents thereof or any other information to be granted under this Agreement, as well as the conditions of this Agreement as has not yet entered the public domain, and shall not disclose or divulge the same to any third party without approval of the Licensor. Article 8 Termination In case the User falls under any of the events described in the following items, the Licensor may immediately terminate this Agreement or claim that the User compensates for the damage incurred by the Licensor due to such event: (1) when the User violated any provision of this Agreement; or (2) when a petition has been filed against the User for an attachment, provisional attachment, provisional disposition or any other compulsory execution. Article 9 Destruction of the Licensed Software If this Agreement is terminated pursuant to the provision of Article 8, the User shall destroy the Licensed Software, any related documents and copies thereof within two (2) weeks from such date of termination. JS_KWD_QSG_KDC_BT730U_EN_C.indd vJS_KWD_QSG_KDC_BT730U_EN_C.indd v 21/6/2018 5:24:47 PM21/6/2018 5:24:47 PMData Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm)

Article 10 Protection of Copyright

1. The copyright and all the other intellectual property rights

relating to the Licensed Software shall belong to the Licensor and the Original Rightholder, and in no event shall they be under the ownership of the User.

2. The User shall, whenever it uses the Licensed Software,

comply with any laws relating to the copyright and other intellectual property rights. Article 11 Export Restriction

1. It is prohibited to export the Licensed Software and any

related documents outside the country of the User (including transmission thereof outside the country of the User via Internet of other communication tools).

2. The User shall understand that the Licensed Software shall be

subject to the export restrictions adopted by the country of User and any other countries.

3. The User shall agree that the software will be subject to any

and all applicable international and domestic laws (including the export control regulation of the country of User and any other countries, and any restrictions concerning the end-users, the use by end-users and importing countries to be provided by the country of User and any other countries, and any other governmental authorities). Article 12 Miscellaneous

1. In the event any part of this Agreement is invalidated by

operation of law, the residual provisions shall continue in force.

2. Matters not stipulated in this Agreement or any ambiguity or

question raised in the construction of this Agreement shall be provided or settled upon good-faith consultation between the Licensor and the User.

3. The Licensor and the User hereby agree that this Agreement

is governed by the laws of Japan, and any dispute arising from, and relating to the rights and obligations under, this Agreement shall be submitted to the exclusive jurisdiction of the Tokyo District Court for its first instance. Important Notice concerning the Software -jansson Copyright (c) 2009-2012 Petri Lehtinen <petri@digip.org> Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/ or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions: The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software. THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE. -cJSON Copyright (c) 2009 Dave Gamble Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/ or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions: The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software. THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE. -CMP The MIT License (MIT) Copyright (c) 2014 Charles Gunyon Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/ or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions: The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software. THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE. JS_KWD_QSG_KDC_BT730U_EN_C.indd viJS_KWD_QSG_KDC_BT730U_EN_C.indd vi 21/6/2018 5:24:47 PM21/6/2018 5:24:47 PM2 Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Basic procedure 1 Remove the key from the ignition switch, then disconnect the terminal of the car battery. 2 Install the DAB antenna. See “Installing the DAB antenna” on page 4. 3 Connect the wires properly. See “Wiring connection” on page 3. 4 Install the unit to your car. See the following “Installing the unit (in-dash mounting)”. 5 Connect the terminal of the car battery. 6 Press B SRC to turn on the power. 7 Detach the faceplate and reset the unit within 5 seconds. See “How to reset” on page 7. Installing the unit (in-dash mounting) Dashboard of your car Hook on the top side Bend the appropriate tabs to hold the sleeve firmly in place. INSTALLATION/CONNECTION Warning

• The unit can only be used with a 12V DC power supply, negative ground.

• Disconnect the battery’s negative terminal before wiring and mounting.

• Do not connect Battery wire (yellow) and Ignition wire (red) to the car chassis or Ground wire (black) to prevent a short circuit.

• To prevent short circuit: – Insulate unconnected wires with vinyl tape. – Be sure to ground this unit to the car’s chassis again after installation. – Secure the wires with cable clamps and wrap vinyl tape around the wires that comes into contact with metal parts to protect the wires. Caution

• For safety’s sake, leave wiring and mounting to professionals. Consult the car audio dealer.

• Install this unit in the console of your vehicle. Do not touch the metal parts of this unit during and shortly after use of the unit. Metal parts such as the heat sink and enclosure become hot.

• Do not connect the wires of speakers to the car chassis or Ground wire (black), or connect them in parallel.

• Mount the unit at an angle of less than 30º.

• If your vehicle wiring harness does not have the ignition terminal, connect Ignition wire (red) to the terminal on the vehicle’s fuse box which provides 12 V DC power supply and is turned on and off by the ignition key.

• Keep all cables away from heat dissipate metal parts.

• After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.

• If the fuse blows, first make sure the wires are not touching car’s chassis, then replace the old fuse with one that has the same rating. JS_KWD_QSG_KDC_BT730U_EN_EN_1st draft.indd 2JS_KWD_QSG_KDC_BT730U_EN_EN_1st draft.indd 2 22/6/2018 10:18:03 AM22/6/2018 10:18:03 AM3 Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) REMOTE CONT

STEERING WHEELREMOTE INPUT

P. CONT ANT CONT MUTE Antenna terminal DAB antenna jack Fuse (10 A) Wiring connection Removing the unit Part list (supplied) (A) Faceplate (×1) (B) Trimplate (×1) (C) Mounting sleeve (×1) (D) Wiring harness (×1) (E) Extraction key (×2) If no connections are made, do not let the wire come out from the tab. ISO connectors a Light blue/yellow: To the steering wheel remote control adapter b Blue/white: To the power control terminal when using the optional power amplifier or to the antenna control terminal in the vehicle c Brown: To connect the KENWOOD navigation system, refer your navigation manual d Yellow: Battery wire e Red: Ignition wire f Red: A7 from ISO connector g Yellow: A4 from ISO connector Pin Color and function (for ISO connectors) A4 Yellow : Battery A5 Blue/White : Power control A7 Red : Ignition (ACC) A8 Black : Earth (ground) connection B1, B2 Purple ], Purple/black [ : Rear speaker (right) B3, B4 Gray ], Gray/black [ : Front speaker (right) B5, B6 White ], White/black [ : Front speaker (left) B7, B8 Green ], Green/black [ : Rear speaker (left) JS_KWD_QSG_KDC_BT730U_EN_EN_1st draft.indd 3JS_KWD_QSG_KDC_BT730U_EN_EN_1st draft.indd 3 22/6/2018 10:18:04 AM22/6/2018 10:18:04 AM4 Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Installing the DAB antenna Connect the supplied DAB antenna to the DAB antenna jack. (Page 3) Caution

• The film antenna (F) is exclusively for use inside the vehicle.

• Do not install at the following locations: – where it may block the driver’s view. – where it may obstruct the operation of safety devices such as air bags. – on movable glass surfaces such as the rear hatch. – at side of vehicle (e.g. door, front quarter window). – on rear window.

• Signal strength will weaken when installed at the following locations: – on IR reflecting glass or locations covered with mirror type glass film. – where it overlaps with genuine radio antenna (pattern). – where it overlaps with window heating wires. – on glass that blocks radio signals (e.g. IR reflecting glass, thermal insulation glass).

• Poor reception may occur: – due to noise when windscreen wiper, air conditioner, or motor is turned on. – depending on the direction of the broadcast station with respect to the vehicle (antenna).

• Thoroughly wipe oil and dirt from the pasting surface with the supplied cleaner (I).

• Do not bend or damage the film antenna (F).

• It may not be possible to install on certain vehicles.

• Check the cable routing of the film antenna (F) and amplifier unit (G) before pasting.

• Do not apply any glass cleaner after pasting the film antenna (F). Part list (supplied) (F) Film antenna (×1) (G) Amplifier unit (cable with booster, 3.5 m) (×1) (H) Cable clamper (×3) (I) Cleaner (×1) Determine the antenna installation position

• The direction of the film antenna (F) changes depending on whether the film antenna (F) is installed on the right side or left side.

• Be sure to check the installation location of film antenna (F) before installing. Film antenna cannot be re-pasted.

• Separate from other antennas by at least 100 mm.

• Do not paste the amplifier unit (G) on the ceramic line (black part) around the front glass. Because there is not enough adhesion. Installing the antenna on the left side Installing the antenna on the right side (F) (F) (G) (G) Ceramic line (black part) Earth sheet* Earth sheet*

• Paste the earth sheet of the amplifier unit (G) on the metal part of the front pillar. JS_KWD_QSG_KDC_BT730U_EN_EN_2nd draft.indd 4JS_KWD_QSG_KDC_BT730U_EN_EN_2nd draft.indd 4 8/3/2018 9:32:32 AM8/3/2018 9:32:32 AM5 Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Caution When installing the antenna cable inside the front pillar with the air bag installed

• The front pillar cover is secured with a special clip which may need to be replaced when it is removed. Contact your vehicle dealer for details on removing the front pillar cover and availability of replacement parts. Front pillar Clip

• Install the amplifier unit (G) above the air bag so that it does not obstruct the operation of the air bag. (G) Air bag Antenna installation 1 Remove the front pillar cover of your car. Front pillar 2 Clean the windscreen with the supplied cleaner (I). (I) – Wait until the glass surface is completely dry before proceeding. – Warm the surface of the windscreen with defroster if it is cold (during winter). 3 Remove the separator (tag 1) of film antenna (F) horizontally and paste the antenna on the windscreen. Separator (tag 1) Do not touch the pasting surface (adhesive side) of the film antenna (F). Installation overview The antenna should be installed on the passenger side for safety. JS_KWD_QSG_KDC_BT730U_EN_EN_2nd draft.indd 5JS_KWD_QSG_KDC_BT730U_EN_EN_2nd draft.indd 5 8/3/2018 9:32:32 AM8/3/2018 9:32:32 AM6 Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) 4 Rub the film antenna gently onto the windscreen in the direction of the arrow shown to allow it to stick firmly. 5 Remove the separator (tag 2) of film antenna (F) vertically. (F) Separator (tag 2) 6 Set the position of the protrusion of the amplifier unit (G) with the K mark on the film antenna (F) and paste. Do not touch the lead terminal or the pasting surface (adhesive side) of the amplifier unit (G).

• When installing the antenna on the right side Earth sheet Set the position of the protrusion with

mark Lead contact of the amplifier unit (metal part) Lead terminal of the film antenna (F)

• When installing the antenna on the left side (G) (F) Earth sheet 7 Remove the film covering the earth sheet and paste the earth sheet on the metal part of the vehicle. Provide sufficient leeway for the earth sheet so that it does not interfere with the interior parts (front pillar cover). Also take care that the interior parts do not interfere with the amplifier unit (G). (G) Windscreen Earth sheet Front pillar cover 8 Wire the antenna cables. Use cable clamper (H) to secure the antenna to the pillar at several positions. 9 Attach the front pillar cover back to its original position. Be sure not to damage the earth sheet and amplifier unit (G) when covering. 10 Connect the amplifier unit (G) to the DAB antenna jack on the rear of the unit. Note: Make sure

is set to [ON] on the [FUNCTION] menu in standby mode. [ON] is selected initially. JS_KWD_QSG_KDC_BT730U_EN_EN_1st draft.indd 6JS_KWD_QSG_KDC_BT730U_EN_EN_1st draft.indd 6 22/6/2018 10:18:04 AM22/6/2018 10:18:04 AM7 Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) BASICS Faceplate Volume knob Loading slot USB input terminal Lights up when Bluetooth connection is established. Detach button Display window Auxiliary input jack Attach Detach How to reset Reset the unit within 5seconds after detaching the faceplate. To On the faceplate Turn on the power Press B SRC.

• Press and hold to turn off the power. Adjust the volume Turn the volume knob. Select a source Press B SRC repeatedly. Change the display information Press DISP repeatedly. BEFORE USE IMPORTANT

• To ensure proper use, please read through this Guide before using this product. It is especially important that you read and observe Warnings and Cautions in this Guide.

• Please keep the Guide in a safe and accessible place for future reference. Warning Do not operate any function that takes your attention away from safe driving. Caution Volume setting:

• Adjust the volume so that you can hear sounds outside the car to prevent accidents.

• Lower the volume before playing digital sources to avoid damaging the speakers by the sudden increase of the output level. General:

• Avoid using the external device if it might hinder safe driving.

• Make sure all important data has been backed up. We shall bear no responsibility for any loss of recorded data.

• Never put or leave any metallic objects (such as coins or metal tools) inside the unit to prevent a short circuit.

• If a disc error occurs due to condensation on the laser lens, eject the disc and wait for the moisture to evaporate.

• USB rating is indicated on the main unit. To view, detach the faceplate.

• Depending on the types of cars, the antenna will automatically extend when you turn on the unit with the antenna control wire connected. Turn off the unit or change the source to STANDBY when parking at a low ceiling area. JS_KWD_QSG_KDC_BT730U_EN_EN_1st draft.indd 7JS_KWD_QSG_KDC_BT730U_EN_EN_1st draft.indd 7 22/6/2018 10:18:04 AM22/6/2018 10:18:04 AM8 Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) GETTING STARTED

Select the display language and cancel the demonstration When you turn on the power for the first time (or [FACTORY RESET] is set to [YES] ), the display shows: “SEL LANGUAGE” “PRESS” “VOLUME KNOB” 1 Turn the volume knob to select [EN] (English), [RU] (Russian), [SP] (Spanish) or [FR] (French), then press the knob. [EN] is selected for the initial setup. Then, the display shows: “CANCEL DEMO” “PRESS” “VOLUME KNOB”. 2 Press the volume knob again. [YES] is selected for the initial setup. 3 Press the volume knob again. “DEMO OFF” appears.

Set the clock and date 1 Press the volume knob to enter [FUNCTION]

Set the initial settings 1 Press B SRC repeatedly to enter STANDBY. 2 Press the volume knob to enter [FUNCTION]

3 Turn the volume knob to select an item (see the following table), then press the knob. 4 Repeat step 3 until the desired item is selected or activated. 5 Press and hold to exit. To return to the previous setting item, press

Default: [XX] [SYSTEM] [KEY BEEP] [ON]: Activates the keypress tone. ; [OFF]: Deactivates. [FACTORY RESET] [YES]: Resets the settings to default (except the stored station). ; [NO]: Cancels. [CLOCK] [CLOCK DISPLAY] [ON]: The clock time is shown on the display even when the unit is turned off. ; [OFF]: Cancels. [ENGLISH] Select the display language for [FUNCTION] menu and music information if applicable. By default, [ENGLISH] is selected.

[ESPANOL] [FRANCAIS] JS_KWD_QSG_KDC_BT730U_EN_EN_1st draft.indd 8JS_KWD_QSG_KDC_BT730U_EN_EN_1st draft.indd 8 22/6/2018 10:18:04 AM22/6/2018 10:18:04 AM9 Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) DIGITAL RADIO About DAB (Digital Audio Broadcasting) DAB is one of the digital radio broadcasting systems available today. It can deliver digital quality sound without any annoying interference or signal distortion. Furthermore, it can carry text, pictures and data. In contrast to FM broadcast, where each program is transmitted on its own frequency, DAB combines several programs (called “services”) to form one “ensemble.” The “primary component” (main radio station) is sometimes accompanied by a “secondary component” which can contain extra programs or other information. Preparation: 1 Connect the supplied DAB antenna to the DAB antenna jack on the rear of the unit. 2 Press B SRC repeatedly to select DIGITAL AUDIO. 3 Press and hold (LIST UPDATE) to start the Service List update. “UPDATED” appears when update completes. Search for an ensemble 1 Press B SRC repeatedly to select DIGITAL AUDIO. 2 Press BAND repeatedly to select DB1/DB2/DB3. 3 Press and hold S / T to search for an ensemble. 4 Press S / T to select an ensemble, service or component to listen. Settings in memory You can store up to 18 services. Store a service Press and hold one of the number buttons (1 to 6). Select a stored service Press one of the number buttons (1to6). ANALOG RADIO Search for a station 1 Press B SRC repeatedly to select RADIO. 2 Press BAND repeatedly to select FM1/FM2/FM3/MW/LW. 3 Press S / T to search for a station. Settings in memory You can store up to 18 stations for FM and 6 stations for MW/LW. Store a station While listening to a station.... Press and hold one of the number buttons (1 to 6). Select a stored station Press one of the number buttons (1to6). CD/USB/iPod/ANDROID Start playback The source changes automatically and playback starts when you load a disc or attach a device (USB device/ iPod/iPhone/ Android device) to the USB input terminal. To On the faceplate Play back/pause Press 6IW. Reverse/Fast-forward Press and hold

Select a folder Press 2 / 1 . Repeat play Press 4 repeatedly. Random play Press 3 repeatedly. JS_KWD_QSG_KDC_BT730U_EN_EN_1st draft.indd 9JS_KWD_QSG_KDC_BT730U_EN_EN_1st draft.indd 9 22/6/2018 10:18:04 AM22/6/2018 10:18:04 AM10 Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Examples of some well-used settings Subwoofer Level Setting 1 Press the volume knob to enter [FUNCTION]

[SUB-W] in standby mode before you can make the above settings. FUNCTIONS SETTINGS 1 Press the volume knob to enter [FUNCTION]

2 Turn the volume knob to select an item, then press the knob. 3 Repeat step 2 until the desired item is selected or activated. 4 Press and hold to exit. To return to the previous setting item, press

• Refer to the INSTRUCTION MANUAL on the following website for the detailed explanation of each item: <www.kenwood.com/cs/ce/> [FUNCTION] menu items [AUDIO CONTROL] : Sets your preferred audio settings. [DISPLAY] : Sets your preferred control for the display window. [TUNER SETTING] : Settings for radio source. [USB] : Settings for using a USB device. [BT MODE] : Settings for using a Bluetooth device. [REMOTE APP] : Settings for using smartphone to control this unit. [MIC GAIN]* : Sets the sensitivity of the microphone. [NR LEVEL]* : Adjusts the noise reduction level. [ECHO CANCEL]* : Adjusts the echo cancellation delay time. [SYSTEM] : Settings for this unit. [CLOCK] : Adjusts the clock. [ENGLISH] : Selects language for the menu and music information.

: Selects language for the menu and music information. [ESPANOL] : Selects language for the menu and music information. [FRANCAIS] : Selects language for the menu and music information. [DEMO MODE] : Activates or deactivates the display demonstration.

• Applicable only while talking on the phone. JS_KWD_QSG_KDC_BT730U_EN_EN_2nd draft.indd 10JS_KWD_QSG_KDC_BT730U_EN_EN_2nd draft.indd 10 8/3/2018 9:32:01 AM8/3/2018 9:32:01 AM11 Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) 6 Repeat step 4 and step 5 to set color for other zones. 7 Press and hold to exit. OTHER INFORMATION For playback operations of AUX and SPOTIFY sources, refer to the INSTRUCTION MANUAL on the following website: <www.kenwood.com/cs/ce/> Note for specifications Bluetooth Frequency Range:

2.402 GHz — 2.480 GHz

Bluetooth RF Output Power (E.I.R.P.): +4 dBm (MAX), Power Class 2 Speaker Impedance: 4 Ω — 8 Ω Operating Voltage: 12 V DC car battery Illumination Color Setting You can set your preferred illumination color for each zone. 1 Press the volume knob to enter [FUNCTION]

JS_KWD_QSG_KDC_BT730U_EN_EN_2nd draft.indd 11JS_KWD_QSG_KDC_BT730U_EN_EN_2nd draft.indd 11 8/3/2018 9:32:02 AM8/3/2018 9:32:02 AM12 Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) BLUETOOTH® Depending on the operating system and the firmware version of your mobile phone, Bluetooth features may not work with this unit. Connect the microphone Connect the supplied microphone to the microphone input jack on the rear panel. Adjust the microphone angle Secure using cord clamps (not supplied) if necessary. Pair and connect a Bluetooth device for the first time 1 Press B SRC to turn on the unit. 2 Search and select the name of your receiver (“KDC-BT7 DAB”) on the Bluetooth device. “PAIRING” “PASS XXXXXX” “Device name” “PRESS” “VOLUME KNOB” appears on the display.

• For some Bluetooth devices, you may need to enter the Personal Identification Number (PIN) code immediately after searching. 3 Press the volume knob to start pairing. “PAIRING OK” appears when pairing is completed. Once pairing is completed, Bluetooth connection is established automatically. “BT1” and/or “BT2” indicator on the faceplate lights up. Answer a call Press or the volume knob or one of the number buttons (1 to 6).

• To adjust the phone volume [00]

• To end a call, press . Audio player via Bluetooth 1 Press B SRC repeatedly to select BTAUDIO.

• Pressing enters BT AUDIO directly. 2 Operate the audio player via Bluetooth to start playback. To On the faceplate Play back/pause Press 6 IW. Select group or folder Press 2 / 1 . Reverse skip/Forward skip Press

Reverse/Fast-forward Press and hold

Repeat play Press 4 repeatedly. Random play Press and hold 3 to select [ALL RANDOM]

“PRESS” “VOLUME KNOB”

“PRESS” “VOLUME KNOB”
