USER MANUAL KM 1584CD Krüger&Matz

Before Use Thank you for purchasing this system. Please read these operating instructions before operating the unit. The operating instructions should be retained for future reference. For your safety Before operating this system, check thevoltage of this system to see if it is identicalwith the voltage of your local power supply.When you disconnect the power cord,always pull the plug, never the cable.Protect the power cord from being walkedon or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the device.Never place the product and accessoriesnear naked ames or other heat sources,including direct sunlight.To avoid electric shock, do not open thecabinet. Refer all servicing to qualiedservice personnel.Never expose the product and accessoriesto rain or water. Never place liquid containers, such as vases, near the product.This symbol indicates that dangerous voltageconstituting a risk of electric shock is presentwithin this unit.This symbol indicates that there are importantoperating and maintenance instructions in theliterature accompanying this unit.Don’t obstruct the ventilation openings ofthe equipment with items such as newspaper,table-cloths,curtains, etc.. Overheatingwill cause damage and shorten the life ofthe equipment.NEVER let anyone especially childrenpush anything into holes, slots or anyother opening in the case - this couldresult in a fatal electrical shock;Never hitting the product use the sharpobjects. Laser Product This product is equipped with low power laser equipment. For your own safety do not remove any covers or take the product apart. Repair work must be carried out by qualied personnel.

CLASS 1 LASER PRODUCT

Caution:This product is equipped with low power laser equipment inside, for your safety, don’t open the laser ra-diation protective equipment. Don’t look at the laser radiation district when the equipment is operating.

TO PREVENT FIRE OR SHOCK HAzARD,

DO NOT EXPOSE THIS APPLIANCE TO

DRIPPING OR SPLASHING. CAUTION:

Hearing safety Listen at a moderate volume.

• Using headphones at high volume can impair your hearing. This product can produce sounds in decibel ranges that may cause hearing loss for a normal person, even if exposed for less than a minute. The higher decibel ranges are offered for those that may have already experienced some hearing lose.

• Sound can be deceiving. Over time your hearing “comfort level”adapts to higher volumes of sound. So after prolonged listening, what sounds “normal”can actually be loud and harmful to your hearing. To guard against this, set your volume to a safe level before your hearing adapts and leave it there. To establish a safe volume level:

• Set your volume control at a low setting.

• Slowly increase the sound until you can hear it comfortably and clearly, without distortion. Listen for reasonable periods of time:

• Prolonged exposure to sound, even at normally “safe”levels, can also cause hearing loss.

• Be sure to use your equipment reasonably and take appropriate breaks. Be sure to observe the following guidelines when using your headphones.

• Listen at reasonable volumes for reasonable periods of time.

• Be careful not to adjust the volume as your hearing adapts.

• Do not turn up the volume so high that you can’t hear what’s around you.

• You should use caution or temporarily discontinue use in potentially hazardous situations. Do not use headphones while operating a motorized vehicle, cycling, skateboarding, etc.; it may create a trafc hazard and is illegal in many areas.25 Owner’s manual

1. Headphone Terminal

8. Speaker Output Terminals (L&R)

Fast Forward Button Tuning Forward Button

• Remove the batteries if the remote control is not going to be used for an extended period of time.

• To avoid possible failure, read the following instructions and handle the remote control properly.

• Do not drop or cause impact to the remote control.

• Do not spill water or any liquid on the remote control.

• Do not place the remote control on a wet object.

• Do not place the remote control under the direct sunlight or near sources of excessive heat.

• Do not use caustic cleaners (porcelain, stainless steel, toilet, or oven cleaner etc.) on the remote, as it may suffer damage. Note: Remove the battery from remote control handset when it is not to be used for a long period. Otherwise it can be damaged due to leakage of battery. Installation of Batteries

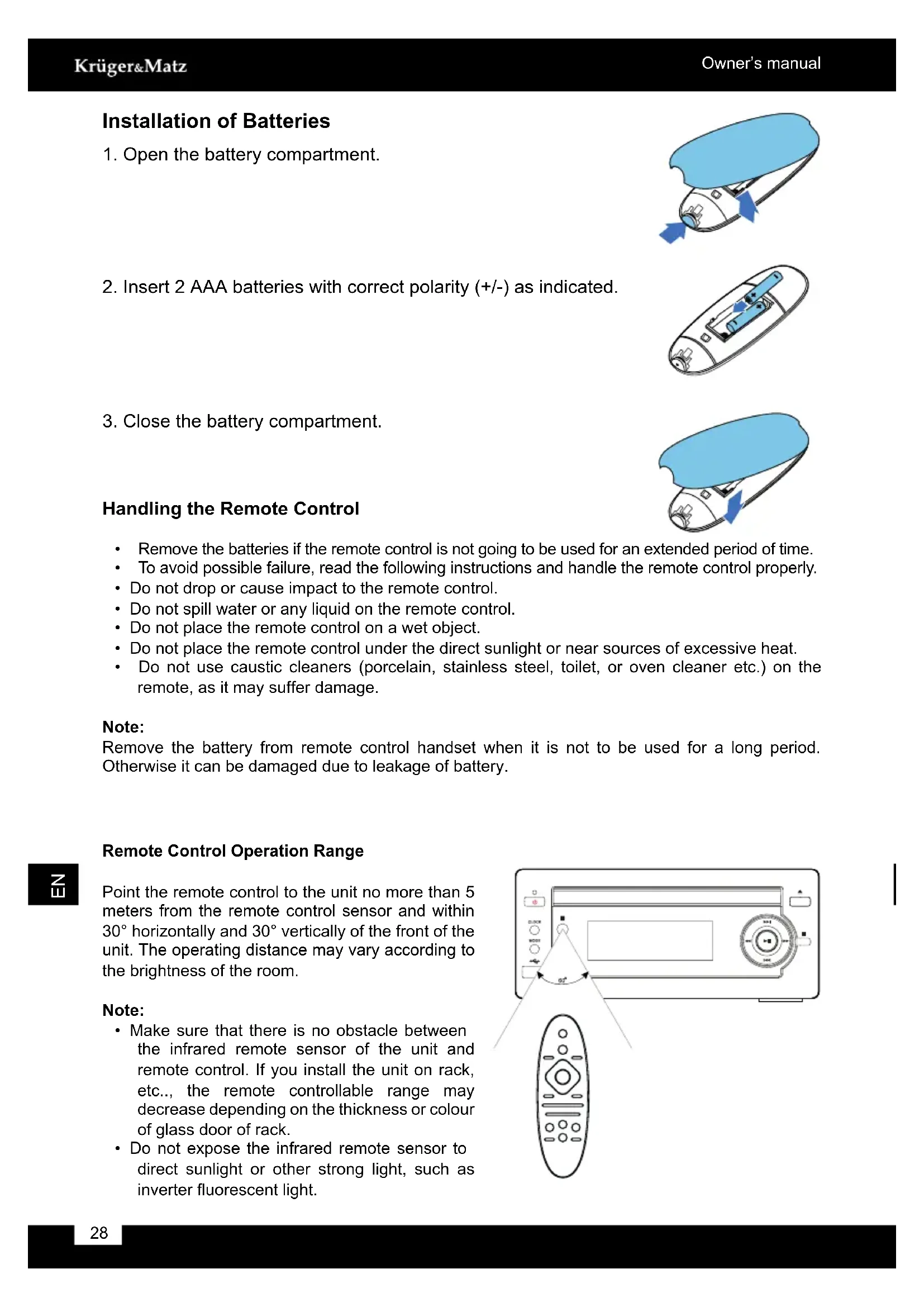

1. Open the battery compartment.

2. Insert 2 AAA batteries with correct polarity (+/-) as indicated.

3. Close the battery compartment.

Remote Control Operation Range Point the remote control to the unit no more than 5 meters from the remote control sensor and within 30° horizontally and 30° vertically of the front of the unit. The operating distance may vary according to the brightness of the room. Note:

• Make sure that there is no obstacle between the infrared remote sensor of the unit and remote control. If you install the unit on rack, etc.., the remote controllable range may decrease depending on the thickness or colour of glass door of rack.

• Do not expose the infrared remote sensor to direct sunlight or other strong light, such as inverter uorescent light.29 Owner’s manual

Connect the supplied FM Antenna to the FM Antenna socket on the rear of the unit. Caution: To avoid noise, keep antenna away from the unit, the connecting cable and the AC power cable. CABLEAUX IN 1

AUX IN 2 ANTENNA ANTENNA CONNECTIONS Caution: Make all connections before plugging the unit into the AC Power outlet. Connecting the FM aerial Connecting the Speakers Connect the speaker cords between the terminals as shown below. Connect the cable with a white head to the (-) terminals and cable with a red head to the (+) terminals. For the speaker side:

1. Unscrew the speaker connectors.

2. For the left speaker, identify the speaker cable that is connected to the left connectors on the

3. Insert fully the red end of a speaker cable into the red (+) connector.

4. Screw the red (+) connector to secure the cable.

5. Insert fully the silver end of a speaker cable into the white (-) connector.

6. Screw the white (-) connector to secure the cable.

7. Repeat steps 2-6 for the right speaker.

Right Speaker Box Rear View Left Speaker Box Rear View

Connecting Auxiliary Equipment Connect the AUX IN 1 terminals on the rear of the unit to the line output terminals on the auxiliary equipment with an audio cable (not supplied) illustrated below. The CD Player

AUX IN 2 Connect the AUX IN 2 sockets on this unit to the audio output sockets on the auxiliary equipment as illustrated below. Auxiliary equipment Auxiliary equipment The CD Player Connecting Control Cable Connect the control cable between the CD player and the amplier.

Connecting Headphones Connecting the AC Power cable Connect a pair of headphones to the phone jack. No sound comes out of the speakers. Note: Be sure to turn down the volume before connecting or putting on headphones. Excessive sound pressure from earphones and headphones can cause hearing loss. Insert the AC Power cable into a wall outlet, then your unit is ready to use. Caution:

• Be sure to unplug the power plug from the outlet when going out or when the unit is not in use for an extended period of time.

• The mains plug is used as the disconnect device and it shall remain readily operable. Headphones Amplier

ECO-POWER/STANDBY FEATURES

Powering ON/OFF When you insert the AC power cable into a wall outlet, the unit will be in clock mode.

• Press the STANDBY button to switch the unit on. The word “HELLO” will show in the display.

• Press the STANDBY button to switch the unit back to ECO POWER mode. The words “ECO POWER” will scroll across the display. ECO Power The clock will not be displayed. Press the CLOCK button to display the clock on the LCD. Normal ECO power mode Note: If the unit is idle for more than 15 minutes in normal mode, it will automatically switch to ECOPower mode.

Setting the Clock Manually

1. Set the unit in standby mode.

2. Press and hold the Clock button, the VFD will display CLOCK SET and CLOCK 24 begins to

3. Press the Next/Previous button on the remote control or the front panel of unit to select 12/24

mode (time format), the hour digits begin to blink.

4. Press the Next/Previous on the remote control on the front panel of unit to set the hour, press

the Clock button to conrm.

5. Set the minute with the Next/Previous button

6. Press the Clock button, the built-in clock starts operating.32

SOUND QUALITY Adjusting the Volume To increase or decrease the volume, rotate the VOLUME control knob on the Amplier or press the VOL +/- buttons on the remote control. Adjusting the Bass Rotate the BASS knob on the Amplier to adjust the intensity of the bass output sound. Adjusting the Treble Rotate the TREBLE knob on the Amplier to adjust the intensity of the treble output sound. Presetting Equalizer You can adjust the sound reproduced simply by choosing from 5 preset equalizers. Press the EQ button repeatedly to scroll through the following options: FLAT > POP > JAZZ > ROCK > CLASSIC (looped) Changing the Front Panel Darkness This unit has three brightness levels for you to adjust the clock display. Press the DIM button on the front panel or the remote control repeatedly to choose the desired brightness. FM RADIO You can listen to FM stations. Stations can be tuned in manually, automatically or from preset memory storage. Caution: Before listening to the radio, please check that the FM Antenna is correctly connected and adjusted for length and direction. Tuning in to a Station

1. Rotate the Source button on the unit or press the FM button on the remote control. The word

“TUNER” will be displayed on the front panel.

2. Select a station using one of the following methods.

• Auto Tuning Press and hold the / button on the remote control or on the unit for one second or more, the frequency changes down or up automatically until a station is found.

• Manual Tuning Repeatedly press the / button on the remote control or on the unit to change the frequency until you nd the station you want. Note:

• The clock must be set in standby mode and if the set-up time for each step is longer than 90 seconds, set-up will be cancelled.

• If a power failure occurs or the unit is disconnected from the mains, the clock setting will be lost. Setting the Clock Automatically When the RDS station display the time, press and hold the “display” button on the remote control, the clock will automatically sync time of RDS.33 Owner’s manual

• Preset Tuning (Available only after the stations are preset) Repeatedly press the / button on the remote control or on the unit to select the desired preset number. Its band and frequency are displayed on the front panel. Program radio stations automatically Note: You can program a maximum of 20 preset radio stations. In tuner mode, press and hold PROGRAM button to activate automatic. [AUTO] is displayed. The unit stores all the FM radio stations automatically and then broadcasts the rst preset radio station. Presetting Stations You can manually preset up to 20 FM stations. To tune in to the desired station:

1. Press the PROGRAM button on the remote control, the preset number will be displayed.

2. Press the PRESET (UP/DOWN) buttons on the remote control, or press the

/ button on unit panel to select the preset number. Note: If you select more than 20, the preset number will be changed to “1” automatically.

3. Press the PROGRAM button again to store the station. The display will return to the

broadcast frequency display.

4. Repeat above steps 1 to 3 for each station you want to store in memory with a preset

number. Note: If the unit is unplugged or if a power failure occurs, the preset stations will not be erased after being stored. To change the FM Reception Mode Press the Mode button to select the Stereo or Mono channel to receive the best FM reception mode. FM Display Modes Every time you press the DISPLAY button, the display will cycle through the following display modes: Station Name, Programme Type, Time, Radio Text, Frequency (looped). The information is displayed on the lower segment of the display. Station Name When an RDS station is received, the name of that station will be displayed. Programme Type Programme type identication signal. (Example: News, Rock, Classical music.) Time The RDS CLOCK system may not properly operate in areas where RDS CLOCK service is not available. Once RDS CLOCK service is available, the RDS CLOCK system will commence operation. Radio Text This displays a station description. Frequency This shows the frequency of the current station, e.g. 89.80 MHz. CD OPERATION CD Playing

1. Rotate the SOURCE button on the unit or press the CD button on the remote control. The word

“DISC” will be displayed on the front panel.

button to open the disc door and place the disc on the disc tray (with the printed side up).34 Owner’s manual

3. Press the button to close the disc door, the unit will read the disc and play it automatically.

Note: If in stop mode, please press the button to start playing the disc.

4. Press the button to pause the playing, press again to continue play.

5. Press the button to stop the disc playing.

To Skip Search and Play

• Press the button once or more to skip previous one or more tracks on the disc.

• Press the button once or more to skip forward one or more tracks on the disc. To Search Press and hold the / buttons on the front panel, or Next/Previous button on remote control to search for the position that you intend to start playing. Text Display During Playback Press the DISPLAY button to select display information during play. Programme Play You can programme up to 20 tracks to play in any desired order. The player must be in STOP mode only with a CD inserted.

1. Insert a disc and press the Stop button when it starts playing.

2. Press the PROGRAM button, “ ” appears.

3. Press the / buttons on the remote control to select the desired track number.

4. Press the PROGRAM button to conrm the track number to be stored.

5. Repeat steps 3-4 to select and store all desired tracks.

6. Press the button to start programme play.

7. Press the button once to stop the programme play. Press the button twice to clear

programme. Playing Repeatedly (CD) ONE and ALL Repeat Play can be set by pressing the Mode button. First press: To repeat the same track, the words “TRK” and “REP” will blink. Second press: To repeat playing all tracks on a disc, the words “TRK” will stay lit and “REP ALL” will blink. Third press: To play tracks randomly, the word “SHUF” will blink. Fourth press: Return to the normal playback state.

“DISC” will be displayed on the front panel.

button to open the disc door and place the MP3/WMA disc on the disc tray.

3. Press the DISPLAY button on the remote control, ID3 information (song title and artist) will be

displayed or “NO TITLE/NO ALBUM/NO ARTIST” if there is no ID3 information. Press this button again, the title, album, or artist, track and playing time will be displayed.

4. When playing MP3/WMA discs, the current album and track will be displayed.

5. Press the / buttons to select the previous/next track. When pressing the / buttons

for a few seconds, it will search backward or search forward.

6. Press the ALBUM UP or ALBUM DOWN button on the remote control to select the next/

previous album, and play the rst track of this album. If the playing has ended, press the ALBUM UP or ALBUM DOWN button on the remote control to select the next/previous album. Then choose the track with the / button.35 Owner’s manual

7. Press the button to start playing the disc.

8. Press the button to stop playback.

Note: Play will continue to the nal track when the selected tracks have been played. The rst 2 digits of the display is the album number, the next 3 digits is the track number and the remaining digits display the minutes and seconds. Playing Repeatedly (MP3 disc) ONE, ALB and ALL repeat play can be set by pressing the MODE button. First press: To repeat the same track, the words “TRK” and “REP” will blink. Second press: To repeat playing album, the words “TRK” will stay lit and “REP ALB” will blink. Third press: To repeat playing all tracks on a disc, the words “TRK” will stay lit and “REP ALL” will blink. Fourth press: To play tracks randomly, the word “SHUF” will blink. Fifth press: Return to the normal playback state.

By connecting an USB mass storage device (including USB ash memory, USB ash players or memory cards) to this unit, you can enjoy the device’s stored music through the unit.

1. Insert the USB device’s USB plug into the

socket on the front of unit.

2. Press the USB button on remote control or rotate the SOURCE select button on the Amplier to

select the USB function. The word “USB” will be displayed on the front panel.

3. The device stored music will be played automatically.

4. When you store more than one folder in the USB ash, use the ALBUM UP or ALBUM DOWN

button on the remote control to select the next/previous folder. Then choose the track with the / button to play the folder.

5. The player support the USB music le format of MP3, WMA only.

For devices with USB Cables:

1. Insert one plug of the USB cable (not supplied) to the socket on the unit.

2. Insert the other plug of the USB cable to the USB output terminal of the USB device.

1. Insert the memory card into a card reader (not supplied).

2. Use a USB cable (not supplied) to connect the card reader into the socket on the unit.

USB Storage Device Data Protection

• Always insert the USB device in the correct direction. Failure to do so may result in damage to the USB device and this unit.

• Do not remove the USB device while it is being accessed.

• Electrical interference and electrostatic discharges may cause the USB device to malfunction and suffer damage, resulting in data loss. It is strongly recommended that any important data is backed up on a PC to protect against corruption, data loss or device malfunction. Please note that our company shall not accept any liability for damage or loss of stored data. Note: USB connection is not compatible with all hard drive models.36 Owner’s manual

With this unit, you can listen to audio les from a player if bluetooth connection is available. Pairing bluetooth-enabled devices To connect your Bluetooth device to the unit, you need to pair the device to the unit. Pairing needs only to be done once. Note:

• The operational range between this unit and a Bluetooth device is approximately 10 meters.

• Compatibility with all Bluetooth devices is not guaranteed.

• Any obstacle between this unit and a Bluetooth device can reduce the operational range.

• Keep this unit away from any other electronic device that may cause interference.

Bluetooth button on the remote control or rotate the SOURCE on the front panel.

2. Turn on the Bluetooth function on your device.

3. Search for other Bluetooth device with your device.

4. Select “KM1584CD” in the pairing list.

• The device will also be disconnected when the device is moved beyond the operation range.

• If you want to reconnect the device to the unit, place it within the operational range.

PLAY FROM AN EXTERNAL DEVICE

You can listen to an audio device through this unit.

1. Make sure that the external audio device is connected to this unit.

2. Press AUX button to select the audio input through the AUX IN 1/2 (L and R) sockets.

3. Start to play the device (see the device user manual).

This unit can be used as an alarm clock. You can select DISC, USB or TUNER as alarm source. Note: Ensure that you have set the clock correctly.

1. In standby mode, press and hold the TIMER button until [TIMER SET] (set timer) scrolls on the

2. Press / button on the remote control or on the front panel to select source.

3. Press TIMER button to conrm. The hour digits are displayed and begin to blink.

4. Press / button on the remote control or on the front panel to set hour, and then press

TIMER button again. The minute digits are displayed and begin to blink.

5. Press / button on the remote control or on the front panel to set minute, and then press

appears on the display. Activate / deactivate alarm timer In the standby mode, press TIMER button repeatedly.37 Owner’s manual

• If timer is activated, the icon is displayed.

• If timer is deactivated, the icon disappears on the display. Note:

• The alarm timer is not available when the source is set as “AUX”.

• If the USB source is selected but no device connected, the unit switches to TUNER automatically. SeT SLeeP TIMeR This unit can switch to standby mode automatically after a set period. When the unit is turned on, press SLEEP button repeatedly to select a preset period (in minutes): OFF > 120 > 90 > 60 > 45 > 30 > 15 (looped) When the sleep timer is activated, SLEEP icon “ ” displayed.

• To deactivate the sleep timer, press SLeeP button repeatedly until [OFF] (sleep off) appears.

• To keep the disc clean, please don’t touch the disc’s surface when you are holding it. You should hold the edge.

• If the disc is dirty, it will affect the sound quality. Please use the clean and soft cloth to wipe the disc from inside to outside. Don’t wipe the disc in circular motion.

• Don’t stick paper on the disc.

• After you have nished with the disc, please place it back in its original case. To avoid warping or damage, do not stack discs.

• Don’t play the disc which has aw or deformation, in case of damaging this player.

• Clean your discs using only a soft dry cloth. Do not use any chemicals such as benzine, thinner, antistatic or record sprays as these can damage the disc surface. PROTeCT THe DISC38 Owner’s manual

Poor radio reception

• Increase the distance between the unit and your TV or VCR.

• Fully extend and adjust the FM antenna. CannotdisplaysomeleinUSBdevice USB device not supported

• The number of folders or les in the USB device has exceeded a certain limit. This phenomenon is not a malfunction.

• The formats of these les are not supported. The USB device is incompatible with the unit. Try another one. No sound Remote control does not work Adjust the volume.

• Before pressing any function button, rst select the correct source with the remote control instead of the main unit.

• Reduce the distance between the remote control and the unit.

• Insert the battery with its polarities (+/- signs) aligned as indicated.

• Replace the battery.

• Aim the remote control directly at the sensor on the front of the unit. Timer does not work Clock timer setting erased Music playback is unavailable on the system even after successful Bluetooth connection The audio quality is poor after connection with a Bluetooth-enabled device Cannot connect with the system

• Set the clock correctly.

• Switch on the timer.

• Power has been interrupted or the power cord has been disconnected.

• Reset the clock/timer. The device cannot be used with the system to play music. The Bluetooth reception is poor. Move the device closer to the system or remove any obstacle between the device and the system.

• The device does not support the proles required for the system.

• The Bluetooth function of the device is not enabled. Refer to the user manual of the device for how to enable the function.

• The system is not in the pairing mode.

• The system is already connected with another Bluetooth-enabled device.

• Disconnect that device or all other connected devices and then try again. No disc detected

• Check if the disc is inserted with the print side facing inward.

• Wait until the moisture condensation at the lens has cleared.

• Ensure that the AC power plug of the unit is connected properly.

• Ensure that there is power at the AC outlet.

• To save power, the unit switches to standby automatically 15 minutes after a play reaches the end and no control is operated. If you are having a problem with your system, check this list for a possible solution before calling for service. If you can not solve the problem from the hints give here, or the system has been physically damaged, call a qualied person, such as your dealer, for service. TROUBLESHOOTING39 Owner’s manual
