Move 6 mini - Smartphone Krüger&Matz - Free user manual and instructions

Product type	Smartphone
Brand	Kruger&Matz
Model	Move 6 mini
Reference	KM0445
Dimensions	Approximately 140 x 68 x 9 mm
Weight	Approximately 130 g
Power supply	Rechargeable lithium-ion battery (removable)
Battery type	Removable battery, charging via micro USB
SIM card options	Dual SIM (two nano-SIM cards)
Expandable storage	Yes, via microSD card (up to 32 GB)
Connectors	3.5 mm headphone jack, micro USB port
Camera	Camera with LED flash
Operating system	Android
Speaker	Built-in
Maintenance	Clean with a soft damp cloth; do not use chemicals
Safety	Do not use while driving without a hands-free kit; turn off in airplanes and hazardous areas
Spare parts and repairability	Removable battery; repairs exclusively by an authorized service center
Included accessories	Micro USB cable, mains charger
General information	Made in China; compliant with directive 2014/53/EU

Frequently Asked Questions - Move 6 mini Krüger&Matz

How to install the SIM card and battery?

Open the back cover, remove the battery, insert the SIM card (contacts facing down) and memory card, then put back the battery respecting polarity and close the cover.

How to charge the phone for the first time?

Make sure the battery is fully charged before first use. Connect the micro USB cable to the phone and plug it into a mains charger or compatible USB port.

What to do if the screen does not turn on?

Check that the battery is installed and charged. Press and hold the power button until the screen turns on. If nothing happens, try charging the phone.

How to make an emergency call?

Dial 112 (European emergency number) and describe the situation. However, do not rely solely on your mobile phone in emergencies, as some networks may not allow emergency calls.

Can I use two SIM cards at the same time?

Yes, the phone supports two SIM cards. Note that using both cards simultaneously significantly reduces battery life.

How to clean the screen and case?

Use a soft slightly damp cloth. Never use harsh chemicals, as they could damage the device.

Where can I find the IMEI number?

The IMEI number is usually found under the battery or on the packaging. You can also dial *#06# to display it on the screen.

How to reset the phone to factory settings?

Go to Settings > Backup and reset > Factory data reset. Note that this will erase all your data.

Is the phone waterproof?

No, the phone is not waterproof. Avoid exposing it to moisture, rain, or water. Do not leave it in the bathroom.

How to update the Android software?

Go to Settings > About phone > System updates. Follow the on-screen instructions to install available updates. Make sure you are connected to a Wi-Fi network.

USER MANUAL Move 6 mini Krüger&Matz

SAFETY ALERT AND CAUTIONS

Road safety comes first: Do not use a hand-held phone while driving. Use hands-free fittings when calls are unavoidable while driving. In some countries, dialing or receiving calls while driving is illegal!

Switch off in aircraft: Wireless devices can cause interference in aircraft. Please make sure that your mobile phone is powered off (or switch to flight mode) in flight.

Switch off before entering risky areas: Strictly observe the relevant laws, codes, and regulations on the use of mobile phones in risky areas. Turn off your mobile phone before entering a place susceptible to explosion, such as an oil station, oil tank, chemical plant or a place where a blasting process is under way.

Observe all special regulations: Follow any special regulations in force in any area such as hospitals and always switch off your phone whenever it is forbidden to use it or, when it may cause interference or danger. Properly use your mobile phone near medical apparatuses, such as pacemakers, hearing aids and some other electronic medical devices, as it may cause interference to such apparatuses.

Interference: The conversation quality of any mobile phone may be affected by radio interference. An antenna is built inside the mobile phone and located below the microphone. Do not touch the antenna area during a conversation, lest that the conversation quality deteriorate.

Qualified service: Only qualified personnel may install or repair phone equipment. Installing or repairing the mobile phone on your own may bring great danger and violates the warranty rules.

Accessories and batteries: Use only approved accessories and batteries.

Use sensibly: Use only in a normal and proper manner, and only as indicated in this instruction manual.

Emergency calls: Ensure the phone is switched on and in service, enter the emergency number, e.g. 112, then press the Dial key. Give your location and state your situation briefly. Do not end the call

until told to do so.

Note: Similarly to other mobile phones, this device may not support every function described in this manual due to network settings or radio broadcast operator. Some networks may not support 112 emergency calls too. Therefore, you should not rely only on mobile phones in critical situations. In case of any doubts, it is advised to contact local operator.

CLEANING AND MAINTENANCE

• Please don't leave the phone, the battery, and the charger in the bathroom and other high humidity places, and prevent them from rain.
• Please clean the phone, the battery, and the charger using soft and dry cloth.
• Please don't wipe the phone using alcohol, thinner, or benzene and other chemical reagents.

乙

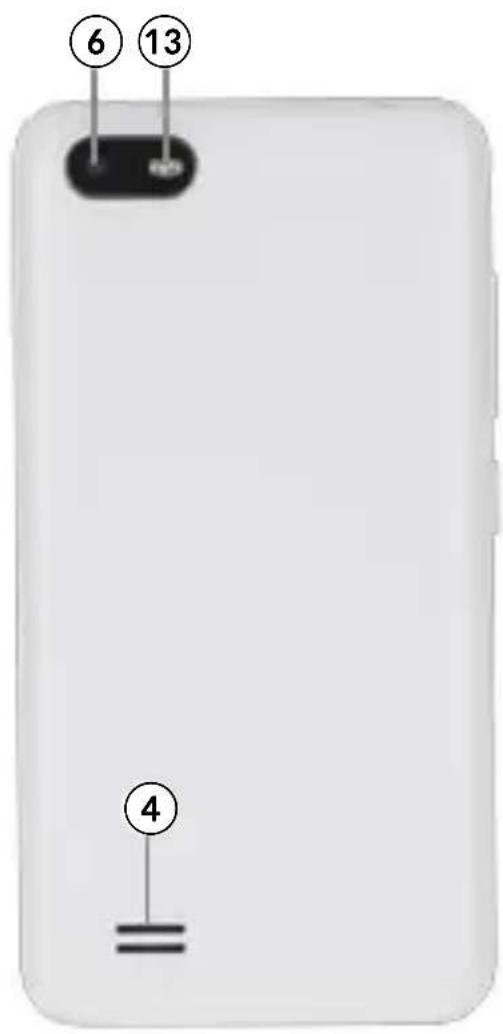

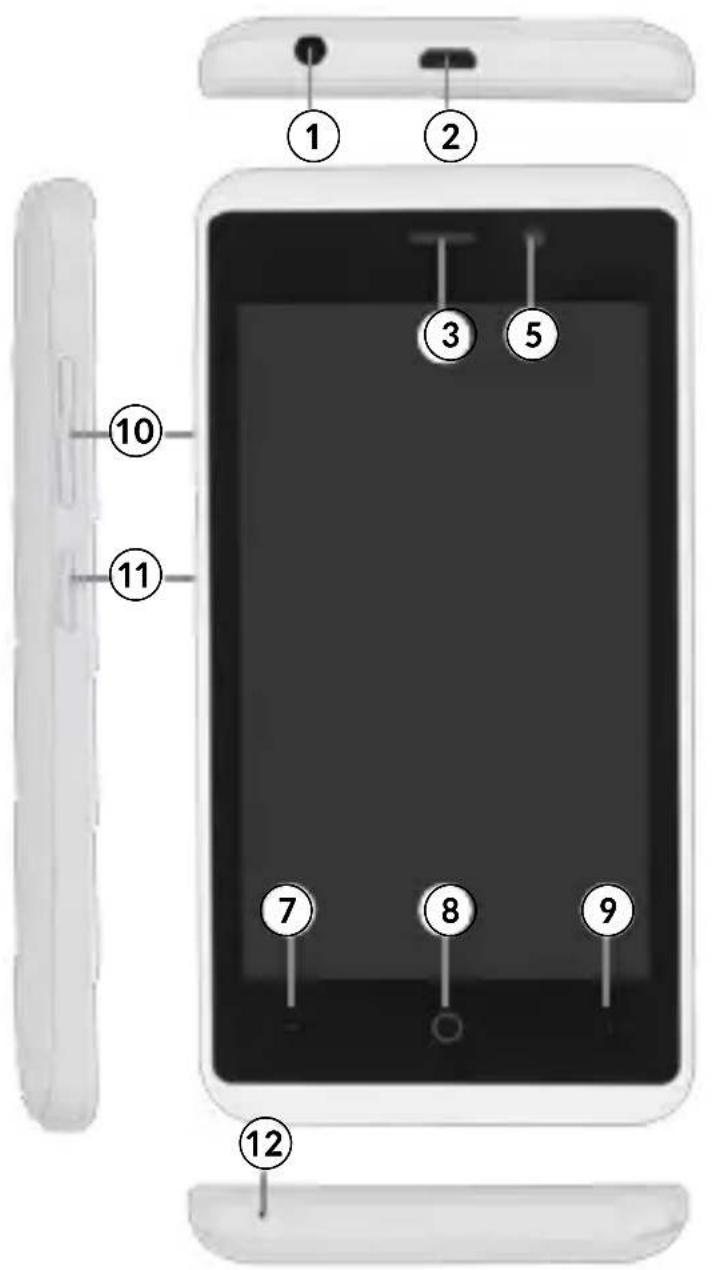

PRODUCT DESCRIPTION

1. Headphone jack
2. micro USB port (charging)
3. Receiver
4. Speaker
5. Front camera
6. Rear camera
7. Overview button
8. Home button
9. Previous button
10. Volume control button
11. Power button
12. Microphone
13. Flash

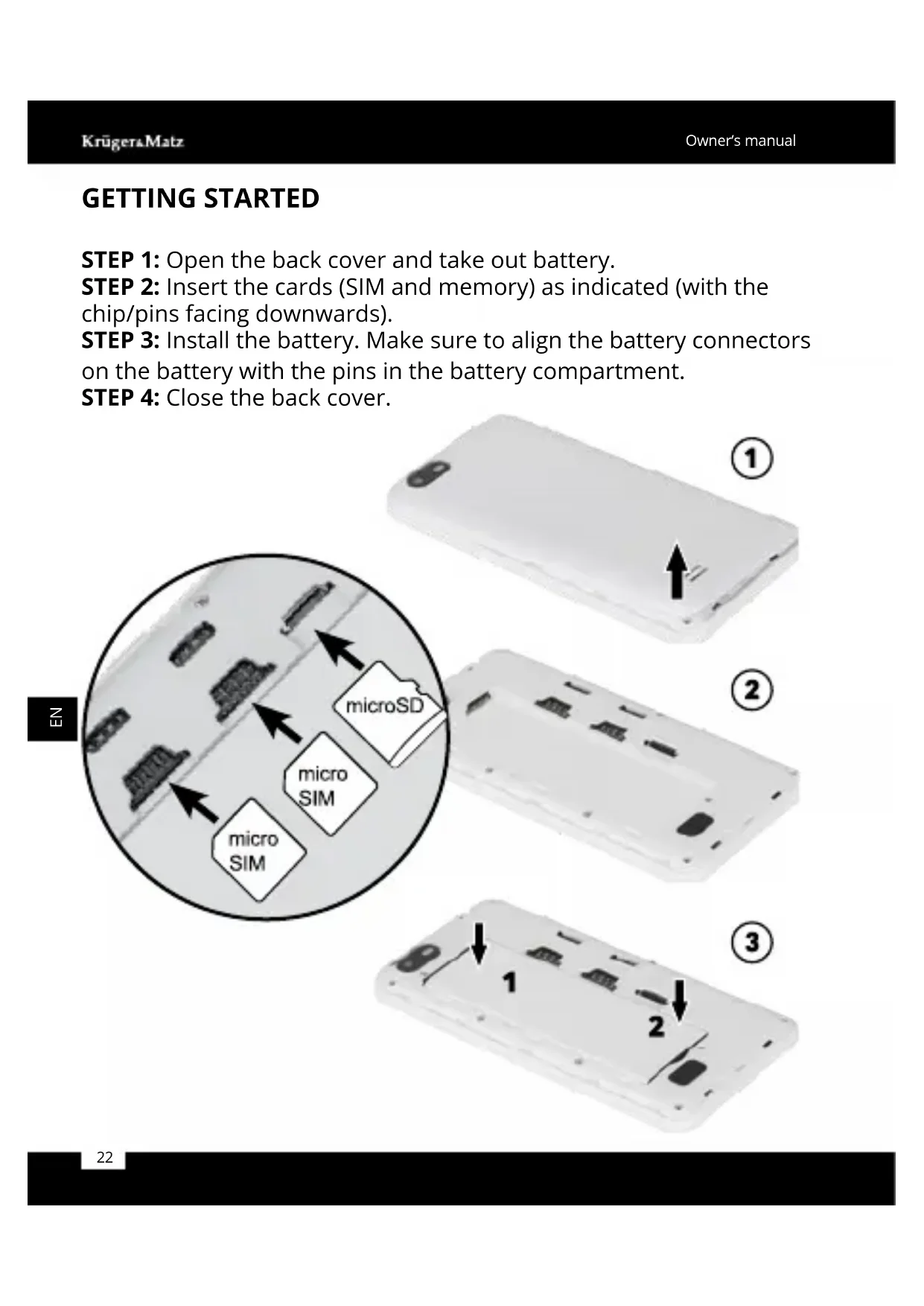

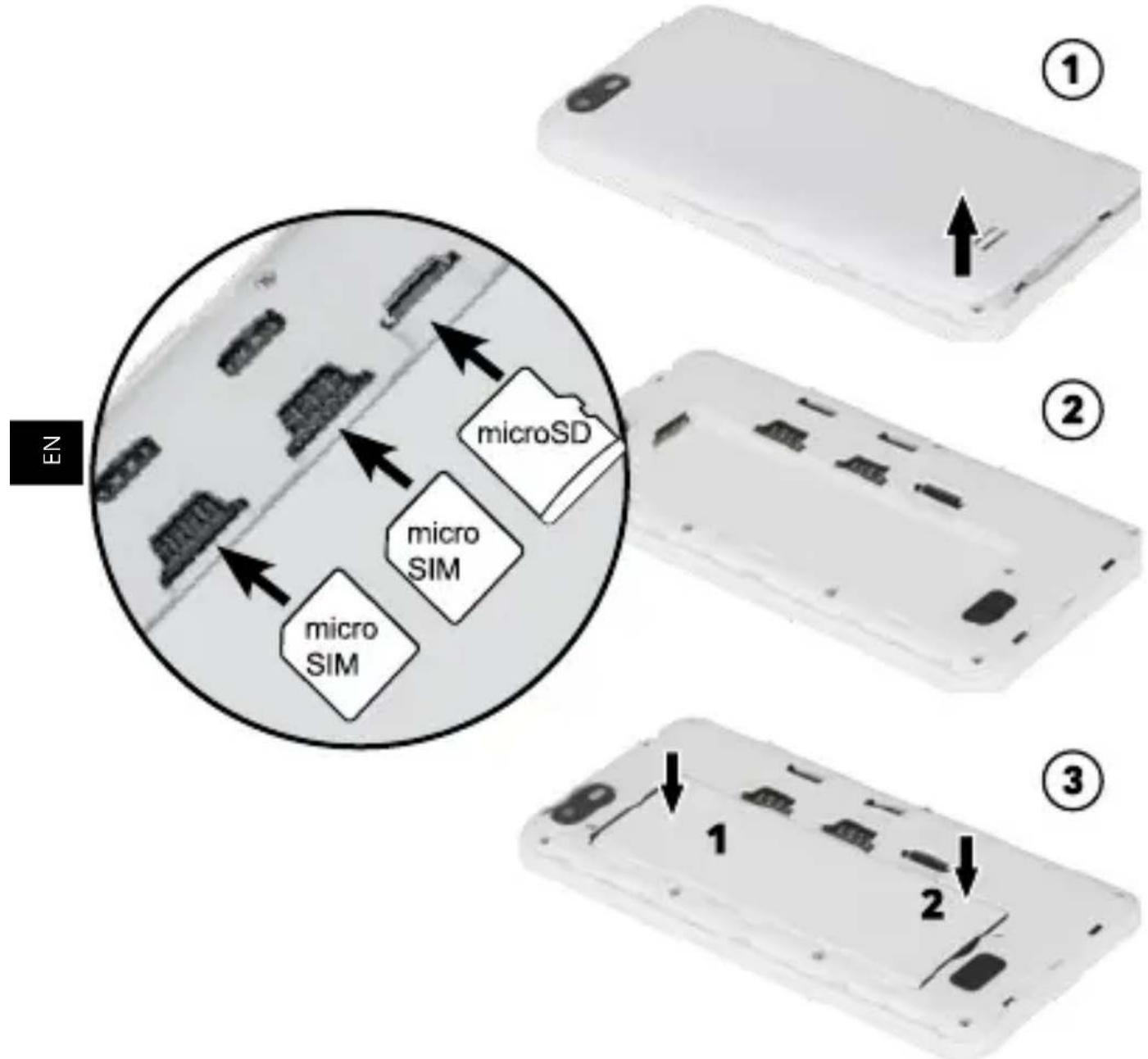

GETTING STARTED

STEP 1: Open the back cover and take out battery.

STEP 2: Insert the cards (SIM and memory) as indicated (with the chip/pins facing downwards).

STEP 3: Install the battery. Make sure to align the battery connectors on the battery with the pins in the battery compartment.

STEP 4: Close the back cover.

BATTERY/SIM CARD/MEMORY CARD INSTALLATION

• Power off the mobile phone and disconnect it from charger before unmounting battery or SIM cards.
• Before removing memory card, make sure it has been disconnected first!
• Exercise caution when operating SIM card/memory card, as friction or bending may damage the card.
• Keep the mobile phone and its fittings such as the SIM cards/ memory cards beyond children's reach.
• If the memory card cannot be read, please check whether it is has been inserted correctly.
• Producer does not guarantee compatibility with every memory card.
• Please note: Dual SIM in standby will shorten the standby time compared to single SIM.
• Make sure the battery is fully charged if it has been out of use for a long period.

CHARGING

乙

Charge the smartphone using the provided USB cable. Connect the cable to micro USB port on the device. Other end of the cable plug into provided charger or compatible USB port.

• Make sure the phone is fully charged before turning it on for the first time.
• Use only original charging devices and batteries approved by the producer. Using other accessories may damage the device.

TURN ON

Turn on: Press and hold the power button until the screen goes on.
Turn off: Press and hold the power button for about 2 seconds,

then choose appropriate (Power off).

LANGUAGE

Once the phone is ON you can personalize it to your needs. To change language go to Main Menu, open Settings, go to Language and input, enter Language and select appropriate.

FUNCTION KEYS

Power button: Press and hold Power key to open the power key menu, where you can turn off the phone (Power off) or Restart.

Volume button: Press the volume keys to change the ring volume (on the home screen) or the earpiece volume (during a call).

Overview button: Press the button to display recently used apps menu.

Home button: Press Home to return to the home screen. Press and hold the button to open Google Now function.

Back button: Opens the previous screen you were working in.

LEARN MORE

For more information on this device visit: www.krugermatz.com.

Read owner's manual carefully before using your smartphone.

Visit www.krugermatz.com website for more products and accessories.

In case of any doubts or questions reach out to our Frequently

Asked Questions section.

Please note: below illustrations and descriptions concerning operating system are for reference only, and may vary from actual software on your device!

"The LECHPOL ELECTRONICS Sp. z o.o. Sp.k. company declares that product KM0445 is consistent with the essential requirements and other relevant provisions of directive 2014/53/UE. The proper declaration for download from www.lechpol.eu"

English

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Made in China for LECHPOL ELECTRONICS Sp. z o.o. Sp.k., ul. Garwolinska 1, 08-400 Mietne.

SEGURIDAD

Kruger. Matz is a registered trademark
