USER MANUAL KMPM5 Krüger&Matz

• SPL (Sound pressure level): 91 ± 3 dB

AVRCP1.4/HSP1.2/HFP1.6/CVC6.0

Safety Instructions Read the instruction manual carefully before rst use and keep it for future reference.

• Minimize the volume on your audio device before connecting the earphones in order to avoid hearing damage from sudden exposure to excessive volume. Keep the volume at a reasonable level throughout entire time of using the earphones. To prevent damage to your hearing, do not raise the volume too high.

• Do not use the earphones in places where the inability to hear ambient sound presents a serious risk (such as at railroad crossings, train stations, construction sites or on roads where vehicles and bicycles are traveling). Never use the earphones while driving a car, riding a motorcycle or bicycle or operating any other vehicle, as it may cause potential risk to your safety.

• Stop using the earphones if you feel a tinnitus, hearing discomfort, irritation or have other adverse reactions.

• Do not subject the earphones to strong impact.

• Protect this product from moisture, humidity, water and any other liquid. Avoid using/storing it in extreme temperatures. Do not expose it to direct sunlight and sources of heat.

• Never use this device if it is damaged.

• Use only authorized accessories.

• Do not attempt to repair this device yourself. In case of damage, contact with an authorized service point for check-up/repair.

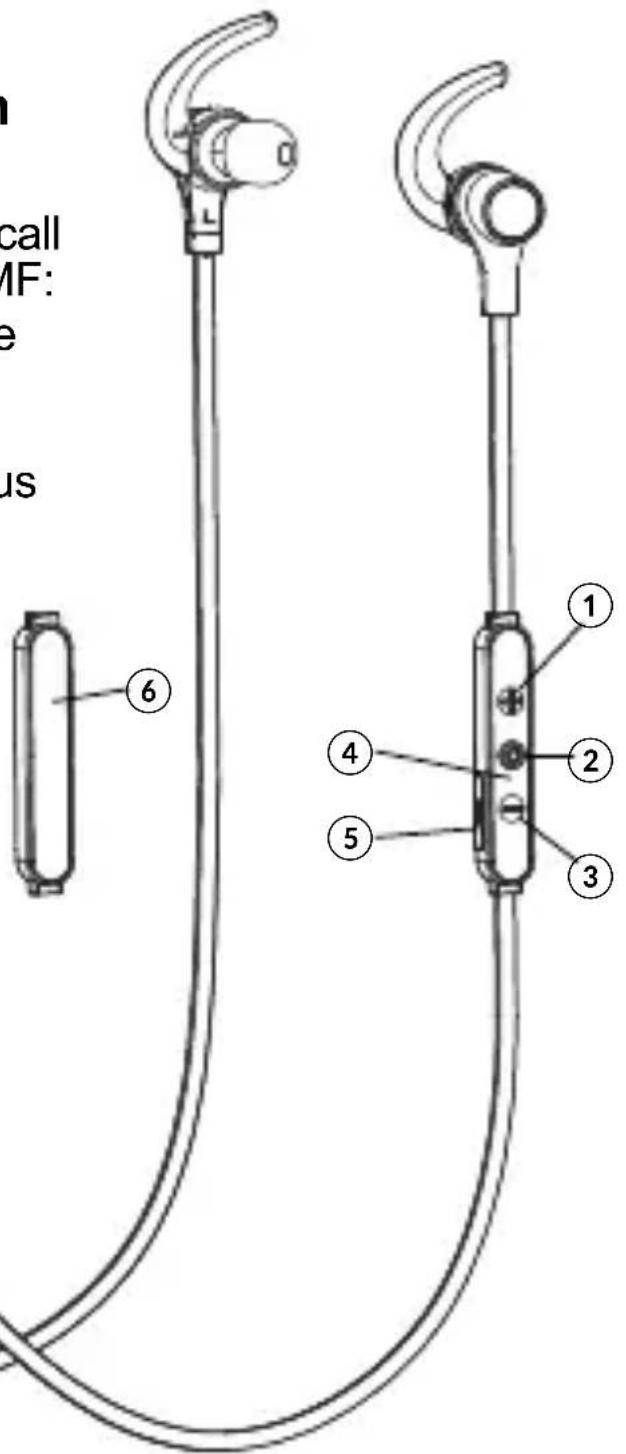

/Reject call/Transfer call

2. Multifunction button MF:

Turn on/Pairing mode /Play/Pause/Turn off /Answer call/End call

3. Volume down/Previous

Pairing (with one device)

1. Make sure the earphones are powered off.

2. To enter into the pairing mode, press and hold the

multifunctional button for 5 seconds until red LED & blue LED ash alternately.

3. Activate your phone (or device) Bluetooth function

and search for external devices. You’ll see a list of available devices; nd and connect with the earphones.

Pairing (with two devices) This earphones support 2 devices multi-connection. It can pair with two mobile phones simultaneously, and take the call from any of them.

1. After completing pairing with the rst phone, turn

2. Then re-do the paring procedure with another

3. Once the pairing is nished, restart the earphones.

The earphones will automatically connect to the phone (or device) that was connected before disconnecting.

4. Short press the “volume +” and “volume -” keys

simultaneously, it will enable the multipoint connect function. From the list of found devices on another mobile phone, select the earphone to connect it. Now, the earphones are connected with two devices simultaneously. Operation

• Power on: press multifunction button for 2 seconds. Blue LED ashes 2 times. Earphone turn on.

• Power off: press multifunction button for 3 seconds. Red LED ashes 2 times, then the earphones turn off.

• Volume adjust: press ‚Volume up’ or ‚ Volume down’ buttons to change volume level.

• Play/Pause: press multifunction button to pause music playback. Press it again to resume playback.

• Previous: press and hold for 2 seconds ‚Volume down’ button to go to previous track.

• Next: press and hold for 2 seconds ‚Volume up’ to go to next track.

• Transfer call: during a phone call, press and hold ‚Volume up’ button, call switches to mobile phone. Press and hold ‚Volume up’ button again, call switches back to earphone.

• Last number redial: in standby status, press earphone multifunction button twice to redial the last number. In case of multipoint connection with two phones, the redial will be performed from the phone connected rst.

• Battery Capacity status: when earphone is connected to iOS devices, iOS devices shows the earphone battery power status in the upper right corner. Operation LED Status Power on Blue LED ashes 2 times Power off Red LED ashes 2 times Pairing Red LED & Blue LED ashes alternately Standby Blue LED ashes 3 times every 5 seconds Incoming call Blue LED blinks Low battery Red LED ashes 2 times every 2 seconds Charging Red LED keep lighting during charging. Blue LED keep lighting charging nished Sound quality with apt-X® code Featuring the apt-X code, the earsets can connect wirelessly to any apt-X® enabled devices, vastly improves the quality of Bluetooth streaming, delivering21 Owner’s manual

CD-quality sound. Charging Connect the earphones to AC charger or a computer USB port. Red LED keeps lighting during charging. Once the charging is completed, the blue LED is on. Note:

• use only original accessories to charge the earphone.

• charge the earphone if it has not been used for more than 12 months. Specication

• SPL (Sound pressure level): 91 ± 3 dB

• Wireless range: up to 10 m

• Supports connection with 2 devices

• Earphone battery power status (iOS only)

• Talk time: up to 7 h

• Stand-by time: up to 240 h

• Playback time: up to 8 h Specications are subject to change without prior notice. “The Lechpol company declares that product KMPM5 is consistent with the essential requirements and other relevant provisions of directive 1999/5/EC. The proper declaration for download from www.lechpol.eu”22 Owner’s manual

English Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or Its literature, indicates that It should not be disposed with other household wastes at the end of its working life. To prevent possible harm lo the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government ofce, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract This product should not be mixed with other commercial wastes for disposal. Made in China for LECHPOL Zbigniew Leszek, Miętne, 1 Garwolińska Street, 08-400 Garwolin.23 Mode d’emploi
