KMPM5 - Earphones Krüger&Matz - Free user manual and instructions

Product type	Bluetooth headset with microphone
Brand	Krüger&Matz
Model	KMPM5
Bluetooth version	4.0
Supported Bluetooth profiles	A2DP 1.2, AVRCP 1.4, HSP 1.2, HFP 1.6, CVC 6.0
Supported audio codecs	SBC, AAC, apt-X
Active noise cancellation	Yes
Impedance	16 Ω
Sensitivity (SPL)	91 ± 3 dB
Frequency response	20 Hz - 20 kHz
Bluetooth range	Up to 10 m
Waterproof rating	IPX4
Talk time	Up to 7 h
Music play time	Up to 8 h
Standby time	Up to 240 h
Built-in microphone	Yes
Multi-point connection	Up to 2 devices simultaneously
Battery level indicator	Only on iOS
Power supply	Rechargeable battery via micro USB port
Cleaning	Damp cloth, no chemicals
Safety instructions	Avoid prolonged high volume, do not use while driving, protect from shocks and moisture
Repairability	Contact an authorized service center, no self-repair

Frequently Asked Questions - KMPM5 Krüger&Matz

How to pair the headset with my phone?

Make sure the headset is turned off. Press and hold the MF button for about 5 seconds until the indicator flashes red and blue alternately. Turn on Bluetooth on your phone, search for devices, and select KMPM5. If a PIN code is requested, enter 0000.

How to reset the headset?

There is no specific reset procedure described. You can turn off the headset and then turn it back on. To unpair, forget the device in your phone's Bluetooth settings.

What is the battery life?

Battery life varies by usage: up to 7 hours of talk time, 8 hours of music play, and 240 hours of standby.

How to charge the headset?

Connect the supplied micro USB cable to a charger or a computer USB port. During charging, the LED indicator is red; when fully charged, it turns blue. Use only original accessories.

Are the headphones water-resistant?

Yes, they are rated IPX4, meaning they are resistant to water splashes but should not be submerged.

What is apt-X technology?

apt-X is an audio codec that allows CD quality transmission over Bluetooth, providing richer and more detailed sound, provided your source device supports it.

Can I connect two phones at the same time?

Yes, the headset supports multi-point connection. After pairing the first phone, turn off the headset, then pair the second. Then turn the headset back on and use the + and - button combination to activate dual connection.

How to skip to the next song?

Press and hold the volume up button for about 2 seconds to skip to the next track. For the previous track, use the volume down button.

What to do if the headset does not turn on?

Make sure the headset is charged. Plug it into the charger and wait a few minutes. If the indicator does not light up, check the cable and power source. If the problem persists, contact customer service.

How to clean the headset?

Use a soft, slightly damp cloth (with water) to wipe the surface. Never use chemicals or detergents. Avoid getting moisture into the ports.

USER MANUAL KMPM5 Krüger&Matz

Read the instruction manual carefully before first use and keep it for future reference.

• Minimize the volume on your audio device before connecting the earphones in order to avoid hearing damage from sudden exposure to excessive volume. Keep the volume at a reasonable level throughout entire time of using the earphones. To prevent damage to your hearing, do not raise the volume too high.
• Do not use the earphones in places where the inability to hear ambient sound presents a serious risk (such as at railroad crossings, train stations, construction sites or on roads where vehicles and bicycles are traveling). Never use the earphones while driving a car, riding a motorcycle or bicycle or operating any other vehicle, as it may cause potential risk to your safety.
• Stop using the earphones if you feel a tinnitus, hearing discomfort, irritation or have other adverse reactions.
• Do not subject the earphones to strong impact.
• Protect this product from moisture, humidity, water and any other liquid. Avoid using/storing it in extreme temperatures. Do not expose it to direct sunlight and sources of heat.
• Never use this device if it is damaged.
• Use only authorized accessories.
• Do not attempt to repair this device yourself. In case of damage, contact with an authorized service point for check-up/repair.
• Clean this device with soft, slightly damp cloth. Do not use any abrasives or chemical agents to clean this product.

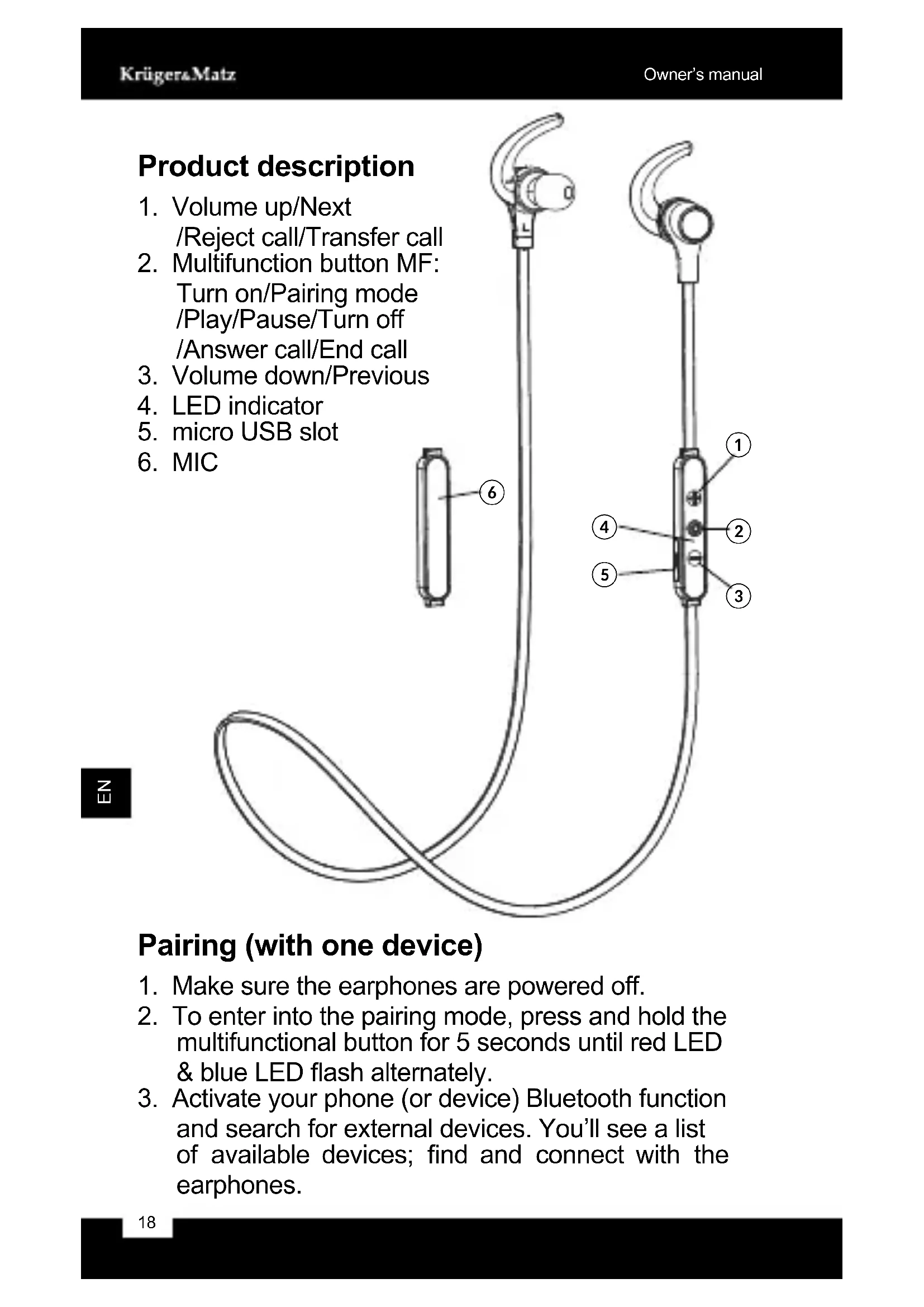

Product description

1. Volume up/Next /Reject call/Transfer call
2. Multifunction button MF: Turn on/Pairing mode /Play/Pause/Turn off /Answer call/End call
3. Volume down/Previous
4. LED indicator
5. micro USB slot
6. MIC

Pairing (with one device)

1. Make sure the earphones are powered off.
2. To enter into the pairing mode, press and hold the multifunctional button for 5 seconds until red LED & blue LED flash alternately.

3. Activate your phone (or device) Bluetooth function and search for external devices. You'll see a list of available devices; find and connect with the earphones.

4. Enter "0000" PIN if necessary.

Pairing (with two devices)

This earphones support 2 devices multi-connection. It can pair with two mobile phones simultaneously, and take the call from any of them.

1. After completing pairing with the first phone, turn off the earphones.
2. Then re-do the paring procedure with another phone.
3. Once the pairing is finished, restart the earphones. The earphones will automatically connect to the phone (or device) that was connected before disconnecting.
4. Short press the "volume +" and "volume -" keys simultaneously, it will enable the multipoint connect function. From the list of found devices on another mobile phone, select the earphone to connect it. Now, the earphones are connected with two devices simultaneously.

Operation

• Power on: press multifunction button for 2 seconds. Blue LED flashes 2 times. Earphone turn on.
• Power off: press multifunction button for 3 seconds. Red LED flashes 2 times, then the earphones turn off.
• Volume adjust: press ,Volume up' or , Volume down' buttons to change volume level.
• Play/Pause: press multifunction button to pause music playback. Press it again to resume playback.
• Previous: press and hold for 2 seconds, Volume down' button to go to previous track.
• Next: press and hold for 2 seconds, Volume up' to go to next track.

• Answer call: press multifunction button to answer the incoming call.

• End call: short press multifunction button.

• Reject call: press and hold the ,Volume up' button to reject a call.
• Transfer call: during a phone call, press and hold ,Volume up' button, call switches to mobile phone. Press and hold ,Volume up' button again, call switches back to earphone.
• Last number radial: in standby status, press telephone multifunction button twice to radial the last number. In case of multipoint connection with two phones, the radial will be performed from the phone connected first.
• Battery Capacity status: when earphone is connected to iOS devices, iOS devices shows the earphone battery power status in the upper right corner.

Operation LED Status
Power on Blue	LED flashes 2 times
Power off Red	LED flashes 2 times
Pairing Red LED & Blue LED flashes alternately
Standby Blue	LED flashes 3 times every 5 seconds
Incoming call	Blue LED blinks
Low battery	Red LED flashes 2 times every 2 seconds
Charging Red	LED keep lighting during charging. Blue LED keep lighting charging finished

Sound quality with apt-X® code

Featuring the apt-X code, the earsets can connect wirelessly to any apt-X® enabled devices, vastly improves the quality of Bluetooth streaming, delivering

CD-quality sound.

Charging

Connect the earphones to AC charger or a computer USB port. Red LED keeps lighting during charging. Once the charging is completed, the blue LED is on.

Note:

• use only original accessories to charge the earphone.
• charge the earphone if it has not been used for more than 12 months.

Specification

Frequency Response: 20 ~Hz - 20 kHz
- Impedance: 16
- SPL (Sound pressure level): 91 ± 3 dB
- Bluetooth version: 4.0
- Bluetooth profiles: A2DP 1.2/AVRCP1.4/HSP1.2/HFP1.6/CVC6.0
Supports SBC, AAC
- apt-X® audio technology
- Noise reduction function
- Wireless range: up to 10 ~m
- IPX4 water-proof
- Build in microphone
Supports connection with 2 devices
- Earphone battery power status (iOS only)
• Talk time: up to 7 h
- Stand-by time: up to 240 h
- Playback time: up to 8 h

Specifications are subject to change without prior notice.

"The Lechpol company declares that product KMPM5 is consistent with the essential requirements and other relevant provisions of directive 1999/5/EC. The proper declaration for download from www.lechpol.eu"

English Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that It should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract This product should not be mixed with other commercial wastes for disposal.

Made in China for LECHPOL Zbigniew Leszek, Mietne, 1 Garwolinska Street, 08-400 Garwolin.
