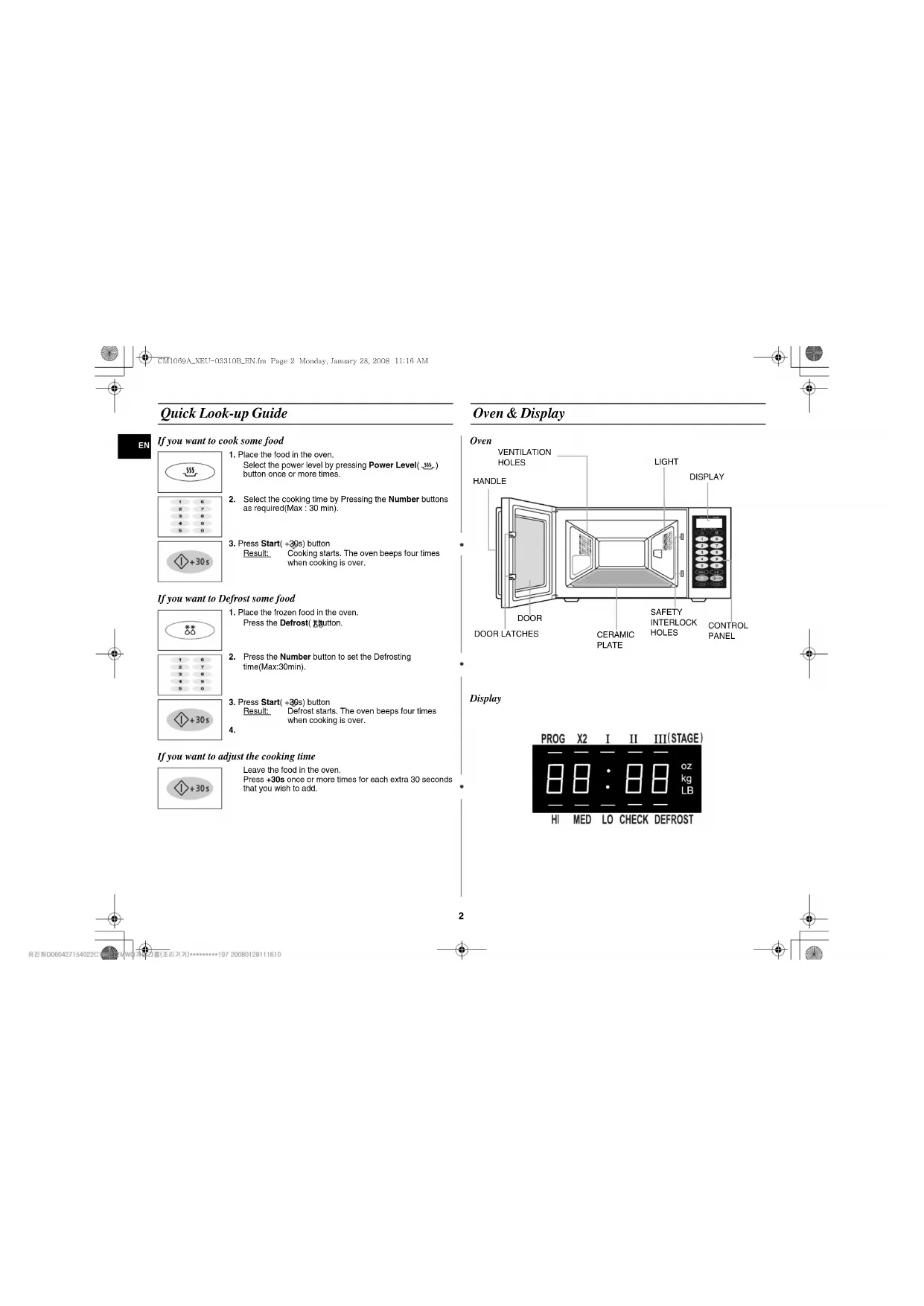

Quick Look-up Guide If you want to cook some food If you want to Defrost some food If you want to adjust the cooking time Oven & Display Oven Display

1. Place the food in the oven.

Select the power level by pressing Power Level() button once or more times.

2. Select the cooking time by Pressing the Number buttons

as required(Max : 30 min).

3. Press Start( +30s) button

Result: Cooking starts. The oven beeps four times when cooking is over.

1. Place the frozen food in the oven.

Press the Defrost( ) button.

2. Press the Number button to set the Defrosting

Result: Defrost starts. The oven beeps four times when cooking is over.

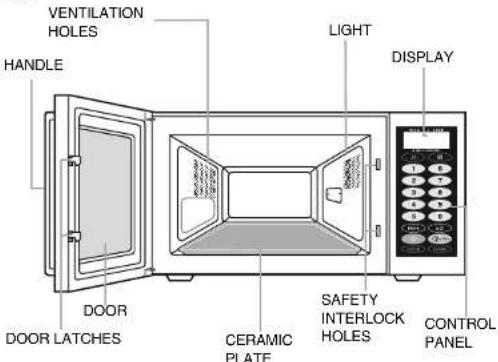

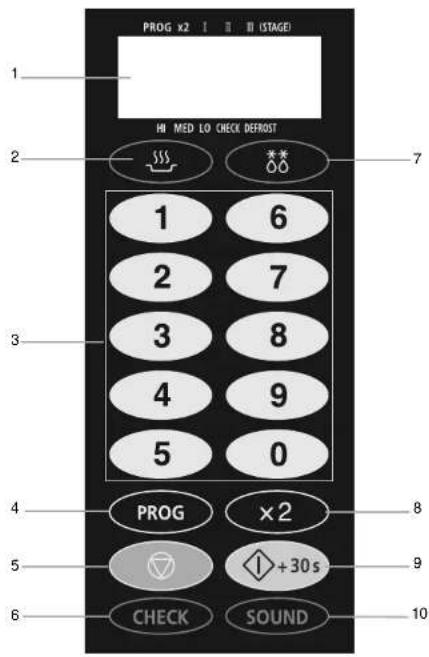

Control Panel Using this Instruction Booklet You have just purchased a SAMSUNG microwave oven. Your Owner’s Instructions contain valuable information on cooking with your microwave oven:

• Suitable accessories and cookware

• Useful cooking tips At the front of the booklet you will find illustrations of the oven, and more importantly the control panel, so that you can find the buttons more easily. The step-by-step reocedures use two different symbols..

Failure to observe the following safety precautions may result in harmful exposure to microwave energy. (a) Under no circumstances should any attempt be made to operate the oven with the door open or to tamper with the safety interlocks (door latches) or to insert anything into the safety interlock holes. (b) Do not place any object between the oven door and front face or allow food or cleaner residues to accumulate on sealing surfaces. Ensure that the door and door sealing surfaces are kept clean by wiping after use first with a damp cloth and then with a soft dry cloth. (c) Do not operate the oven if it is damaged until it has been repaired by a qualified microwave service technician trained by the manufacturer. It is particularly important that the oven door closes properly and that there is no damage to the: (1) Door (bent) (2) Door hinges (broken or loose) (3) door seals and sealing surfaces (d) The oven should not be adjusted or repaired by anyone other than a properly qualified microwave service technician trained by the manufacturer.

IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND

KEEP FOR FUTURE REFERENCE. Before cooking food or liquids in your microwave oven, please check that the following safety precautions are taken.

If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

Liquids and other foods must not be heated in sealed containers since they are liable to explode.

Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container; To prevent this situation ALWAYS allow a standing time of at least 20 seconds after the oven has been switched off so that the temperature can equalize. Stir during heating, if necessary, and ALWAYS stir after heating. In the event of scalding, follow these FIRST AID instructions:

• Immerse the scalded area in cold water for at least 10 minutes.

• Cover with a clean, dry dressing.

• Do not apply any creams, oils or lotions.

The contents of feeding bottles and baby food jars must be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

• Only use utensils that are suitable for use in microwave ovens; DO NOT use any metallic containers, Dinnerware with gold or silver trimmings, Skewers, forks, etc. Remove wire twist ties from paper or plastic bags. Reason

Electric arcing or sparking may occur and may damage the oven.

• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition. Do not use your microwave oven to dry papers or clothes.

• Small amounts of food require shorter cooking or heating time. If normal times are allowed they may overheat and burn.

• If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

• NEVER fill the container to the top and choose a container that is wider at the top than at the bottom to prevent the liquid from boiling over. Bottles with narrow necks may also explode if overheated.

• NEVER heat a babys bottle with the teat on, as the bottle may explode if overheated.

• Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended. Also do not heat airtight or vacuum-sealed bottles, jars, containers, nuts in shells, tomatoes etc.

• The oven should be cleaned regularly and any food deposits removed.

• Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

• The appliance should not be cleaned with a water jet.

• DO NOT cover the ventilation slots with cloths or paper. They may catch fire as hot air is evacuated from the oven. The oven may overheat and automatically switch itself off. It will remain inoperable until it has cooled sufficiently.

• ALWAYS use oven gloves when removing a dish from the oven to avoid unintentional burn.

• Do not immerse the power cable or plug in water and keep the power cable away from heated surfaces. Do not operate this appliance if it has a damaged power cable or plug.

• Stand at arms length from the oven when opening the door. Reason

The hot air or steam released may cause scalding.

• You may notice a Clicking sound during operation(especially when the oven is defrosting). Reason

This sound is normal when the electrical power output is changing.

• DO NOT operate the microwave oven when it is empty. the power will be cut off automatically for safety. You can operate normally after letting it stand for over 30 minutes. It is best to leave a glass of water inside the oven at all times.The water will absorb the microwaves energy if the oven accidently started. IMPORTANT

• Young children should NEVER be allowed to use or play with the microwave oven. Nor should they be left unattended near the microwave oven when it is in use. Items of interest to children should not be stored or hidden just above the oven.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance. jtXW]`hl|TWZZXWiluUGGwG[GGtSGqGY_SGYWW_GGXXaX]GhtEN

Installing Your Microwave Oven This microwave oven can be placed almost anywhere (kitchen work surface or shelf, movable trolley, table). For your personal safety, this appliance must be:

• Properly earthed (3-pin plug)• Plugged into a standard 230 Volt, 50 Hz, AC earthed socket1. Install the oven on a flat, level, stable surface. Make sure there is adequate ventilation for your oven by leaving at least 10cm(four inches) of space behind, on the sides of the oven and 20cm(eight inches) of above. Never block the air vents as the oven may overheat and automatically switch itself off. It will remain inoperable until it has cooled sufficiently. Remove all packing materials inside the oven. Plug the cable into a 3-pin, earthed socket. If the power cable of this appliance is damaged, it must be replaced by a special cable as supplied from service center.Recommendations DO NOT install the microwave oven in hot or damp surroundings. Example: Next to a traditional oven or radiator. The power supply specifications of the oven must be respected and any extension cable used must be of the same standard as the power cable supplied with the oven. Wipe the interior and the door seal with a damp cloth before using your microwave oven for the first time. What to Do if You are in Doubt or Have a Problem Before you call a service engineer your oven, check this list of possible problems and solutions. Neither the oven’s display nor the oven operate.• Properly insert the plug into a grounded outlet. • If the outlet is controlled by a wall switch, make sure the wall switch is turned on. • Remove the plug from the outlet, wait ten seconds, then plug it in again. • Reset the circuit breaker or replace any blown fuse.• Plug another appliance into the outlet; if the other appliance doesn’t work, have a qualified electrician repair the outlet. • Plug the oven into a different outlet. The oven’s display works, but the power doesn’t come on.• Make sure the door is closed securely.• Check to see if packing material or other material is stuck to the door seal. • Check for door damage.• Press Cancel twice and re-enter all cooking instructions. The power goes off before the set time has elapsed.• If there has not been a power outage, remove the plug from the outlet, wait ten seconds, then plug it in again. Reset the cooking instructions.• Reset the circuit breaker or replace any blown fuse. You see sparks or arcing.• Remove any metallic utensils, cookware, or metal ties. If using foil, use only narrow strips and allow at least one inch between the foil and interior oven walls. Using your microwave causes TV or radio interference.• This is similar to the interference caused by other small appliances, such as hair dryers. Move your microwave further away from other appliances, like your TV or radio. Door opening starts automatic operation of FAN• When placing or removing food items, as soon as the Door is opened the Lamp and Fan will start automatically. The automatic starting of the Fan is intentional, so no service call is required. The fan will automatically stop upon closing the door.jtXW]`hl|TWZZXWiluUGGwG\GGtSGqGY_SGYWW_GGXXaX]GhtEN

Setting Cooking Times & Power Levels One-Stage Cooking You can stop cooking at any time to check the food. The maxium allowable cooking time is 30 min. If the time exceed 30 min, the display will show “E3”, then press Stop/Cancel( ) button and repeat the steps. Multi-Stage Cooking You can stop cooking at any time to check the food. The maxium allowable cooking time is 30 min. If the time exceed 30 min, the display will show “E3”, then press Stop/Cancel() button and repeat the steps.

1. Press the Power Level( ) button to select power.

By pressing the Power Level( ) button repeatedly, you can select the power level - HI, MED, or LO.

2. Use the Number buttons to enter the cooking time. You

can set a time from one second to 30 minutes. To set a time over one minute, enter the second as well.

• For example, to set 10 minutes, enter 1, 0, 0, 0.

3. Press Start(+30s) button to begin cooking.

By pressing the Power Level( ) button repeatedly, you can select the power level - HI, MED, or LO.

2. Use the Number buttons to enter the cooking time. You

can set a time from one second to 30 minutes. To set a time over one minute, enter the second as well.

• For example, to set 10 minutes, enter 1, 0, 0, 0.

3. Repeat steps 1 and 2 for II or III stage cooking.

4. Press Start( +30s) button to begin cooking.

Using the Defrost button The maximim allowable cooking time is 30 min. If the time exceed 30 min, the display will show “E3”, then press Stop/Cancel( )button and repeat the programming. Using the Start( +30s) button This button offers a convenient way to heat food in 30 sec. increments at the High power level. Add 30 seconds to a program in progress by pressing the Start ( /+30s) button for each 30sec. you want to add. Using the Stop/Cancel( ) Button The Stop/Cancel( ) button allows you to clear instructions you have entered. It also allows you to pause the oven's cooking cycle, so that you can check the food. To correct a mistake you have just entered, press Stop/Cancel() once, then re-enter the instructions.

1. Press the Defrost( ) button..

2. Press the Number buttons to set the defrosting time. You

can set a time from one second to 30 minutes.

3. Press the Start( +30s) button

1. Press the Start( +30s) button once for each 30 sec. you

wish to cook the food. • For example, press it twice for one minute. The time will display, and the oven starts automatically.To pause the oven during cooking, press Stop/Cancel() button once.To restart, press Start( +30s)button.jtXW]`hl|TWZZXWiluUGGwG^GGtSGqGY_SGYWW_GGXXaX]GhtEN

Memory Programming One - Stage Cooking The maximim allowable cooking time is 30 min. If the time exceed 30 min, the display will show “E3”, then press Stop/Cancel( )button and repeat the programming. Multi - Stage Cooking The maximim allowable cooking time is 30 min. The sum of programmed time must not exceed 30 min. If the time exceed 30 min, the display will show “E3”, then press Stop/Cancel( )button and repeat the programming. Using Memory Programming Press the Number buttons to select user-programmed memory functions (please refer to Memory Programming) from 1 to 20. The oven will start instantly without pressing the Start( +30s) button.

1. Upon pressing the Program( ) button, the oven will

Power Level ( ) button to select power. By pressing the Power Level ( ) button repeatedly, you can select the power level - HI, MED, or LO.

4. Use the Number buttons to enter the cooking time. You

can set a time from one second to 30 minutes. To set a time over one minute, enter the seconds as well.

• For example, to set 10 minutes, enter 1, 0, 0, 0.

5. Press the Program( ) button to complete setting the

memory. The display will show ":0".

1. Upon pressing the Program( ) button, the oven will

By pressing the Power Level( ) button repeatedly, you can select the power level - HI, MED, or LO.

4. Use the Number buttons to enter the cooking time. You

can set a time from one second to 30 minutes. To set a time over one minute, enter the seconds as well.

• For example, to set 10 minutes, enter 1,0,0,0.

5. Repeat steps 3 and 4 for II or III stage memory

6. Press the Program( ) button to complete setting the

Using the Check button Confirming the cooking time and Power Level in each Memory Program Reading each Memory Program’s Cycle Counter

1. Clear all operations by pressing the Stop/Cancel()

button.Press the Check button to enter Check mode.

2. By using Number buttons, enter the Memory Program

number from 1 to 20. • For example, suppose you press 5( ), for Memory Program 5 which is HI power Level, I Stage cooking with a time of 6 minutes and 30 seconds, 6:30. • First, 5 will be displayed, but will change to show the Memory Program settings.3. After one second, the display will clear automatically. If you want to check other Memory Programs, just enter the Memory Program numbers.

4. Press the Stop/Cancel() botton to exit the Check mode.

1. Clear all operations by pressing the Stop/Cancel()

button.Press the Check button to enter Check mode.

2. Press the Start( +30s) button, and then press any

Number button, from 1 to 20, and the number of cycles for that particular Memory Program will be displayed. The cycle count is displayed in units of 10. • For example, if Memory Program 5 has been used 100 times, the display will show “10”. As the display uses units of 10, the cycle counts are approximate. The cycle count displayed increases every ten cycles. For example, if the cycle count were 90-99, “9” would be displayed, The “9” would change to “10” on the 100th cycle. The cycle counter function has a limit of 99,990 cycles. Once that number is exceeded, the cycle counter will automatically clear and start again from “0”.

3. After one second, the display will clear automatically. If you

want to check the cycle count of other Memory Programs, just enter the Memory Program numbers.

4. Press the Stop/Cancel() button to exit the Checking

mode.jtXW]`hl|TWZZXWiluUGGwG`GGtSGqGY_SGYWW_GGXXaX]GhtEN

1. Clear all operations by pressing the Stop/Cancel()

button. The Microwave will emit a Beep sound confirming the reset operation. The display will show “ : 0 “.

1. Press the Sound button to adjust sound volume. The basic

sound volume is "LO" and when you press the Sound button repeatedly, the sound volume changes in the following order - MED, HI, OFF, LO one by one.

2. Press the Start( +30s) button to exit Sound mode.

number from 1 to 20.

• For example, suppose you press 5() button, for Memory Program 5 which is HI Power Level, I Stage cooking with a time of 6 minutes and 30 seconds, 6:30.

3. The Memory Program then operates for double the user-

programmed time, which in this case makes 13 minutes. (6:30 x 2 = 13:00) jtXW]`hl|TWZZXWiluUGGwGXWGGtSGqGY_SGYWW_GGXXaX]GhtEN

Cookware Guide To cook food in the microwave oven, the microwaves must be able to penetrate the food, without being reflected or absorbed by the dish used. Care must therefore be taken when choosing the cookware. If the cookware is marked microwave-safe, you do not need to worry. The following table lists various types of cookware and indicates whether and how they should be used in a microwave oven. : Recommended : Use Caution : Unsafe Cookware Microwave- Safe Comments Aluminium foil Can be used in small quantities to protect areas against overcooking. Arcing can occur if the foil is too close to the oven wall or if too much foil is used. China and earthenware Porcelain, pottery, glazed earthenware and bone china are usually suitable, unless deco-rated with a metal trim. Disposable polyester cardboard dishes Some frozen foods are packaged in these dishes. Fast-food packaging

• Polystyrene cups containers

• Paper bags or newspaper

• Recycled paper or metal trims

Can be used to warm food. Overheating may cause the polystyrene to melt. May catch fire. May cause arcing. Glassware

Can be used, unless decorated with a metal trim. Can be used to warm foods or liquids. Delicate glass may break or crack if heated suddenly. Must remove the lid. Suitable for warming only. Metal

• Freezer bag twist ties

May cause arcing or fire. Paper

• Plates, cups, napkins and Kitchen paper

For short cooking times and warming. Also to absorb excess moisture. May cause arcing. Plastic

Particularly if heat-resistant thermoplastic. Some other plastics may warp or discolour at high temperatures. Do not use Melamine plastic. Can be used to retain moisture. Should not touch the food. Take care when removing the film as hot steam will escape. Only if boilable or oven-proof. Should not be airtight. Prick with a fork, if necessary. Wax or grease-proof paper

Cooking Guide Reheating Dish Entrees Use the power levels and times in this table as a guide lines for reheating Reheating Soup and Stew Use the power levels and times in this table as a guide lines for reheating. Food Portion Method Power Time (min) Standing Time(min) Plated Meal (chilled) 350 g Plate a meal of 2-3 chilled components on a ceramic dish. Reheat covered. MEDIUM 6½-7 3 Chicken Curry & Rice (chilled) 300 g Plate a meal of 2 chilled components on a ceramic dish (e.g. rice and curry). Reheat covered. MEDIUM 4½-5½ 3 Pasta with sauce (chilled) 350 g Put pasta (e.g. spaghetti or egg noodles) into a deep ceramic plate. Reheat covered. Stir during reheating. HIGH 4-5 3 Filled pasta in sauce (chilled) 350 g Put filled pasta (e.g. ravioli, tortellini) in a deep ceramic plate. Reheat covered. Stir occasionally during reheating. MEDIUM 4½-5½ 3 Lasagne (chilled) 400 g Put the chilled lasagne (pre-cooked product) widthways in the centre of table. Reheat covered. HIGH 4½-5½ 3 Bechamel Potatoes (chilled) 400 g Put bechamel potatoes (pre-cooked product) widthways in the centre of table. Reheat covered. MEDIUM 5½-6½ 3 Baked Potatoes (ready cooked and chilled) 500 g (2x250 g) Pierce film and put potatoes on a flat ceramic plate.

Food Portion Method Power Time (min) Standing Time(min) Soup (chilled) 250 g Pour into a deep ceramic plate. Reheat covered. Stir during reheating.

Stew (chilled) 250 g 500 g Pour into a deep ceramic plate or bowl. Reheat covered. Stir during reheating. MEDIUM 4-4½ 5½-6 2-3 Bean Stew (canned) 350 g Pour into a deep ceramic plate or bowl. Reheat covered. Stir during reheating.

Soup (frozen) 1000 g Pour into a glass pyrex dish with lid. Reheat covered. Stir during reheating.

Cooking Guide(continued) Reheating Snacks Use the power levels and times in this table as a guide lines for cooking. Cooking Breakfast Use the power levels and times in this table as a guide lines for cooking. Defrosting Bread and Cake Use the power levels and times in this table as a guide lines for cooking. . Defrosting and Cooking Desserts Use the power levels and times in this table as a guide lines for cooking. Food Portion Method Power Time (min) Standing Time(min) Cheesebur ger (chilled) 150 g (1pc) Put burger on kitchen paper on a ceramic plate.

Cheesebur ger (frozen) 150 g (1pc) Put burger on kitchen paper on a ceramic plate. LO 3-3½ 2-3 Hot Dog (chilled) 125 g (1pc) Put hot dog on kitchen paper on a ceramic plate. MEDIUM ca. 1½ 2-3 Pizza; Slice (chilled) 100 g Put the pizza slice on a kitchen paper on ceramic plate. LO 1½-2 1-2 Meat & Vegetable Wrap (chilled) 200 g Put the chilled wrap (filled pastry roll) on kitchen paper on a ceramic plate.

Quiche/ Pie (chilled) 150 g Put quiche on kitchen paper on a ceramic plate.

Croissants 2 pcs (60g) Put the croissants on kitchen paper on a ceramic plate. Serve croissants directly after warming. MEDIUM ½-1 - Food Portion Method Power Time (min) Standing Time(min) Bacon (chilled) 2 slices à 20 g Put bacon slices on kitchen paper on a flat ceramic plate. HIGH ca. 1½ 1 Scrambled Eggs 2 eggs Beat eggs, add salt and 2 tbsp. milk. Put in a deep ceramic plate. Stir several times during cooking. LO ca. 2½ 1 Baked Beans (canned) 250 g Put the beans in a deep ceramic plate. Reheat covered. Stir during reheating.

Food Portion Method Power Time (min) Standing Time(min) Baguettes 150 g (1pc) Put the baguette widthways on kitchen paper in the oven. DEFROST ca. ½ 3-5 Bread Rolls 4 pcs à 50 g Put the rolls side by side on kitchen paper in the oven. DEFROST ca. 3 3-5 Fruit Cake 120 g (1pc) Put the piece of cake on a ceramic plate.

Cream Cake Roll 100 g (1pc) Put the piece of cake on a ceramic plate. Place plate in the centre of table. Let stand until cream is totally defrosted. DEFROST ca. 1 10-20 Food Portion Method Power Time (min) Standing Time(min) Berries in sauce 250 g Put frozen fruits in a glass pyrex bowl with lid. Reheat covered. Stir once during standing time.

Yeast Dumplings with jam filling 300 g (2pcs) Put frozen yeast dumplings (pre-cooked) side by side in a glass pyrex bowl with lid. Moist the top of them with cold water. Cook covered.

Cleaning Your Microwave Oven The following parts of your microwave oven should be cleaned regularly to pre-vent grease and food particles from building up:

• Inside and outside surfaces

ALWAYS ensure that the door seals are clean and the door closes properly. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the of the appliance and possibly result in a hazardous situation. 1. Clean the outside surfaces with a soft cloth and warm, soapy water.Rinse and dry.2. Remove any splashes or stains on the inside surfaces with a soapy cloth.3. To loosen hardened food particles and remove smells, place a jug of water and lemon juice on the ceramic plate and heat for ten minutes at maximum power.4. Do not clean this product using water. DO NOT spill water in the vents. NEVER use any abrasive products or chemical solvents. Take particular care when cleaning the door seals to ensure that no particles:

• Prevent the door from closing correctly Clean the microwave oven cavity right after each use with a mild detergent solution, but let the microwave oven cool down before cleaning in order to avoid injury . Storing and Repairing Your Microwave Oven A few simple precautions should be taken when storing or having your microwave oven serviced. The oven must not be used if the door or door seals are damaged:

• Distorted or bent oven casing Only a qualified microwave service technician should repair this oven. NEVER remove the outer casing from the oven. If the oven is faulty and needs servicing or you are in doubt about its condition:
• Unplug it from the wall socket• Contact the nearest after-sales service centre If you wish to store your oven away temporarily, choose a dry, dust- free place.Reason : Dust and damp may adversely affect the working parts in the oven. jtXW]`hl|TWZZXWiluUGGwGX[GGtSGqGY_SGYWW_GGXXaX]GhtEN

Technical Specifications SAMSUNG strives to improve its products at all times. Both the design specifications and these user instructions are thus subject to change without notice. Note Model CM1069A Power source 230V ~ 50 Hz Power consumption Microwave 1600 W, 7 A Output power 230V : 1050 W (IEC-705) (4 power levels including defrost) Operating frequency 2450 MHz Cooling method Cooling fan motor Dimensions (W x H x D) Outside Oven cavity 517 x 297 x 412 mm 336 x 225 x 349 mm Volume 26 liter Weight Net Gross
