USER MANUAL DE010 INVENTUM

Black and silver vacuum cleaner with extended handle and black body (no visible text or symbols)

1. safety instructions page 14
2. product description page 17
3. before first use page 18
4. assembly page 18
5. using the vacuum cleaner page 19
6. maintenance page 20
7. frequently asked questions page 21
   general terms and conditions of service and warranty page 39

Deutsch

Inventum advises the use of original Inventum accessories. Any damages to the product or accessories are not covered by the warranty when non-original dust bags are used.

Filters and other accessories are available in the webshop of Inventum: https://www.inventum.eu/onderdelen/

Deutsch

Simple black electronic component with a curved cable and labeled number 13 (no text or symbols on the component itself)

Labeled diagram of a vacuum cleaner with numbered parts for identification

8 • Nederlands

Close-up of a black handheld device with a gray arrow pointing to it, no visible text or symbols.

Close-up of a black vacuum cleaner with a white arrow indicating motion (no text or symbols visible)

Close-up of a black handheld water spray gun with a white handle and blue lever, no visible text or symbols

HET BEVESTIGEN VAN DE OPHANGBEUGEL

Black plastic electrical connector with three mounting holes (no text or symbols)

HET OPLADEN VAN DE STOFZUIGER

Close-up of a black mechanical component with a gray arrow indicating direction (no text or symbols)

BETEKENIS VAN DE INDICATIEVERLICHTING

1 streepje _ continue: accu is 8 tot 25% vol

2 streepjes __ : accu is 25 tot 50% vol

3 streepjes ____ : accu is 50 tot 75% vol

4 streepjes ____ : accu is 75 tot 100% vol

Close-up of a black handheld device with a gray arrow pointing to its side (no visible text or symbols)

HET REINIGEN VAN HET CYCLOONSYSTEEM EN DE FILTERS

Close-up of a black mechanical component with directional arrows indicating motion (no text or symbols visible)

Attentie

Close-up of a black mechanical component with two metallic pins and directional arrows indicating assembly or inspection (no text or symbols)

7 storingen en oplossingen

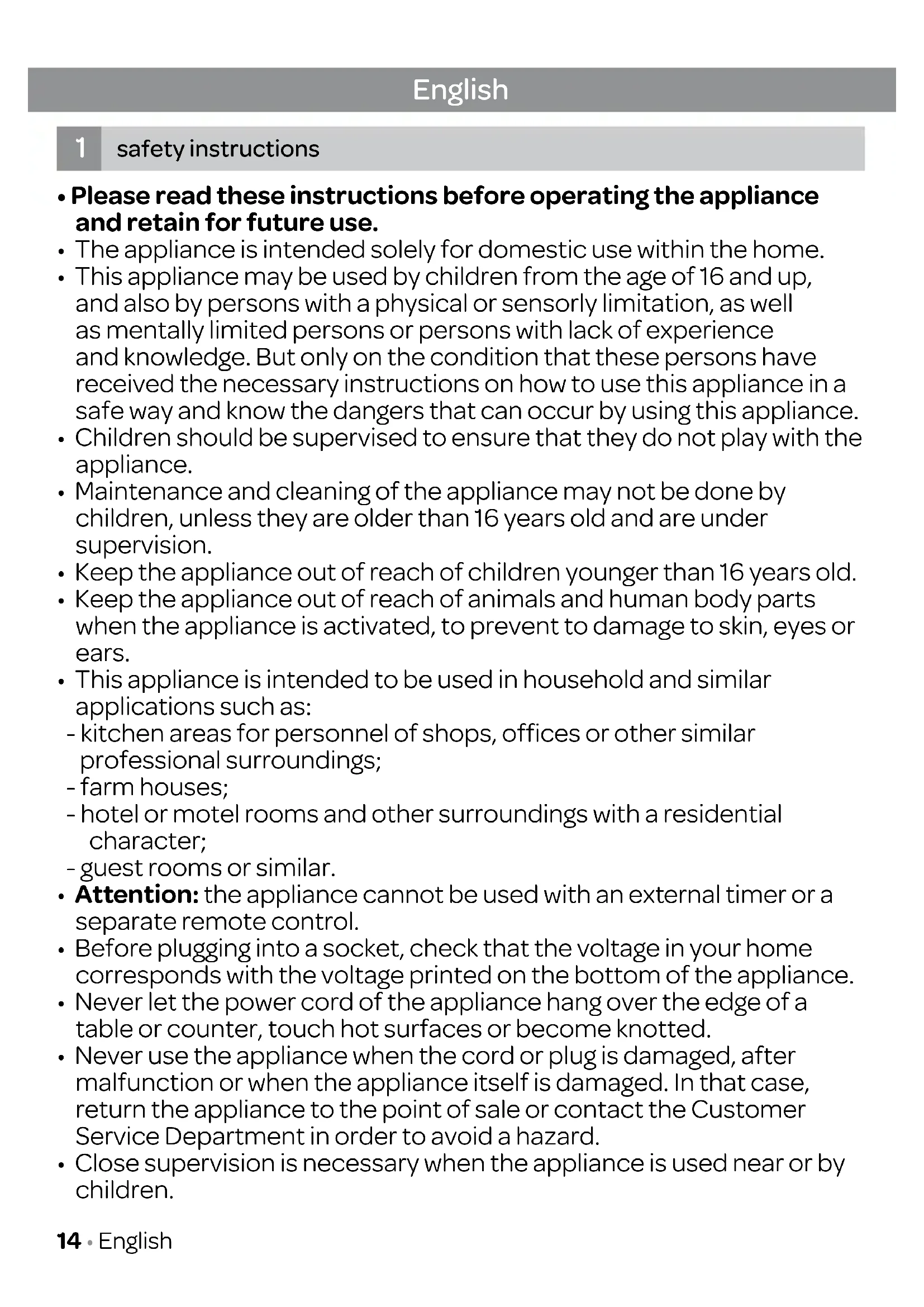

1 safety instructions

- Please read these instructions before operating the appliance and retain for future use.

• The appliance is intended solely for domestic use within the home.
• This appliance may be used by children from the age of 16 and up, and also by persons with a physical or sensory limitation, as well as mentally limited persons or persons with lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and know the dangers that can occur by using this appliance.
• Children should be supervised to ensure that they do not play with the appliance.
• Maintenance and cleaning of the appliance may not be done by children, unless they are older than 16 years old and are under supervision.
• Keep the appliance out of reach of children younger than 16 years old.
• Keep the appliance out of reach of animals and human body parts when the appliance is activated, to prevent to damage to skin, eyes or ears.
• This appliance is intended to be used in household and similar applications such as:
• kitchen areas for personnel of shops, offices or other similar professional surroundings;
• farm houses;
• hotel or motel rooms and other surroundings with a residential character;
• guest rooms or similar.
• Attention: the appliance cannot be used with an external timer or a separate remote control.
• Before plugging into a socket, check that the voltage in your home corresponds with the voltage printed on the bottom of the appliance.
• Never let the power cord of the appliance hang over the edge of a table or counter, touch hot surfaces or become knotted.
• Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, return the appliance to the point of sale or contact the Customer Service Department in order to avoid a hazard.
• Close supervision is necessary when the appliance is used near or by children.

- The use of accessories that are not recommended or sold by Inventum can cause fire, electrical shock or injuries.

- The brush and vacuum cleaner are specially designed for use on carpet and hard floors. In some cases, and depending on the type of floor, scratches can occur on the surface which is cleaned. Inventum can not be held responsible for damage to the floor.

- Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the ‘off’ position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.

- Never leave the appliance unattended when in use.

- Never place this appliance on or near a hot gas stove or electric burner or where it could touch a heated oven or microwave oven.

- Do not vacuum water and inflammable materials.

- Do not vacuum burning materials and ashes.

- Do not use the appliance outdoors.

- Keep hands, feet, loose clothing and hair out of reach of the rotating brushes.

- Only use the original adaptor which is included. The technical details can be found on the rating label of the appliance.

• Make sure the vacuum cleaner is off, when you charge it.

- Do not charge the battery at temperatures above 37^ or below 0^ .

- Static electricity: some types of carpet can cause static electricity. A discharge of static electricity is not dangerous.

- Do not use the appliance for cleaning wet surfaces or to vacuum wet substances.

• Always use the appliance on a secure, dry, level surface.

- When the appliance is used for other purposes than intended, or is when it is not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any damages to the product or accessories are not covered by the warranty.

- Correct placement and maintenance of the motor filter and the dust collector as described in this manual is necessary to avoid any damages to the appliance. Any damages caused by improper use or missing dust collector or filters are not covered by the warranty.

- Always return the appliance after a malfunction, or if it has been damaged in any manner to the Customer Service Department for examination, repair or adjustment.

- Never immerse any part of the main body, power cord and plug into water or any other liquid to protect yourself against electrical hazards.

• Make sure that children do not touch the cord or appliance.
• Keep the cord away from sharp edges and hot parts or other heat sources.
• Always ensure that your hands are dry before handling the plug, switch or power cord.
• Should you decide not to use the appliance anymore, make it inoperative by cutting the power cord after removing the plug from the socket. We also recommend making all potentially dangerous parts of the appliance harmless, particularly for children who might be tempted to play with them.
• Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

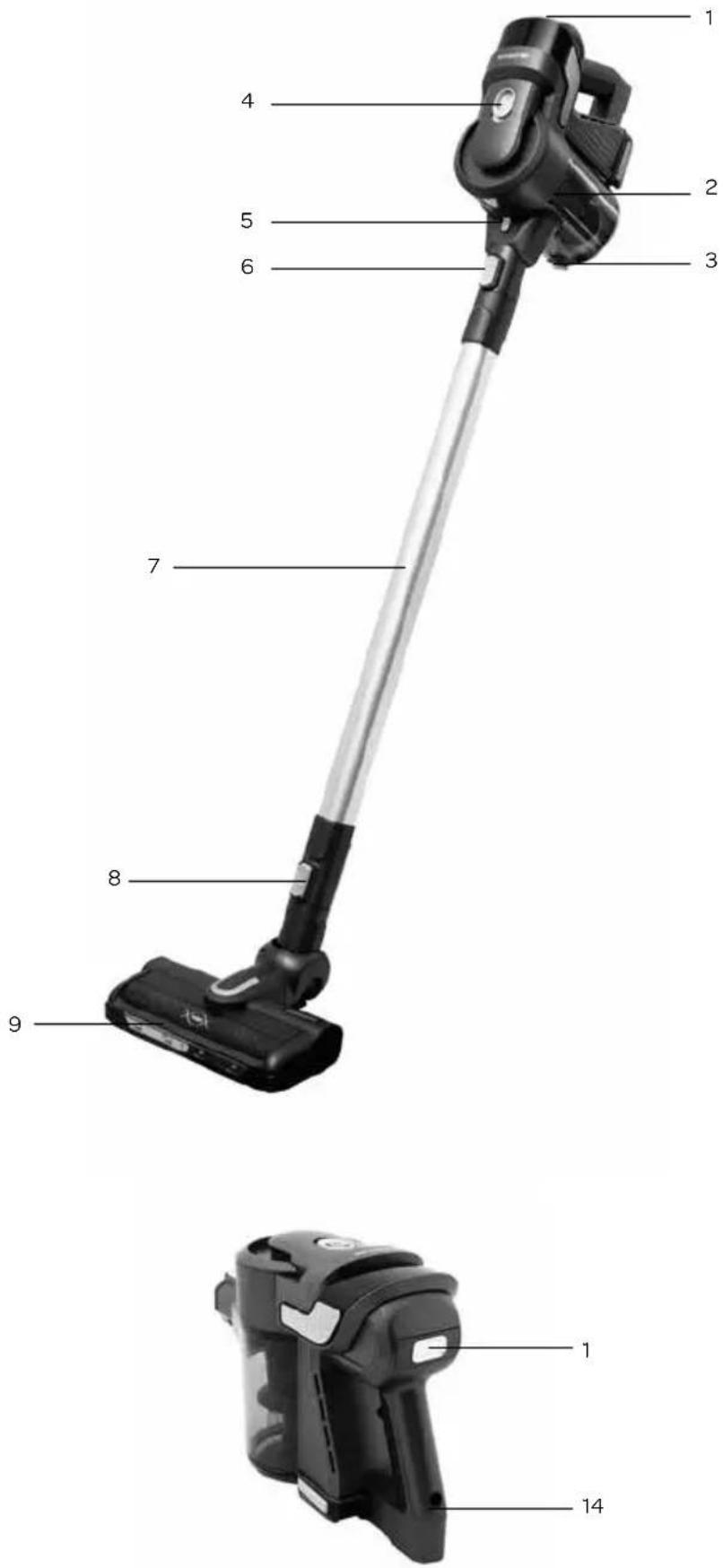

2 product description

1. On/off button
2. Dust collector
3. Clip to empty the dust collector
4. Compartment for the HEPA filter
5. Button to release the dust collector
6. Button to disconnect the tube
7. Tube
8. Button to disconnect the turbo brush
9. Turbo brush wit LED lighting

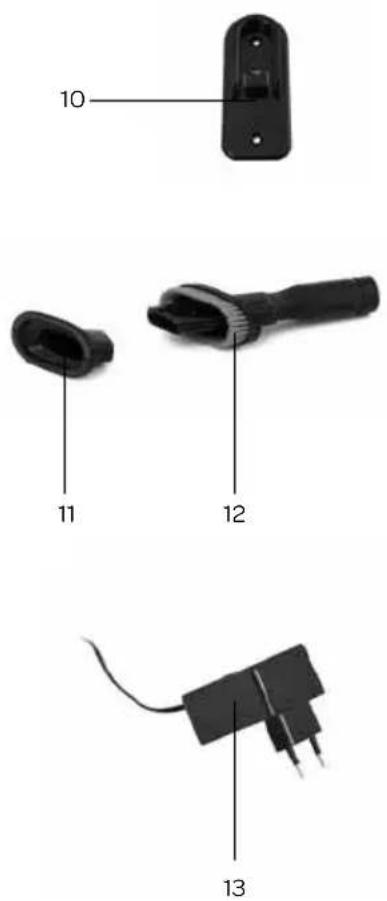

10. Wall mounted hook
11. Upholstery nozzle
12. Combination crevice nozzle
13. Adaptor
14. Inlet for adaptor

10 11 12 13

Labeled diagram of a vacuum cleaner with numbered parts for identification

3 before first use

Follow these instructions when using the vacuum cleaner for the first time: Carefully remove the vacuum cleaner from the packaging and remove all traces of packaging from the device and any promotional stickers. Keep the packaging (plastic bags and cardboard) out of the reach of children. After unpacking the vacuum cleaner, check the device for external damage that may have occurred during transport. Place the vacuum cleaner on a secure, dry and level surface.

It takes 5 hours or so to fully charge the battery before the first use.

4 assembly

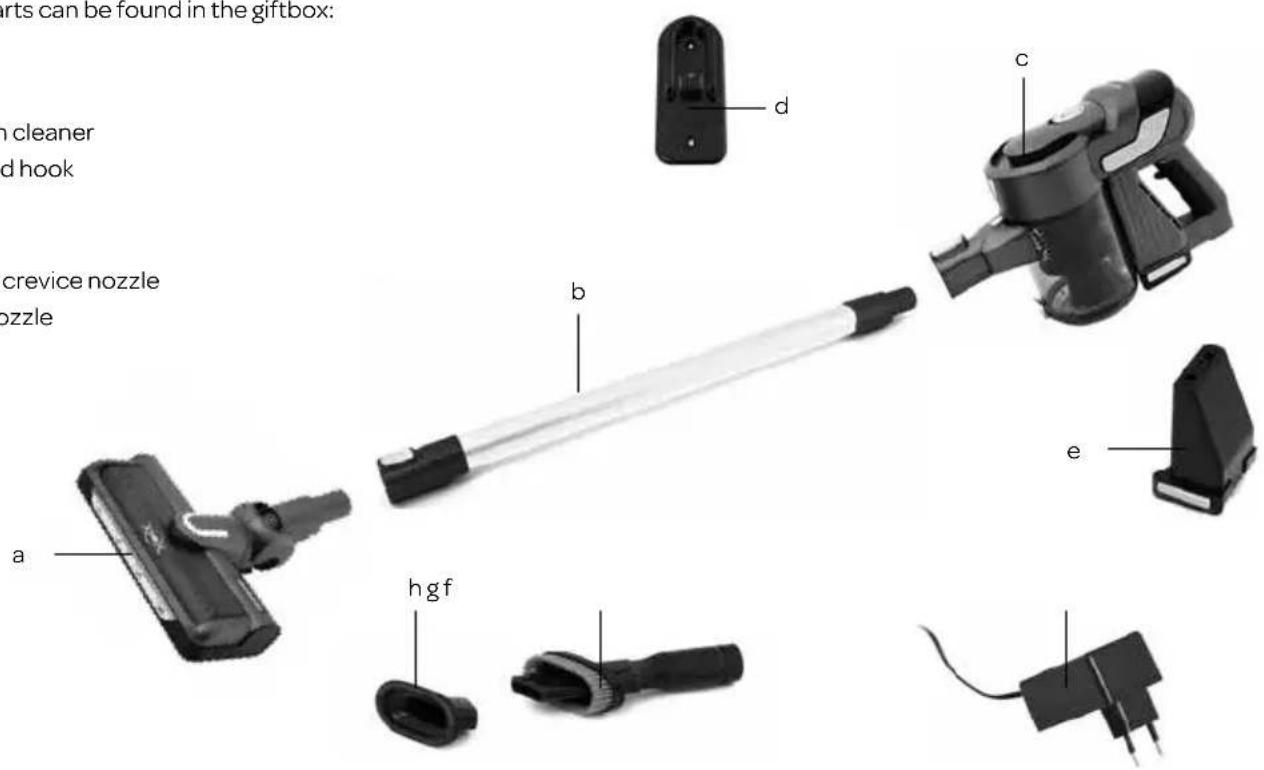

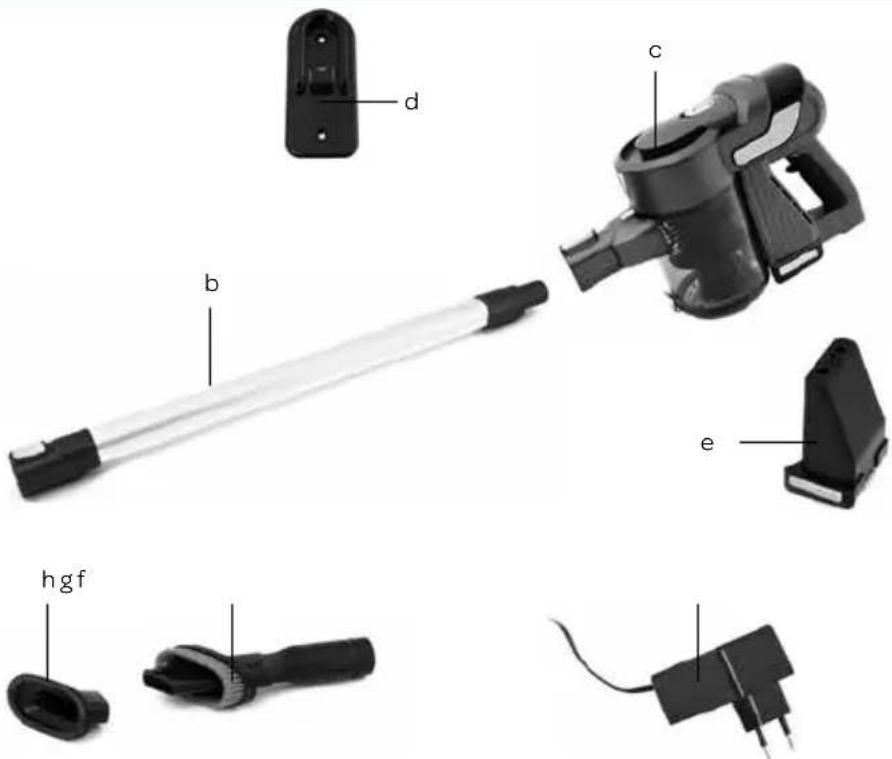

The following parts can be found in the giftbox:

a. Turbo brush
b. Tube
c. Hand vacuum cleaner
d. Wall mounted hook
e, Battery
f. Adaptor
g. Combination crevice nozzle
h. Upholstery nozzle

arts can be found in the giftbox: cleaner d hook crevice nozzle pzzle a b c e hgf

INSTALLING THE BATTERY

Install the battery in the body of the vacuum cleaner according to the picture. Make sure it locks in properly.

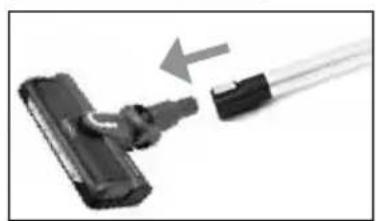

CONNECTING AND DISCONNECTING THE TURBO BRUSH

Align the connection of the turbo brush with the connection of the tube and connect the two parts.

Press the button [8] to disconnect the turbo brush.

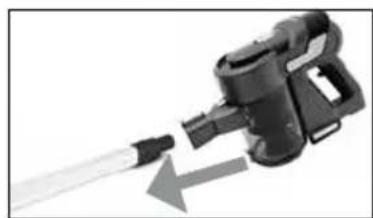

CONNECTING AND DISCONNECTING THE TUBE

Align the connection of the hand vacuum cleaner with the connection of the tube and connect the two parts.

Press the button [6] to disconnect the hand vacuum cleaner.

Close-up of a black plastic mechanical component with a gray arrow pointing to it (no visible text or symbols)

Close-up of a black vacuum cleaner with a white arrow indicating motion (no text or symbols visible)

Close-up of a black handheld device with a blue handle and arrow indicating motion (no text or symbols visible)

MOUNTING THE WALL MOUNTED HOOK

Install the wall mounted hook with the enclosed screws and plugs to the wall near a socket for the adaptor.

• Place the wall mounted hook [10] with the rounded end upwards against the wall.
  • Mark wit a pencil the two holes on the wall.
• Drill two holes of ∅ 8 mm on the markings of at least 4 cm deep.
• Push in the plugs.
• Fix the wall mounted hook on the wall with the screws.

Black plastic electrical connector with two terminals (no text or symbols visible)

CHARGING THE VACUUM CLEANER

Hang the vacuum cleaner with the bottom of the handle on to the wall mounted hook. Plug the connector of the adaptor in the inlet at the back of the handle [14].

Plug in the adaptor. As soon as the adapter is plugged in the vacuum cleaner will charge.

The indicator light turns blue one bar at a time.

When the battery of the vacuum cleaner is empty, the charging will take 5 hours.

When the battery is completely charged, the four bars will light up continuously.

Always unplug the adaptor when the battery is fully charged. The adaptor may become warm during charging - this is normal.

TIPS

• A fully charged battery will give continuous cleaning of approx. 25 minutes.
• The battery has a build in self-protection safety. When the surface temperature of the battery exceeds 50^ C or gets below 0^ C, the battery will stop charging. The charging will continue when the surface temperature of the battery is between 0^ C and 45^ C.
• During use the surface of the battery can not exceed 65°C. The battery will enter the self-protection mode and the battery will cut off the electricity to the vacuum cleaner. When the surface temperature of the battery goes back below 65°C, the vacuum cleaner can be used again.
  • We recommend that you discharge the battery at least once a month and then fully recharge it, to maintain optimal performance.

Warning! Always ensure your hands are dry before placing the appliance on the charging stand.

Warning! Never touch the brush inside the turbo brush when the appliance is on.

Waarschuwing! Only use the original included adaptor to charge the vacuum cleaner. Ohter adaptors can damage the appliance and even be dangerous.

5 using the vacuum cleaner

SWITCHING THE VACUUM CLEANER ON

Press the on/off button Ⓐ[1] on the handle of the vacuum cleaner to switch the vacuum cleaner on. Press the on/off button Ⓐ[1] on the handle button again and the vacuum cleaner will shut off.

The turbo brush will rotate automatically when the vacuum cleaner is switched on. The LED lights on the turbo brush only work in dark areas. If the working area is bright adequately, the lights don't work. When you move the turbo brush into dark area, the lights will light up.

USING THE VACUUM CLEANER AS A HAND HELD

The vacuum cleaner can also be used as a hand vacuum cleaner.

Disassemble the turbo brush and the tube.

The hand vacuum cleaner can be used with or without the turbo brush or with the combination crevice nozzle. Press the on/off button Ⓞ [1] on the handle of the hand vacuum cleaner to switch it on. By pressing it again, you will shut the vacuum cleaner off.

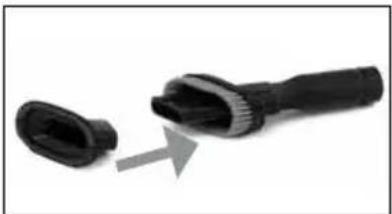

The crevice nozzle can be used in two ways: with or without the brush. The upholstery nozzle can be placed onto the crevice nozzle.

Close-up of a black plastic connector with a gray arrow pointing to its tip (no text or symbols visible)

INDICATION OF THE INDICATION LIGHT

The vacuum cleaner has indication lights which announce the battery with four bars ____.

1 bar _ flashing: battery is 1 to 8% full.

1 bar _ continuously: battery is 8 to 25% full

2 bars _ : battery is 25 to 50% full

3 bars ____ : battery is 50 to 75% full

4 bars____: battery is 75 to 100% full.

STORAGE

Hang the vacuum cleaner after every use on the wall mounted hook.

When the vacuum cleaner needs to charged, make sure the adaptor is plugged in and the adaptor is connected to the vacuum cleaner. Always unplug the adaptor when the battery is fully charged.

Check the dust collector and filters regularly to prevent any problems. Empty the dust collector when it is full and clean or replace

the filters when they are dirty.

Close-up of a black handheld device with a gray arrow pointing to its side (no visible text or symbols)

Empty the dust collector after every use. First remove all accessories before emptying the dust collector.

• Hold the dust collector above a dust bin and unlock the lid with the clip.
  • To fully empty the dust collector, calmly shake it above the dust bin and close the lid.

CLEANING THE CYCLONE SYSTEM AND THE FILTERS

First remove all accessories before cleaning the vacuum cleaner. Clean the filters and the cyclone system once every four times you have emptied the dust collector.

• Press the button to release the dust collector and remove it by turning it clockwise.
• Remove the cyclone system by turning it clockwise.
• The separate parts can be cleaned under lukewarm water.
• Press the release buuton on top of the vacuum cleaner to remove the lid of the HEPA filter compartment.
  • Take out the HEPA filter and clean it under lukewarm water and let it air dry. Do not use any cleaning agents or brushes. Cleaning the filter will remove the dirt, but will not restore the original color of the filter. The color of the filter is not of any influence to the performance.
• Re-assemble the vacuum cleaner in reverse order when all the parts are thoroughly dry. You will hear a click when the dust collector is placed correctly.

Close-up of a black mechanical component with directional arrows indicating motion (no text or symbols visible)

Attention

• Use the vacuum cleaner only when the filters are in place. If not, it can lead to loss of suction power or damage to the motor.
- Torn filters or filters that do not fit properly can cause damage to the engine. Replace a damaged filter by an original new one.

CLEANING THE TURBO BRUSH

Hair and /or other dirt can be stuck in the brush of the turbo brush. Therefore clean the turbo brush regularly to ensure efficiency of the vacuum cleaner.

• Make sure the vacuum cleaner is switched off and disconnect the turbo brush.
• Unlock the tab at the bottom of the turbo brush with a coin or flat screwdriver and flip it upwards.
• Carefully pull out the brush.
• Clean the brush under lukewarm water and let the brush air dry.
• Place the brush back in the turbo brush.
• Close the tab and lock it with a coin or flat screwdriver.

Close-up of a black plastic component with a threaded rod and arrow indicator (no text or symbols)

7 frequently asked questions

Problem Possible cause Solution
The vacuum cleaner does not switch on.	The battery is empty. Charge the battery. The	indication light is red while charging.
	The battery does not charge (indication light does not light up when charging).	Replace the connector into the vacuum cleaner.
	The temperature of the battery is too high. Leave the vacuum cleaner to cool down for 30 minutes at room temperature and then turn it back on.
	The adaptor is defect. Contact the customer service of Inventum.
The suction power is decreased.	The dust collector is full. Empty the dust collector.
	The filters are clogged. Clean the filters or replace them when they are worn or damaged.
The vacuum cleaner makes more noise.	The dust collector is full. Empty the dust collector.
	The filters are clogged. Clean the filters or replace them when they are worn or damaged.
The brush of the turbo brush no longer rotates.	Dirt or hair block the brush Clean the turbo brush according to the instructions.
The battery does not charge. The	vacuum cleaner is not connected correctly to the adaptor.	Replace the connector into the vacuum cleaner and check whether the adaptor is plugged in.
	The temperature of the battery is too high (>55°C) or too low (<0°C).	Leave the vacuum cleaner to cool down for 30 minutes at room temperature and then turn it back on.

Labeled diagram of a vacuum cleaner with numbered parts for identification

Close-up of a black mechanical component with a labeled section 'a' (no visible text or symbols on the object itself)

d c b e hgf

MONTAGE DES AKKUS

Close-up of a black handheld device with a gray arrow pointing to it, no visible text or symbols.

Close-up of a black vacuum cleaner with a white arrow indicating motion (no text or symbols visible)

Close-up of a black handheld water spray gun with a white arrow indicating motion (no text or symbols visible)

Black plastic electrical connector with three mounting holes (no text or symbols)

DEN STAUBSAUGER AUFLADEN

Close-up of a black plastic tool with a gray arrow pointing to its tip (no text or symbols visible)

Close-up of a black plastic mechanical component with a gray arrow pointing to it (no text or symbols visible)

REINIGEN DES CYCLOON-SYSTEMS UND DER FILTER

Close-up of a black mechanical component with directional arrows indicating motion (no text or symbols)

Achtung

Close-up of a black mechanical component with two metallic pins and an arrow indicating direction (no text or symbols)

Labeled diagram of a vacuum cleaner with numbered parts for identification

Close-up of a black mechanical device with a gray arrow pointing to a smaller component (no visible text or symbols)

Close-up of a black vacuum cleaner with a white arrow indicating motion (no text or symbols visible)

Close-up of a black handheld water spray gun with a white handle and arrow indicating motion (no text or symbols visible)

LA FIXATION DU DISPOSITIF DE SUSPENSION

Black plastic electrical contactor component with mounting holes (no text or symbols)

LA MISE EN CHARGE DE L'ASPIRATEUR

Close-up of a black mechanical component with a curved arrow indicating direction (no text or symbols visible)

SIGNIFICATION DU TÉMOIN LUMINEUX

Close-up of a black handheld device with a gray arrow pointing to its side (no visible text or symbols)

Close-up of a black handheld device with arrow indicators (no visible text or symbols)

Attention

Close-up of a black plastic component with two metallic pins and a threaded rod, shown with directional arrows (no text or symbols)

general terms and conditions of service and warranty

We do not need to remind you of the importance of service. After all, we develop our products to a standard so that you can enjoy them for many years, without any concerns. If, nevertheless, there is a problem, we believe you are entitled to a solution straight away. Hence our products come with an exchange service, on top of the rights and claims you are entitled to by law. By exchanging a product or part, we save you time, effort and costs.

2-year full manufacturer's warranty

1. Customers enjoy a 2-year full manufacturer's warranty on all Inventum products. Within this period, a faulty product or part will always be exchanged for a new model, free of charge. In order to claim under the 2-year full manufacturer's warranty, you can either return the product to the shop you bought it from or contact the Inventum costumer service department via the form at www.inventum.eu/service-aanvraag.
2. The 2-year warranty period starts from the date the product is bought.
3. In order to claim under the warranty, you must produce a copy of the original receipt.
4. The warranty applies only to normal domestic use of Inventum products within the Netherlands.

Breakdowns or faults outside the warranty period

1. Breakdowns or faults in small or large domestic appliances outside the warranty period, can be reported to the costumer services department via the form at www.inventum.eu/service-aanvraag or by calling the costumer services department.
2. The costumer services department may ask you to send the product for inspection or repair. The costs of dispatch will be at your expense.
3. The inspection to establish whether repair is possible involves a charge. You need to grant your permission for this, in advance.
4. In the event of a large domestic appliance, Inventum, at your request, can send out a service engineer. In that case, you will be charged the call-out costs, as well as parts and labour.
5. In the event of an instruction to repair, the repair costs must be paid in advance. In the event of a repair by a service engineer, the costs of the repair must be settled with the engineer onsite, preferably by means of PIN payment.

Warranty exclusions

1. The following is excluded from the aforesaid warranties:

• normal wear and tear;
- improper use or misuse;
• insufficient maintenance;
- failure to comply with the operating and maintenance instructions;
- unprofessional installation or repairs by third parties or the customer himself;
• non-original parts used by the customer;
- use for commercial or business purposes;
- removal of the serial number and/or rating label.

1. In addition, the warranty does not apply to normal consumer goods, such as:

2. dough hooks, baking tins, (carbon) filters, etc.;

3. batteries, bulbs, carbon filters, fat filters etc.;
   • external connection cables;

4. glass accessories and glass parts such as oven doors;
   • and similar items.

5. Transport damage not caused by Inventum is also excluded. Therefore, inspect your new device before starting to use it. If you detect any damage, you must report this to the store where you purchased the product within 5 working days, or to the Inventum customer service department via the form at www.inventum.eu/service-aanvraag. If transport damage is not reported within this period, Inventum does not accept any liability in this respect.

6. The following are excluded from warranty and/or replacement: faults, loss of and damage to the device as a result of an event that is normally insured under the home contents insurance.

Important to know

1. The replacement or repair of a faulty product, or a part thereof, does not lead to an extension of the original warranty period.
2. If a complaint is unfounded, all costs arising from it will be at the customer's expense.
3. Following expiry of the warranty period, all costs of repair or replacement, including administration costs, dispatch and call-out charges, will be charged to the customer.
4. Inventum cannot be held liable for damage caused by external events, unless this liability arises from mandatory statutory provisions.
5. These warranty and service provisions are governed by Dutch law. Disputes will be settled exclusively by the competent Dutch court.

twitter.com/inventum1908

facebook.com/inventum1908

youtube.com/inventum1908
