USER MANUAL SBCRU110 PHILIPS

Universal Remote Control

SBC RU 110

Instructions for Use

Mode d'emploi

Bedienungsanleitung

Gebruiksaanwijzing

Yellow circular icon with a plus sign and a triangle, no text or symbols present.

#

PHILIPS

UNIVERSAL

Let's make things better.

You just made a great choice by buying this Philips universal remote control! It takes the place of as many as four separate remote controls and can operate the most-used functions of almost any brand of TV. Best of all, it's quick to setup and easy to use. Here's how...

AT A GLANCE

Once you've installed the batteries, this remote is ready to work with any Philips TV. Simply press ⏻ to test. For other brands of equipment, it needs to be set up first- see Getting Started.

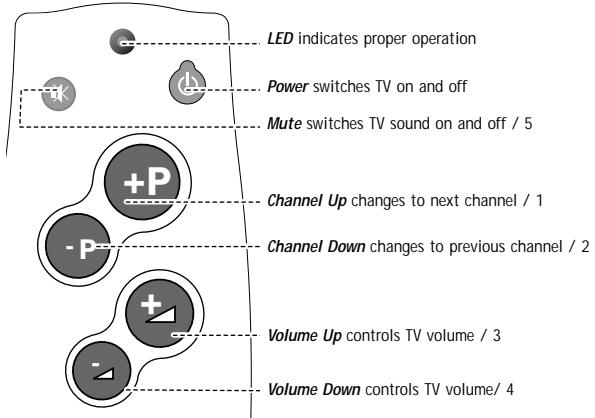

LED indicates proper operation Power switches TV on and off Mute switches TV sound on and off / 5 Channel Up changes to next channel / 1 Channel Down changes to previous channel / 2 Volume Up controls TV volume / 3 Volume Down controls TV volume/ 4

Try it out! The easiest way to find out how your new remote works, is to try pressing the keys and see what happens - don't worry, you won't damage anything! Most of the keys work just like on your original remote control. Of course, if your TV does not offer a specific function, pressing that key will have no effect.

DON'T FORGET THE BATTERIES!

Diagram of a medical device with tubing and a connector (no text or symbols)

You'll need two 1.5V batteries, type R03, UM4 or AAA only. Put them in like this.

Remember to replace the batteries at least once a year. Don't leave the batteries out for longer than one hour, otherwise you will need to set the remote up again.

GETTING STARTED

This remote is ready to work with any Philips TV. For other brands of equipment, it needs to be set up first. That only takes a couple of seconds, thanks to Philips' Simple System Setup!

Before you start make sure the equipment is switched on. Sit right in front of it.

If you know the brand of your equipment, look at the code list at the back of this booklet, and find the first 5-digit code for your equipment.

① Press and hold ⚙️ and ⏻ at the same time until the green LED lights up. (Release the keys, the green LED should stay on)
② Enter the 5-digit code using the numbers that correspond to the function keys (see diagram). The green LED blinks twice.

That's it! Now, press a few keys on the remote to check that the equipment responds correctly. If it doesn't, try again using the next code in the list. In the rare instance that none of the codes work, follow the instructions in the next section.

Tip: Make a note of the code inside the battery case, and in the back of this booklet in case you ever need to setup again.

If you don't know the brand of your equipment or if you can not find it in the codelist, setup still won't take long. Philips' patented Handsfree autosearch tests all the codes one after another and finds the right one for you! The search time averages about 90 seconds. (Maximum search time is 5 minutes for TV.)

Make sure the TV is switched on. You will know when the correct code has been found because the equipment will switch off.

① Press and hold ⚙️ and ⏻ at the same time until the green LED lights up.
② Press ⏻ to start the search. Each time the green LED blinks, another code is sent. When the right code is found, the equipment switches off.
③ Immediately press ⏻ to stop the search.

If you missed the correct code because the search went too far, switch the equipment back on, the press -P (down) to send the previous code again. Press -P (down) repeatedly until the equipment switches off again.

④ Once you've found the correct code, press ⏻ to lock it in memory. The green LED blinks twice.

That's it! Now, switch the equipment manually on again, then press a few keys on the remote to check that the equipment responds correctly. In the rare instance that it doesn't, try again from step 1 to find a better code.

Note that code! To save time if you ever need to setup again, make a note of the correct code inside the battery case and in the back of this booklet. In case you have forgotten to note the code you can still 'read out' the code from the remote. Here's how:

① Press and release ☐ and ⏻ at the same time; the green LED lights up.
② Press ☒. The green LED goes out.
③ Press +P and count the number of times the green LED blinks. This is the first digit of the 5-digit code. (No blinks means the digit is zero.)

Press -P and count the number of blinks for the second digit.

Press + and count the number of blinks for the third digit. Press - and count the number of blinks for the fourth digit.

Press ☒ and count the number of blinks for the fifth digit.

NEED HELP?

If you have questions about your remote or if you are missing certain functions on your remote, call our free-phone helpline!

Before you call, please read the manual carefully. Most questions will clear themselves. If you don't find an answer to your questions, make a note of your equipment in the table below - this makes it easier for the operators to help you quickly. Look for model numbers in the equipment instruction manual, or on the back of the equipment. Be in front of the equipment, this way our operators can help you verify the functionality of your remote.

In the UK. call 0800 968 118. In Ireland, call 1 800 553 136.

The model number of your Philips universal remote control is:

SBC RU110

Date of purchase: __/__/__

Day/month/year

Equipment	Brand	Model nr.	Nr. of original remote	Used code
TV

As you add new components to your home entertainment system, Philips again offers a universal remote control that will fit your new needs. Look for below unique full range of universal remote controls from Philips at a retailer near you.

RU 410 : 1 in 1 Universal TV Remote with digits and TXT

RU 422 : 2 in 1 Universal Remote Control for TV and VCR

RU 430 : 3 in 1 Universal Remote Control for TV, VCR and SAT/Cable

RU 440 : 4 in 1 Universal Remote Control for TV, VCR, SAT/Cable and AUX for audio

RU 455 : 4 in 1 Universal Remote Control for TV, VCR, SAT/Cable and AUX for second device

RU 460 : 6 in 1 Universal Remote Control- Pre-programmed and Learnable

Another very nice product from Philips is the Philips SBC LI510 Remote Control Extender Set, the wireless extension of your infra-red (IR) remote control! This system allows you to operate every IR driven equipment (i.e. Sat-receivers, VCRs or Hi-Fi-sets) from anywhere in or around the house.

N'OUBLIEZ PAS LES PILES!

Diagram of a handheld electronic device with capacitors and wiring (no text or symbols)

Diagram of a device with cable and connector, showing internal components and wiring (no text or symbols)

Diagram of a battery pack with electrodes and a power outlet, showing internal components (no text or labels)

Diagram of a medical device with tubing and connectors, no visible text or symbols

Diagram of a medical device with tubing and a switch, no text or symbols present

Diagram of a medical device with tubing and connectors, no visible text or symbols

Diagram of a medical device with tubing and a connector, no text or symbols present

Diagram of a battery pack with a switch and power cord, showing internal components and wiring (no text or labels)

Diagram of a handheld electronic device with battery, switch, and power cord (no text or symbols)

Diagram of a handheld device with labeled ports and wiring (no text or symbols)

Du trenger to 1.5V batterier, bare type R03, UM4 eller AAA. Sett dem i slik:

Diagram of a handheld electronic device with battery, wires, and power cord (no text or symbols)
