Product Type	Gaming chair with integrated audio
Brand	X Rocker
Model	Deluxe
Power Supply	AC adapter 100-240 V ~ 50/60 Hz, 1.2 A; output 12 V DC, 2.5 A
Maximum Supported Weight	120 kg
Dimensions (H x W x D)	Approximately 90 x 55 x 55 cm
Audio Features	Built-in speakers, subwoofer, vibrations
Wireless Connectivity	Bluetooth, wireless bands 1/2/3 via DAC converter
Wired Connectivity	RCA inputs, 3.5mm headphone jack, SPDIF optical, micro-USB
Control Panel	Wireless switch, band selector, volume, auxiliary input
Console Compatibility	PS4, Xbox One, all consoles with optical or headphone output
TV Compatibility	Optical output, 3.5mm headphone jack
Other Devices	Smartphones, tablets, computers via Bluetooth or cable
Material	Faux leather cover, foam padding, metal frame
Adjustments	Adjustable recline, fixed armrests
Maintenance and Cleaning	Clean with a soft dry cloth; do not use abrasive products
Safety	Do not exceed 120 kg, avoid liquids, do not lean back
Spare Parts and Repairability	Contact X Rocker support for cables and components
Package Contents	Chair, wireless DAC converter, audio cables, power adapter, guide
Included Accessories	3.5mm audio cable (B1), RCA-3.5mm cable (B2), RCA adapters (B3), power cable (B4), wireless DAC (B5), optical cable (B6), micro-USB cable (B7)

Frequently Asked Questions - Deluxe X Rocker

How to connect the X Rocker Deluxe chair to a PS4?

To connect the chair to a PS4, make sure the console is off. Plug the micro-USB cable into the wireless DAC converter and into a USB port on the PS4. Connect the optical cable between the DAC and the optical output of the PS4. Turn on the console, select a wireless band (1, 2 or 3) on the DAC and set the chair to the same band. In the PS4 settings, go to Settings > Sound and Screen > Audio Output Settings and change the primary output port to Digital Optical, then choose AAC.

How to connect the chair to an Xbox One?

Turn off the Xbox One. Plug the micro-USB cable into the DAC converter and into a USB port on the console. Connect the optical cable between the DAC and the optical output of the Xbox. Turn on the console, select a wireless band on the DAC and set the chair to the same band. In the Xbox settings, go to Settings > All Settings > Display & Sound > Audio Output, under Digital Audio select Optical and set to Uncompressed Stereo.

How to connect the chair to a TV via Bluetooth?

Switch the wireless switch on the chair to the Bluetooth position. On your TV, enable Bluetooth and search for devices. Select XROCKER from the list. If a password is requested, enter 0000.

Why is there no sound in the chair?

Check that all cables are properly connected and the audio source is on. Confirm that the wireless channel switch is in the correct position (1, 2 or 3 for wireless, AUX for wired). Make sure the volume on the chair and the source is sufficient. Try another connection mode if possible.

How to clean the X Rocker Deluxe chair?

Use a soft dry cloth to dust the faux leather cover. For stains, slightly dampen the cloth with water and wipe gently. Do not use chemicals, abrasives, or excessive liquids. Avoid getting water into the electronic parts.

What is the maximum weight supported by the chair?

The maximum supported weight is 120 kg. Do not exceed this limit to avoid damaging the chair or causing injury.

What to do in case of interference on the wireless connection?

Try changing the wireless band on the DAC converter (1, 2 or 3) and set the chair to the same band. Move the chair away from other wireless devices or sources of interference.

Vibrations or subwoofer do not work in wired connection.

Increase the volume of the source device (console, TV) to strengthen the audio signal. Check that the cable is properly plugged into the correct input (green for sound, red/white for RCA). If the problem persists, test another source.

How to get spare parts for the chair?

Contact X Rocker support by email at [e-mail] to order cables, adapters or other parts. Do not disassemble electrical components yourself.

Can the chair be used with mobile devices?

Yes, connect your smartphone or tablet via Bluetooth by following the Bluetooth connection steps. You can also use a 3.5mm audio cable if your device has a headphone jack.

USER MANUAL Deluxe X Rocker

Thank you for purchasing this X Rocker gaming chair. You are now close to enhancing your favourite games with glorious audio!

To get started, please assemble the chair using the assembly instructions on the separate leaflet and then follow the instructions in this manual to get rocking!

Table of contents

4 Box contents and control panel overview
5 Wireless connection guide: PS4
6 Wireless connection guide: Xbox One
7 Wireless connection guide: TV (All systems)
8 Wired connection guide: TV (All consoles)
9 Wired connection guide: PS4 Controller only
10 Bluetooth connection guide
11 Troubleshooting tips
12 Health and safety information
13 Power supply safety information

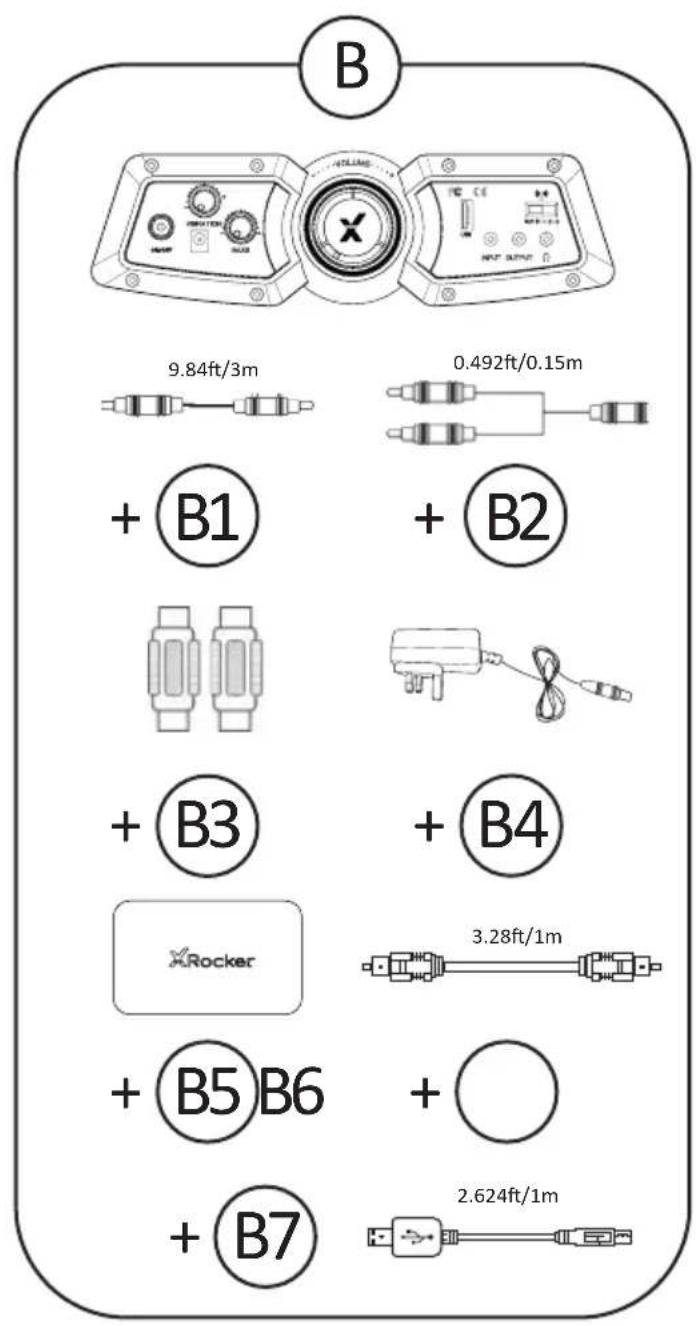

B1 - 3m 3.5mm to 3.5mm Audio cable
B2 - 15cm RCA to female 3.5mm audio cable
B3 - RCA female to female adapters
B4 - Power supply Cable
B5 - Wireless DAC Transmitter
B6 - 1m Optical Toslink Audio Cable
B7-MicroUSB Cable

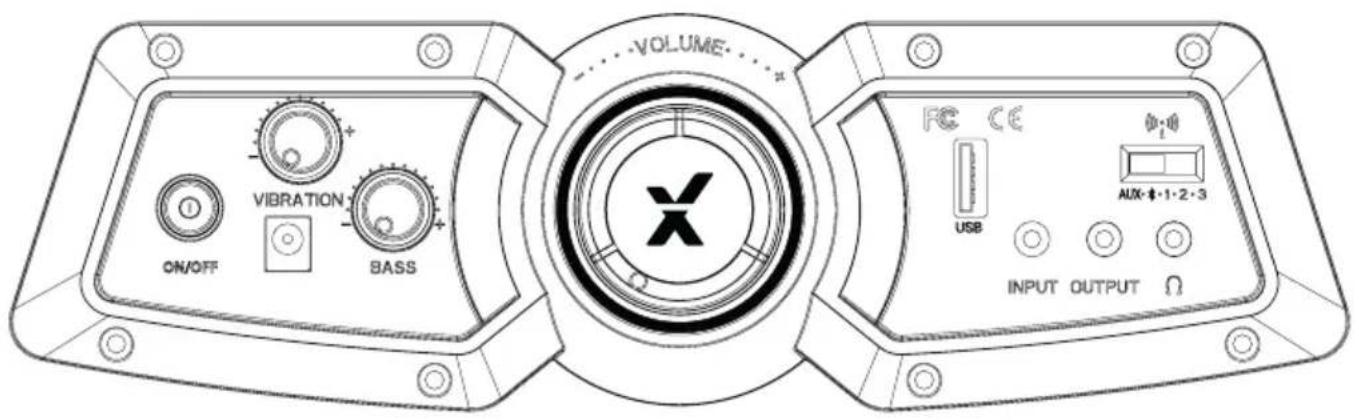

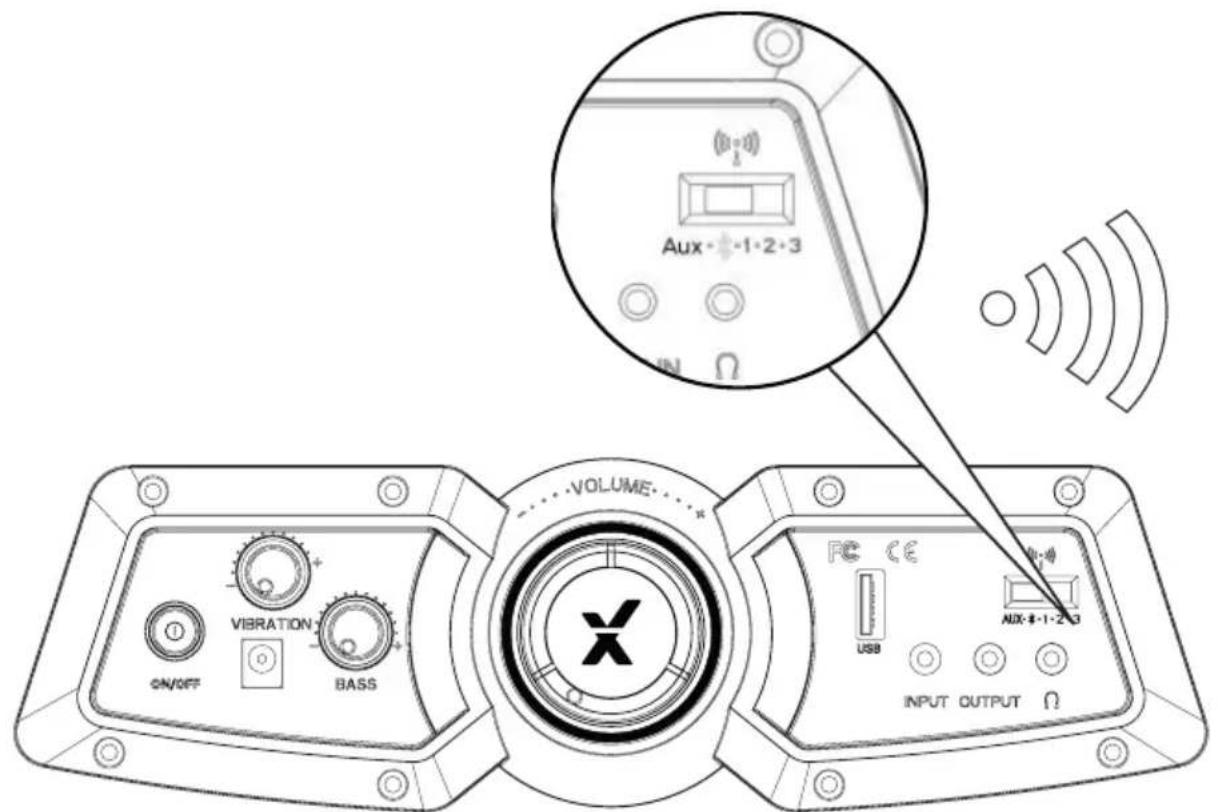

Control panel overview

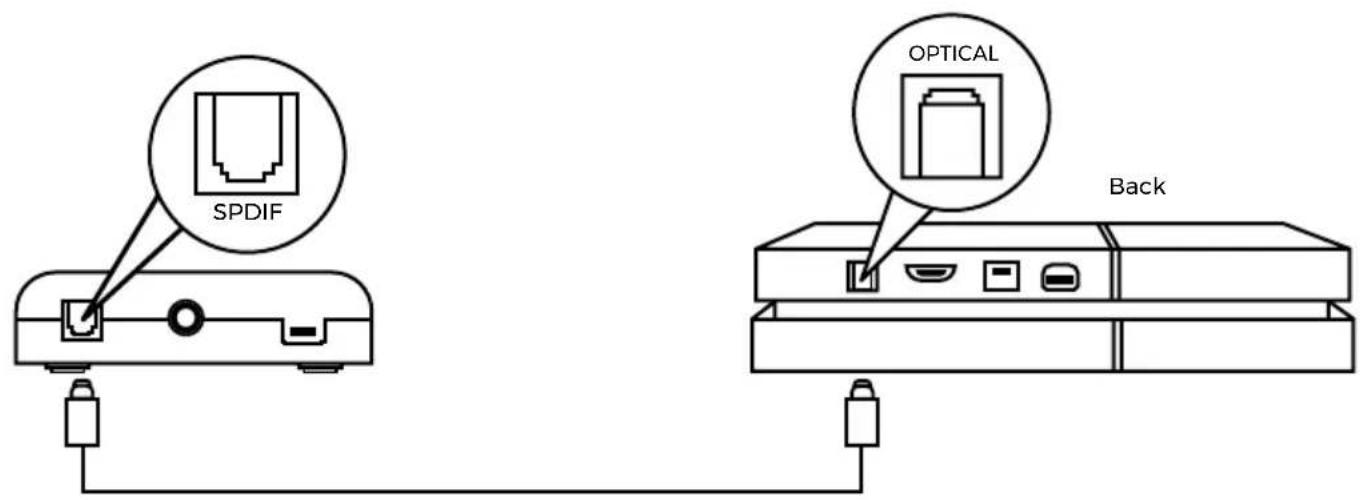

Wireless connection guide: PS4

Step 1: Make sure that the PS4^TM system is switched OFF. Insert the micro USB cable into the X Rocker DAC converter and the other end into one of the front USB ports on the PS4^TM system. Remove the clear plastic covers from both ends of the optical cable. Input one end of the optical cable into the X Rocker Wireless DAC (Slot titled SPDIF) and the other into the Optical SPDIF connector on the PS4^TM system.

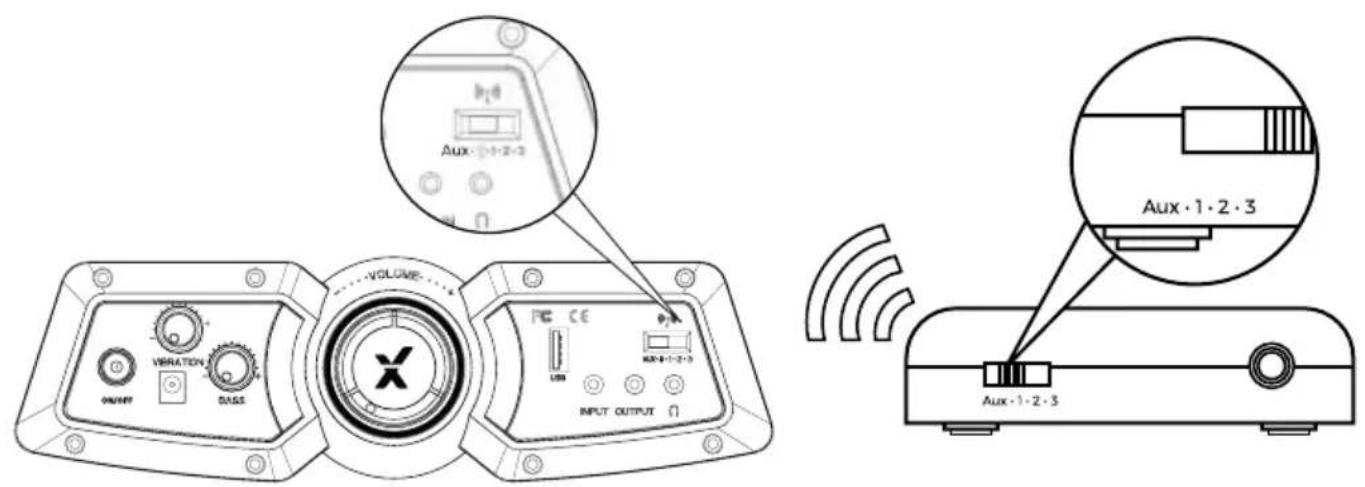

Step 2: Turn the PS4™ system back on. Select one of the wireless bands (1,2,3) on the wireless DAC and then switch to the corresponding band on the chair.

Step 3: On the main PS4™ menu screen Select (Settings) > [Sound and Screen] > [Audio Output Settings] > [Primary Output Port] Change this to [Digital Optical] > choose AAC.

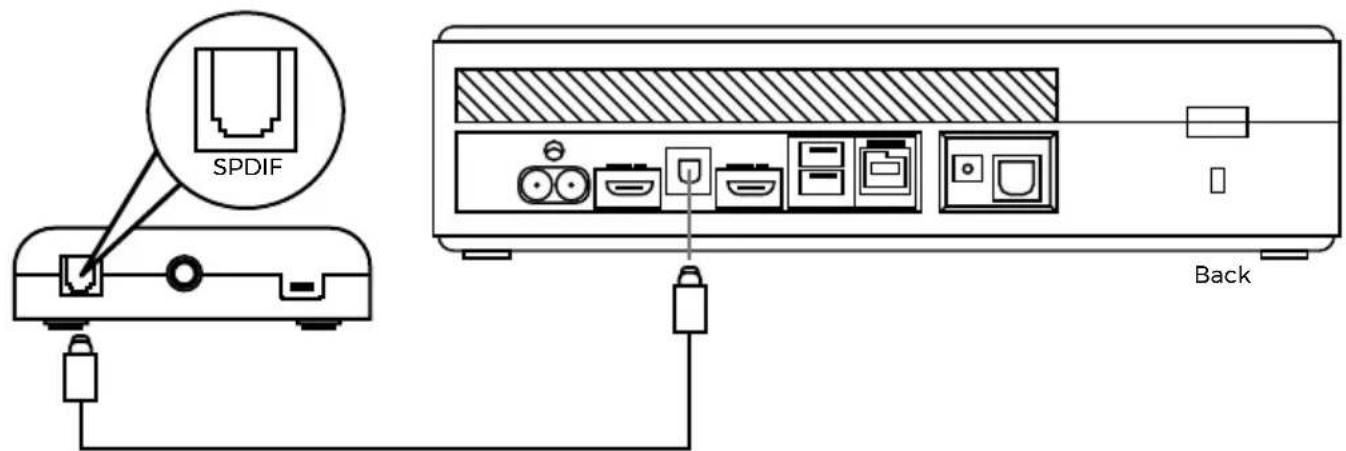

Wireless connection guide: Xbox One

Step 1: Make sure that the Xbox One™ system is switched OFF. Insert the micro USB cable into the X Rocker DAC converter and the other end into one of the back USB ports on the Xbox One™ system. Remove the clear plastic covers from both ends of the optical cable. Input one end of the optical cable into the X Rocker Wireless DAC Slot (labelled SPDIF) and another into the Optical SPDIF connector on the Xbox One™ system.

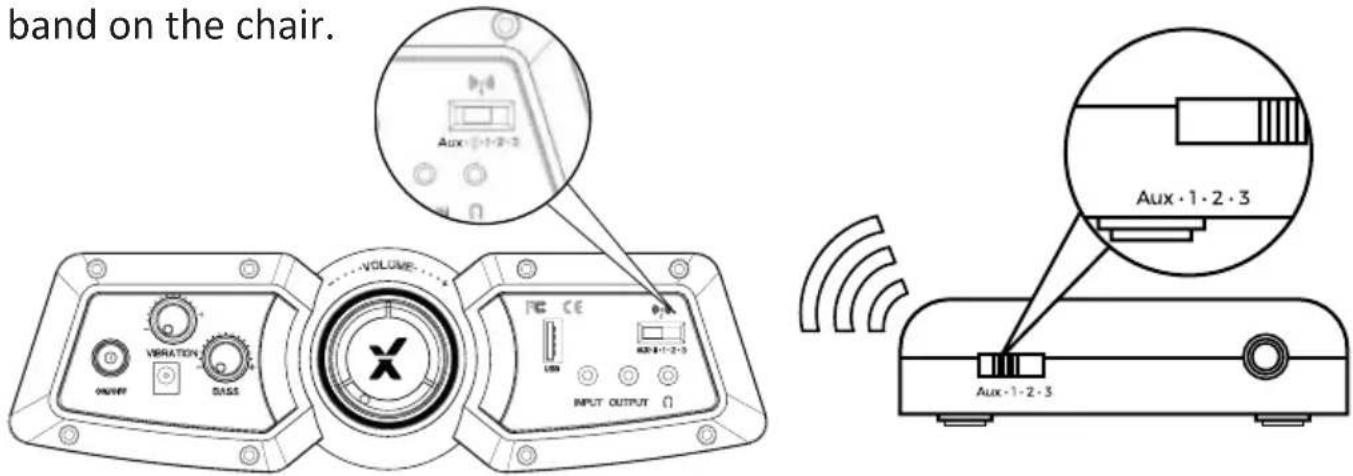

Step 2: Turn the Xbox One™ system back on. Select one of the wireless bands (1,2,3) on the wireless DAC and then switch to the corresponding band on the chair.

Step 3: On the Xbox One™ menu screen, Select (Settings) > [All Settings] > [Display and Sound] > [Audio Output] > under [Digital Audio], select [Optical Audio] and set it to [Stero Uncompressed]

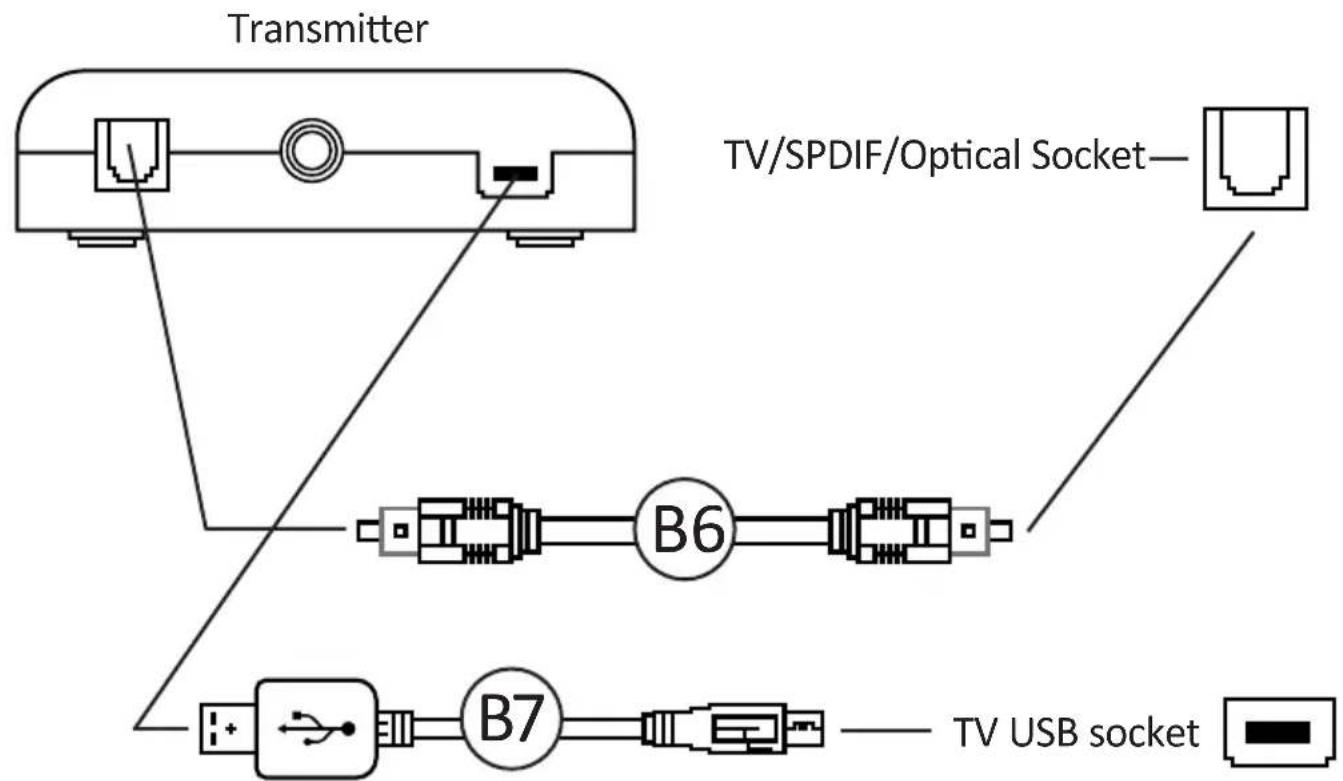

Wireless connection guide: TV (All systems)

1. Connect B6 Optical Cable to the B5 Wireless DAC transmitter's SPDIF Port.
2. Connect other end of B6 Optical Cable to the TV Optical socket.
3. Connect Micro USB Cable to the transmitter and other end to an available USB socket on the TV.

4. Once connected to your TV, increase volume to 50% of the maximum for the best sound level.**

5. N.B: If your TV does not feature an SPDIF or OPTICAL OUT Socket then you can instead use the 3.5mm audio connection to connect to a headphone socket.
   ** Depending on your TV you may need to enable the Optical output separately.

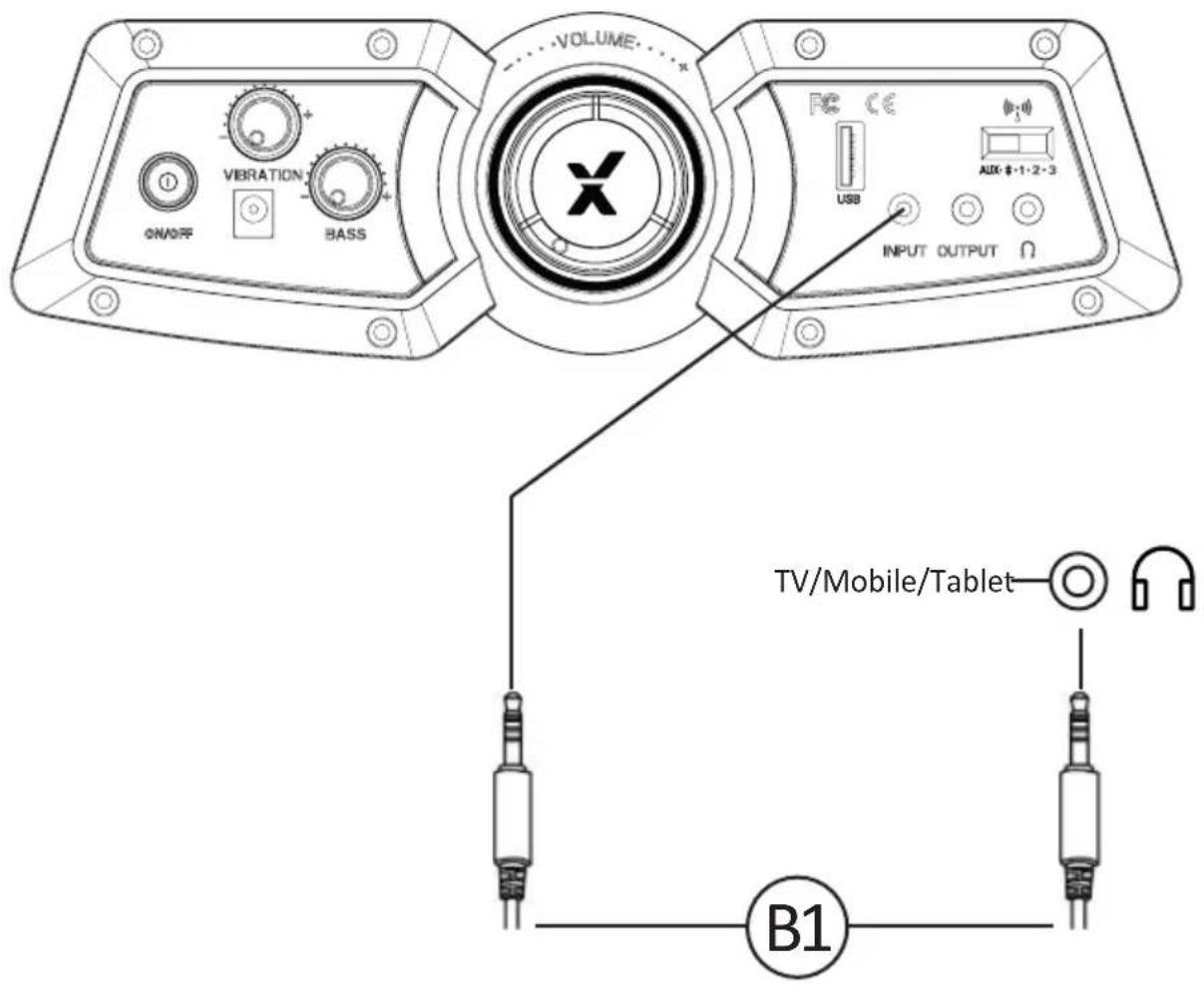

Wired connection guide: TV (All consoles)

1. Connect B1 Cable to X Rocker control panel MP3 INPUT sockets.
2. Connect other end of B1 3.5mm end into the headphone socket of your television.
3. Once connected to your TV, increase volume to 50% of the maximum for the best sound level. **

** Depending on your TV you may need to increase the headphone volume separately in the TV sound settings.

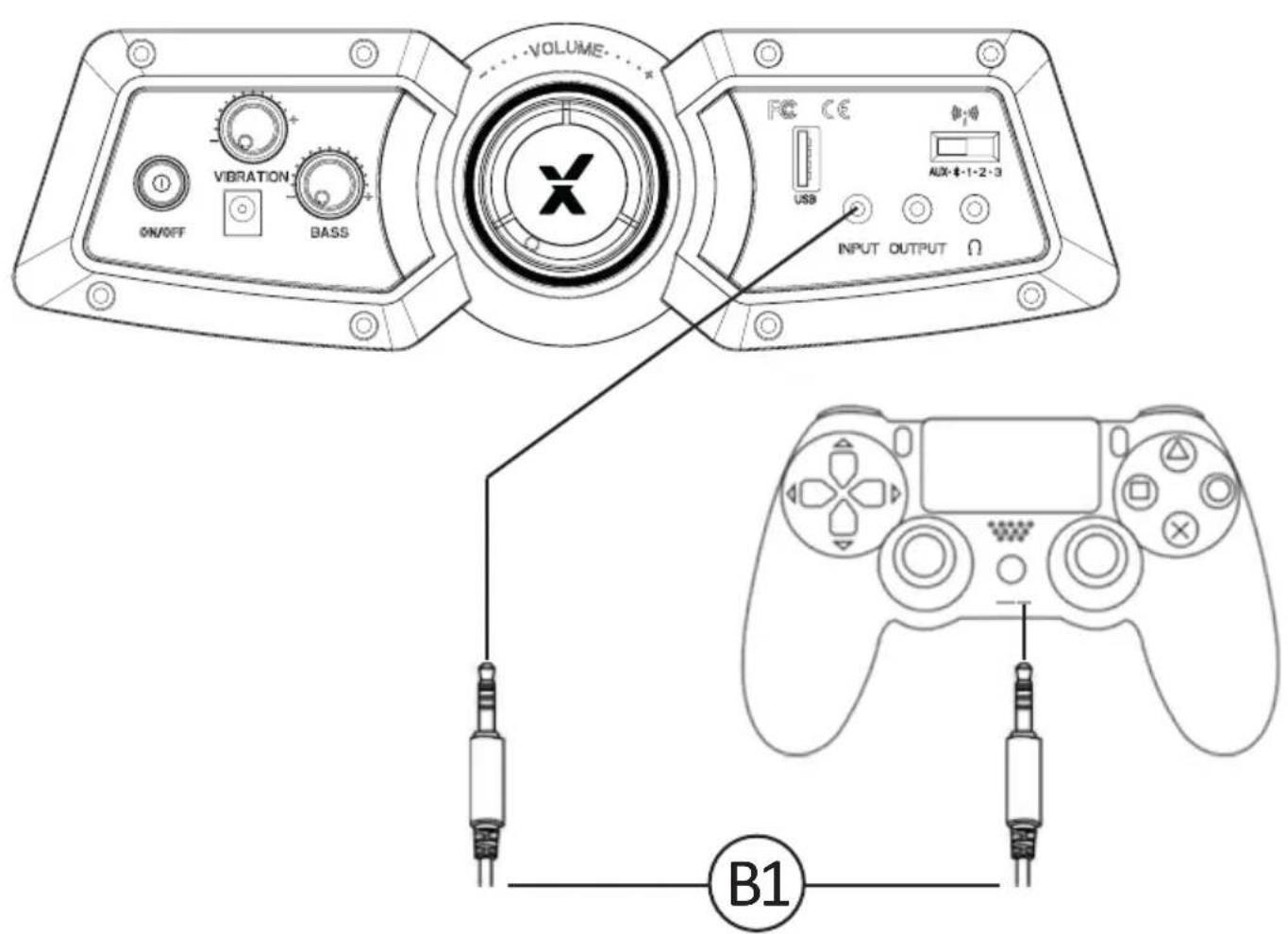

Wired connection guide: PS4 Controller only

1. Connect the B1 cable to the bottom of the PS4 controller via the headset socket.
2. Connect the other end of the B1 cable to the chair via the green port.
3. With the PS4 turned on, go to the main menu (or locate the main menu screen). Press and hold the PS button on the PS4 controller until the quick menu appears on screen.
4. In this menu select [Adjust sound and devices]
5. Then select [output to headphones]
6. Change the setting from [Chat Only] to [All audio]
7. Make sure the volume in the previous menu is set to the maximum.
8. Set the control panel Wireless switch to the 'OFF' position.

Bluetooth connection guide

Step 1:

Switch the X Rocker Avanti's wireless switch to the Bluetooth position.

Step 2:

On the Audio output device go into its Bluetooth settings, turn Bluetooth on if it is not on already and search for XROCKER. Upon finding this, select the XROCKER option. If a passcode is required the four digit code will be '0000'.

Troubleshooting tips

Issue Troubleshooting steps

No power going to control panel	·Make sure that the power cable is connected correctly. ·Make sure that the power supply at the power source is working correctly. ·With the chair turned to the ON position, give the power cable a slight wiggle in the port. If any lights flicker (or not) then please contact support (details below).
No sound	·Review the connection methods on the previous page and try alternative connection methods if possible. ·Confirm that the device/system is correctly configured as per previous connection guide. ·Make sure that the wireless channel switcher is in the corresponding position that suits your connection method. (1,2,3 for wireless and AUX for wired connections).
Wireless transmitter cuts out during gameplay/No vibration or subwoofer sound via analogue connection	·Please make sure that the volume of the source device is at a higher level to strengthen the audio signal.
The cables connected to my X Rocker have been broken accidentally	·Please contact X Rocker support ([e-mail]) regarding this issue.
Interference over wireless connection	·In this case, try another of the three wireless bands to isolate the signal.

Health and safety information

• Avoid immersing or allowing the X Rocker to come into contact with liquids.
• Please consult X Rocker Support before unscrewing any of the electrical components on the chair.
• Please be mindful of any cabling laid out between the X Rocker and power source/audio device.
• Please be mindful of cabling attached when moving/swivelling the X Rocker.
• If the cables or electrical equipment are broken then this may present a choking risk, please contact Support for replacements and dispose of these parts safely.
• Do not stand on the X Rocker or exceed the 120kg weight limit via other means.
• Do not lean back on the chair to the point in which the pedestal would lift off the ground.
• X Rocker armrests are designed for support and comfort during gameplay, please do not use these as support for getting in/out of the chair.
• Playing audio for long periods at loud volumes may contribute to difficulties in hearing.
• Please be considerate to others when playing audio through the X Rocker speakers at higher volumes.

Power supply safety information

ATTENTION:

A. For Power Adapter, the apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus;
B. For Power Adapter, the MAINS plug is used as the disconnect device, the disconnect device shall remain readily operable;
C.Only use the a chments/accessories specified by manufacturer.

Power Supply unit trademark: BI;

Model name: /fcT6f6f6T/ /fcT6f6f6T

Input: 100 - 240V^ 50 / 60~Hz 1.2A;

Output: 12 VDC, 2.5 A;

www.xrockeruk.com/pages/support

IMPORTANT: You must keep your original retail receipt as proof of purchase.
