USER MANUAL DO506FR DOMO

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty.

If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

CONDICIONES DE GARANTÍA

RECYCLAGE-INFORMATIE

RECYCLING INFORMATIONEN

RECYCLING INFORMATION

This symbol on the product or on its packaging indicates that this product may not

be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. The packaging is recyclable. Please treat the packaging ecologically.

From now on, accessories and parts of Domo appliances can also be ordered online from the Domo webshop*:

http://webshop.domo-elektro.be

You can reach the webshop through the Domo website as well: www.domo-elektro.be.

The accessories and parts can also still be obtained at the store where you bought the appliance.

• Enkel in Belgie, Nederland, Luxemburg, Frankrijk en Duitsland.
• Seulement dans la Belgique, le Pays-Bas, le Luxembourg, la France et l'Allemagne.
• Nur in Belgien, die Niederlande, Luxemburg, Frankreich und Deutschland.
• Only in Belgium, the Netherlands, Luxembourg, France and Germany.

If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.

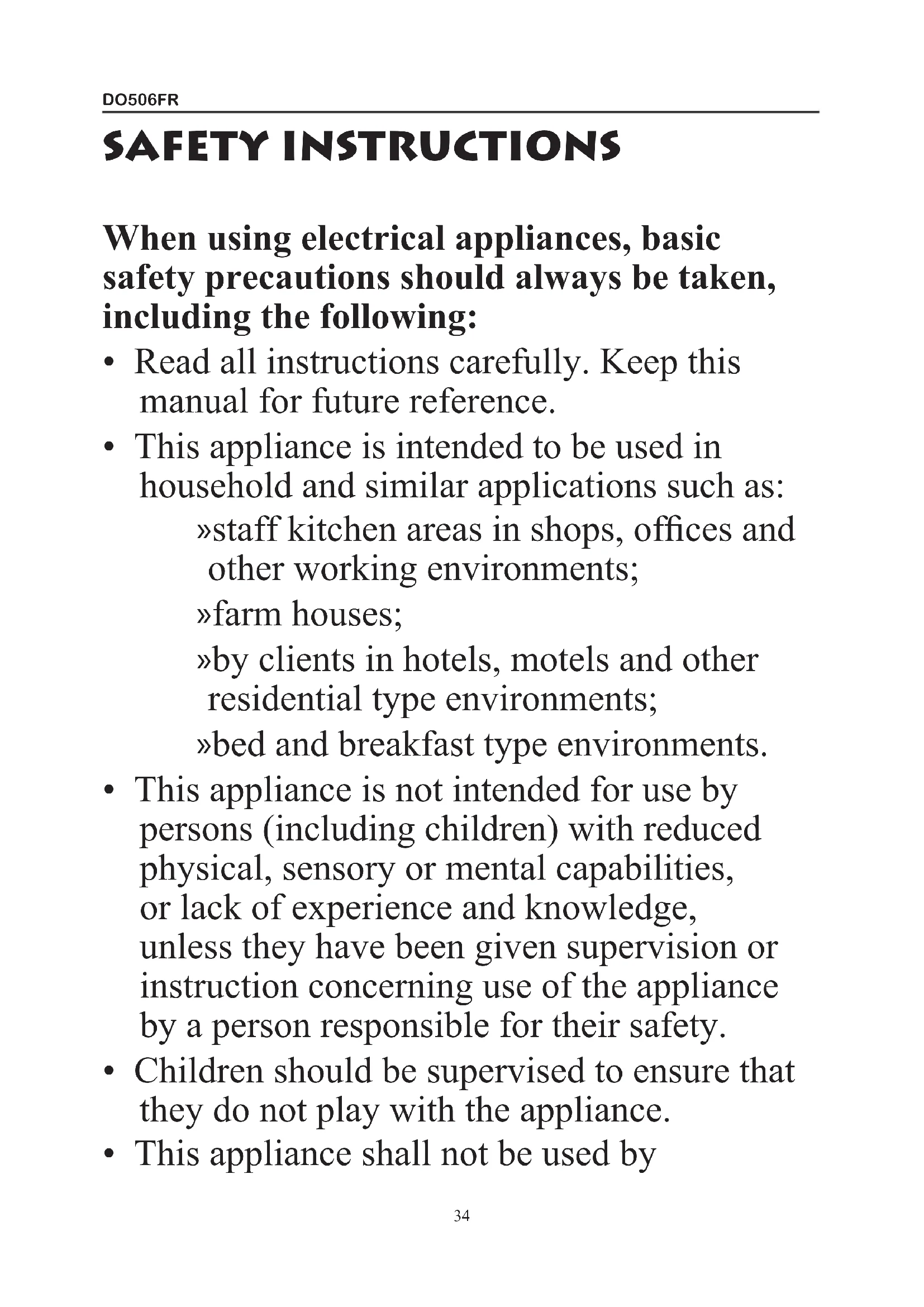

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• This appliance is intended to be used in household and similar applications such as:

»staff kitchen areas in shops, offices and other working environments;

»farm houses;
by clients in hotels, motels and other residential type environments;
»bed and breakfast type environments.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

• This appliance shall not be used by

children from 0 to 16 years. This appliance can be used by children aged from 16 years and above if they are continuously supervised. This appliance can be used by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Keep the appliance and its cord out of reach of children aged less than 16 years. Cleaning and user maintenance shall not be carried out by children.

• This appliance should be positioned in a stable situation with the handles positioned to avoid spillage of the hot liquids.
• The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• CAUTION: In order to avoid a hazard this

appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

The surface(s) marked with this symbol are liable to get hot during use. It is advised not to touch the surfaces of the appliance other than the handles to avoid burns.

• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time.
• Never leave the appliance unattended while it is functioning.
• Do not use or store this appliance outdoors.
• Do not move the appliance while in use or when the oil is still hot. Allow to cool before moving the appliance.
• Do not use this appliance for other than intended use.
• Check carefully that the voltage and frequency of the power net match the indications on the rating label of the appliance.
• The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local standards and requirements.
• This appliance is to be operated filled with frying oil to at least the minimum oil level and not exceeding the maximum level marked on the appliance.
• We only recommend the use of frying oil for this appliance. Use frying fat at your own risk. Neither the manufacturer, importer, or the supplier may be held liable for any injury or damage caused by the usage of wrong oil or fat.
• Only use the connector or unit with incorporated thermostat delivered with the appliance.
• Only use the utensils delivered with the appliance.
• Do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.

• A short power supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. DO NOT USE WITH AN EXTENSION CORD.

• Unwrap the cord completely to prevent overheating of the cord.
• Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.
• Do not allow the power cord supply to run underneath or around the unit.
• Do not place on or near a hot gas or electric burner or sink, or in a heated oven.
• Do not place near flammable materials, gases or explosives.
• Do not place near objects that may catch fire such as curtains, towels ...
• Make sure the appliance is correctly assembled, then plug the cord in the wall outlet. To disconnect, turn controls to "OFF" or "0" position, then remove the plug from the wall. Never pull the cord or appliance to remove the plug from the socket.
• It is necessary to replace the oil after 7 to 10 frying sessions.
• Do not use the appliance if there is any water in it or if the parts are still wet after cleaning.
• Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.
• During frying, hot steam may come through the filter, or slight splashing may occur. Keep hands and face at a safe distance during operation.
• To avoid oil splashes, you must first remove the excess ice from frozen foods.
• In case of fire, never try to extinguish with water. Remove the cord, close the lid and smother the flames with a damp cloth.
• Any injury or damage caused by failure to comply with these rules are at your own risk.
• Neither the manufacturer, importer, or the supplier may be held liable.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

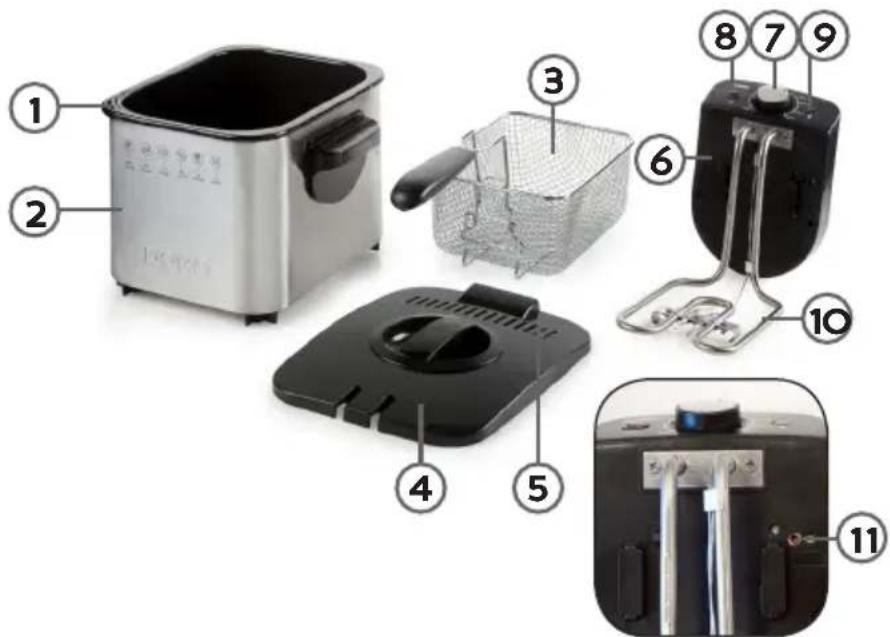

PARTS

1. Removable oil reservoir
2. Outside casing
3. Basket
4. Lid
5. Ventilation holes
6. Control panel
7. Temperature dial
8. "Power"-indicator
9. "Ready"-indicator
10. Heating element
11. "Reset" button

HANDLE ASSEMBLY

1. Hold the handle above the basket as shown below. Gently press the two arms of the handle towards each other, so that they fit into the inlets (holes) of the basket and let go of the arms (arrows).

2. Turn the handle towards the side of the basket. Press the handle against the side of the basket until it clicks firmly into place.

INSTRUCTIONS FOR USE

Clean the unit before using it for the first time, as indicated below.

• Remove the lid, take the basket out of the appliance and lock the handle.
• Fill the oil reservoir between the MIN and MAX - markings, approximately 3 litres.
• Place the lid on the appliance and plug the appliance into the electric socket.
• Adjust the temperature dial to the desired temperature, the "Power On" indicator will light up.
• When the desired temperature is reached the "Ready" indicator will light up.
• Open the lid. Place the food in the basket. The food must be as dry as possible. Loose remains of ice must be removed first. Lower the basket carefully into the hot oil and place the lid on the appliance. Watch out for the hot steam that may be released from the ventilation holes.
• If the temperature drops, or drops when you add food, the "Ready" indicator will switch off temporarily until the desired temperature has been reached again.
• If frying of the food has been completed, open the lid and use the handle to hang the basket on the edge of the oil reservoir. Let excess oil drain.

• Then lift the basket up and carefully shake off any possible remains of oil.

• When you have finished frying everything, switch the appliance off by turning the temperature dial to the minimum position. Pull the plug from the electric socket.

• Your fryer has automatic overheating protection. This ensures that the oil in the reservoir cannot get too hot. If the fryer fails to heat up the cause may be that the safety switch has been engaged. This can occur when you have used too little or too much oil. To turn off this protection, press the reset button on the back of the control panel.

ADVICE

As oil quickly loses its optimal quality, it is best to change the oil regularly.

• Groundnut oil after using the fryer 8 to 10 times
• Vegetable oil after using the fryer 10 to 12 times
• Olive oil after using the fryer 8 to 10 times

Certainly replace the oil if it begins to smell, turns a dark colour, tastes strange, becomes thick or begins to foam. Refresh the oil in one go, do not mix old oil with new oil.

Some preparations such as breadcrumb coated products or strongly spiced/herbed products and meat preparations may cause the oil to decrease in quality faster than expected. Take this into account.

A regular change of oil will make cleaning of the oil reservoir and basket easier.

Prolonged heating reduces the quality of the oil. Always switch your fryer off immediately after use.

FRENCH FRIES

1. Use thick, not too new potatoes. Cut them up in sticks. Clean the sticks under running water and dry them off.

2. Bake your fries in two times. Let the fries cool down after the first frying, before baking them for the second time:

3. First frying: 150 - 160^ : 5 to 10 minutes (depending on the amount)
   Second frying: 175^ 2 to 5 minutes

4. Let them drip thoroughly before serving.

FROZENFOODS

1. Frozen foods cool of the oil or fat strongly. Therefore don't use any large portions.
2. Shake the foods above the sink to remove most of the ice.
3. Set the temperature knob to 175^ . Place the basket slowly and gently into the frying pan, to prevent strong bubbling of the oil.

CLEANING

• Always pull the plug from the electric socket first and wait until the oil
• has cooled off completely before you start cleaning.

• Do not use harsh or abrasive cleaning agents. Never use sharp objects to remove dirt.

• Pour the oil out of the reservoir and clean the inside with kitchen paper. Use a damp cloth for the outside of the appliance. Dispose of the waste oil at a waste disposal unit for oil.

• The oil reservoir, the lid and the basket can be cleaned in warm water with washing up liquid, or washed in a dishwasher. Thoroughly dry the parts. The outside casing should only be cleaned with a cloth.
• Never immerse the control panel in water.
• Assemble the appliance after cleaning. Make sure that the control panel is correctly placed; otherwise your appliance will not work.
• Make sure that no water can get into the oil reservoir or is present on the lid before you fill the appliance with oil.
