USER MANUAL 313M ALTEC LANSING

©2014 Altec Lansing/AL Infinity, LLC.

All rights reserved.

ALTEC, ALTEC LANSING, the Altec

Lansing logo are marks of Altec

Lansing/AL Infinity LLC.

AL-SND313M-001

USER MANUAL

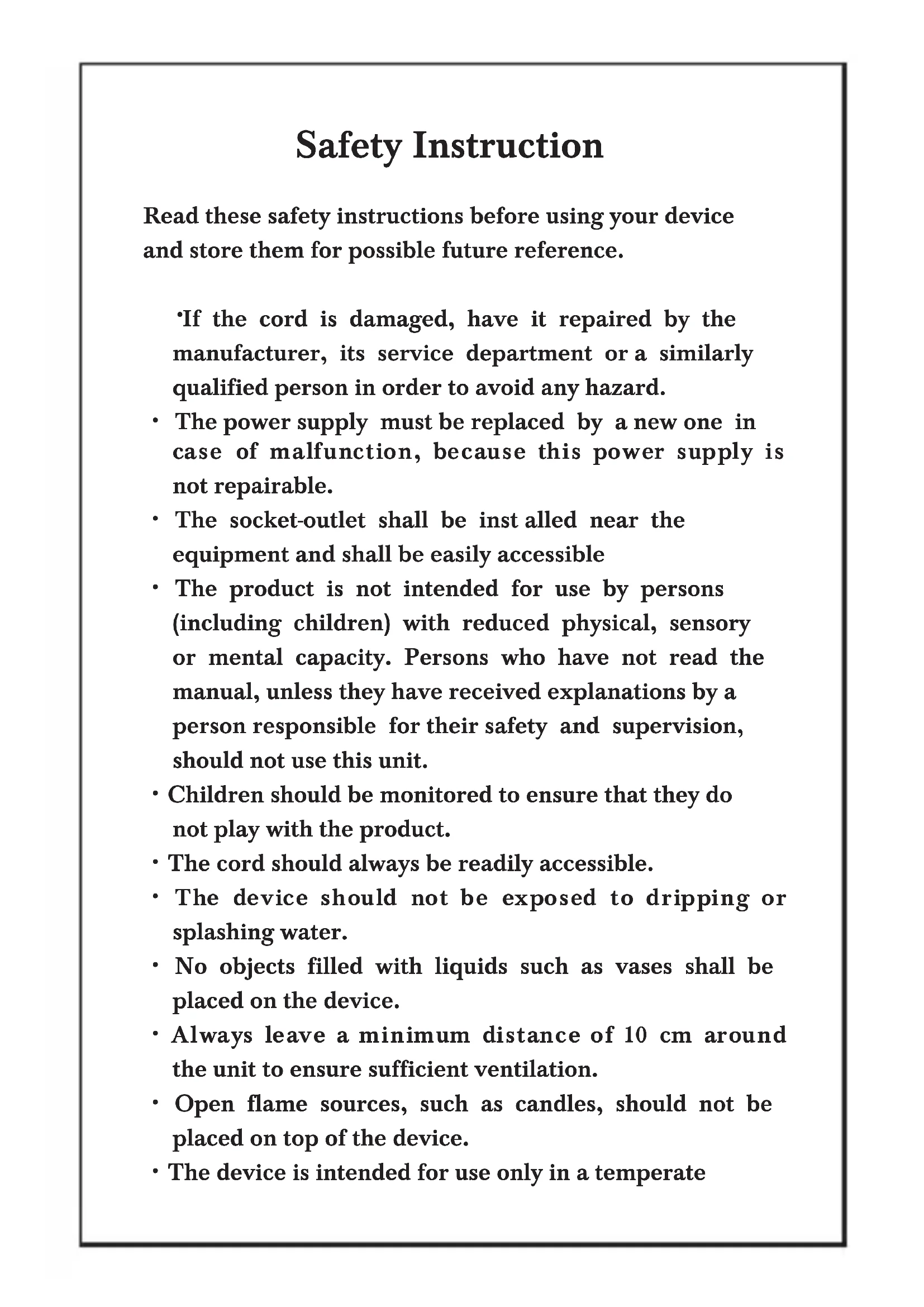

Safety Instruction

Read these safety instructions before using your device and store them for possible future reference.

If the cord is damaged, have it repaired by the manufacturer, its service department or a similarly qualified person in order to avoid any hazard.

• The power supply must be replaced by a new one in case of malfunction, because this power supply is not repairable.
• The socket-outlet shall be installed near the equipment and shall be easily accessible
• The product is not intended for use by persons (including children) with reduced physical, sensory or mental capacity. Persons who have not read the manual, unless they have received explanations by a person responsible for their safety and supervision, should not use this unit.
• Children should be monitored to ensure that they do not play with the product.
• The cord should always be readily accessible.
• The device should not be exposed to dripping or splashing water.
• No objects filled with liquids such as vases shall be placed on the device.
• Always leave a minimum distance of 10cm around the unit to ensure sufficient ventilation.
• Open flame sources, such as candles, should not be placed on top of the device.
• The device is intended for use only in a temperate

climate.

• At full volume, prolonged listening to the audio device may damage the user's hearing and cause hearing troubles (temporary or permanent deafness, hearing drone, tinnitus, hyperacusis). We recommend not to listen to the audio device at high audio volume and no more than one hour per day at medium audio volume.

Warranty Conditions

• This product is guaranteed for 1 year against defects in manufacturing or assembly.

-This guarantee only applies to the primary purchase by the end user. It does not cover issues related to improper handling by the user. Proof of purchase is required in order to render the warranty valid.

• The warranty does not cover problems associated with improper use, whether it is a result of negligence, processing, failure to store properly (excessive heat or humidity), improper installation or unauthorized repairs.

• The manufacturer is contractually required to repair or replace the defective product. ALTEC is under no financial obligation to pay any amount in excess of that paid by the end user.

Reasons for warranty exclusions:

Expired warranty period
No proof of purchase
Visible damage / breakage
- Oxidation
- Improper use
- Use of non-approved accessories
- Product altered, repaired or modified by an unauthorized third party
- Missing or altered serial number
- Warranty voided due to broken or altered packaging
- Damage due to accident, neglect, improper maintenance/care or force majeure
- Damage due to the installation of third-party software or a virus.

Installation and user guidance

1. Connect both satellite speaker cables (2RCA) to the audio output at the rear panel of the subwoofer.

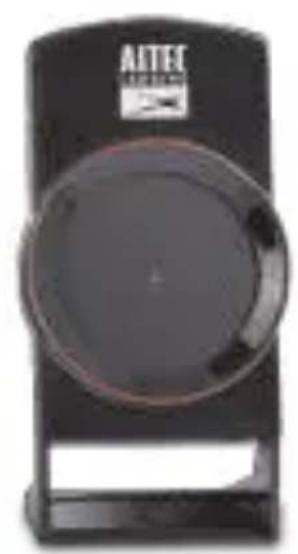

2. Place both satellites on extreme sides of the listening position.

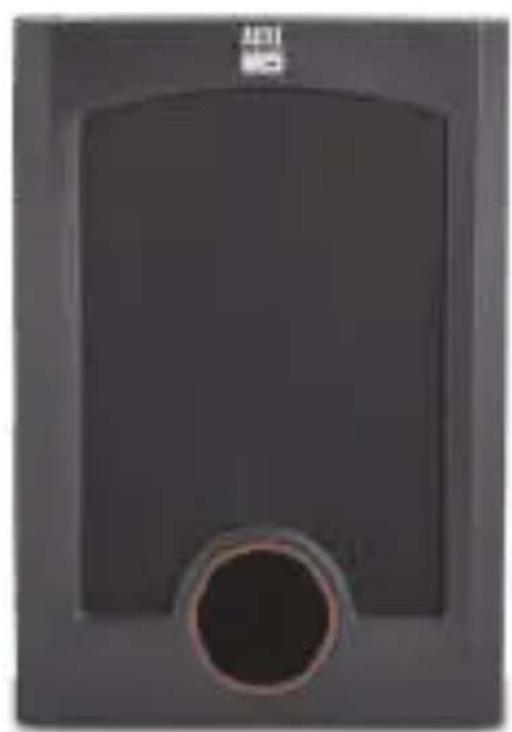

3. Place the subwoofer on the floor and with its back near the wall for more bass.
4. Next connect the playback source (Media player, VCD, DVD, or CD player) to the 3.5mm audio input jack on the remote control.
5. For personal listening, connect the headphones to the remote control jack. When the headphones are connected, the main speaker system will be muted.
6. Last, connect the AC power cord to the AC power supply source. Please always ensure the AC power

ratings printed on the rear panel of the satellite match with your country's AC power supply ratings.

Technical specifications

Total Power: 12 Watt RMS

Power distribution: 3 Watt x 2 + 6 Watt

Frequency response: 35 Hz - 20kHz

Tweeter type: 2.5"

Tweeter impedance: 4 Ohm

Woofer type: 4"

Woofer impedance: 6 Ohm

Power supply: AC 100V-240V 50/60Hz 350mA

The European and directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

To avoid possible hearing damage, do not listen at high audio volume for long periods of time.

MARKET MAKER BRAND LICENSING

Product features, specifications and appearances are subject to change without notice
