Product Type	Built-in gas/electric hob
Brand	Hotpoint-Ariston
Model	TD 640 S (WH) IXHA
Gas supply	Natural gas (G20/G25) or butane/propane
Electrical supply	230 V ~ 50 Hz
Number of burners	5 (4 gas burners + 1 electric plate)
Burner types	Rapid, Reduced Rapid, Semi-Rapid, Auxiliary
Built-in dimensions (W x D)	555 x 475 mm
Surface material	Stainless steel
Ignition type	Electronic with spark plug
Safety device	Thermocouple on gas burners
Maximum burner power	3.50 kW (Mini WOK burner)
Electric plate	1 normal or rapid plate
Protection class	Class 3 (built-in)
Certifications	Compliant with directives 2006/95/EC, 2004/108/EC, 93/68/EEC, 2009/142/EC, 2012/19/EU
Maintenance	Clean with damp sponge, do not use steam cleaners
Adjustment countries	France, Belgium, Luxembourg, Netherlands

Frequently Asked Questions - TD 640 S (WH) IXHA HOTPOINT-ARISTON

How to light a gas burner?

To light a burner, fully press the corresponding knob and turn it counterclockwise to the maximum position. On models with built-in ignition, keep pressing until ignition. If the burner is equipped with a safety device, keep the knob pressed for at least 6 seconds.

What to do if the flame accidentally goes out?

In case of accidental extinction, turn the knob to the off position and wait at least 1 minute before attempting to relight. If it goes out again, check that the thermocouple is clean and the gas ports are not blocked.

How to clean the hob?

Unplug the appliance. Clean the surface with a damp sponge and mild detergent, then dry with a cloth. Removable burners can be washed in warm soapy water. Do not use abrasive products or steam cleaners.

Can I use a steam cleaner?

No, it is strictly forbidden to use a steam or high pressure cleaner. This could damage the appliance and void the warranty.

What types of pans do you recommend?

Use pans with a flat bottom and lid. The diameter should match the burner (see burner table). For the electric plate, the pan bottom must cover the entire plate surface.

How to install the hob?

Installation must be done by a professional. Respect the built-in dimensions (555 x 475 mm) and minimum distances from furniture and hoods. Ensure sufficient ventilation. Connect gas and electricity according to current standards.

What to do if a burner does not light?

Check that the gas is on and the meter is not cut off. Clean the gas outlet ports with a needle. Make sure the burner parts are correctly assembled. If electronic ignition does not work, use a match.

Can I use the hob without a hood?

The room must be ventilated according to standards. A hood or fan is recommended to remove smoke. Without a hood, ensure a ventilation opening of at least 100 cm².

How to adjust the minimum flow of burners?

To adjust the minimum, remove the knob and turn the adjustment screw on the valve stem until a small stable flame is obtained. For liquid gas, screw fully. This operation should be done by a professional.

How to replace injectors for a different gas type?

Unscrew the injectors with a 7 mm wrench (or a flat wrench for Mini WOK) and replace them with injectors suitable for the new gas (see table 1 in the manual). Reassemble the burners and replace the gas label. Call an approved technician.

USER MANUAL TD 640 S (WH) IXHA HOTPOINT-ARISTON

Operating Instructions

HOB

Contents

Operating Instructions,1

Warnings,3

Assistance,9

Description of the appliance,11

Installation,23

Start-up and use,27

Precautions and tips,27

Maintenance and care,28

Troubleshooting,29

PT

Portuges

WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

WARNING: Danger of fire: do not store items on the cooking surfaces.

Never use steam cleaners or pressure cleaners on the appliance.

Remove any liquid from the lid before opening it. Do not close the glass cover (if present) when the gas burners or electric hotplates are still hot.

The appliance is not intended to be operated by means of an external timer or separate remote control system.

CAUTION: the use of inappropriate hob guards can cause accidents.

FR

Avertissements

- appliance model (Mod.)

- serial number (S/N)

This information is found on the data plate located on the appliance and/or on the packaging.

FR

Assistance

Indiquez-lui :

Description of the appliance

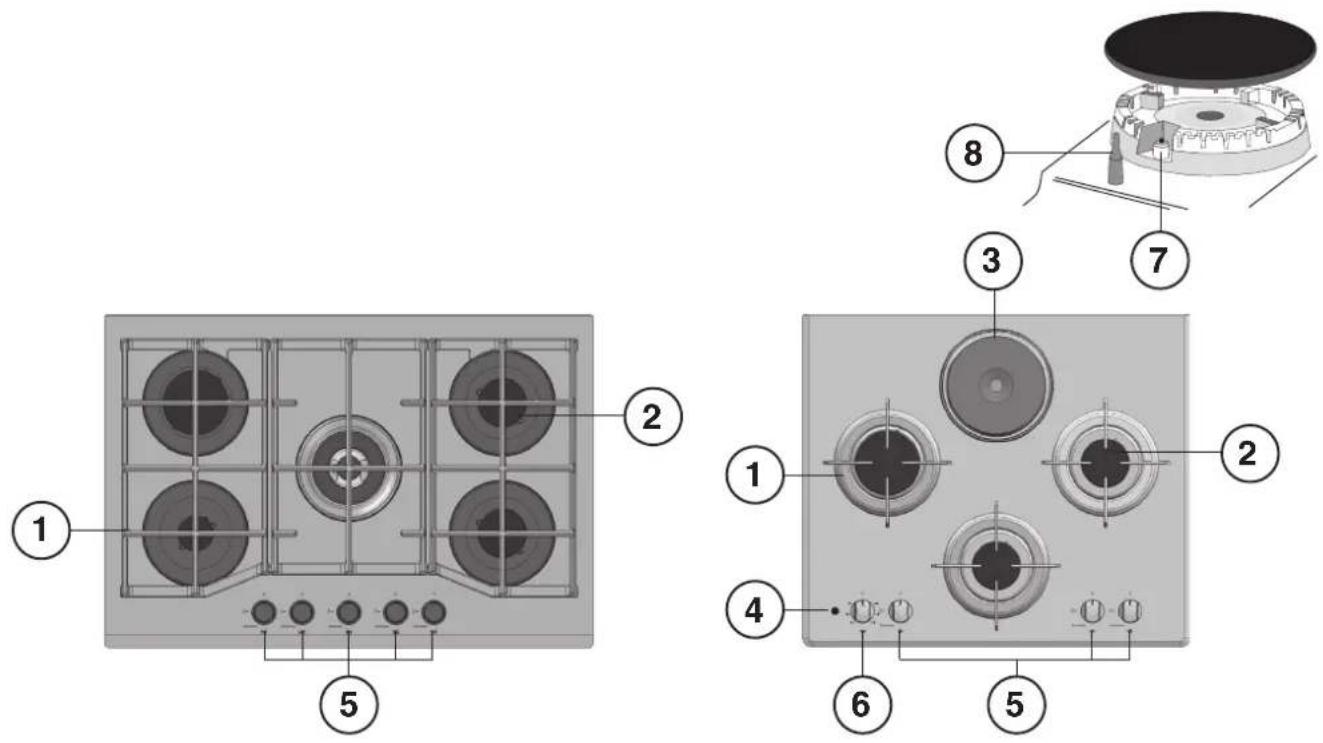

Overall view

1. Support Grid for COOKWARE
2. GAS BURNERS
3. ELECTRIC HOTPLATE*
4. Electric HOTPLATE INDICATOR LIGHT*
5. Control Knobs for GAS BURNERS
6. Control Knobs for ELECTRIC HOTPLATES*
7. Ignition for GAS BURNERS*

8. SAFETY DEVICES*

9. ELECTRIC HOTPLATES may have different diameters and operate at different power levels. These power levels may be "normal" or "rapid" (the latter may be distinguished from the others by a red spot in the middle of the hotplate).

10. The ELECTRIC HOTPLATE INDICATOR LIGHT switches on whenever the selector knob is moved from the 'off' position.
11. GAS BURNERS differ in size and power. Use the diameter of the cookware to choose the most appropriate burner to cook with.
    • Control Knobs for GAS BURNERS and ELECTRIC PLATES*
12. GAS BURNER IGNITION* enables a specific burner to be lit automatically.
13. SAFETY DEVICE* stops the gas flow if the flame is accidentally extinguished.

* Only available on certain models.

Technical diagram of a gas stove with numbered components and exploded view

FR

Technical diagram of a gas stove with numbered components for identification and assembly reference.

PT

Technical diagram of a gas stove with numbered components and exploded view

NL

Technical diagram of a gas stove with numbered components and exploded view

UA

Опис приладу

Загальний вигляд

Diagram of a gas stove interior with numbered components and labeled parts

IT

Installazione

Posizionamento

Diagram of a device casing with internal components and directional arrows indicating orientation (no text or symbols)

Pure mechanical assembly diagram showing a shaft and housing without any text, numbers, or symbols

Technical diagram showing a mechanical assembly with hatched and solid sections (no text or labels)

Cross-sectional diagram of a mechanical assembly with hatched fill and central component (no text or labels)

Technical line drawing of a mechanical or electrical component with no visible text, numbers, or symbols

Pure technical line drawing of a cabinet or enclosure structure without any text, numbers, or symbols

560 mm. 45 mm.

Pure mechanical part diagram without any text, numbers, or symbols

Two identical mechanical mounting base diagrams with no text or symbols

Simple line drawing of a mechanical setup with a lever and base (no text or symbols)

A R S S O O O O

TD 640 IX/HA
TD 640 S GH/HA
TD 640 S IX/HA
TQ 640 S GH/HA
TQ 640 S IX/HA
TZ 640 S /HA
TQ 640K GH/HA
TQ 640K X/HA

A RR MW S

TD 641 S IX/HA TD 631 S IX/HA

A R S S O O O O

TD 740 S IX/HA

IT

Avvio e utilizzo

Two crossed-out kitchen utensils: a flat pot and a mesh fan (no text or symbols)

Illustration showing a person using a tool to process documents with a magnifying glass, and a document labeled '06889' at the bottom.

<5'

IT

! Before operating your new appliance please read this instruction booklet carefully. It contains important information for safe use, installation and care of the appliance.

! Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance.

Positioning

Keep packaging material out of the reach of children. It can become a choking or suffocation hazard (see Precautions and tips).

! The appliance must be installed by a qualified professional according to the instructions provided. Incorrect installation may cause harm to people and animals or may damage property.

! This unit may be installed and used only in permanently ventilated rooms in accordance with British Standard Codes Of Practice: B.S. 6172 / B.S. 5440, Par. 2 and B.S. 6891 Current Editions. The following requirements must be observed:

- The room must be equipped with an air extraction system that expels any combustion fumes. This may consist of a hood or an electric fan that automatically starts each time the appliance is switched on.

- The room must also allow proper air circulation, as air is needed for combustion to occur normally. The flow of air must not be less than 2m^3/h per kW of installed power.

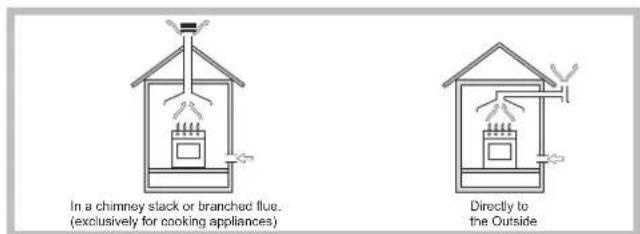

Examples of ventilation holes for comburant air.

The air circulation system may take air directly from the outside by means of a pipe with an inner cross section of at least 100 cm ^2 ; the opening must not be vulnerable to any type of blockages.

Adjacent Room Room to be Vented Enlarging the ventilation slot between window and floor.

The system can also provide the air needed for combustion indirectly, i.e. from adjacent rooms fitted with air circulation tubes as described above. However, these rooms must not be communal rooms, bedrooms or rooms that may present a fire hazard.

- Liquid petroleum gas sinks to the floor as it is heavier than air. Therefore, rooms containing LPG cylinders must also be equipped with vents to allow gas to escape in the event of a leak. As a result LPG cylinders, whether partially or completely full, must not be installed or stored in rooms or storage areas that are below ground level (cellars, etc.). It is advisable to keep only the cylinder being used in the room, positioned so that it is not subject to heat produced by external sources (ovens, fireplaces, stoves, etc.) which could raise the temperature of the cylinder above 50°C.

Fitting the appliance

The following precautions must be taken when installing the hob:

• Kitchen cabinets adjacent to the appliance and taller than the top of the hob must be at least 600 mm from the edge of the hob (see figure).
• Hoods must be installed according to their relative installation instruction manuals and at a minimum distance of 650 mm from the hob.
• Place the wall cabinets adjacent to the hood at a minimum height of 420 mm from the hob (see figure).

If the hob is installed beneath a wall cabinet, the latter must be situated at a minimum of 700 mm above the hob.

- The installation cavity should have the dimensions indicated in the figure. Fastening hooks are provided, allowing you to fasten the hob to tops that are between 20 and 40 mm thick. To ensure the hob is securely fastened to the top, we recommend you use all the hooks provided.

55 mm 55 mm 555 mm 475 mm

- Before fastening the cooktop in place, position the seal (supplied) along the perimeter of the countertop, as shown in the figure.

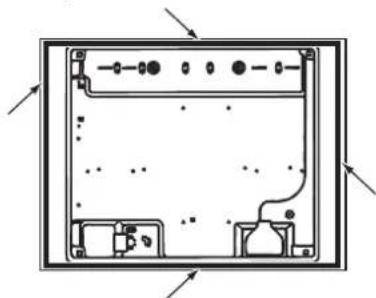

Technical diagram of a rectangular electronic device with internal components and directional arrows indicating flow or movement (no text or symbols)

GB

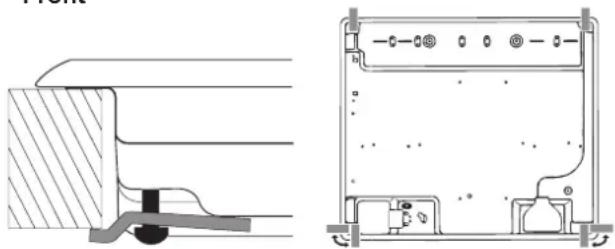

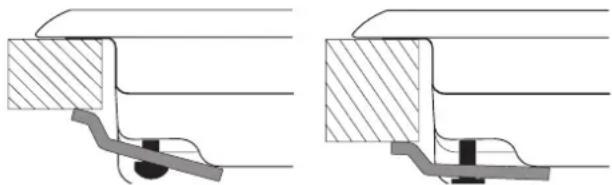

Hook fastening diagram

Technical line drawing showing two mechanical assembly steps with no visible text or symbols

Hooking position Hooking position for top H=20mm for top H=30mm

Front

Technical line drawing of a mechanical assembly with cross-sectional and top views (no text or symbols)

Hooking position Back for top H=40mm

! Use the hooks contained in the "accessory pack".

- Where the hob is not installed over a built-in oven, a wooden panel must be installed as insulation. This must be placed at a minimum distance of 20 mm from the lower part of the hob.

Ventilation

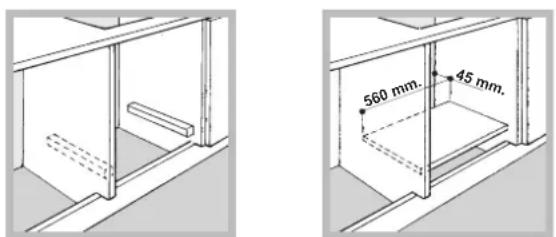

To ensure adequate ventilation, the back panel of the cabinet must be removed. It is advisable to install the oven so that it rests on two strips of wood, or on a completely flat surface with an opening of at least 45 x 560 mm (see diagrams).

560 mm. 45 mm.

! The hob can only be installed above built-in ovens with a cooling ventilation system.

Electrical connection

Hobs equipped with a three-pole power supply cable are designed to operate with alternating current at the voltage and frequency indicated on the data plate (this is located on the lower part of the appliance). The earth wire in the cable has a green and yellow cover. If the appliance is to be installed above a built-in electric oven, the electrical connection of the hob and the oven must be carried out separately, both for electrical safety purposes and to make extracting the oven easier.

Connecting the supply cable to the mains

Install a standardised plug corresponding to the load indicated on the data plate.

The appliance must be directly connected to the mains using an omnipolar circuit-breaker with a minimum contact opening of 3 mm installed between the appliance and the mains. The circuit-breaker must be suitable for the charge indicated and must comply with current electrical regulations (the earthing wire must not be interrupted by the circuit-breaker). The supply cable must not come into contact with surfaces with temperatures higher than 50°C.

! The installer must ensure that the correct electrical connection has been made and that it is compliant with safety regulations.

Before connecting to the power supply, make sure that:

- The appliance is earthed and the plug is compliant with the law.

- The socket can withstand the maximum power of the appliance, which is indicated on the data plate.

- The voltage is in the range between the values indicated on the data plate.

- The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it. Do not use extension cords or multiple sockets.

! Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible.

! The cable must not be bent or compressed.

! The cable must be checked regularly and replaced by authorised technicians only (see Assistance).

! The manufacturer declines any liability should these safety measures not be observed.

Gas connection

The appliance should be connected to the main gas supply or to a gas cylinder in compliance with current national regulations. Before carrying out the connection, make sure the cooker is compatible with the gas supply you wish to use. If this is not the case, follow the instructions indicated in the paragraph “Adapting to different types of gas.” When using liquid gas from a cylinder, install a pressure regulator which complies with current national regulations.

! Check that the pressure of the gas supply is consistent with the values indicated in Table 1 ("Burner and nozzle specifications"). This will ensure the safe operation and longevity of your appliance while maintaining efficient energy consumption.

Connection with a rigid pipe (copper or steel)

! Connection to the gas system must be carried out in such a way as not to place any strain of any kind on the appliance. There is an adjustable L-shaped pipe fitting on the appliance supply ramp and this is fitted with a seal in order to prevent leaks. The seal must always be replaced after rotating the

pipe fitting (seal provided with appliance). The gas supply pipe fitting is a threaded 1/2 gas cylindrical male attachment.

Connecting a flexible jointless stainless steel pipe to a threaded attachment

The gas supply pipe fitting is a threaded 1/2 gas cylindrical male attachment.

These pipes must be installed so that they are never longer than 2000 mm when fully extended. Once connection has been carried out, make sure that the flexible metal pipe does not touch any moving parts and is not compressed.

! Only use pipes and seals that comply with current national regulations.

Checking the tightness of the connection

! When the installation process is complete, check the pipe fittings for leaks using a soapy solution. Never use a flame.

Adapting to different types of gas

To adapt the hob to a different type of gas other than default type (indicated on the rating plate at the base of the hob or on the packaging), the burner nozzles should be replaced as follows:

1. Remove the hob grids and slide the burners off their seats.
2. Unscrew the nozzles using a 7 mm socket spanner, and replace them with nozzles for the new type of gas (see table 1 "Burner and nozzle characteristics").

Pure mechanical part diagram without any text, numbers, or symbols

In the case of the Mini WOK burner, use a spanner with a 7 mm opening to unscrew the nozzle (see figure).

1. Reassemble the parts following the above procedure in the reverse order.

2. Once this procedure is finished, replace the old rating sticker with one indicating the new type of gas used. Sticker are available from any of our Service Centres.

- Adjusting the burners' primary air Does not require adjusting.

- Setting the burners to minimum

1. Turn the tap to the low flame position;
2. Remove the knob and adjust the adjustment screw, which is positioned in or next to the tap pin, until the flame is small but steady.

3. Having adjusted the flame to the required low setting, while the burner is alight, quickly change the position of the knob from minimum to maximum and vice versa several times, checking that the flame does not go out.

4. Some appliances have a safety device (thermocouple) fitted. If the device fails to work when the burners are set to the low flame setting, increase this low flame setting using the adjusting screw.

Two mechanical mounting base configurations with bolts and fasteners (no text or symbols)

Simple line drawing of a mechanical setup with a central shaft and base plate (no text or symbols)

1. Once the adjustment has been made, replace the seals on the by-passes using sealing wax or a similar substance.

! If the appliance is connected to liquid gas, the regulation screw must be fastened as tightly as possible.

! Once this procedure is finished, replace the old rating sticker with one indicating the new type of gas used. Stickers are available from any of our Service Centres.

! Should the gas pressure used be different (or vary slightly) from the recommended pressure, a suitable pressure regulator must be fitted to the inlet pipe (in order to comply with current national regulations).

DATA PLATE
Electrical connections	see data plate
	This appliance conforms to the following European Economic Community directives:- 2006/95/EEC dated 12/12/06 (Low Voltage) and subsequent amendments- 2004/108/EEC dated 15/12/04 (Electromagnetic Compatibility) and subsequent amendments- 93/68/EEC dated 22/07/93 and subsequent amendments.- 2009/142/EEC dated 30/11/09 (Gas) and subsequent amendments.- 2012/19/EC and subsequent amendments.

Burner and nozzle specifications

Table 1				Liquid Gas					Naturale Gas
Burner	Diameter (mm)	Thermal Power kW (p.c.s.*)		By-pass 1/100 (mm)		Nozzle 1/100 (mm) ***	Flow* g/h		Nozzle 1/100 (mm)	Flow* l/h
		Nomin.	Reduc.
Fast (R)	100	3.00	0.70	41	39	86	218	214	116	286
Reduced Fast (RR)	100	2.60	0.70	41	39	80	189	186	110	248
Ultra Rapid (UR)	100	3.40	0.70	41	39	91	247	243	123	324
Semi Fast (S)	75	1.65	0.40	30	28	64	120	118	96	157
Auxiliary (A)	55	1.00	0.40	30	28	50	73	71	79	95
Mini WOK (MW)	110	3.50	1.50	—	61	91	254	250	138	333
Supply pressures	Nominal (mbar)Minimum (mbar)Maximum (mbar)						28-30 3720 2535 45		201725

* At 15°C and 1013 mbar - dry gas
** Propane P.C.S. = 50.37 MJ/Kg
*** Butane P.C.S. = 49.47 MJ/Kg

Natural P.C.S. = 37.78 MJ/m

3

(1) Only for appliances with the security device.

A R S S O O O O

TD 640 IX/HA
TD 640 S GH/HA
TD 640 S IX/HA
TQ 640 S GH/HA
TQ 640 S IX/HA
TZ 640 S /HA
TQ 640K GH/HA
TQ 640K X/HA

A RR MW S

TD 641 S IX/HA TD 631 S IX/HA

! The position of the corresponding gas burner or electric hotplate* is shown on every knob.

Gas burners

Each burner can be adjusted to one of the following settings using the corresponding control knob:

To light one of the burners, hold a lit match or lighter near the burner and, at the same time, press down and turn the corresponding knob anti-clockwise to the maximum setting. Since the burner is fitted with a safety device, the knob should be pressed for approximately 6 seconds to allow the automatic device keeping the flame alight to heat up. When using models with an ignition button, light the desired burner by first pressing the gas burners button (identifiable by the symbol), then pressing down the corresponding knob as far as possible and turning it anticlockwise towards the maximum setting.

Some models are equipped with an ignition button incorporated into the control knob. If this is the case, the ignitor is present, but not the button.

To light a burner, simply press the corresponding knob all the way in and then turn it in the counter-clockwise direction to the "High" setting, keeping it pressed in until the burner lights.

! If a flame is accidentally extinguished, turn off the control knob and wait for at least 1 minute before trying to relight it.

To switch off the burner, turn the knob in a clockwise direction until it stops (when reaches the “●” position).

Electric hotplates\*

The corresponding knob may be turned clockwise or anticlockwise and set to six different positions:

Setting	Normal o Fast Plate
0 Off
1	Low
2-5 Medium
6 High

When the selector knob is in any position other than the off position, the 'on' light comes on.

* Only available on certain models.

Practical advice on using the burners

To ensure the burners operate efficiently:

GB

• Use appropriate cookware for each burner (see table) so that the flames do not extend beyond the bottom of the cookware.
  • Always use cookware with a flat base and a cover.
• When the contents of the pan reach boiling point, turn the knob to minimum.

Burner	∅ Cookware Diameter (cm)
Rapid (R)	24 - 26
Reduced Rapid (RR)	24 - 26
Ultra Rapid (UR)	24 - 26
Semi-Rapid (S)	16 - 20
Auxiliary (A)	10 - 14
Mini WOK (MW)	24 - 26

To identify the type of burner, refer to the designs in the section entitled, "Burner and Nozzle Specifications".

Practical advice on using the electric hotplates\*

To avoid heat loss and damage to the hotplates, use pans with a flat base, whose diameter is no less than that of the hotplate itself.

Setting	Setting
0	Off
1	Cooking vegetables, fish
2	Cooking potatoes (using steam) soups, chickpeas, beans.
3	Continuing the cooking of large quantities of food, minestrone.
4	For roasting (average)
5	For roasting (above average)
6	For browning and reaching a boil in a short time

! Before using the hotplates for the first time, you should heat them at maximum temperature for approximately 4 minutes, without placing any pans on them. During this initial stage, their protective coating hardens and reaches its maximum resistance.

Precautions and tips

! This appliance has been designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully.

GB

General safety

• This is a class 3 built-in appliance.

- Gas appliances require regular air exchange to maintain efficient operation. When installing the hob, follow the instructions provided in the paragraph on "Positioning" the appliance.

- These instructions are only valid for the countries whose symbols appear in the manual and on the serial number plate.

- The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.

- The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms.

- Do not touch the appliance with bare feet or with wet or damp hands and feet.

- The appliance must be used by adults only for the preparation of food, in accordance with the instructions outlined in this booklet. Any other use of the appliance (e.g. for heating the room) constitutes improper use and is dangerous. The manufacturer may not be held liable for any damage resulting from improper, incorrect and unreasonable use of the appliance.

- Ensure that the power supply cables of other electrical appliances do not come into contact with the hot parts of the oven.

- The openings used for ventilation and dispersion of heat must never be covered.

- Always make sure the knobs are in the “●”/“○” position when the appliance is not in use.

- When unplugging the appliance always pull the plug from the mains socket, do not pull on the cable.

- Never carry out any cleaning or maintenance work without having detached the plug from the mains.

- In case of malfunction, under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning of the appliance. Contact a Service Centre (see Assistance).

• Always make sure that pan handles are turned towards the centre of the hob in order to avoid accidental burns.

- Do not close the glass cover (if present) when the gas burners or electric hotplates are still hot.

- Do not leave the electric hotplate switched on without a pan placed on it.

- Do not use unstable or deformed pans.

- The appliance should not be operated by people (including children) with reduced physical, sensory or mental capacities, by inexperienced individuals or by anyone who is not familiar with the product. These individuals should, at the very least, be supervised by someone who assumes responsibility for their safety or receive preliminary instructions relating to the operation of the appliance.

- Do not let children play with the appliance.

- The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Disposal

- When disposing of packaging material: observe local legislation so that the packaging may be reused.

- The European Directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Maintenance and care

Switching the appliance off

Disconnect your appliance from the electricity supply before carrying out any work on it.

Cleaning the appliance

! Do not use abrasive or corrosive detergents such as stain removers, anti-rust products, powder detergents or sponges with abrasive surfaces: these may scratch the surface beyond repair.

! Never use steam cleaners or pressure cleaners on the appliance.

• It is usually enough to wash the hob with a damp sponge and dry it with absorbent kitchen roll.
• The removable parts of the burners should be washed frequently with warm water and soap and any burnt-on substances removed.
• For hobs which ligth automatically, the terminal part of the electronic instant lighting devices should be cleaned frequently and the gas outlet holes should be checked for blockages.
• Stainless steel can be marked by hard water that has been left on the surface for a long time, or by aggressive detergents containing phosphorus. After cleaning, rinse and dry any remaining drops of water.

Two crossed-out kitchen utensils: a flat pot and a circular filter (no text or symbols)

! Do not use stainless steel flame spreaders, bread toasters or meat grills over gas flames.

Gas tap maintenance

Over time, the taps may become jammed or difficult to turn. If this happens, the tap must be replaced.

! This procedure must be performed by a qualified technician authorised by the manufacturer.

NOTICE

GB

96089

GB

Please consult the manual for information regarding hob installation
Avoid accidentally knocking the hob with pans, racks or other kitchen utensils.

Do not use pans or oven trays spanning two or more burners

<5'

Do not leave empty steak grills over the lit burner for longer than 5 minutes

Troubleshooting

It may happen that the appliance does not function properly or at all. Before calling the service centre for assistance, check if anything can be done. First, check to see that there are no interruptions in the gas and electrical supplies, and, in particular, that the gas valves for the mains are open.

The burner does not light or the flame is not even around the burner.

Check whether:

• The gas holes on the burner are clogged.
- All the movable parts that make up the burner are mounted correctly.
• There are draughts near the appliance.

The flame dies in models with a safety device.

Check to make sure that:

• You pressed the knob all the way in.
• You keep the knob pressed in long enough to activate the safety device.
• The gas holes are not blocked in the area corresponding to the safety device.

The burner does not remain lit when set to minimum.

Check to make sure that:

• The gas holes are not blocked.
• There are no draughts near the appliance.
- The minimum setting has been adjusted properly.

The cookware is unstable.

Check to make sure that:

• The bottom of the cookware is perfectly flat.
- The cookware is positioned correctly at the centre of the burner.
- The pan support grids have been positioned correctly.

Installation

Technical diagram of a rectangular electronic device with internal components and directional arrows indicating orientation (no text or symbols)

Technical diagram showing two mechanical assembly views with hatched areas indicating material sections (no text or symbols)

Technical line drawing showing cross-sectional and top views of a mechanical assembly (no text or symbols)

560 mm. 45 mm.

Pure mechanical component diagram without any text, numbers, or symbols

Two identical mechanical mounting base diagrams with no text or symbols

Simple line drawing of a mechanical device with a base and handle, no text or symbols present

A R S S O O O O

TD 640 IX/HA
TD 640 S GH/HA
TD 640 S IX/HA
TQ 640 S GH/HA
TQ 640 S IX/HA
TZ 640 S /HA
TQ 640K GH/HA
TQ 640K X/HA

RR UR A S S ○○○○○

TD 750 S IX/HA

A RR MW S

TD 641 S IX/HA TD 631 S IX/HA

A R S S O O O O

TD 740 S IX/HA

Two objects: a black plastic container and a circular mesh filter, both crossed by diagonal lines (no text or symbols)

Illustration of a person with a crosshair hitting the face, surrounded by floating coins (no text or symbols)

Simple line drawing of a frying pan with crossed blades and wheels, no text or symbols present.

Pure technical diagram of a rectangular device with internal components and directional arrows, no text or symbols present.

Pure mechanical assembly diagram showing a lever and pivot (no text or symbols)

Pure mechanical cross-section diagram without any text, numbers, or symbols

Pure mechanical cross-section diagram without any text, numbers, or symbols

Technical line drawing of a mechanical or electrical component with no visible text, numbers, or symbols

Pure technical line drawing of a cabinet or enclosure structure without any text, numbers, or symbols

560 mm. 45 mm.

Pure mechanical part diagram without any text, numbers, or symbols

Two identical mechanical mounting base configurations with no text or symbols

Illustration of a person using a stand to lift a cylindrical object on a circular base, with no visible text or symbols.

A R S S O O O O

TD 640 IX/HA
TD 640 S GH/HA
TD 640 S IX/HA
TQ 640 S GH/HA
TQ 640 S IX/HA
TZ 640 S /HA
TQ 640K GH/HA
TQ 640K X/HA

RR UR A S S ○○○○○

TD 750 S IX/HA

A RR MW S

TD 641 S IX/HA TD 631 S IX/HA

A R S S O O O O

TD 740 S IX/HA

Two crossed-out kitchen utensils: a black kettle and a mesh grater, both without any text or symbols.

Simple line drawing of a cross over stacked coins with motion lines, no text or symbols present

Simple line drawing of a frying pan with crossed legs and wheels, no text or symbols present.

Technical diagram of a rectangular electronic device with internal components and directional arrows indicating orientation (no text or symbols)

Esquema para prender os ganchos

Pure mechanical assembly diagram showing a bracket and lever mechanism without any text or symbols

Technical drawing of a mechanical assembly with hatched section and base (no text or symbols)

Cross-sectional diagram of a mechanical assembly with hatched fill and central component (no text or labels)

Technical line drawing of a mechanical or electronic component with no visible text, numbers, or symbols

Pure technical line drawing of a cabinet or enclosure structure without any text, numbers, or symbols

560 mm. 45 mm.

Pure mechanical part diagram without any text, numbers, or symbols

Two identical mechanical mounting base diagrams with no text or symbols

Simple line drawing of a person using a tool on a circular base with a cylindrical object, no text or symbols present.

A R S S O O O O

TD 640 IX/HA
TD 640 S GH/HA
TD 640 S IX/HA
TQ 640 S GH/HA
TQ 640 S IX/HA
TZ 640 S /HA
TQ 640K GH/HA
TQ 640K X/HA

A RR MW S

TD 641 S IX/HA TD 631 S IX/HA

RR MW S A S ................

TD 751 S GH/HA
TQ 751 S GH/HA
TQ 751 S IX/HA
TZ 751 S /HA
TD 751 S IX/HA
TZ 751 S N/HA
TZ 751 S K/HA
TQ 751K X/HA
TQ 751K GH/HA

RR UR A S S ○○○○○

TD 750 S IX/HA

A R S S O O O O

TD 740 S IX/HA

PT

Início e utilização

Two crossed-out kitchen utensils: a large container and a circular filter, both without any text or symbols.

Illustration showing a person using a tool to examine a sample under magnifying glass, with a downward arrow indicating inspection or testing.

PT

Illustration of a person crossing over a surface with a crosshair, surrounded by floating objects (no text or symbols)

Simple line drawing of a frying pan with crossed blades, no text or symbols present

Technical diagram of a rectangular electronic device with internal components and directional arrows indicating orientation (no text or symbols)

Pure mechanical assembly diagram showing a lever and pivot (no text or symbols)

Pure mechanical cross-section diagram without any text, numbers, or symbols

Vorne

Technical diagram showing a mechanical assembly with hatched fill and a central bolt (no text or symbols)

Technical line drawing of a mechanical or electronic component with no visible text, numbers, or symbols

Pure technical line drawing of a cabinet or enclosure structure without any text, numbers, or symbols

560 mm. 45 mm.

Pure mechanical part diagram without any text, numbers, or symbols

Two mechanical mounting base configurations with cylindrical components and connecting rods (no text or symbols)

Simple line drawing of a mechanical device with a lever and base (no text or symbols)

A RR MW S

TD 641 S IX/HA TD 631 S IX/HA

RR MW A S S O O O O O

TD 751 S GH/HA
TQ 751 S GH/HA
TQ 751 S IX/HA
TZ 751 S /HA
TD 751 S IX/HA
TZ 751 S N/HA
TZ 751 S K/HA
TQ 751K X/HA
TQ 751K GH/HA

RR S UR A S ○○○○○○

TD 750 S IX/HA

A R S S O O O O

TD 740 S IX/HA

BE

Two crossed-out kitchen utensils: a black kettle and a circular filter, with no text or symbols present.

Illustration showing a person using a tool to examine a document with a magnifying glass, alongside a document labeled '00000' and a downward arrow indicating process or review.

Technical line drawing of a rectangular electronic device with internal components and directional arrows indicating orientation (no text or symbols)

Pure mechanical assembly diagram showing a lever and pivot (no text or symbols)

Technical cross-section diagram of a mechanical assembly (no text or symbols)

keukenblad
H=30mm

Voor

Cross-sectional diagram of a mechanical assembly with hatched fill and central component (no text or labels)

Technical line drawing of a mechanical or electronic component with no visible text, numbers, or symbols

Pure technical line drawing of a cabinet or enclosure structure without any text, numbers, or symbols

560 mm. 45 mm.

Pure mechanical component diagram without any text, numbers, or symbols

Two mechanical mounting base configurations with bolts and a screw, shown without any text or symbols

Simple line drawing of a mechanical device with a base and handle, no text or symbols present

A R S S O O O O

TD 640 IX/HA
TD 640 S GH/HA
TD 640 S IX/HA
TQ 640 S GH/HA
TQ 640 S IX/HA
TZ 640 S /HA
TQ 640K GH/HA
TQ 640K X/HA

A RR MW S

TD 641 S IX/HA TD 631 S IX/HA

RR MW A S S O O O O O

TD 751 S GH/HA
TQ 751 S GH/HA
TQ 751 S IX/HA
TZ 751 S /HA
TD 751 S IX/HA
TZ 751 S N/HA
TZ 751 S K/HA
TQ 751K X/HA
TQ 751K GH/HA

RR UR A S S .......

TD 750 S IX/HA

A R S S O O O O

TD 740 S IX/HA

Starten en gebruik

Two crossed-out kitchen utensils: a black kettle and a mesh grater, both without any text or symbols.

Diagram illustrating a process with labeled components and a downward arrow indicating reduction or completion.

NL

Technical diagram of a rectangular device with internal components and directional arrows indicating orientation (no text or symbols)

Pure mechanical assembly diagram showing a lever and pivot (no text or symbols)

Pure mechanical cross-section diagram without any text, numbers, or symbols

Technical cross-section diagram of a mechanical assembly (no text or labels)

Technical line drawing of a mechanical or electronic component with no visible text, numbers, or symbols

Pure technical line drawing of a structural frame with no text, numbers, or symbols

560 mm. 45 mm.

Pure mechanical part diagram without any text, numbers, or symbols

Two mechanical mounting base configurations with no visible text or symbols

Simple line drawing of a mechanical device with a base and handle, no text or symbols present

A R S S O O O O

TD 640 IX/HA
TD 640 S GH/HA
TD 640 S IX/HA
TQ 640 S GH/HA
TQ 640 S IX/HA
TZ 640 S /HA
TQ 640K GH/HA
TQ 640K X/HA

RR UR A S S ○○○○○

TD 750 S IX/HA

A RR MW S

TD 641 S IX/HA TD 631 S IX/HA

Two crossed-out kitchen utensils: a black kettle and a circular grater, both without any text or symbols.

Diagram illustrating a process with labeled components and a downward arrow indicating reduction or completion.

<5'

Technical diagram of a rectangular electronic device with internal components and directional arrows indicating orientation (no text or symbols)

Pure mechanical assembly diagram showing a lever and pivot (no text or symbols)

Pure mechanical cross-section diagram without any text, numbers, or symbols

Cross-sectional diagram of a mechanical joint or seal assembly (no text or symbols visible)

Technical line drawing of a mechanical or electronic component with no visible text, numbers, or symbols

Pure technical line drawing of a cabinet or enclosure structure without any text, numbers, or symbols

560 mm. 45 mm.

Pure mechanical part diagram without any text, numbers, or symbols

Two identical mechanical mounting base diagrams with no text or symbols

Simple line drawing of a mechanical setup with a rotating shaft and base plate (no text or symbols)

A RR MW S

TD 641 S IX/HA TD 631 S IX/HA

RR MW A S S O O O O O

TD 751 S GH/HA
TQ 751 S GH/HA
TQ 751 S IX/HA
TZ 751 S /HA
TD 751 S IX/HA
TZ 751 S N/HA
TZ 751 S K/HA
TQ 751K X/HA
TQ 751K GH/HA

RR UR A S S ○○○○○○

TD 750 S IX/HA

A R S S O O O O

TD 740 S IX/HA

UA

Two crossed-out kitchen utensils: a black kettle and a circular grater, with no text or symbols present.

Diagram illustrating a process with labeled components and a downward arrow indicating reduction or completion.

UA

Simple line drawing of a person with crossed lines and floating objects (no text or symbols)

Simple line drawing of a boat with crossed wheels and a handle, no text or symbols present.
