Features	Details
Type of hood	Decorative hood
Dimensions (W x D x H)	90 x 50 x 75 cm
Maximum air flow	700 m8/h
Power levels	3 levels + intensive mode
Lighting	LED
Grease filter	Aluminium filter, dishwasher safe
Charcoal filter	Available as an option for recirculation operation
Installation	Wall installation
Noise level	65 dB(A) at maximum power
Energy consumption	Energy class A
Warranty	2 years
Included accessories	Mounting kit, user manual
Maintenance tips	Regularly clean the grease filter and replace the charcoal filter if necessary
Safety measures	Do not use without filter, follow installation instructions

Frequently Asked Questions - KIR37XE2 SMEG

How do I install the SMEG KIR37XE2 hood?

To install the hood, follow the provided installation manual. Make sure the hood is securely fixed to the wall and all electrical connections are properly made.

The hood is not working, what should I do?

Check that the hood is properly plugged into a power outlet and that the circuit breaker has not tripped. If the problem persists, contact customer service.

How do I clean the hood filters?

The metal filters can be washed in the dishwasher or by hand with warm water and detergent. Make sure to let them dry completely before putting them back in place.

What type of filter should I use with the SMEG KIR37XE2 hood?

Use active charcoal filters for the recirculation function and metal filters for the extraction function. Refer to the manual for specific references.

What should I do if the hood makes abnormal noise?

Abnormal noise may indicate a problem with the motor or an object blocking the fan. Check if debris is obstructing the fan and, if necessary, contact a professional.

The hood light does not turn on, what should I check?

First check the bulb. If the bulb is burnt out, replace it with a bulb of the same type and power. If the light still does not turn on, check the electrical connections.

What is the suction power of the SMEG KIR37XE2 hood?

The suction power of the SMEG KIR37XE2 hood is 600 m8/h, which is suitable for use in medium-sized kitchens.

How do I change the bulb of the hood?

Unplug the hood, remove the bulb cover, and replace the bulb with a new one. Make sure to follow the specifications indicated in the manual.

The hood emits an unpleasant odor, what should I do?

Check if the filters are clean and do not need to be replaced. A buildup of grease can cause unpleasant odors. Clean the filters and the hood regularly.

How do I adjust the speed of the hood?

Use the control panel to adjust the speed of the hood. You can choose between several suction levels according to your needs.

USER MANUAL KIR37XE2 SMEG

For your own safety and to ensure proper operation of the appliance, please read this manual carefully before installation and operation. Keep these instructions together with the appliance, even if it is sold or transferred to third parties. It is important that users know all the appliance's operating and safety characteristics.

The cables must be connected by a trained technician.

• The manufacturer shall not be considered responsible for any injury or damage caused by improper installation or use.
• The minimum safety distance between the hob and the suction hood is 650~mm (some models may be fitted at a lower height; please see the paragraph relating to working dimensions and installation).
• If the instructions for installation of the gas hob specify a distance greater than the one indicated, this must be taken into account.
• Check that the mains power supply corresponds to the one indicated on the data plate affixed inside the hood.

• The cut-out devices must be installed in the fixed system according to wiring system regulations.

• For Class I appliances, check that the domestic power supply is adequately earthed.

• Connect the hood to the flue using a pipe with a minimum diameter of 120~mm . The fumes must travel the shortest distance possible.
• All the air venting regulations must be complied with.
• Do not connect the ducting hood to flues that also carry combustion fumes (e.g. boilers, chimneys, etc.).
• If the hood is used in combination with non electric appliances (e.g. gas appliances), a sufficient level of ventilation must be guaranteed in the room to prevent any exhaust backflow. If the kitchen hood is used in combination with appliances that are not electrically powered, the negative pressure in the room must not exceed 0.04 mbar to avoid any risk of the fumes being sucked back into the room by the hood.
• The air must not be extracted through a flue that is also used as an exhaust flue for fumes from gas or other fuel powered combustion devices.
• If it is damaged, the power cable must be replaced by the manufacturer or by a service technician.

• Connect the plug to a socket that complies with current regulations and is in an accessible position.

• As regards the technical and safety measures to be taken for exhausting of fumes, it is important that the regulations set by local authorities be complied with scrupulously.
  CAUTION: remove the protective films before installing the hood.

• Only use screws and hardware of a sort suitable for the hood.
  CAUTION: failure to install the screws or fixing devices as described in these instructions may mean there is a risk of electric shocks.
• Do not look directly at the light through optical devices (binoculars, magnifying glasses...).
• Do not flambé food under the hood: you might cause a fire.

• This appliance may be used by children over the age of 8 years and by persons with limited psycho-physical and sensory abilities or with insufficient experience and knowledge, provided they are carefully supervised and instructed on how to use the appliance safely and on the dangers that it involves. Make sure that children are not allowed to play with the appliance. Cleaning and maintenance to be performed by the user must not be carried out by children, unless they are under supervision.

• Supervise children, to make sure they do not play with the appliance.

• The appliance must not be used by persons (including children) with limited psychophysical or sensory capacities or with insufficient experience and knowledge, unless they are carefully supervised and instructed.

Accessible parts may become extremely hot during the use of cooking appliances

• Clean and/or replace the filters after the period of time indicated (danger of fire). See the paragraph on Maintenance and cleaning.
• The room must be adequately ventilated when the hood is used simultaneously with appliances that use gas or other fuels (not applicable to appliances that only discharge air into the room).
• The symbol on the product or on its packaging indicates that the product must not be disposed of with the normal domestic waste. The product must be disposed of at a specialist re-cycling centre for electrical and electronic components. By making sure that this product is disposed of properly, you will help prevent possible negative consequences for the environment and for health that might result from its improper disposal. For more detailed in

formation on how to re-cycle this product, please contact your local municipal offices, local waste disposal service or the shop in which the product was purchased.

• Range hoods and other cooking fume extractors may adversely affect the safe operation of appliances burning gas or other fuel (including those in other rooms) due to back flow of combustion gases. These gases can potentially result in carbon monoxide poisoning. After installation of a range hood or other cooking fume extractor, the operation of flued gas appliances should be tested by a competent person to ensure that back flow of combustion gases does not occur.

2. USE

• The suction hood has been designed exclusively for domestic use, to eliminate kitchen odours.
• Never use the hood for purposes other than those for which it was designed.
• Never leave high flames under the hood when it is in operation.

• Adjust the intensity of the flame so that it is directed onto the bottom of the cooking pan, making sure it does not wrap around the sides.

• Deep-fryers must be kept under constant supervision when in use: the oil may catch fire if it gets too hot.

3. CLEANING AND MAINTENANCE

• The activated charcoal filter cannot be washed or regenerated, and must be changed approximately every 4 months of operation, or more frequently in the case of particularly intensive use (W).

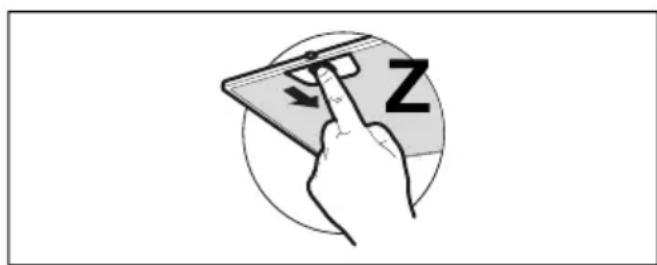

• The grease filters must be cleaned every 2 months of operation, or more frequently in the case of particularly intensive use. They can be washed in a dishwasher (Z).

• Clean the hood using a damp cloth and neutral liquid detergent.
• For external and internal cleaning of the hood avoid alcoholic or silicone products.

If the product or one of its parts is made of stainless steel, use specific non-abrasive products for cleaning and follow the lines of the satin finish during cleaning.

4. CONTROLS

Key Key	press Function	LED
L	Short Switches the lights on/off at maximum intensity. -
	Long Switches the lights on/off at medium intensity. -
T1	Short Turns the motor on/off at the first speed. Fixed
	Long press with all loads off (motor and lights)	The Filter saturation alarm is reset.
	-	Signals the saturated Metal Grease Filters alarm and the need to wash them. The alarm is activated after 100 hours of effective hood operation.	LEDs L1 + L2 + L3+ L4 turn on.
	-	Signals the Activated Charcoal Odour Filter saturation alarm. The alarm is activated after 200 hours of effective hood operation.	LEDs L1 + L2 + L3+ L4 flash.
T2	Short Turns the motor on at the second speed. Fixed
T3	Short Turns the motor on at the third speed. Fixed
	Long	Turns the motor on at the Intensive speed. This speed is timed for 6 minutes. At the end of this time, the system automatically returns to the previously selected speed. If activated with the motor off, once the time has passed it switches to OFF mode. It is deactivated by pressing the same button or by selecting the key T4.	Flashing.
T4	Short	Delay Function Activates/Deactivates the Delay function (automatic shutdown of the Motor and of the lighting delayed by 30').	Fixed
	Long press with all loads off (motor and lights)	Activates/Deactivates the Activated Carbon Filters alarm.	LEDs L1 + L2 + L3 flash twice: alarm activated. LEDs L1 + L2 + L3 flash once: alarm deactivated.

5. LIGHTING

• Please contact the Service Department to change it ("Please contact the service department to purchase it").
