Steam Tech 2400 - Iron UFESA - Free user manual and instructions

Features	Details
Power	2400 W
Tank capacity	350 ml
Steam type	Continuous steam and pressing function
Soleplate	Ceramic soleplate
Adjustable temperature	Yes, thermostat control
Anti-drip function	Yes
Weight	1.5 kg
Cord length	2.5 m
Usage	Ideal for all types of fabrics
Maintenance	Regular soleplate cleaning, descaling recommended
Safety	Automatic shut-off when not in use
Warranty	2 years

Frequently Asked Questions - Steam Tech 2400 UFESA

How do I fill the water tank of the UFESA Steam Tech 2400 iron?

To fill the water tank, unplug the iron, use a jug to pour water into the designated opening, without exceeding the maximum level indicated.

Why is my iron not heating up?

Check that the iron is properly plugged in and that the outlet is working. Also make sure the thermostat is set to the correct temperature.

How do I use the steam function on the UFESA Steam Tech 2400?

To use the steam function, ensure the tank is filled with water, then press the steam button while holding the iron in a vertical or tilted position.

What should I do if water leaks from the iron?

If water leaks, it may be due to overfilling or too low a temperature. Make sure the tank is not too full and the iron is sufficiently hot.

How do I clean the soleplate of the iron?

Unplug the iron and let it cool. Use a soft cloth and a mixture of water and vinegar to remove residues. Avoid abrasive products.

Is the iron making unusual noise during use?

A slight noise can be normal when using the steam function, but if the noise is loud or unusual, unplug the iron and contact customer service.

How do I store the UFESA Steam Tech 2400 iron?

After use, unplug the iron, let it cool, and store it in a dry place, preferably with the cord wrapped to avoid damaging the cable.

What should I do if no steam comes out of the iron?

Check that the tank is filled and the iron is set to an appropriate temperature. If the problem persists, there may be a blockage in the nozzles; clean them with a cotton swab.

Is the UFESA Steam Tech 2400 iron under warranty?

Yes, the iron is generally under warranty. Check the user manual for the warranty duration and specific conditions.

USER MANUAL Steam Tech 2400 UFESA

MANUTENÇÂO E LIMPEZA

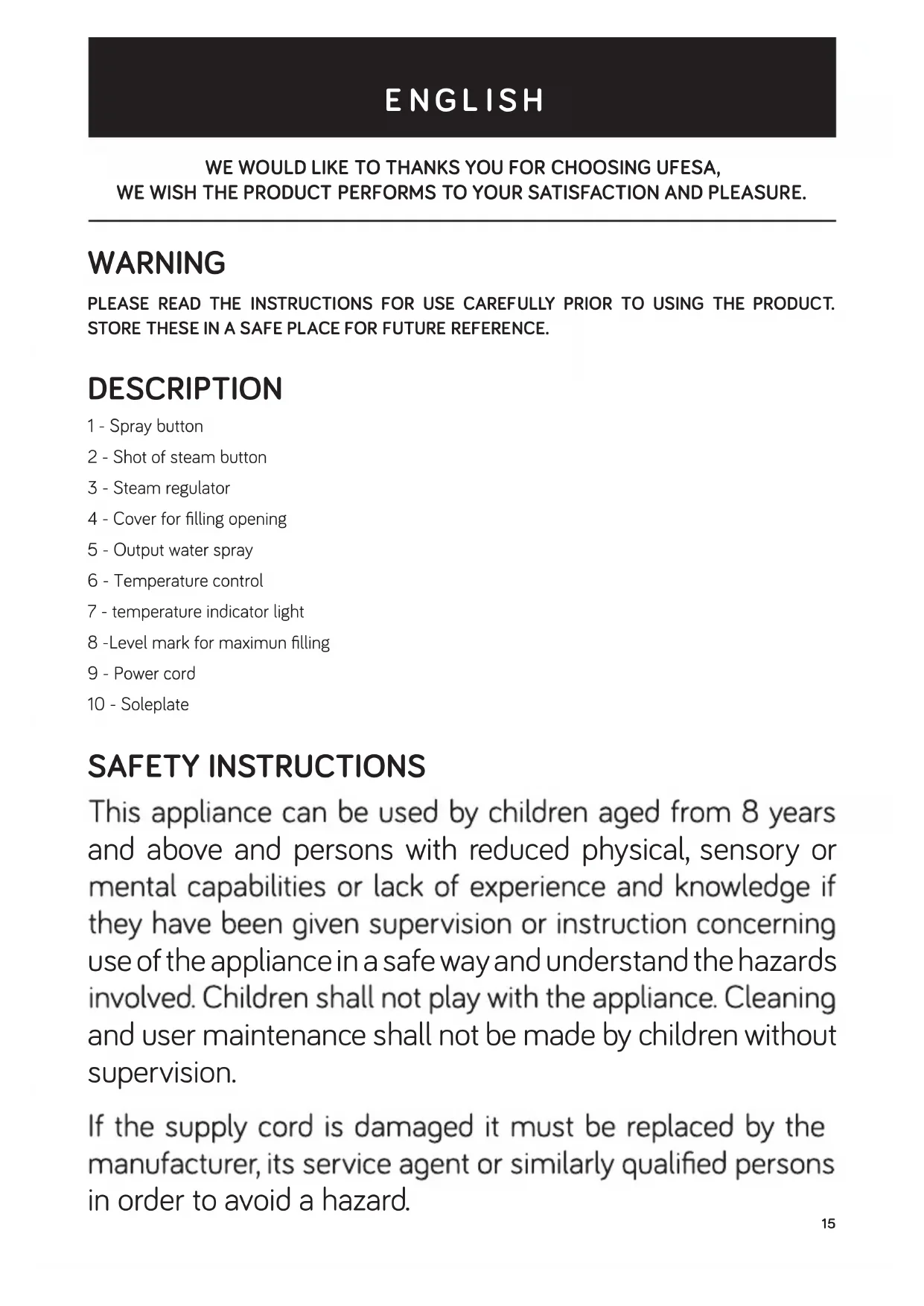

WE WOULD LIKE TO THANKS YOU FOR CHOOSING UFESA, WE WISH THE PRODUCT PERFORMS TO YOUR SATISFACTION AND PLEASURE.

WARNING

PLEASE READ THE INSTRUCTIONS FOR USE CAREFULLY PRIOR TO USING THE PRODUCT. STORE THESE IN A SAFE PLACE FOR FUTURE REFERENCE.

DESCRIPTION

1 - Spray button
2 - Shot of steam button
3 - Steam regulator
4 - Cover for filling opening
5 - Output water spray
6 - Temperature control
7 - temperature indicator light
8-Level mark for maximun filling
9 - Power cord
10 - Soleplate

SAFETY INSTRUCTIONS

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

If the supply cord is damaged it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

The iron must not be left unattended while it is connected to the supply mains.

The plug must be removed from the socket-outlet before the water reservoir is filled with water.

The iron must be used and rested on a flat, stable surface

When placing the iron on its stand, ensure that the surface on which the stand is placed is stable.

The iron is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking.

Keep the iron and its cord out of reach of children less than 8 years of age when it is energized or cooling down.

This appliance is designed only for household use up to 2000m above sea level.

CAUTION Hot surfaces. Surfaces are liable to get hot during use.

IMPORTANT WARNINGS

This appliance is designed for home use and should never be used for commercial or industrial use under any circumstances. Any incorrect use or improper handling of the product shall render the warranty null and void.

Prior to plugging in the product, check that your mains voltage is the same as the one indicated on the product label.

If you use one adaptor make sure it can reach 16 A and is provided with earth socket

The mains connection cable must not be tangled or wrapped around the product during use.

Do not use the device, or connect and disconnect to t supply mains with the hands and / or wet feet.

Do not pull on the connection cord in order to unplug it or use it as a handle

Do not direct steam at people and animals.

Do not place the appliance under the tap to fill the water tank, or immerse it in water or other liquids.

Unplug the product immediately from the mains in the event of any breakdown or damage and contact an official technical support service. In order to prevent any risk of danger, do not open the device. Only qualified technical personnel from the brand's Official technical support service may carry out repairs or procedures on the device. Only an official technical support service centre may carry out repairs on this product.

Proceed according to maintenance and cleaning section of this manual for cleaning

B&B TRENDS SL. disclaims all liability for damages that may occur to people, animals or objects, for the non-observation of these warnings.

BEFORE THE FIRST USE

Before using the steam iron, please ensure you read the user manual and understand all parts and features of the steam iron. Be sure to remove any packaging material and labels before using for the first time.

In the first use they can break off odors or fumes that sent quickly. Do not spray for the first time on clothes and there may be traces of dirt on the soleplate

HOW TO USE

Always check whether a label with ironing instructions is attached to an article to be ironed. Follow these instructions in all cases.

Turn the temperature control dial round to set the appropriate temperature indicated in ironing instructions or in fabric label.

Marking	Material, for example
. (1 dot) Acetate, elastane, polyamide, polypropylene
.. (2 dots) Cupro, polyester, silk, triacetate, viscose, wool
... (3 dots) / MAX Cotton / Linen

Insert the main plug into the wall socket. The indicator light will turn on. Once the selected temperature is reached, the light will turn off, indicating you may start ironing.

WATER TANK FILLING

Unplug the iron before filling the water tank.

The device is designed for use with tap water. If the water in your area is hard or semi-hard use mix tap water with distilled or demineralized water purchased in stores, in the ratio 2:1 and 1:1 respectively (distilled water: tap water). Check with your water supplier to determine the type of water in your area. Never use 100% distilled or demineralized, rain water, softened water, scented water, water from other appliances such as refrigerators, air conditioners, dryers or other types of home water preparation water.

Open the cover for filling.

Slowly pour water through the water inlet.

Do not fill higher than mark on the water tank, in order to avoid spilling out of water.

The water tank should be emptied after each use.

SPRAYING

As long as there is enough water in the water tank, you may use the spray button at any temperature setting during steam or dry ironing.

Press the spray button several times to activate the pump while you are ironing.

STEAM IRONING

Set the temperature control dial to the desired position in accordance with the manufacturer's label. The indicator light will turn on until the temperature is reached. Then the indicator light will turn off.

Set the variable steam control to the desired position.

CAUTION: Avoid coming in contact with ejected steam.

DRY IRONING

The steam iron can be used on the dry setting with or without water in the water tank, it is best to avoid having the water tank full while dry ironing.

Turn the variable steam control to the "0" position.

Select the setting on the temperature control dial best suited for the fabric to be ironed.

CAUTION: If the steam iron has been used for a long time, it is hot and there is no water. Do not refill it with water until the steam iron cools down.

SHOT OF STEAM

The shot of steam feature provides additional steam for removing stubborn wrinkles.

Press the powerful steam button to release the burst of steam.

NOTE: To prevent water leakage from the soleplate, do not keep the powerful steam button in continuously and wait almost 5 seconds between pressures.

VERTICAL IRONING

By pressing the shot-steam button at intervals you can also iron vertically (curtains, hung garments, etc.) NOTE: To prevent water leakage from the soleplate, do not keep the powerful steam button in continuously and wait almost 5 seconds between pressures.

WHEN YOU FINISHED IRONING

Set the temperature dial to the minimum position. Remove the main plug from the wall socket. Stand the iron on heel rest.

MAINTENANCE AND CLEANING

It is recommended to the self-cleaning every two weeks if the water in the area is hard or semi-hard if frequent use of the device is made

Before cleaning the steam iron ensure it is unplugged from the power supply and has completely cooled down.

Do not use abrasive cleaners.

To clean exterior surfaces, use a damp soft cloth and wipe dry. Do not use any chemical solvents, as these will damage the surface.

Cleaning the soleplate; Do not use scouring pads or harsh cleaners on the soleplate as these will damage the surface. To remove burnt residue, iron over a damp cloth while iron is still hot. To clean the soleplate, simply wipe with soft damp cloth and wipe dry.

SELF-CLEANING

Fill the half of the water reservoir.

Set the temperature control to its maximum position.

Insert the main plug into the wall socket.

Allow the iron to heat up until the indicator light turns off.

Unplug the steam iron.

Place the iron in a horizontal position over a sink. Select the level with the steam regulator. Slightly shake the iron back and forth. Hot water and steam with impurities will come out of the holes in the soleplate.

When the tank is empty, release the steam regulator and set it to position "0". Reconnect the iron to evaporate the remaining water.

Unplug the iron and move it over a preferably old piece of cloth. This ensures that the soleplate is dry when storing the appliance.

Is recommended to do the self-cleaning at least every two weeks.

Troubleshooting Guide

PROBLEM POSSIBLE CAUSE SOLUTION
Soleplate is not heating even though iron is turned on.	Connection problem	Check main power supply cable, plug and outlet.
	Temperature control is in MIN position	Select adequate temperature
Iron does not produce steam	Not enough water in tank	Fill water tank
	Steam control is selected in non-steam position.	Set steam control between positions of minimum steam and maximum steam.
	Selected temperature is lower than that specified to use with steam.	Select a higher temperature
Spray function does not work	Not enough water in tank	Fill water tank
Steam jet and vertical steam jet function does not work	Steam jet function was used very frequently within a short period.	Put iron on horizontal position and wait before using steam jet function.
	Iron is not hot enough	Adjust to higher temperature to steam ironing. Put iron in vertical position and wait temperature indicator light becomes fixed.
The iron is leaking	The temperature setting is too low to produce steam.	The variable steam knob must be set on“0”position until the iron is hot.
White streaks come through the holes in the soleplate	The soleplate has a build-up of scale because it has not been self-cleaned regularly.	Do the self-cleaning process. Remember to do it at least every two weeks.

PRODUCT DISPOSAL

This product complies with European Directive 2012/19/EU on electrical and electronic devices, known as WEEE (Waste Electrical and Electronic Equipment), provides the legal framework applicable in the European Union for the disposal and reuse of waste electronic and electrical devices. Do not dispose of this product in the bin, instead going to the electrical and electronic waste collection centre closest to your home. We hope that you will be satisfied with this product.

NOUS TENONS À VOUS REMERCIER D'AVOIR CHOISI UFESA. NOUS ESPÉRONS QUE VOUS SEREZ PLEINEMENT SATISFAIT DE CE PRODUIT ET QU'IL REPONDRA À VOS ATTENTES.

ATTENTION

VEUILLEZ LIRE ATTENTIVEMENT LE MANUEL D'UTILISATION AVANT D'UTILISER LE PRODUIT.
CONSERVEZ CE MANUEL D'UTILISATION DANS UN ENDROIT SÜR EN VUE DE CONSULTATION FUTURE.

DESCRIPTION

ÉLIMINATION DU PRODUIT

He nbHHepepeBoapa 3a B0da DnpeKTHO OT YeUMaTa, He NotanayTe ypeDa BB B0da NIMDpyrN TeuHOCTN.

I3KIOUHe He3a6abHNO npOdykTa OT eNEKtpnueckata MpeXa B cnyaH na ABapna IIN NOBpeDa n Ce CbpxKeTe C yNtHOMoUeHa Cny6a 3a TexHnuecka NpDpBXka. 3a da npedOTbpaTnte pNCK OT ONaCHOCT, He OTbApYte YcTPOiCTBOTO. Camo KBaIIuΦnucPAn TExHnueckn nepcoHAn OT OΦNuHaHATA Cny6a 3a TexHnuecka NpDpBXka Ha Mapkata MoKe Da N3BbPWBa peMOHTn IIN NpOceDpyn Ha yCTPOiCTBOTo. EINHCTBeHO OTOpN3nPan cepBn3eH ueHTbp MOKe Da N3BbPWBa peMOHTn DeHOCTH Na TO3N npOdyKT

CneBaIte HNCTpyKcHnTe B pa3deJa 3a NOdPbXka N NOUcTbaHe Ha HAcToaTO pkoBOcTBO 3a NouCTBaHe

B&B TRENDS SL. OTBpna BcKaKbA OTROBOPHOCT 3a Bpeu, OT KOnto Moat Da noctpaat Xopa, XIBOTH NII PpeMeT, NopdN HeCn3BaHeTo Ha Te3N PpeDynpexKeHH

ПЕДИ ПБВATA YNOTPEBA

Ipei Da n3non3BaTe napHata IOTn, He 3a6paBnTe da npoTeTe pkoBOcTBOTO 3a eknloataun i da pa36epete BCnKn HeHHuactn u yhepeTe ce, ye cTe OTCTpaHnn BCnKn OnakOBbHn MaTePnaJn u ETNKETn Ipei Da n3non3BaTe ypeDa 3a NbpBn nbT

No Bpeme Ha nbpBOTO n3noJ3BaHe e Bb3MOxHO da ce OTdEJIaT Mnpn3Mn HnDm, KOHTO 1e n3ue3HaT 3a KpaTKo Bpeme. No Bpeme Ha npBpBaTa ynotpe6a He npbckaIte dpexTe, TbK KaTO MOKe Da hMa CneDN OT npax Bbpx NIOuata

HAUYH HA YNOTPEBA

BnHarn npOBepraBae Taann etnKet C nHcTpkyu 3a rnahe e npNKpehen KbM n3denneto, KoETOe rnaTe. CneBaIte Te3n nHcTpkyuBB BCNUCnyan.

3aBbptete Bbptraa6byoH 3a perynpaHe Ha TemnepaTypa,3a da Hactponte noxodaaT aTeMnepaTypa,yka3aHa B INCTpyKuInTe 3a InaDeHe NIN Bbpxy etkKeTa Ha TbkaHTa

15 15! g! JrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJr

.5661 4io

JgSlaie aIgW A n g aol Jaa Jn JbJgLg Lg

INFORME DE GARANTÍA

B&B TRENDS, SL. guarantees compliance of this product, for the use for which it is, during the period established by the legislation in force in the country of sale. In the case of breakdown during the term of this warranty, users are entitled to repair or else the replacement of the product at no charge if the former is unavailable, unless one of these options proves impossible to fulfil or is disproportionate. In this case, you can then opt for a reduction in price or cancellation of the sale, which must be dealt with directly with the sales vendor. This also covers replacement of spare parts provided that the product has been used according to the recommendations specified in this manual for both cases, and has not been tampered with by any third party that is not authorised by B & B TRENDS, SL. The warranty will not cover any parts subject to wear and tear. This warranty does not affect your rights as a consumer in accordance with the provisions in Directive 1999/44/EC for member states of the European Union.

USE OF WARRANTY

Customers must contact a B&B TRENS, SL., authorised Technical Service for repair of the product. Since any tampering of the same by anyone not authorised by B&B TRENS, SL., or the careless or improper use of the same shall render this warranty null and void.

You must keep the purchase invoice, receipt or delivery docket in order to exercise your warranty rights.

For technical service and after-sales care outside the Spanish territory, please submit your query to the point of sale where you purchased the item.

BON DE GARANTIE

gbl lio cui jil gll abai ll bll p uuauu uuul

ufesa

SERVICIOS DE ATENCION TECNICA (SAT)

TECHNICAL ASSITANCE SERVICE (TAS), SERVICO DE ATENCAO TECNICA (SAT)
SERVICE TECHNIQUE (ST), SERVIZIO DI ASSISTENZA TECNICA (SDAT)

([phone]

[e-mail]

B&B TRENDS, S.L.

C. Cataluña, 24

P.I. Ca N'Oller 08130

Santa Perpètua de Mogoda (Barcelona) España

C.I.F.B-86880473

www.bb trends.es

Consulte SAT autorizo más cercano en https://sat.ufesa.com/ Check out your nearest service station at https://sat.ufesa.com/

ufesa

B&B TRENDS, S.L. C.I.F. B-86880473
