USER MANUAL Robinson 2IR Majority

Internet Radio and DAB+ adapter

MAJORITY Internet Radio DAB Radio Spotify Podcasts Bluetooth Audio FM Radio

Controls And Functions....3

Remote control 4

What's In the Box? 5

Box Contents 5

Instructions Guide......6

Battery Replacement for the Remote Control 6

Remote control operation range 7

Connection....7

Network Connection 8

Getting Started 8

System Settings....12

Internet Radio 18

Podcasts 21

DAB Operation....22

FM Operation 26

Bluetooth Operation....28

NetRemote 29

Spotify Connect....30

Sleep Setting 30

Setting the Alarm....31

Maintenance....32

Troubleshooting 33

Troubleshooting....33

Specifications and Warranty....35

Specification 35

Support....37

Warranty....37

Safety Information 38

3

YEAR WARRANTY

Register your product online for a FREE 3 year extended warranty at: www.majority.co.uk

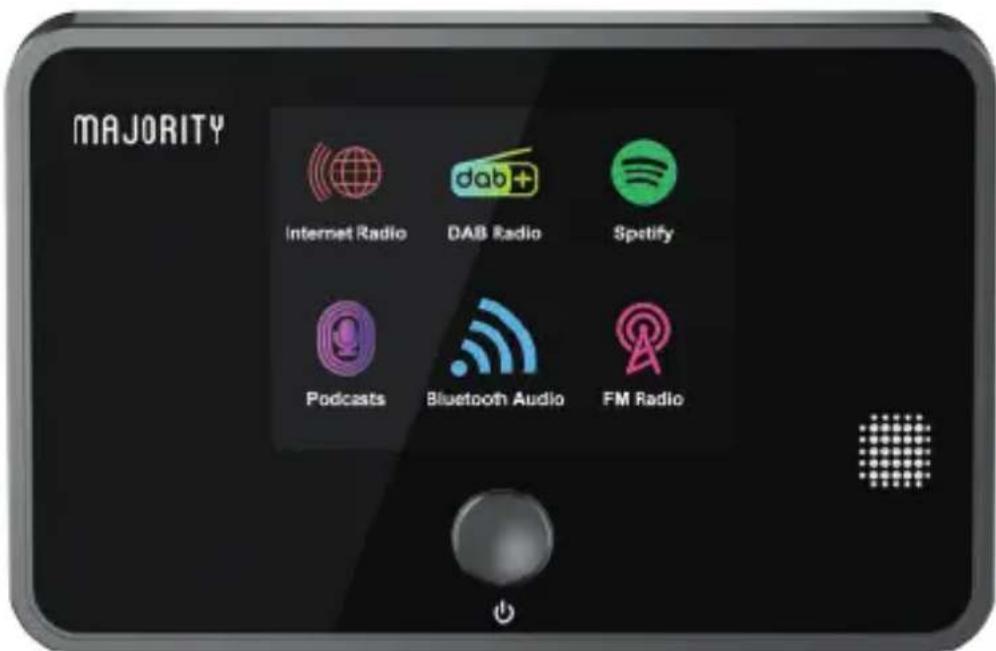

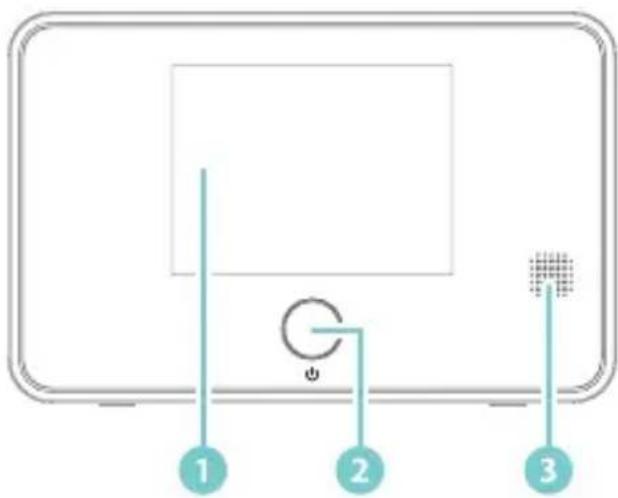

Front view

1 2 3

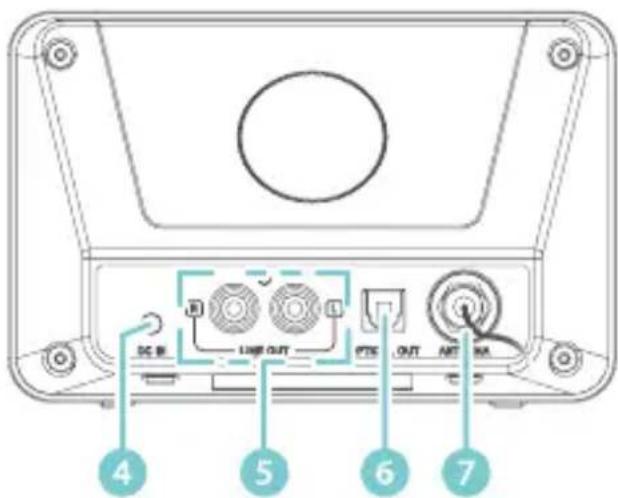

Rear view

DC B LINE OUT PTS OUT ART NA 4 5 6 7

1. DISPLAY
2. ⏻ Button

3. REMOTE CONTROL SENSOR

4. DC IN SOCKET

5. LINE OUT SOCKET (RCA Jack)
6. OPTICAL OUT CONNECTION
7. ANTENNA

Remote control

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 SNOO/VE SLEEP ALARM SCAP* DAB FM PT DIMMEN NFO SELECT FQ MENU PREST PRESET PAIR VOL - 1 2 3 4 5 6 7 8 9 MONO/ST. 0 MUTF

1. STANDBY Button
2. SLEEP Button
3. CLOCK Button
4. DAB Button
5. SPOTIFY Button
6. MODE Button
7. ▶II ▲Button
8. Button
9. SELECT Button
10. EQ Button
11. VOLUME + / - Buttons
12. Number Buttons
13. MONO/ST. Button
14. SNOOZE Button
15. ALARM Button
16. SCAN Button
17. BT Button
18. INTERNET Button
19. INFO Button
20. ▶▶▶ Button
21. ▼ Button
22. PRESET Button
23. MENU Button
24. PRESET ^ /▼ Buttons
25. BACK Button
26. MUTE Button

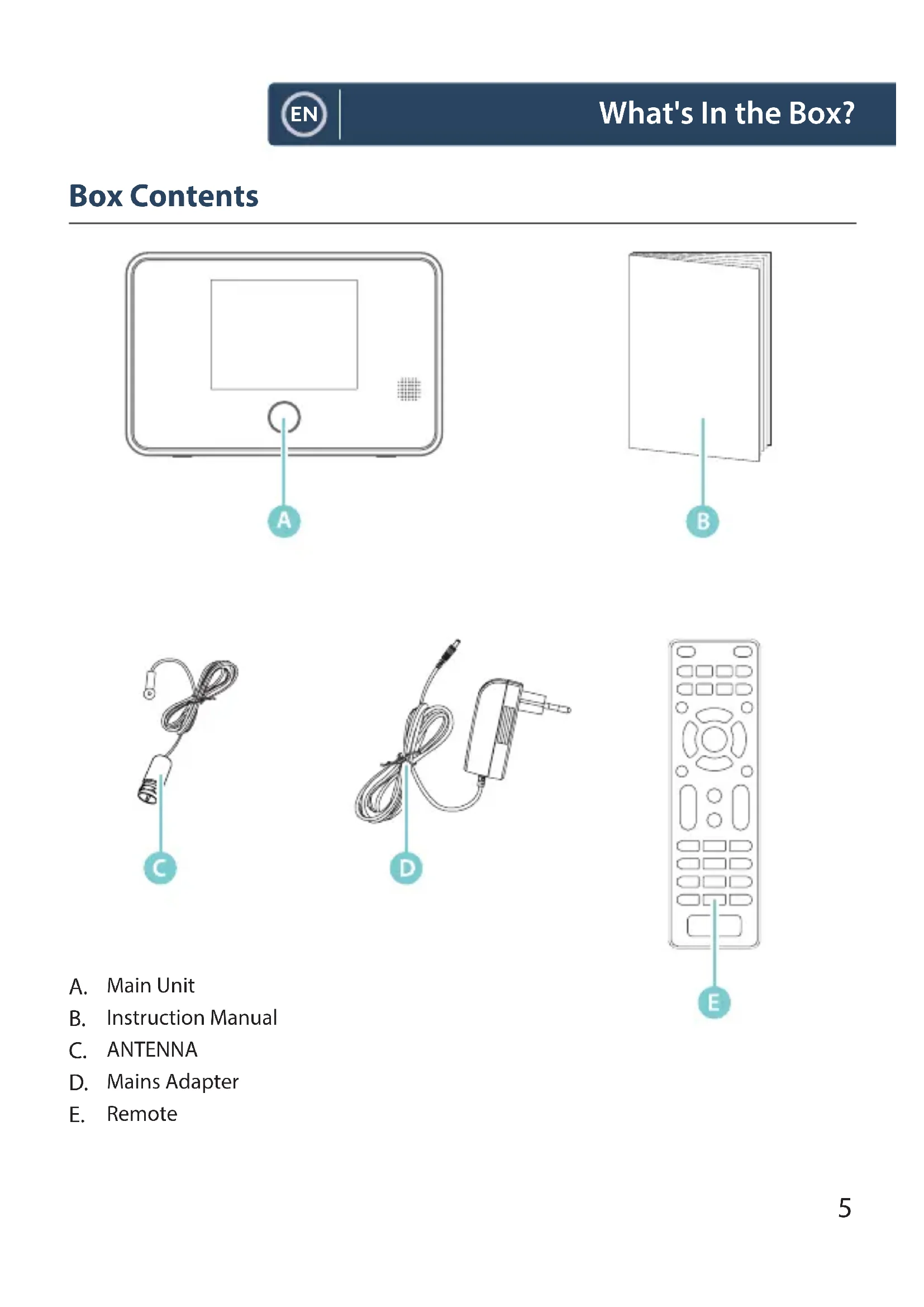

Box Contents

Simple line drawing of a device with a square screen and a circular button labeled 'A' (no text or symbols beyond the label)

Simple line drawing of a book with a vertical line and label B (no text or symbols on the book itself)

Simple line drawing of a cord with a loop and a circular base (no text or symbols)

Line drawing of a medical or electronic device with coiled cable, plug, and connector (no text or symbols)

Line drawing of a remote control with labeled button E (no text or symbols on the device itself)

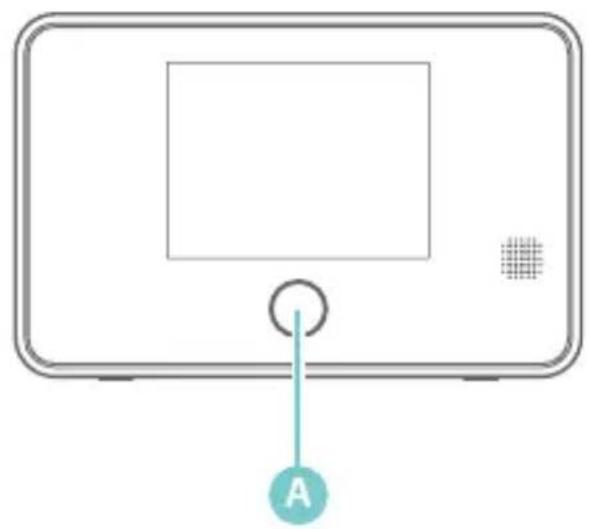

A. Main Unit
B. Instruction Manual
C. ANTENNA

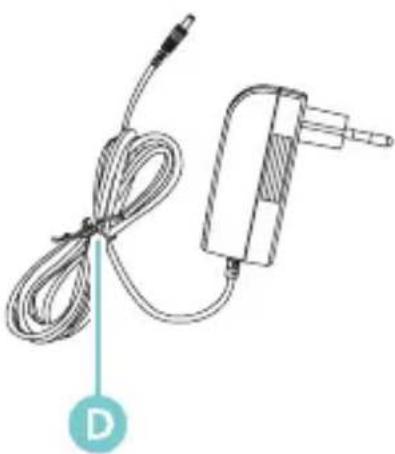

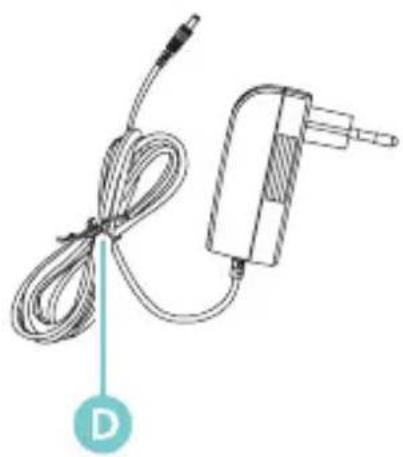

D. Mains Adapter

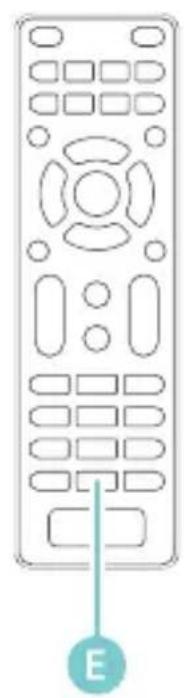

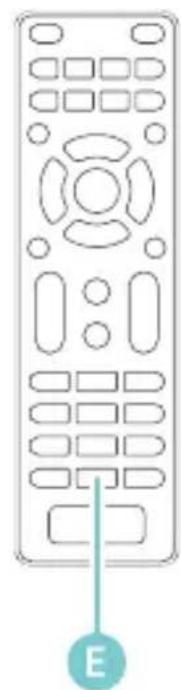

E. Remote

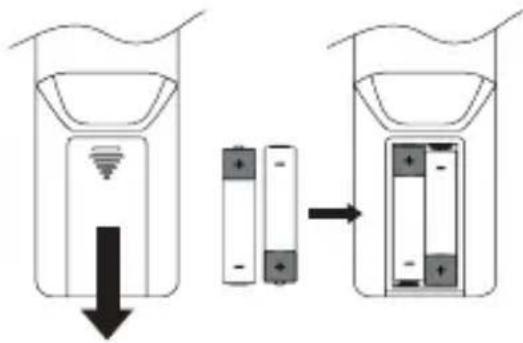

Battery Replacement for the Remote Control

1. Press down the battery cover at “and push the battery cover outwards in the direction of the arrow.

2. Insert 2 x AAA 1.5V alkaline batteries (not included). Make sure to match the (+) and (-) ends of the battery with the (+) and (-) ends indicated in the battery compartment.

3. Close the cover.

Diagram illustrating battery charging process with labeled components and directional arrow

Handling the Battery

• Improper or incorrect use of batteries may cause corrosion or battery leakage, which could cause fire, personal injury or damage to property.
• Only use the battery type indicated in this manual.
• Do not dispose of the used battery as domestic waste. Dispose of it in accordance with local regulations.
• Remove the battery from the remote control when not in use for a long period of time, as corrosion or battery leakage may occur and result in physical injury, and/or property damage, and/or fire.

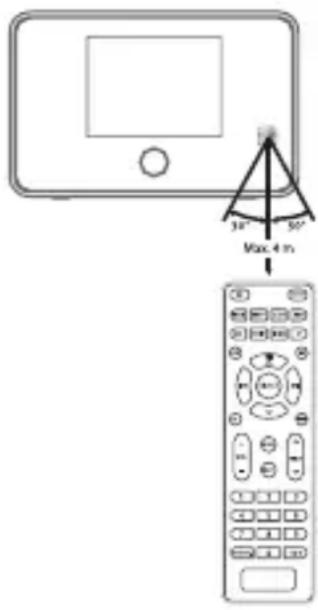

Remote control operation range

The remote control sensor on the front unit is sensitive to the remote control's commands up to a maximum of 4 metres away and within a maximum of 60^ arc.

Note that the operating distance may vary depending on the brightness of the room.

30° 50° Max. 4 m

Connection

1. The audio output (analogue) and optical out (digital) are available on the back of the unit to connect A/V amplifier or HiFi system.
2. Unwind the antenna included to the desired length and insert into the 'Antenna' port on the back of the unit.
3. Unwind the mains adapter cable to its full length. Connect the end of the cable to the DC IN Socket at the DC IN Socket at the rear of the unit and then insert the power adapter into the mains socket. Make sure the mains adapter is firmly inserted into the power socket. The unit is now ready to use.

Connecting the unit to any other power source may damage the unit.

1. To switch the unit off completely, unplug the power adapter from the mains socket.

Network Connection

This product only supports wireless network connection for networking access and does not support wired LAN Connection.

Wireless network

1. Check first of all whether the control lamps (LINK/ACT) of your router light up.

2. Proceed with the operations described in the below "Getting Started". It is recommended to run through the setup wizard in the System Settings section.

This unit cannot be connected to a standalone modem directly. A router or a modem connected to a router has to be used.

Since there are various connection congrurations, please follow the specifications and instructions of your telecommunication carrier, Internet service provider, and router setting guidebook.

Getting Started

This instruction manual explains the basic instruction for operating this unit. Unless otherwise stated, all operations described are based on remote control use.

Powering ON/OFF

1. Press the ⏻ button on unit or remote control to switch the unit on.
2. Press the ⏻ button on unit or remote control to switch the unit back to standby.

Selecting Modes

Press MODE button on remote control to access Mode Menu. Press ◀◀/▶◀ button to switch between different sources: Internet Radio, Podcasts, Spotify, DAB, FM and Bluetooth. Press SELECT button to confirm.

When the unit is idle for approximately 15 minutes in Internet radio, Podcasts, Spotify, DAB or Bluetooth mode (with external unit disconnected), it will automatically switch to Standby.

To switch the unit off completely, remove the mains plug from the main socket.

Please turn the unit off completely to save energy when not in use.

Adjusting the Volume

• Press VOLUME +/- buttons to adjust the volume.
• To temporarily mute the sound press the MUTE button on the remote control. Press the MUTE button again, or press the VOLUME +/- buttons on the remote control to resume normal listening.

Navigating the Menu

1. Press the MENU button to access the menu.
2. Press the ▶||▲ /▼ /◀◀ /▶◀ buttons to select your choice.
3. Press the SELECT button to confirm your selection.

Initial Set-up

When you first connect the unit to the mains socket, the display will show the start-up screen, followed by 'Language menu'. To select the language of your choice, press ▶II ▲ /▼ buttons to find your preferred language. Press the SELECT button to confirm your selection. Once the language has been selected, the privacy policy page will come up next. Please visit the website mentioned in the page to view the details of the privacy policy. Press SELECT button on remote control to confirm and move onto the next step.

Privacy notice Please visit the following page on a PC or mobile device. www.frontiersmart.com/privacy

1. To launch the initial 'Setup wizard', press ◀◀ / ▶▶I buttons to select [YES]. Press SELECT button to confirm.

2. Right after you can select the time format. Choose the clock time format as per your preferences, either to [12] or [24] hours. Press SELECT button to confirm and move onto the next step. Next, select which source (DAB/FM/ NETWORK/NO UPDATE) the unit uses as a source to obtain and update the time and date. If "Update from Network" Is selected proceed to the next step and select the time zone, to ensure that this correctly displayed. Right after, you can also choose the "Daylight savings" which can be set to [ON] or [OFF].

3. Onto next screen, you can specify whether the product should remain connected to the Network when on Standby mode. Press ◀◀ / ▶▶I buttons to select [YES], then press SELECT button to confirm.

4. Robinson 2IR, will now scan for your wireless network, this may take a few seconds then a list of all the wireless networks available will appear on the screen. Select the WLAN network you know and whether to use WPS (Push Button/Pin) or Skip WPS to enter the password using the displayed keyboard

Connecting using the WPS button on your router

Connecting using the WPS (Wi-Fi Protected Setup) button on your router is a quick and easy way to connect your radio without having to type in a password. Select one of the following connection methods:

Push WPS Button

• Press buttons ▶II ▲/▼ to select the option Push Button. Press SELECT button to confirm.
• A message will be displayed on the screen, telling you to press the WPS button on your router which you need to then press.

Note: Refer to your router user manual to identify the WPS button, if in doubt.

- Press the SELECT button to confirm. Robinson 2IR will now connect to your router.

This may take a few seconds.

Pin (code number)

• Press ▶II▲/▼ button to select PIN. Press SELECT button to confirm. The radio will generate an 8-digit code number, which will be displayed on radio's screen.
• Refer to your router user manual to follow the WPS instructions, when using a pin code number. Enter this code number into the wireless router to connect with Robinson 2IR.
• Press SELECT button to continue.

Connecting using your wireless network password

When using a router with no WPS button, you will be asked to enter your password to connect your Robinson 2IR with your wireless network. Alternatively, select SKIP WPS to go straight to password screen.

1. Press ▶□□/▼/□□/▶▶ buttons to select each letter/number of your password. Press SELECT button to enter the selected letter/number.

2. Once the password has been entered, press ▶□□▲ /▼ / ◀◀/ ▶▶buttons, to confirm by selecting OK on the right hand-side of the screen. It takes a few seconds to connect with your network.

3. After your radio has connected, press SELECT button to exit the setup.

Settings can be changed at any time in Menu-System Settings - Network - Network wizard

This instruction manual explains the basic instruction for operating this unit. Unless otherwise stated, all operations described are based on remote control use.

System Settings

Press MENU button to display the menu. Press ▶II▲ / ▼ buttons to select System settings and then press SELECT button to confirm.

Equaliser

This system supports a variety of equalizers and sound effects.

- Press the EQ button to access Equaliser menu

Alternatively,

- While in the System settings mode, press the ▶II ▲ / ▼ buttons to select Equaliser and then press the SELECT button to confirm.

1. The display will show : NORMAL > CLASSIC > ROCK > POP > JAZZ > MY EQ > MY EQ PROFILE SETUP
2. Press the ▶II ▲ / ▼ buttons to select and then press the SELECT button to confirm.
3. For [MY EQ], please go to [My EQ Profile Setup] for custom setting before selecting this option.
4. While in [My EQ Profile Setup], press ▶II▲ / ▼ to select [Bass/Treble] and then press SELECT button to confirm. Press ▶II▲ / ▼ to select desired level and then press SELECT button to confirm.

Press BACK button to exit and then press ◀◀ / ▶▶ buttons to select [YES] and press SELECT button to confirm. The Display will show Equaliser Saved.

My EQ profile setup Bass: 0 Treble: 0

Bass Bass 0 dB -14 0 +14

Network

1. While in System Settings mode, press the ▶II ▲ /▼ buttons to select Network and press the SELECT button to confirm.
2. Press the ▶II ▲ / ▼ buttons to select from the following settings, and then press the SELECT button to confirm.

Network wizard	SSID – select the desire wireless network.Rescan – Scan for available networks.Manual config – select wireless network with DHCP enable/disable.
PBC Wlan setup	Press theWPSbutton on the modem device that you wish to connect with. PressSELECTbutton to continue.
View settings	Display the setting on the unit.
Manual settings	Select DHCP enable/disable.
NetRemote PIN Setup	To define a PIN number to be entered before being able to connect to the unit remotely over a network
Network profile	View the connected network.
Clear network settings	To delete the connected network memory in Network profile.
Keep network connected	To define whether remains connected to its network in Standby mode and when not in Network radio mode.

1. Press the BACK button to cancel the setting and return back to the previous menu.

Time/Date

The Time/Date can be automatically set once it has been connected to the Internet, DAB or FM radio station with time/date information. You may also adjust the Time/Date manually.

Press CLOCK button to access Set Time/Date menu to adjust Time/Date, Alternatively,

- While in System Settings mode, press the ▶II ▲ / ▼ buttons to select Time/Date and press the SELECT button to confirm. Press the ▶II ▲ / ▼ buttons to select Set Time/Date and press the SELECT button to confirm.

1. The date digits will flash onto the radio screen.
2. Press the ▶II ▲ / ▼ buttons to adjust the date, then press the SELECT button to confirm.
3. Repeat above Step (2) to set the Month/Year/Hour/Minute.
4. The date and time settings are now completed.

For the other settings under Time/Date, press the ▶II ▲ /▼ ◀◀ /▶◀ buttons to select from the following options and then press the SELECT button to confirm.

Auto update Update from DAB/FM/Network/No update

Set format 12 / 24 hours format.

Set timezone Select a time zone. (Only available when Auto update from Network is on.)

Daylight savings Select daylight savings. (Only available when Auto update from Network is on.)

The default auto time update setting is "Update from Network". If you would like to manually set the time, it is recommended to turn the Auto update function off.

Inactive Standby

Use the Inactive Standby to turn off the unit after a certain time in play mode.

1. While in System settings mode, press the ▶II▲ / ▼ buttons to select Inactive Standby and press SELECT button to confirm.

2. Press ▶II▲ / ▼ buttons to select between Off, 2 hours, 4 hours, 5 hours and 6 hours. Press SELECT button to confirm.

Language

1. While in System settings mode, press the ▶II▲ / ▼ buttons to select Language and then press the SELECT button to confirm.

2. Press the ▶II ▲ / ▼ buttons to change the display language of your choice.

3. Press the SELECT button to confirm.

Factory Reset

Factory reset would be recommended when experiencing issues with radio reception, moving houses, moving to a different part of the country, when the Robinson 2IR may pick up the local and national DAB stations in that area, therefore previously tuned channels may no longer be available.

1. While in System settings mode, press the ▶II▲ /▼ buttons to select Factory reset, and press the SELECT button to confirm.

2. Press ◀◀/▶◀ buttons to select [Yes], and press the SELECT button to confirm or select [No] to cancel.

After the system reset, all the tuned stations, Internet, DAB & FM preset stations will be erased.

Software update

1. While in System settings mode, press the ▶II ▲ / ▼ buttons to select Software update and then press the SELECT button to confirm.

2. Press the ▶II▲ / ▼ buttons to select "Auto-check setting" or "Check now", and then press the SELECT button to confirm.

Before downloading software, ensure that the radio is plugged into a stable mains power connection.

Interrupting the mains supply during software download can lead to functional disturbances and/or damage to the unit!

Setup wizard

The setup wizard is available in the System settings section; you can run through this to configure settings for date/time and network. Once this has finished, your radio is ready to use.

Info

1. While in System settings mode, press the ▶II ▲ /▼ buttons to select Info and then press the SELECT button to confirm.
2. The software version, Spotify version, Radio ID and Friendly name will show on the display.

Privacy policy

1. To view the Privacy policy page, press MENU to go to System settings - Privacy policy.
2. After 'Factory reset', you need to read and agree with the Privacy policy again.

Backlight

1. While in System settings mode, press the ▶II ▲ /▼ buttons to select Backlight and then press the SELECT button to confirm.
2. For the other settings under Backlight, press the ▶II ▲ / ▼ buttons to select the following options and then press the SELECT button to confirm.

Operation Mode High / Medium / Low

Standby Mode Timeout: Off/ 10 sec/ 30 sec/ 60 sec Standby Level: High/ Medium/ Low/ Off

Internet Radio

To listen to Internet radio station your radio must be connected to the Internet. Try positioning your radio as close as possible to your router to get the best connection speeds. When Internet Radio mode is selected, the radio connects with the Frontier Silicon Internet radio portal to download a list of stations. Once a station is selected, the radio will connect directly to that station.

Internet radio

Press MODE button on remote control to access Mode Menu.

Press ◀◀ / ▶▶ button to select and press SELECT button to switch to "Internet radio" mode.

While in Internet Radio mode, press the MENU button on remote control to access the menu. You can choose between: Last listened, Station list, System settings and Main menu. Press ▶II ▲ / ▼ buttons to select and press the SELECT button to confirm.

When internet radio is restarted, the last listened stations is automatically selected. To return to [Station List], press BACK button.

Last listened

1. Press ▶II▲ / ▼ buttons to select [Last listened], then press SELECT button to confirm.

2. Press ▶II▲ / ▼ buttons to select the history of stations that you have listened to before and press SELECT button to confirm.

Station List

While in Internet Radio mode, press MENU button to access the menu. Press the ▶II ▲ /▼ buttons to select [Station List] and press the SELECT button to confirm.

When Internet radio is restarted, the last listened stations is automatically selected. To return to [Station List], press BACK button.

If it is the first time listen Internet radio, the radio will be in [Station List].

1. Press the ▶II ▲ / ▼ buttons to select from the following options, and then press the SELECT button to confirm.

"Countries" You can search specifically for stations from your country. Within this scope, it will display local radio stations available at your location.

Search You can search stations using various keywords. The name and a description of your selected station will show on the display.

Location You can select radio stations from a list of countries available

Popular Select station from a list of the most popular internet stations from around the world.

Discover Select stations from various categories in the menu: Country, Genre or Language.

Press the BACK button to move back a menu level.

Preset Stations

The preset Internet radio stations are stored in the radio and cannot be accessed from other radios.

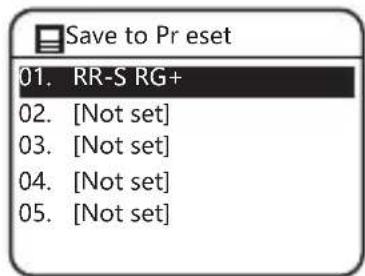

1. To store a preset, you must first be listening to the station that you would like to save. Press and hold the PRESET button until the display shows the "Save to Preset".

Save to Pr eset 01. RR-S RG+ 02. [Not set] 03. [Not set] 04. [Not set] 05. [Not set]

1. Select one of the 30 presets to store the current station by pressing ▶/▼ buttons to select the number and press the SELECT button to confirm. The display will show "Preset stored" and then save the station

Alternatively, press and hold number keys (0-9) on remote control can store to preset 1-10 directly,

Recalling a Stored Station

1. To select a preset, press the PRESET button, and then press the ▶II ▲/▼ buttons to select one of the listed preset stations.
2. Press the SELECT button to confirm the selection.
3. If there no station be saved, it will show Preset empty.

Or press PRESET ^/▼ button repeatedly can switch between stored preset stations

Alternatively, press number keys (0-9) can play preset station (1-10) directly,

Operation of Preset and Recall stations are same for Internet Radio, Podcasts, DAB and FM.

Internet Radio Display Modes

Every time you press the INFO button, the display will show the following display modes:

Channel Info/Description- Language/Location - Bit rate/Sound format/Sampling rate - Playback buffer - Date

Podcasts

To listen to Podcasts your radio must be connected to the internet. Try positioning your radio as close as possible to your router to get the best connection speeds.

Press MODE button on remote control to access Mode Menu. Press ◀/▶▶ button to select and press SELECT button to switch to "Podcasts" mode.

While in Podcasts mode, press the MENU button on remote control to access the menu. You can choose between: Last listened, Podcast list, System settings and Main menu.

Press ▶II▲ /▼ buttons to select and press the SELECT button to confirm.

Last listened

1. Press ▶II ▲ /▼ buttons to select [Last listened], then press SELECT button to confirm.

2. Press ▶II ▲ /▼ buttons to select the history of stations that you played beforehand and press SELECT button to confirm.

Podcast List

While in Podcasts mode, press MENU button to access the menu. Press the ▶II ▲/▼ buttons to select [Podcast list] and press the SELECT button to confirm.

When radio is restarted, the last listened stations is automatically selected. To return to [Podcast list], press BACK button.

If it is the first time listen Podcast, the radio will be in [Podcast list].

1. Press the ▶II ▲ /▼ buttons to select from the following options, and then press the SELECT button to confirm.

"Countries" You can search specifically for stations from your country. Within this scope, it will display local radio stations in your location.

Search You can search stations using various keywords. The name and a description of your selected station will show on the display.

Location You can select for stations from a list of countries available

Discover Select stations from various categories in the menu: Country, Genre or Language.

Saving and Recalling Preset Station

- Refer to "Preset Stations" and "Recalling a Stored Station" under Internet Radio for instruction.

DAB Operation

Press MODE button on remote control to access Mode Menu. Press ◀◀/▶◀ button to select and press SELECT button to switch to "DAB radio" mode.

Alternatively, press DAB button on remote to switch to DAB mode.

dob+ DAB radio

The unit will enter DAB mode and perform the auto scan function. During the scan the display will show “Scanning...” together with a slide bar that indicates the progress of the scan and the amount of stations that have been found so far. Once the scan has finished, the unit will select the first alphanumerically found station.

To explore the found stations, press the ▶II ▲ /▼ buttons to select and press the SELECT button to confirm.

Station List

1. While in DAB mode, press the MENU button to access DAB menu.

2. Press the ▶II ▲ / ▼ buttons to select Station list and then press the SELECT button to confirm.

3. A list of DAB stations will show on the display.

Auto Scan

Press SCAN button on remote control to activate auto scan.

Alternatively,

- Press the MENU button, and then press the ▶II▲ /▼ buttons to select Scan. Press the SELECT button to confirm to activate auto scan.

1. The display will show "Scanning..." and a progress slide bar.

2. All the stations that have been found will be stored automatically. To explore and listen to the found stations, press the ▶II▲ / ▼ buttons to select and then press the SELECT button to confirm.

Manual Tuning

As well as the auto tune function, you can manually tune the receiver. This can help you when aligning your aerial or when adding stations that were missed while auto tuning.

1. Press MENU to display the menu.

2. Press the ▶II ▲ / ▼ buttons to select Manual tune, and press the SELECT button to confirm.

3. The display will show the multiplex 5A to 13F.

4. Press the ▶II ▲ / ▼ buttons to select the channel, and press the SELECT button to confirm.

5. To listen to any stations found, return to the now playing screen and press ▶/▼ buttons to select the required station from the station list and press SELECT button to confirm.

DAB Display Modes

Every time you press the INFO button, the display will show the following display modes:

DLS – Programme Type – Ensemble/Frequency – Signal error/Strength – Bit rate/Codec/Channels – Date

DLS (Dynamic Label Segment)

This is a scrolling message giving real-time information, e.g. song titles, news headlines, etc.

Programme Type

This describes the "style" or "genre" of the programme that is being broadcast.

Ensemble Name/Frequency

This display the name of the multiplex that contains the station you are listening to and the frequency. A multiplex is a collection of radio stations that are bundled and transmitted on one frequency. There are national and local multiplexes. Local ones contain stations that are specific to that area.

Signal Error/ Signal Strength

The error is shown as a number. If the number is 0, it means the signal received is error free and the signal strength is strong. If the error rate is high, it is recommended to reposition the radio aerial or reposition the unit. The display will show a slide bar to indicate the signal strength, the stronger the signal, the longer the bar will be from left to right.

Bit Rate / Codec / Channels

The display will show the digital audio bit rate being received with additional information about the audio codec and channel configuration.

Date

This displays the current date provided automatically by the broadcaster.

Prune Invalid

You may remove all unavailable stations from the list.

1. During DAB mode, press the MENU button and press the ▶II▲ / ▼ buttons to select Prune invalid, press SELECT button to confirm.

2. Press the ◀◀ /▶◀ buttons to select YES and press the SELECT button to confirm. Or select NO to cancel.

DRC (Dynamic Range Compression)

If you are listening to music with high dynamic range in a noisy environment, you may wish to compress the audio dynamic range.

1. During DAB mode, press the MENU button and press the ▶II▲ / ▼ buttons to select DRC, press the SELECT button to confirm.

2. Press the ▶II ▲ / ▼ buttons to select DRC high/low/off and press the SELECT button to confirm the setting.

Station Order

You may wish to arrange the station listing order.

1. During DAB mode, press the MENU button and then press the ▶II▲ /▼ buttons to select Station order, press SELECT button to confirm.

2. Press the ▶II ▲ / ▼ buttons to select Alphanumeric/Ensemble and press the SELECT button to confirm the setting.

Saving and Recalling Preset Station

- Refer to "Preset Stations" and "Recalling a Stored Station" under Internet Radio for instruction.

FM Operation

To switch the unit to FM mode, press MODE button on remote control to access

Mode Menu. Press ◀◀/▶◀ button to select and press

SELECT button to switch to "FM radio" mode.

Alternatively, press FM button on remote to switch to FM mode.

The display will show the frequency.

FM radio

Auto Scan

Press SCAN button on remote control to activate auto scan.

Alternatively,

- Press and hold the ◀◀ / ▶▶ buttons to start searching for a station backwards or forwards. Once a station has been found, the scanning will stop automatically.

The search may not stop at a station with a very weak signal

Manual Tuning

To search for FM stations manually, press the ◀ / ▶ buttons repeatedly until your desired frequency is reached.

With FM radio, it may be necessary to fine tune each station by pressing / buttons repeatedly. Each press will adjust the frequency by 0.05 MHz. If reception is still poor, adjust the position of the aerial or try moving the radio to another location.

FM Display Modes

Every time you press the INFO button, the display will show the following display modes: Radio Text – Programme Type – Frequency – Date

RDS Radio Text

This is a scrolling message information about the current programme.

Programme Type

This describes the "Style" or "Genre" of music that is being broadcast.

Station Name / Frequency

When an RDS station is received, the name of that station will be displayed, or if not the frequency will be displayed.

Date

This displays the current date provided automatically by the broadcaster.

Scan Setting

1. Press the MENU button to access FM menu.

2. Press the ▶II ▲ / ▼ buttons to select Scan setting and then press the SELECT button to confirm.

3. Press the ◀◀ / ▶▶ buttons to select Yes to receive strong signal only and then press the SELECT button to confirm.

Audio Setting

1. Press the MONO/ST. button on the remote control to toggle between the Mono only or Mono/Stereo selection.

Alternatively,

1. Press the MENU button to access the main menu.

2. Press the ▶II ▲ / ▼ buttons to select Audio setting and press the SELECT button to confirm.

3. Press the ◀◀ / ▶▶ buttons to select YES to listen in mono only or NO to let the unit select Stereo or Mono automatically.

4. Press the SELECT button to confirm.

Saving and Recalling Preset Station

- Refer to "Preset Stations" and "Recalling a Stored Station" under Internet Radio for instruction.

Bluetooth Operation

The unit has a Bluetooth function that can receive a signal within 8 metres. Pair the unit with a Bluetooth device such as a phone or a tablet to play audio from:

1. Press MODE button on remote control to access

Mode Menu. Press ◀◀ / ▶▶ button to select and press

SELECT button to switch to "Bluetooth Audio" mode.

Alternatively, press BT button on remote to switch to Bluetooth mode The Bluetooth logo will start to flash to show the unit in pairing mode.

1. Activate your Bluetooth device and select the search mode.

2. "Majority Robinson 2IR" will appear on your Bluetooth device list.

3. Select "Majority Robinson 2IR" and enter "0000" for the password if necessary. Once connected the Bluetooth logo on the screen will stop flashing. Your device is now paired with the unit.

4. Press BT button on remote control can disconnect existing Bluetooth connection, with other Bluetooth devices able to locate and make connection with the unit.

5. To disconnect the Bluetooth function, press the MODE button on remote control to switch to another mode or disable the function from your Bluetooth device.

Playing Music via Bluetooth

You may need to adjust the volume on your radio and Bluetooth device.

- Press ▶□ ▲ button to play/pause music, or press ◀◀/ ▶▶ buttons to skip to the previous/next track.

Bluetooth Audio

• The operational range between the unit and the device is approximately 8 metres.
• For better signal reception, remove any obstacles between the unit and the Bluetooth device.
• Compatibility with all devices and media types is not guaranteed.
• Some mobile phones with the Bluetooth function may connect and disconnect as you make and end calls. This is not an indication of a problem with your unit.

NetRemote

The device gives a feature of NetRemote by smartphone or tablet in iOS or Android system. By downloading the assigned app named UNDOK, you can view all the modes of Internet radio, Podcasts, Spotify, DAB, FM and Bluetooth.

Search UNDOK from Google Play or Apple Store for UNDOK app, and install it to your smartphone or tablet.

Before using the UNDOK app, make sure the device and the smartphone or tablet are in the same WiFi network. Launch the app.

The app initializes and scans for the device in the network. Tap the device to make the NetRemote connection.

• Once the smartphone or tablet has already accessed the device, they will automatically connect the next time when you open the app again.
• Be aware that if another smartphone or tablet with the app in the same network has access with the device; the original connection will be cut off.

When it is the first time that you connect the device to the unit, the app may ask you to enter the PIN. Default PIN is 1234. For details of changing the PIN for security, please refer to System Settings section: Network - NetRemote PIN Setup.

Select your desired mode in the main page. You may then control the selected mode on your smartphone or tablet and on the device simultaneously.

Spotify Connect

Use your phone, tablet or computer as a remote control for Spotify. Go to spotify.com/connect to learn how.

Spotify®

Licenses

The Spotify Software is subject to third party licenses found here: https://www.spotify.com/connect/third-party-licenses

Sleep Setting

This function allows you to program the unit to switch into Standby mode by itself after a set period of time.

1. To activate the sleep function, press SLEEP button repeatedly. The time will change in the below sequence on every press:

Sleep OFF → 15 minutes → 30 minutes → 45 minutes → 60 minutes → 90 minutes → 120 minutes

↑

1. When your desired sleep time appears in the display, stop pressing the button and the sleep function will be activated in two seconds. “C” will show on the display. Next to the sleep icon you will also see the displayed the remaining time until the radio will switch off.

2. When the sleep timer counts down to zero, the unit will switch into Standby mode. To switch the sleep function off while the sleep timer is still counting down, press the SLEEP button repeatedly to select "SLEEP OFF".

Alternatively,

1. Press the MENU button to display the function main menu. Press the ▶II ▲ / ▼ buttons to select Main menu, and then press the SELECT button to confirm.

2. Press the ▶II▲ / ▼ buttons to select Sleep, and then press the SELECT button to confirm.

3. Press the ▶II▲ / ▼ buttons to select sleep timer, and then press the SELECT button to confirm.

Setting the Alarm

1. Press the ALARM button on the remote control, the display shows "Alarm (1 or 2): Off [hh:mm]".

2. Press the ▶II ▲ / ▼ buttons to select the Alarm number (1 or 2) and then press the SELECT button to start the setting of the following parameters. Press the ▶II ▲ / ▼ buttons to select then press the SELECT button to confirm

Enable Off/ Daily/ Once/ Weekends/ Weekdays
Time (Alarm On time)
Mode Buzz/ Internet radio/ DAB/ FM
Preset Last Listened/ (Preset station)
Volume 0-32
Save Save and confirm the alarm setting

1. Finally, select "Save" and press the SELECT button to save the alarm setting. The display will show Alarm Saved. When the alarm is set, the alarm icon will appear on the display.

2. To temporarily switch off alarm, press SNOOZE button to activate Snooze function when alarm sounds. Press SNOOZE button repeatedly to set snooze period time of 5, 10, 15 or 30 minutes in turn. The set snooze time will show on the display and unit will go to standby.

3. To turn off the alarm when it sounds, press the oALARM button.

To cancel Alarm, refer to steps 1-3 to set alarm Off. The alarm icon will disappear from display.

Alternatively, during Standby mode, press the ALARM button repeatedly can turn the saved Alarm 1/2 on/off sequentially.

Maintenance

Cleaning the Unit

Ensure the unit is fully unplugged from the mains socket before cleaning.

• To clean the unit, wipe the case with a slightly moist, lint-free cloth.
• Do not use any cleaning fluids containing alcohol, ammonia or abrasives.
• Do not spray aerosol at or near the unit.

Troubleshooting

If a problem does occur, it may often be due to something very minor. The following table contains troubleshooting

Troubleshooting

Problem Solution
No power.	Ensure the mains adaptor plug is connected.Make sure that you select the ON mode.
No sound from the unit. Please try either one of the solutions below:Make sure that the unit is not muted. Press VOLUME+/- buttons resume normal listening.Press Standby button to switch the unit to standby mode. Then press the button again to switch the unit on.Unplug the unit from the mains socket, then plug them again. Switch on the unit.
The unit does not respond when pressing any buttons.	The unit may freeze up during use. Switch the unit off and then on again at the mains socket to reset the unit.

Radio DAB/FM

Problem Solution
Poor radio reception.	Make sure the DAB/FM aerial is fully extended.Electrical interference in your home can cause poor reception. Move the unit away from them (especially those with motors and transformers).
Desired station not found.	Weak signal. Search manually.If reception is still poor, adjust the position of the aerial.

Internet Radio

Problem Solution
No connection.	Make sure the Wi-Fi router is plugged in and working.Reconnect the radio to your Wi-Fi router.Check you radio is within 5m of your router.
Can’t hear the radio station	Sometimes the Wi-Fi connection is temporary lost or connection is weak, check the Wi-Fi connection or move the radio closer to your router.Not all radio stations transmit 24 hours a day, they might not be transmitting.Not all radio stations transmit at the same volume level you may need to increase the volume.

Bluetooth

Problem Solution
I cannot find“Majority Robinson 2IR” on my Bluetooth device.	Ensure the Bluetooth function is activated on your Bluetooth device.Re-pair the unit with your Bluetooth device.
Can’t hear the music	You may need to increase the volume on the radio and Bluetooth device.

If any functional abnormality is encountered, unplug the unit from the mains socket and reconnect it again

Specification

Brand Majority
Model Robinson 2IR
System Section
Power Supply Input: 100-240V ~ 50-60Hz	0.2A max.Output: 5.9V/1.0A
Power Consumption 5.9 W
Working Environment - Temperature 0 ~ 35 °C
Net Weight Main unit: app. 185g	Adapter: app. 80g
Unit Dimension (W) × (D) × (H) 140 x 57 x 91mm
Radio Frequency FM 87.50 – 108.00MHz	DAB 174 - 240MHz

How to activate wireless network port:

• Connect the unit with power
• Switch to wireless mode (e.g. Internet)

How to deactivate wireless network port:

- Go to Main menu - System settings - Network - Keep network connected. Select No and then press SELECT button to keep network disconnected

Radio Frequency FM 87.50 – 108.00 MHz		DAB 174 - 240MHz
Bluetooth version	Version V4.2(only support BR+EDR)
	Maximum transmitted power	5 dBm
	Frequency band 2402 -	2480 MHz
Wifi Maximum	transmitted power	15 dBm
	Frequency band 2412 -2	472 MHz

Standby power consumption:

WiFi off: < 1.00 W (standard standby mode)

WiFi on: < 2.00 W (network standby mode)

Power Adapter information

Manufacturer's name and address: DONGGUAN DONGNIU ELECTRONIC TECHNOLOGY CO.,LTD 3th floor, NO.8, HengLing Street, HengJiao Industrial Park, ShiJie Town, Dongguan City, Guangdong,P.R. China
Model Number: DNS051-0591000-AV
Input Voltage and Frequency: 100-240V ~ 50-60Hz 0.2A max.
Output Voltage: DC 5.9V
Output Current: 1.0A
Output Power: 5.9W
Average Active Efficiency: 75.0%
Efficiency at low load(10%) N/A%
No-Load Power Consumption: 0.09W

Note:

• The equipment will enter network standby mode after approx. 15 minutes.

• FM is exceptional, it is inappropriate for the intended use of equipment if the apparatus didn't receive radio signal on FM mode.

• In Internet radio, Podcasts, Spotify, DAB radio and Bluetooth Audio mode, the unit will automatically go to Standby mode after 15 minutes, if it has no audio playback. Press Standby button to resume.

• The product may have noise (1KHz signal) in the presence of strong electromagnetic fields, in case of malfunction due to these strong electromagnetic fields, user need to wait till resume normal operation without intervene."

Features and specifications are subject to change without prior notice.

Support

Thank you for purchase of Majority Robinson 2IR.

Please follow the guidance of the manual to set up your device and enjoy its fantastic features.

If you require further assistance with your new device, please contact our support team on the Majority website:

https://www.majority.co.uk/support

Warranty

Register your product at www.majority.co.uk within 30 days of purchase to activate your extended warranty.

Terms and conditions applies

• Read all the instructions carefully before using the unit and keep them for future reference.
• Check that the voltage marked on the rating label matches your mains voltage.
• The unit must be placed on a flat stable surface and should not be subjected to vibrations.
• Do not place the unit on sloped or unstable surfaces as the unit may fall off or tip over.
• The mains socket must be located near the unit and should be easily accessible.
• Avoid extreme degrees of temperature, either hot or cold. Place the unit well away from heat sources such as radiators or gas/electric fires. Avoid exposure to direct sunlight and other sources of heat.
• Never place any type of candle or naked flame on the top of or near the unit.
• To reduce the risk of fire, electric shock or product damage, do not expose this unit to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, should be placed on the unit.
• If you spill any liquid into the unit, it can cause serious damage. Switch it off at the mains immediately. Withdraw the mains plug and consult your dealer.
• To prevent the risk of electric shock or fire hazard due to overheating, ensure that curtains and other materials do not obstruct the ventilation vents.
• Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure that a minimum of 10cm should be kept around the apparatus for ventilation.

Safety

Always disconnect the unit from the mains supply before connecting/disconnecting other devices or moving the unit.

Unplug the unit from the mains socket during a lightning storm.

This unit will become warm when used for a long period of time. This is normal and does not indicate a problem with the unit.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the unit’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the manual accompanying the unit.

Mains Adapter

• Make sure the unit is not resting on top of the mains adapter cable, as the weight of the unit may damage the cable and create a safety hazard.
• If the mains adapter is damaged it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

Interference

- Do not place the unit on or near appliances which may cause electromagnetic interference. If you do, it may adversely affect the operating performance of the unit, and cause a distorted sound.

Supervision

• Children should be supervised to ensure that they do not play with the unit.
• Never let anyone especially children push anything into the holes, slots or any other openings in the case - this could result in a fatal electric shock.

Service/Maintenance

• To reduce the risk of electric shock, do not remove screws. The unit does not contain any user serviceable parts. Please leave all maintenance work to qualified personnel.
• Do not open any fixed covers as this may expose dangerous voltages.
• Ensure to unplug the unit from the mains socket before cleaning.
• Do not use any type of abrasive pad or abrasive cleaning solutions as these may damage the unit's surface.
• Do not use liquids to clean the unit.

The symbol indicates DC voltage

The symbol indicates polarity of d.c. power connector

The symbol indicates AC voltage

The symbol indicates class II equipment

For indoor use only

RECYCLING This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment. User has the choice to give his product

to a competent recycling organization or to the retailer when he buys a new electrical or electronic equipment.

- The mains plug of power adapter is used as the disconnect device, The socket-outlet shall be installed near the equipment and shall be easily accessible.

- CAUTION

Risk of explosion if battery is replaced by an incorrect type

- Warning

To avoid replacement of a battery with an incorrect type

Don't disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a Battery.

Don't leaving a battery in an extremely high temperature surrounding environment. To avoid battery subjected to extremely low air pressure.

Under the environment with radio-frequency disturbance, the product may malfunction and could self-recover when the interference disappear.

Keep these instructions.

IMPORTANT: Please read all instructions carefully before use and keep for future reference

MAJORITY

Robinson 2IR

Internet Radio and DAB+ adapter

MAJORITY Internet Radio DAB Radio Spotify Podcasts Bluetooth Audio FM Radio

LINE OUT DC B PTC OUT INT 4 5 6 7

Simple line drawing of a device with a square screen and a labeled point A (no text or symbols beyond the label)

Simple line drawing of a book with a vertical line and label B (no text or symbols on the book itself)

Simple line drawing of a cord with a loop and a hanging hook, connected to a vertical line with a circular symbol (no text or labels)

Line drawing of a medical or electrical device with coiled cable, plug, and connector (no text or symbols)

Line drawing of a remote control with buttons and a pointer (no text or symbols)

Diagram showing battery charging process with downward arrow and two battery cells before charging

20° 15° Max 4m

Sichere

Internet Radio and DAB+ adapter

MAJORITY Internet Radio DAB Radio Spotify Podcasts Bluetooth Audio FM Radio

Spotify Connect....32

SC B USB OUT PTS OUT INT RA 4 5 6 7

Simple line drawing of a device with a square screen and a labeled point A (no text or symbols beyond the label)

Simple line drawing of a book with a vertical line and label B (no text or symbols on the book itself)

Simple line drawing of a cord with a loop and a circular base (no text or symbols)

Line drawing of a medical or electronic device with coiled cable, plug, and connector (no text or symbols)

Line drawing of a remote control with labeled button E (no text or symbols on the device itself)

Diagram illustrating battery charging process with labeled components and directional arrow

Internet Radio and DAB+ adapter

MAJORITY Internet Radio DAB Radio Spotify Podcasts Bluetooth Audio FM Radio

Spotify Connect....31

Troubleshooting....35

Simple line drawing of a device with a square screen and a circular button labeled 'A' (no text or symbols beyond the label)

Simple line drawing of a book with a vertical line and label B (no text or symbols on the book itself)

Simple line drawing of a cord with a loop and a circular base (no text or symbols)

Line drawing of a medical or electronic device with coiled cable, plug, and connector (no text or symbols)

Line drawing of a remote control with labeled button E (no text or symbols on the device itself)

Diagram illustrating battery charging process with labeled components and directional arrow

Intervallo operativo del telecomando

Internet Radio and DAB+ adapter

MAJORITY Internet Radio DAB Radio Spotify Podcasts Bluetooth Audio FM Radio

Spotify Connect....30

Simple line drawing of a device with a square screen and a labeled point A (no text or symbols beyond the label)

Simple line drawing of a book with a vertical line and label B (no text or symbols on the book itself)

Simple line drawing of a cord with a loop and a circular base (no text or symbols)

Line drawing of a medical or electronic device with coiled cable, plug, and connector (no text or symbols)

Line drawing of a remote control with labeled button E (no text or symbols on the device itself)

Diagram illustrating battery charging process with downward arrow and charge distribution

EU Declaration of Conformity

I hereby declare that the product:

Product Name: Internet Radio and DAB+ adapter

Model number: Robinson 2IR

Brand: Majority

SKU code: 1000002824

Satisfies all the technical regulations applicable to the product within the scope of Council Directives 2014/35/EU and 2014/30/EU, 2009/125/EC, 2012/19/EU, 2014/53/EU, 2011/65/EU, 1907/2006.

2014/35/EU (LVD Directive)

EN62368-1:2014+A11:2017

2014/30/EU (EMC Directive)

EN55032:2015+A11:2020, Class B, EN IEC 61000-3-2:2019, EN61000-3-3:2013 +A1:2019, EN55035:2017+A11:2020, EN 301 489-1 V2.2.3 (2019-11), EN 301489-17 V3.2.4 (2020-09)

2009/125/EC (ERP Directive)

1907/2006 (REACH Directive)

All essential test suites have been carried out.

This declaration is issued under the sole responsibility of iZilla Ltd.

Point of Contact: Eddie Latham I Founder

Signed: E.Latham

Date: 10.01.2023

UK: iZilla Ltd, Newton House, 2 Pioneer Court, Histon, Cambridge, CB24 9PT, UK

EU RP: AR Experts, P.O. Box 5047, 3620 AA Breukelen, The Netherlands

US: Izilla Ltd, C/0 A.N. Deringer, Inc., 19520 Wilmington Ave, Rancho Dominguez, CA, 90220

Majority is owned and operated by iZilla Ltd. Registered in England with Company No: 08520738

MAJORITY

www.majority.co.uk
