USER MANUAL Motion 2 Martin Logan

Refer servicing to a qualified technician.
- To prevent fire or shock hazard, do not expose this module to moisture.
- Turn amplifier off should any abnormal conditions occur.
- Do not drive speaker beyond its rated power.

The lightning bolt flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the pres

ence of potentially "dangerous voltage" within the product's enclosure that may be sufficient to constitute a risk of electric shock.

The exclamation point within an equi-lateral triangle is intended to alert the user to the presence of important oper

ating and maintenance (servicing) instructions in the literature accompanying the appliance.

In accordance with the European Union WEEE (Waste Electrical and Electronic Equipment) directive effective August 13,

2005, we would like to notify you that this product may contain regulated materials which upon disposal, according to the WEEE directive, require special reuse and recycling processing. For this reason Martin Logan has arranged with our distributors in European Union member nations to collect and recycle this product at no cost to you.

To find your local distributor please contact the dealer from whom you purchased this product, email info@ martinlogan.com or visit the distributor locator at www. martinlogan.com.

Please note, only this product itself falls under the WEEE directive. When disposing of packaging and other related shipping materials we encourage you to recycle these items through the normal channels.

Connection

Installation .

Break In 4

Installing On A Flat Surface 4

Installing On A Wall. 5

Moving or Removing the Logo Badge . . . . .6

Frequently Asked Questions

Troubleshooting

Contacting Customer Service

General Information

Warranty Information 8

Serial Number. 8

Service 8

Specifications

Dimensional Drawings

MartinLogan Motion 2 . 10

MartinLogan Motion 4 11

Serial Number:

Record your serial number here for easy reference. You will need this information when filling out your warranty registration. The serial number is located near the binding posts and on the product carton.

(Motion 4 only)

CONNECTION

WARNING! Turn your amplifier off before making or breaking any signal connections!

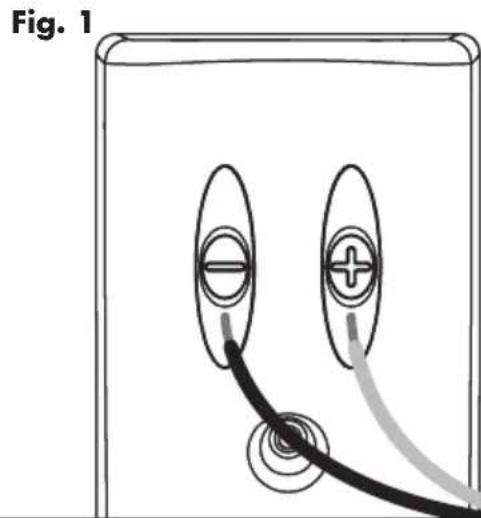

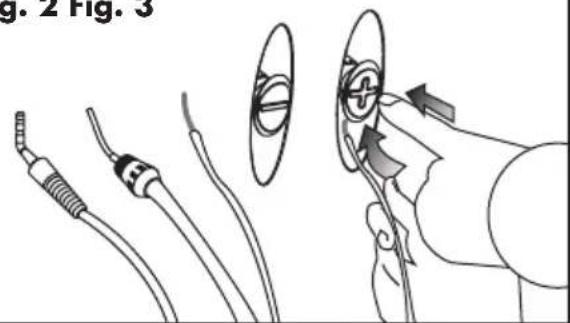

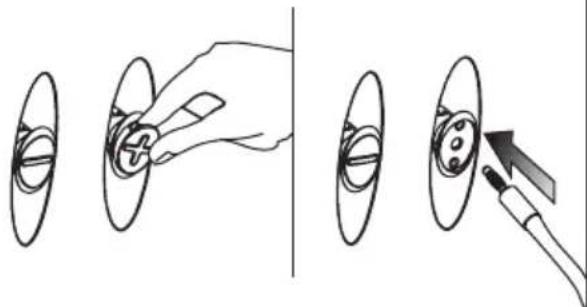

These speakers are designed with easy-to-use push-style binding posts that accept bare wire or pins (fig. 2). Additionally, by removing the rubber inserts, they will accept banana plugs (fig. 3)

Assign the same color to the (+) and (-) terminals on both the speaker and the amplifier. Make certain that all connections are tight.

Fig. 2 Fig. 3

INSTALLATION

WARNING! Installation other than that described in the body of this document requires specific documentation from MartinLogan.

BREAK IN

Allow approximately 72 hours of break-in at 90 dB (moderate listening levels) before any critical listening.

INSTALLING ON A FLAT SURFACE

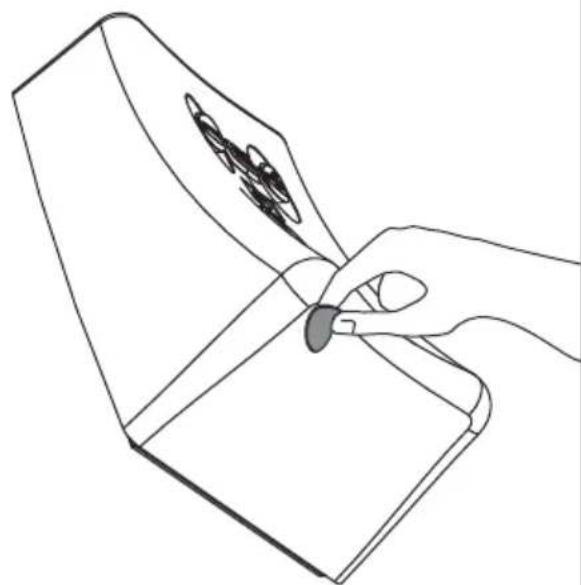

If you have a surface that provides a wide, level, and stable platform, the speaker can be placed directly on top. When using the speaker in this configuration, affix the pads to the bottom of the speaker at the rear contact points (fig. 4). Note: This

Fig. 4

speaker is not magnetically shielded and therefore should not be placed directly beside or atop a CRT television.

Toe-In: When installed on a surface and used as front channels we recommend aiming your speakers towards the primary listening position.

INSTALLING ON A WALL

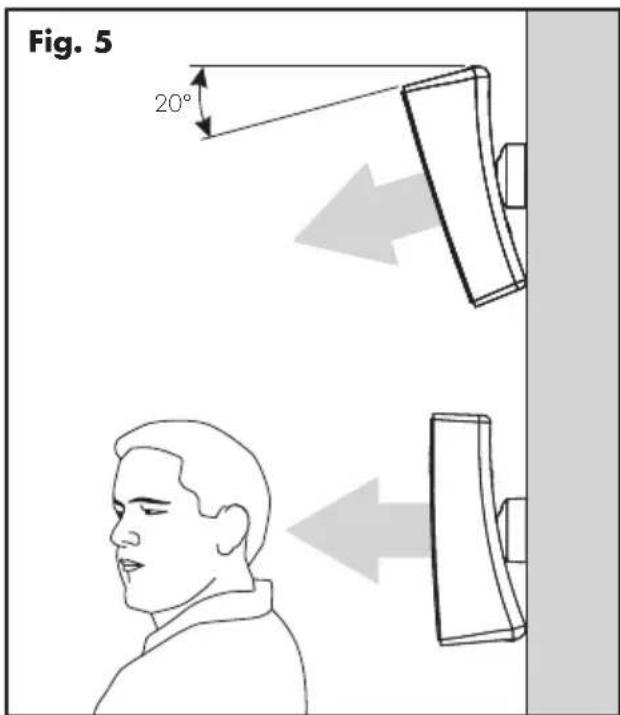

If the speaker is being mounted approximately AT EAR LEVEL, the speaker should be oriented with the tweeteter at top. This will disperse sound directly towards the desired listening area (fig. 5).

If the speaker is being mounted ABOVE EAR LEVEL, the speaker should be oriented with the tweeter at bottom. This will disperse the sound down at a 20^ angle towards the listening area (fig. 5).

Note: These instructions assume the mounting surface is standard wood frame and sheet rock construction. If you wish to mount to another type of surface, consult a bonded contractor.

Required hardware (included):

(1) Installation template
(1) Wall bracket
(1) Wall bracket spacer (Motion 4 only)
(2) 1.5-inch Phillips sheet metal screws
(2) Sheet rock anchors
(1) Shoulder bolt
(2) Wall pads

Required tools (not supplied):

Ruler
Level
Electric drill and 1 / 4'' and 1 / 8'' drill bits
Phillips screwdriver

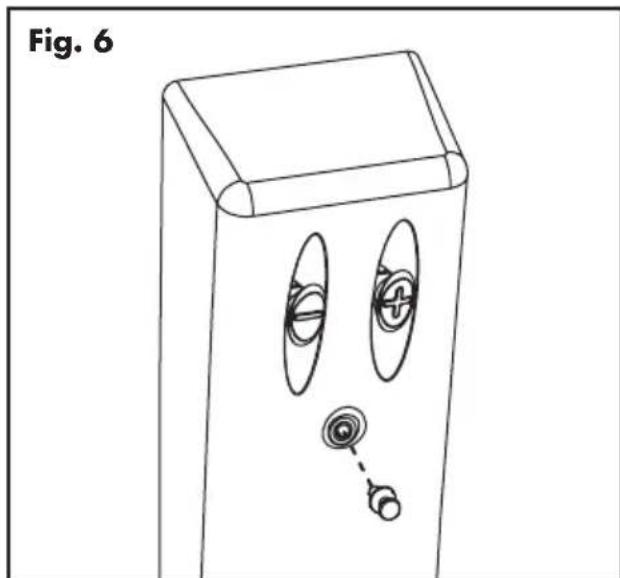

1 Screw the shoulder bolt into the back (fig. 6).

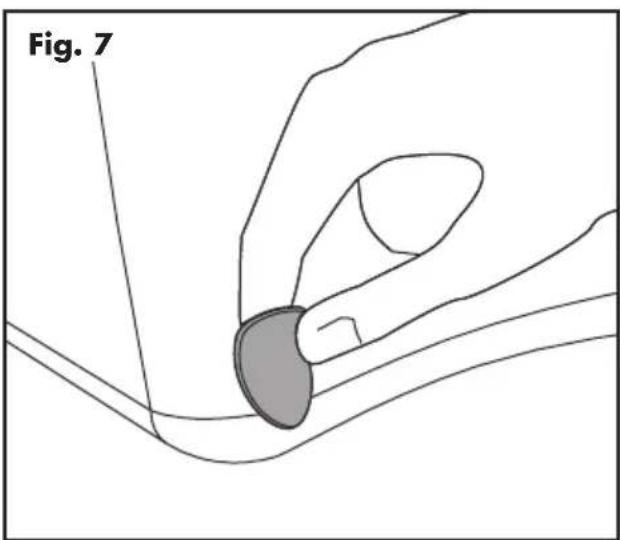

2 Affix the wall pads to the back of the speaker at the lower contact points (fig. 7).

1. Locate mounting location using a level and the installation template.
   4 Mark the pilot hole locations.

5 Drill the pilot holes using a 1/8-inch drill bit. If a pilot hole DOES NOT hit a stud, widen that pilot hole using a 1/4-inch drill bit and install a wall anchor at that location (fig. 8).

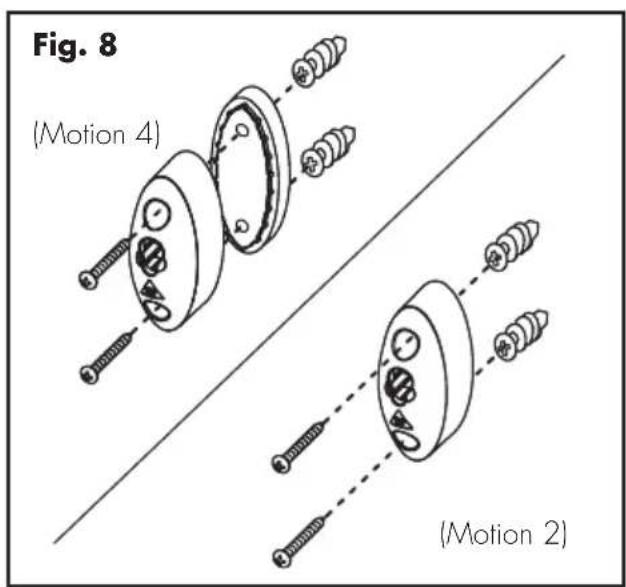

6 Using the 1.5-inch Phillips screws, mount the wall brackets as shown. Please note, only the MartinLogan Motion 4 requires the additional wall bracket spacer (fig. 8).
7 Hang the speaker, guiding the wall mount bolt into the wall bracket's keyhole.

MOVING OR REMOVING THE LOGO BADGE

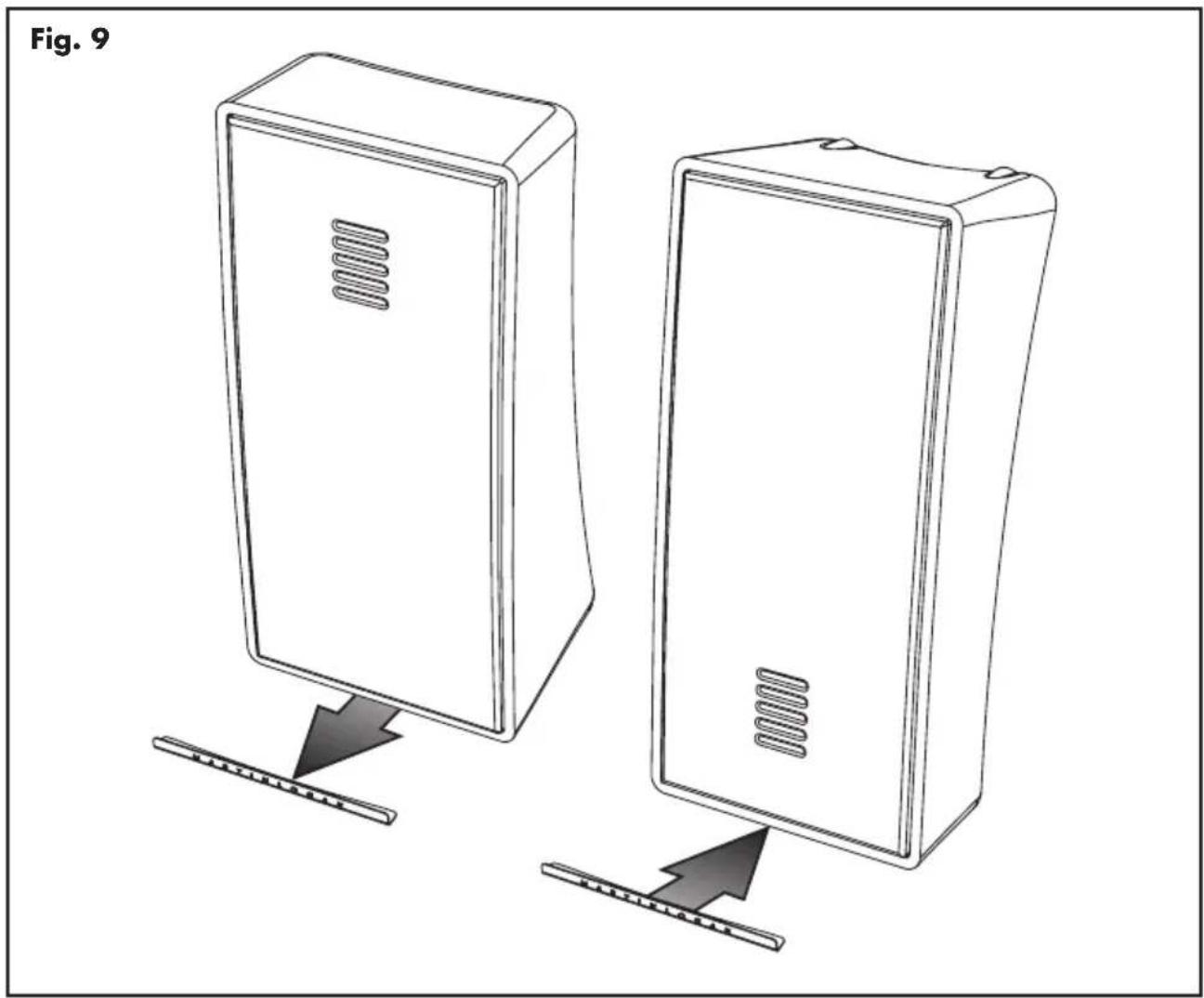

To remove the logo badge gently pull it away from the speaker grill. To reinstall the logo badge insert it between the speaker grill and cabinet at the desired location and press it into place (fig. 9).

Frequently Asked Questions

How do I clean my speakers?

Use a dust free cloth (such as a micro fiber cloth) or a soft brush to remove dust from your speakers. Do not spray any kind of cleaning agent on or in close proximity to the drivers.

Could you suggest a list of suitable electronics and cables ideal for MartinLogan speakers?

We have no favorites and use electronics and cables quite interchangeably. We would suggest listening to a number of brands—and above all else—trust your ears. Dealers are always the best source for information when purchasing additional audio equipment.

Is there likely to be any interaction between my speakers and the television in my A/V system?

Yes. These speakers are not shielded and should be kept at least 2 feet away from a CRT television.

Will exposure to sunlight affect the life or performance of my speakers?

We recommend against placing any loudspeaker in direct sunlight. Ultraviolet (UV) rays from the sun can cause deterioration of cabinet, speaker cones, etc. Small exposures to UV will not cause a problem. Filtering of UV rays through glass will greatly reduce the negative effects.

TROUBLESHOOTING

No Output

• Check that all system components are turned on and source material is playing.
• Check speaker wires and connections.
• Check all interconnecting cables.
• If you are unable to resolve your problem, please contact your dealer or MartinLogan customer service (see below).

CONTACTING CUSTOMER SERVICE

MartinLogan customer service is available Monday-Friday between the hours of 8am-5pm (central time) by calling [phone] or by emailing [e-mail].

GENERAL INFORMATION

WARRANTY INFORMATION

Your speakers are provided with an automatic Limited 90 Day Warranty coverage. You have the option, at no additional charge, to receive a Limited 5 Year Warranty coverage. To obtain the Limited 5 Year Warranty coverage you need to complete and return the Certificate of Registration to MartinLogan within 30 days of purchase. For your convenience MartinLogan also offers online warranty registration at www.martinlogan.com.

MartinLogan may not honor warranty service claims unless we have a completed Warranty Registration card on file! If you did not receive a Certificate of Registration with your new speakers you cannot be assured of having received new units. If this is the case, please contact your authorized MartinLogan dealer.

SERIAL NUMBER

Serial number is located on back of the speaker, directly beneath the binding posts. The serial number may also be found on the product carton.

SERVICE

Should you use your MartinLogan product in a country other than the one in which it was originally purchased, we ask that you note the following:

1 The appointed MartinLogan distributor for any given country is responsible for warranty servicing only on units distributed by or through it in that country in accordance with its applicable warranty.
2 Should a MartinLogan product require servicing in a country other than the one in which it was originally purchased, the end user may seek to have repairs performed by the nearest MartinLogan distributor, subject to that distributor's local servicing policies, but all cost of repairs (parts, labor, transportation) must be borne by the owner of the MartinLogan product.
3 If, after owning your speaker for six months, you relocate to a country other than the one in which you purchased your speaker, your warranty may be transferable. Contact MartinLogan for details.

SPECIFICATIONS*	MARTINLOGAN MOTION 2	MARTINLOGAN MOTION 4
Frequency Response	.110-25,000 Hz ± 3 dB	70-25,000 Hz ± 3 dB
Dispersion	.80° x 80°	80° x 80°
Sensitivity.	.86 dB @ 2.83 volts/ meter	90 dB @ 2.83 volts/ meter
Impedance	.4 Ohms. Compatible with 4, 6, or 8 Ohm rated amplifiers.	4 Ohms. Compatible with 4, 6, or 8 Ohm rated amplifiers.
Crossover Frequency	2,800 Hz	2,900 Hz
High Frequency Driver	.1" x 1.4" (2.6cm x 3.6cm) Folded Motion Transducer with 5.25" x 1.75" (13.3cm x 4.4cm) diaphragm.	1" x 1.4" (2.6cm x 3.6cm) Folded Motion Transducer with 5.25" x 1.75" (13.3cm x 4.4cm) diaphragm.
Low Frequency Driver	.3.5" (8.9cm) poly cone with stamped steel basket. Non- resonant asymmetrical chamber format. Rigid structured dust cap to reduce cone break-up modes.	4" (10.2cm) paper cone with stamped steel basket. Non- resonant asymmetrical chamber format. Rigid structured dust cap to reduce cone break-up modes.
Cabinet	Sealed	Folded bass-reflex port
Components	Custom air core coil and low DCR steel laminate inductors. Polyester film capacitors in series and low DF electrolytic capaci- tors in parallel. Overall system thermal/current protection.	Custom air core coil and low DCR steel laminate inductors. Polyester film capacitors in series and low DF electrolytic capaci- tors in parallel. Overall system thermal/current protection.
Recommended Amp Power	20-100 watts	20-150 watts
Binding Post Inputs	Push style with banana jacks	Push style with banana jacks
Weight.	.4 lbs.(1.81 kg)	6 lbs. (2.72 kg)
Dimensions (HxWxD)	.11.3" x 5.3" x 4.5" (28.6cm x 13.3cm x 11.4cm)	12.6" x 5.6" x 5.25" (32cm x 14.2cm x 13.3cm)

*Specifications are subject to change without notice.

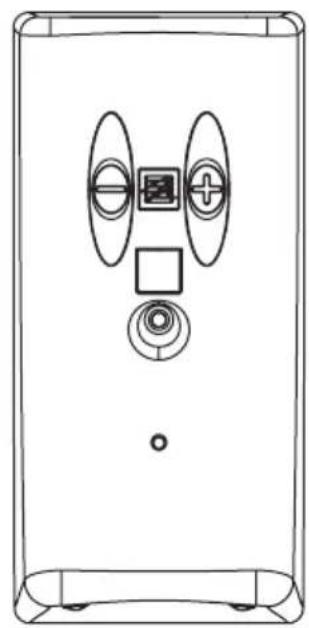

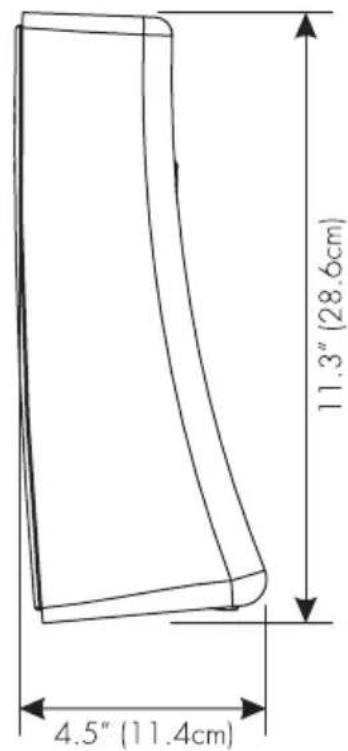

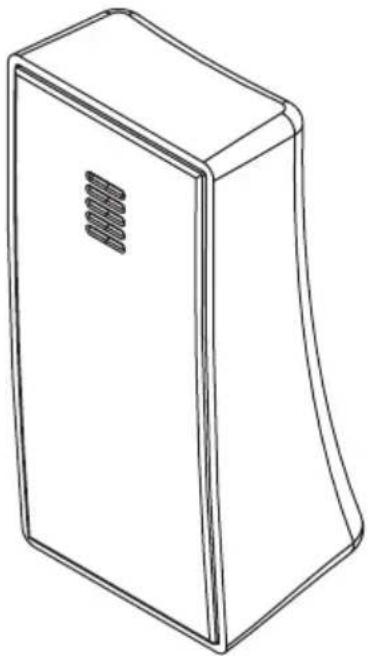

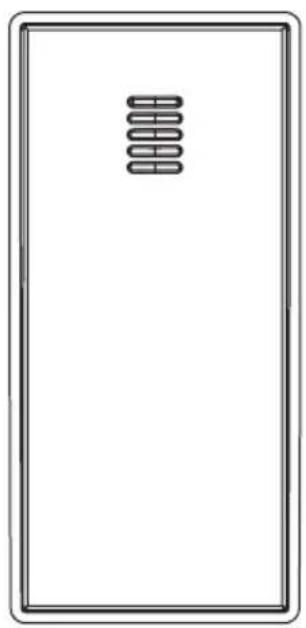

DIMENSIONAL DRAWINGS MARTINLOGAN MOTION 2

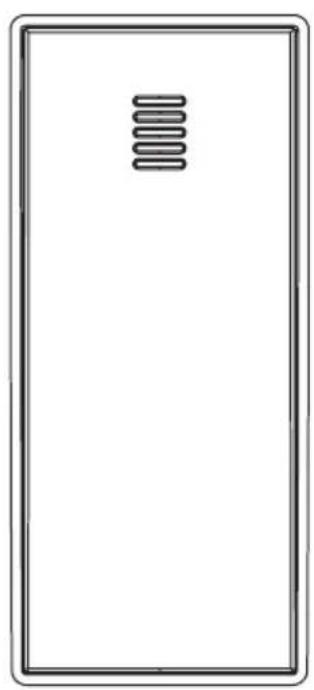

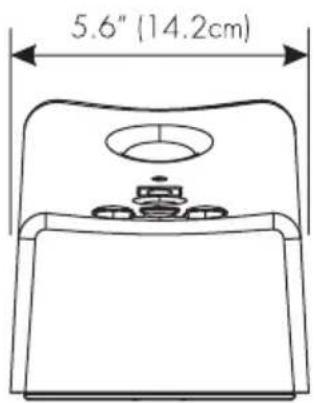

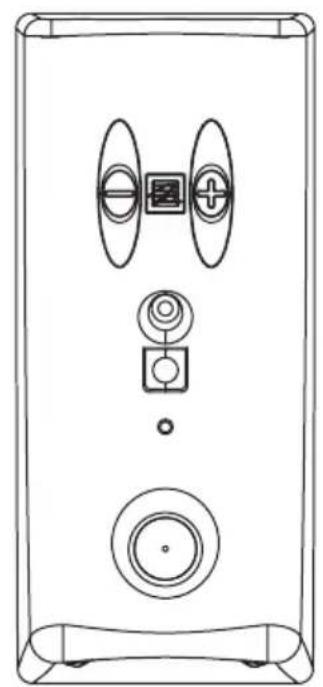

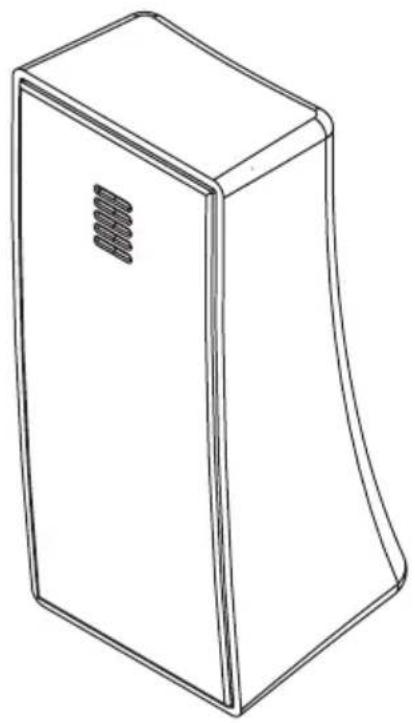

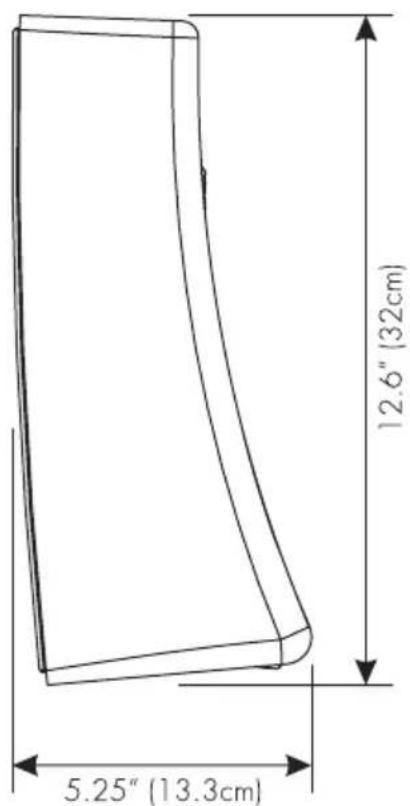

DIMENSIONAL DRAWINGS MARTINLOGAN MOTION 4

The Great American Speaker Company

Lawrence, Kansas, USA tel [phone] fax [phone] www.martinlogan.com
