Product Type	Connected LED bulb
Brand	IKEA
Model	TRÅDFRI 005.413.00
Lighting technology	LED
Supply voltage	220-240 V AC
Operating frequency	2405 - 2480 MHz
Output power	10 dBm
Communication protocol	Zigbee (IKEA Home Smart)
Maximum number of sources per control	10
Reset	Toggle the switch 6 times
Do not use with standard dimmer	Yes, only IKEA device
Compatibility	IKEA connected lighting products only
Use	Indoor
Maintenance	Clean with a dry cloth
Recycling	Dispose according to local regulations
Protection rating	IP20
Pairing	Control device within 5 cm, press for 10 seconds
Pairing indicator	Red LED indicator

Frequently Asked Questions - TRÅDFRI 005.413.00 IKEA

How to pair the bulb with a control device?

Ensure the light source is installed and turned on. Hold the control device within 5 cm of the light source and press the pairing button for at least 10 seconds until the red indicator lights up. The light source will blink once to confirm pairing.

How many bulbs can be paired to a single control device?

Up to 10 light sources can be paired to a single control device. Pair them one after another.

Can I use this bulb with a standard dimmer?

No, this bulb must not be used with a standard dimmer. Use only the control device provided with the product or from the IKEA connected lighting range.

How to reset the bulb?

To reset the bulb, toggle the main switch 6 times.

What is the operating frequency of the bulb?

The operating frequency is 2405 to 2480 MHz.

Is this bulb compatible with other smart home systems?

This bulb is compatible only with products from the IKEA connected lighting range. It does not work with other systems.

How to clean the bulb?

Clean the bulb with a dry cloth. Do not use liquid or abrasive products.

How to recycle the bulb?

The crossed-out wheelie bin symbol indicates that the product must be recycled according to local environmental regulations. Contact your IKEA store for more information.

What is the output power of the bulb?

The output power is 10 dBm.

What to do if pairing fails?

Check that the light source is on and that the control device is within 5 cm. Try again by holding the pairing button for at least 10 seconds. If the problem persists, reset the bulb by toggling the switch 6 times.

USER MANUAL TRÅDFRI 005.413.00 IKEA

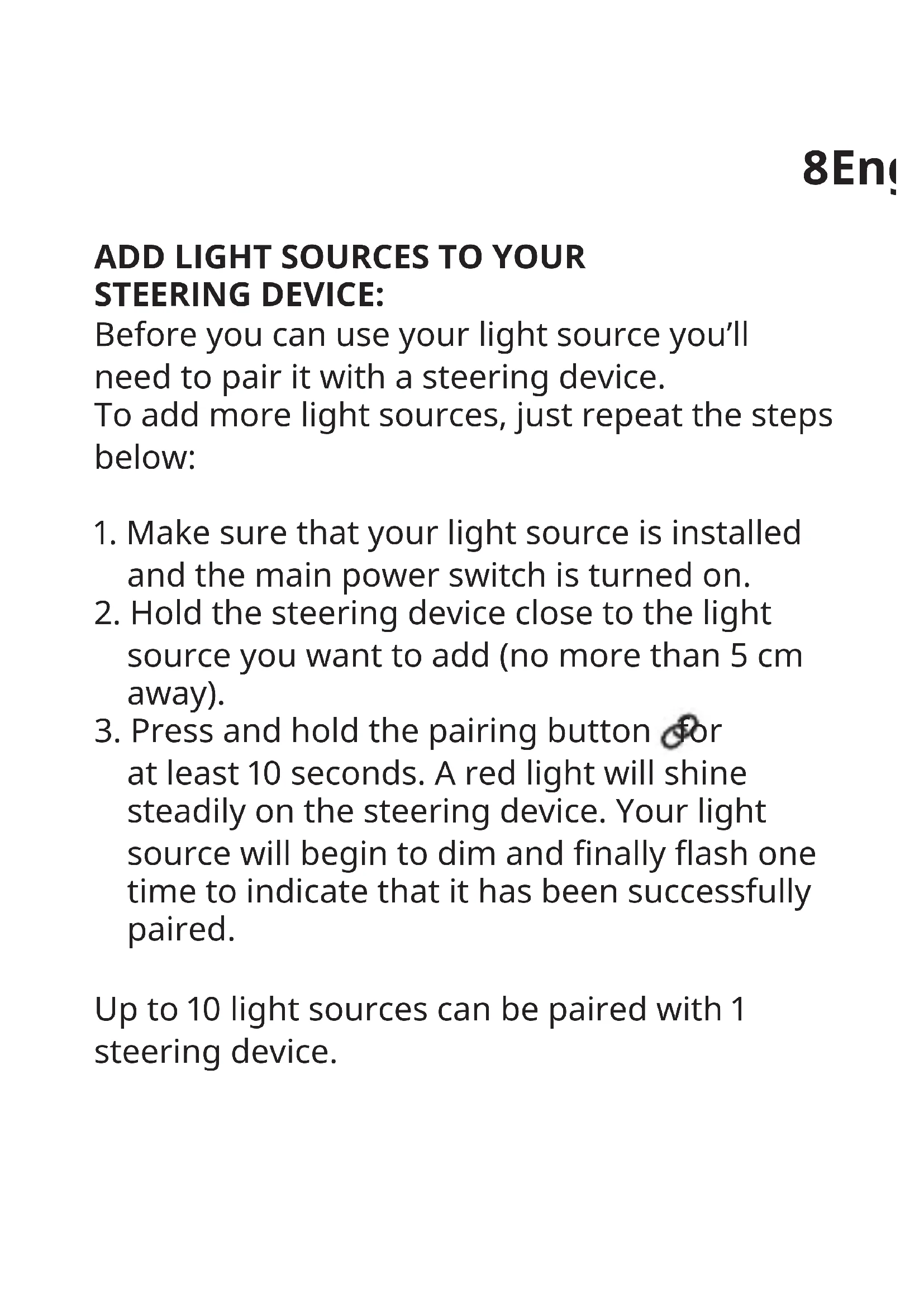

ADD LIGHT SOURCES TO YOUR STEERING DEVICE:

Before you can use your light source you'll need to pair it with a steering device. To add more light sources, just repeat the steps below:

1. Make sure that your light source is installed and the main power switch is turned on.
2. Hold the steering device close to the light source you want to add (no more than 5 cm away).
3. Press and hold the pairing button for at least 10 seconds. A red light will shine steadily on the steering device. Your light source will begin to dim and finally flash one time to indicate that it has been successfully paired.

Up to 10 light sources can be paired with 1 steering device.

Make sure to pair them one at a time. If the light sources are close to each other, disconnect those that have already been paired from the main power switch.

CAUTION:

DO NOT USE WITH STANDARD DIMMERS. Only use the control provided with or specified by these instructions to control this bulb. This bulb will not operate properly when connected to a standard (incandescent) dimmer or dimming control. Only controllable by IKEA Smart lighting products.

RESET YOUR DEVICE

Toggle the main switch 6 times.

TECHNICAL DATA:

Operating frequency: 2405 - 2480 MHz Output power: 10 dBm

Manufacturer: IKEA of Sweden AB

Address: Box 702, SE-343 81 Ålmhult, SWEDEN

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.

AJOUT SOURCES LUMINEUSES AU DISPOSITIF DE COMMANDE

Fabricant : IKEA of Sweden AB

Adresse: Box 702, SE-343 81 Almhult, SUÉDE

JE APPARAAT RESETTEN

Producent: IKEA of Sweden AB

Adresse: Box 702, SE-343 81 Almhult, Sverige

Framleiðandi: IKEA of Sweden AB

Heimilisfang: Box 702, SE-343 81 Ålmhult, SWEDEN

Produsent: IKEA of Sweden AB

Adresse: Box 702, SE-343 81 Ålmhult, SWEDEN

Producent: IKEA of Sweden AB

Adres: Box 702, SE-343 81 Ålmhult, SZWECJA

Tootja: IKEA of Sweden AB

Address: Box 702, SE-343 81 Ålmhult, SWEDEN

Vyrobca: IKEA of Sweden AB

Adresa: Box 702, SE-343 81 Ålmhult, SWEDEN

I3xodya Mounch: 10 dBm

TEXHINUeCKNE XAPAKTEPNUCTNKN:

Pa6o7a yactota: 2405-2480 MΓu.

BbIXoHna MoUcHoCTb: 10 d5m.
