Levaro Powerbrush 18V - Vacuum Cleaner WAGNER - Free user manual and instructions

Product type	Outdoor floor cleaner / Vacuum with wet function
Brand	Wagner
Model	Levaro Powerbrush 18V
Weight	4.1 kg
Power supply	Li-Ion battery 18 V, 2.5 Ah (PBA 18V compatible Bosch Power For All)
Charger	AL 1810 CV, input 220-240 V~ 50-60 Hz, output 14.4-18 V, charging current 1000 mA
Charging time	Approximately 120 min (80%), 154 min (100%)
Dirt bin capacity	500 ml
Water tank capacity	700 ml
Brush rotation speed	950 rpm
Spray rate	195 ml/min
Surface efficiency	10 m² in 10 minutes
Main functions	Rotary brushing, vacuuming, water/cleaning solution spraying
Areas of use	Stone, wood, WPC floors outdoors; picking up leaves and small objects
Safety	Unlock button to prevent accidental start; overload shutdown; instructions for battery and charger
Maintenance	Regularly empty the dirt bin; clean brushes, comb and spray nozzle
Spare parts and accessories	Brush kits (Universal, Stone, Wood), cleaning solutions, battery, charger, bin, tank, nozzle
Warranty	3 years + 1 additional year subject to registration within 28 days
Repairability	Repair by authorized after-sales service; use of original parts required
Storage	In the storage station, protected from frost and direct sunlight

Frequently Asked Questions - Levaro Powerbrush 18V WAGNER

How to start the Levaro Powerbrush?

Press and hold the unlock button (3) then press the ON/OFF switch (1) and hold it to start the brushes. Release the unlock button after starting.

Which batteries are compatible with this device?

The device works with PBA 18V batteries compatible with BOSCH POWER FOR ALL of at least 2.5 Ah. Only use the recommended charger (AL 1810 CV).

How to clean the rotating brushes?

Unlock the dirt bin, lift the device, then rinse the underside with a garden hose. Regularly check the brushes and the comb, and clean them if necessary. If efficiency decreases, replace the brushes.

How to empty the dirt bin?

Unlock the bin (8), lift the device, remove the bin, empty it and rinse if necessary. It is recommended to empty it regularly, for example after 15 m² or after a battery charge.

What is the wet function for?

The wet function sprays water or cleaning solution to loosen dirt. Press and hold the wet function switch (2) during use. The blue indicator lights up when it is active.

Which cleaning solutions to use?

Use original Wagner solutions: Wood Cleaner for wood/WPC, Stone Cleaner for stone, and Deep Cleaner for intensive cleaning. Follow a concentration of about 10% in water.

How to store the device after use?

Place the device in the storage station (12) to avoid dirt and protect the brushes. Store it in a dry place, protected from frost and sun.

What to do if the device does not start?

Check that the battery is charged and compatible, that the unlock button was pressed before the switch. If the device is overloaded (brushes blocked), press the ON/OFF switch 5 times to restart.

How to replace the spray nozzle?

Slightly compress the spray nozzle on the left and right, then remove it from the device. Clean it in hot water or replace it with a new one (ref. 2449899).

What is the warranty on this product?

The warranty is 3 years, extended by 1 year if you register the product within 28 days of purchase at go.wagner-group.com/3plus1. It covers material and manufacturing defects, except for use of non-original parts or unauthorized repair.

USER MANUAL Levaro Powerbrush 18V WAGNER

https://go.wagner-group.com/hf-warranty-conditions

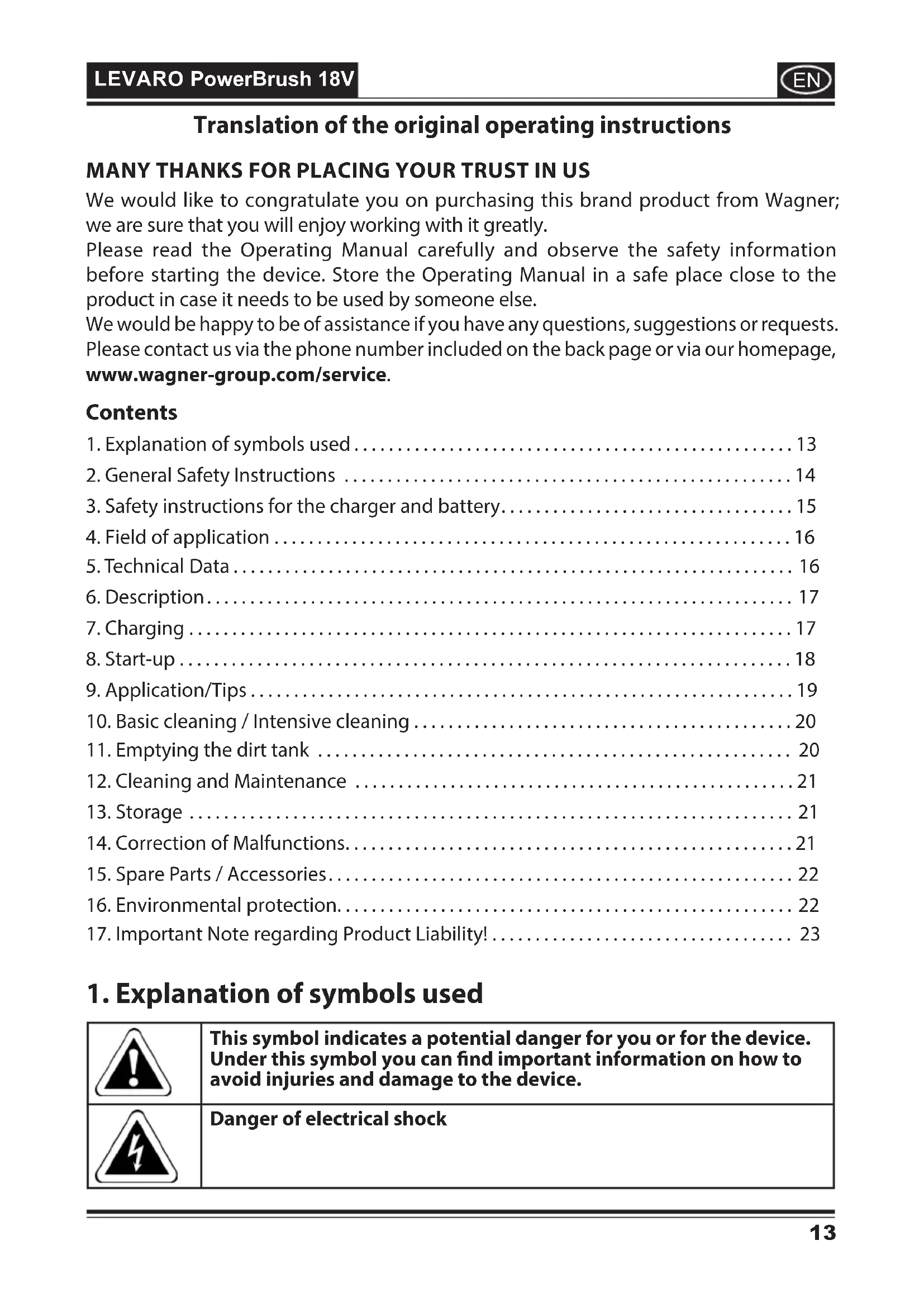

Translation of the original operating instructions

MANY THANKS FOR PLACING YOUR TRUST IN US

We would like to congratulate you on purchasing this brand product from Wagner; we are sure that you will enjoy working with it greatly.

Please read the Operating Manual carefully and observe the safety information before starting the device. Store the Operating Manual in a safe place close to the product in case it needs to be used by someone else.

We would be happy to be of assistance if you have any questions, suggestions or requests. Please contact us via the phone number included on the back page or via our homepage, www.wagner-group.com/service.

Contents

1.Explanation of symbols used. 13
2. General Safety Instructions 14
3. Safety instructions for the charger and battery. 15
4. Field of application 16
5. Technical Data 16
6.Description. 17
7. Charging 17
8.Start-up 18
9.Application/Tips 19
10. Basic cleaning / Intensive cleaning 20
11. Emptying the dirt tank 20
12. Cleaning and Maintenance 21
13.Storage 21
14. Correction of Malfunctions 21
15. Spare Parts / Accessories 22
16.Environmental protection. 22
17. Important Note regarding Product Liability! 23

1. Explanation of symbols used

This symbol indicates a potential danger for you or for the device. Under this symbol you can find important information on how to avoid injuries and damage to the device.

Danger of electrical shock

Indicates tips for use and other particularly useful information.

2. General Safety Instructions

WARNING!

Read all safety information, instructions, illustrations and technical data provided with this power tool. Failure to observe the following instructions may cause electric shock, fire and/or severe injuries. Keep all safety information and instructions for future reference. The term "power tool" used in this safety information refers to mains-operated power tools (with power cable) and to battery-powered power tools (without power cable).

• This device may be used by children aged 8 years and over, as well as by persons with impaired physical, sensory or mental capacities or a lack of experience and/or knowledge if they are supervised or have been instructed in the safe use of the device and have understood the dangers it poses. Children must not play with the device. Cleaning and user maintenance must not be carried out by children unless they are supervised.
• Only start the device when it is upright!
• Never bring hands and feet near the rotating brush tool.
• Do not run the rotating brushes over electrical wires. Remove them from the work area.
• Only pick up smaller and softer objects. Sharp-edged objects (e.g. broken glass), coarser stones (e.g. pebbles) and hot objects (e.g. embers) can damage the device.
• Only lift or carry the device with the motor switched off.
• Only operate the wet function when the fresh water tank is full. Operation without liquid leads to increased wear and damages the pump.
• Fill the fresh water tank only with water and original Wagner cleaning agent. Liquids containing acids and solvents, coating materials such as varnishes, oils and paints as well as essential oils and similar substances can damage the device.
• Fill the fresh water tank with max. 700ml .
• Never leave the device unattended while it is in operation.
• Always park the device in the parking tray to avoid soiling.
• Do not use the device if it has been dropped, visibly damaged or is leaking.
• Danger of short circuit due to penetrating liquids. Do not spray the battery and ventilation slots with a garden hose or high-pressure cleaner. Do not immerse the device in liquids.
• Remove the battery before cleaning or servicing the device.

3. Safety instructions for the charger and battery

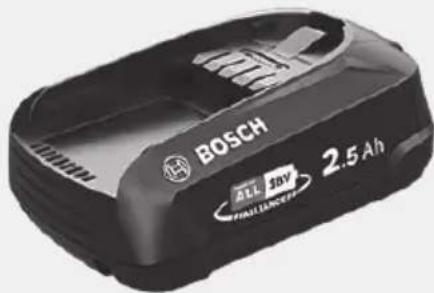

Only use the tool with BOSCH POWER FOR ALL compatible PBA 18V batteries with at least 2.5 Ah and suitable chargers. The battery voltage must match the battery charging voltage of the charger. Do not charge non-rechargeable batteries. Otherwise there is a risk of fire and explosion.

Only use the charger indoors and keep it away from moisture. Water penetrating into a power tool increases the risk of an electric shock.

• Keep the charger clean. There is a risk of electric shock due to contamination.
• Before every use, check the charger, cable and plug. Do not use the charger if it is damaged. Do not open the charger yourself and only have it repaired by qualified specialist personnel using original spare parts. Damaged chargers, cables and plugs increase the risk of electric shock.
• Do not operate the charger on easily combustible surfaces (e.g. paper, textiles, etc.) or in combustible environments. There is a risk of fire due to the heating of the charger during charging.
• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
• The battery is delivered partially charged. To ensure full battery performance, fully charge the battery in the charger before first use.
• Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
• Only use the battery in the manufacturer's products. This is the only way to protect the battery from dangerous overloading.
• Keep batteries out of the reach of children.
• Do not open the battery. There is a risk of a short circuit.
• Vapours may also escape if the battery is damaged or used improperly. Take in fresh air and consult a doctor if you have any symptoms. The vapours may irritate the respiratory tract.
• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
• Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
• If the battery is defective, liquid may leak out and wet adjacent objects. Check affected parts. Clean them or replace them if necessary.
• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

• The battery can be damaged by sharp objects such as nails or screwdrivers or by external force. An internal short circuit may occur and the battery may burn, smoke, explode or overheat.

• Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

• Protect the battery from heat, e.g. also from permanent sunlight, fire, dirt, water and moisture. There is a risk of explosion and short circuit.
• Operate and store the battery only at an ambient temperature between -20^ and +50^ . Do not leave the battery in the car in summer, for example. At temperatures < 0^ , performance may be restricted depending on the unit.
• Charge the battery only at ambient temperatures between 0^ and +35^ . Charging outside the temperature range can damage the battery or increase the risk of fire.
• Lithium-ion batteries are subject to the Dangerous Goods Legislation requirements.

The batteries are suitable for road-transport by the user without further restrictions. When shipping by third parties (e.g.: by air transport or forwarding agency), special requirements on packaging and labelling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is required. Dispatch battery packs only when the housing is undamaged. Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging. Please also observe the possibility of more detailed national regulations.

4. Field of application

The Levaro can be used to clean and maintain stone, wood and WPC floors outdoors. Dirt and small objects such as leaves can also be collected.

5. Technical Data

Technical Data*
Rechargeable battery (PBA 18 V, 2.5 Ah): Li-Ion, 1	8 V, 2.5 Ah =
Rated current: 8 A
Charger (AL 1810 CV): Input voltage	220-240 V~, 50-60 Hz;
Output voltage	14.4-18 V
Charging current	1000 mA
Protection Class (charger):	☐ / II
Charging time:	approx. 120 min (80%), 154 min (100%)
Area coverage: 10 m² in 10 minutes
Brush speed: 950 U/min
Spray delivery rate: 195 ml/min
Fresh water tank: 700 ml
Dirt tank: 500 ml
Weight: 4.1 kg

• When using a PBA 18 V, 2.5 Ah battery and a charger AL 1810 CV

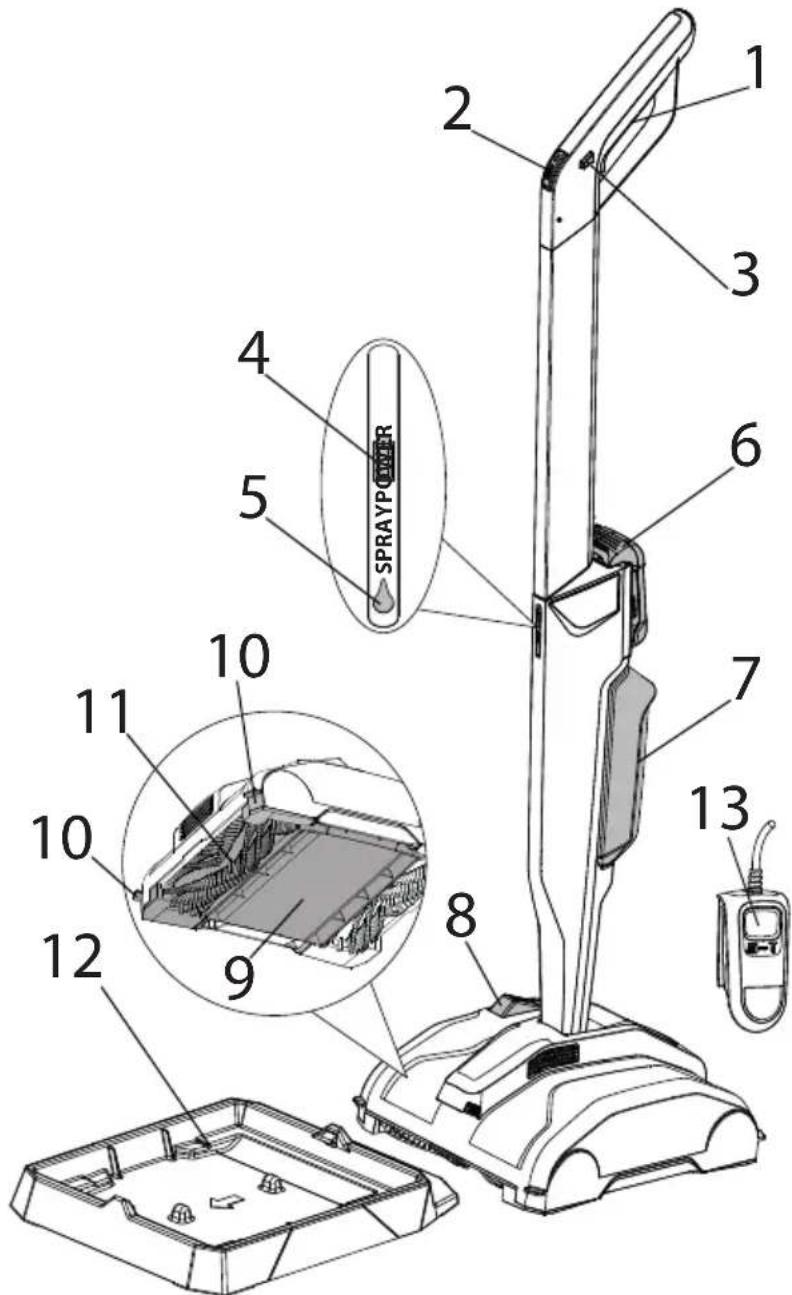

6.Description

1) ON/OFF switch
2) Wet function switch (must be kept pressed)
3) Locking button ON/OFF switch
4) Battery indicator
5) Wet function indicator (lights up blue when wet function is activated)
6) Rechargeable battery
7) Fresh water tank
8) Locking button dirt tank
9) Dirt tank
10) Locking lever cleaning brushes
11) Cleaning brushes
12) Parking tray
13) Charger

** Not included in the delivery. A starter kit with charger and rechargeable battery is available with order No. 2448616 (EU) and 2448617 (UK).

7. Charging

Before connecting to the mains, make sure that the mains voltage corresponds to the specification on the charger's rating plate.

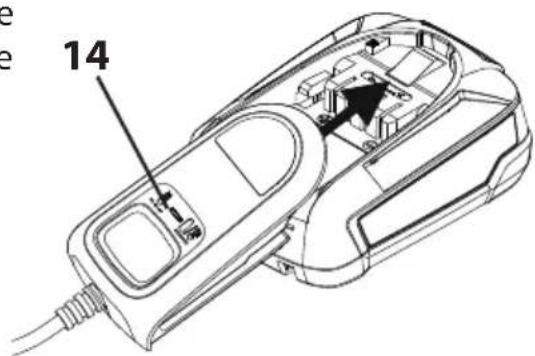

1. Plug the mains plug of the charger into the socket (the battery charging indicator (14) lights up constantly).
2. Insert the battery into the charger, the battery charging indicator (14) starts flashing.

If the battery charge indicator lights up constantly when the battery is inserted, the battery is either fully charged or overheated and must first cool down.

1. Once the battery is fully charged, remove the battery from the charger.
2. Unplug the mains plug of the charger from the socket.

Battery indicator

Green = Sufficient battery charge

Orange = Only minor work still possible

Flashing = Battery must be charged orange

8. Start-up

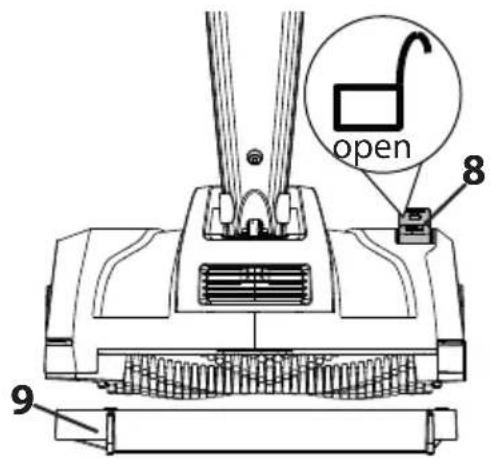

1. Unlock the dirt tank (8, pos.) and remove the dirt tank (9).

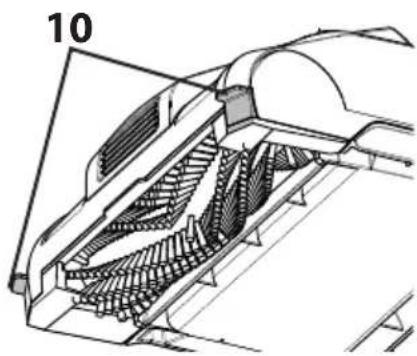

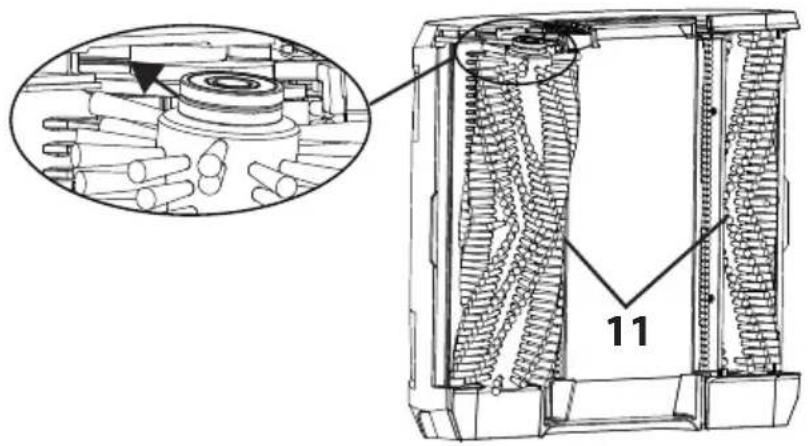

2. Insert the cleaning brushes (11) so that the groove on the brush is correctly seated in the housing. Close the lock (10) (must audibly click into place).

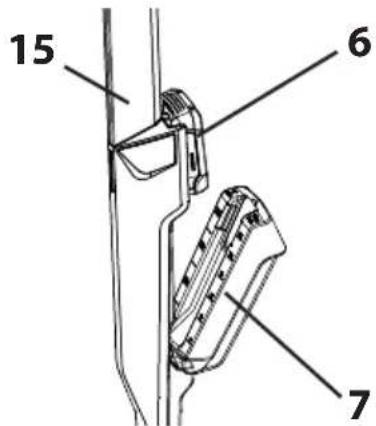

3. Carefully thread the cable into the handle grip (15) (do not pinch) and snap the handle into the Levaro.

The handle grip cannot be removed after assembly. Do not try to dismantle it by force.

1. Remove the fresh water tank (7) and fill it with a mixture of clear water and approx. 10% cleaning agent (increase the concentration in case of heavy soiling).
2. Reinsert the fresh water tank (7).
3. Insert the charged battery (6).

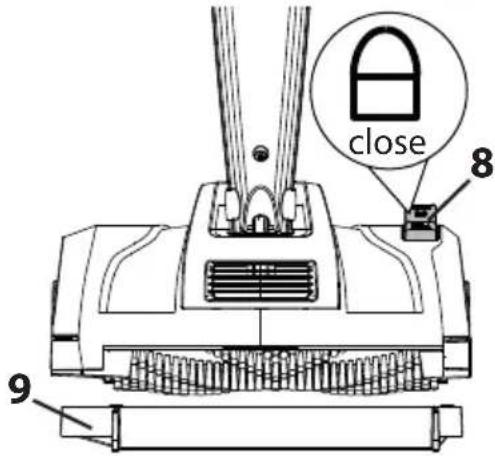

1. Place the Levaro on the dirt tank (9) and lock it in place (8, pos.)

9. Application/Tips

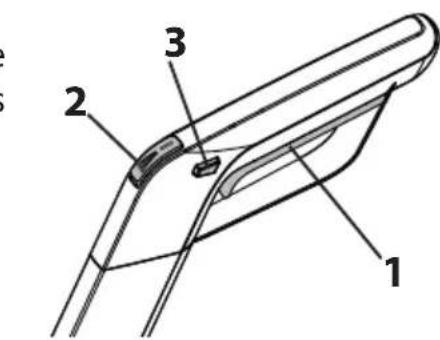

• Press and hold the Unlock ON/OFF switch (3) and then press and hold the ON/OFF switch (1) to start the brushes. The unlock (3) can be released again as long as the ON/OFF switch is pressed.
  Work in straight lines as much as possible.
• The surface to be cleaned should not be too wet. The device is not suitable for drying surfaces.
• Keep the On/Off switch pressed, e.g. to collect dust and leaves when driving over them.
• In addition, press and hold the wet function switch (2) to spray cleaning liquid to loosen dirt (for best results, use the wet function selectively and sparingly).
• Move the device completely over soiled areas (forwards and backwards).

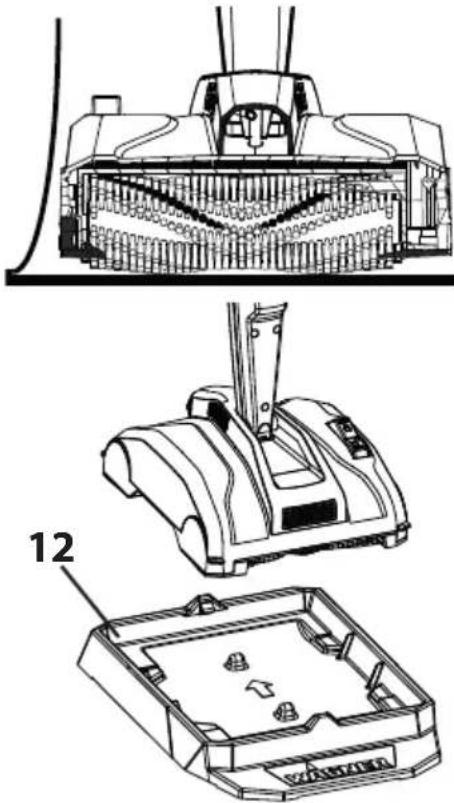

The cleaning brushes are located on the right-hand side closer to the edge of the housing. With this side, work preferably along obstacles and walls.

• When interrupting work or during transport, park the Levaro in the parking tray (12) to avoid soiling and to protect the brushes. Stand with one foot on the parking tray to lift the Levaro out again.

• For best results, it is advisable to match brushes and cleaning agents to the substrate and the type of application:

	WOOD / WPC STONE

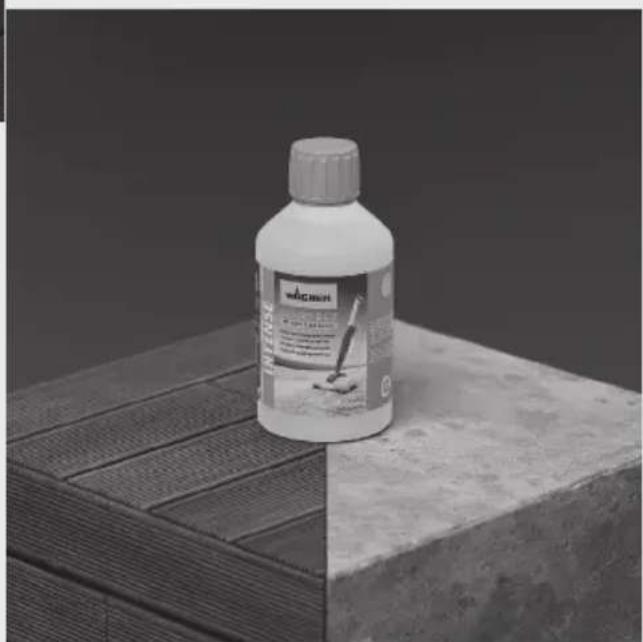

Normal cleaning / maintenance cleaning	Wood cleaning agent (Order No. 2448774)	Stone cleaning agent (Order No. 2448775)
	Universal cleaning brush kit (included with the standard product)	Universal cleaning brush kit (included with the standard product) Stone Smooth cleaning brush kit (Order No. 2448770)

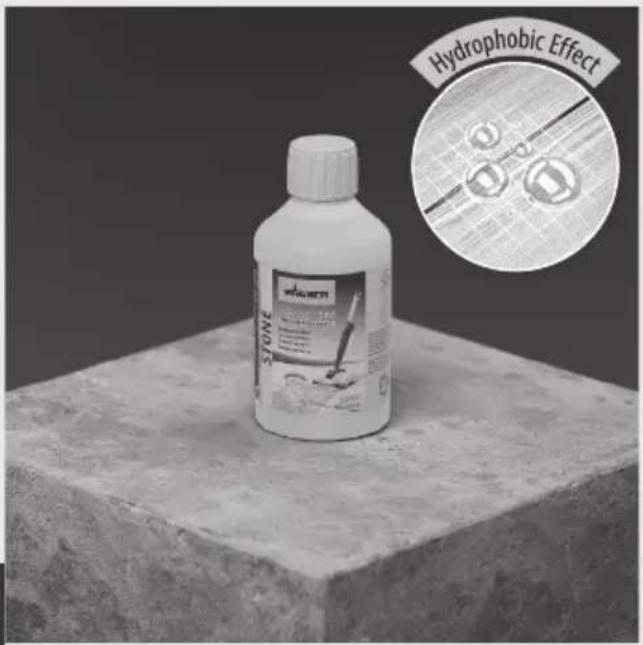

Basic cleaning (for heavier soiling)	Deep cleaning agent (Order No. 2452951)
	Wood Deep cleaning brush kit (Order No. 2456734)	Stone Deep cleaning brush kit (Order No. 2448771)

10. Basic cleaning / Intensive cleaning

After longer cleaning breaks (e.g. winter) and in cases of heavier soiling, we recommend carrying out basic cleaning.

For best results, Deep Cleaner and the appropriate Deep brushes should be used.

• Remove the dirt tank.
• Loosen contamination by running the brushes and cleaning solution over it several times.
• Rinse off loosened dirt with water.
• Replace the dirt tank.
• Remove the remaining dirt by driving over it several times.

11. Emptying the dirt tank

Check and empty the dirt tank regularly (e.g. after approx. 15m^2 , after a battery charge (2.5 Ah) or when refilling the cleaning fluid). If the tank overflows, the floor may be contaminated.

• Unlocking the dirt tank.
• Lift the Levaro and remove it from the dirt tank.
• Empty the dirt tank and rinse it out if necessary.

12. Cleaning and Maintenance

• Unlocking the dirt tank.
• Lift the Levaro and remove it from the dirt tank.
• Empty and clean the dirt tank.
• Rinse out the underside of the Levaro with a garden hose.
• Check brushes and comb regularly and clean if necessary. If the cleaning performance decreases significantly, replace the brushes.
• Gently squeeze the spray nozzle on the left and right and pull it out of the device. Clean the spray nozzle in warm water or replace if necessary.

13. Storage

Place the device in the parking tray and store it in a dry, frost-free place out of direct sunlight.

14. Correction of Malfunctions

Problem	Cause	Remedy
The Levaro does not start / Levaro switches off	·Battery flat, faulty or incompatible ·Locking button of the ON/OFF switch not pressed at start-up ·Device overloaded (e.g. due to blocked brushes)	·Charge or replace ·First press the locking button and then press the ON/OFF switch ·Press the ON/OFF switch 5 times to restart the device
Poor cleaning result	·Cleaning brushes worn out ·Too little or the wrong cleaning agent used ·Brushes do not reach the edge of walls or objects and dirt marks remain.	·Change ·Increase the concentration and use the correct cleaning agent. ·Work along walls and objects with the right side of the Levaro, as the brushes are closer to the edge of the housing here.

15. Spare Parts / Accessories

Spare Parts List Levaro
Pos. Designation Order No.
1 Universal cleaning brush kit 2456735
2 Dirt tank 2449897
3 Fresh water tank 2449898
4 Spray nozzle 2449899

Accessories (not included in the delivery)
Pos. Designation Order No.
1 Stone	Smooth cleaning brush kit 2448770
2 Stone	Deep cleaning brush kit 2448771
3 Wood	Deep cleaning brush kit 2456734

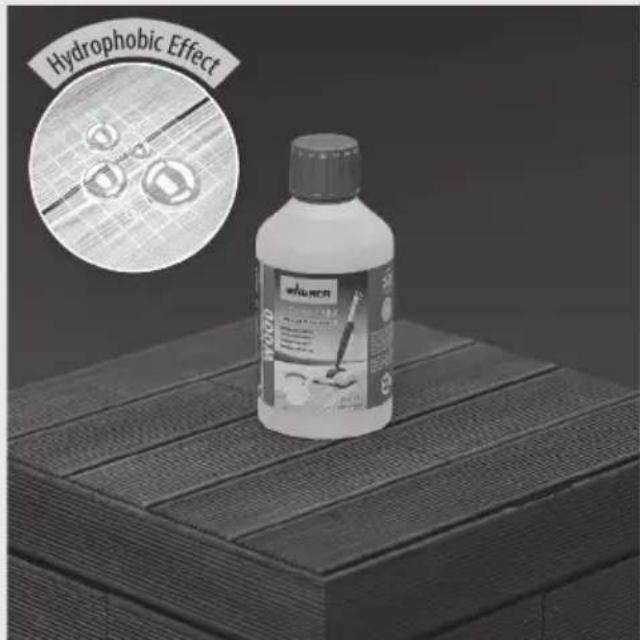

4 Wood	cleaning agent (500 ml), for cleaning floors made of wood, WPC, etc.	2448774
5 Stone	cleaning agent (500 ml) for cleaning floors made of stone, concrete, ceramic, etc.	2448775
6 Deep	cleaning agent (500 ml) for intensive basic cleaning for all floors	2452951
7 Rechargeable battery (Li-Ion, PBA 18 V, 2.5 Ah) 2432719
8 Charger EU (AL 1810 CV)Charger UK (AL 1810 CV)		24327232432724
	Starter KIt 18V EU (contains items 7 and 8)Starter KIt 18V UK (contains items 7 and 8)		24486162448617

16. Environmental protection

At the end of its service life, the appliance, including accessories and packaging, must be recycled in an environmentally friendly manner. Separate packaging materials by type and put them in the recyclables collection. Old appliances and rechargeable batteries/batteries must not be disposed of with household waste. Help protect the environment by taking the appliance and the battery to a local disposal point, contact our customer service team or make enquiries at a specialist shop.

17. Important Note regarding Product Liability!

According to an EU directive, the manufacturer is only liable without limitation for faults in the product if all parts come from the manufacturer or have been approved by the manufacturer and have been mounted to the device and are operated properly. If third-party accessories or spare parts are used, the manufacturer is exonerated wholly or partly from his/her liability if use of the third-party accessories or spare parts have caused a defect in the product.

3 + 1 year guarantee on this WAGNER DIY product

In addition to the statutory warranty for this product, J. Wagner GmbH, based in 88677 Markdorf, Germany, grants you a guarantee (device guarantee) of 36 months for this product. This guarantee is extended by a further 12 months if the product is registered within 28 days of purchase on the Internet at https://go.wagner-group.com/3plus1.

The guarantee includes the free repair of defects which are demonstrably caused by the use of unsuitable materials in the product's manufacture or by assembly errors, as well as the free replacement of faulty components provided there are no guarantee exclusions.

The statutory material defect rights to which you as the purchaser are entitled for the intended purpose from the time of handover of the purchased item are not restricted by the guarantee. The guarantee, along with your statutory warranty rights, will expire if the device has been opened by persons other than authorised WAGNER service personnel. The detailed guarantee conditions can be obtained on request from our authorised WAGNER partners (see website or operating instructions) or in text form on our website:

https://go.wagner-group.com/hf-warranty-conditions

• Modifications reserved -

UKCA Declaration of conformity

We declare under sole responsibility that this product conforms to the following relevant regulations:

Electrical Equipment (Safety) Regulations 2016

Electromagnetic Compatibility Regulations 2016

The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic

Equipment Regulations 2012

The Waste Electrical and Electronic Equipment Regulations 2013

Applied harmonised standards

BS EN 60335-1, BS EN 60335-2-10, BS EN IEC 60335-2-29, BS EN 62133-2,

BS EN IEC 55014-1, BS EN IEC 55014-2, BS EN IEC 61000-3-2, BS EN 61000-3-3,

BS EN 62233

EU Declaration of conformity

We declare under sole responsibility that this product conforms to the following relevant stipulations:

2014/35/EU, 2014/30/EU, 2011/65/EU, 2012/19/EU

Applied harmonised norms:

EN 60335-1, EN 60335-2-10, EN 60335-2-29, EN 62133-2, EN IEC 55014-1,

EN IEC 55014-2, EN IEC 61000-3-2, EN 61000-3-3, EN 62233

The EU declaration of conformity is enclosed with the product. If required, it can be re-ordered using order number 2456291.

https://go.wagner-group.com/hf-warranty-conditions

https://go.wagner-group.com/hf-warranty-conditions

Cleaning Concentrate for all stone outdoor flooring

LEVARO DEEP CLEANER

Cleaning Concentrate for all types of outdoor flooring

LEVARO WOOD CLEANER 3in1

Cleaning Concentrate for all wooden outdoor flooring

ALLE GERÄTE VEREINT IN EINEM 18V AKKU-SYSTEM ALL DEVICES UNITED IN ONE 18V BATTERY SYSTEM

Universal Sprayer W600 18V

Akku Spruhsystem

Cordless Paint Sprayer

FURN0 550 18V

Akku Heissluftpistole

Cordless Heat Gun

LEVAROPowerBRUSH 18V

Outdoor brush system

...and over 100 more devices from the other Power for All Alliance partners!

J.WAGNER GMBH

Silverstone Park, Silverstone

Northants NN12 8GX

T+44(0)1327368410

DVA A/S

Marielundvej 48 C

2730 Herlev

T+4570234239

ORKLA HOUSE CARE DANMARK A/S

Stationsvej 13

3550 Slangerup

Danmark

T+4547337400

F+4547337401

ORKLA HOUSE CARE NORGE AS

Nedre Skoyen vei 26,

PO Box 423, Skoyen

0213Oslo

T+4722544019

[e-mail]

PUT WAGNER SERVICE

ul. E. Imieli 27

41-605 Swietochlowice

T+48/32/346 3700

F+48/32/3463713

ORKLA HOUSE CARE AB

Box 133

564 23 Bankeryd

Sweden

T+46(0)36376300

[e-mail]

ROMIB S.R.L.

[e-mail]
