Technical specifications	Fulgor Milano F7SFC24S1L Freezer
Device type	Freezer
Net capacity	240 liters
Energy class	A+
Dimensions (W x H x D)	60 x 185 x 65 cm
Weight	70 kg
Cooling type	Static cooling
Number of drawers	6 drawers
Minimum temperature	-18b0C
Usage	Ideal for long-term storage of frozen foods
Maintenance	Manual defrost recommended
Safety	Door locking system
General information	2-year warranty

Frequently Asked Questions - F7SFC24S1L Fulgor Milano

How do I set the temperature on the Fulgor Milano F7SFC24S1L freezer?

To set the temperature, use the control panel located on the front of the freezer. Press the temperature button and select the desired temperature using the arrows.

Why is my Fulgor Milano F7SFC24S1L freezer not freezing properly?

Check that the door is properly closed and that food items are not blocking the door seal. Also ensure the temperature setting is appropriate and the freezer is not overloaded.

How do I defrost the Fulgor Milano F7SFC24S1L freezer?

To defrost, unplug the freezer, remove all food, and allow the ice to melt naturally. Use towels to absorb the water and clean the interior once finished.

What are normal noises for the Fulgor Milano F7SFC24S1L freezer?

It is normal to hear refrigerant circulation sounds, clicking when the compressor starts or stops, and a slight humming during operation.

How do I clean the inside of the Fulgor Milano F7SFC24S1L freezer?

Use a mixture of warm water and mild soap to clean the interior. Avoid abrasive products and make sure to dry thoroughly before plugging the freezer back in.

What should I do if the Fulgor Milano F7SFC24S1L freezer displays an error code?

Consult the user manual to identify the specific error code. Generally, turn the freezer off and on to try to resolve the issue. If the code persists, contact after-sales service.

How can I optimize the energy efficiency of my Fulgor Milano F7SFC24S1L freezer?

Make sure the freezer is placed in a cool location, away from heat sources. Do not overload the appliance and keep food well wrapped to prevent frost formation.

What is the storage capacity of the Fulgor Milano F7SFC24S1L freezer?

The storage capacity is 240 liters, allowing for a large quantity of frozen food storage.

Does the Fulgor Milano F7SFC24S1L freezer have a fast-freeze function?

Yes, the freezer is equipped with a fast-freeze function that quickly freezes newly added food, preserving its freshness.

USER MANUAL F7SFC24S1L Fulgor Milano

1.1 For your safety.. 6
1.2 Important information when using the appliance 6
1.3 Caring for the environment 7
1.4 Cleaning, sanitization and maintenance of the ice dispenser 7

2 INSTALLATION 8

2.1 Installation 8
2.2 Connection to the water system 8
2.3 Connection to the electrical power supply. 8

3 BEFORE STARTING 9

3.1 Know your appliance 9
3.2 Model / serial identification 11
3.3 Main components 1
3.4 Electronic Control 1

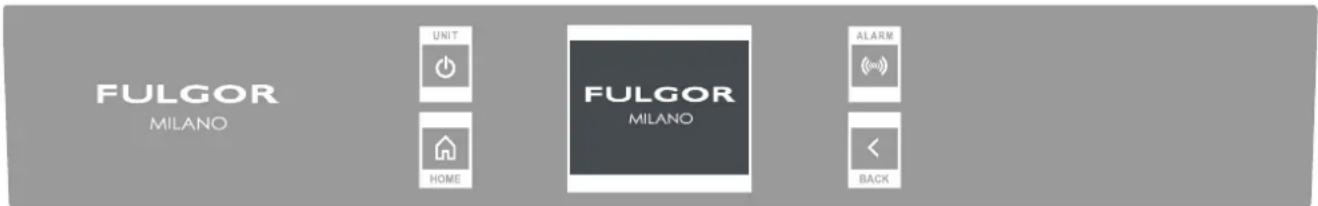

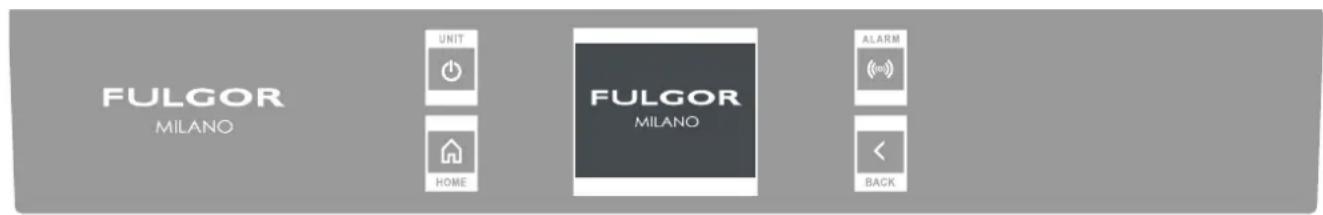

3.5 Main control panel 1

4 BASIC OPERATION OF THE APPLIANCE 1

4.1 Turning the appliance on and off 1
4.2 How to adjust the temperature for different requirements 19
4.3 Messages and alarms 1

5 CUSTOMIZE FUNCTIONS AND SETTINGS 1

5.1 Functions 17
5.2 Settings 23

6 INTERNAL LAYOUT 21

6.1 Internal layout (positioning, adjustment, removal) 20

7 ACTIVATION AND USE OF THE ICE MAKER 21

7.1 Activation and use of the Ice Maker 29
7.2 Water filter for freezer column Ice Maker 29

8 LIGHTING 3

8.1 Lighting 3

9 FOOD STORAGE 3

9.1 General directions 3
9.2 How to best preserve food quality.. 31

0 CARE AND CLEANING 37

0.1 Care and Cleaning 31
0.2 Internal Cleaning 31

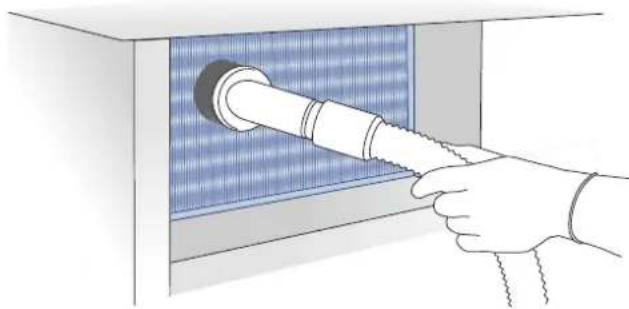

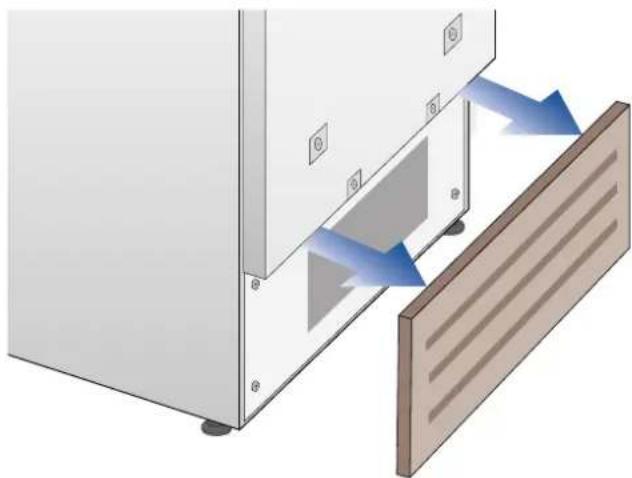

0.3 Cleaning of the toe kick cover and condenser 33

1 TROUBLESHOOTING GUIDE 3

1.1 Troubleshooting Guide 34
1.2 Error messages appearing on the display 36

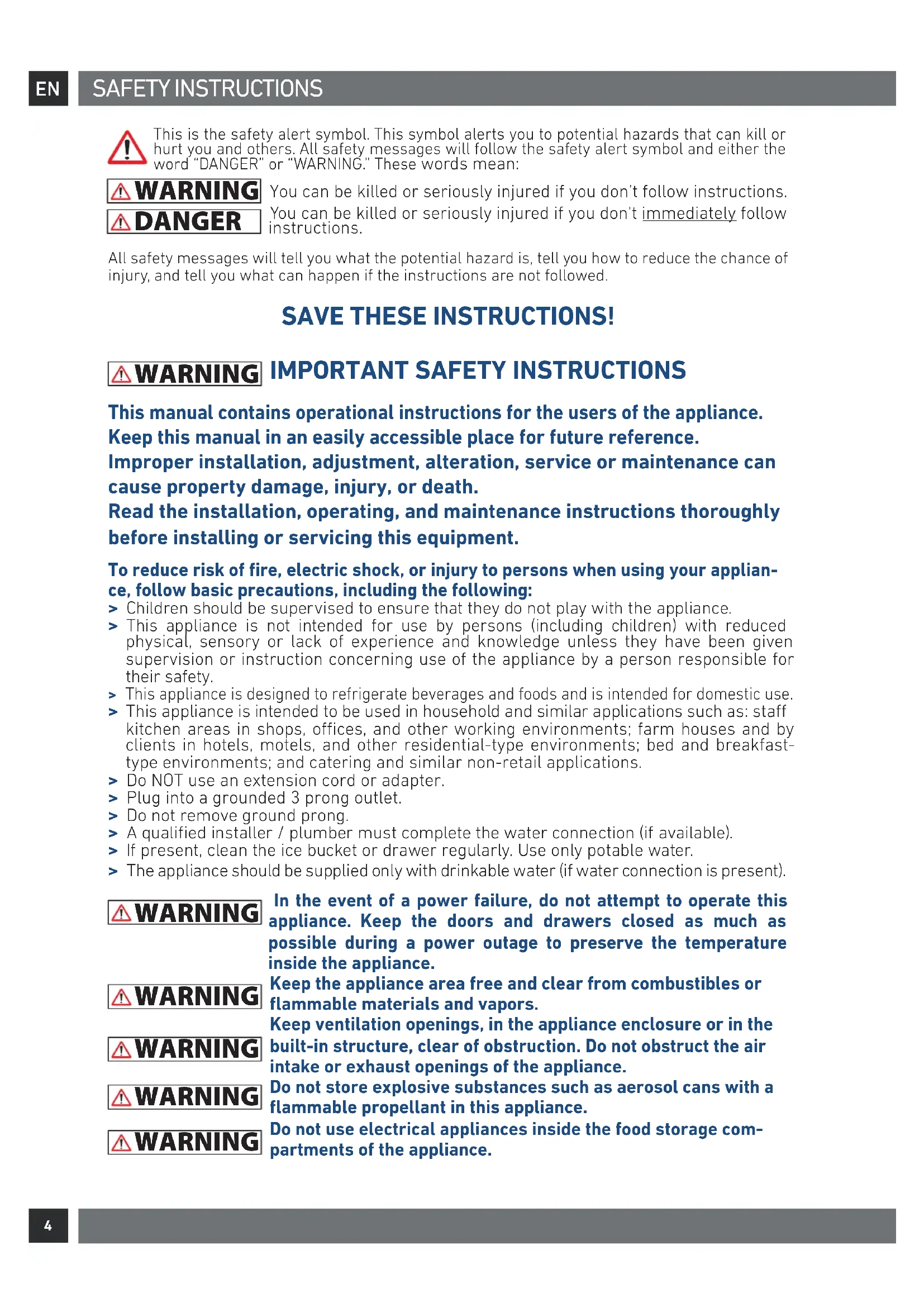

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:

WARNING

You can be killed or seriously injured if you don't follow instructions.

DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

SAVE THESE INSTRUCTIONS!

WARNING

IMPORTANT SAFETY INSTRUCTIONS

This manual contains operational instructions for the users of the appliance. Keep this manual in an easily accessible place for future reference. Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury, or death.

Read the installation, operating, and maintenance instructions thoroughly before installing or servicing this equipment.

To reduce risk of fire, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following:

Children should be supervised to ensure that they do not play with the appliance.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
This appliance is designed to refrigerate beverages and foods and is intended for domestic use.
This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices, and other working environments; farm houses and by clients in hotels, motels, and other residential-type environments; bed and breakfast-type environments; and catering and similar non-retail applications.
Do NOT use an extension cord or adapter.
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
A qualified installer / plumber must complete the water connection (if available).
If present, clean the ice bucket or drawer regularly. Use only potable water.
The appliance should be supplied only with drinkable water (if water connection is present).

WARNING

In the event of a power failure, do not attempt to operate this appliance. Keep the doors and drawers closed as much as possible during a power outage to preserve the temperature inside the appliance.

WARNING

Keep the appliance area free and clear from combustibles or flammable materials and vapors.

WARNING

Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. Do not obstruct the air intake or exhaust openings of the appliance.

WARNING

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

WARNING

Do not use electrical appliances inside the food storage compartments of the appliance.

IMPORTANT SAFETY INSTRUCTIONS FOR PROPER DISPOSAL OF YOUR OLD REFRIGERATOR

WARNING

Suffocation Hazard

Remove doors and / or drawers from your old appliance.

Failure to do so can result in death or brain damage.

WARNING Risk of child entrapment.

Before you throw away your old refrigerator or freezer:

Take off the doors and cut off the power cord.
Leave the shelves in place so that children may not easily climb inside.
IMPORTANT: Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous, even if they will sit for "just a few days." If you are getting rid of your old refrigerator, please follow these instructions to help prevent accidents.

Important information to know about disposal of refrigerants:

Dispos of refrigerator in accordance with federal and local regulations. Refrigerants must be evacuated by a licensed. EPA-certified refrigerant technician in accordance with established procedures.

IMPORTANT SAFETY INSTRUCTIONS FOR MAINTENANCE AND CARE

DANGER

Risk of fire or explosion due to puncture of refrigerant tubing; follow handling instructions carefully. Flammable refrigerant used.

WARNING To be repaired only by trained service personnel.

Use only manufacturer-authorized service parts. Do not use replacement parts that have not been recommended by the manufacturer (e.g, parts made at home using a 3D printer). If power supply cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person in order to avoid a hazard. Any repair equipment used must be designed for flammable refrigerants. Follow all manufacturer repair instructions. Use nonflammable cleaner.

WARNING

Do not puncture refrigerant tubing, do not damage the refrigerant circuit.

WARNING

Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

TIP OVER HAZARD

WARNING Refrigerator is top heavy and tips easily when not completely installed; to avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions (see installation manual provided).

Keep doors taped closed until refrigerator is completely installed especially while unattended. Use two or more people to move and install refrigerator.

Failure to do can result in death or serius injury.

1.1 For your safety

If this appliance is replacing an existing appliance which must be removed or disposed of, makesure that it does not become a dangerous trap for children by cutting its power supply cable and rendering it impossible to close the door. Use the same caution at the end of the lifespan of the new appliance.

This appliance is designed to refrigerate beverages and foods and is intended for domestic use.
The appliance must be installed by following the instructions in the Installation Guide, particular care should be taken not to obstruct the vent openings of the appliance and of the built-in units.
The appliance features a concentrated lighting system with LED lamps. Do not stare into these lamps when they are on to avoid possible eyesight damage.
This warning is also contained on the label attached to the inside of the freezer door.
When the freezer is functioning do not touch the inner metal surfaces with wet or damp hands, since skin may stick to the very cold surfaces.
Do not use any type of electrical equipment inside of the food conservation compartments.
When positioning the shelves, do not place fingers in the shelf guides.
Do not position containers of flammable liquids near the appliance.
Completely switch off the appliance and unplug the power supply cable during cleaning operations. If the plug is not easily reached, it is a good idea to turn off the breaker or remove the fuse that controls the socket that the appliance is connected to.
The packaging material can be dangerous for children: do not allow children to play with the plastic bags, plastic film or Styrofoam.
Any repairs must be performed by a qualified Fulgor Milano Service technician.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
Do not damage the appliance refrigerant circuit pipes.
Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
If the power cord of this appliance is damaged, it must be replaced by the manufacturer, service company or a similarly qualified person. Improper

installations and repairs may put the user at considerable risk.

Repairs may be performed by the manufacturer, service company or a similarly qualified person only.
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Disconnect power to all units before servicing.
If the SUPPLY CORD is damaged, it must be replaced by the manufacturer, its service agent or similar qualified person in order to avoid a hazard.
Children should be supervised to ensure that they do not play with the appliance.

1.2 Important information when using the appliance

Never use electrical appliances inside the appliance (e.g. heater, electric ice maker, etc.). Explosion hazard!
Never defrost or clean the appliance with a steam cleaner! The steam may penetrate electrical parts and cause a short-circuit. Risk of electric shock!
Do not use pointed and sharp-edged implements to remove frost or layers of ice. You could damage the refrigerant tubes. Leaking refrigerant may cause eye injuries or ignite.
Do not store products which contain flammable propellants (e.g. spray cans) or explosive substances in the appliance.

Explosion hazard!

Do not stand on or lean heavily against base of appliance, drawers or doors, etc.
Before cleaning the appliance, pull out the power cord plug or switch off the fuse. Do not pull out the power cord plug by tugging on the power cord.
Store high-percentage alcohol tightly closed and standing up.
Keep plastic parts and the door seal free of oil and grease. Otherwise, parts and door seal will become porous.
Never cover or block the ventilation openings for the appliance.

Symbols used in the Guide:

Note

Recommendations for correct use of the appliance

Important

Directions for avoiding appliance damage

Warning

Indications for avoiding injury to people

1.3 Caring for the environment

Pay special attention to correct disposal procedure for all the packaging materials.
The appliance must not be disposed of with urban waste. Contact local waste disposal centers for on how to dispose of recyclable waste.
Prior to disposal, cut the power supply cord and remove the doors and / or drawers.
During disposal, avoid damage to the refrigeration circuit.
The appliance does not contain hazardous substances for the atmospheric ozone layer, neither in the refrigeration circuit nor in the insulation.

1.4 Cleaning, sanitization and maintenance of the ice dispenser

Failure to follow the instructions regarding sanitizing can compromise the hygienic safety of the ice dispensed.

When using the appliance for the first time and every time the filter is changed, it is recommended to let the water flow in the circuit using the "Manual Cleaning" and discard the ice produced in the first 24 hours.
Clean the ice bucket or drawer regularly but using only drinking water.

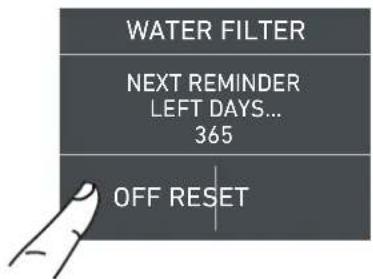

The filter must be changed when indicated on the control panel or when the ice dispenser has not been used for more than 30 days.

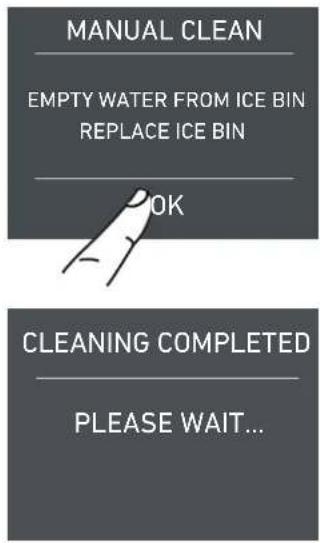

With each filter replacement, sanitise the ice and/or water distribution system using a food grade

disinfectant (with sodium hypochlorite), which does not alter the characteristics of the materials. Rinse with at least 1/2 gallon of water before use.

Only original spare parts supplied by the manufacturer should be used when replacing components in the ice dispenser.
Any work on the appliance must be carried out by a qualified technician or the After-sales Service.

To avoid contamination of food, please respect the following instructions:

Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
Clean regularly surfaces that can come in contact with food and accessible drainage systems.
Store raw meat and fish in suitable containers in the appliance, so that it is not in contact with or drip onto other food.
If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

2.1 Installation

Make sure that installation is performed correctly, adhering to all directions in the specific installation manual provided with the appliance.

Always connect the water before the power.

2.2 Connection to the water system

The models provided with Ice Maker require a connection to the domestic water supply system. This can be executed through the 1/4 water line (copper or polyethylene) to the house water supply. The system pressure must be between 8 psi and 75 psi (between 0.5 bar and 5 bar).

Different pressures can cause malfunctions or leaks in the water system.

The appliance should be supplied only with drinkable water.

Make sure that installation is performed correctly, according to all of the directions in the specific installation manual provided with the appliance.

Do not attempt to use a locally sourced garden hose threaded adapter or braided supply line. It will strip the threads on the appliance water connection solenoid.

2.3 Connection to the electrical power supply

The appliance operates at 115VAC,60Hz and is equipped with a power supply cord with a 3-prong grounded plug, which must be connected to a corresponding 3-prong (15 Amp) grounding-type wall receptacle.

Do not use extension cords and/or multiple adapters for the power supply connection.

3.1 Know your appliance

This manual will answer most of your questions about the product's features. Should you require further information, please check our website further information, please:

call us 1-855-4FULGOR (1-855-438-5467)
visit fulgor-milano.com/us/en/assistance

Before calling, write down the model code and serial number which are available on the warranty certificate and on the rating plate, and any messages which may have appeared on the display.

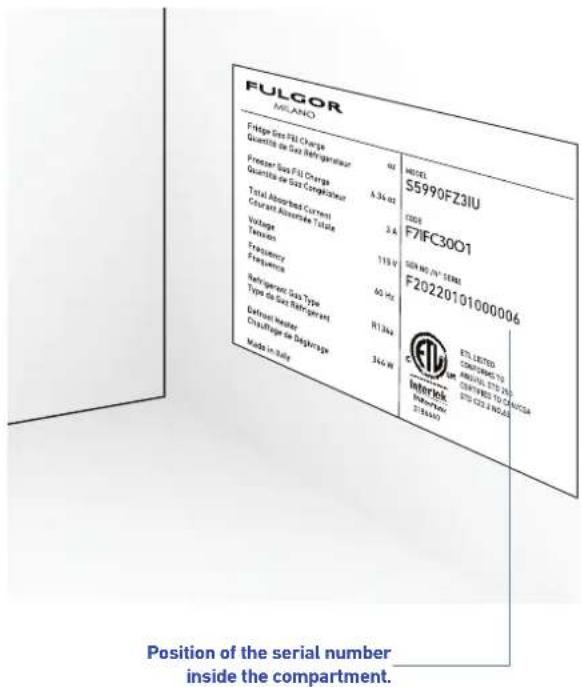

The rating plate is located into the appliance, on side cabinet, close to the shelves.

Before calling, please make sure to have the following information ready:

Model code, serial number and proof of purchase (date and dealer).

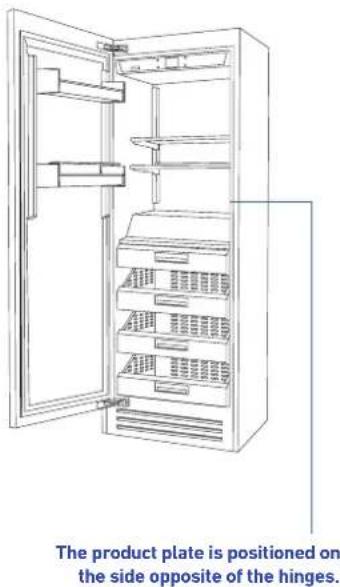

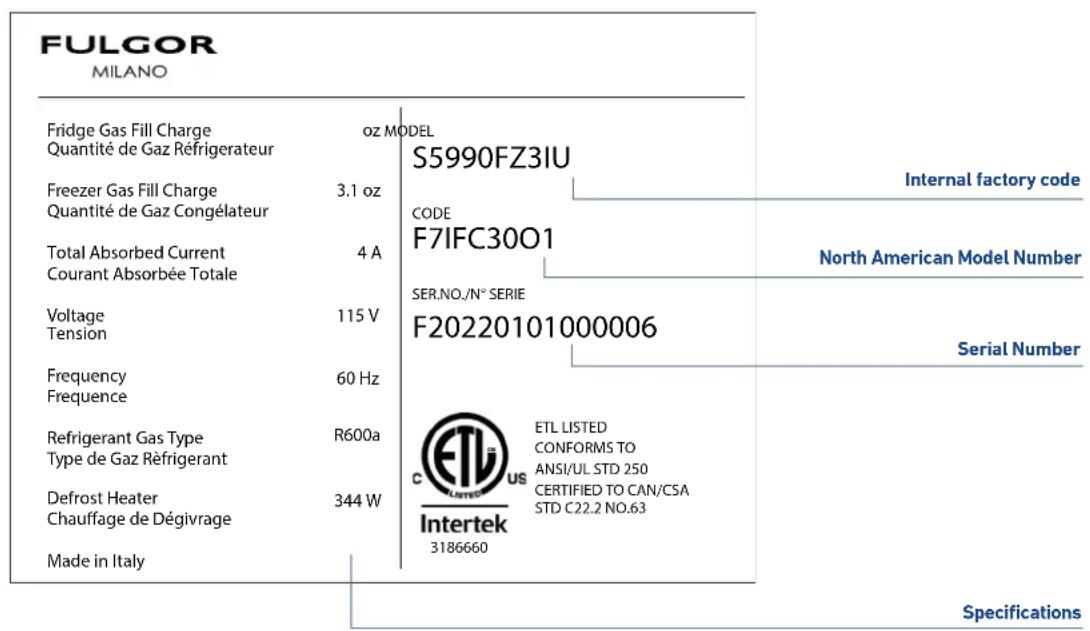

3.2 Model / serial identification

The model / serial identification identification tag shows the technical data, the serial number and the model. The product plate must never be removed.

This appliance is rated ST for the ambient conditions it is designed to operate in

SN (Subnormal) from +50^ to +90^ (+10^ to +32^)
N (Normal) from +61°F to +90°F (+16°C to +32°C)
ST (Subtropical) from +64^ to +100^(+18^ to +38^)
> T (Tropical) from +64^ to +109^ (+18^ to +43^)

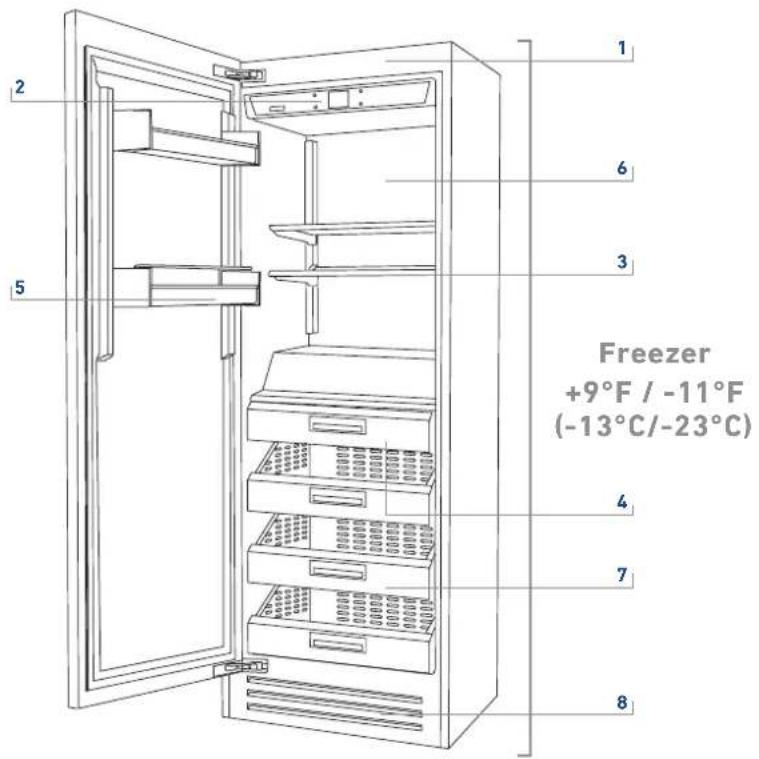

3.3 Main components

Freezer

1) Appliance body.
2) Interactive control panel.
3) Adjustable height shelf.
4) Ice maker container.
5) Door bins.
6) LED illuminations.
7) Stainless drawers.
8) Removable toe kick.

3.4 Electronic Control

The innovative electronic control system maintains constant temperature in the entire compartment and visualizes it on the control panel display. It also allows user interaction making it possible to personalize settings of the various functions and to receive sound and/or visual messages should any malfunction occur in the appliance.

3.5 Main control panel

On/Off:

Touch the icon to turn the unit on or off.

Home

Touch the Home icon for going back to the main display screen.

Alarm

Touch the icon to view the alarm message and temporarily deactivate the audible alarm.

Back

Touch the arrow icon for going back to the previous display screen.

4.1 Turning the appliance on and off

First time starting the unit

Touch the button 念 . The display shows the following launch screens:

1) Logo.

2) Initial test (lasts 3 minutes).

3) The display shows the main screen with the temperature measured from inside the compartments. Automatically the unit starts to cool down until reaching the set temperatures.

4) Home screen.
- Freezer compartment +0^ (-18^)

When the appliance is first switched on it is recommended to wait at least 12 hours without opening the doors and before placing any food inside the unit. During such period deactivate any error message by pressing the Alarm button.

Shutdown.

1) touch the icon off for 3 seconds.

2) Touch YES to confirm.

3) Confirm shutdown again touching YES.

When the fridge is off there are no indicators that the fridge is plugged to a socket.

Switching off for longer periods

During long absence periods it is recommended to switch off the freezer and disconnecting the electrical plug orthebreaker controllingthesocket. Completely empty the freezer, clean and dry it and leave the doors and drawers partially open to prevent unpleasant odors.

During the first startup, it will not be possible to use the Menu to modify the factory settings until the preset temperature has been reached.

Each time the appliance is switched on it goes through a self-diagnosis procedure lasting three minutes before completely starting up.

4.2 How to adjust the temperature for different requirements.

Each model has been carefully tested before leaving the factory and is adjusted in such a way to ensure high performance and low power consumption. Usually, it is not necessary to modify the settings.

How it looks to the home screen:

Modify the temperatures compartment

How to modify the freezer compartment temperature.

1) Home screen. Touch the icon of freezer compartment.

2) Scoll up/down to select the desided temperature

freeze from +9^ to -11^ (-13°C to -23°C)

3) Touch OK to confirm the chosen temperature.

The temperature shown can vary slightly in respect to the set temperature following frequent openings of the doors or insertion of room temperature foods or large quantities of foods.

6 to 12 hours are necessary to reach the selected temperature.

Padlock icon.

The padlock icon shows up when the temperatures are set up.

The padlock open/close shows that the compartment's temperatures can or can not be modified by the user.

Usually a grey padlock will show open, in that case you can scroll up or down with a finger on the display, select the desired temperature and press OK to confirm.

Whereas a white closed padlock will be seen if the user has activated a function that modifies the settings of the refrigerator and prevents the user from changing the temperature of the compartment.

If the icon function is touched and a specific function is set (for example holiday mode, etc...), the white padlock will be seen closed and it won't be possible to change the temperature of the compartments as long as the function is active and until it is manually deactivated or its preset duration has expired.

4.3 Information signals of warning messages on the display.

An integrated control system will give information through messages you will see on the display.

There is an alarm tone that occurs with some error messages which can be turned off by touching the alarm button on the main control panel.

You can find the list of the error messages at the end of this manual.

INFORMATION FOR THE USE OF THE DISPLAY.

It is possible to personalize the operation of your Fulgor Milano unit in order to adapt it to the different ways you might want to use it.

5.1 Functions.

After touching the icon Function on the home screen, the icons for the following functions will be shown.

1) Max Cool Freezer Mode

The function works at the maximum power level, without any break, from a minimum of 1 to a maximum of 12 hours, depending on time set, permitting more rapid freezing of food that has just been placed in the freezer. Once the time set is expired, the function deactivates automatically, returning to the previously set temperature. It is possible to program a time-delayed activation of the function.

After a prolonged interruption of power supply, it is necessary to reactivate the function.

1) Max Cool Freezer Mode.

2) Holiday Mode.

3) Beverage Cooler.

4) Ice Maker.

5) Water filter.

6) System cleaning.

A) Home screen. Touch FUNCTIONS.

B) Touch the icon MAX COOL FREEZER Mode.

c) Touch ON to activate the function.

D) Scroll up / down to setting the desired start time delay and then press OK.

It is possible to program this function 1 to 24 hours in advance.

2) Holiday Mode

This function (recommended in case of prolonged absences since it allows considerable energy savings) brings the freezer compartment temperature to -0^ (-18^)

It is possible to program the duration, or it can be manually deactivated upon return after a period of absence. This function remains active even if during the period of absence there is a prolonged interruption of electrical power.

It is possible to program a period from 1 to 90 days.

3) Beverage cooler

This function can be activated when it is necessary to cool off beverages quickly, by placing them inside the freezer compartment.

It is possible to select a duration of 1 to 45 minutes. A sound signal will indicated when the timer has expired.

After removing the beverages, deactivate the sound signal by pressing the Alarm button.

A) Home screen. Touch FUNCTIONS.

A) Home screen. Touch FUNCTIONS.

B) Touch the HOLI-DAY Mode icon.

B) Touch BEVER-AGE COOLER.

C) Touch ON to activate the function.

C) Touch the button ON to activate the function.

D) Scroll up / down to set the desired time (in days) and then press OK.

D) Scroll up / down to set the desired time (in minutes) and then press OK.

4) Ice Maker activation

A pre-rinse of the water circuit should be performed before activating the Ice Maker for the first time. After a few minutes the Ice Maker can be activated.

Do not activate the Ice Maker unless the appliance is connected to the water line.

A) Home screen. Touch FUNCTIONS.

B) Scroll twice right and then touch the ICE MAKER icon.

C) Touch ON to activate the ice maker.

4a) Set Ice cube Size - Fast Ice

The IceMaker function permits selecting the size of the ice cubes, by choosing between Large (base setting) or Medium, and activation of the Fast Ice function, which increases the quantity of produced ice.

The Fast Ice function deactivates automatically after 24 hours.

A) Home screen. Touch FUNCTIONS.

B) Swipe left until you see the ICE MAKER icon and touch it.

c) Touch SET CUBE SIZE. The default cube size is "LARGE".

D) Touch MEDIUM/LARGE to choose the desired cube size.

E) If you would like to increase the production of ice, touch the Fast Ice icon, this will enable the freezer to produce more ice, up to 1.5kg a day.

F) Touch ON to activate Fast Ice.

Note: Fast Ice is also good to enable if you are entertaining and anticipating many more door openings than usual to access food items or ice to help mitigate temperature fluctuations.

5) Water Filter Activation

The water filter is essential for the purification of the water used for making ice. The display permits visualizing the time left before the filter needs to be replaced. The water filter reminder has to be activated by the user.

5a) Water Filter Deactivation

To deactivate an active filter reminder follow these steps:

A) Home screen. Touch FUNCTIONS.

A) Home screen. Touch FUNCTIONS.

B) Scroll once right and then touch WATER FILTER.

B) Scroll once right and then touch WATER FILTER.

C) Confirm by touching YES.

C) Touch OFF to activate Water Filter Reminder.

D) Enable the reminder by touching YES.

D) Confirm the function by touching YES.

E) Indicates the remaining days before the replacement due date of the filter.

Touch the home button

Push Home button to go back to the main screen or push "Yes" to deactivate filter reminder.

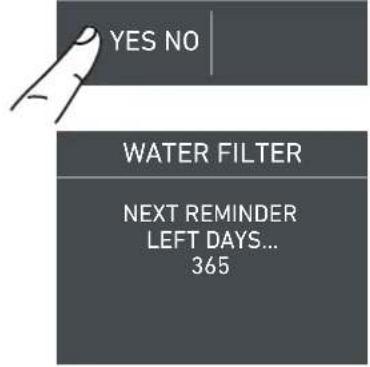

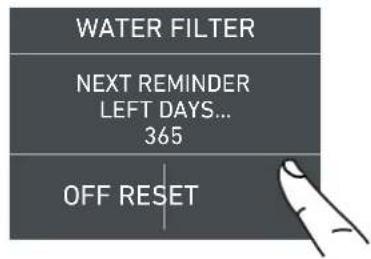

5b) Reset Filter

The Reset Filter function sets to one year the time left before the filter needs to be replaced. It is necessary to set the reminder function to one year each time the cartridge is replaced.

A) Home screen. Touch FUNCTIONS.

B) Scroll once right and then touch WATER FILTER.

C) Touch the Reset button.

D) Touch the Yes button to proceed.

E) The countdown to the next water filter cartridge replacement will be indicated.

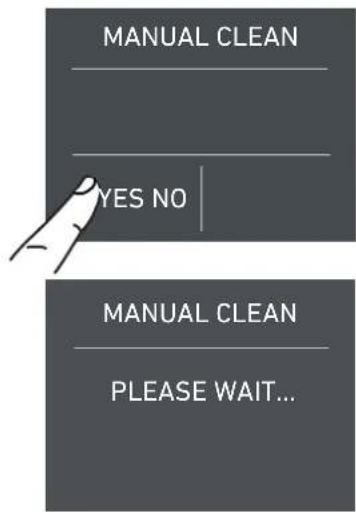

6) Manual Clean, Water Filter

If ice production has been disabled or unused for a long period or this is the first use (just installed) or the filter has just been replaced, it is recommended to perform a Manual Clean function. Before proceeding it is important to turn off the ice maker (see earlier instructions on deactivating the ice maker).

A) Home screen. Touch FUNCTIONS.

B) Touch SYSTEM CLEANING.

c) Touch YES to activate the manual cleaning.

D) Please wait...

E) Touch ENTER to start the cleaning.

F) Cleaning running... (approximately 40s)

G) At the end of the cleaning, press Ok and empty water from ice bin. You should get 3 to 3-1/2 cups of water in the collection bin (about 3 / 4 depth).

H) Wait a few seconds for the main menu screen to appear.

Repeat the cleaning steps until the water in the collection bin is clean.

Place a water container or vessel under the ice tray to capture any water then close the drawer.

Bypass filter

The included filtration system can be bypassed when excellent water quality is available from the home water system. You can simply remove the water filter from the adapter and the system will automatically bypass the cartridge. If not using the physical water filter, ensure the water filter reminder is disabled so you are not reminded needlessly to replace a filter you are not using.

5.2 Settings.

It is possible to personalize the settings of your Fulgor Milano freezer for adapting it to the different ways you might want to use it.

1) Date.

2) Time.

3) Fahrenheit or Celsius.

4) Language.

5) Sabbath Mode.

6) Reset.

7) Demo Mode.

8) Maintenance.

9) Service.

10) Info System.

1) Date

The display will show the date in the format (day:month:year).

By touching the display you can modify the settings.

2) Time

The display shows the hours and minutes in the format hh:mm.

This function selects the display at 12 or 24h

A) Home screen. Touch SETTINGS.

A) Home screen. Touch SETTINGS.

B) Touch DATE.

B) Touch TIME.

c) Scroll up or down until the desired year appears and press OK.

C) Touch the desired method which you want the time to display: 12 hour or 24 hours.

D) Scroll up or down until the desired month appears and press OK.

D) Scroll up / down to set the hour and then press OK.

E) Scroll up or down until the desires date appears and press OK.

E) Scroll up / down to set the minutes and then press OK.

3) Set° F/°C

This function allows the temperature to be displayed in Fahrenheit or Centigrade. The factory setting in Fahrenheit.

A) Home screen. Touch SETTINGS.

B) Touch the icon ^ C / ^

C) Scroll up / down to select either Fahrenheit or centigrade degrees and press OK.

4) Language

To set the language of the freezer, simply touch the settings button on the display.

A) Home screen. Touch SETTINGS.

B) Touch LANGUAGE.

C) Scroll up / down to select the desired language and press OK.

5) Sabbath Mode

The function makes it possible to comply to certain religious observances requiring the operation of the appliance to not be affected by the opening or closing of the doors. The thermostatic control, inner lighting and ice maker are deactivated.

A) Home screen. Touch SETTINGS.

B) Scroll right twice and touch the Sabbath icon.

C) Touch ON to activate the function.

D) Touch YES to activate the function.

E) The fridge will work accordingly to this configuration.

6) Reset

It gives the possibility to restore the default settings that were set in the factory, cancelling all the changes that has been made from there onward.

A) Home screen. Touch SETTINGS.

B) Scroll right twice and touch RESET.

c) Touch the YES button to confirm the selection of the resetting of factory default settings.

D) Touch ON.

E) The reset has been performed. The freezer's factory settings have been restored.

Note: Sabbath mode automatically expires after 72 hours. To deactivate prior to this, touch the display to wake it up and choose the 'OFF' option.

7) Demo Mode

It is possible to simulate the functioning of the fridge, for showroom display or for trade shows.

A) Home screen. Touch SETTINGS.

B) Scroll right twice and touch DEMO MODE.

c) Insert the password for the activation.

Default password 1-2-3-4

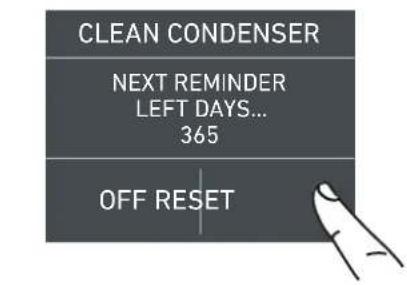

8) Maintenance (through alarm sign).

For the entire unit to function as designed, it is important to periodically clean the access toe-kick cover and the condenser.

The default setting of the unit is "Warning disabled".

The required cleaning every 12 months is denoted by an audible and visual message on the display.

For details see following pages.

A) Home screen. Touch SETTINGS.

B) Scroll to the right three times and touch MAIN- TENANCE.

c) To enable it, touch YES.

D) Instead, if you want to disable the warning previously set, touch RESET.

If you want to disable the reminder, at step D touch OFF, then touch YES as below.

E) To disable the warning, touch YES.

9) Service

The service function is reserved for the authorized Fulgor Milano after sales service technician.

10) Info System

The Info System function shows the product data, for example the software version, serial number and the factory code of the freezer.

A) Home screen. Touch SETTINGS.

B) Touch the INFORMATION icon.

c) The display will show the data specific to the appliance.

6.1 Internal Layout (positioning, adjustment, removal).

Ice Tray

Located in the upper drawer of the freezer compartment.

after removal, make sure to reposition it correctly.

Do not place hands or fingers near the Icemaker when in function.

Shelves

The shelves are positioned on the left and right by two pins engaged in the shelf supports.

To reposition a shelf it is recommended to removed contents for safety and ease of movement.

Lift the shelf slightly and pull towards you to disengage the pins from the support geometry in the guides.

Slide the shelf to the new position and engage the support pins in the corresponding regions of the shelf support guides. Prior to loading the shelf with goods in the new position, test the positioning for secure support by applying moderate pressure down on the top surface with a hand while keeping the other hand in a supporting position in case the shelf is not properly seated.

Door bins

7.1 Activation and use of the Ice Maker

ICE MAKER

If the ice is not used frequently is advisable to empty the ice bin once every 8-10 days.

It is normal that some ice cubes stick to one another. If the ice is not frequently used, the older cubes can become opaque, and will have a strange flavour and become smaller.

The Icemaker automatically deactivates if the Holiday function is activated.

When the Icemaker is started for the first time, it is recommended to dispose of the first full bin of ice.

If the equipment has been switched off for a month or more, it is recommended to perform a water and filter cleaning cycle.

The ice maker will continue to operate even when the ice bin is not in position

To activate the Ice Maker after installation of the appliance touch the function icon and then and then the ice maker icon from the functions

Please note that 12 to 24 hours are necessary before ice production may begin.

The production is of 10 cubes per cycle in approximately 10 cycles in 24 hours.

The yield depends on the temperature set in the freezer, the room temperature and the frequency of door opening.

If the appliance is operating without being connected to the water system, make sure that the Icemaker is deactivated according to the instructions

The Ice Maker produces ice until the ice tray is full and will automatically stop once the maximum level is reached.

With the Fast Ice function, it is possible to increase the quantity of ice produced within 24 hours, while the Set Cube Size function permits selection of the size of the produced ice cubes.

Do the ice cubes have an unusual odour?

Ice is a porous material which can absorb odours from the environment. Ice cubes which have been in the ice cube container for a long time may absorb odours, stick together and slowly become smaller.

We recommend that old ice cubes not be used. Other means of preventing odors:

The ice cube container should be cleaned occasionally with warm water. Make sure that you switch off the ice maker before clearing the container. Rinse out and wipe dry.

Check the contents of the freezer for spoiled or out-of-date food. All odorous foods should be wrapped thoroughly or stored in airtight containers to prevent the build-up of odors.
The water filter may have to be replaced in some models.
In some cases the quality of the water connection in the house should be checked.

Operating noises

Quite normal noises

Grumbling: refrigerating unit is running. Fan in the recirculating air system is running.
Bubbling, humming or gurgling noises: refrigerant is flowing through the tubes.
Clicking: motor is switching on or off. Solenoid valve on the water connection is opening/closing.
Rumbling: ice cubes are falling into the ice cube container.

Do not place any bottles or food for rapid cooling in the ice cube container. The ice maker may become blocked and be damaged.

7.2 Water filter for freezer column Ice Maker

Freezer columns equipped with automatic icemakers include an externally mounted water filter kit. The water filter manifold and waterline connections must be installed in conjunction with the freezer as the waterline connecting the back of the appliance to the filter kit must be in place before installing the unit.

The filter kit should be installed in an accessible location (such as an adjacent cabinet) to allow for the water filter cartridge to be changed annually.

If you choose not to use the water filter (such as connecting the appliance to an already filtered water source) then it is suggested to also set the function Water Filter through the icon, touch the icon reset and disable the warning to avoid receiving reminders to change the filter (that you are not using).

8.1 Lighting

To provide optimum interior lighting, LED strips illuminate the freezer compartment from the side and sets of LED lights directly illuminate different areas of the compartment.

In case of malfunction and/or wearing out of the lighting system, the repair should be carried out by a qualified Fulgor Milano Service technician.

9.1 General directions

Your appliance is designed to ensure precise, constant temperatures and appropriate humidity levels in all compartments (where applicable).

Nevertheless, to properly preserve all of your foods, it is not enough to have an excellent appliance. It is also necessary to know the rules for correct food preservation.

Do bear in mind that all foods will inevitably change their characteristics over the passage of time. This change begins long before the food is consumed, since foods contain micro organisms which multiply and can cause deterioration. This process occurs more rapidly due to improper handling, preservation temperatures and humidity levels.

It is therefore recommended to follow the directions presented below which will permit using your freezer in the most effective and safe manner to keep your foods in the best way for as long as possible.

Periodically check that all foods are in a perfect state of preservation. If you believe that a food item was kept for an excessive period of time and may be deteriorated, do not consume this item or even taste it, even if it seems to still be healthy, since the bacteria that cause deterioration of food can also cause poisoning and illness.

When in doubt, throw the food away.

9.2 How to best preserve food quality

When buying groceries

Always take the following precautions:

Place any packages of raw meat, fish or poultry in plastic bags so that they do not drip on other foods.
Purchase meat, poultry and fish last. Do not leave your groceries in a warm car for extended periods. Keep a freezer bag in your car and use it in case of very high temperatures or long trips.
Check the production dates and "best before" times on foods to be sure that they are fresh.
Be very careful when buying fresh foods, and only buy a quantity that can be consumed during your planned preservation period.

When placing foods in

To keep food in the freezer is a good idea to use freezer containers.
Label and date the packages.
Be careful to correctly position the food items on the shelves in a way that does not obstruct the air circulation vents inside the compartment.

After a prolonged interruption of electrical power, once the electrical power is reactivated, an audible signal will indicate if the temperature has raised above normal levels. In addition to this the display will show for one minute the highest temperature detected inside the compartments, to allow the user to decide how to better use the food items.

After one minute the display will resume normal operation, while the Alarm button

will continue to blink.

Press the Alarm button to display the highest recorded temperatures.

10.1 Care and Cleaning

To clean the parts made of steel use a microfiber cloth and the sponge provided in the kit with the appliance. Always use the cloth and sponge in the direction of the steel's satin finish.

Every now and then, to polish the steel, wipe with a slightly damp microfiber cloth.

Do not use the sponge on aluminium parts, such as the handles and the profiles of the glass shelves.

You should use special care to keep the ventilation openings in the appliance or in the cabinet that houses it free of obstructions.

Carefully follow the detailed directions that can be found in the provided kit and never use abrasive or metallic products which could scratch and damage the satin finishing on the appliance permanently.

Before performing any sort of cleaning, disconnect the appliance from the electrical power supply.

Make sure you do not damage the refrigerant circuit in any way.

Do not use chlorine-based detergents or cleaning agents.

10.2 Internal cleaning

Clean the internal and removable parts by washing them with a solution of lukewarm water, a small amount of dishwashing detergent.

Rinse and dry right away.

Do not use mechanical devices or other methods to speed up defrosting.

Do not use water on the electrical parts, lights and control panel.

The use of chlorine-based detergents or similar that contains it should be avoided (bleach, hypochlorite, etc).

Do not bring cold glass parts into contact with boiling water.

Do not wash any parts of the appliance in a dishwashing machine since this could damage or irreparably deform the parts.

10.3 Cleaning of the toe kick cover, filter and condenser.

It is recommended to perform the following cleaning steps very 12 months. If enabled, a visual message on the display will serve as a reminder.

It is possible to disable the warning signal and see the time left before the next cleaning has to be done.

Behind the frontal toe kick cover there is the condenser.

To clean it use a vacuum cleaner with a soft brush attachment at maximum power, sweeping it along the vent slits. In case of a significant dust build up, the toe kick cover can be removed to allow a more accurate cleaning of the filter.

On the maintenance settings, after the installation of the unit and after it has been turned on, you can reset the condenser cleaning warning.

In the case the warning sign is enabled, there will be a warning every 12 months, alerting that it is time to clean the condenser.

After cleaning it, touch the reset icon in order to reactivate the warning signal in 12 months.

If you do not want the cleaning signal alert for the condenser, touch the Off icon.

Lower condenser.

For cleaning the condenser follow the instructions:

Remove the removable grille under the door.

Clean it thoroughly from any dust build up as shown in the picture, taking care not to damage it.

The edges of the condenser are sharp, therefore use adequate protection for hands and arms when cleaning the condenser.

11.1 Troubleshooting Guide

If you notice malfunctions in your appliance, use this guide before calling for service: this guide can help you personally resolve the problem or could provide important information to be conveyed to the service technician to ensure rapid and effective repair.

Display message and audible alarms.

A malfunction is usually indicated by the display. Problems that cannot be solved by the user are reported through a fault code. Keep in mind, however, that in messages or alarms they may appear for particular conditions of use or during start-up. In these cases, deactivate the audible alarm by pressing the Alarm button and leave the appliance running and limit the opening of the doors to the maximum for about 10-12 hours.

The freezer does not work.

Is the appliance connected to the electrical power supply?

Is electrical power available at the electricity socket? Is the Unit button activated?

Is the unit in 'Demo' Mode?

Check that doors are closing properly and gaskets are sealing.

The freezer is warmer than usual.

Does the display show a malfunction code?

Is the temperature adjusted correctly?

Were the doors or drawers open for a long period of time?

Were large quantities of food recently inserted?

Is the unit in 'Demo' Mode?

The compressor is running for a long time period.

Bear in mind that during very hot weather and with very high temperatures in the room it is normal that the compressor remains on for prolonged periods of time.

Were the doors or drawers open for a long period of time?

Were large quantities of food recently inserted?

Check that the doors are closed and that the food or containers do not obstruct the perfect closure of the door.

Is one or more compartments in Max Cool Mode?

If you hear unusual noises.

It is normal to hear noises from the ventilators or compressors during operation or during the defrost phase.

Noise could be more noticed depending on the position of the appliance and the surrounding environ

ment (hard surfaces can reflect and amplify noises).

Condensation inside and outside of the freezer.

If the climate is very humid, the formation of condensation is normal. Opening the door or drawers for prolonged periods of time can contribute to the formation of condensation.

In any case, make sure that the doors are always completely closed when not being accessed.

Ice or frost build up inside the freezer.

Were the doors left open for a long period of time? Do the doors close completely?

If the doors do not close completely, contact your installer.

The doors are difficult to open.

The appliance is designed to ensure a fully hermetic closure. When the door is closed, a vacuum condition can occur: in this case it is necessary to wait a few seconds until the pressure balances before opening the door.

Appliance is cooling but lights and display are not working.

Check to see if the appliance was accidentally placed into Sabbath Mode

The Ice Maker does not work.

Make sure that the Ice Maker is on (icon).

To switch on the Ice Maker press the button.

Make sure that the appliance is connected to the water supply.

The Ice Maker does not produce sufficient amounts of ice.

On average, the Ice Maker produces approximately 10 cubes of ice every two and half hours. The ice bin can accumulate approximately 500 cubes.

The ice cubes freeze into one block.

If the ice is not used frequently, it is possible that blocks of ice may form. It is recommended to remove the block of ice cubes and then let the Ice Maker fill the ice tray again. When taking ice, bring cubes from the back of the bin to the front to ensure a good rotation of stock.

The ice has an unusual flavour or colour.

When the Ice Maker is started for the first time, it is recommended to empty the first full tray of ice cubes assuming that a Manual Clean was performed to initially flush the system.

If the freezer was switched off for more than one month or if the cartridge was not changed for more than six months, it could be necessary to replace the filter cartridge.

Contact a plumber or a water treatment expert to make sure that the problem is not due to the water supply.

If the unit you purchased was used as a showroom model it may be in a special energy-saving mode called Demo Mode where the appliance appears to be operating (lights work and false temperatures are displayed) but no cooling actually takes place. If you suspect your appliance is in Demo Mode please refer to the instructions in this manual related to 'Demo Mode'.

11.2 Error messages appearing on the display

Display message Malfunction description

Power Failure!!	Prolonged interruption of electrical power the appliance resumes work automatically, the display shows the warmest temperatures achieved in the compartment during the power outage
Door Unit OPEN	Unit door open the message appears after few minutes from the door opening
Replace filter	Replace filter cartridge message appears when only 30% of filter capacity is left as a reminder to order a replacement filter. Change when the capacity is 0 days left.
Error Code...	Functional problems Contact Customer Care who may help you to solve the problem or put you in contact with the nearest Service Agent may help you solve the problem
Check condenser	Check Condenser Every 12 months the display shows the message “Check Cond”, clean the condenser and follow the instructions above about how to clean the condenser.

In case of errors, touch the button Alarm 念 and the display will show the error message with its error number code.
The message will be shown for 3 seconds, then it will go back to the home screen.
For blocking the message on the screen, press on the display, the button info ( i ). The message will be on the screen for 30 seconds, then it will go back to the home screen.
In the case there is more than one error message, the display will show the different error messages sequentially over time.

1 INDICATIONS IMPORTANTES CONCERNANT LA SECURITE 4

CONSERVEZ CES INSTRUCTIONS!

ATTENTION CONSIGNES DE SECURITE IMPORTANTES

3.5 Panel de control principal

Encendido y Apagado
